MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : VLCN

Station operator information from: RINEX headers

Data attribution information from: UNAVCO DOI Database

from DOI link: https://doi.org/10.7283/T5KP806Q

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 8.785 degrees

Longitude: -82.639 degrees

Height: 1442.573 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

NA

env

PM

env

5 Minute Final Solutions

IGS14

kenv tar files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

RSNO

24.87 km

CDTO

34.87 km

DAV2

45.91 km

PUAR

56.83 km

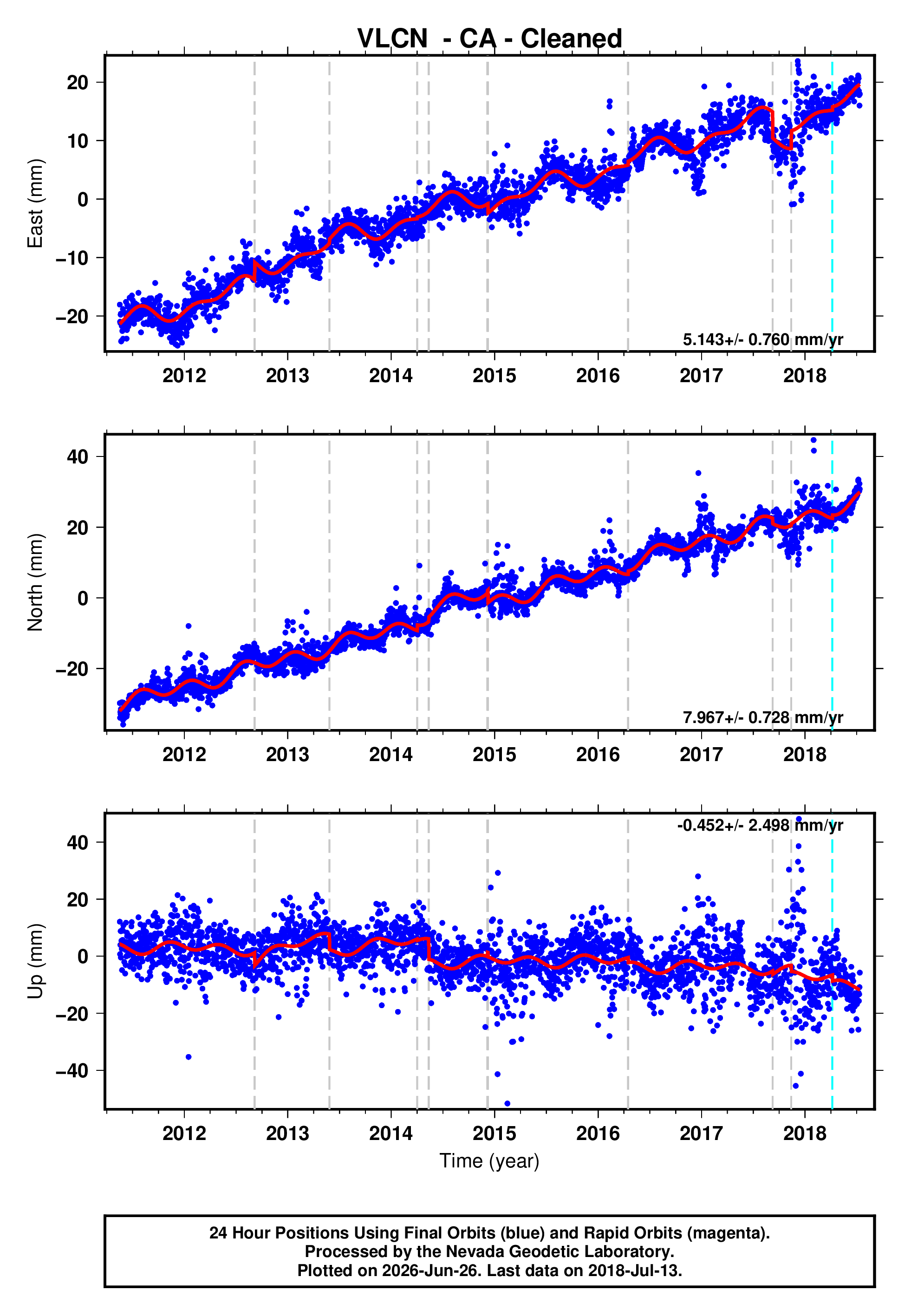

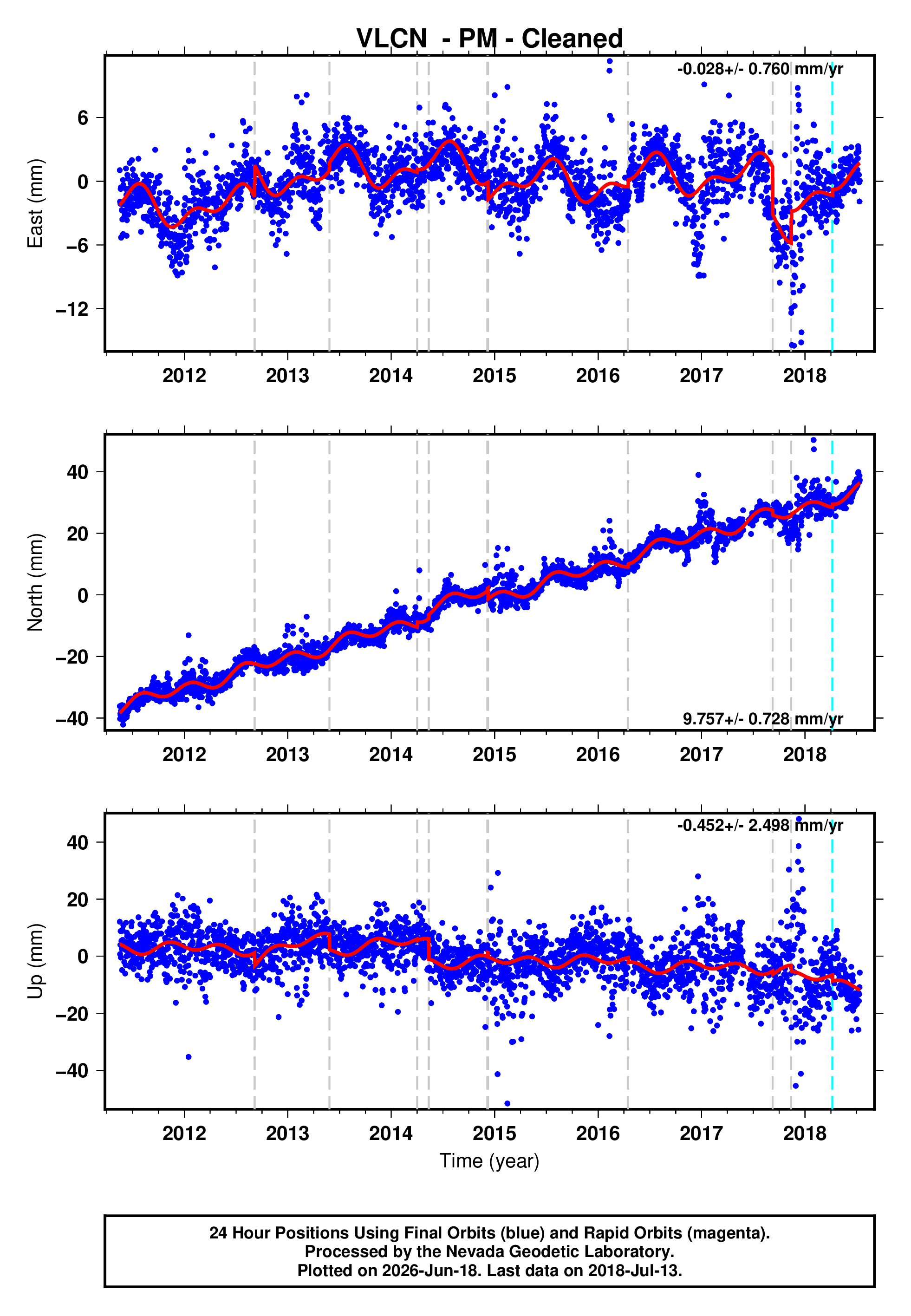

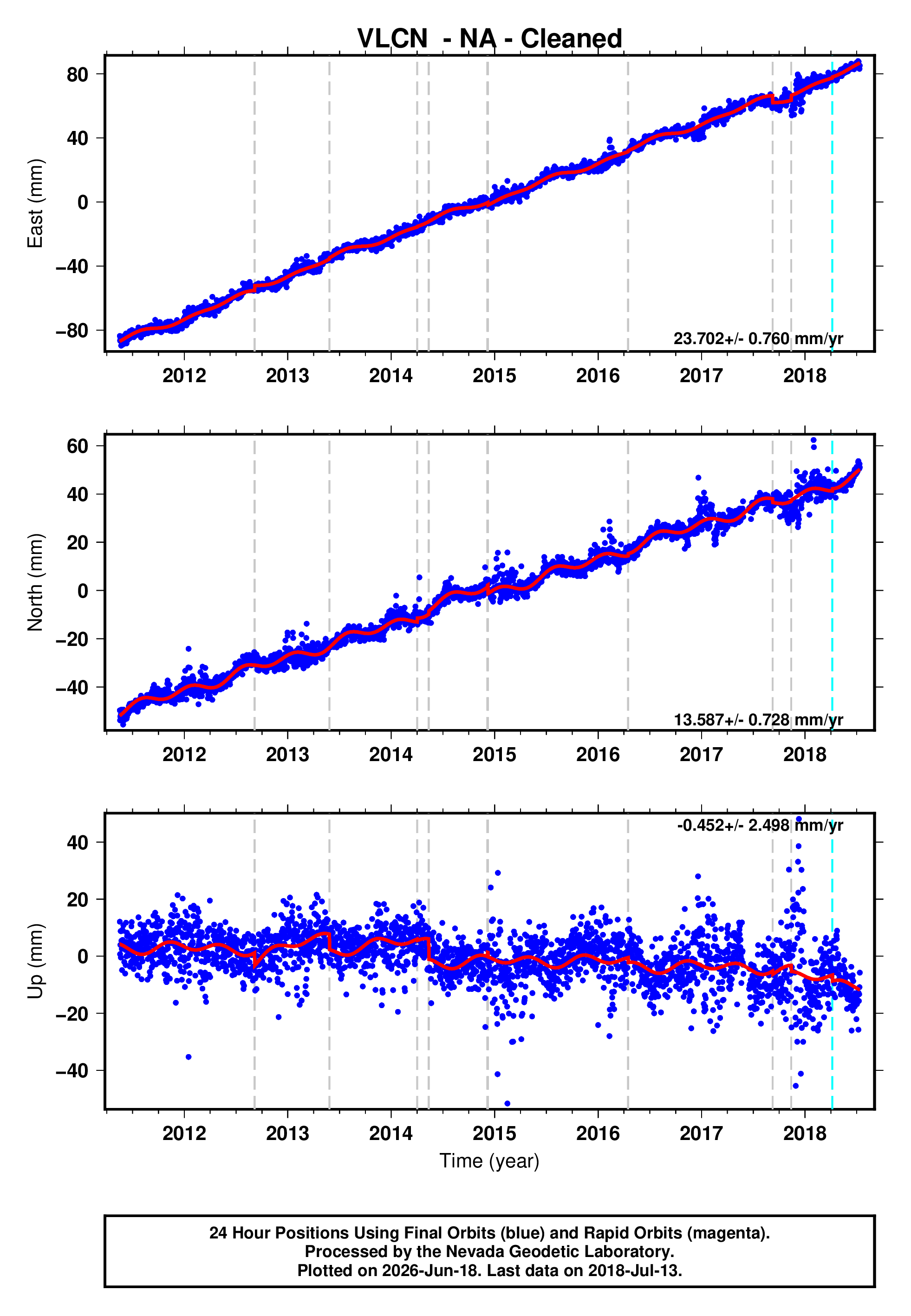

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

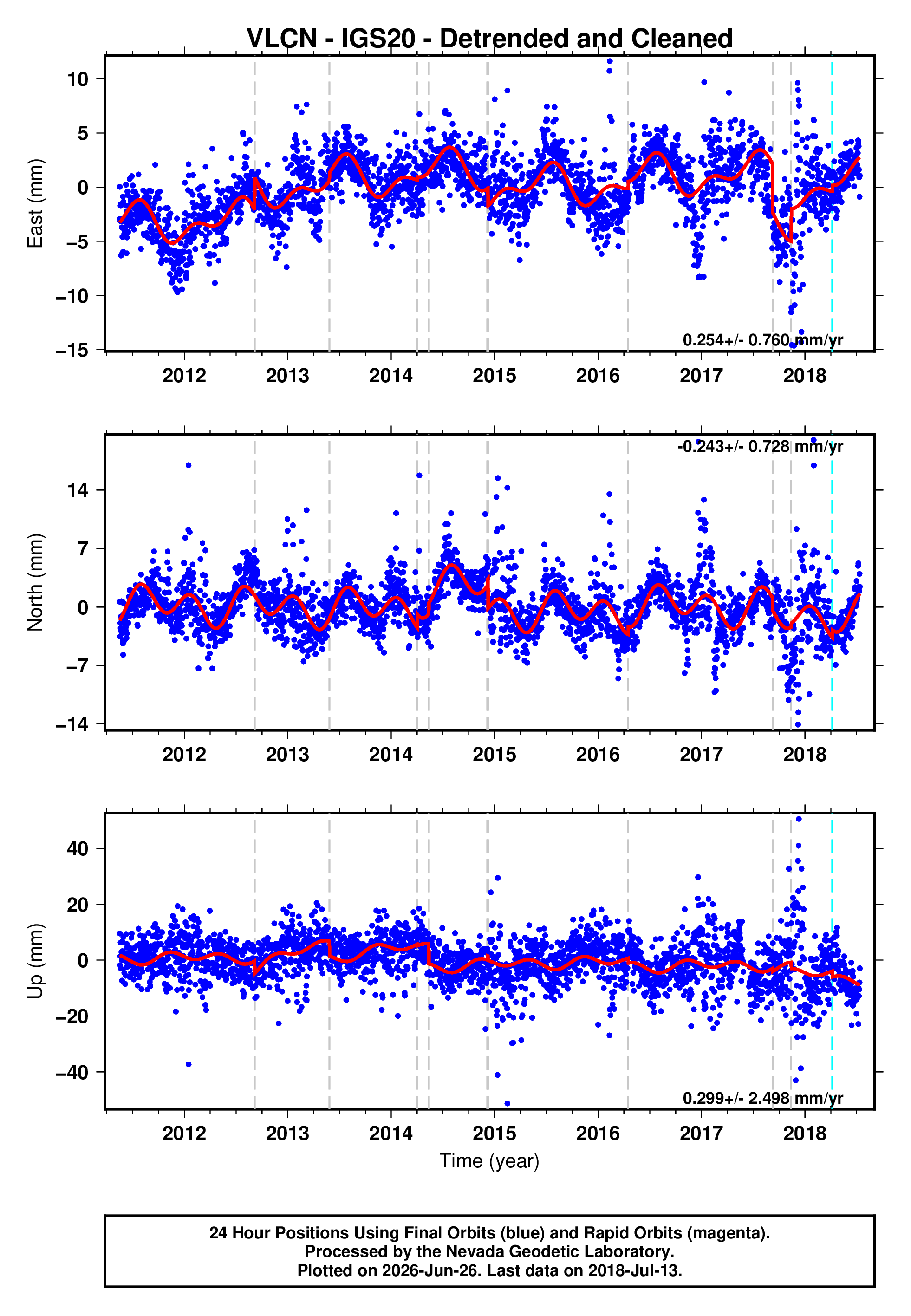

GPS time series plot
GPS time series plot

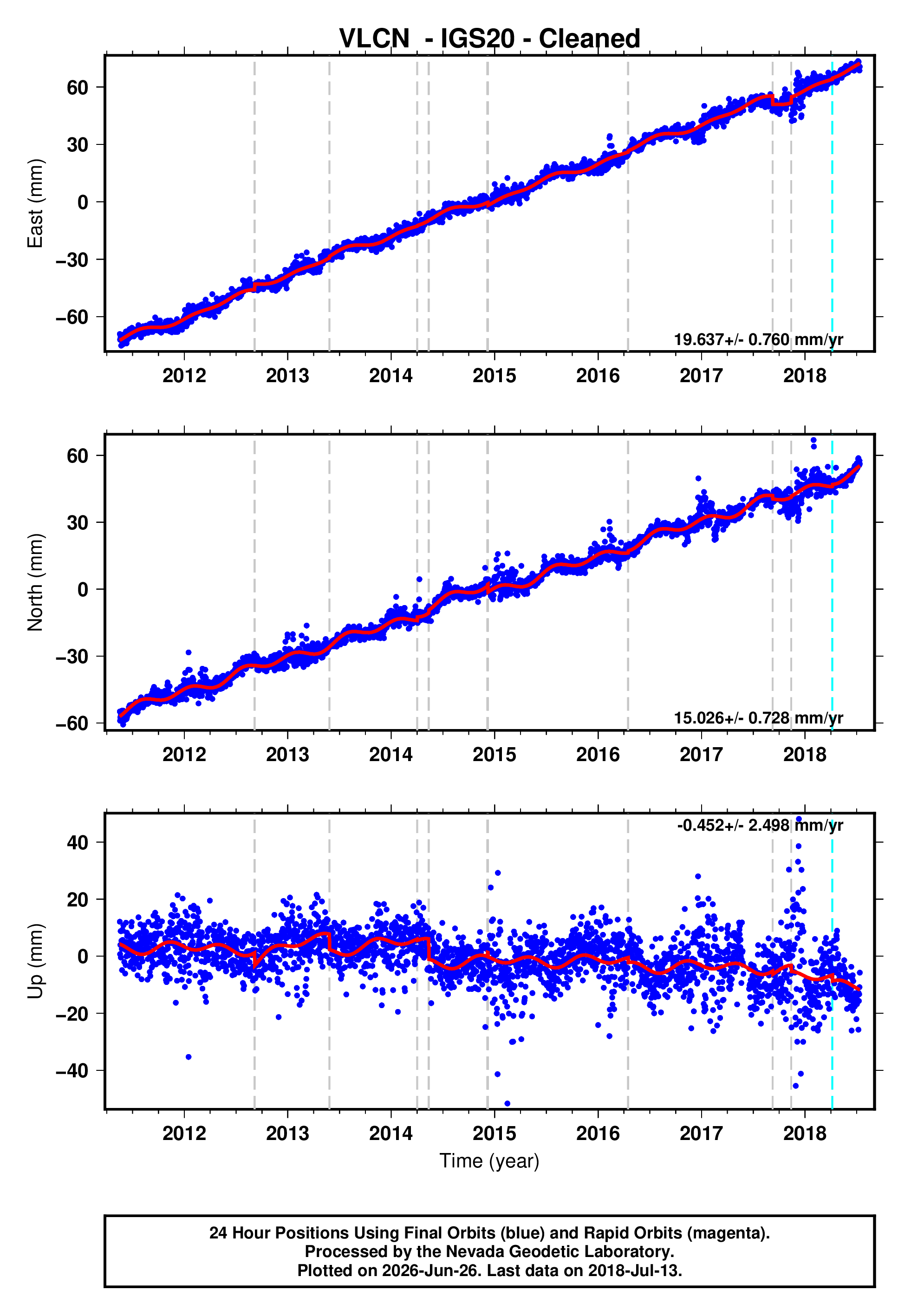

GPS time series plot
GPS time series plot

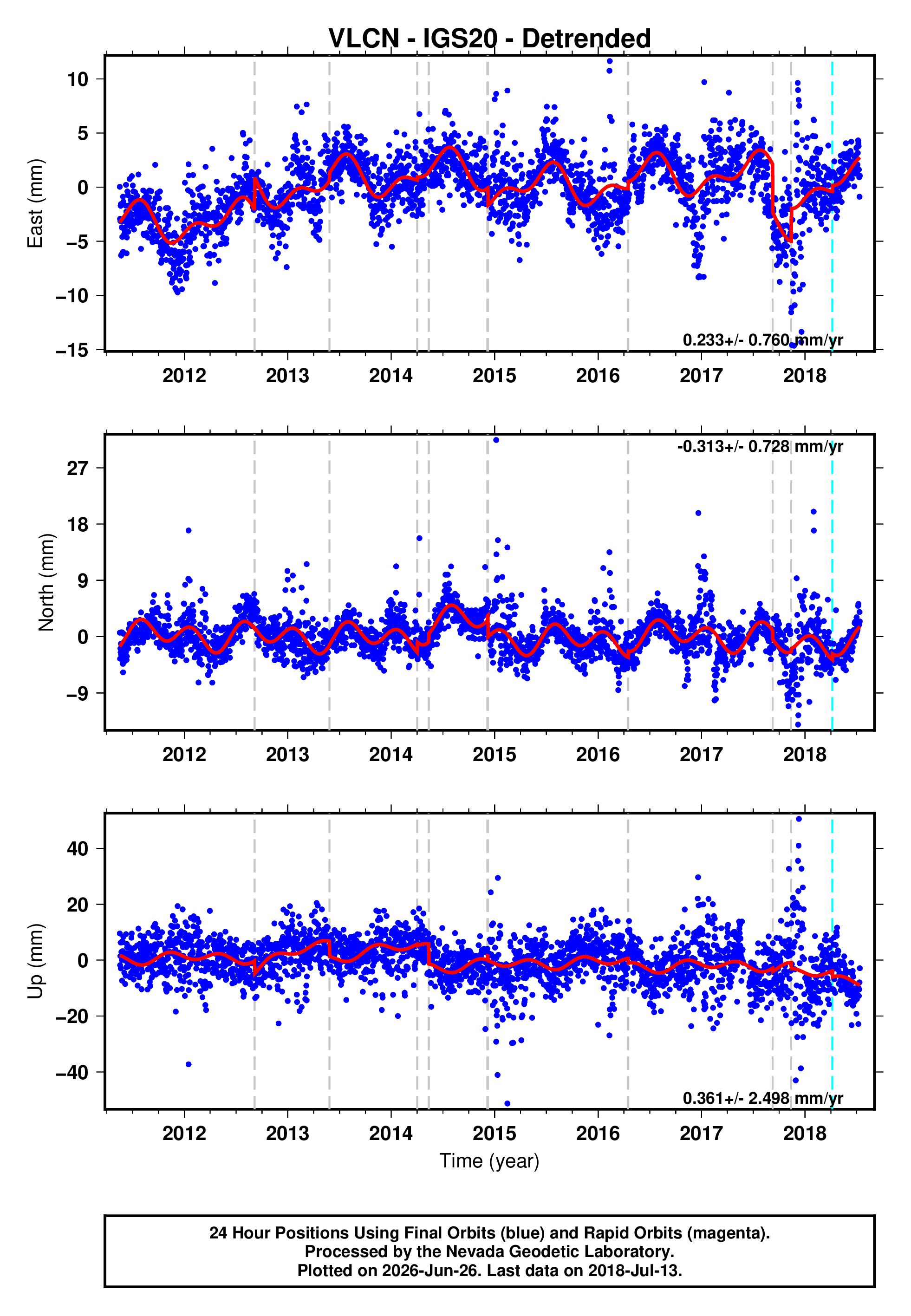

GPS time series plot
GPS time series plot

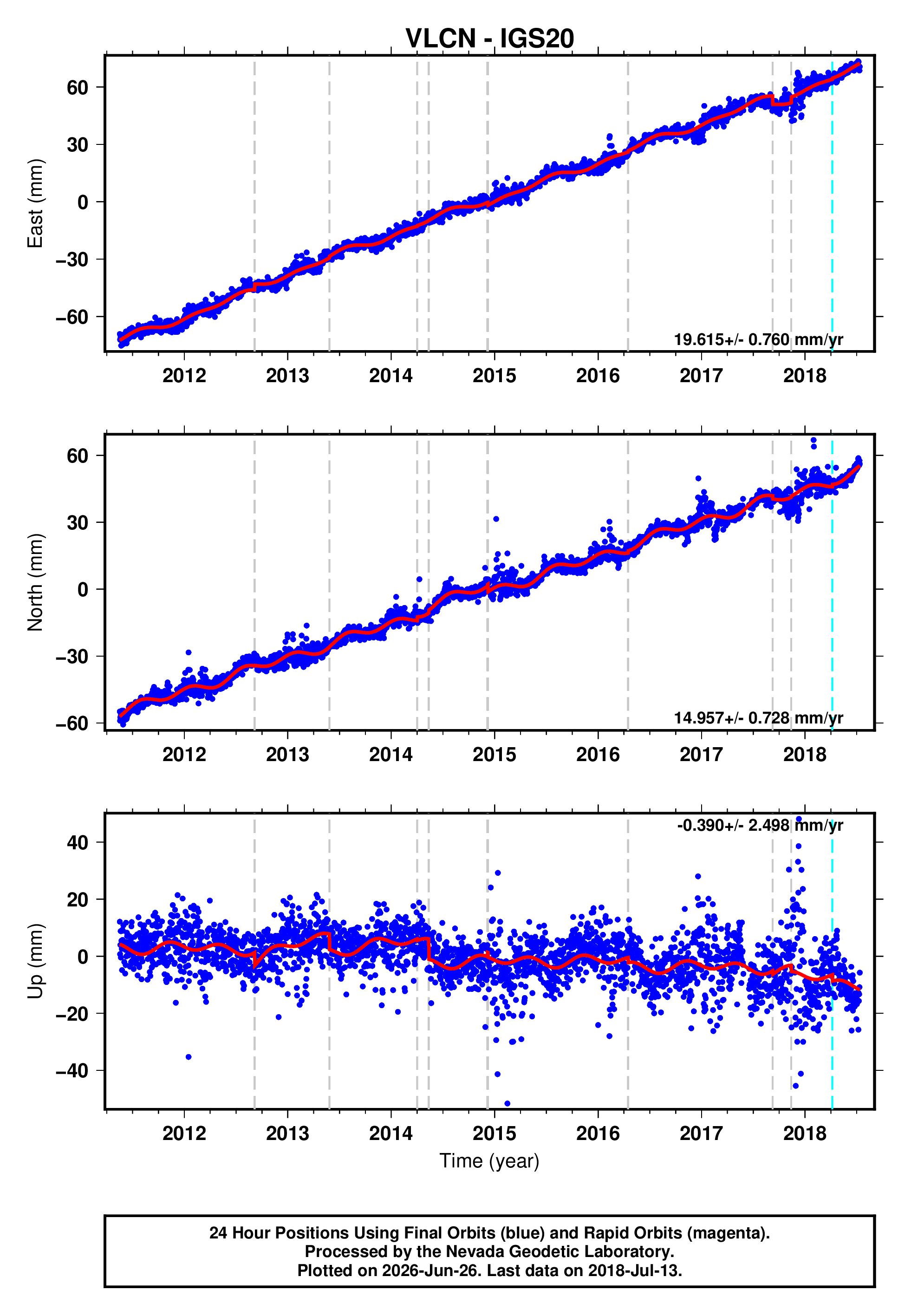

GPS time series plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
VLCN12SEP05 usp000jrsw 7.6 327.2
VLCN13MAY27 usb000h700 5.7 70.1
VLCN14APR02 usc000p11f 6.0 99.6
VLCN14MAY13 usb000qk64 6.5 179.0
VLCN14DEC06 usc000t49v 6.0 89.9
VLCN14DEC08 usc000t4iq 6.6 94.1
VLCN16APR16 us20005j32 7.8 981.6
VLCN17SEP08 us2000ahv0 8.2 1407.2
VLCN17NOV13 us2000bmhe 6.5 218.5
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
