MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : MAVL

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: -45.367 degrees

Longitude: 168.118 degrees

Height: 592.532 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

AU

tenv3

PA

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

AU

tenv3

PA

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

SCTY

91.89 km

LEXA

94.29 km

RLTN

117.14 km

LDRZ

128.00 km


Time Series Plots

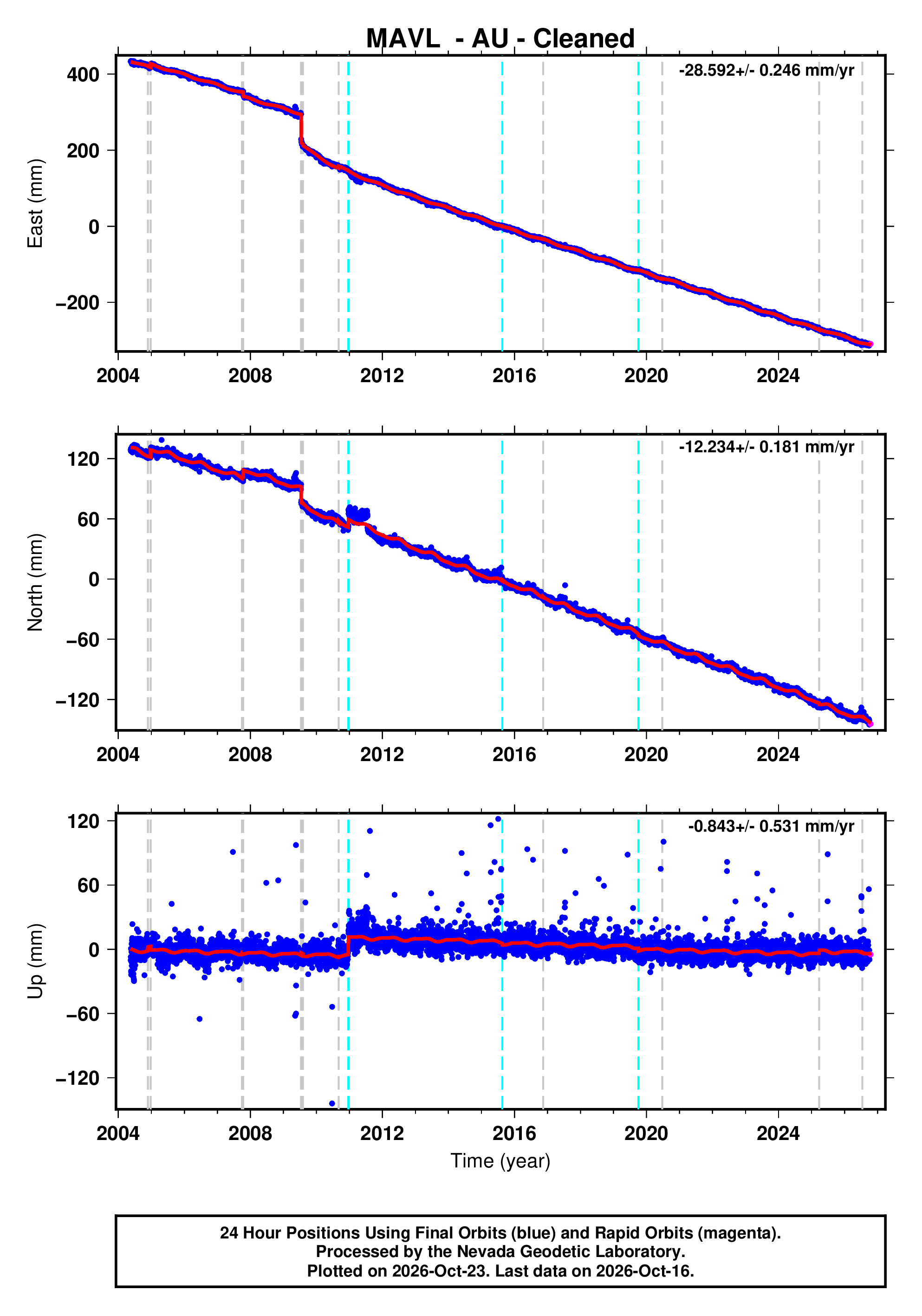

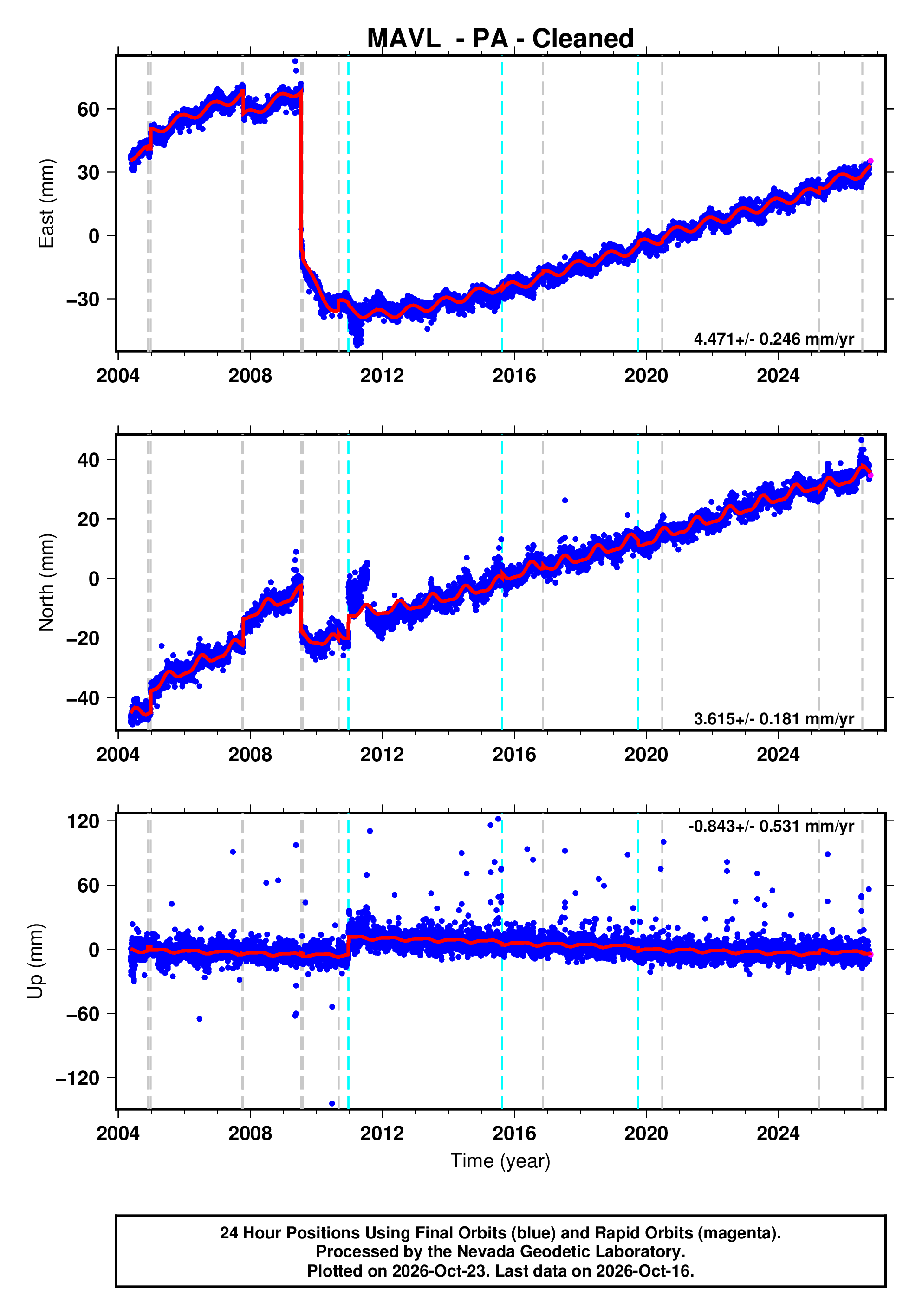

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

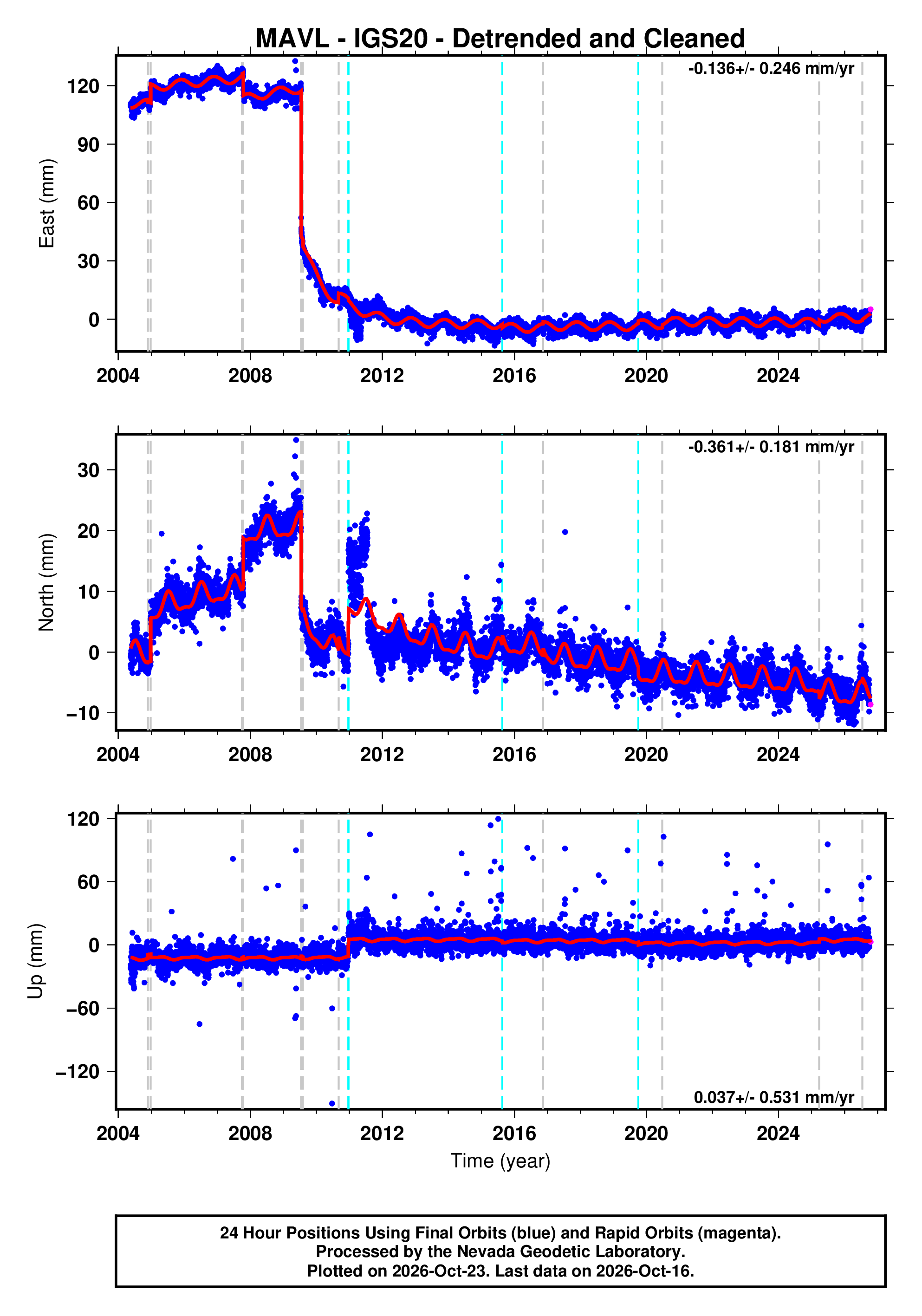

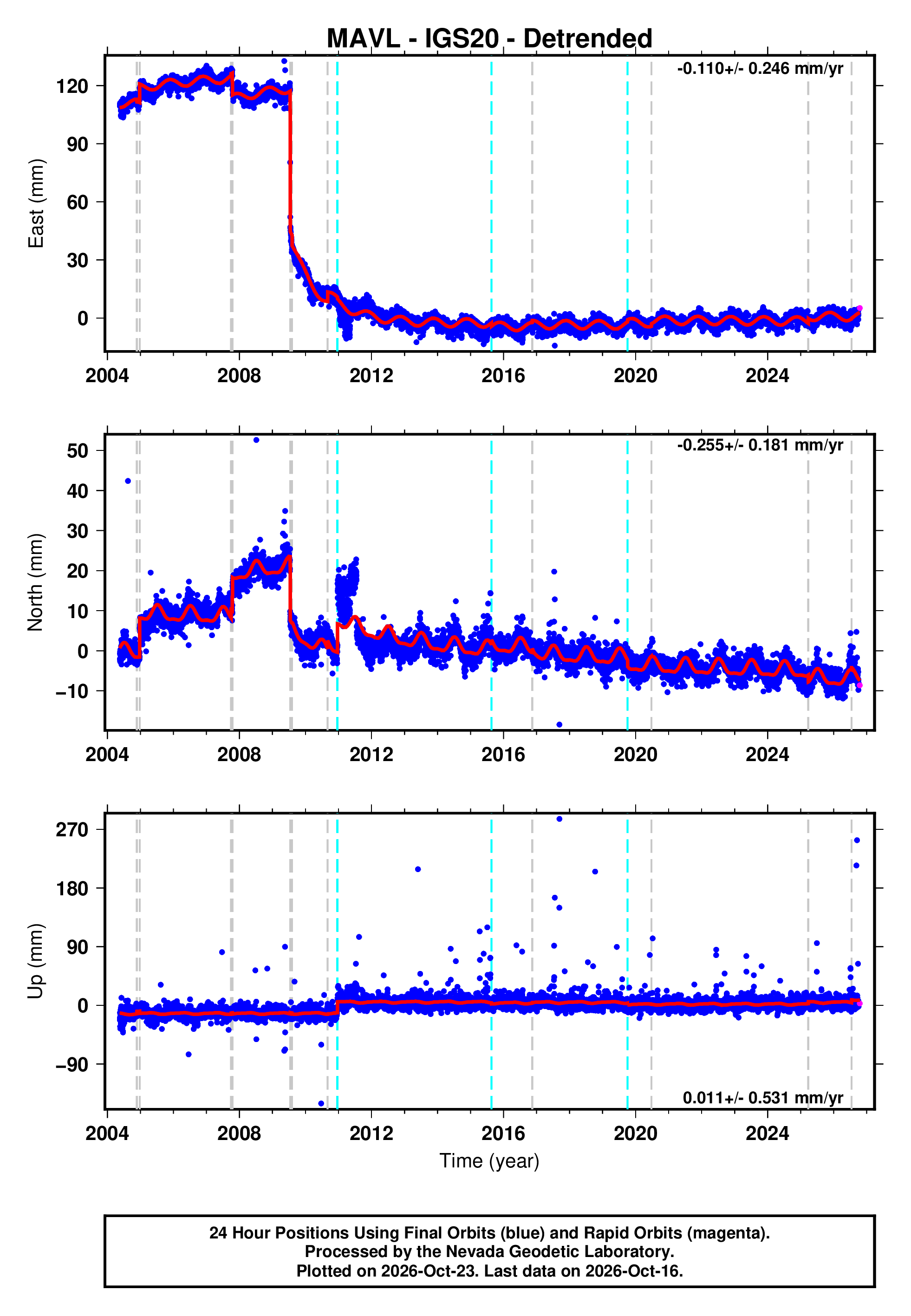

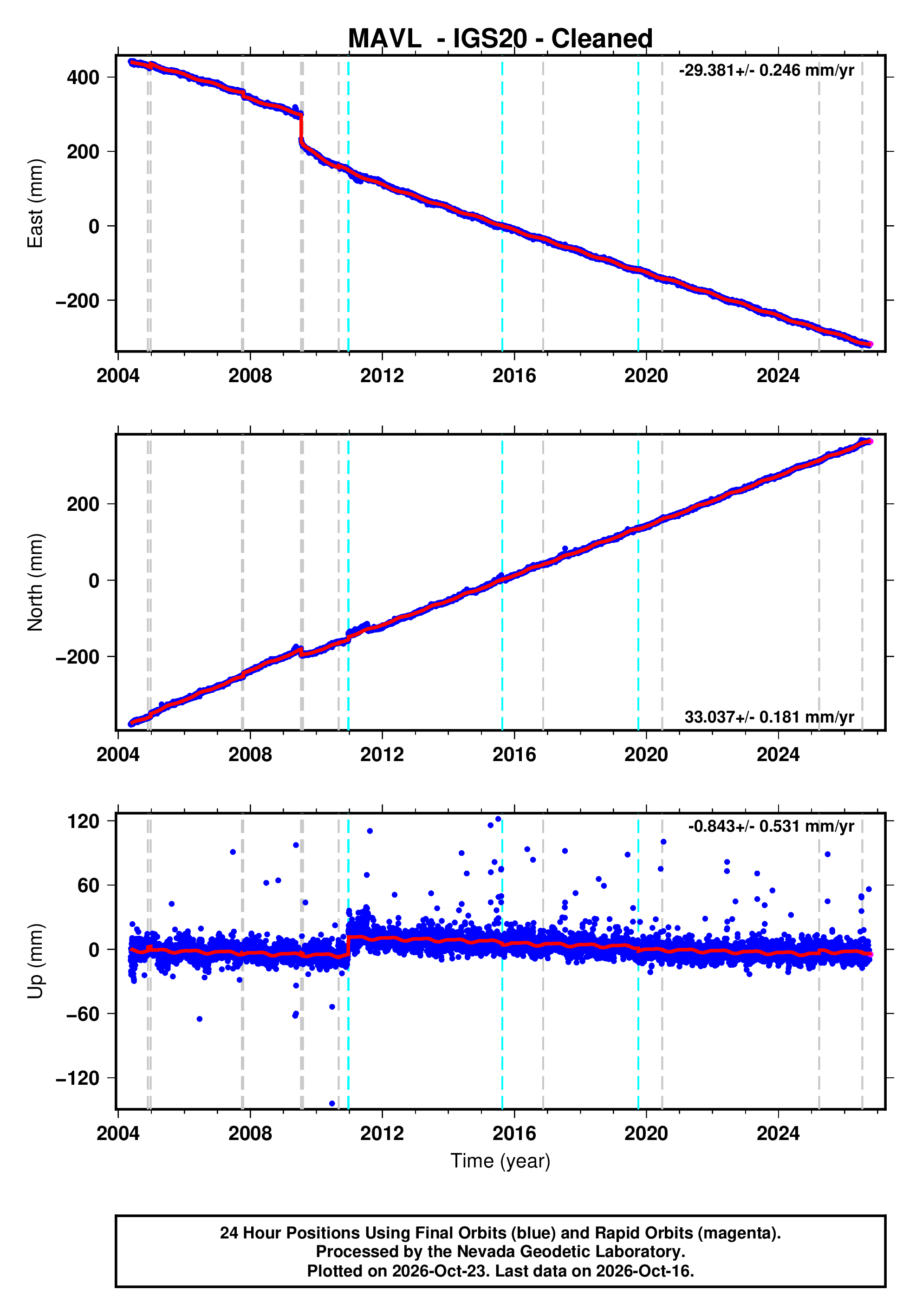

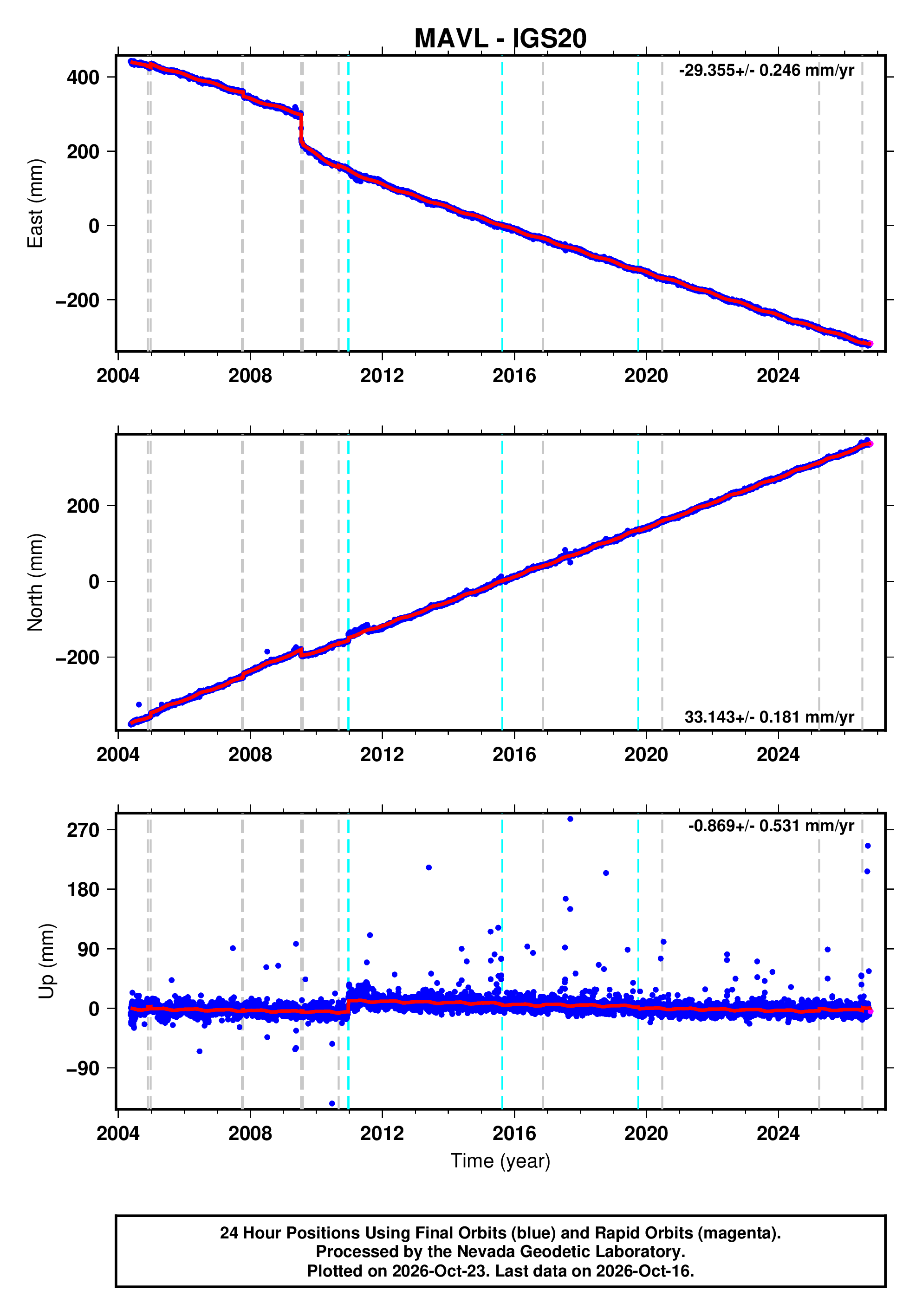

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
MAVL10DEC20 Antenna_Code_Changed - -
MAVL10DEC20 Elevation_Cutoff_Changed - -
MAVL15AUG20 Elevation_Cutoff_Changed - -
MAVL19OCT03 Antenna_Code_Changed - -
MAVL04NOV22 usp000d8ze 7.1 300.0
MAVL04DEC23 usp000db93 8.1 672.6
MAVL07SEP30 usp000fpgq 7.4 528.6
MAVL07OCT15 usp000fqks 6.8 77.4
MAVL07OCT15 usp000fqmj 6.1 82.2
MAVL09JUL15 usp000gz8j 7.8 128.9
MAVL09AUG05 usp000h004 6.1 139.0
MAVL10SEP03 usp000hk46 7.0 359.0
MAVL16NOV13 us1000778i 7.8 490.8
MAVL20JUN24 us7000aag4 5.6 94.4
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
