MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : LEXA

Station operator information: from RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: -45.231 degrees

Longitude: 169.308 degrees

Height: 331.919 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

AU

env

PA

env

24 Hour Rapid Solutions

FID

env

xyz

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 14 days max)

FID

kenv tar file download

5 Minute Ultra Rapid Solutions
(files updated hourly)

FID

individual kenv files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

env format, xyz format,
kenv format, QA file format


Nearest 4 Other Stations Distance

LDRZ

36.45 km

SUTT

78.83 km

MAVL

94.29 km

OUS3

117.51 km

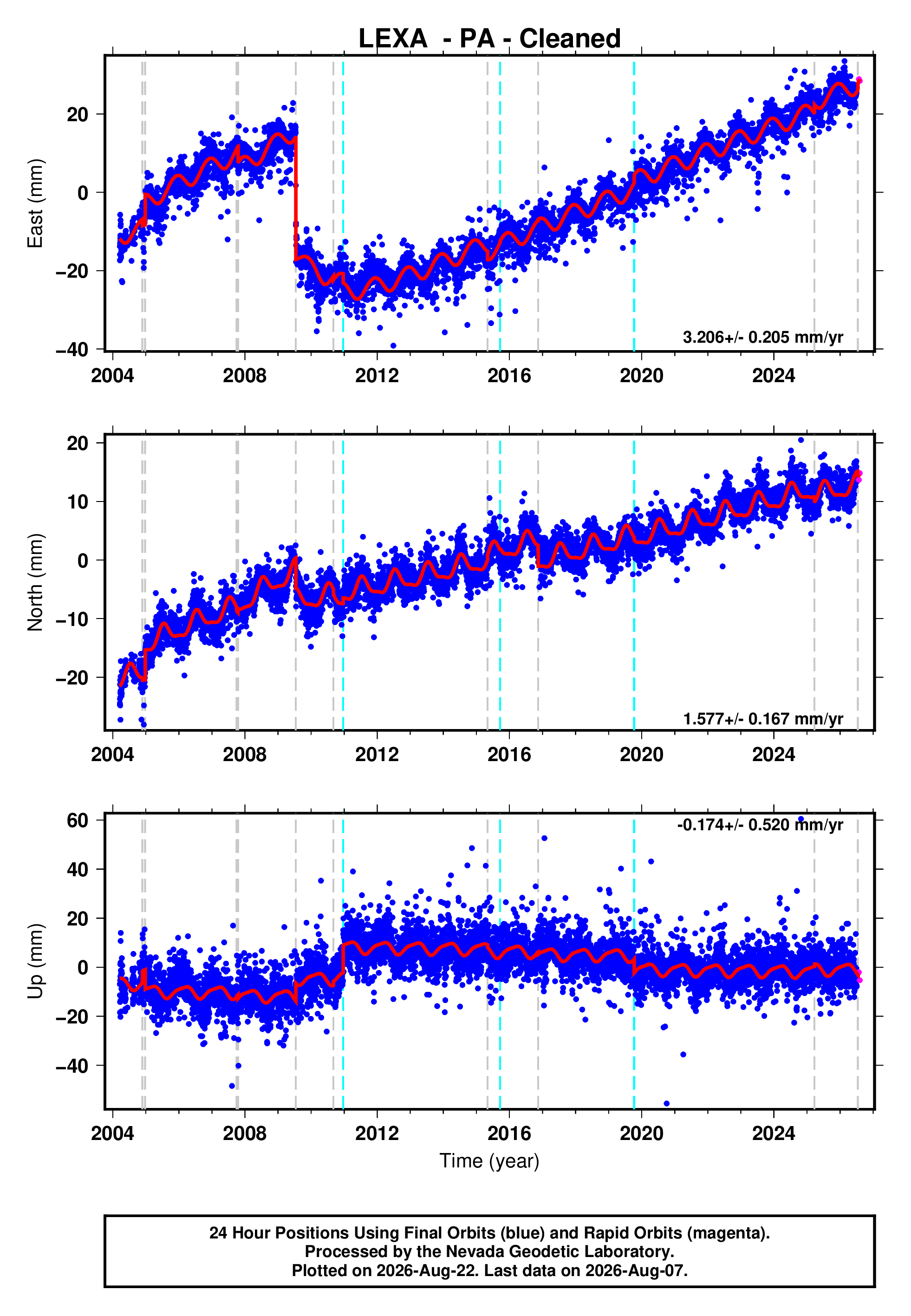

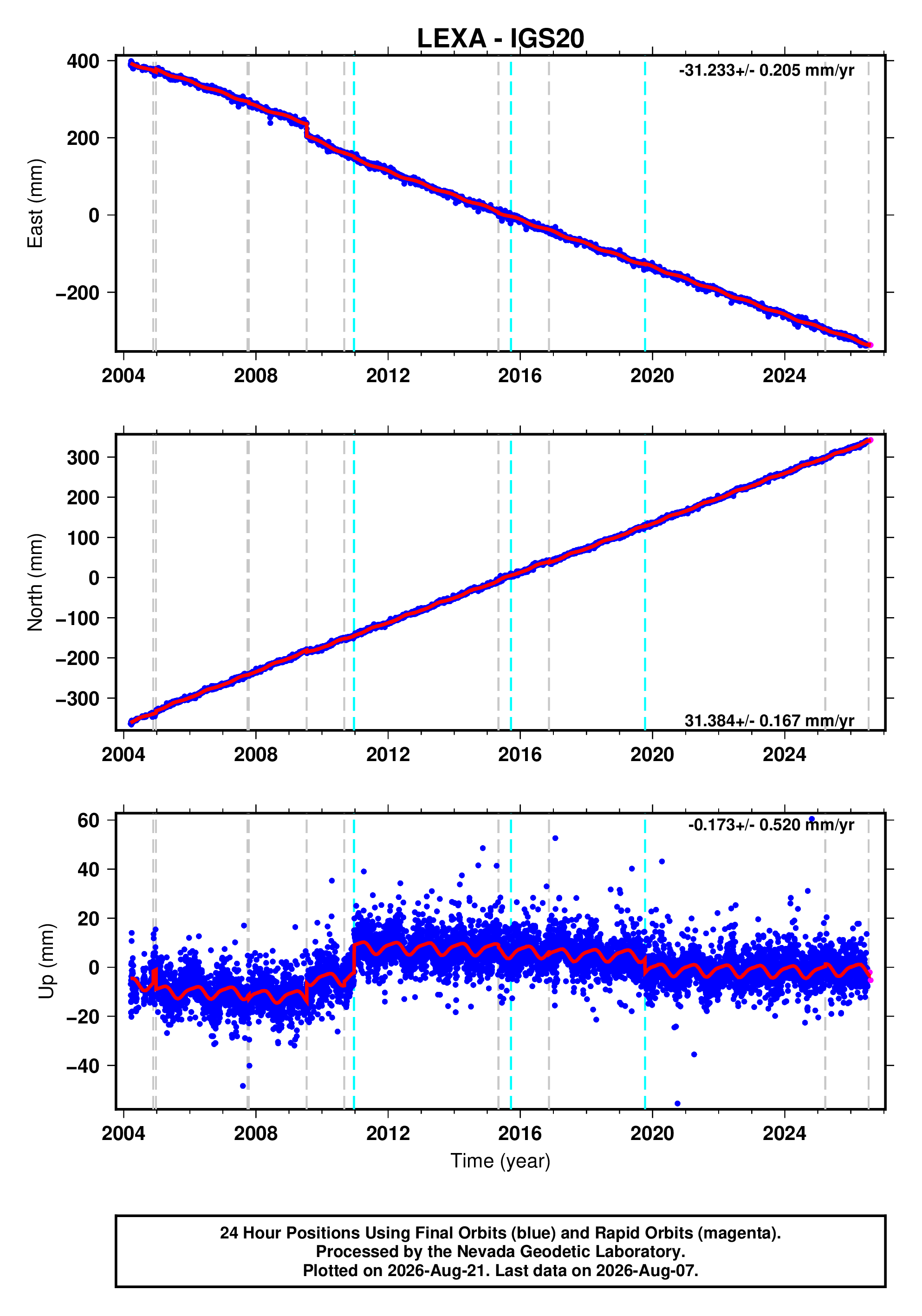

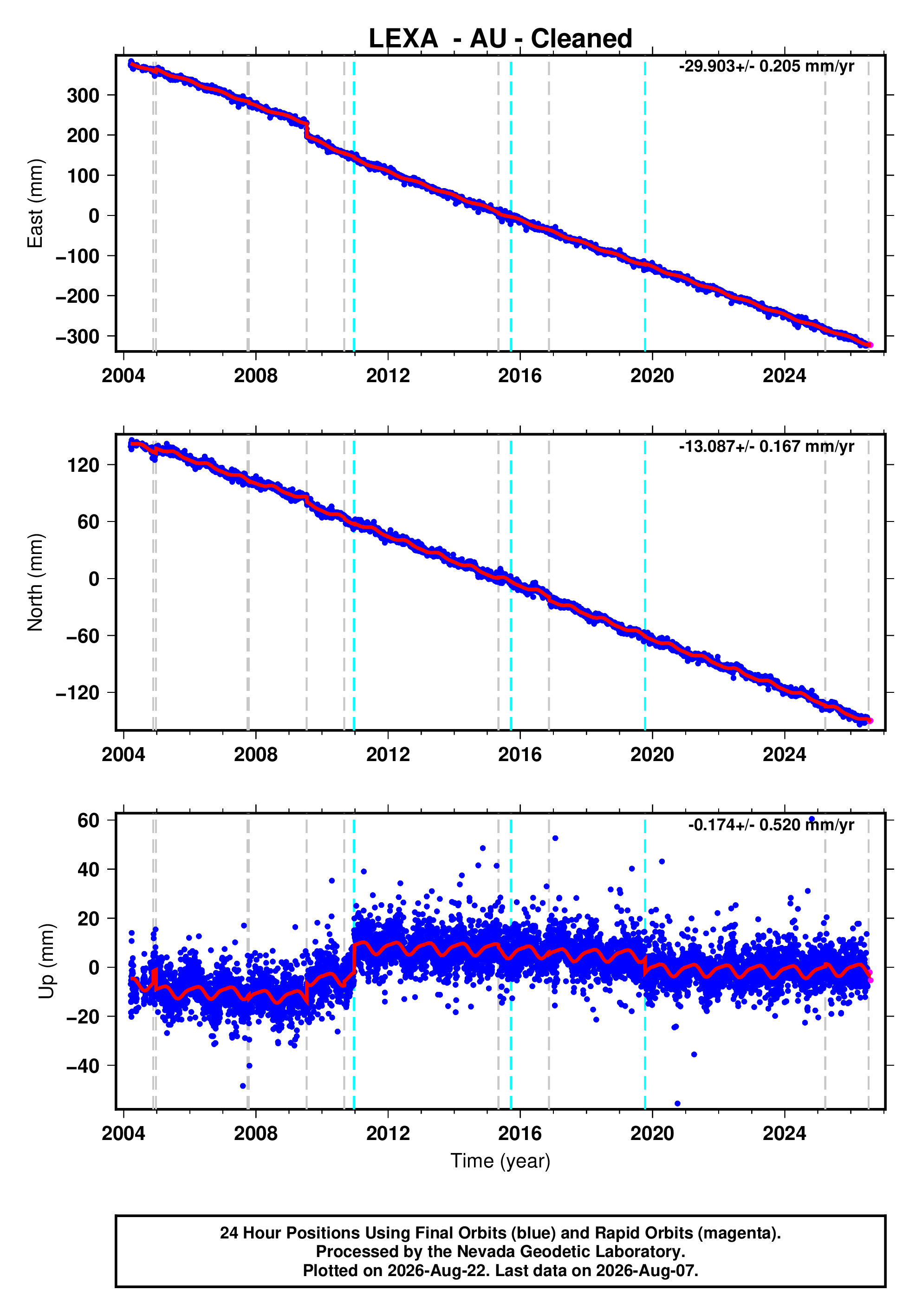

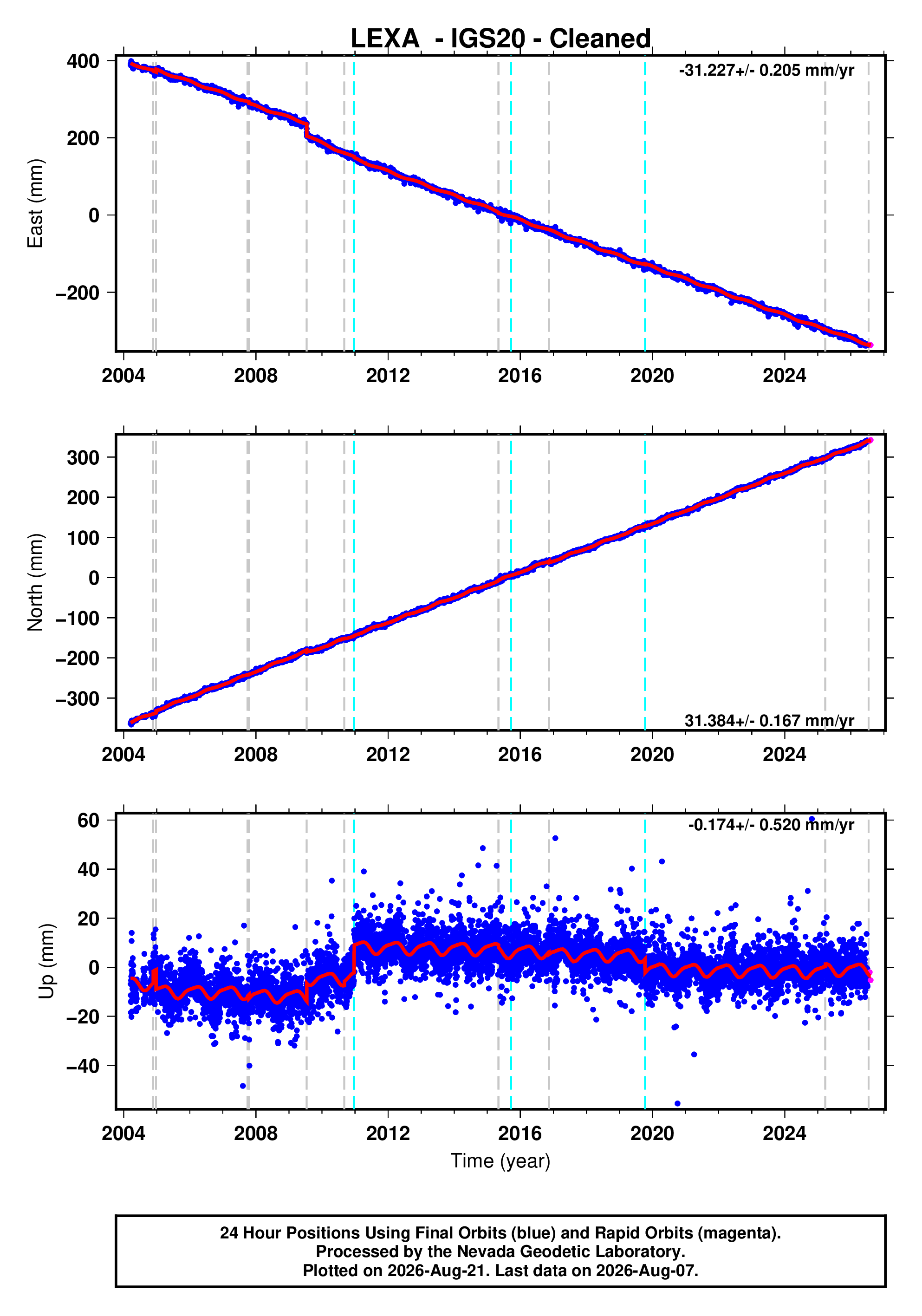

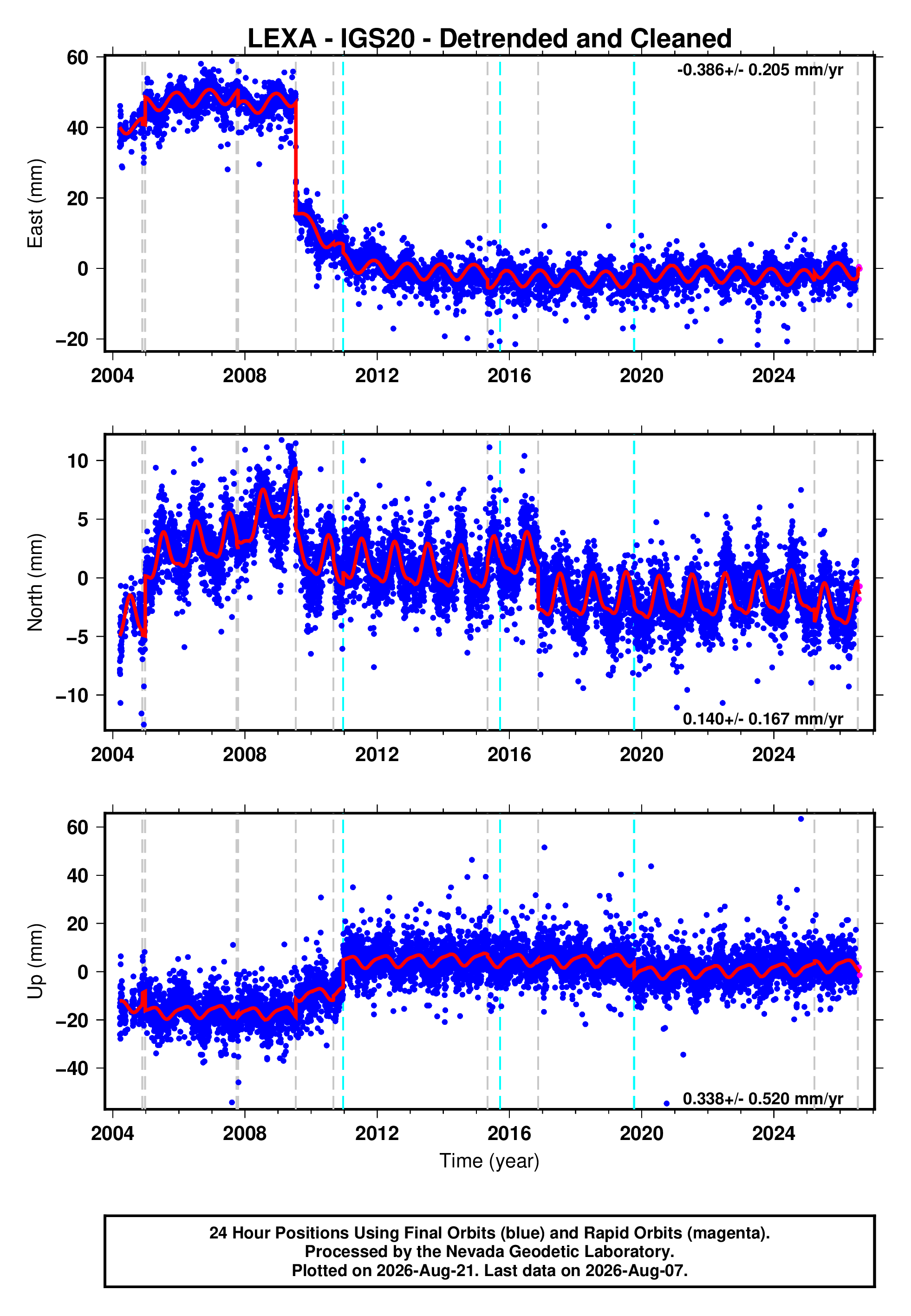

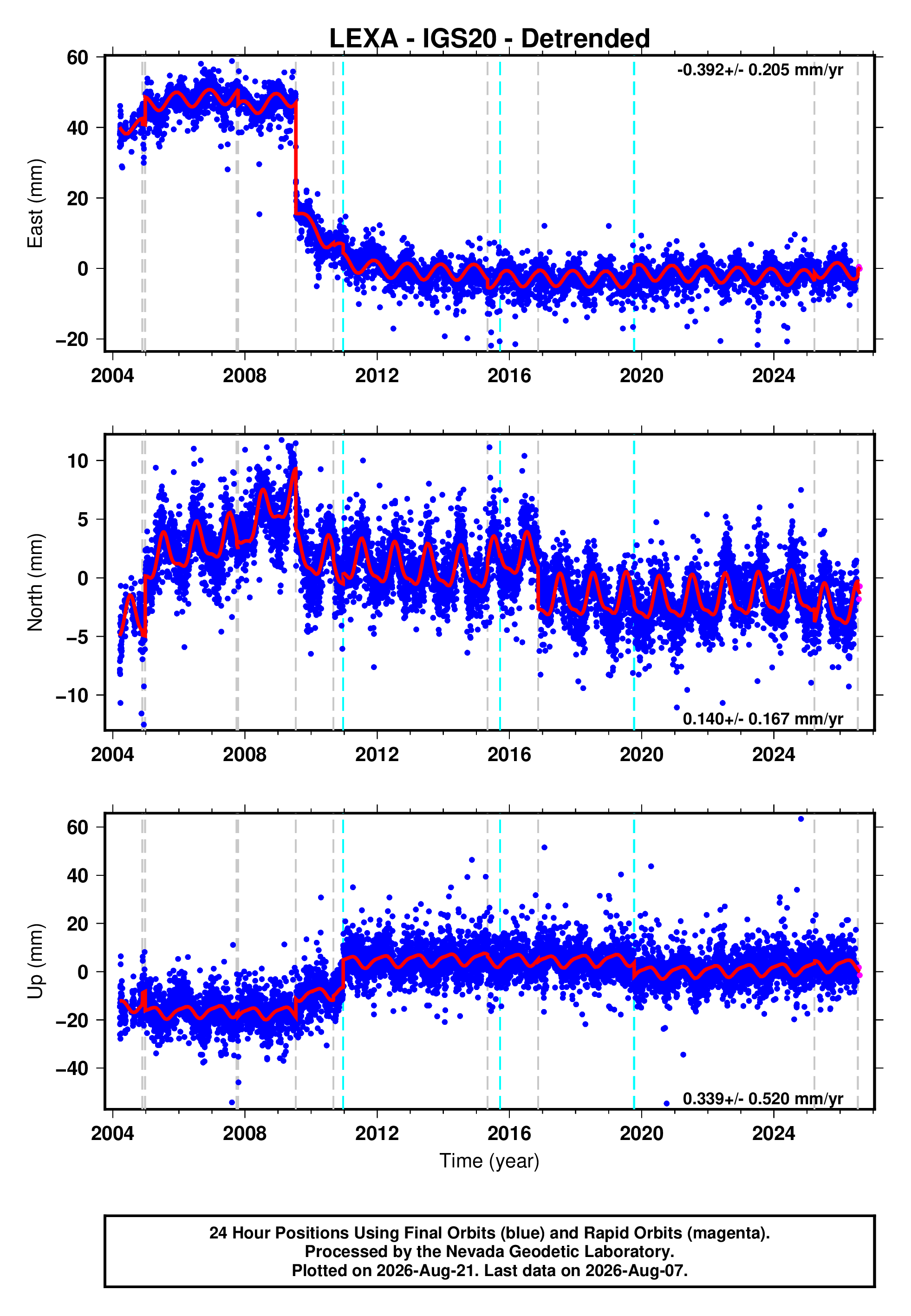

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. Further explanations on plot contents can be found here.


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
LEXA10DEC20 Antenna_Code_Changed - -
LEXA10DEC20 Elevation_Cutoff_Changed - -
LEXA15SEP20 Elevation_Cutoff_Changed - -
LEXA19OCT10 Antenna_Code_Changed - -
LEXA04NOV22 usp000d8ze 7.1 389.2
LEXA04DEC23 usp000db93 8.1 752.3
LEXA07SEP30 usp000fpgq 7.4 595.9
LEXA07OCT15 usp000fqks 6.8 146.2
LEXA07OCT15 usp000fqmj 6.1 153.4
LEXA09JUL15 usp000gz8j 7.8 222.0
LEXA10SEP03 usp000hk46 7.0 276.2
LEXA15MAY04 us20002b38 5.6 85.6
LEXA16NOV13 us1000778i 7.8 408.2
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link).
