MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : J550

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.


Latitude: 38.301

Longitude: 141.501

Height: 116.523 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS08

env xyz
24 Hour Rapid Solutions

FID (~IGS08)

env
env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)

env

ftp link

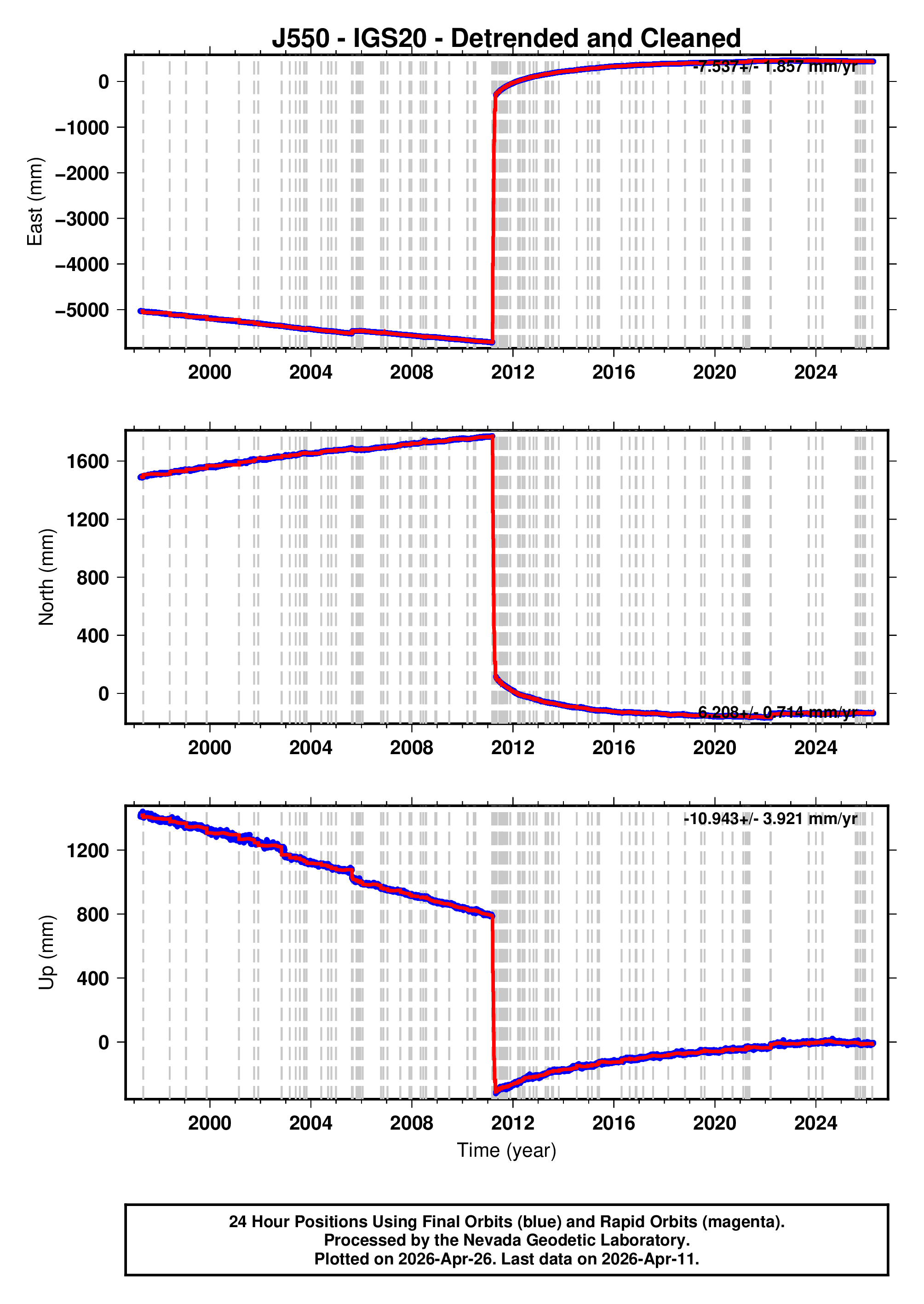

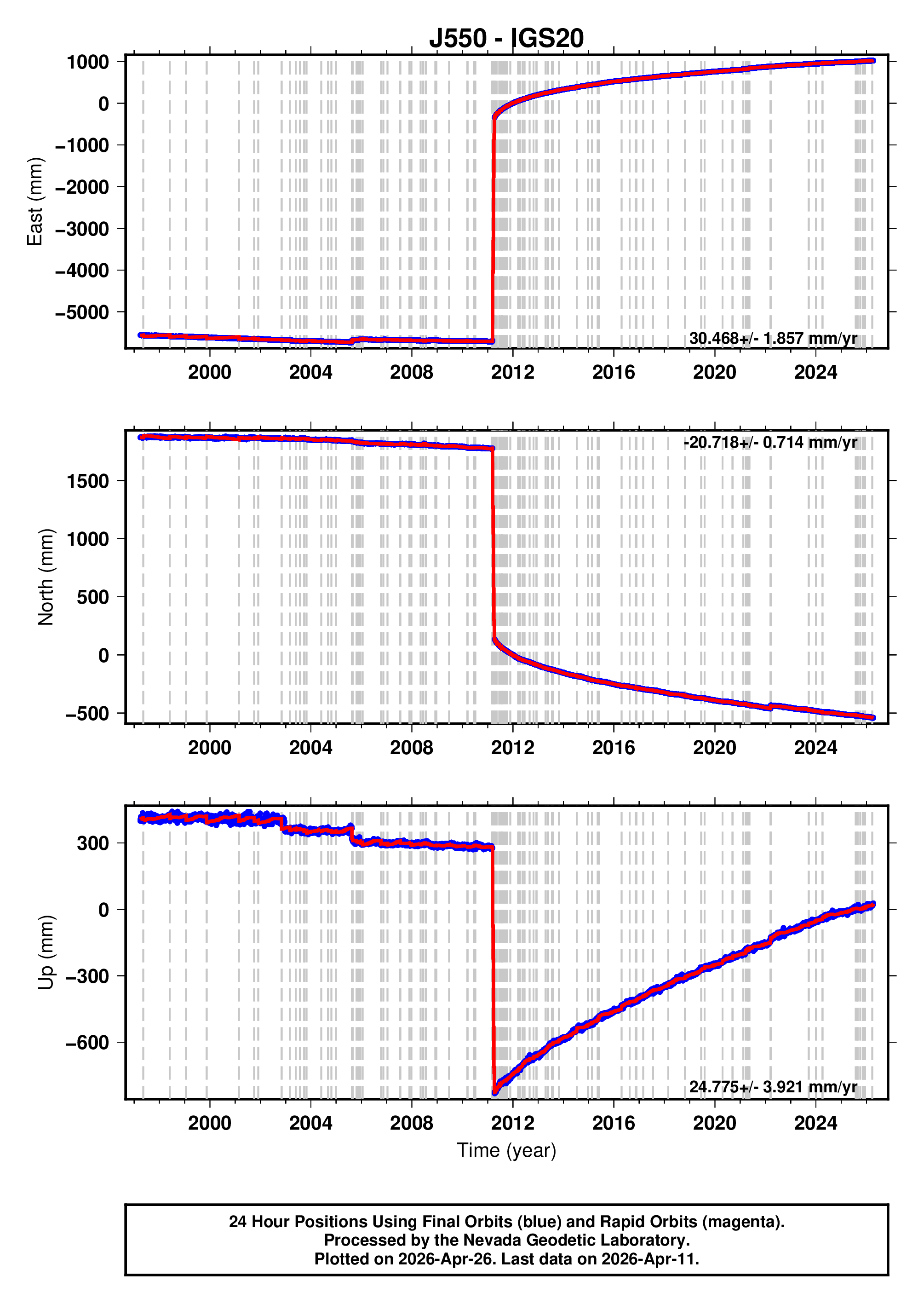

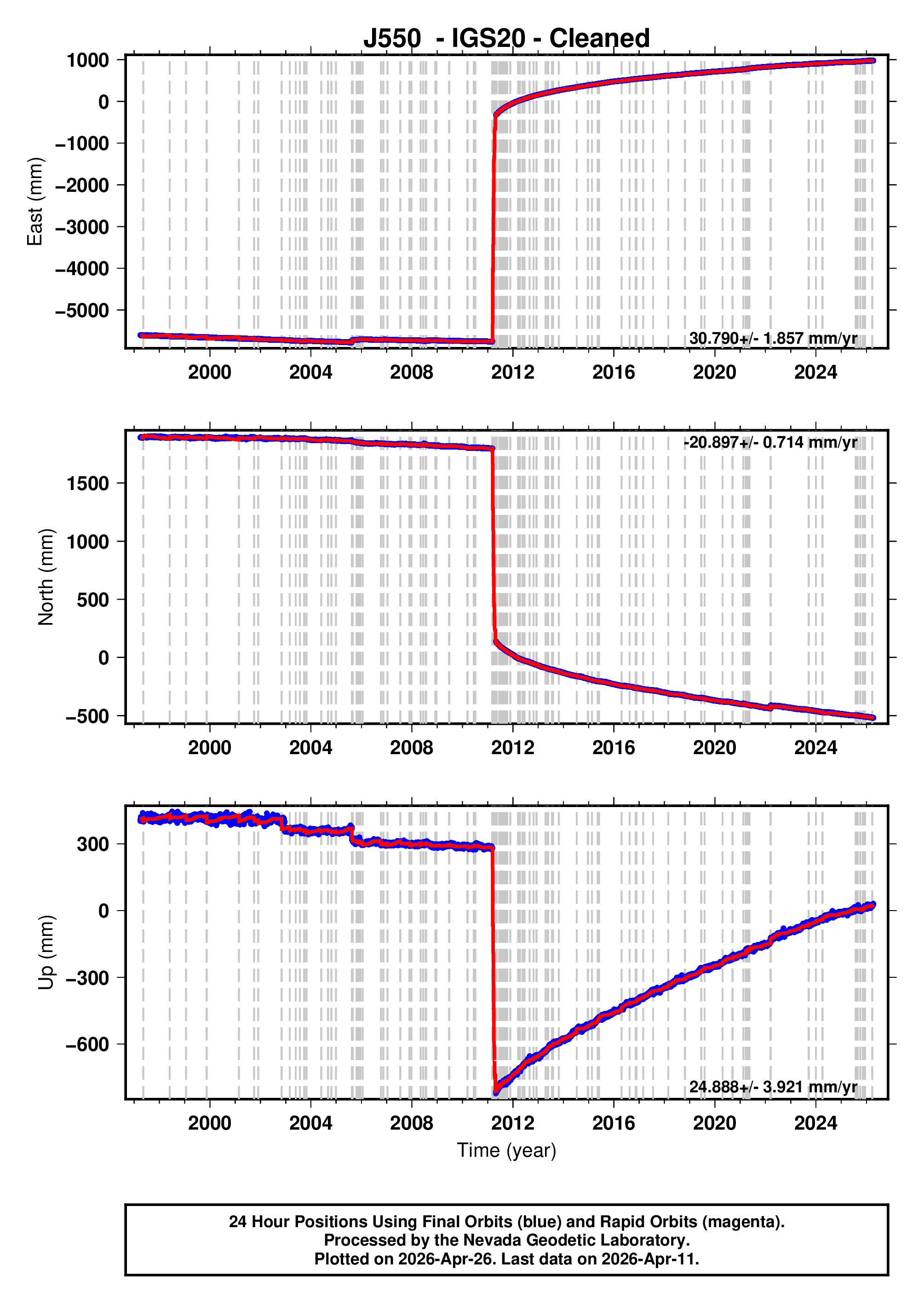

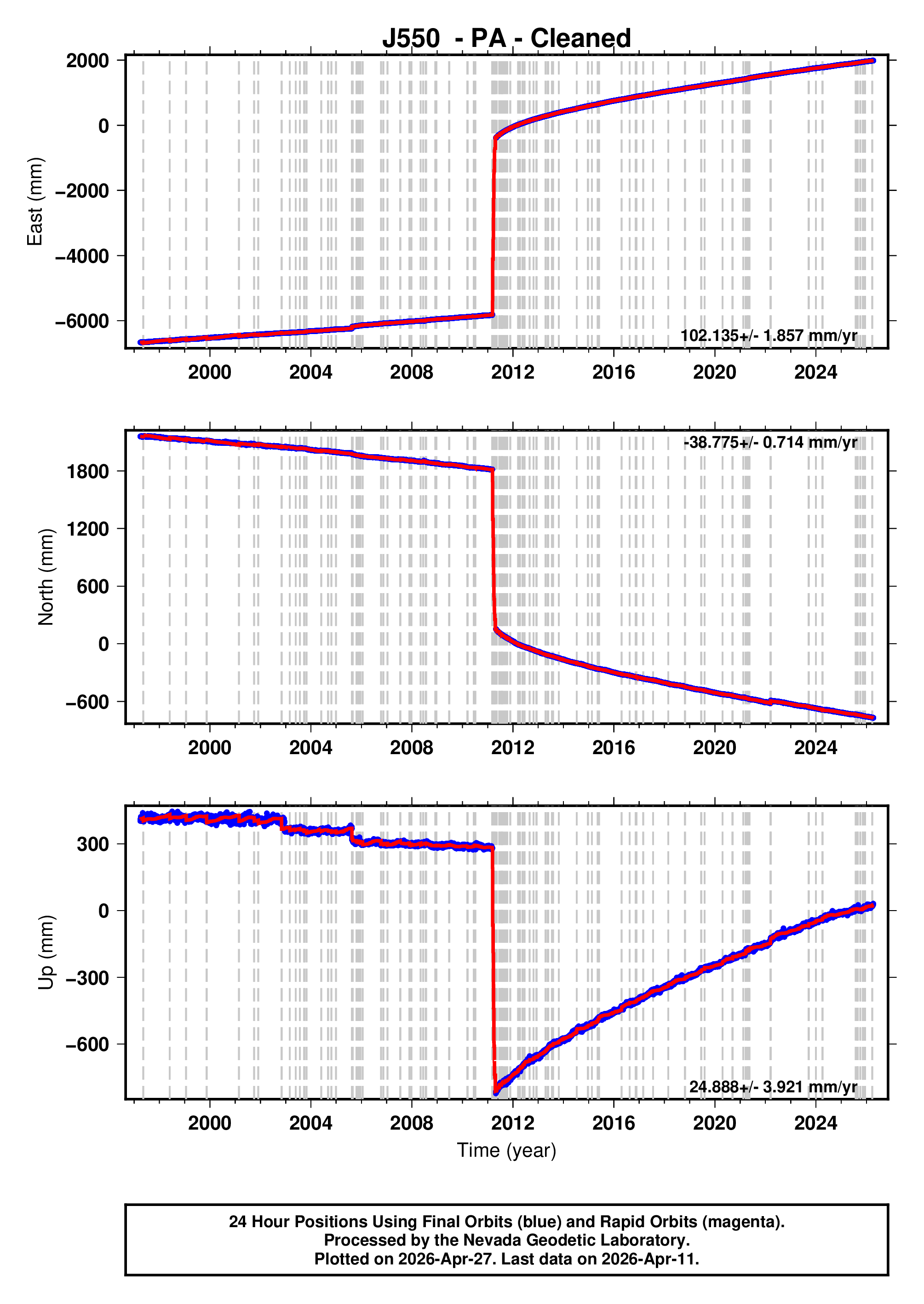

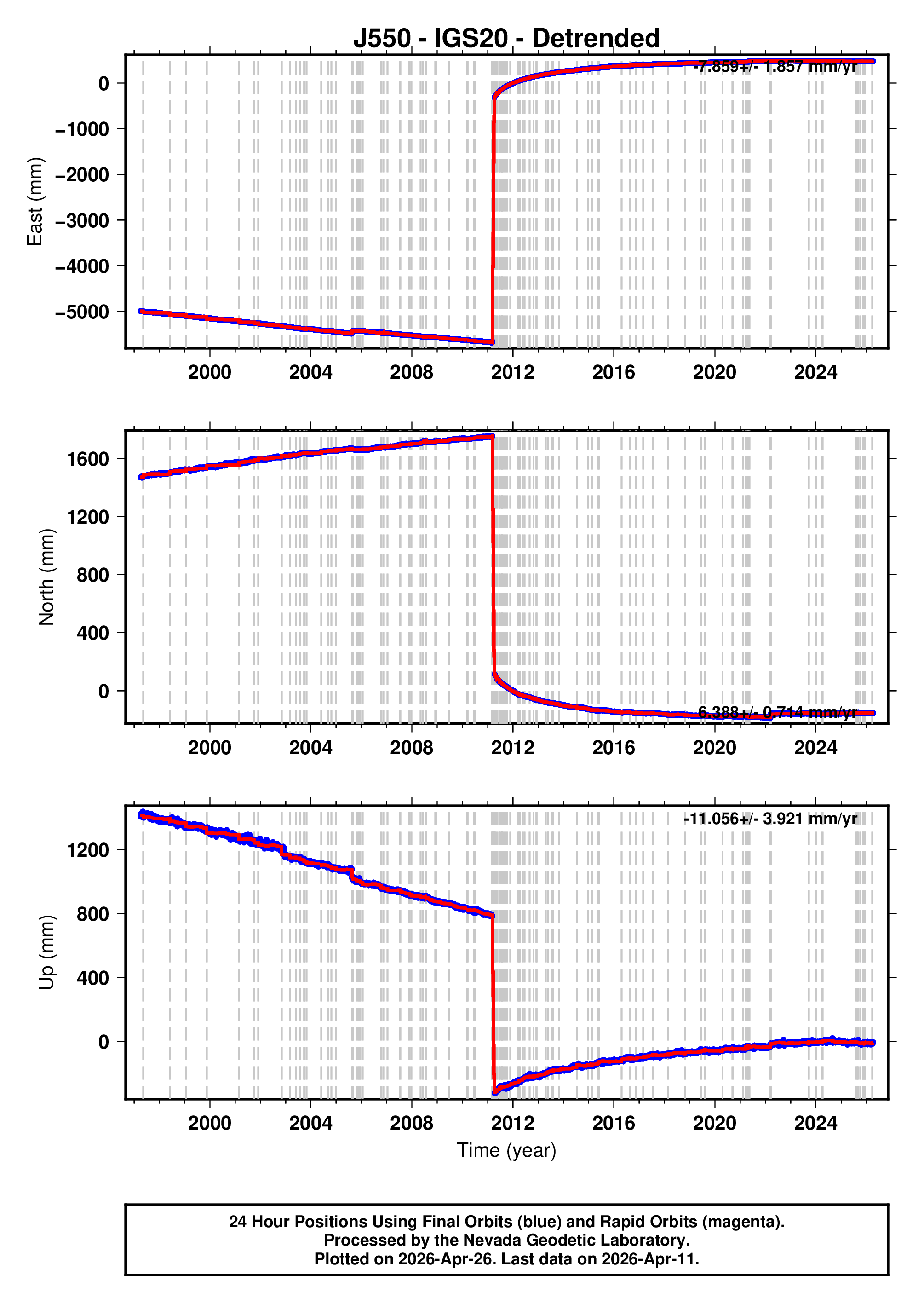

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned Rapid 5 min.
Not Available
Not Available
Not Available


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
J55006NOV15 usp000exfn 8.3 1332.1
J55007JAN13 usp000f2ab 8.1 1385.4
J55007JUL16 usp000fg9t 6.6 281.2
J55007NOV26 usp000ftbs 5.9 101.4
J55007DEC25 usp000fv78 6.1 51.0
J55008MAY07 usp000g5rx 6.9 237.7
J55008JUN13 usp000g9h6 6.9 97.3
J55008JUL19 usp000gcjg 7.0 104.2
J55008JUL21 usp000gcsz 6.0 133.1
J55008JUL23 usp000gczp 6.8 166.9
J55008DEC03 usp000gpw5 5.8 124.1
J55008DEC20 usp000gr0a 6.3 212.1
J55010MAR14 usp000h9cg 6.5 62.3
J55010JUN13 usp000hdx3 5.9 103.9
J55010JUL04 usp000heww 6.3 172.4
J55011MAR09 usp000hvhj 7.3 117.9
J55011MAR09 usp000hvk6 6.0 81.4
J55011MAR09 usp000hvkg 6.0 100.2
J55011MAR09 usp000hvkh 6.5 114.1
J55011MAR11 official20110311054624120_30 9.1 76.1
J55011MAR11 usp000hvnv 6.3 71.1
J55011MAR11 usp000hvnw 6.4 193.3
J55011MAR11 usp000hvnx 6.3 94.7
J55011MAR11 usp000hvny 5.9 140.6
J55011MAR11 usp000hvnz 6.2 89.6
J55011MAR11 usp000hvp3 6.3 103.9
J55011MAR11 usp000hvp4 6.4 211.9
J55011MAR11 usp000hvp5 6.7 178.5
J55011MAR11 usp000hvp8 6.2 121.5
J55011MAR11 usp000hvp9 6.3 205.5
J55011MAR11 usp000hvpa 7.9 227.3
J55011MAR11 usp000hvpc 6.6 262.3
J55011MAR11 usp000hvpd 6.5 260.3
J55011MAR11 usp000hvpe 6.2 114.5
J55011MAR11 usp000hvpf 6.2 105.8
J55011MAR11 usp000hvpg 7.7 271.4
J55011MAR11 usp000hvpx 6.2 113.5
J55011MAR11 usp000hvq8 5.8 107.3
J55011MAR11 usp000hvqd 5.8 113.5
J55011MAR11 usp000hvqf 6.3 192.8
J55011MAR11 usp000hvqh 5.9 107.8
J55011MAR11 usp000hvqk 6.1 166.8
J55011MAR11 usp000hvqm 6.3 109.6
J55011MAR11 usp000hvqn 6.0 99.2
J55011MAR11 usp000hvr2 5.7 62.4
J55011MAR11 usp000hvr7 5.7 100.2
J55011MAR11 usp000hvra 6.2 192.6
J55011MAR11 usp000hvrd 6.5 237.5
J55011MAR11 usp000hvre 6.1 168.9
J55011MAR11 usp000hvrf 6.0 105.9
J55011MAR11 usp000hvrg 6.0 96.8
J55011MAR11 usp000hvrn 5.9 105.3
J55011MAR11 usp000hvtb 6.0 146.9
J55011MAR11 usp000hvu6 5.6 62.7
J55011MAR11 usp000hvuu 6.6 133.7
J55011MAR11 usp000hvvd 5.9 95.5
J55011MAR11 usp000hvvf 5.8 109.4
J55011MAR11 usp000hvw0 5.5 69.2
J55011MAR11 usp000hw29 6.1 125.7
J55011MAR12 usp000hw7r 6.5 127.7
J55011MAR12 usp000hwec 5.7 107.1
J55011MAR12 usp000hwfv 6.1 120.8
J55011MAR12 usp000hwmq 5.8 76.9
J55011MAR12 usp000hwnq 6.1 34.2
J55011MAR13 usp000hwup 5.6 68.4
J55011MAR14 usp000hx38 6.0 101.5
J55011MAR15 usp000hxbc 5.8 125.4
J55011MAR15 usp000hxc6 6.0 103.3
J55011MAR20 usp000hy0r 5.6 65.3
J55011MAR22 usp000hy7y 6.4 249.4
J55011MAR22 usp000hy8c 6.1 111.5
J55011MAR22 usp000hy8e 6.4 240.1
J55011MAR24 usp000hyfh 5.8 100.2
J55011MAR25 usp000hyjm 6.2 61.9
J55011MAR27 usp000hyrs 6.2 46.3
J55011MAR29 usp000hyv2 6.1 121.7
J55011MAR31 usp000hyzj 6.0 74.4
J55011APR01 usp000hz2b 5.9 120.1
J55011APR07 usp000hzf6 7.1 8.1
J55011APR11 usp000hzq8 6.6 174.0
J55011APR11 usp000hzq9 5.8 82.8
J55011MAY13 usp000j1jk 6.1 101.6
J55011JUN18 usp000j3ce 5.7 72.3
J55011JUN22 usp000j3k6 6.7 193.7
J55011JUL10 usp000j4gp 7.0 157.0
J55011JUL23 usp000j5by 6.3 71.8
J55011JUL24 usp000j5ed 6.3 64.2
J55011JUL30 usp000j5rk 6.3 158.6
J55011AUG19 usp000j6nx 6.2 71.3
J55011SEP16 usp000j84y 6.7 245.3
J55011OCT10 usp000j95h 5.6 86.5
J55011NOV23 usp000jbaf 6.1 104.7
J55012MAR14 usp000jg7e 6.9 411.9
J55012MAY20 usp000jknx 6.3 207.4
J55012JUN17 usp000jmwc 6.3 74.5
J55012AUG29 usp000jr29 5.5 30.6
J55012OCT25 usp000jue6 5.6 17.3
J55012DEC07 usp000jwjn 7.3 219.1
J55013APR17 usb000g940 5.9 22.4
J55013MAY18 usb000gy67 6.0 62.6
J55013MAY24 usb000h4jh 8.3 2044.3
J55013AUG04 usb000iv4w 5.8 33.0
J55013OCT25 usc000kn4n 7.1 305.7
J55014JUL11 usb000rs50 6.5 166.7
J55014DEC20 usc000t8p4 5.9 100.1
J55015FEB16 usb000tpvj 6.7 209.9
J55015MAY12 us20002et4 6.8 81.5
J55016APR20 us20005k66 5.9 56.6
J55016NOV11 us1000770m 6.1 22.5
J55016NOV21 us10007b88 6.9 101.5
J55016NOV23 us10007bwb 5.9 121.9
J55017FEB28 us20008mw4 5.7 83.5
J55017JUL20 us20009yb7 5.8 97.8
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
