MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : J388

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.


Latitude: 34.767

Longitude: 131.923

Height: 65.735 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS08

env xyz
24 Hour Rapid Solutions

FID (~IGS08)

env
env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)

env

ftp link

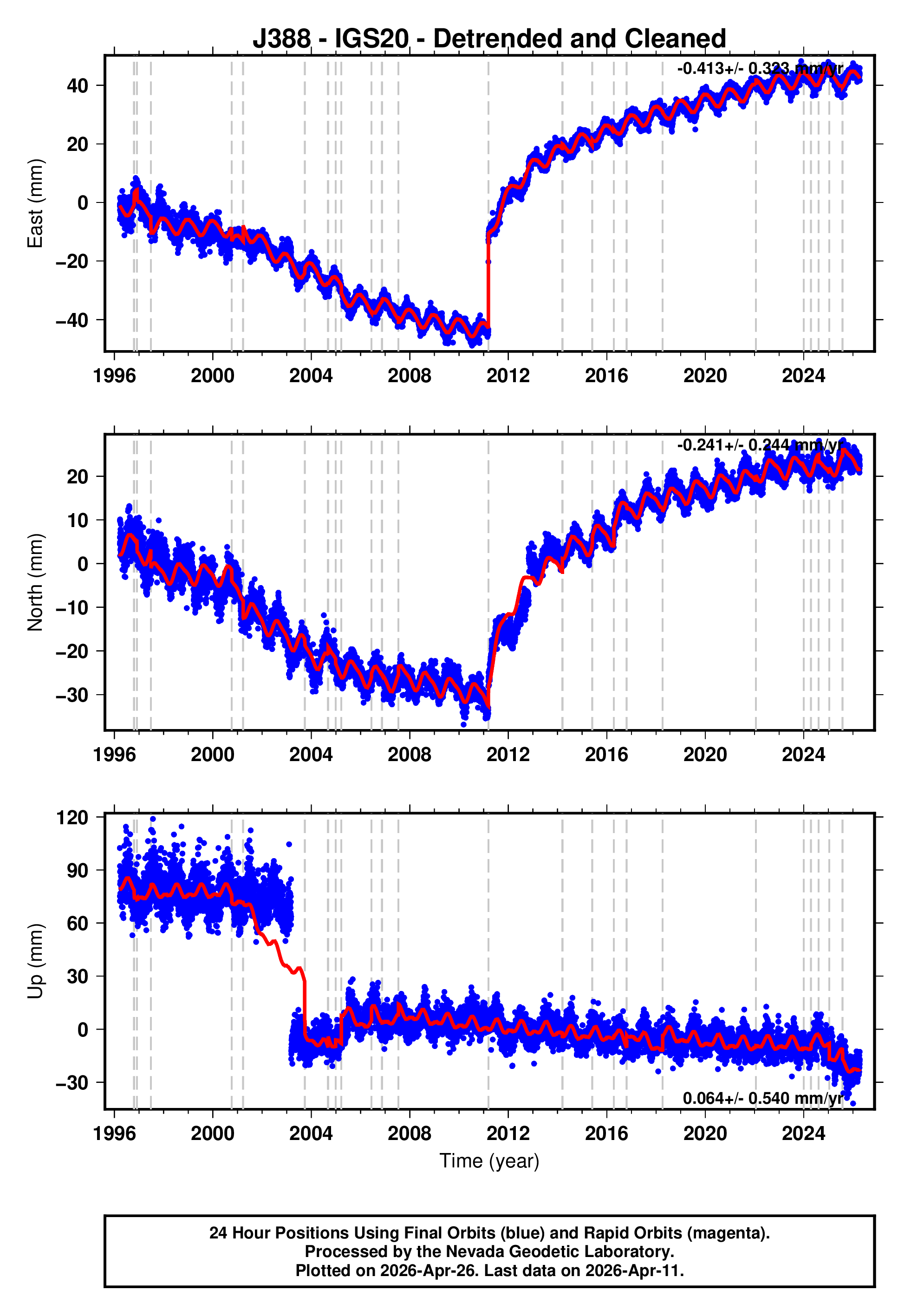

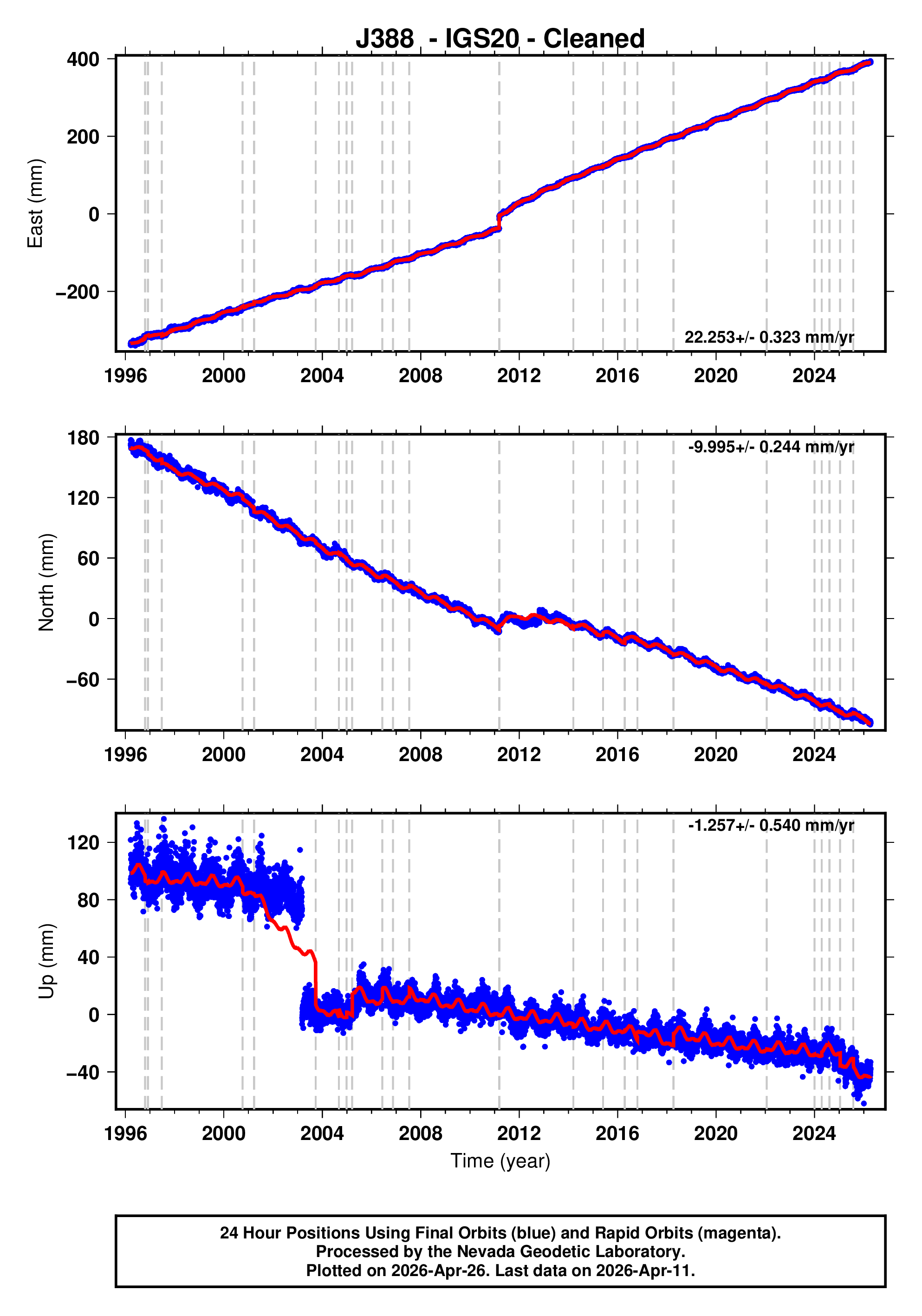

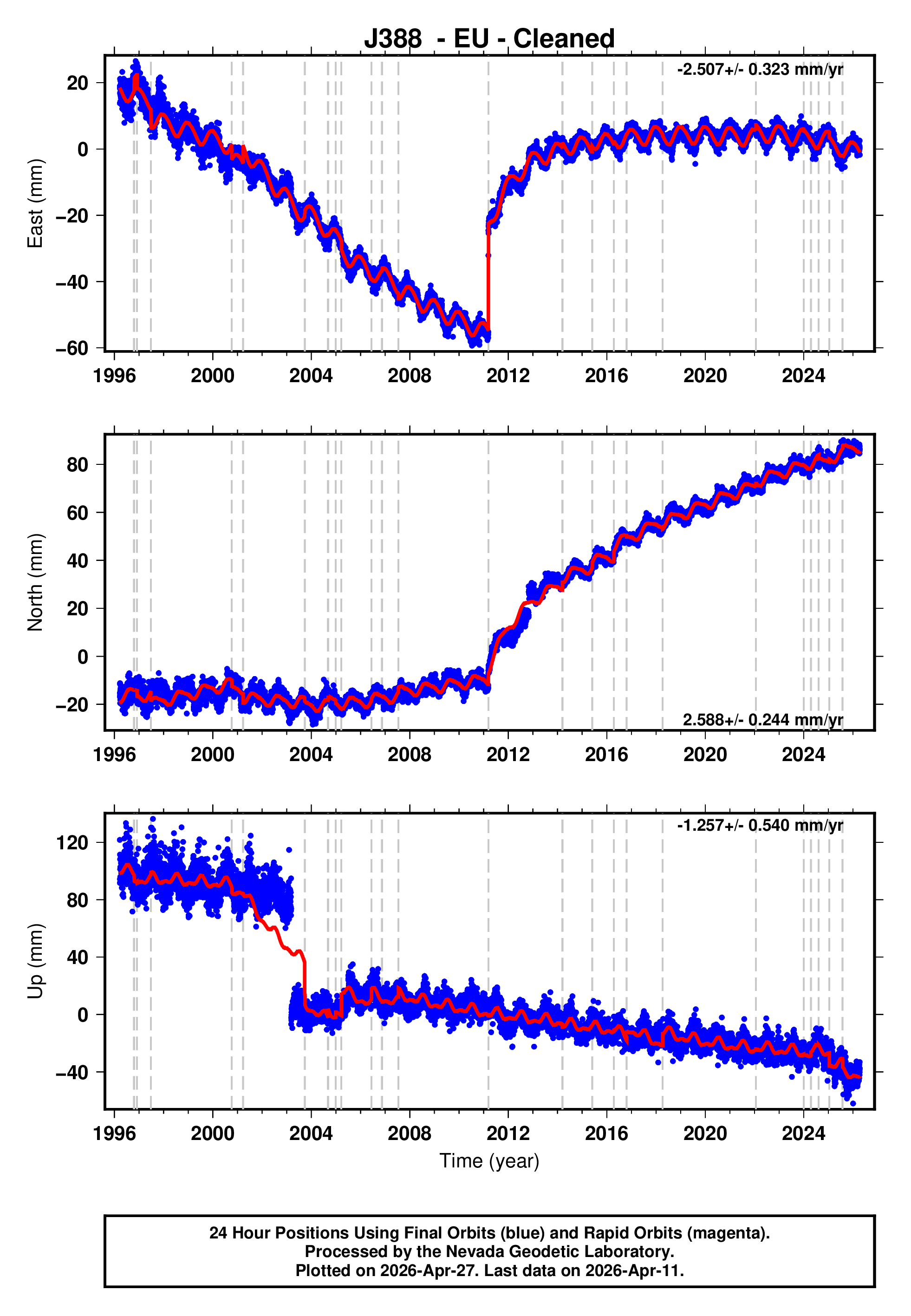

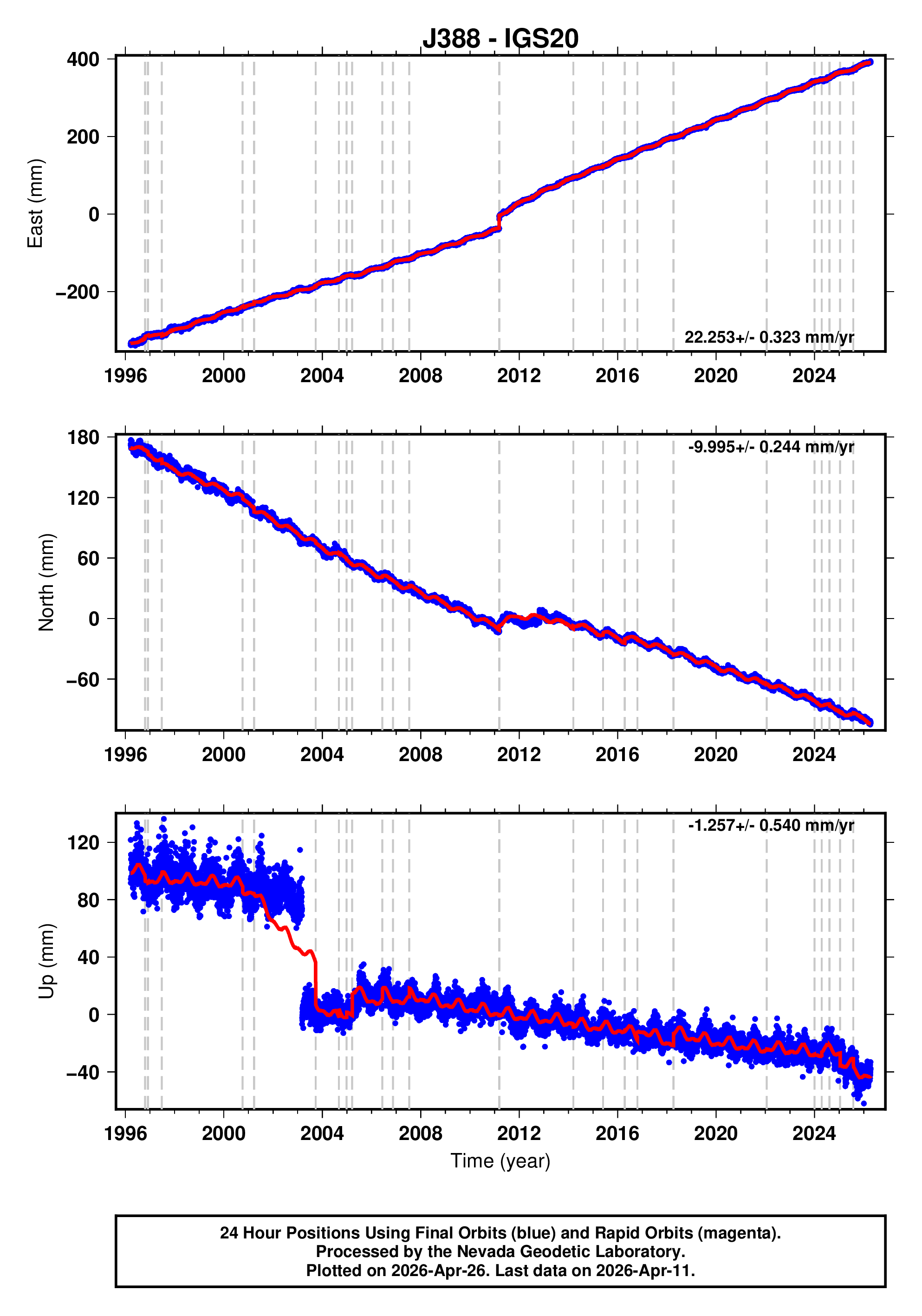

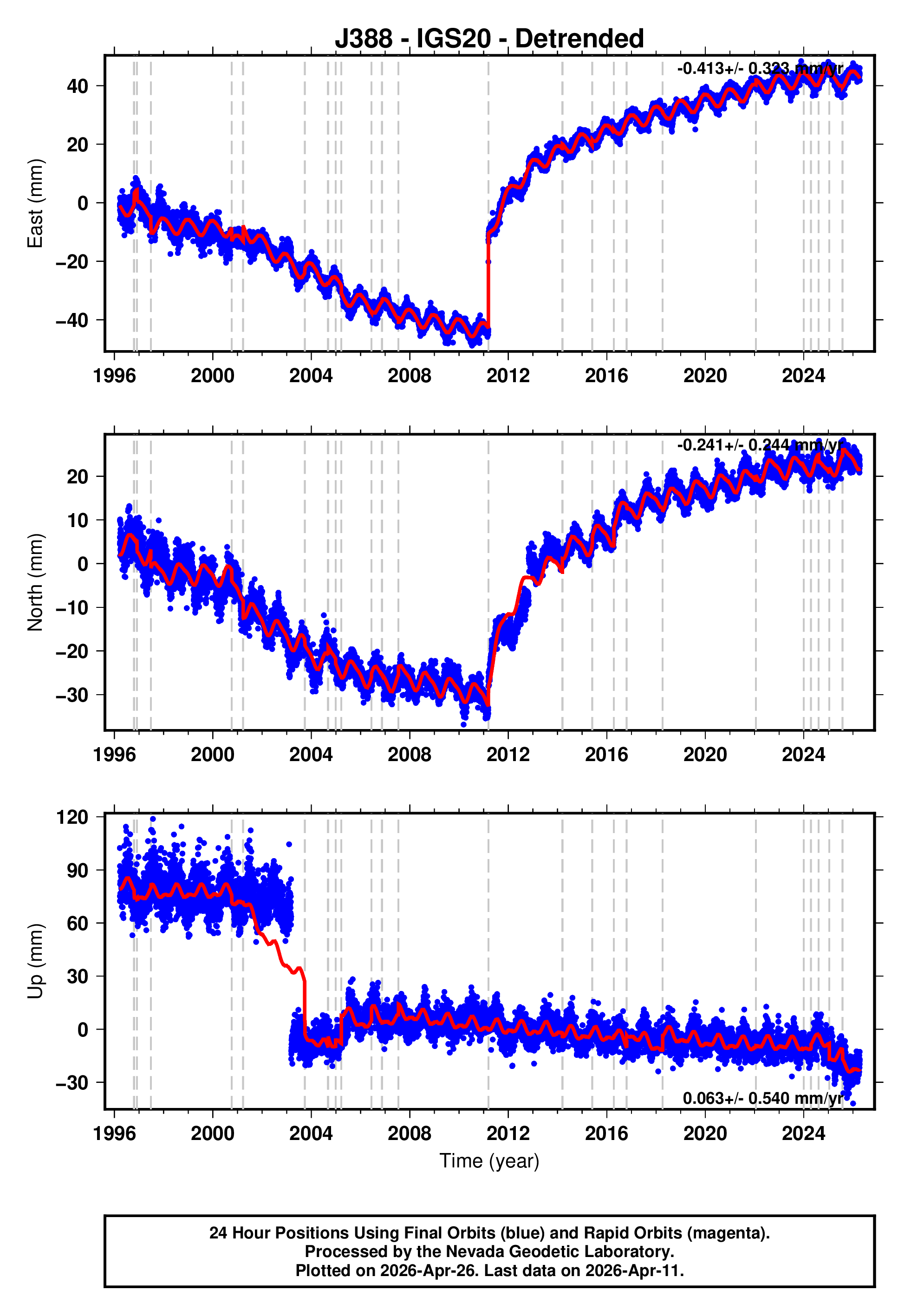

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned Rapid 5 min.
Not Available
Not Available
Not Available


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
J38811MAR11 official20110311054624120_30 9.1 1012.0
J38811MAR11 usp000hvpa 7.9 848.0
J38814MAR13 usc000nabv 6.3 120.8
J38816APR15 us20005iis 7.0 244.9
J38816OCT21 us20007fta 6.2 184.4
J38818APR08 us2000dwh6 5.7 79.2
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
