MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : G209

Network Operator's Station ID : P209

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 34.897 degrees

Longitude: 132.066 degrees

Height: 39.582 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

EU

env

24 Hour Rapid Solutions

IGS14

env

EU

env

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

G024

13.85 km

J075

17.52 km

J388

19.48 km

J399

27.03 km

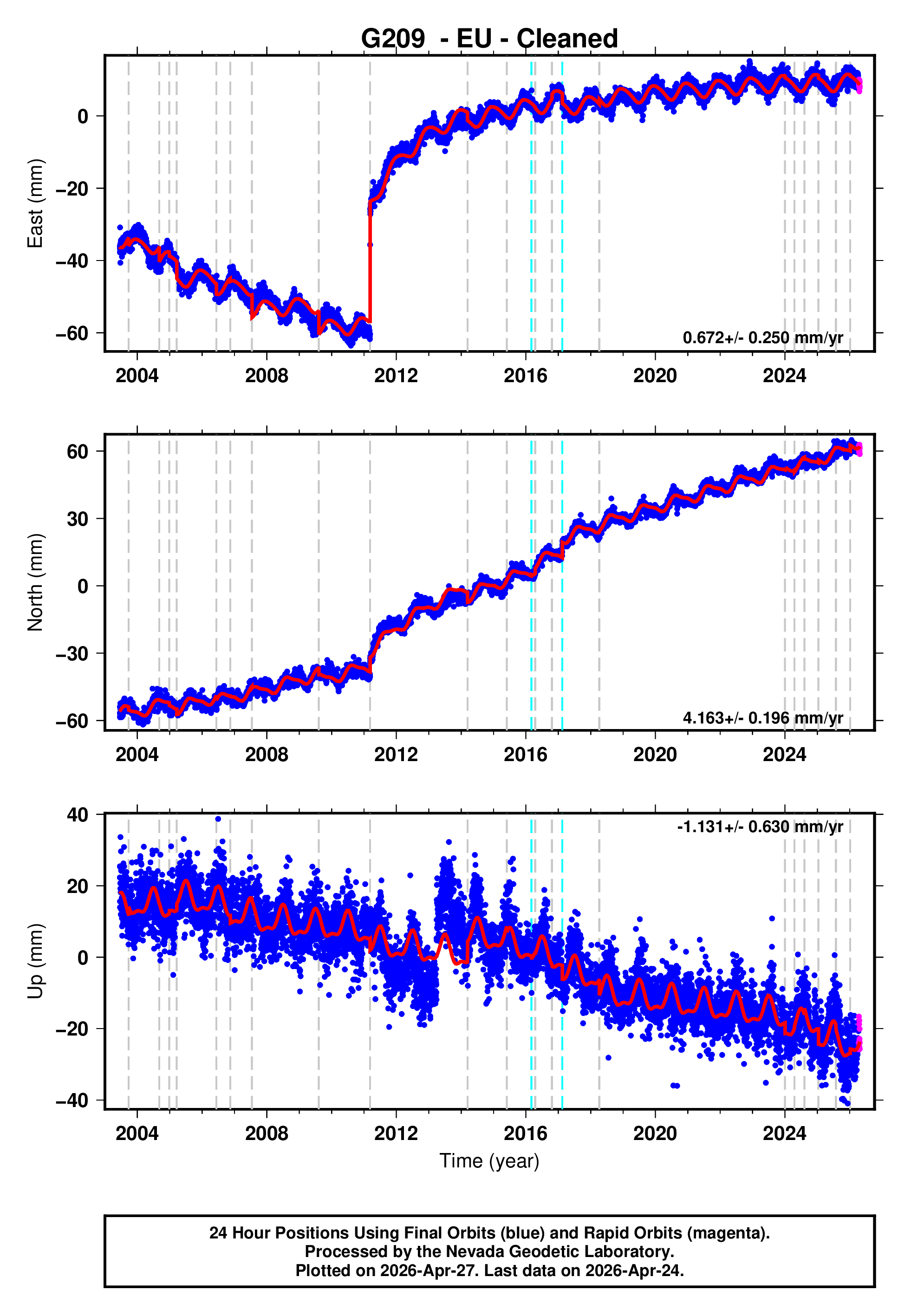

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

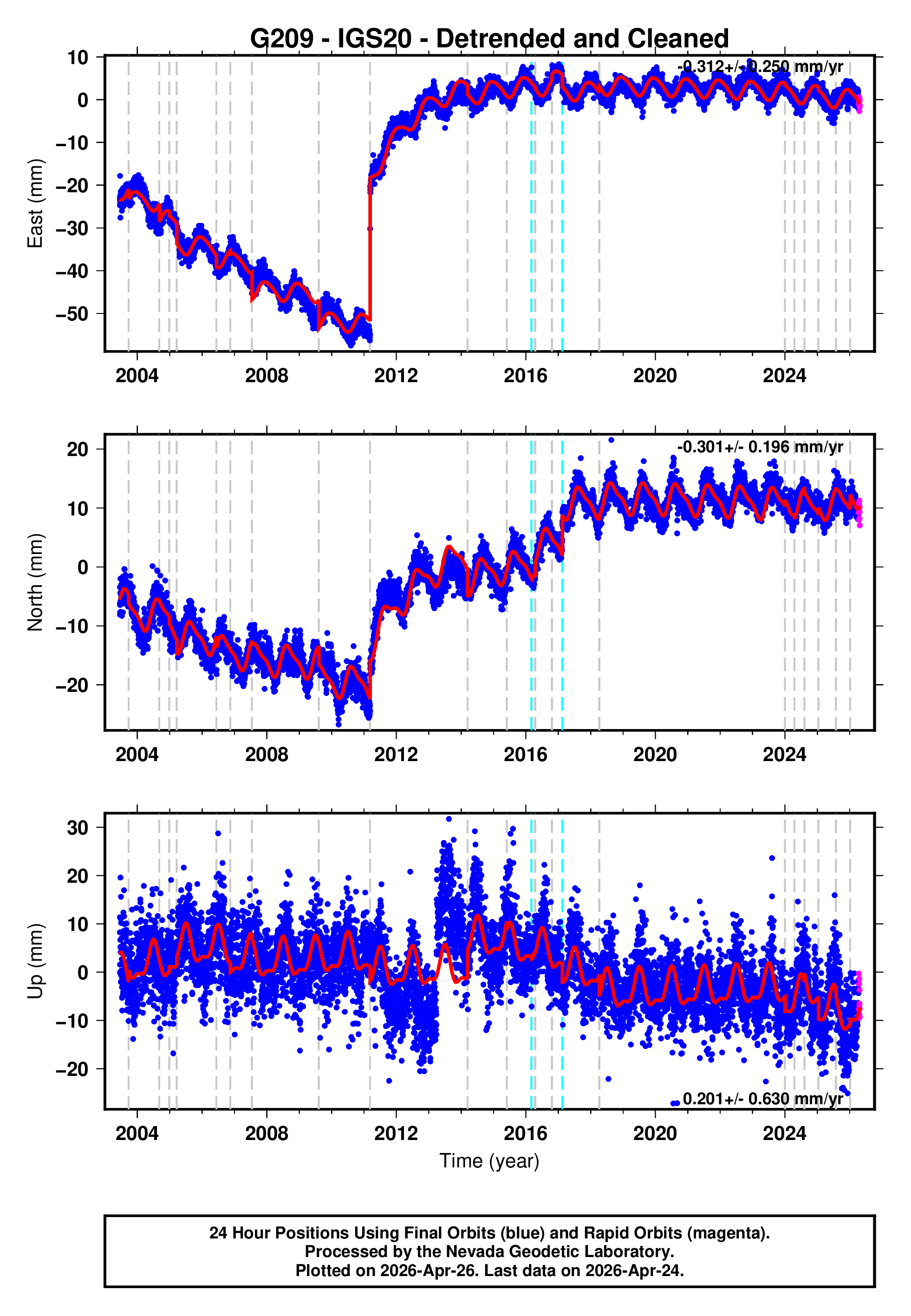

GPS time series plot

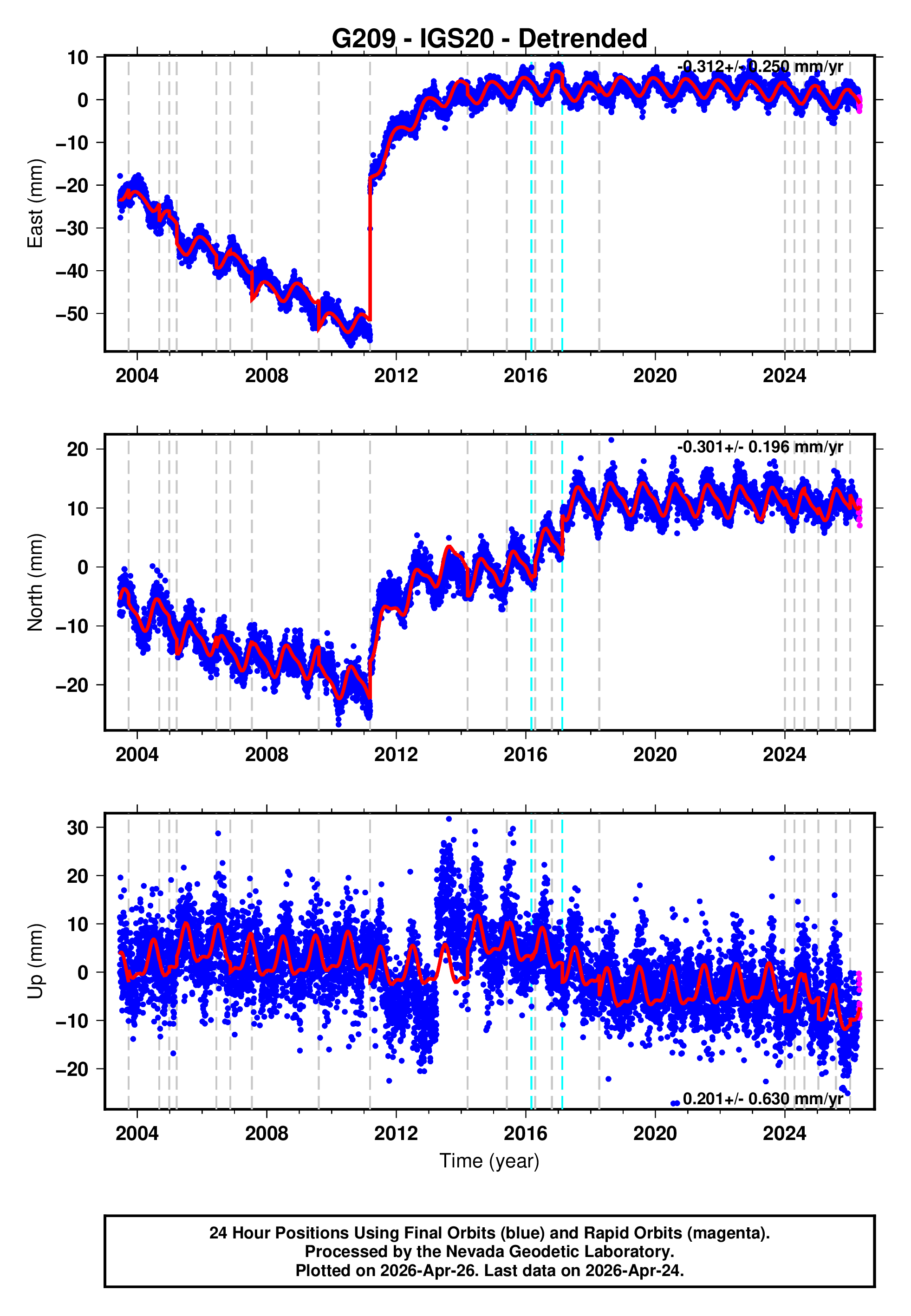

GPS time series plot

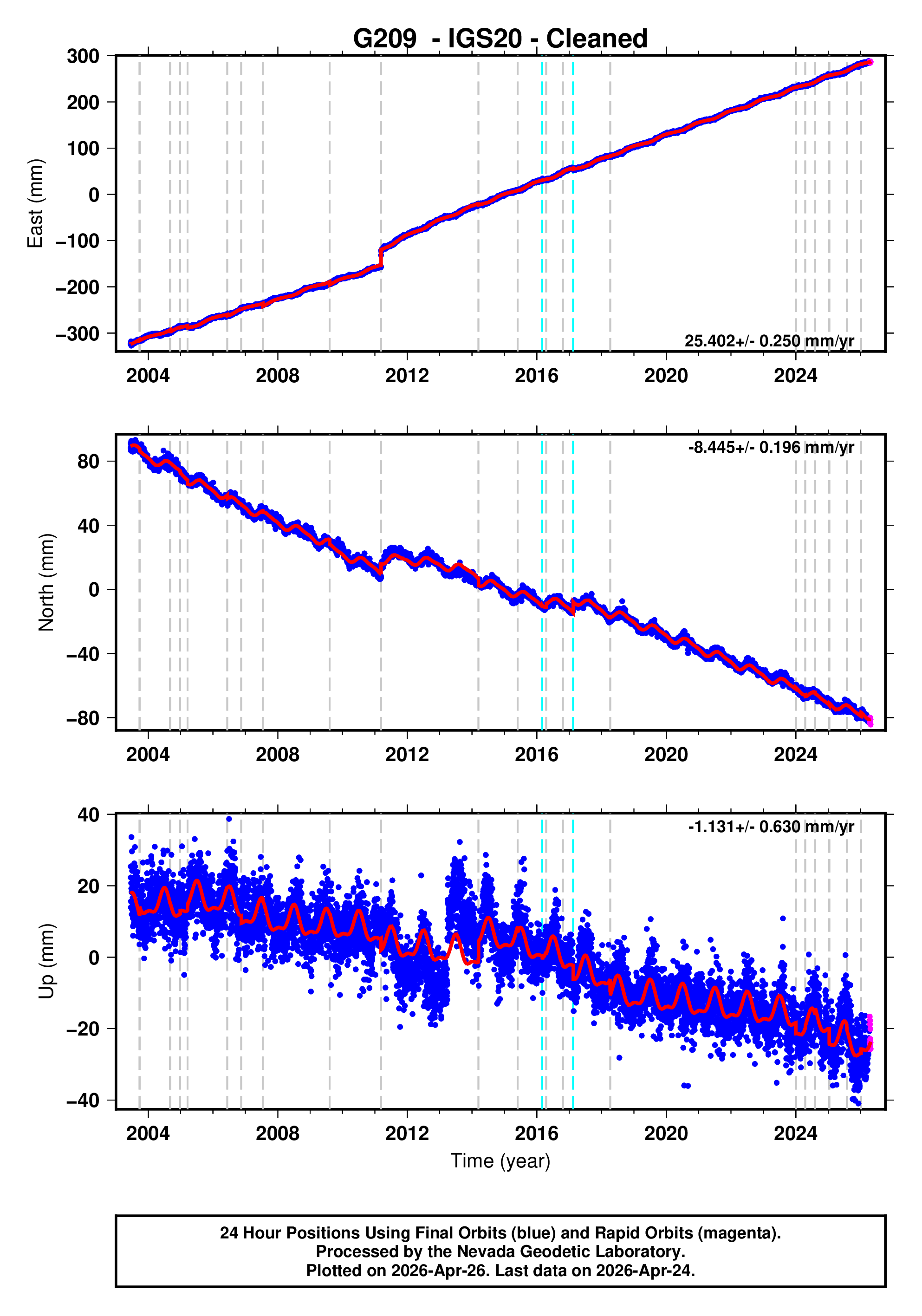

GPS time series plot

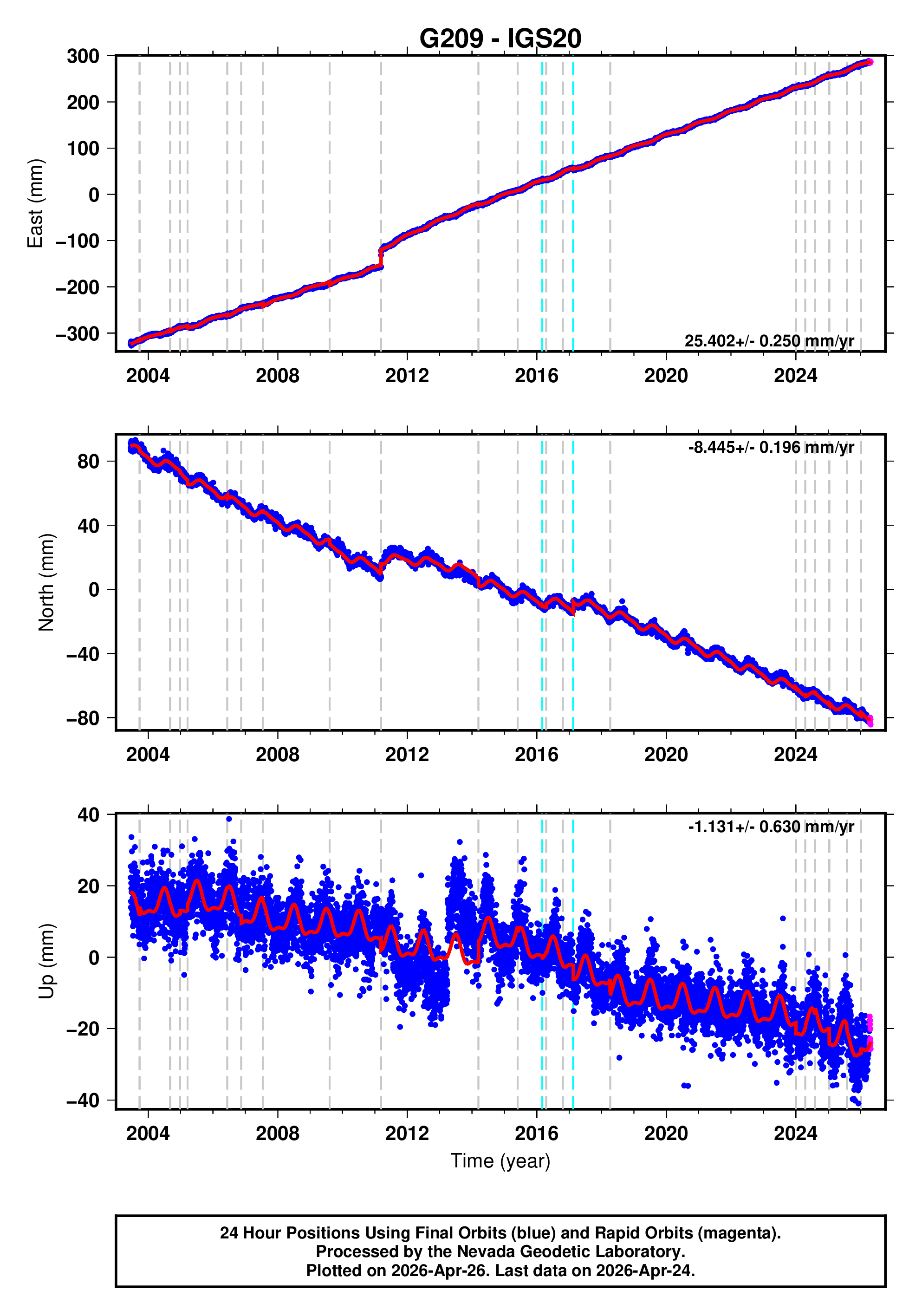

GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
G20916MAR03 Receiver_Make_and_Model_Changed - -
G20917FEB14 Antenna_Code_Changed - -
G20903SEP25 official20030925195006360_27 8.2 1285.7
G20904SEP05 usp000d3ka 7.2 466.2
G20904SEP05 usp000d3mb 7.4 498.9
G20904DEC26 official20041226005853450_30 9.1 5115.3
G20905MAR20 usp000djku 6.6 215.1
G20906NOV15 usp000exfn 8.3 2197.6
G20911MAR11 official20110311054624120_30 9.1 994.0
G20911MAR11 usp000hvpa 7.9 831.9
G20914MAR13 usc000nabv 6.3 136.7
G20916APR15 us20005iis 7.0 263.7
G20916OCT21 us20007fta 6.2 167.1
G20918APR08 us2000dwh6 5.7 59.8
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
