MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : I022

Network Operator's Station ID : 3022

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 35.726 degrees

Longitude: 140.837 degrees

Height: 59.121 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

OK

env

PA

env

24 Hour Rapid Solutions

IGS14

env

OK

env

PA

env

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

I021

18.09 km

I009

30.11 km

KSMV

30.17 km

I024

36.35 km


Time Series Plots

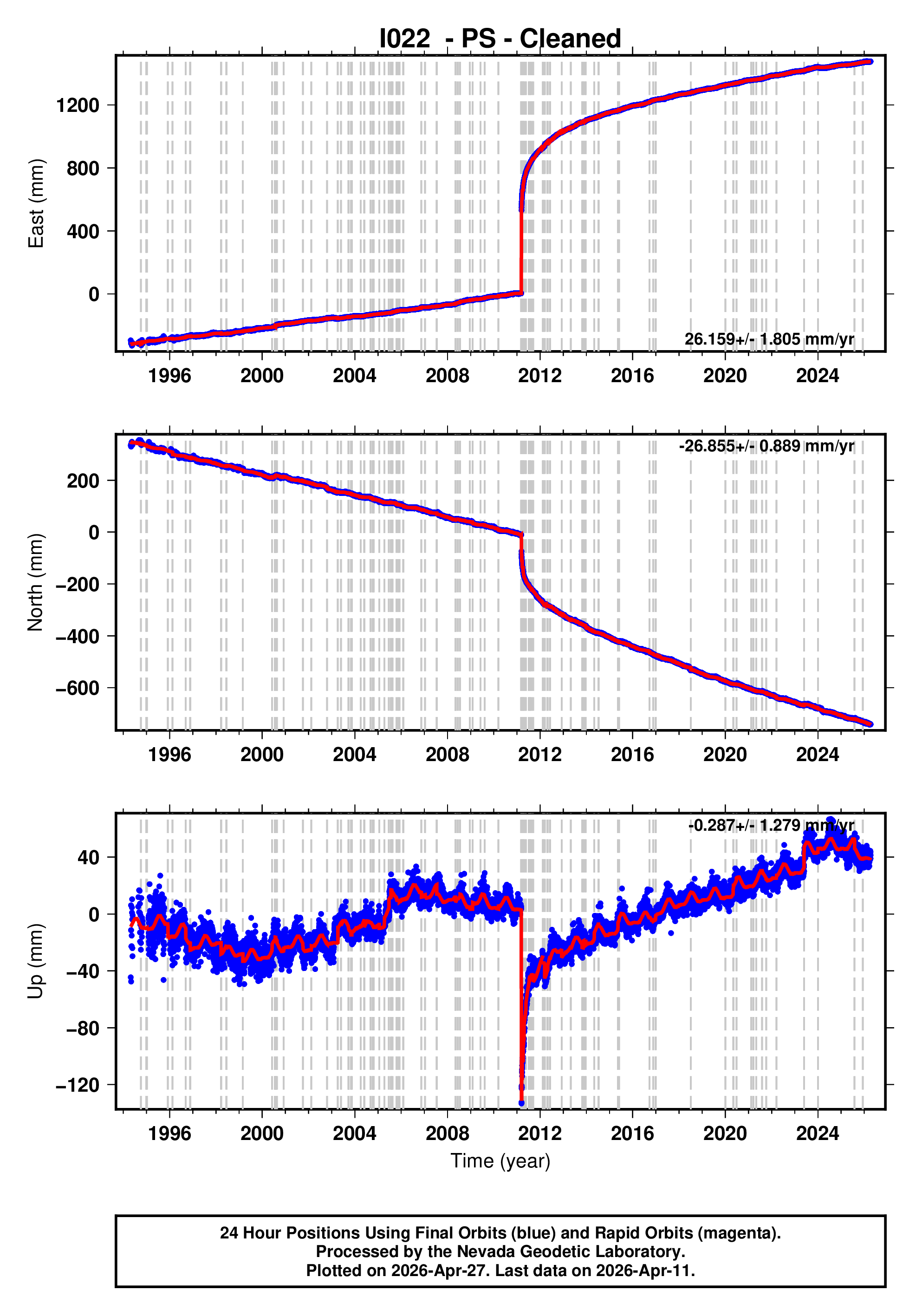

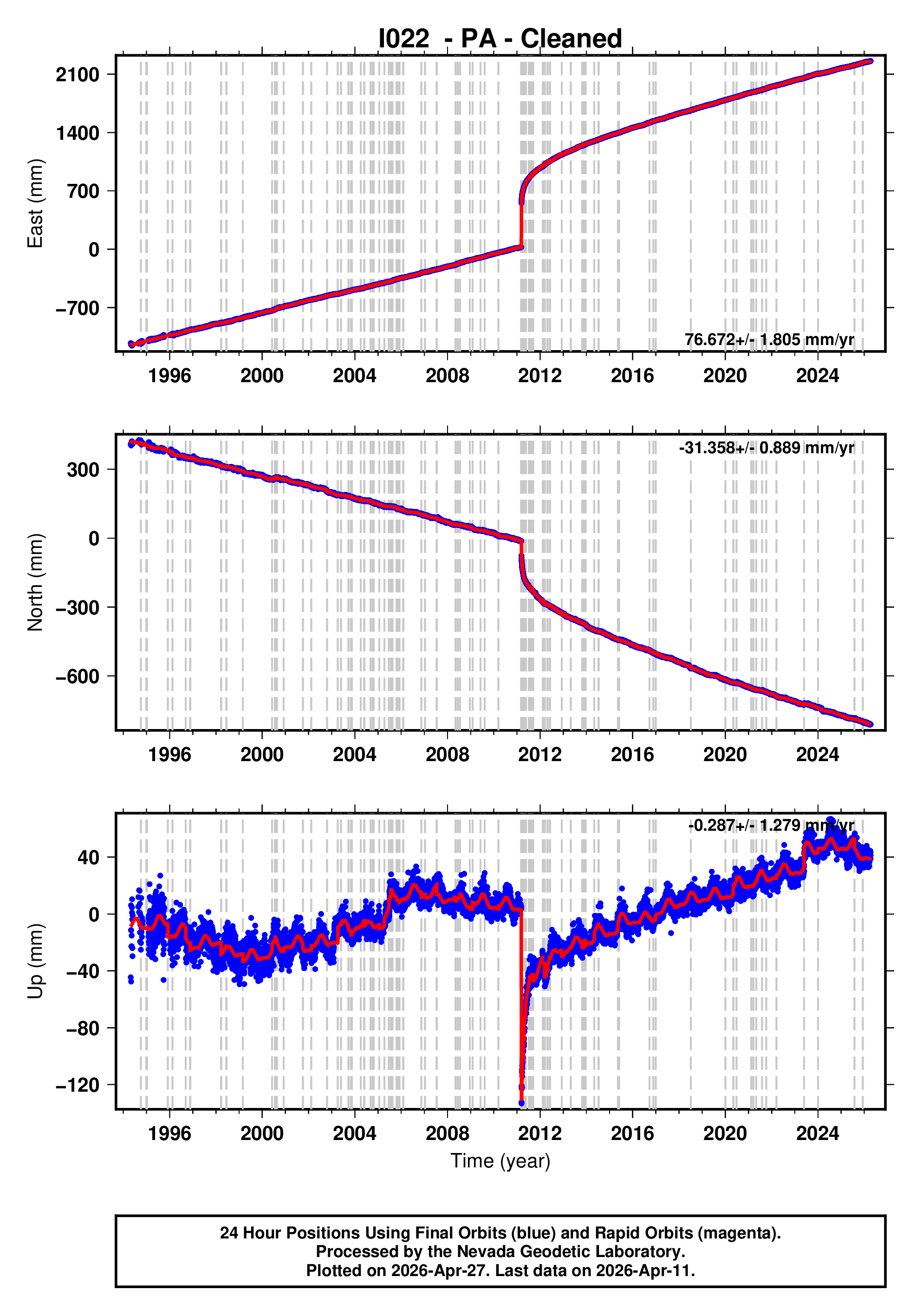

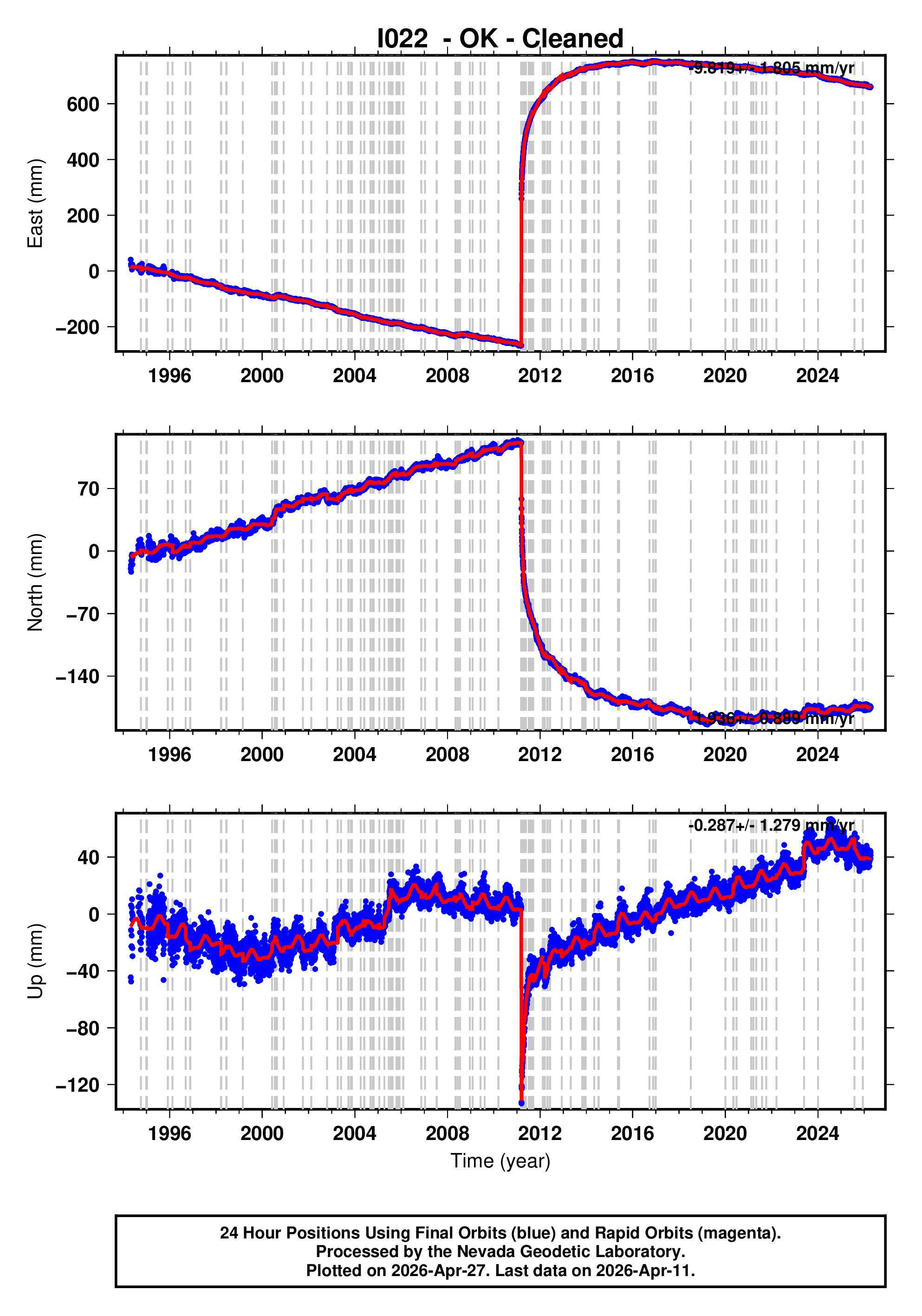

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

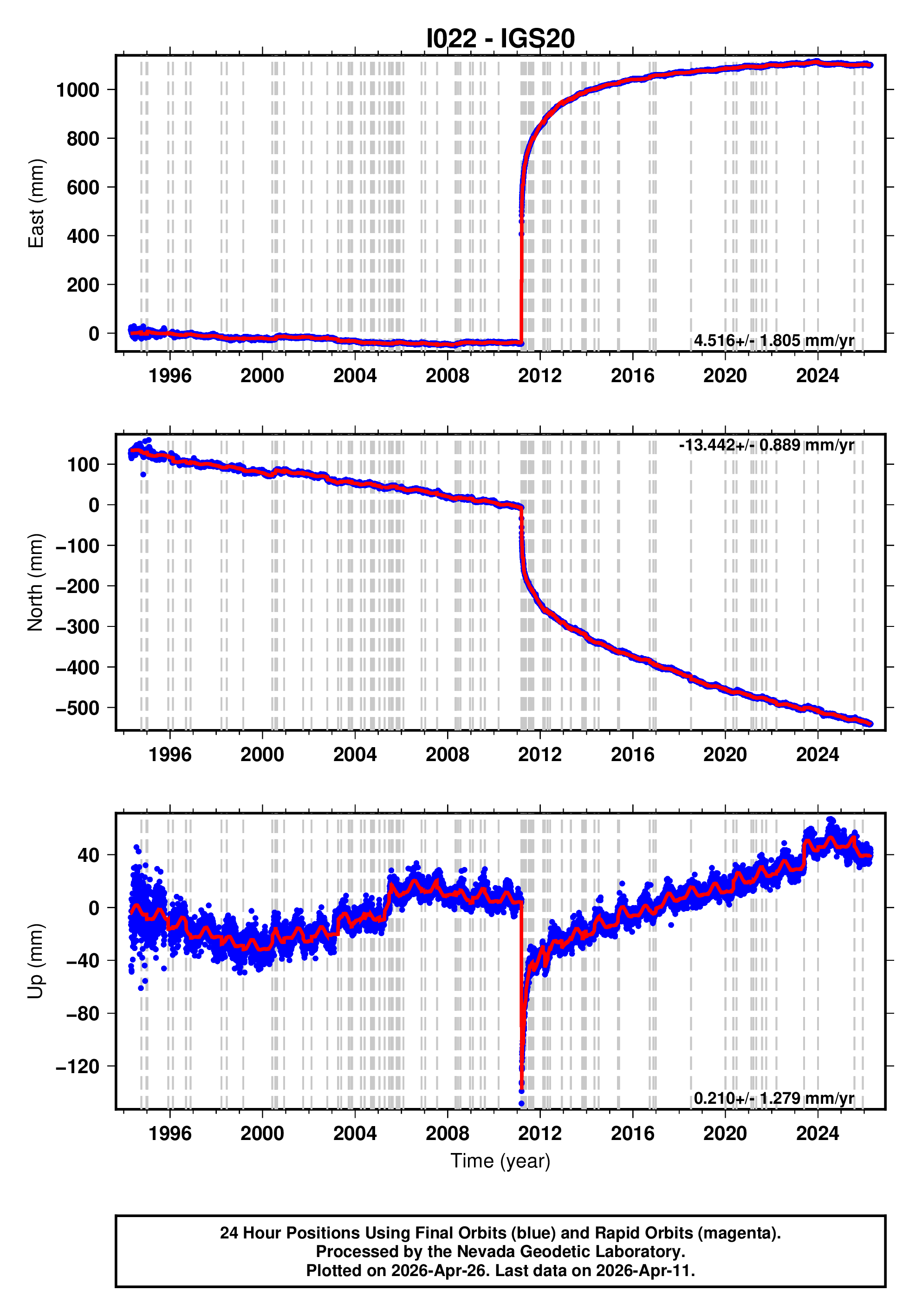

GPS time series plot
GPS time series plot

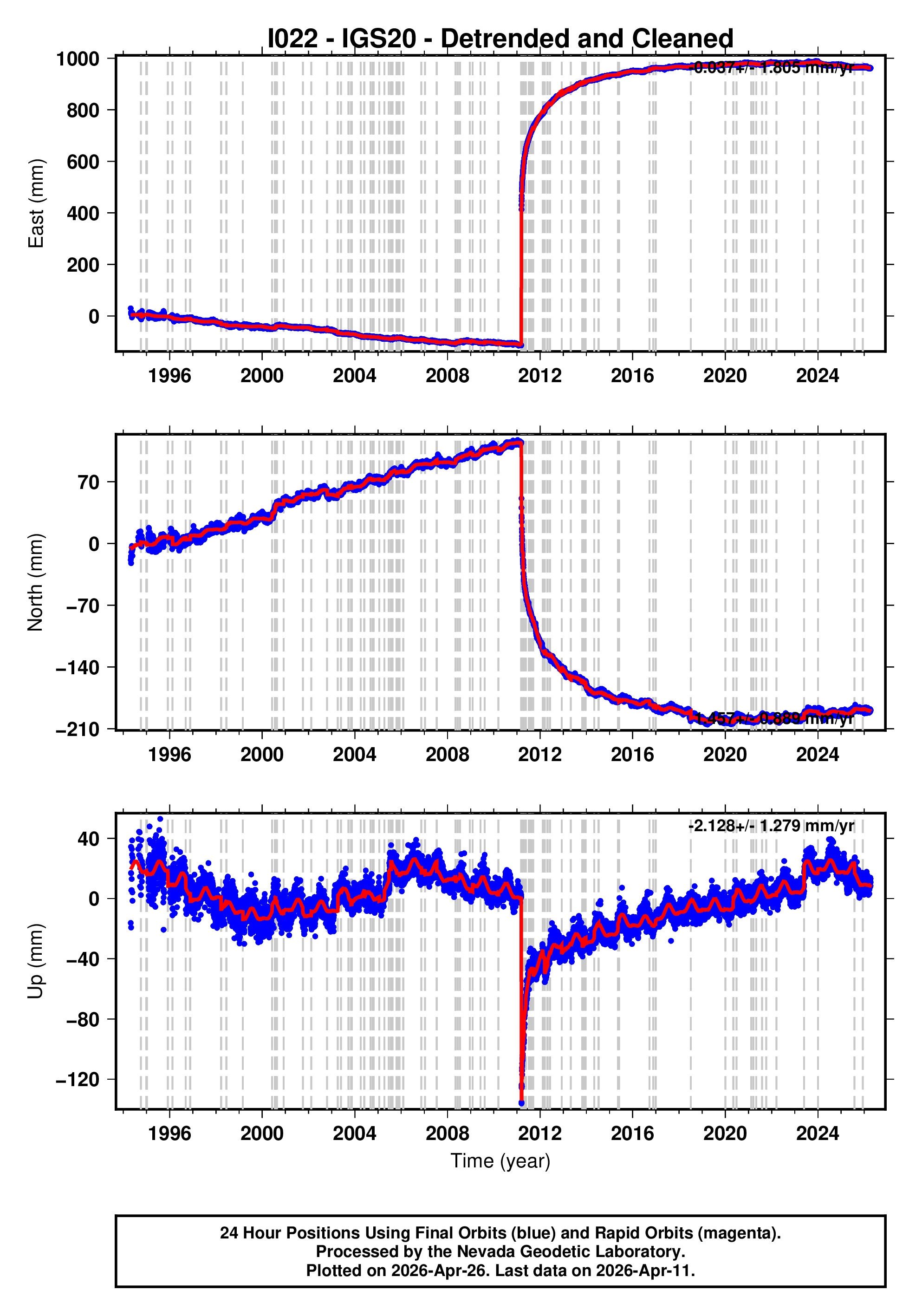

GPS time series plot
GPS time series plot

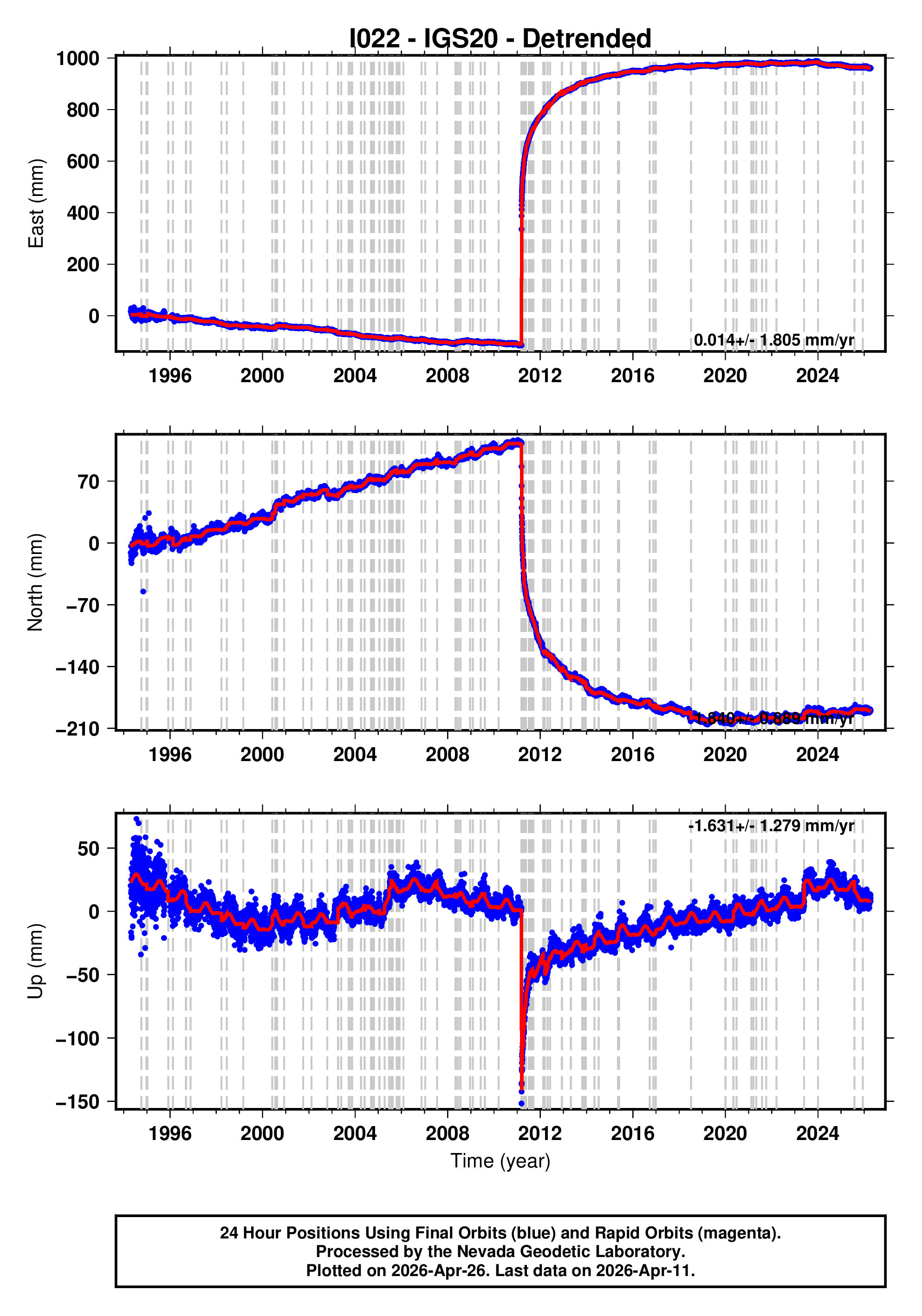

GPS time series plot
GPS time series plot

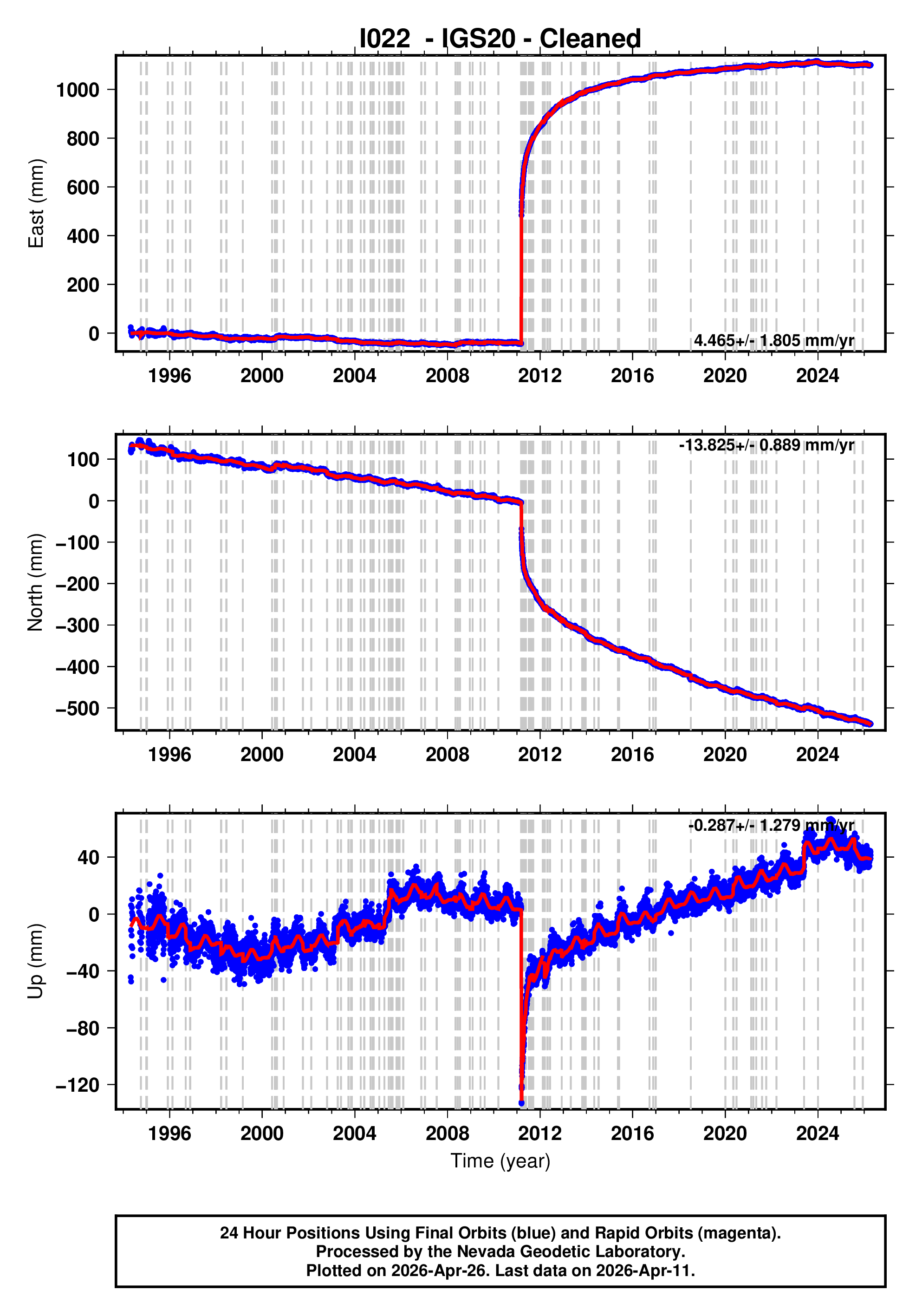

GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
I02209JUN06 usp000gxx2 5.8 27.9
I02209AUG09 usp000h04j 7.1 389.0
I02210MAR14 usp000h9cg 6.5 234.3
I02211MAR09 usp000hvhj 7.3 349.8
I02211MAR11 official20110311054624120_30 9.1 316.7
I02211MAR11 usp000hvnv 6.3 222.9
I02211MAR11 usp000hvp0 5.9 122.2
I02211MAR11 usp000hvp2 5.8 111.1
I02211MAR11 usp000hvp4 6.4 121.0
I02211MAR11 usp000hvp6 5.9 88.3
I02211MAR11 usp000hvp8 6.2 178.7
I02211MAR11 usp000hvpa 7.9 66.4
I02211MAR11 usp000hvpc 6.6 133.2
I02211MAR11 usp000hvpd 6.5 115.0
I02211MAR11 usp000hvpg 7.7 422.5
I02211MAR11 usp000hvpj 5.9 136.1
I02211MAR11 usp000hvpm 5.8 25.3
I02211MAR11 usp000hvpp 5.8 85.0
I02211MAR11 usp000hvq3 6.0 3.8
I02211MAR11 usp000hvqf 6.3 130.3
I02211MAR11 usp000hvqk 6.1 150.6
I02211MAR11 usp000hvqv 5.8 102.1
I02211MAR11 usp000hvr9 5.6 62.4
I02211MAR11 usp000hvra 6.2 110.3
I02211MAR11 usp000hvrd 6.5 81.5
I02211MAR11 usp000hvrj 5.6 36.6
I02211MAR11 usp000hvrp 5.6 45.5
I02211MAR11 usp000hvst 5.5 71.9
I02211MAR11 usp000hvug 5.7 9.8
I02211MAR11 usp000hvux 5.8 43.1
I02211MAR11 usp000hvv2 5.5 86.4
I02211MAR11 usp000hvvw 5.6 83.2
I02211MAR11 usp000hvwz 5.5 44.6
I02211MAR11 usp000hvxs 5.8 57.2
I02211MAR11 usp000hvy0 6.3 92.4
I02211MAR11 usp000hvy2 6.0 118.7
I02211MAR11 usp000hvy3 5.5 65.0
I02211MAR11 usp000hvzr 5.5 66.7
I02211MAR11 usp000hw0q 5.8 89.9
I02211MAR11 usp000hw1a 5.5 59.9
I02211MAR11 usp000hw1j 5.5 16.8
I02211MAR11 usp000hw2f 5.7 70.0
I02211MAR12 usp000hw7r 6.5 263.1
I02211MAR12 usp000hw8u 5.9 52.1
I02211MAR12 usp000hwfv 6.1 171.7
I02211MAR13 usp000hwq6 6.1 72.2
I02211MAR13 usp000hwyc 5.6 68.2
I02211MAR14 usp000hx1e 5.5 76.0
I02211MAR15 usp000hxdx 5.7 59.3
I02211MAR16 usp000hxf1 5.7 11.7
I02211MAR17 usp000hxnv 5.5 26.5
I02211MAR17 usp000hxny 5.8 119.2
I02211MAR22 usp000hy7j 5.7 59.8
I02211MAR22 usp000hy8x 5.7 80.7
I02211MAR22 usp000hy9e 5.9 64.7
I02211MAR22 usp000hy9m 5.6 66.2
I02211APR07 usp000hzf6 7.1 291.2
I02211APR11 usp000hzq8 6.6 147.0
I02211APR11 usp000hzsk 6.2 41.8
I02211APR14 usp000hzxk 5.7 96.1
I02211APR21 usp000j0c3 6.2 50.8
I02211MAY20 usp000j1v8 5.8 3.9
I02211MAY21 usp000j1zc 5.6 34.3
I02211JUL06 usp000j48b 5.7 100.4
I02211JUL10 usp000j4gp 7.0 335.3
I02211JUL25 usp000j5fr 5.6 51.2
I02211JUL30 usp000j5rk 6.3 135.6
I02211AUG22 usp000j6v4 5.9 86.3
I02211SEP15 usp000j82k 6.1 74.2
I02212FEB14 usp000jex0 5.5 72.6
I02212FEB14 usp000jex9 5.8 73.3
I02212FEB29 usp000jfkt 5.6 60.4
I02212MAR14 usp000jg80 6.0 13.6
I02212APR24 usp000jjhz 5.5 35.0
I02212APR29 usp000jjs6 5.8 46.4
I02212JUN05 usp000jmcv 6.1 91.1
I02212DEC07 usp000jwjn 7.3 366.9
I02213APR29 usb000ghg0 5.6 13.1
I02213OCT25 usc000kn4n 7.1 377.1
I02213NOV16 usb000kzuj 5.5 63.3
I02213DEC14 usc000lkgy 5.5 18.3
I02213DEC21 usc000lpah 5.5 21.6
I02214JUL11 usb000rs50 6.5 202.8
I02215MAY12 us20002et4 6.8 368.9
I02215MAY30 us20002ki3 7.8 877.7
I02216SEP23 us10006rte 6.2 158.3
I02216NOV21 us10007b88 6.9 191.7
I02216DEC28 us10007naf 5.9 131.0
I02218JUL07 us2000fz0q 5.9 71.1
I02220JAN02 us70006ttf 5.7 38.3
I02220MAY04 us700099s8 5.6 5.6
I02220MAY10 us70009dus 5.8 74.8
I02220JUN24 us7000aabt 5.9 35.5
I02221FEB13 us6000dher 7.1 237.6
I02221MAR20 us7000dl6y 7.0 311.4
I02221MAY01 us7000dz5t 6.9 283.2
I02221AUG03 us6000f1z7 5.8 121.4
I02221OCT07 us6000fsl6 5.9 71.3
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
