MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : CN20

Data attribution information: DOI Database

DOI link for this station: https://doi.org/10.7283/T58W3BK5

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 9.352 degrees

Longitude: -82.256 degrees

Height: 12.899 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

NA

tenv3

PM

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

NA

tenv3

PM

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

TGPM

0.18 km

PTPA

47.61 km

VLCN

75.72 km

RSNO

89.17 km


Time Series Plots

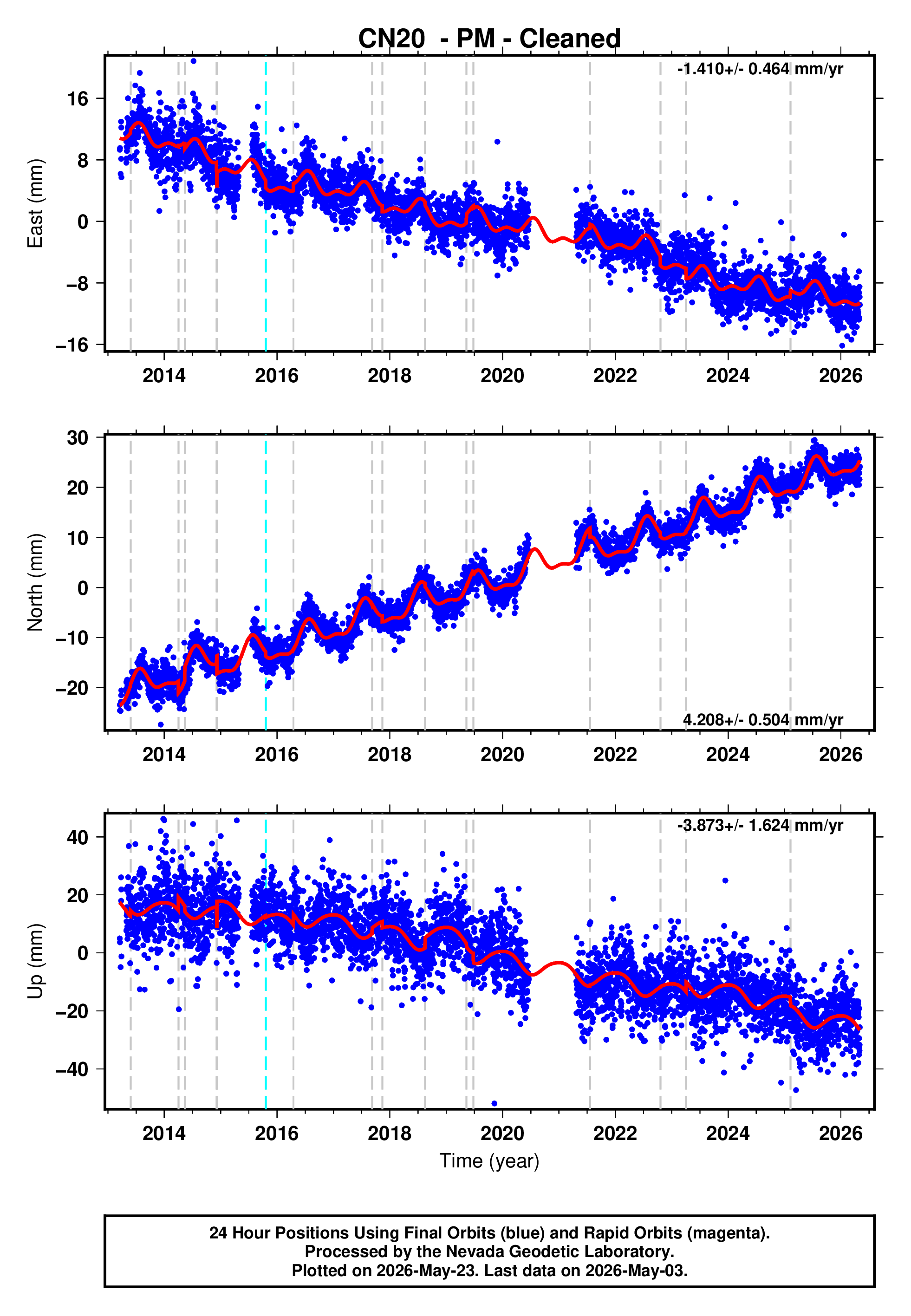

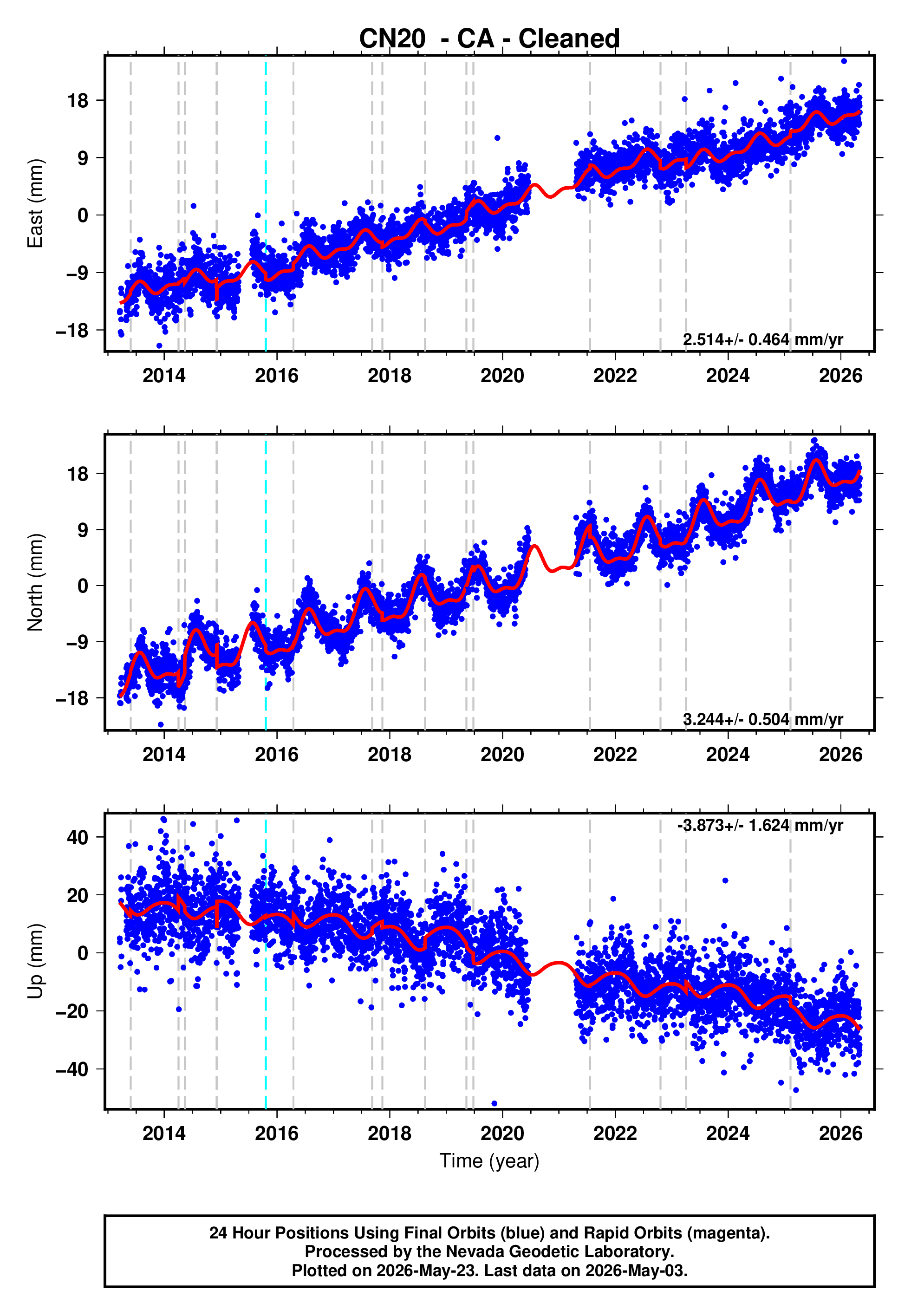

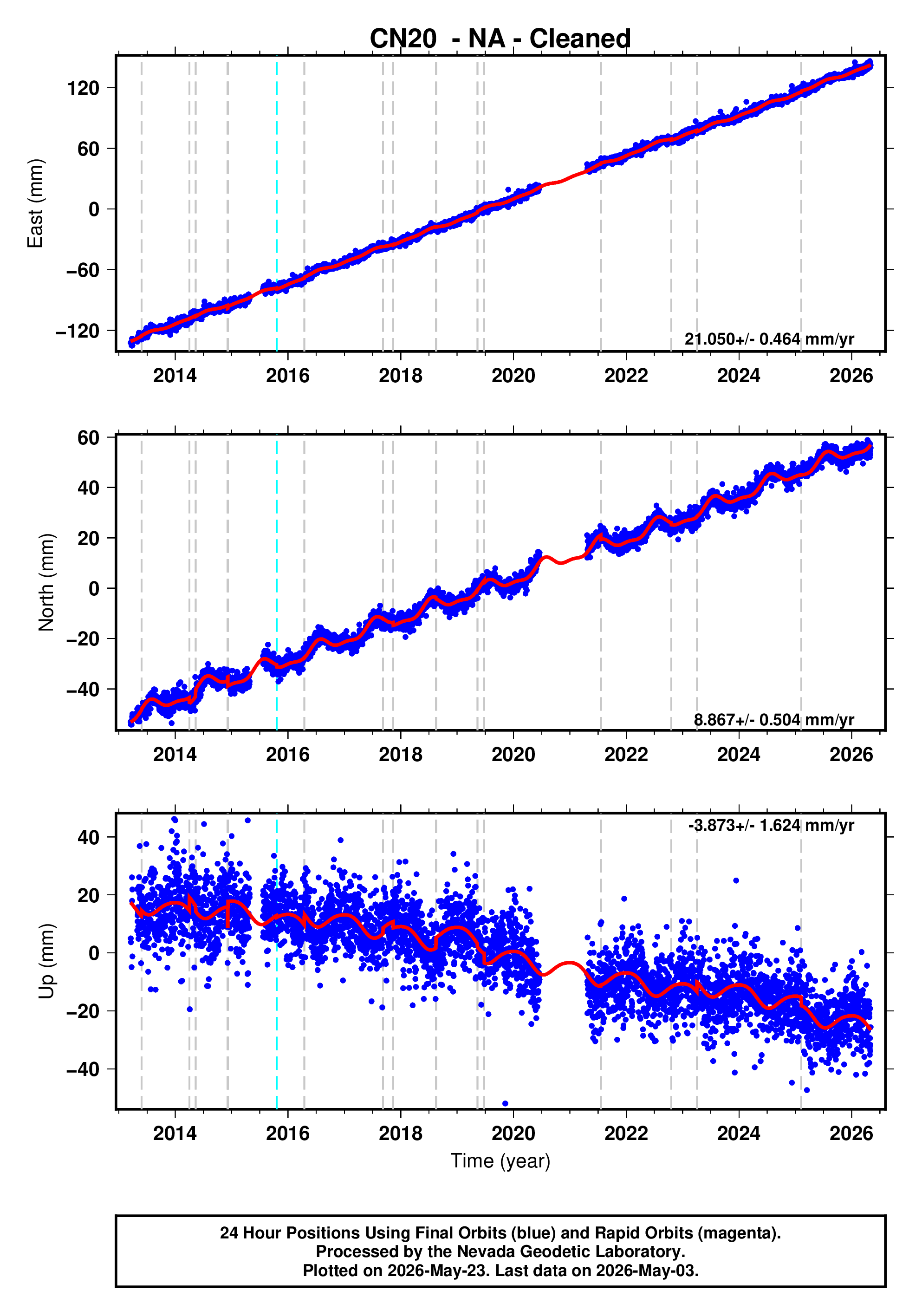

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

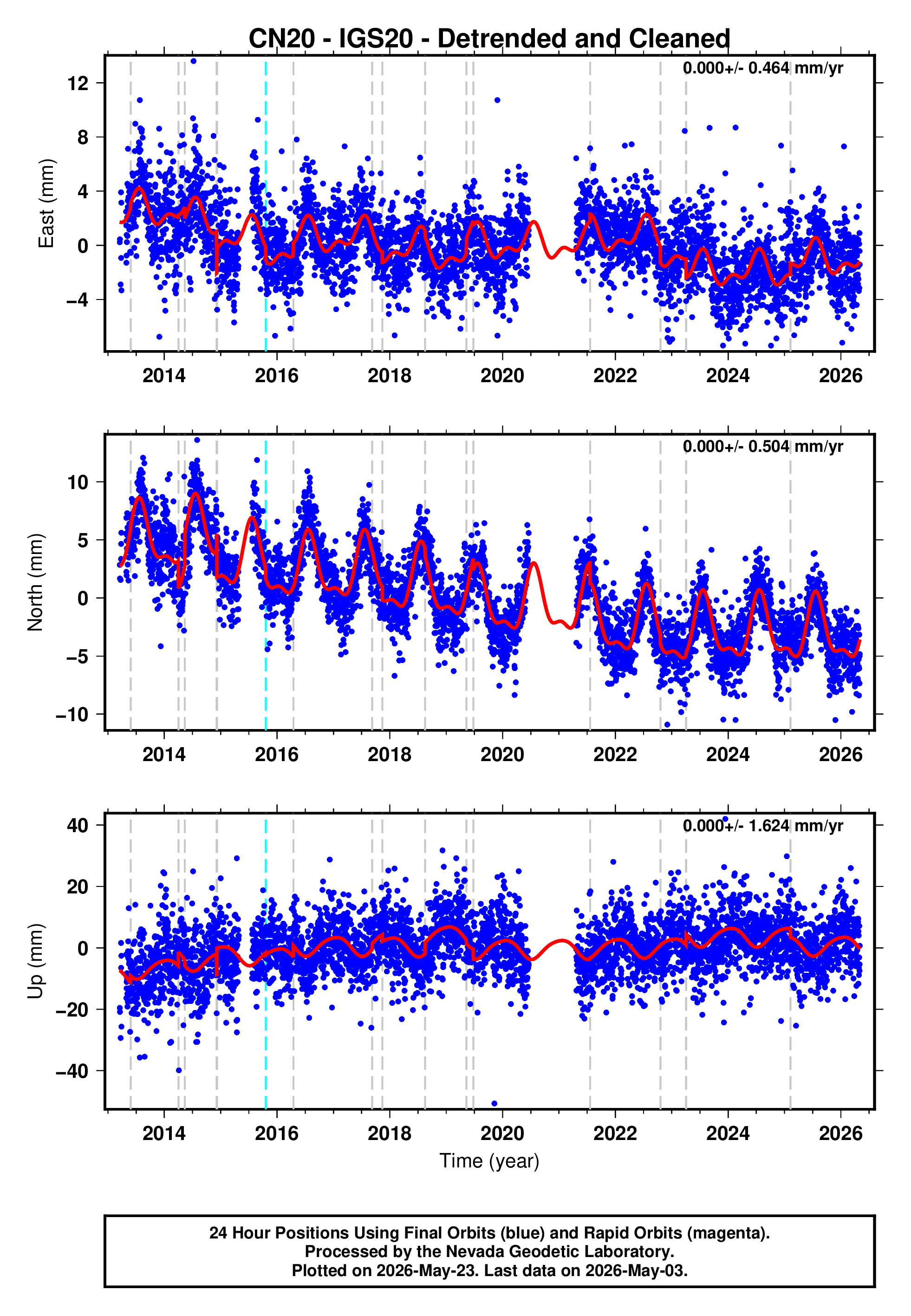

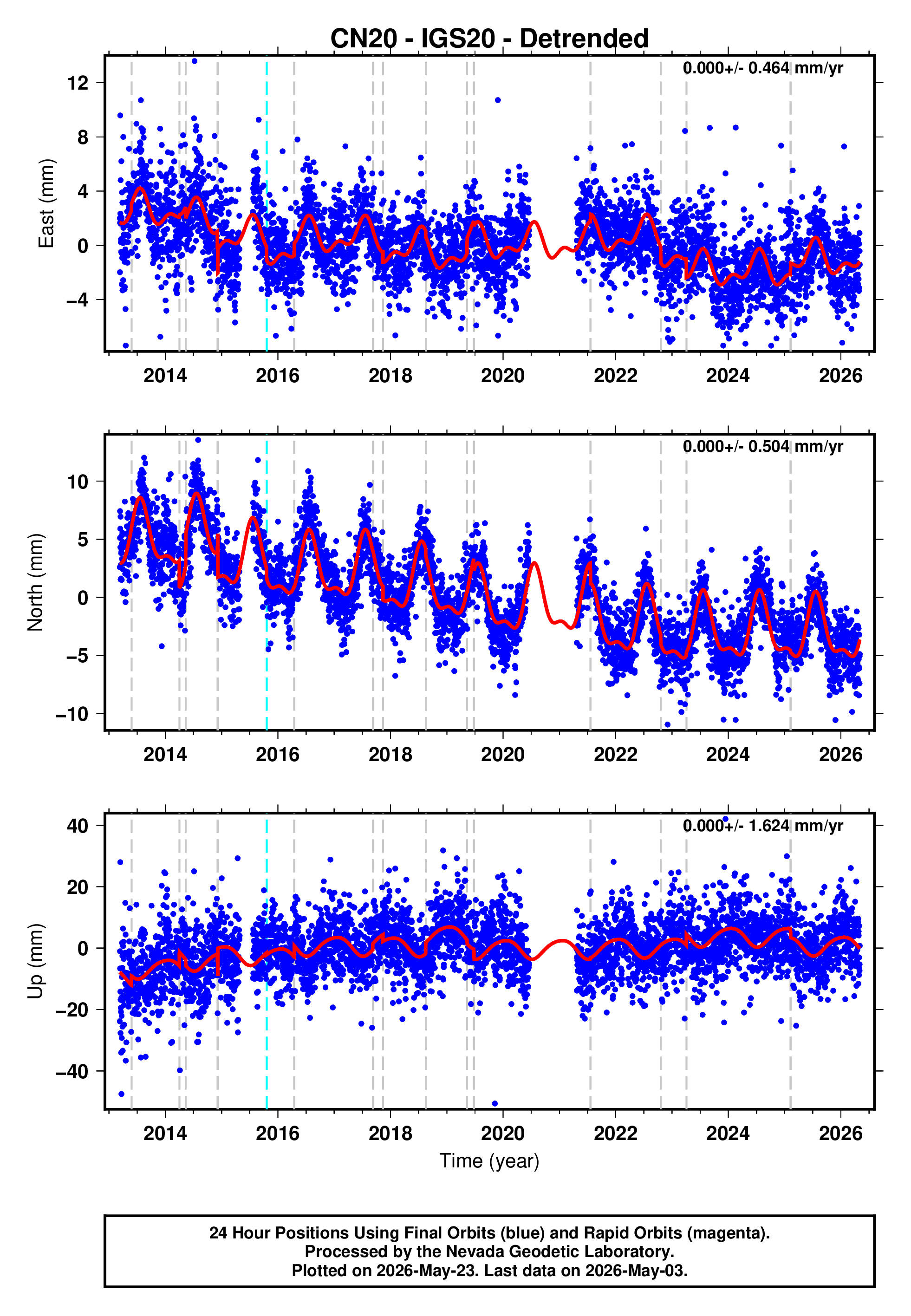

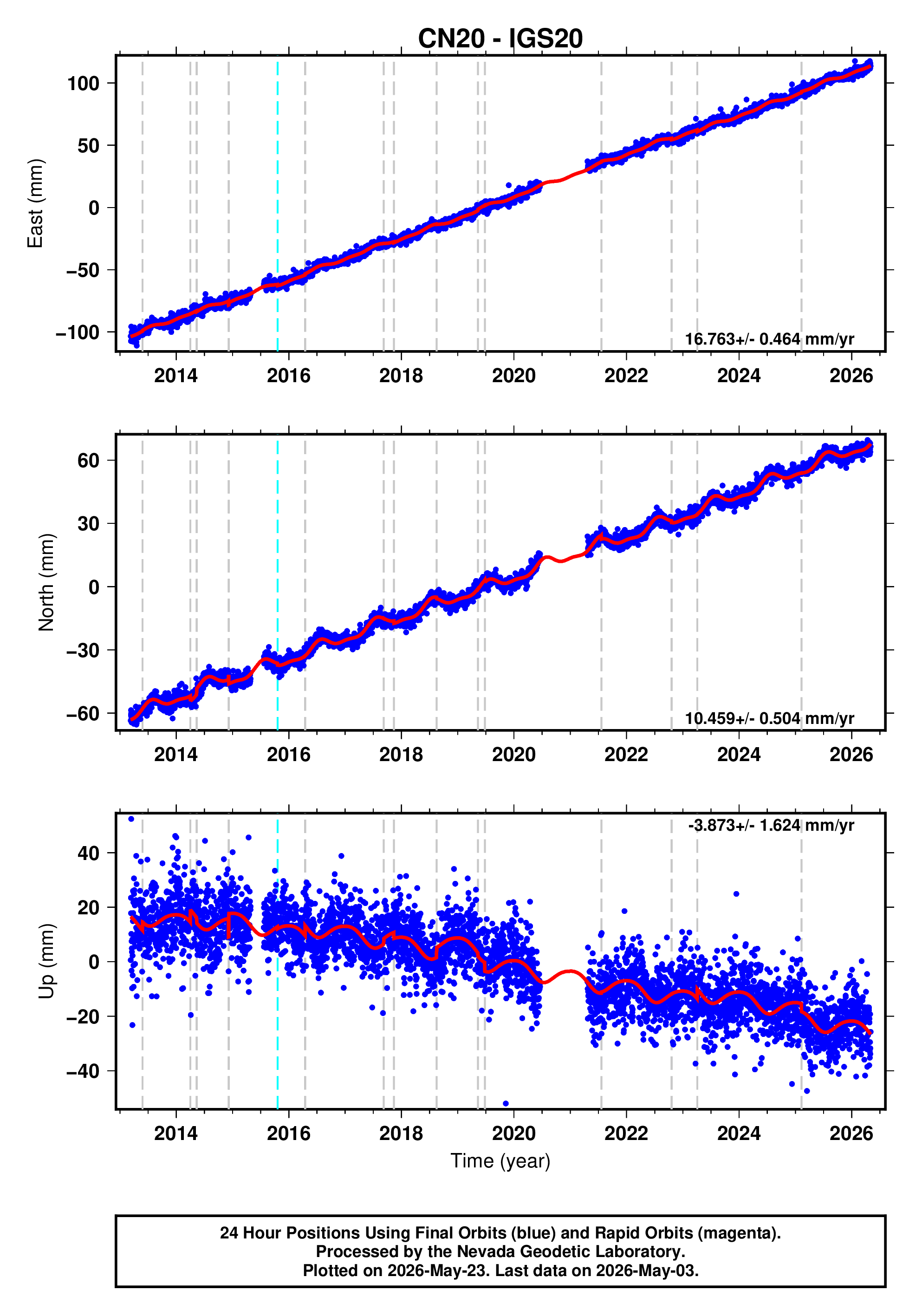

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
CN2013MAY27 usb000h700 5.7 42.5
CN2014APR02 usc000p11f 6.0 157.2
CN2014MAY13 usb000qk64 6.5 238.2
CN2014DEC06 usc000t49v 6.0 161.1
CN2014DEC08 usc000t4iq 6.6 163.9
CN2016APR16 us20005j32 7.8 1030.3
CN2017SEP08 us2000ahv0 8.2 1413.2
CN2017NOV13 us2000bmhe 6.5 245.3
CN2018AUG17 us1000gc0k 6.1 117.2
CN2019MAY12 us70003k3p 6.0 102.5
CN2019JUN26 us7000455l 6.2 113.1
CN2021JUL21 us6000exs5 6.7 225.3
CN2022OCT20 us6000iv6c 6.7 187.1
CN2022OCT20 at00rk1vve 6.9 183.7
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
