MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : ZAN1

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.

Latitude: 61.229

Longitude: -149.780

Height: 80.584 meters

Time Series Data

(ascii text)
24 Hour Final Solutions


env xyz


env xyz
24 Hour Rapid Solutions

FID (~IGS08)



env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)


ftp link

Ultra Rapid 5 Minute Solutions

Available Next Hour
(1-2 hr. latency)


ftp link

Cite this product as: Blewitt et al.,(2018).

See this link for suggested full citation text.

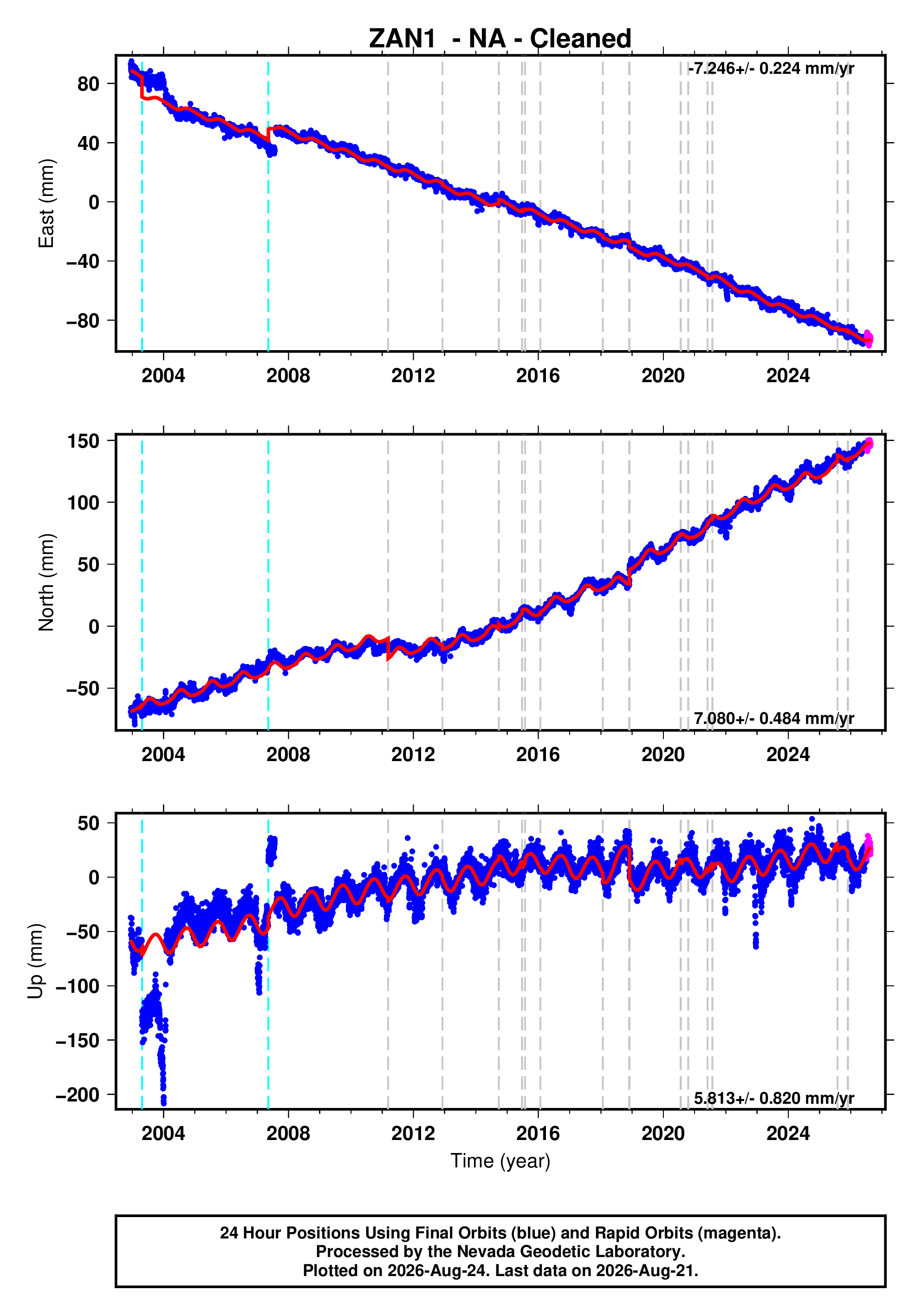

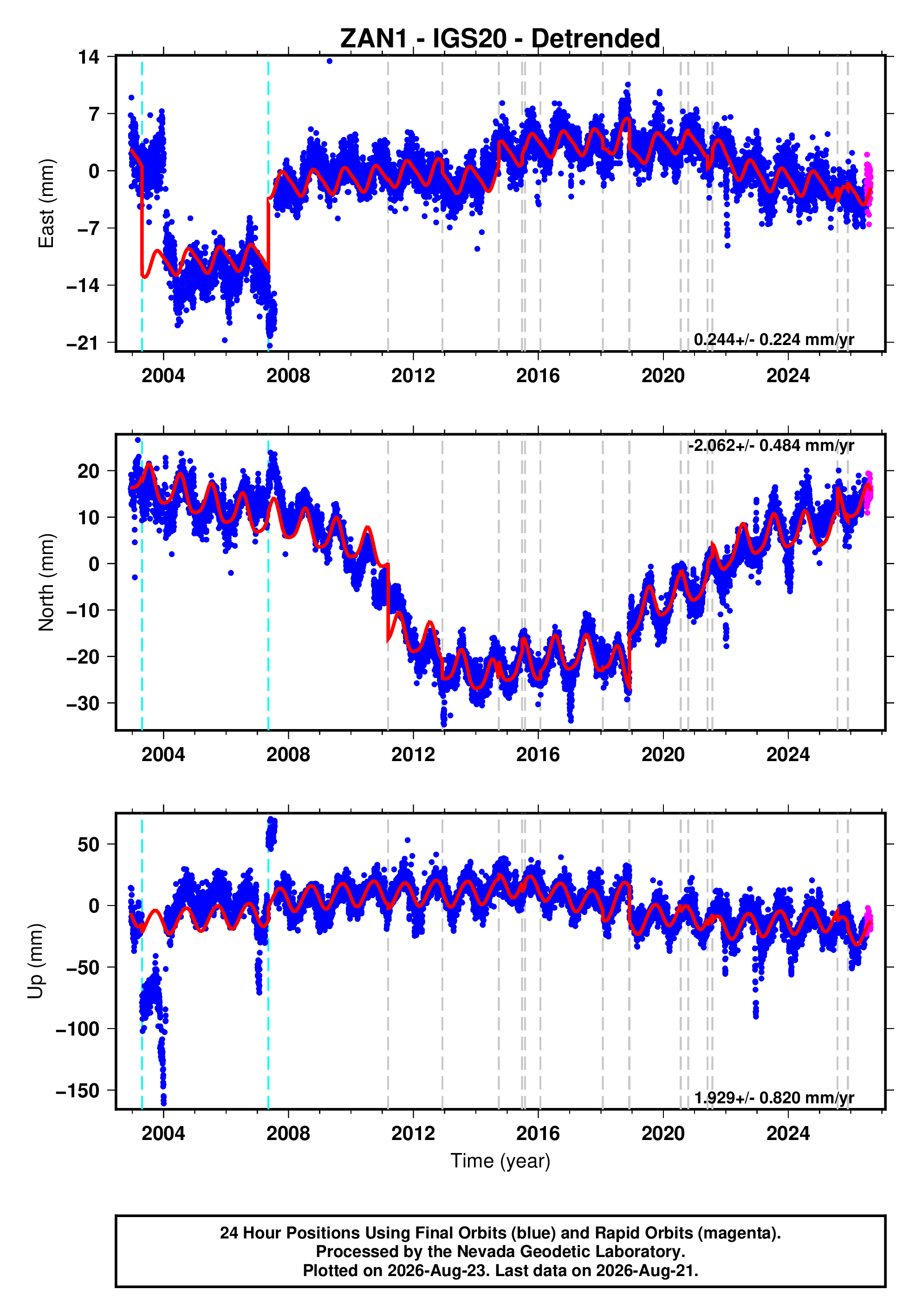

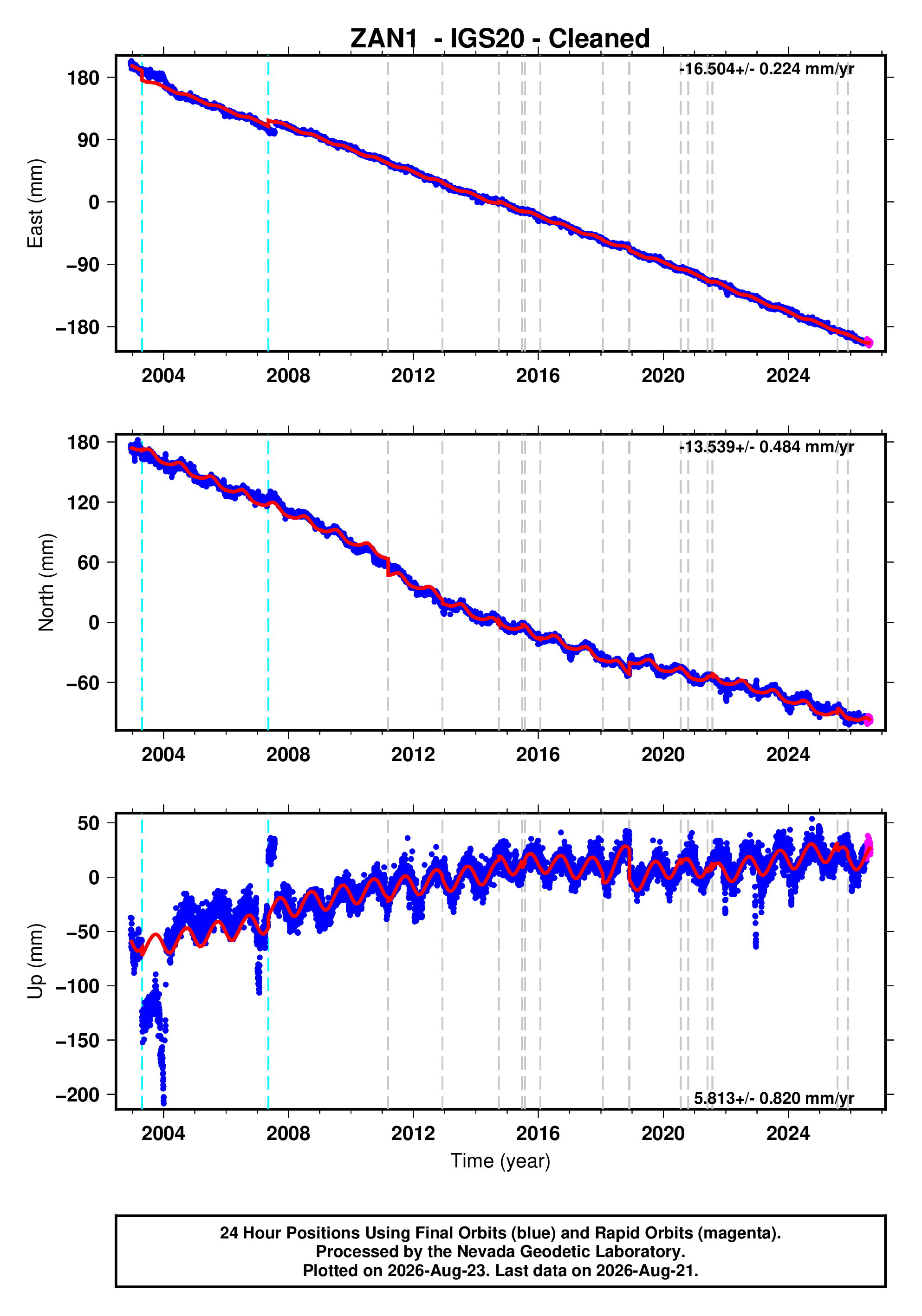

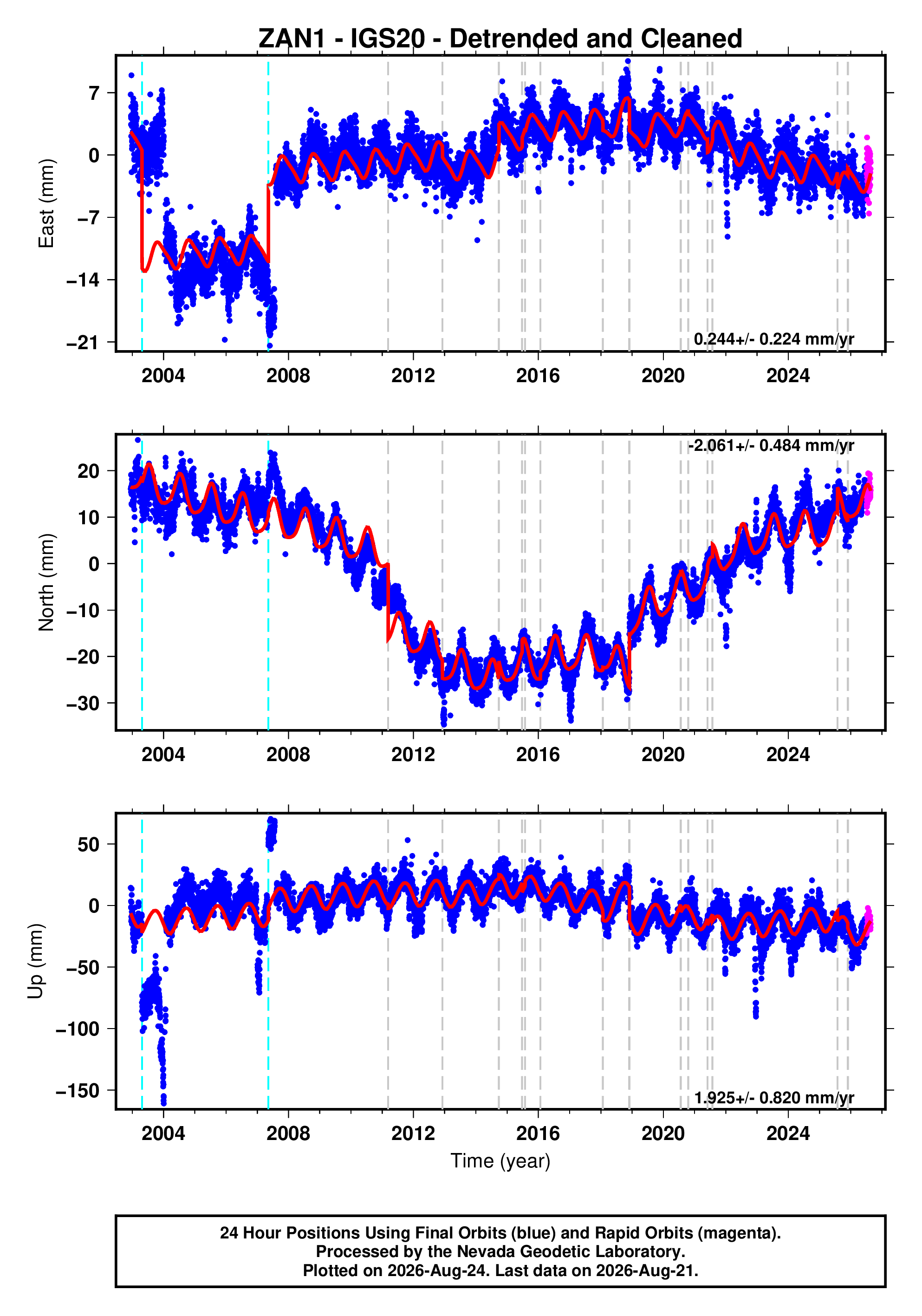

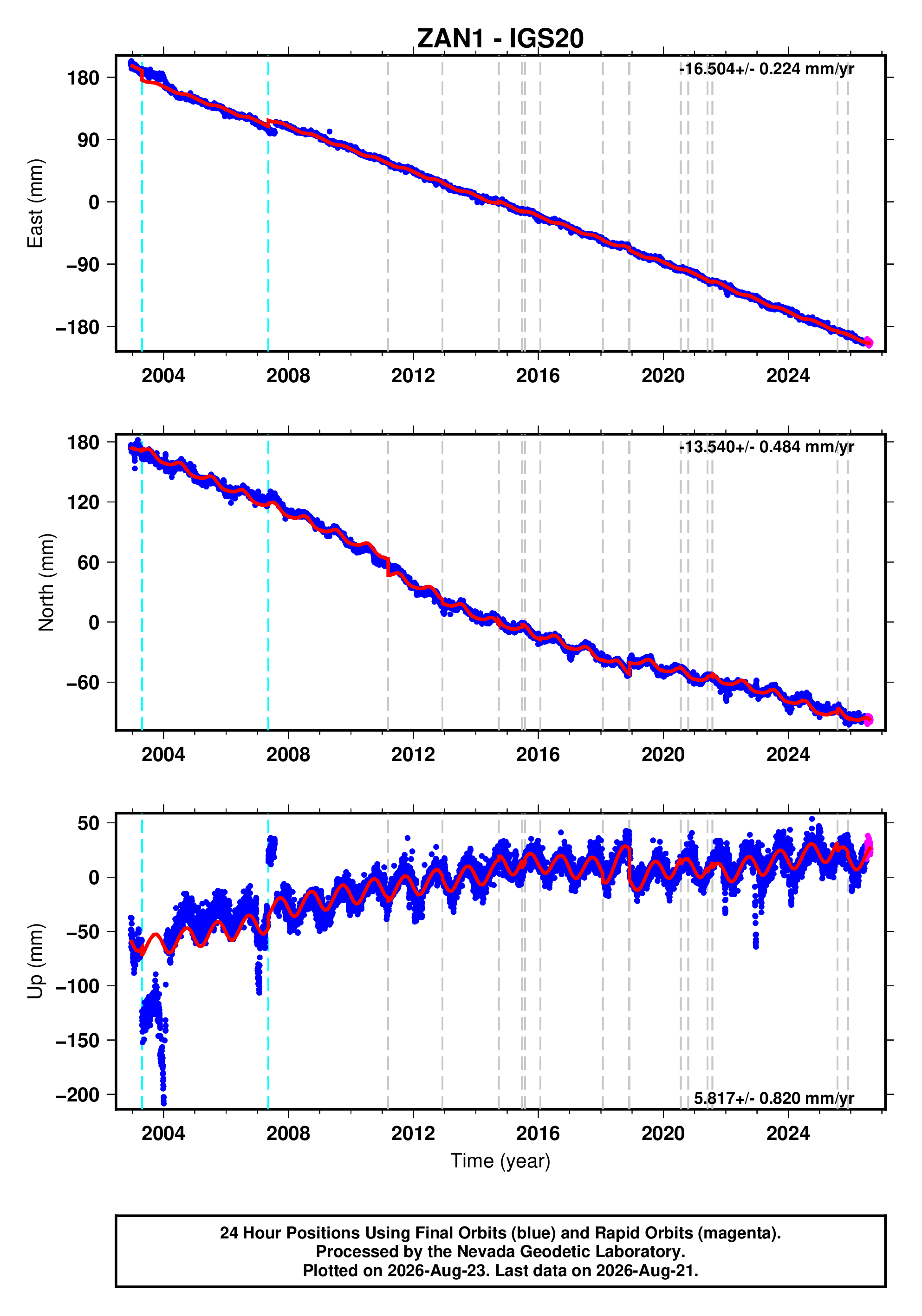

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned NA12 NA12 Cleaned Rapid 5 min. Ultra Rapid 5 min.
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available

Steps Information for this station

Station ID Date
Equipment Change Type/
or Event ID
ZAN103APR23 Antenna_Code_Changed - -
ZAN107MAY10 Antenna_Code_Changed - -
ZAN111MAR11 official20110311054624120_30 9.1 5194.1
ZAN112DEC04 usp000jwdw 5.8 52.4
ZAN114SEP25 ak11401855 6.2 133.9
ZAN116JAN24 us10004gqp 7.1 266.3
ZAN118JAN23 us2000cmy3 7.9 582.1
ZAN118NOV30 us1000hyfh 7.0 14.9
ZAN118NOV30 ak20419010 7.0 16.0
ZAN118NOV30 ak20419042 5.7 11.1
ZAN118MAY27 Reference_Frame_Change:_IGS08_to_IGS14 - -
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
