MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : WARE

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 50.690 degrees

Longitude: 5.245 degrees

Height: 187.870 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

EU

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

BERL

4.29 km

TRUI

14.95 km

MOH2

17.05 km

TGRN

18.66 km

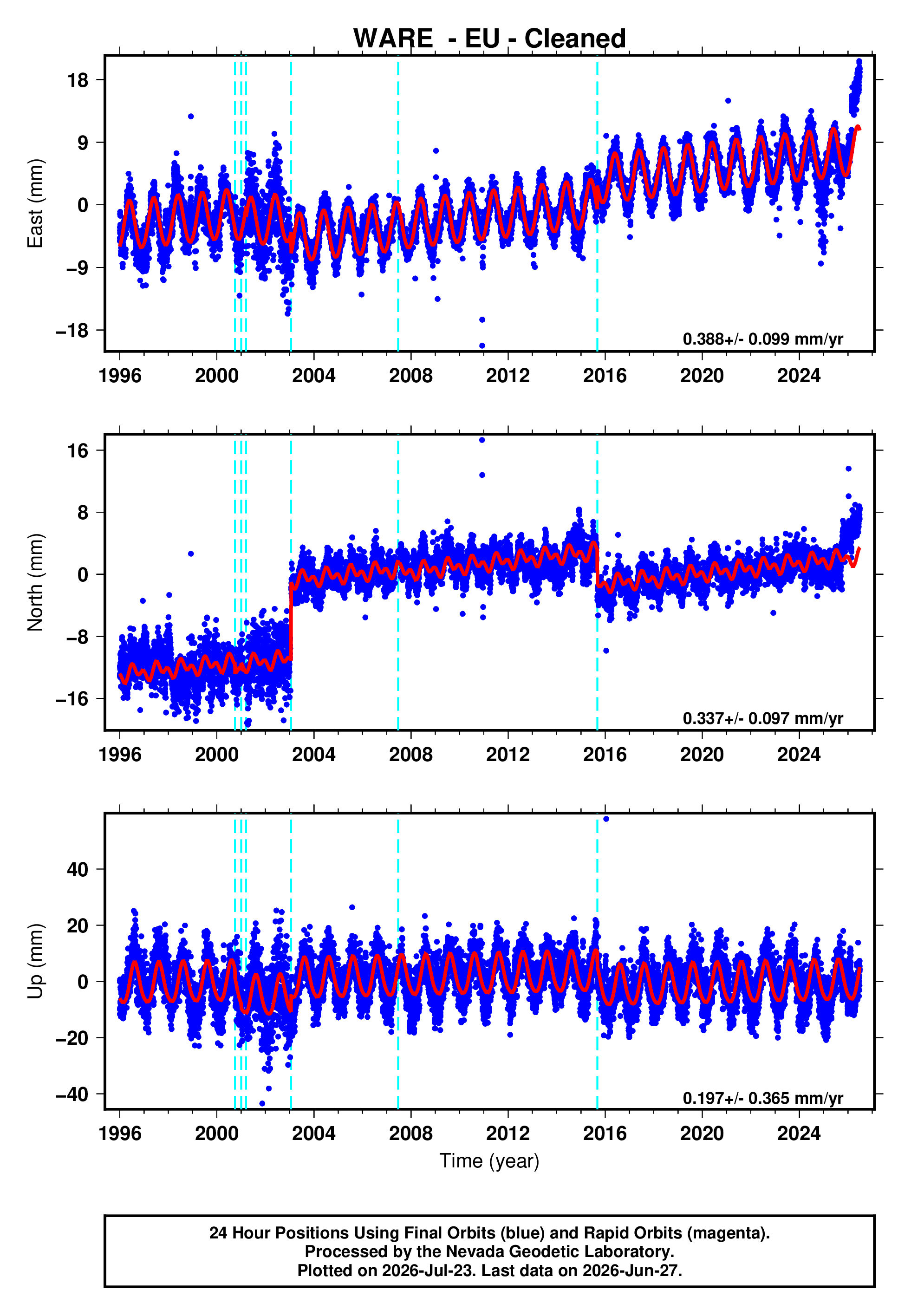

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
WARE00SEP29 Receiver_Make_and_Model_Changed - -
WARE01JAN01 Receiver_Make_and_Model_Changed - -
WARE01MAR16 Receiver_Make_and_Model_Changed - -
WARE03JAN23 Antenna_Code_Changed - -
WARE03JAN23 Receiver_Make_and_Model_Changed - -
WARE07JUN21 Receiver_Make_and_Model_Changed - -
WARE15SEP04 Antenna_Code_Changed - -
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
