MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : VRAI

Station operator information: from RINEX headers

Data attribution information: From UNAVCO DOI Database

https://doi.org/10.7283/T5RX99C1
When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 9.925 degrees

Longitude: -83.191 degrees

Height: 438.371 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

NA

env

PM

env

24 Hour Rapid Solutions

FID

env

xyz

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 14 days max)

FID

kenv tar file download

5 Minute Ultra Rapid Solutions
(files updated hourly)

FID

individual kenv files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

env format, xyz format,
kenv format, QA file format


Nearest 4 Other Stations Distance

MOIN

12.65 km

BATA

27.96 km

VUKE

75.10 km

CDM1

75.15 km

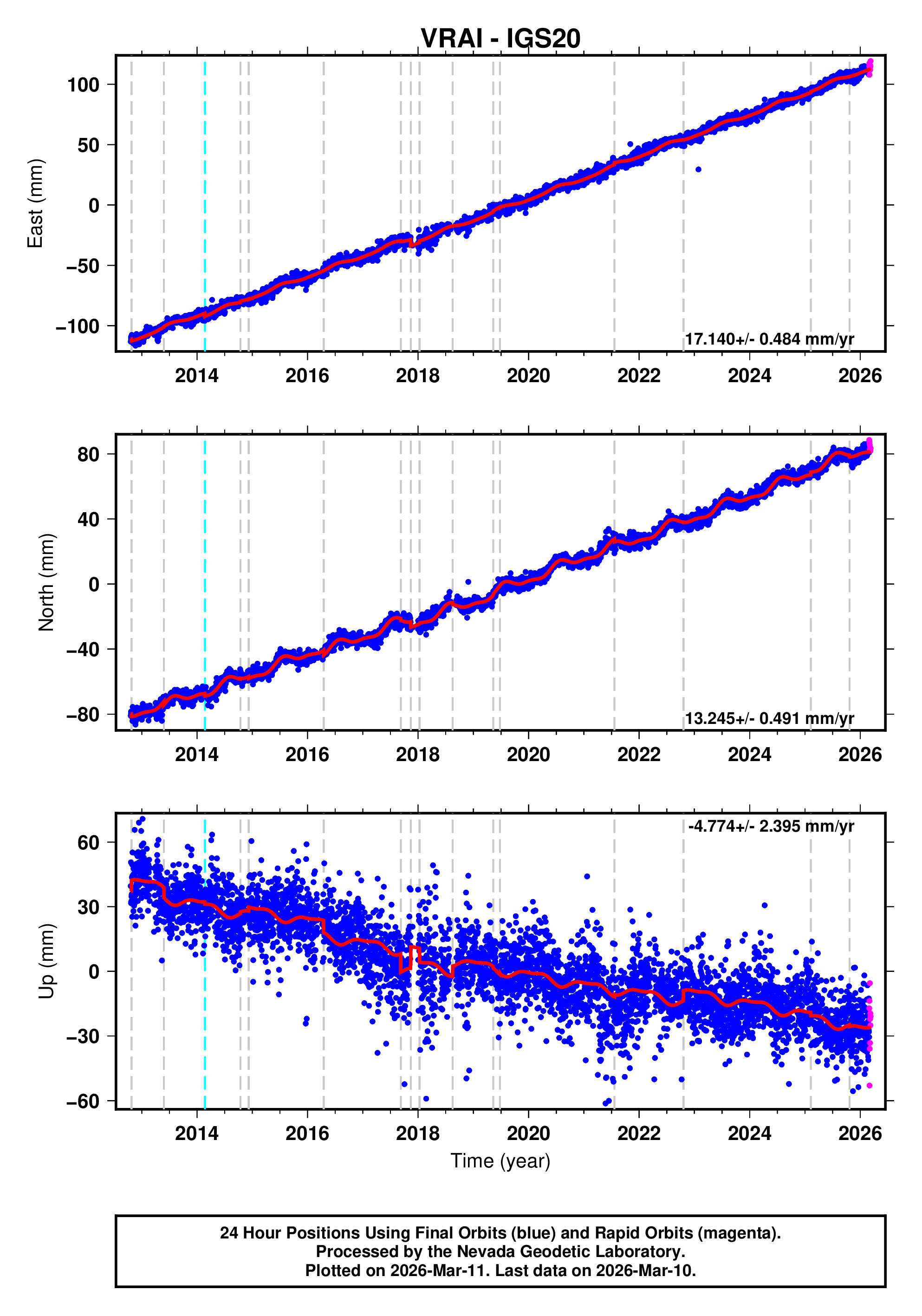

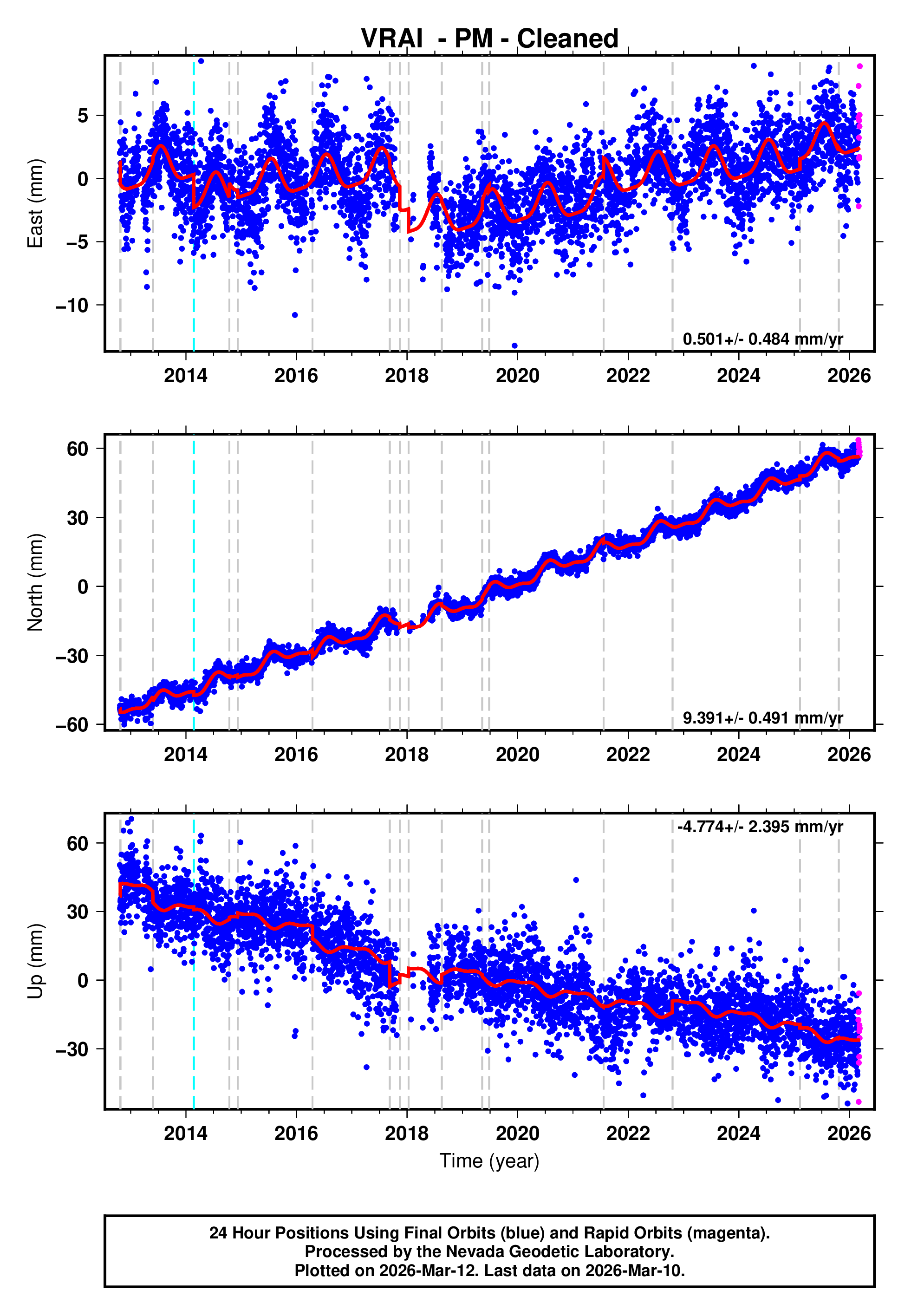

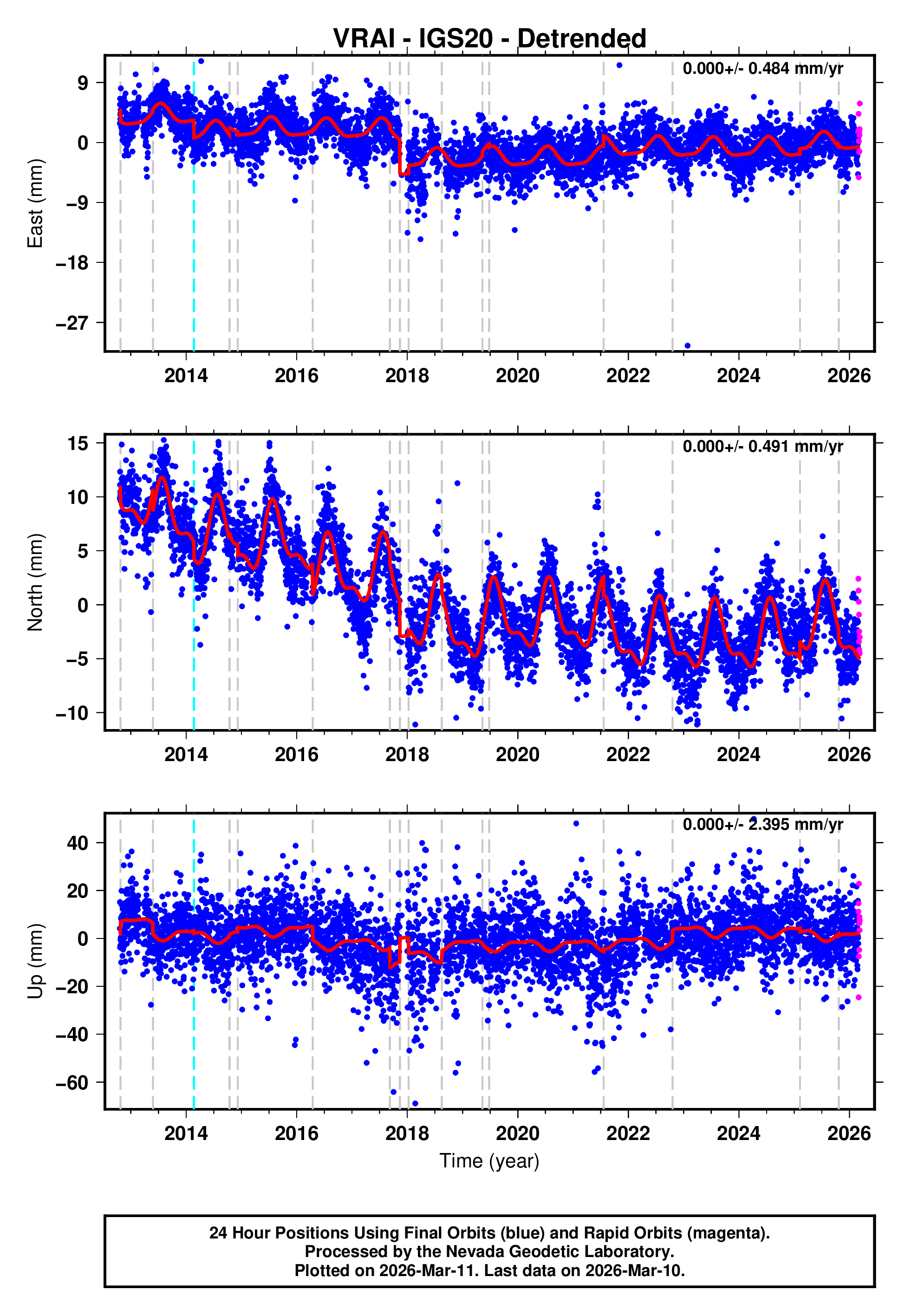

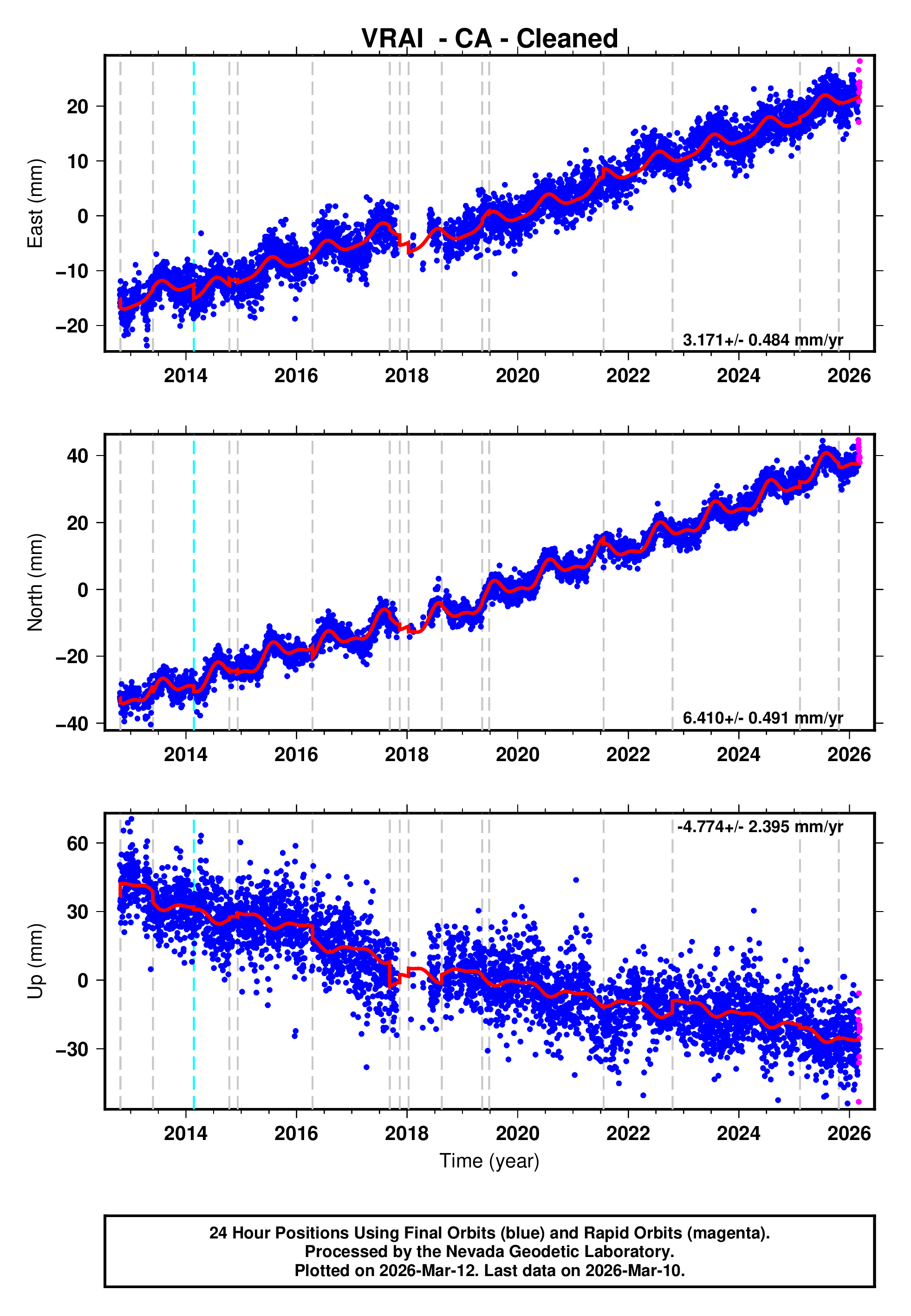

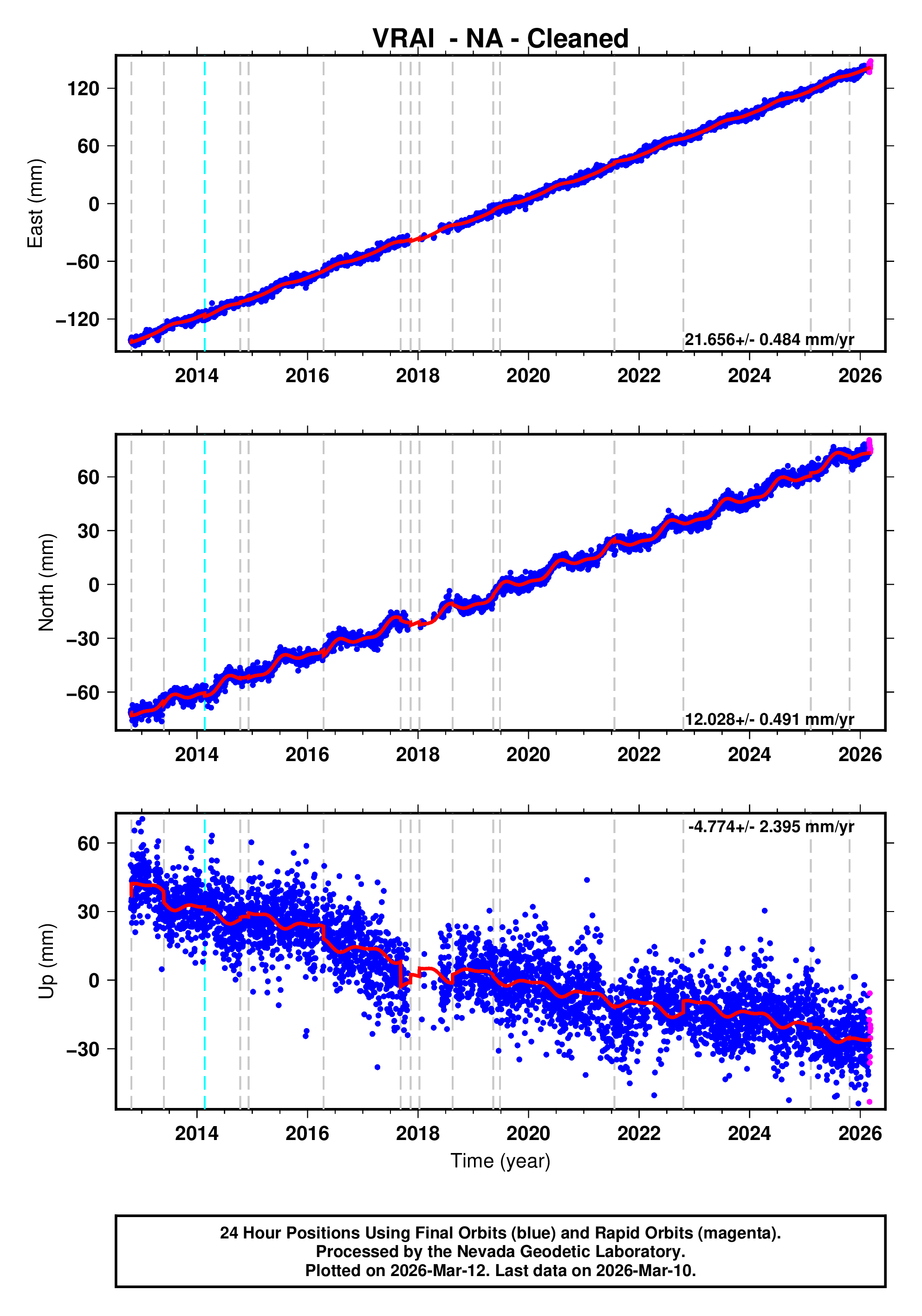

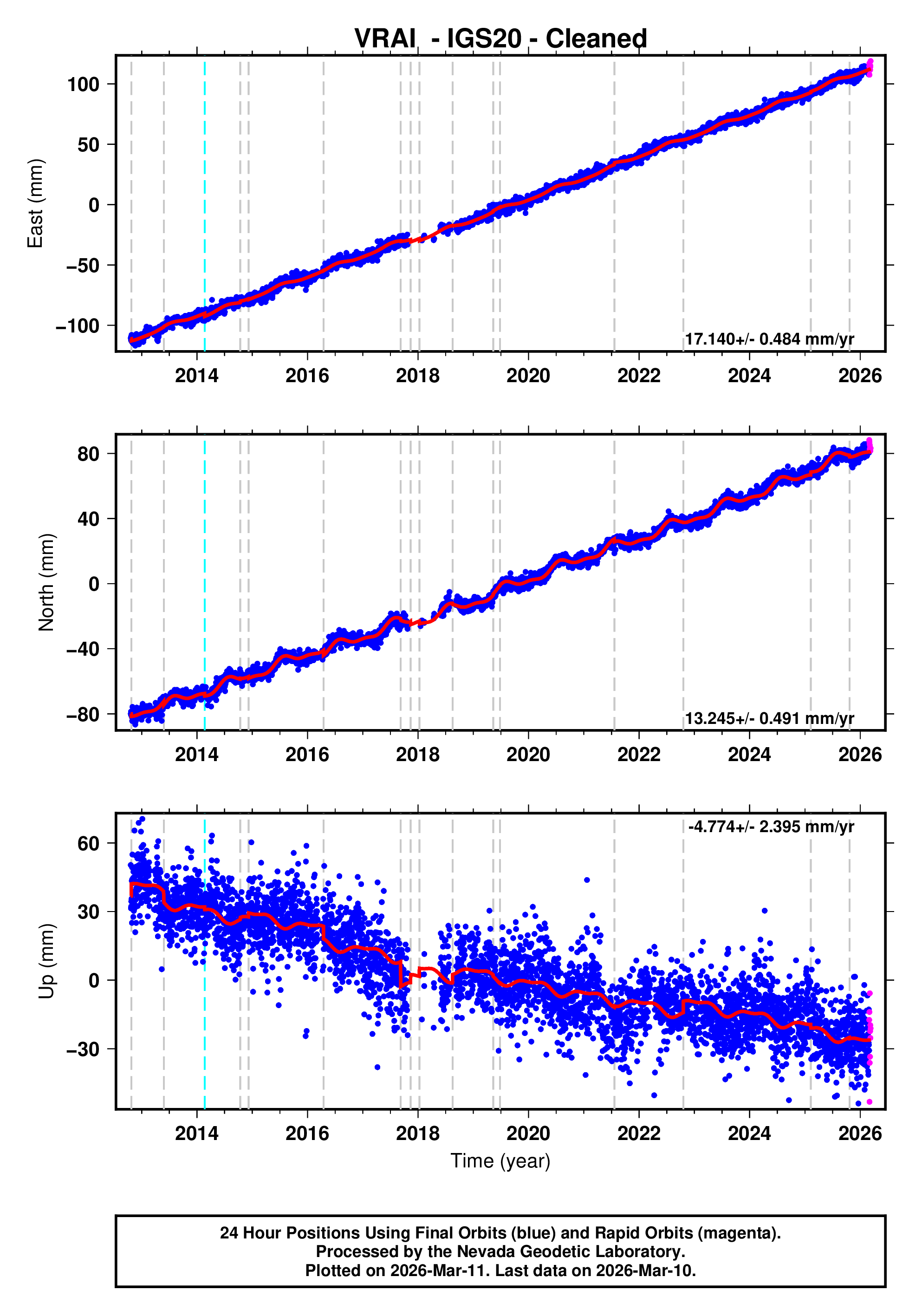

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. Further explanations on plot contents can be found here.


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
VRAI12OCT24 usp000jucg 6.5 231.5
VRAI13MAY27 usb000h700 5.7 82.9
VRAI14OCT14 usb000slwn 7.3 610.7
VRAI14DEC08 usc000t4iq 6.6 227.5
VRAI16APR16 us20005j32 7.8 1121.0
VRAI17SEP08 us2000ahv0 8.2 1293.0
VRAI17NOV13 us2000bmhe 6.5 149.2
VRAI18JAN10 us1000c2zy 7.5 841.1
VRAI18AUG17 us1000gc0k 6.1 128.5
VRAI19MAY12 us70003k3p 6.1 151.3
VRAI19JUN26 us7000455l 6.2 170.5
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link).
