MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : UAGU

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.

Latitude: 21.919

Longitude: -102.315

Height: 1859.975 meters

Time Series Data

(ascii text)
24 Hour Final Solutions


env xyz


env xyz
env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)


ftp link

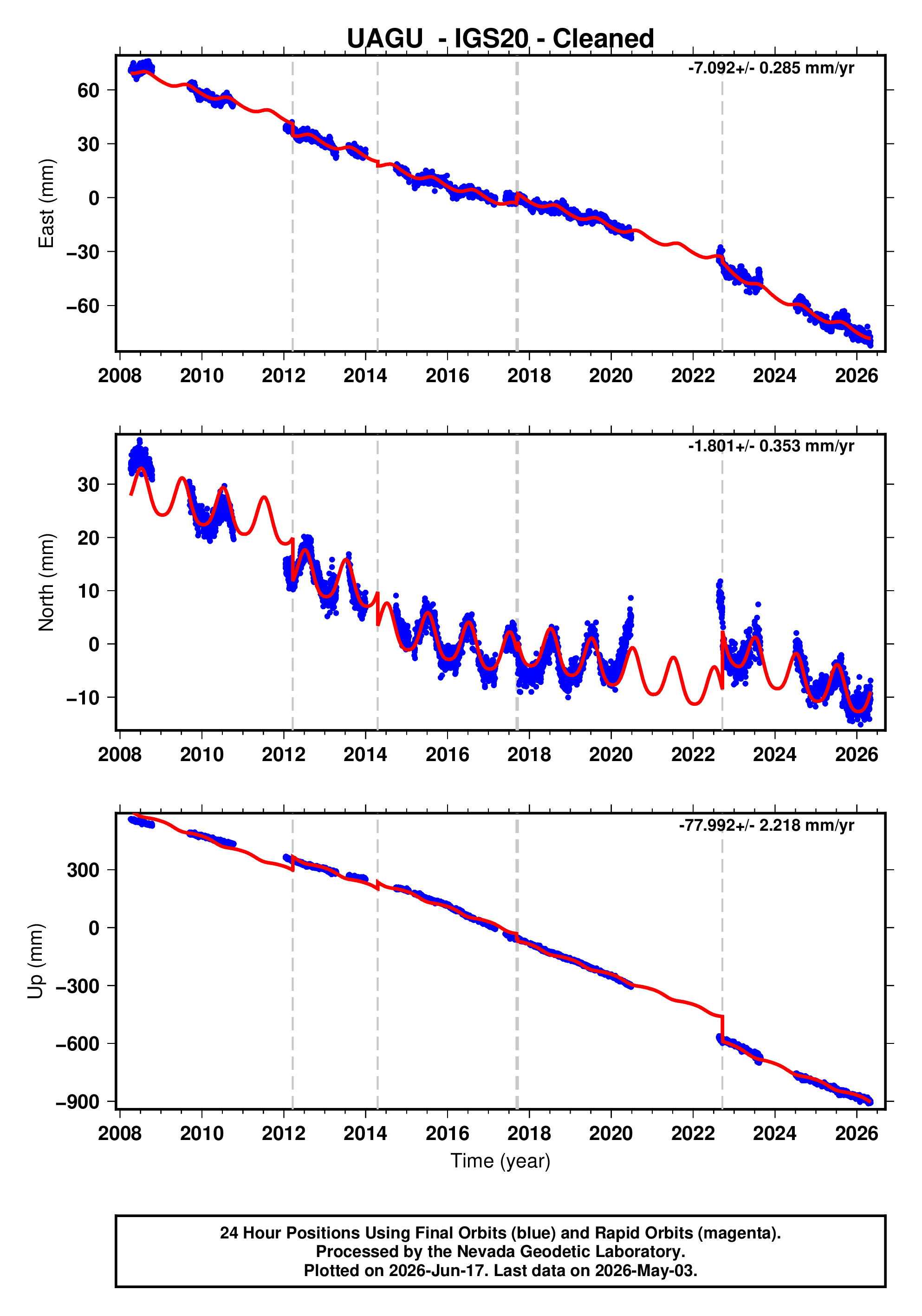

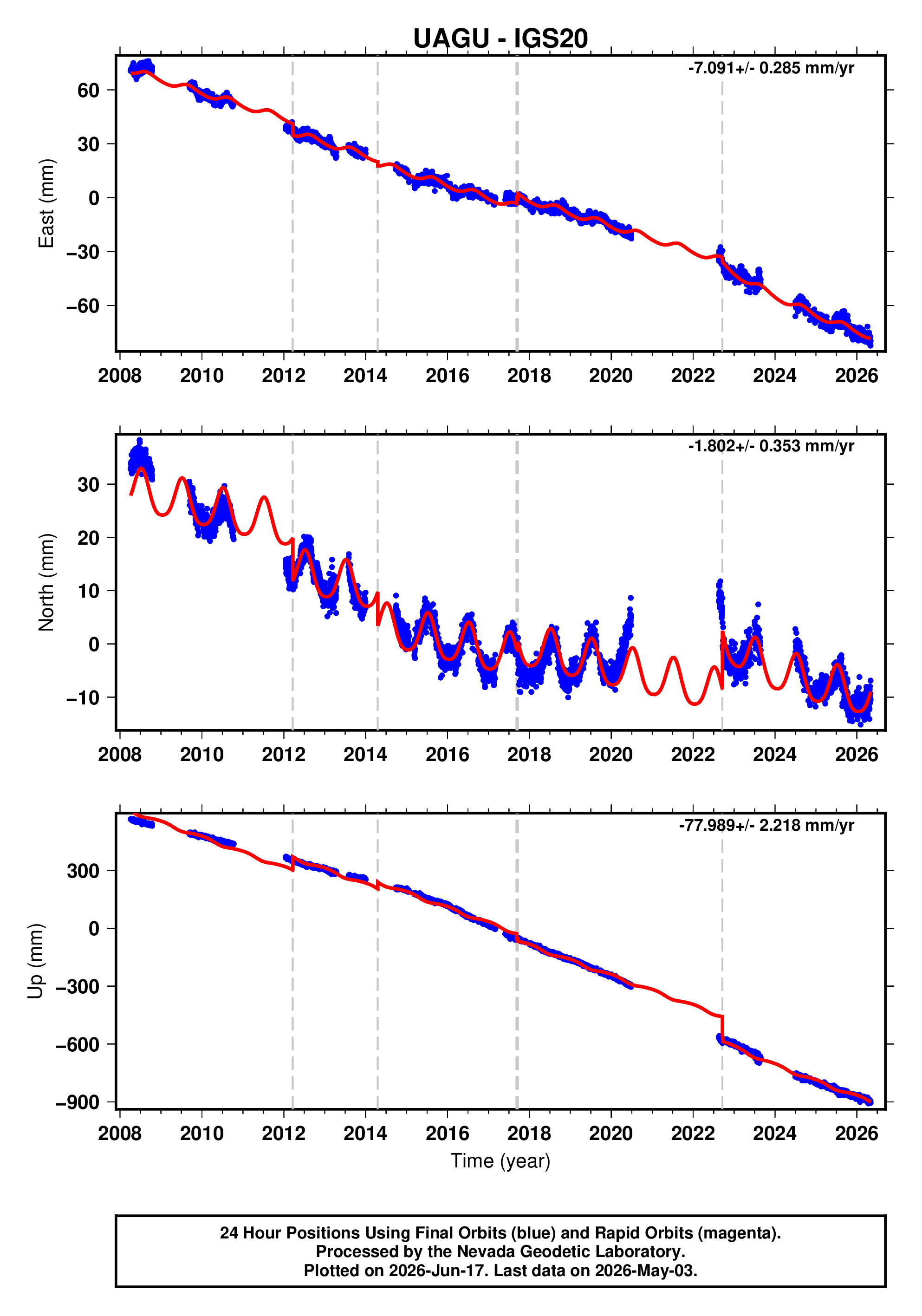

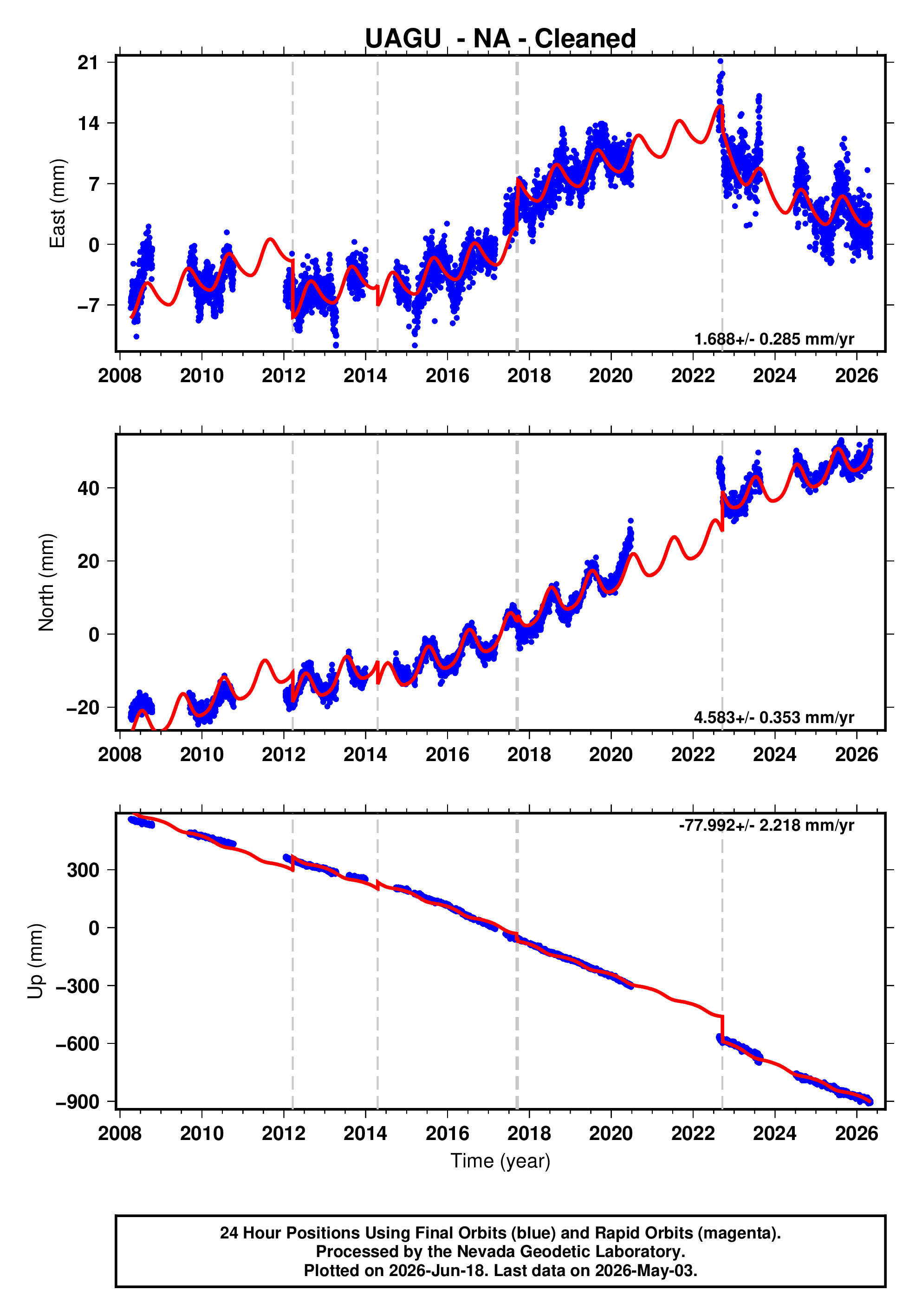

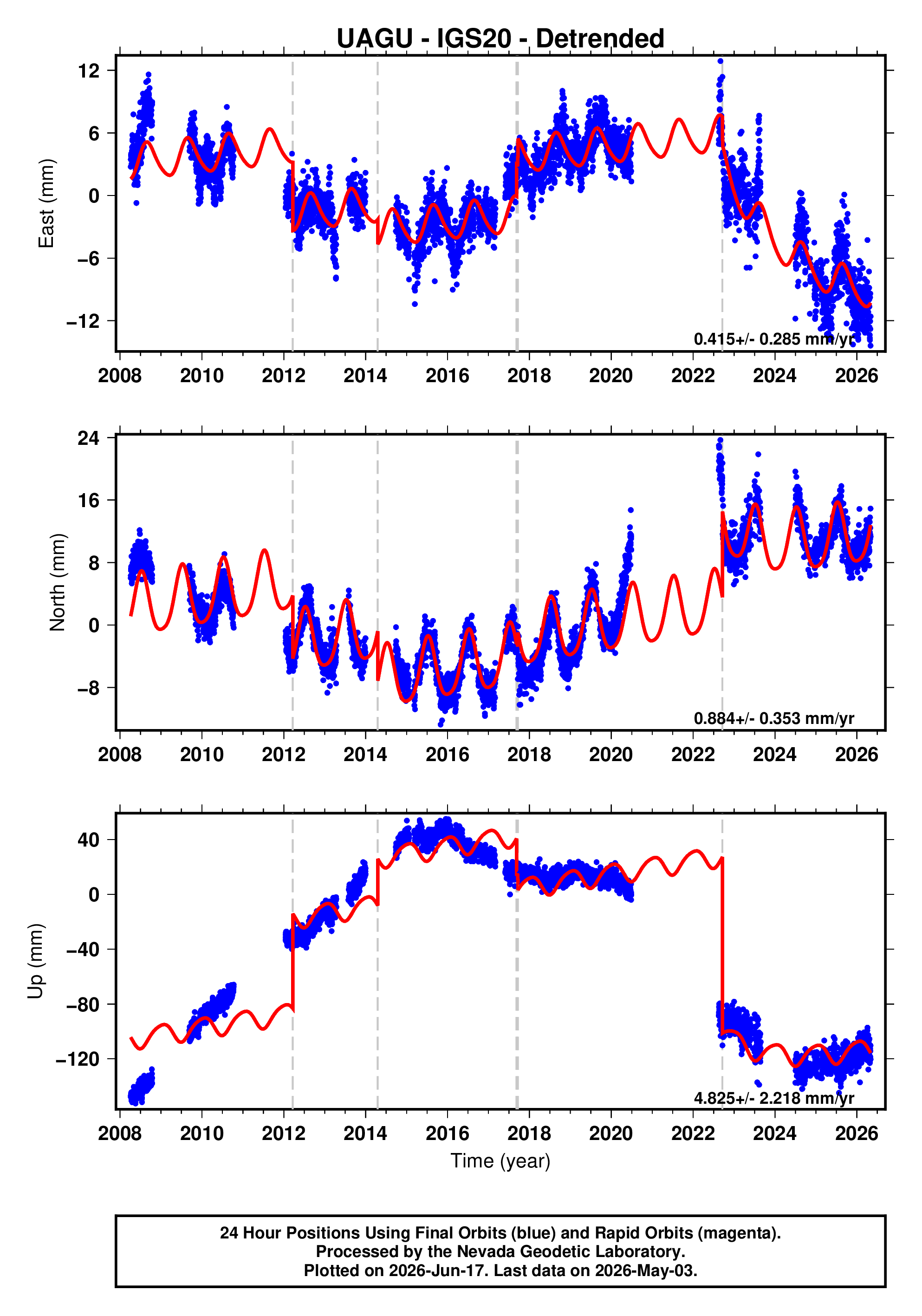

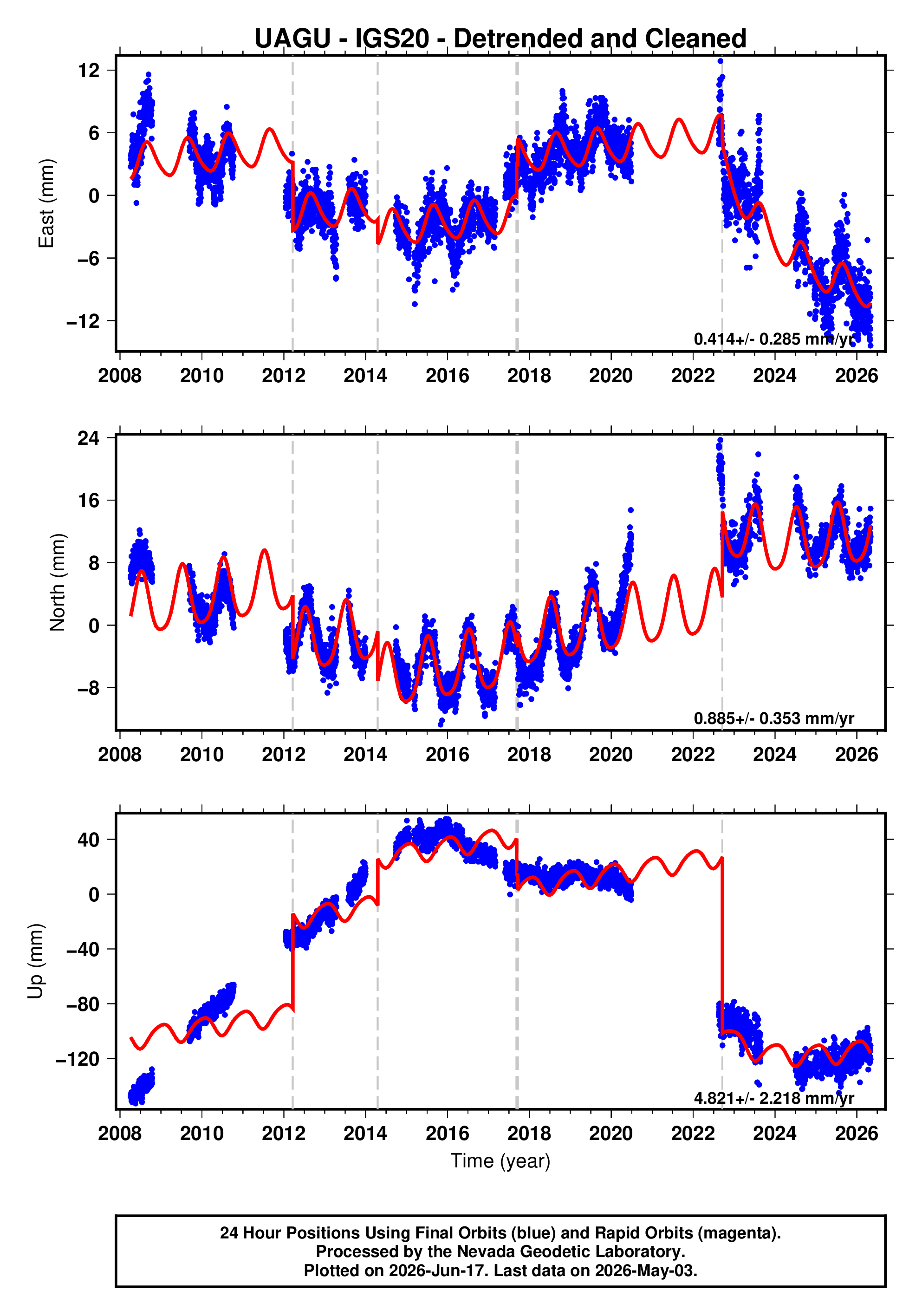

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned NA12 NA12 Cleaned Rapid 5 min.
Not Available
Not Available
Not Available
Not Available
Not Available

Steps Information for this station

Station ID Date
Equipment Change Type/
or Event ID
UAGU12MAR20 usp000jghj 7.4 740.0
UAGU14APR18 usb000pq41 7.2 522.0
UAGU17SEP08 us2000ahv0 8.2 1172.4
UAGU17SEP19 us2000ar20 7.1 547.4
UAGU18MAY27 Reference_Frame_Change:_IGS08_to_IGS14 - -
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
