MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : TUC2

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 35.533 degrees

Longitude: 24.071 degrees

Height: 160.897 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

AF

env

EU

env

24 Hour Rapid Solutions

IGS14

env

AF

env

EU

env

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

5 Minute Ultra Rapid Solutions
(files updated hourly)

FID

individual kenv files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

VAM0

18.32 km

ANOP

35.13 km

JGC4

41.99 km

PA01

50.85 km

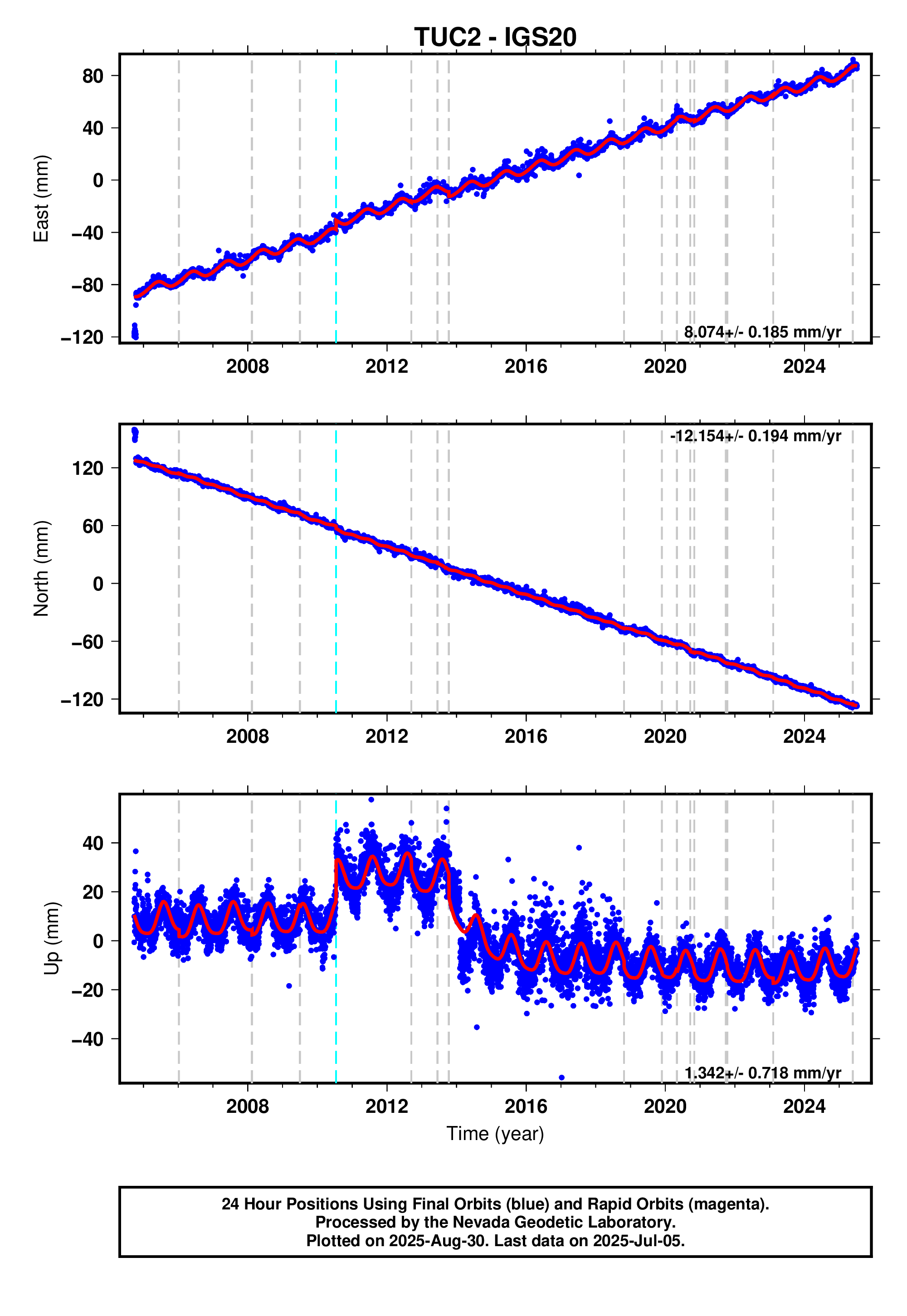

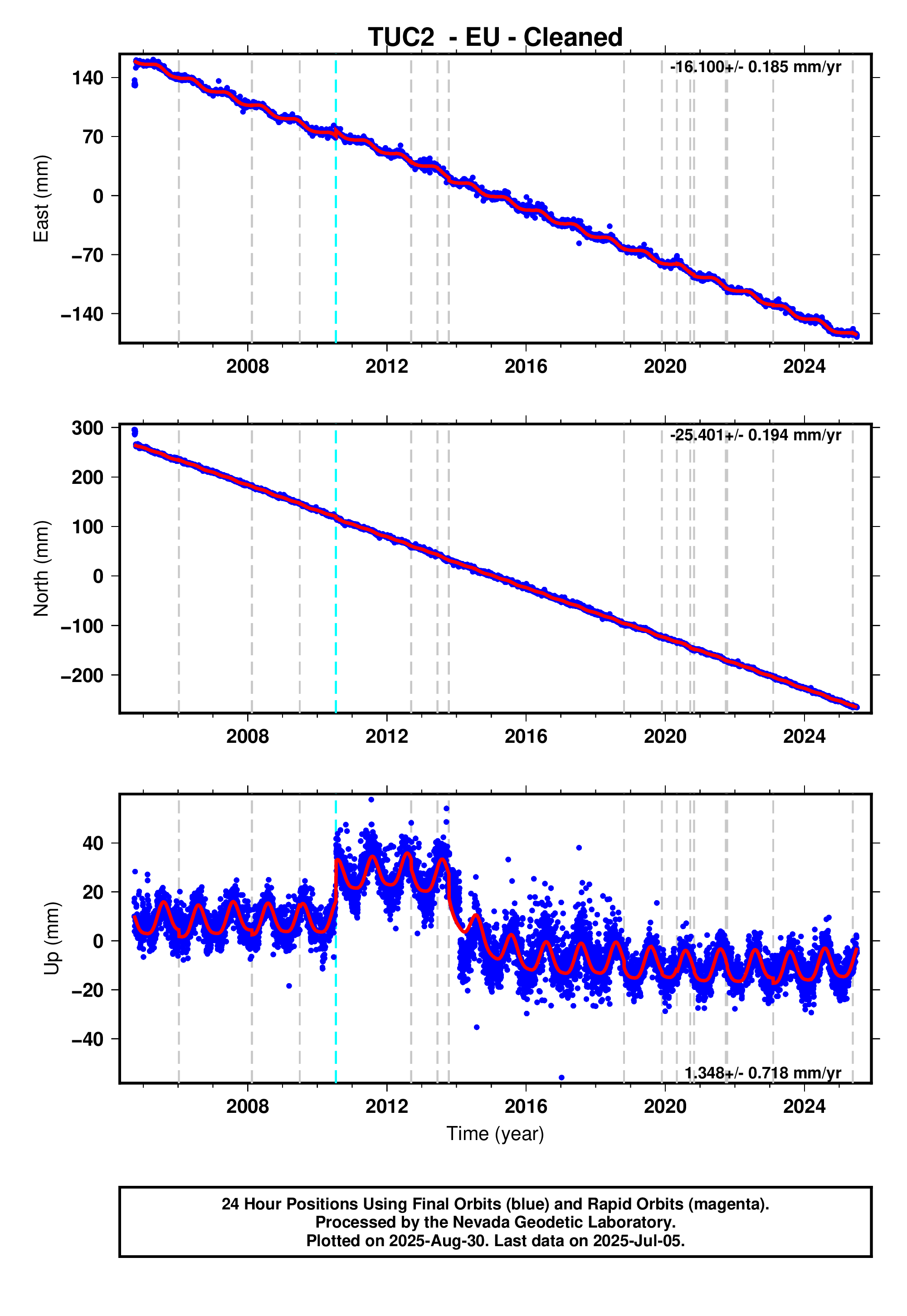

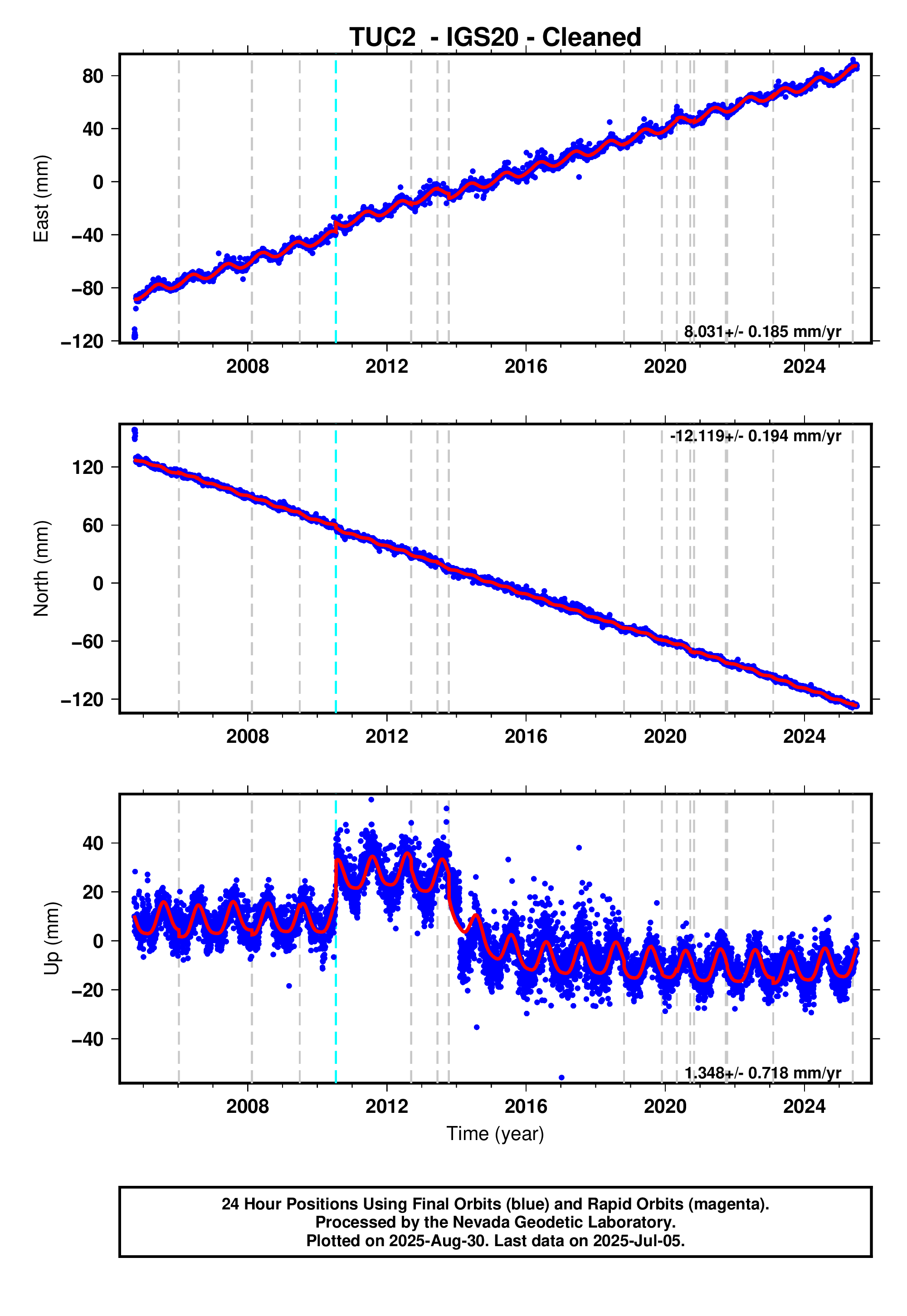

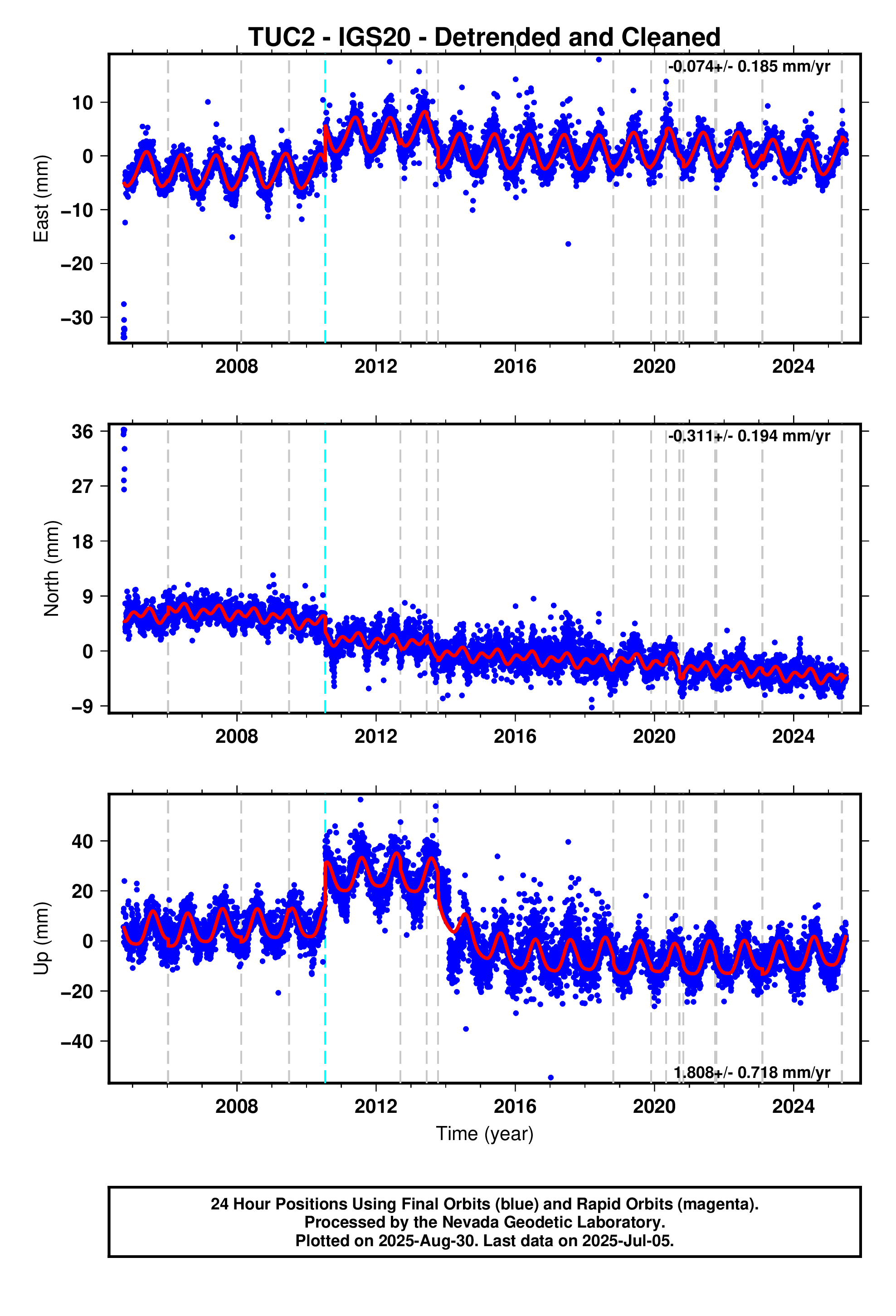

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
TUC210JUL15 Antenna_Code_Changed - -
TUC206JAN08 usp000e7u3 6.7 116.0
TUC208FEB14 usp000fyw4 6.9 241.2
TUC208FEB14 usp000fywh 6.5 218.3
TUC209JUL01 usp000gytt 6.4 198.8
TUC212SEP12 usp000js6n 5.5 83.5
TUC213JUN15 usc000hrl4 6.2 152.8
TUC213OCT12 usb000kbn7 6.6 74.1
TUC218OCT25 us1000hhb1 6.8 383.9
TUC219NOV27 us70006dlt 6.0 78.8
TUC220MAY02 us700098qd 6.5 212.0
TUC220SEP18 us7000bpvt 5.9 124.8
TUC220OCT30 us7000c7y0 7.0 357.2
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
