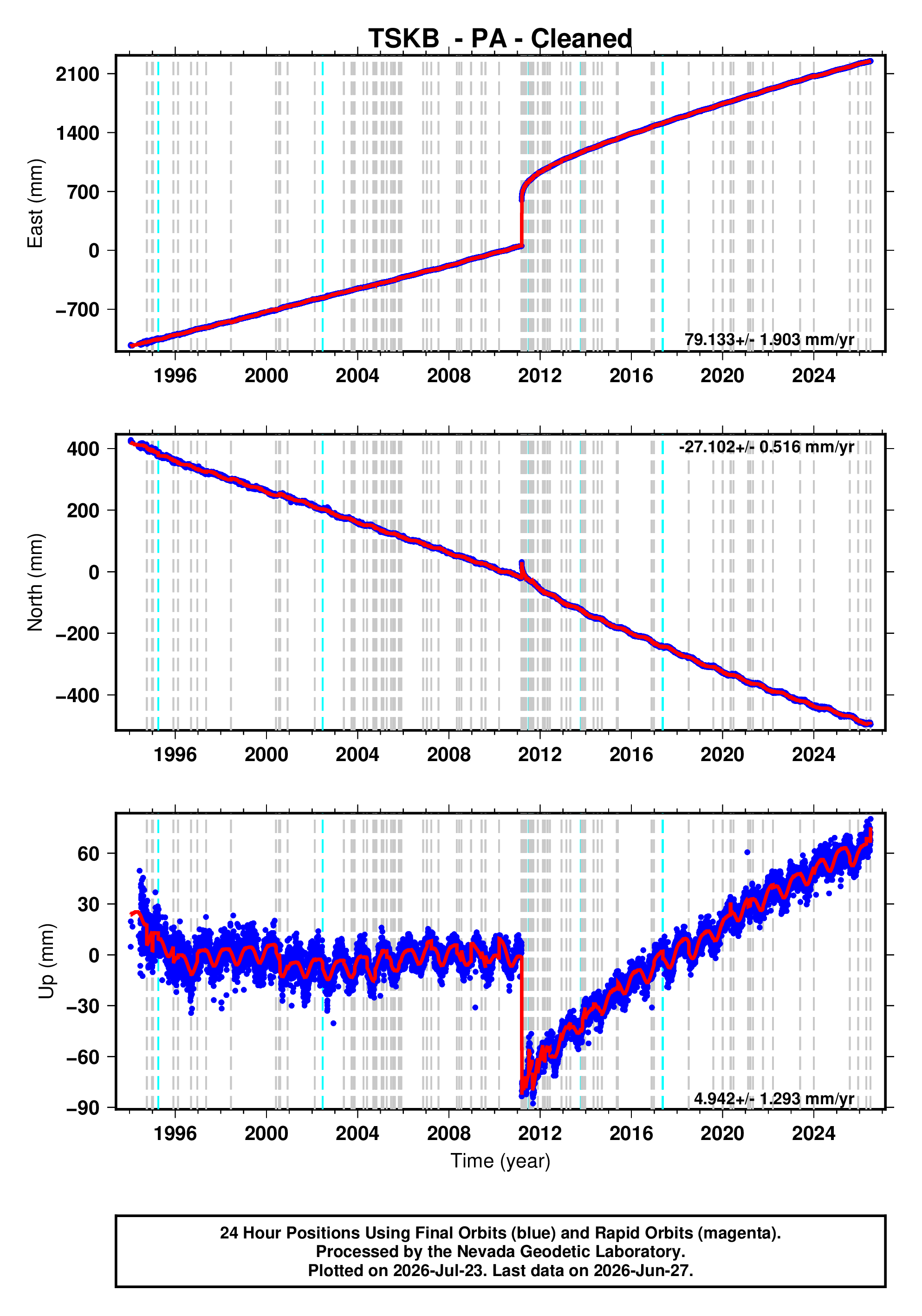

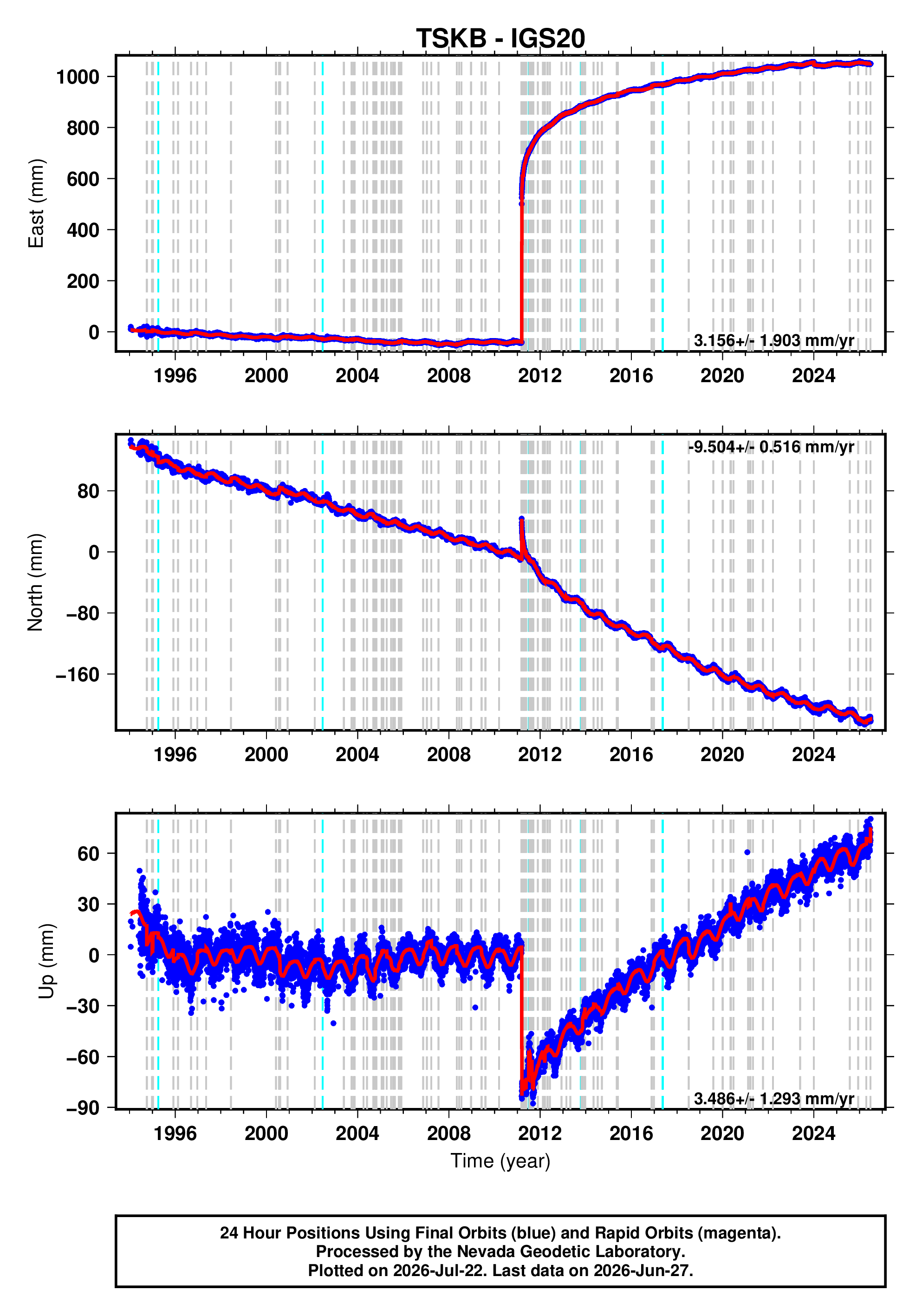

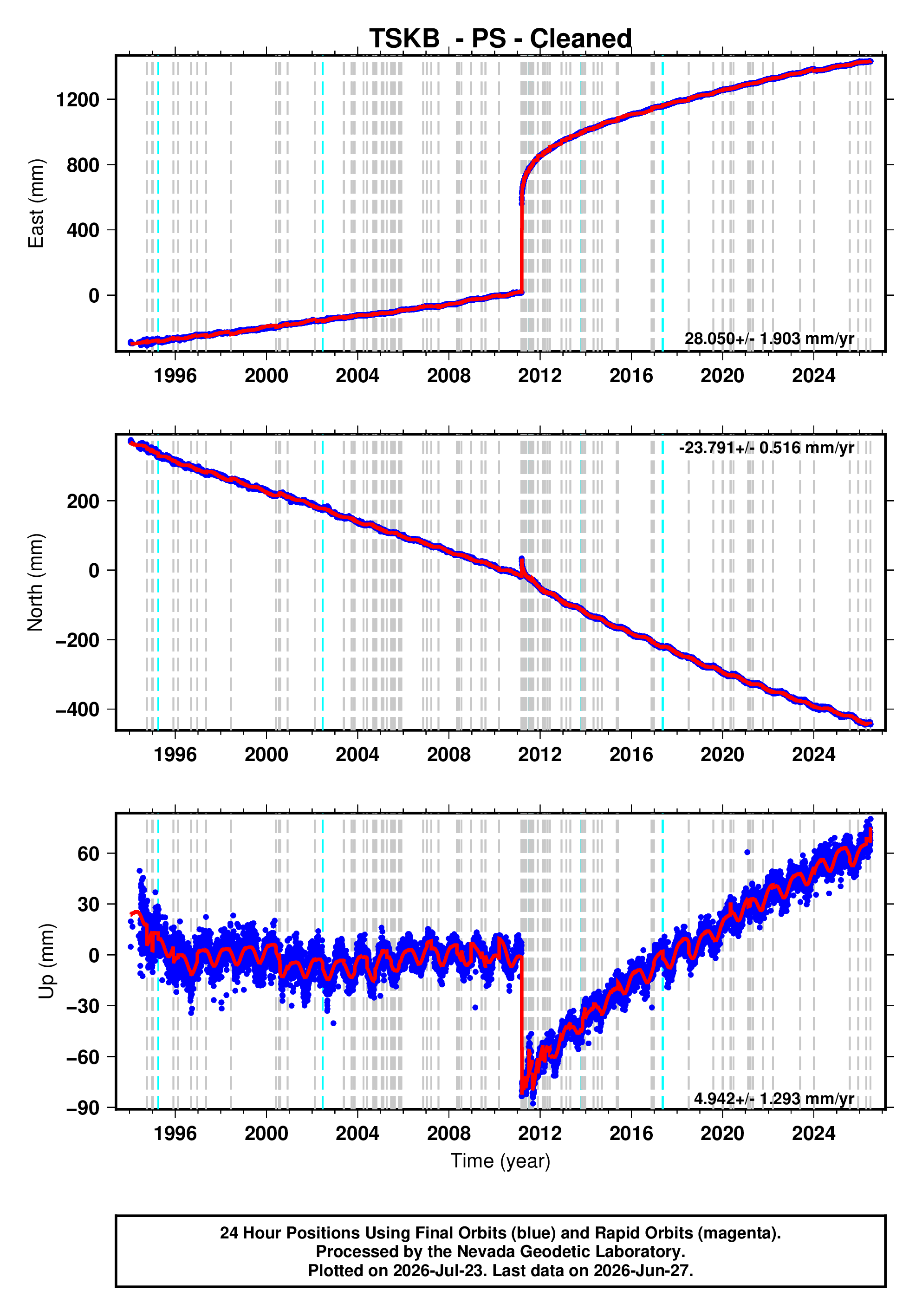

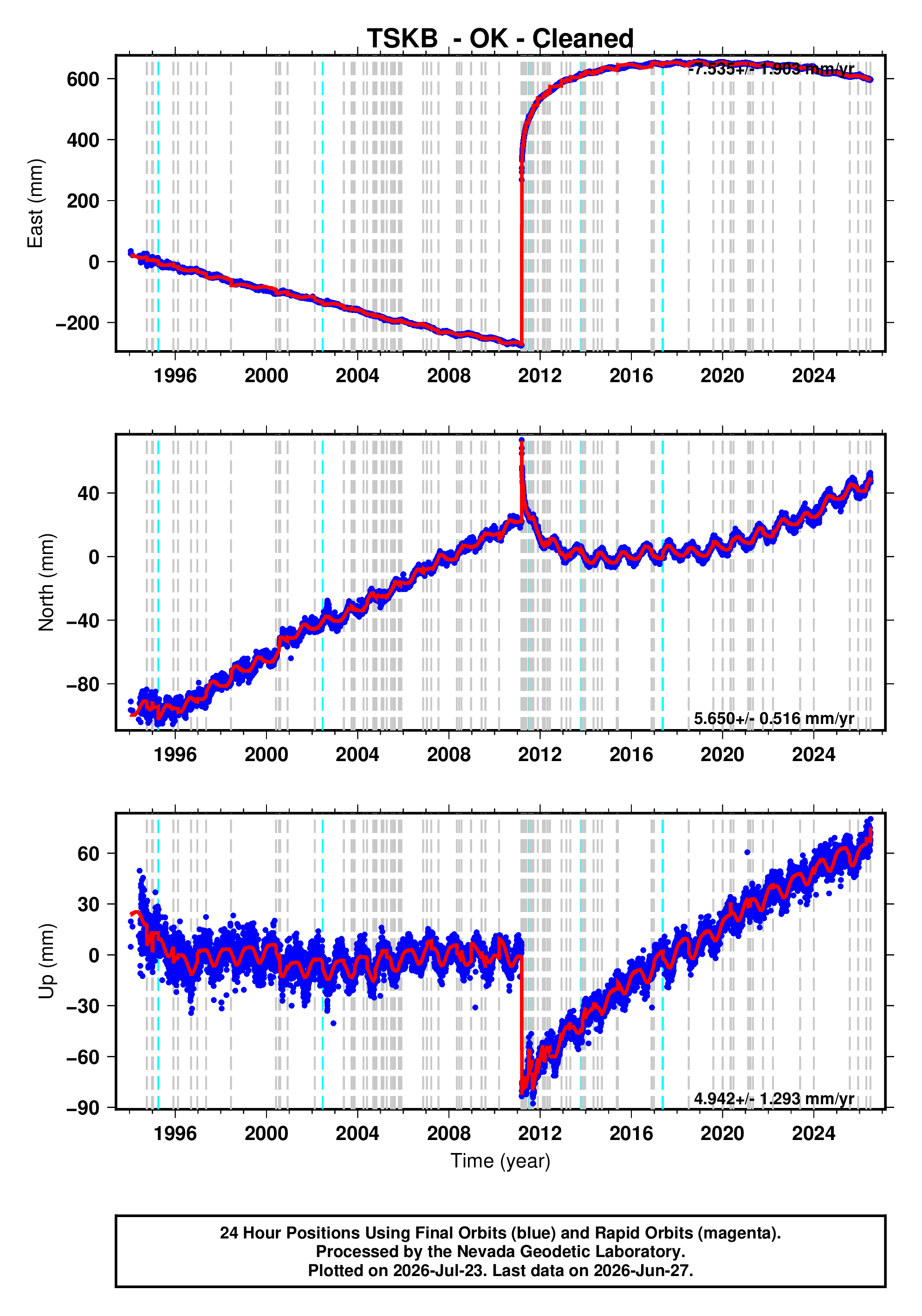

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.
Steps Information for this station |
||||
|---|---|---|---|---|
| Station ID | Date (YYMMMDD) | Equipment Change Type/ or Event ID | Earthquake Magnitude | Distance (km) |
| TSKB | 95APR04 | Radome_Code_Changed | - | - |
| TSKB | 02JUN18 | Receiver_Make_and_Model_Changed | - | - |
| TSKB | 11JUL01 | Radome_Code_Changed | - | - |
| TSKB | 11AUG30 | Radome_Code_Changed | - | - |
| TSKB | 13OCT15 | Elevation_Cutoff_Changed | - | - |
| TSKB | 13OCT15 | Receiver_Make_and_Model_Changed | - | - |
| TSKB | 17MAY17 | Radome_Code_Changed | - | - |
| TSKB | 17MAY17 | Radome_Code_Changed | - | - |
| TSKB | 94OCT04 | usp0006kdp | 8.3 | 1051.3 |
| TSKB | 94DEC28 | usp0006qh3 | 7.8 | 570.8 |
| TSKB | 95JAN06 | usp0006qyz | 7.0 | 495.2 |
| TSKB | 95JAN09 | usp0006r3k | 6.0 | 115.7 |
| TSKB | 95DEC03 | usp000782n | 7.9 | 1228.9 |
| TSKB | 96FEB16 | usp0007d0t | 6.7 | 246.9 |
| TSKB | 96SEP11 | usp0007pte | 6.2 | 99.7 |
| TSKB | 96DEC21 | usp0007urn | 5.5 | 30.2 |
| TSKB | 97MAY11 | usp000824w | 5.9 | 132.1 |
| TSKB | 98JUN14 | usp0008pwr | 5.7 | 90.4 |
| TSKB | 00JUN03 | usp0009tvj | 6.2 | 70.3 |
| TSKB | 00JUL20 | usp0009wvy | 6.0 | 92.0 |
| TSKB | 00JUL30 | usp0009xf4 | 6.5 | 253.6 |
| TSKB | 00DEC04 | usp000a5gk | 5.7 | 87.1 |
| TSKB | 03MAY26 | usp000by66 | 7.0 | 331.8 |
| TSKB | 03SEP25 | official20030925195006360_27 | 8.2 | 715.5 |
| TSKB | 03SEP25 | usp000c8mb | 7.4 | 699.2 |
| TSKB | 03OCT31 | usp000cbpa | 7.0 | 294.2 |
| TSKB | 03NOV14 | usp000ccvq | 5.7 | 94.0 |
| TSKB | 04APR03 | usp000crmc | 6.0 | 90.0 |
| TSKB | 04MAY29 | usp000cwj8 | 6.5 | 238.5 |
| TSKB | 04SEP05 | usp000d3ka | 7.2 | 463.4 |
| TSKB | 04SEP05 | usp000d3mb | 7.4 | 426.2 |
| TSKB | 04OCT06 | usp000d5w4 | 5.8 | 23.0 |
| TSKB | 04OCT16 | usp000d6gu | 5.8 | 110.3 |
| TSKB | 04OCT23 | usp000d6vk | 6.6 | 170.7 |
| TSKB | 04OCT23 | usp000d6vn | 6.1 | 176.1 |
| TSKB | 04OCT23 | usp000d6vu | 6.3 | 176.6 |
| TSKB | 05JAN19 | usp000ddrk | 6.6 | 260.5 |
| TSKB | 05FEB15 | usp000dg7q | 5.5 | 38.6 |
| TSKB | 05APR10 | usp000dmzd | 5.9 | 62.5 |
| TSKB | 05JUN19 | usp000dtf6 | 5.7 | 65.3 |
| TSKB | 05JUL23 | usp000dvqt | 5.9 | 68.2 |
| TSKB | 05AUG16 | usp000dxe2 | 7.2 | 296.8 |
| TSKB | 05OCT19 | usp000e287 | 6.3 | 75.2 |
| TSKB | 05NOV14 | usp000e462 | 7.0 | 480.9 |
| TSKB | 05DEC02 | usp000e5c8 | 6.5 | 284.9 |
| TSKB | 06NOV15 | usp000exfn | 8.3 | 1598.8 |
| TSKB | 07JAN13 | usp000f2ab | 8.1 | 1647.6 |
| TSKB | 07MAR25 | usp000f7b5 | 6.7 | 340.6 |
| TSKB | 07JUL16 | usp000fg9t | 6.6 | 215.9 |
| TSKB | 08MAY07 | usp000g5rg | 6.2 | 131.1 |
| TSKB | 08MAY07 | usp000g5rq | 6.1 | 149.9 |
| TSKB | 08MAY07 | usp000g5rx | 6.9 | 129.3 |
| TSKB | 08JUN13 | usp000g9h6 | 6.9 | 332.6 |
| TSKB | 08JUL19 | usp000gcjg | 7.0 | 248.4 |
| TSKB | 08DEC20 | usp000gr0a | 6.3 | 214.9 |
| TSKB | 09JUN06 | usp000gxx2 | 5.8 | 101.7 |
| TSKB | 09AUG09 | usp000h04j | 7.1 | 381.1 |
| TSKB | 10MAR14 | usp000h9cg | 6.5 | 226.0 |
| TSKB | 11MAR09 | usp000hvhj | 7.3 | 355.6 |
| TSKB | 11MAR11 | official20110311054624120_30 | 9.1 | 316.8 |
| TSKB | 11MAR11 | usp000hvnv | 6.3 | 203.5 |
| TSKB | 11MAR11 | usp000hvp4 | 6.4 | 164.1 |
| TSKB | 11MAR11 | usp000hvp8 | 6.2 | 182.6 |
| TSKB | 11MAR11 | usp000hvpa | 7.9 | 93.9 |
| TSKB | 11MAR11 | usp000hvpc | 6.6 | 196.3 |
| TSKB | 11MAR11 | usp000hvpd | 6.5 | 178.3 |
| TSKB | 11MAR11 | usp000hvpg | 7.7 | 454.5 |
| TSKB | 11MAR11 | usp000hvpm | 5.8 | 97.0 |
| TSKB | 11MAR11 | usp000hvq3 | 6.0 | 83.3 |
| TSKB | 11MAR11 | usp000hvqf | 6.3 | 164.4 |
| TSKB | 11MAR11 | usp000hvqk | 6.1 | 174.6 |
| TSKB | 11MAR11 | usp000hvr9 | 5.6 | 71.5 |
| TSKB | 11MAR11 | usp000hvra | 6.2 | 135.4 |
| TSKB | 11MAR11 | usp000hvrd | 6.5 | 132.6 |
| TSKB | 11MAR11 | usp000hvrj | 5.6 | 81.0 |
| TSKB | 11MAR11 | usp000hvrp | 5.6 | 78.9 |
| TSKB | 11MAR11 | usp000hvug | 5.7 | 89.4 |
| TSKB | 11MAR11 | usp000hvux | 5.8 | 98.1 |
| TSKB | 11MAR11 | usp000hvwz | 5.5 | 60.5 |
| TSKB | 11MAR11 | usp000hvxs | 5.8 | 119.4 |
| TSKB | 11MAR11 | usp000hvy0 | 6.3 | 155.2 |
| TSKB | 11MAR11 | usp000hw18 | 6.2 | 183.2 |
| TSKB | 11MAR11 | usp000hw1a | 5.5 | 73.6 |
| TSKB | 11MAR11 | usp000hw1j | 5.5 | 69.5 |
| TSKB | 11MAR12 | usp000hw7r | 6.5 | 281.6 |
| TSKB | 11MAR12 | usp000hw8u | 5.9 | 114.3 |
| TSKB | 11MAR12 | usp000hwfv | 6.1 | 159.0 |
| TSKB | 11MAR13 | usp000hwq6 | 6.1 | 145.9 |
| TSKB | 11MAR14 | usp000hx1e | 5.5 | 79.7 |
| TSKB | 11MAR16 | usp000hxf1 | 5.7 | 68.8 |
| TSKB | 11MAR17 | usp000hxny | 5.8 | 123.2 |
| TSKB | 11MAR19 | usp000hxx5 | 5.7 | 78.4 |
| TSKB | 11MAR22 | usp000hy9e | 5.9 | 136.0 |
| TSKB | 11APR07 | usp000hzf6 | 7.1 | 275.5 |
| TSKB | 11APR11 | usp000hzq8 | 6.6 | 103.4 |
| TSKB | 11APR11 | usp000hzsk | 6.2 | 88.3 |
| TSKB | 11APR12 | usp000hzt4 | 5.9 | 114.1 |
| TSKB | 11APR16 | usp000j020 | 5.8 | 49.3 |
| TSKB | 11APR21 | usp000j0c3 | 6.2 | 61.8 |
| TSKB | 11MAY20 | usp000j1v8 | 5.8 | 78.1 |
| TSKB | 11MAY21 | usp000j1zc | 5.6 | 67.3 |
| TSKB | 11JUL10 | usp000j4gp | 7.0 | 354.1 |
| TSKB | 11JUL24 | usp000j5ed | 6.3 | 214.5 |
| TSKB | 11JUL30 | usp000j5rk | 6.3 | 121.1 |
| TSKB | 11AUG22 | usp000j6v4 | 5.9 | 143.8 |
| TSKB | 11SEP15 | usp000j82k | 6.1 | 113.5 |
| TSKB | 12FEB14 | usp000jex9 | 5.8 | 117.2 |
| TSKB | 12MAR14 | usp000jg80 | 6.0 | 71.8 |
| TSKB | 12APR24 | usp000jjhz | 5.5 | 64.0 |
| TSKB | 12APR29 | usp000jjs6 | 5.8 | 61.4 |
| TSKB | 12JUN05 | usp000jmcv | 6.1 | 160.2 |
| TSKB | 12DEC07 | usp000jwjn | 7.3 | 396.1 |
| TSKB | 13FEB25 | usc000fd56 | 5.8 | 111.4 |
| TSKB | 13APR29 | usb000ghg0 | 5.6 | 92.0 |
| TSKB | 13OCT25 | usc000kn4n | 7.1 | 424.4 |
| TSKB | 13NOV09 | usb000kvca | 5.6 | 23.4 |
| TSKB | 13NOV16 | usb000kzuj | 5.5 | 56.1 |
| TSKB | 13DEC14 | usc000lkgy | 5.5 | 71.6 |
| TSKB | 13DEC21 | usc000lpah | 5.5 | 75.2 |
| TSKB | 14JUL11 | usb000rs50 | 6.5 | 233.7 |
| TSKB | 14SEP16 | usb000scur | 5.5 | 21.4 |
| TSKB | 15MAY12 | us20002et4 | 6.8 | 355.4 |
| TSKB | 15MAY30 | us20002ki3 | 7.8 | 920.0 |
| TSKB | 16NOV21 | us10007b88 | 6.9 | 184.1 |
| TSKB | 16DEC28 | us10007naf | 5.9 | 89.7 |
| TSKB | 18JUL07 | us2000fz0q | 5.9 | 121.8 |
| TSKB | 20JAN02 | us70006ttf | 5.7 | 109.6 |
| TSKB | 20MAY04 | us700099s8 | 5.6 | 84.9 |
| TSKB | 20MAY10 | us70009dus | 5.8 | 97.4 |
| TSKB | 20JUN24 | us7000aabt | 5.9 | 113.5 |
| TSKB | 21FEB13 | us6000dher | 7.1 | 234.5 |
| TSKB | 21MAR20 | us7000dl6y | 7.0 | 295.1 |
| TSKB | 21MAY01 | us7000dz5t | 6.9 | 268.5 |
| TSKB | 21OCT07 | us6000fsl6 | 5.9 | 59.2 |
| TSKB | 22MAR16 | us6000h519 | 7.3 | 222.6 |
| TSKB | 23MAY26 | us7000k46f | 6.1 | 75.4 |
| TSKB | 24JAN01 | us6000m0xl | 7.5 | 294.1 |
| Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude. | ||||
| Steps for all stations are given in the master step file database. | ||||
