MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : TNCT

Data attribution information: DOI Database

DOI link for this station: https://doi.org/10.7283/JCTK-TZ92

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 19.681 degrees

Longitude: -105.259 degrees

Height: -8.684 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

NA

tenv3

PA

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

NA

tenv3

PA

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

New!: Loading Predictions.
See this README file for explanation.

IGS14

tenv3 file with extra columns

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format,
Loading triplet enhanced tenv3 files
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

TNCM

30.27 km

PZUL

49.90 km

PURI

65.12 km

TNTM

69.51 km

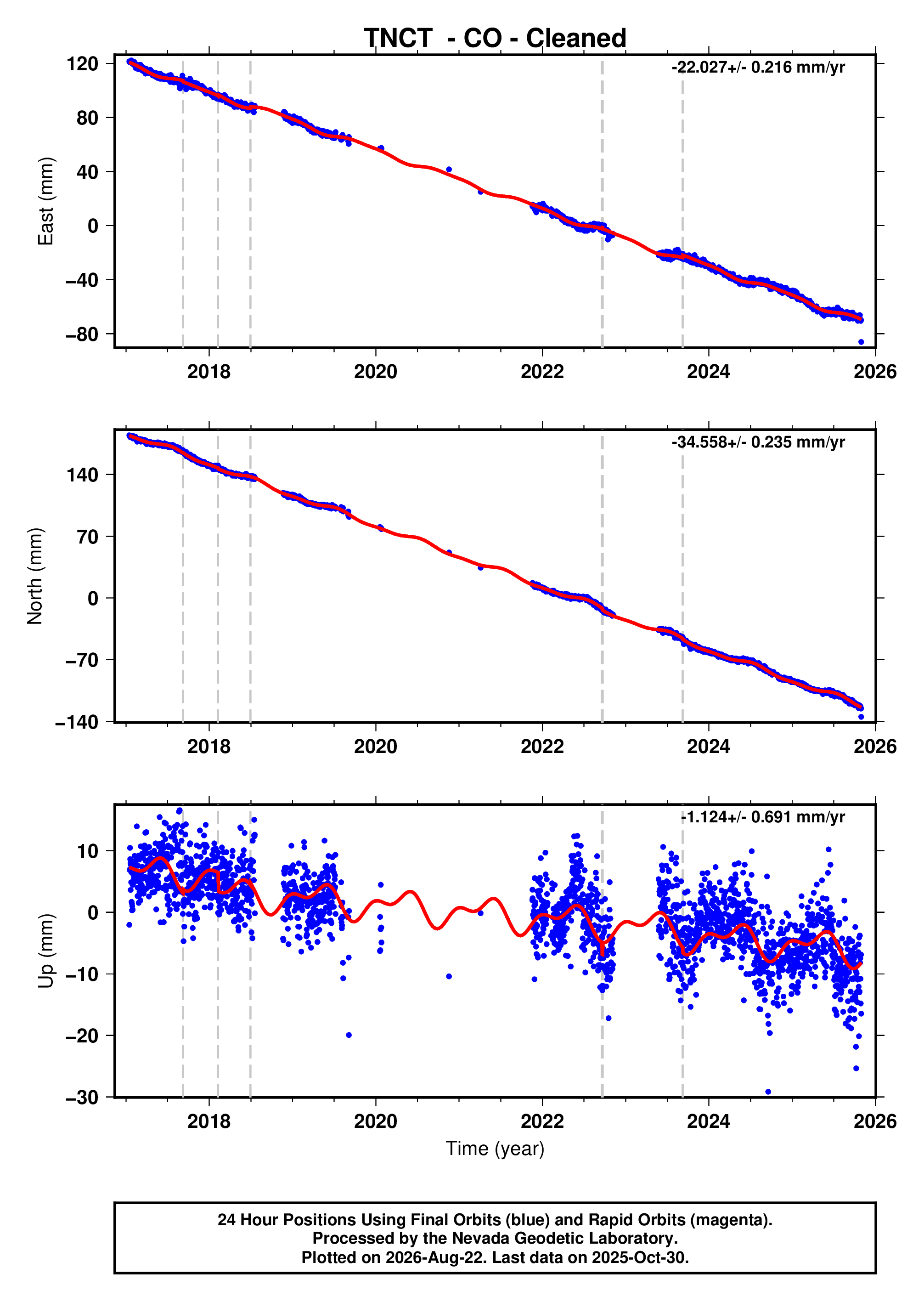

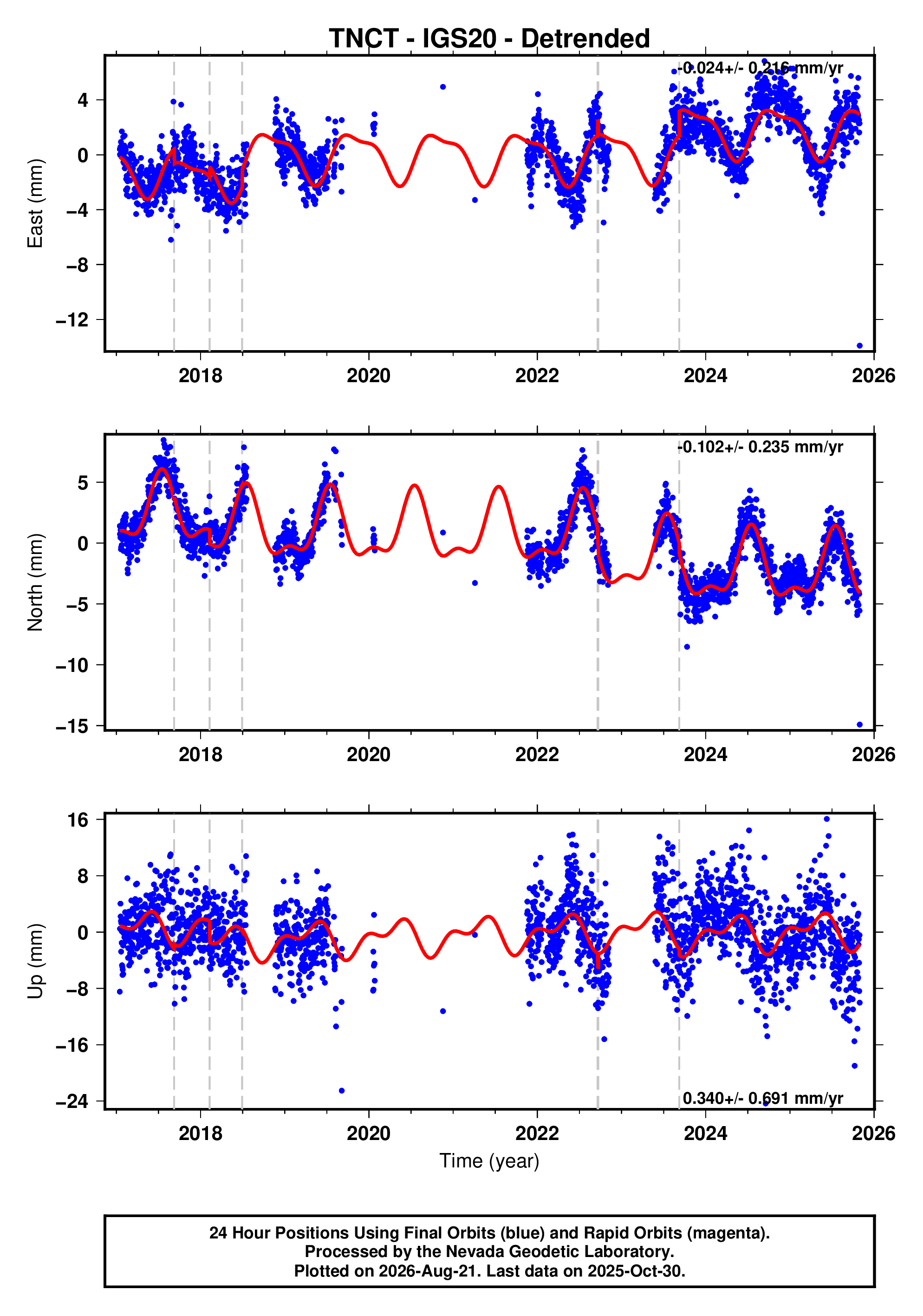

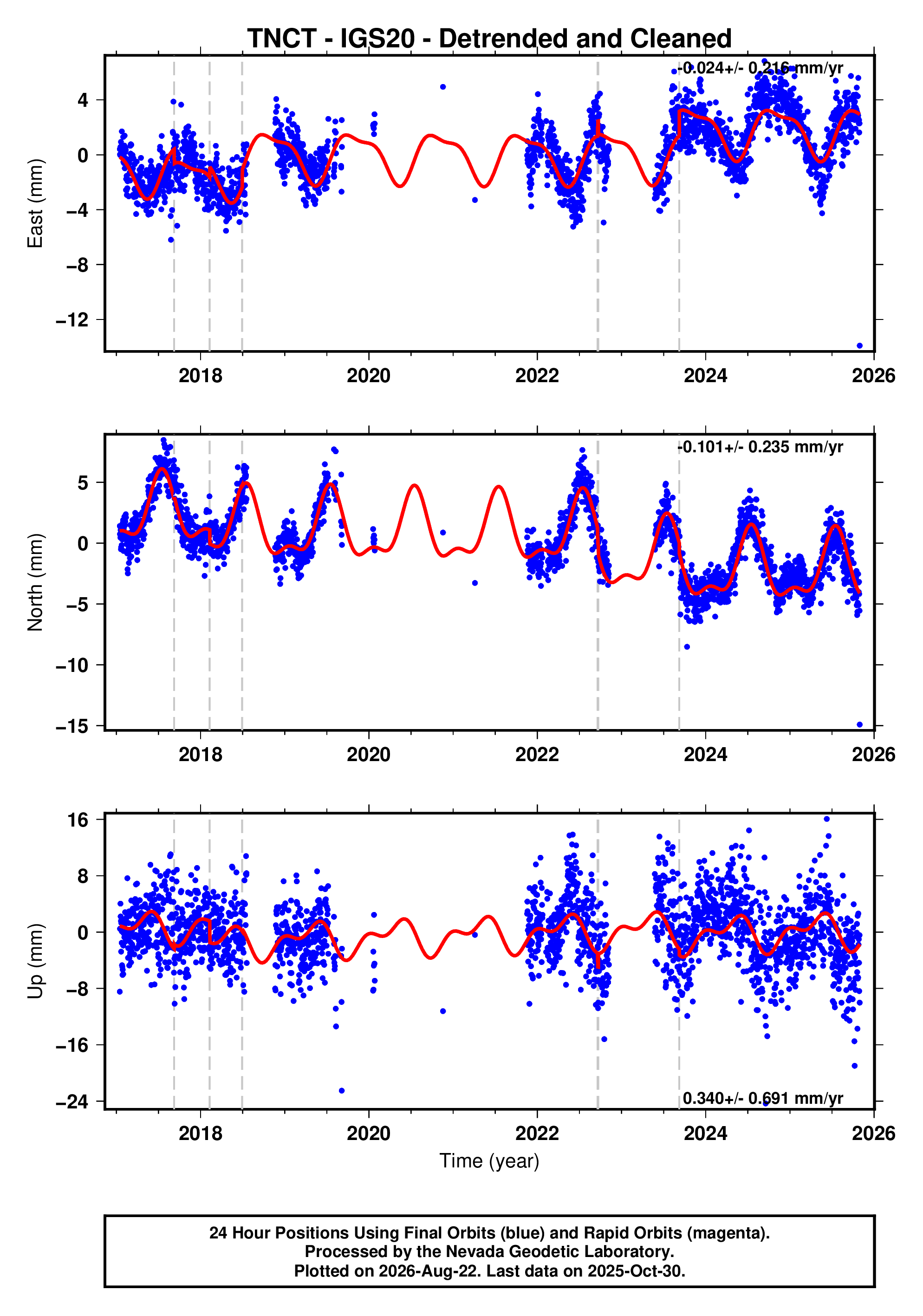

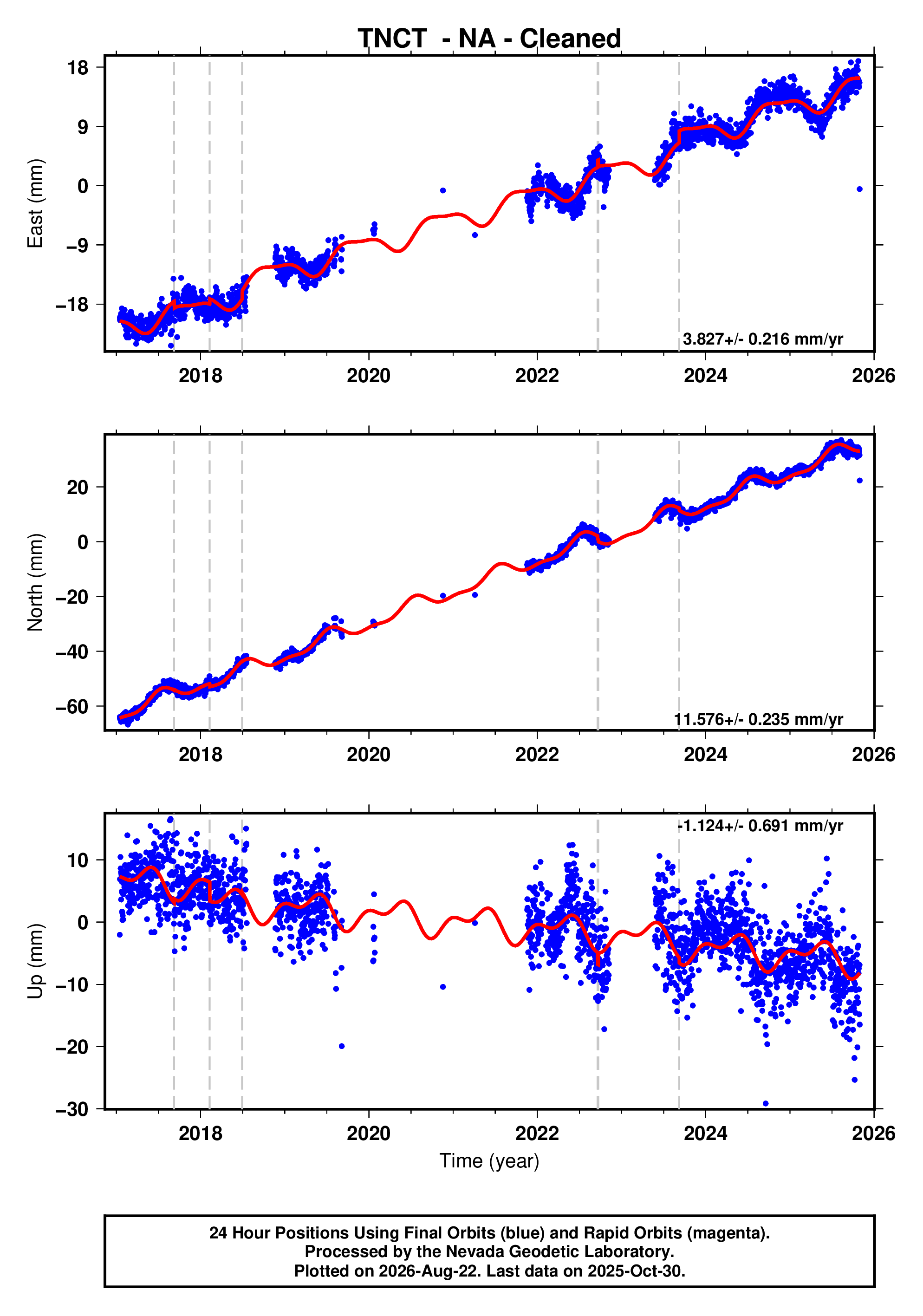

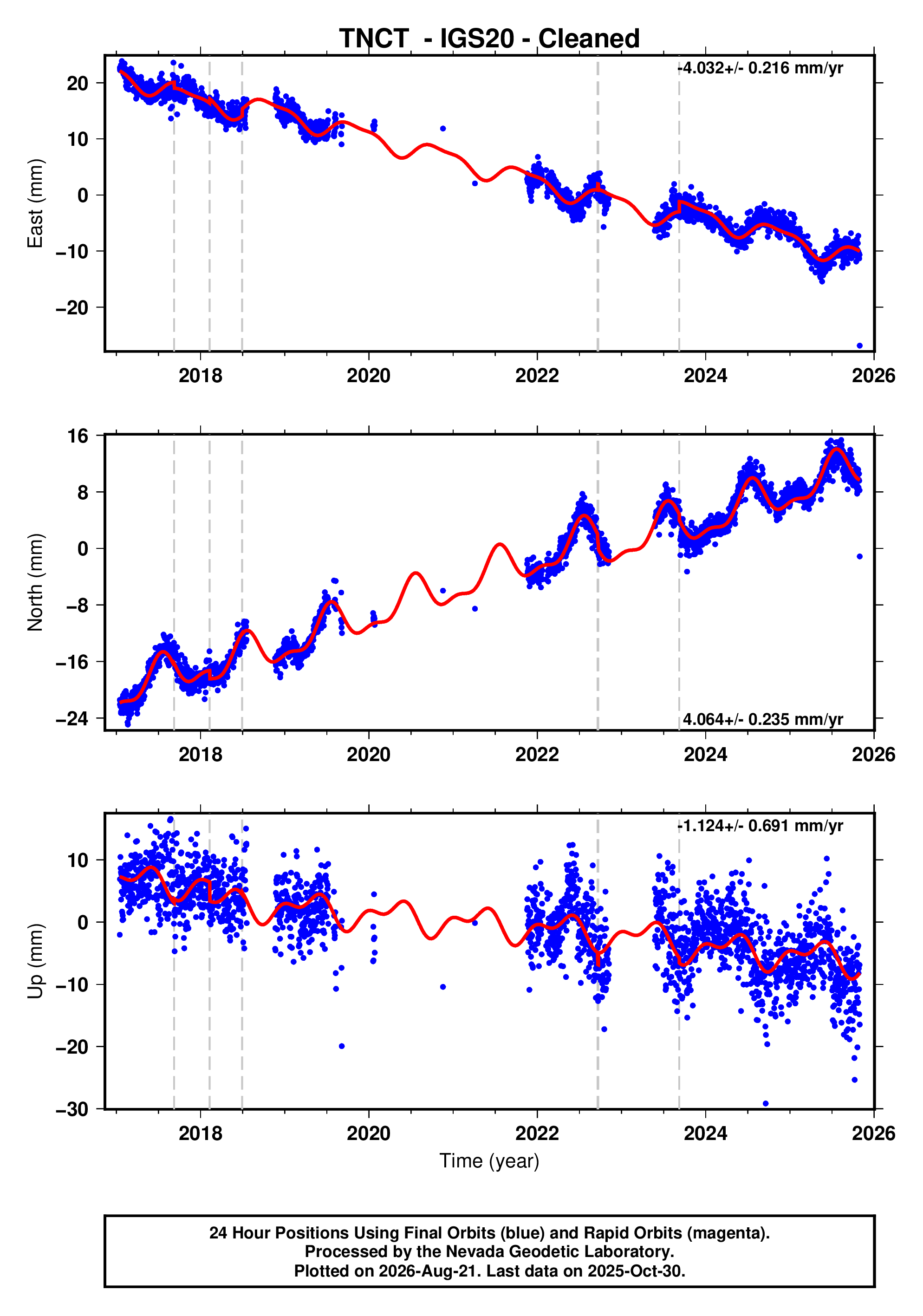

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot
Load prediction plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
TNCT17SEP08 us2000ahv0 8.2 1311.7
TNCT18FEB09 us2000czig 5.8 104.9
TNCT18JUN30 us2000frwr 5.9 74.7
TNCT22SEP19 us7000i9bw 7.6 277.7
TNCT22SEP22 us7000ia36 6.8 289.0
TNCT23SEP08 us7000kub5 5.6 37.5
TNCT23SEP08 us7000kubt 5.8 39.9
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
