MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : TGTK

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: -38.611 degrees

Longitude: 175.811 degrees

Height: 637.175 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

AU

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

AU

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

New!: Loading Predictions.
See this README file for explanation.

IGS14

tenv3 file with extra columns

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format,
Loading triplet enhanced tenv3 files
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

Z004

6.84 km

TGHR

11.38 km

TGW2

13.16 km

Z406

18.33 km


Time Series Plots

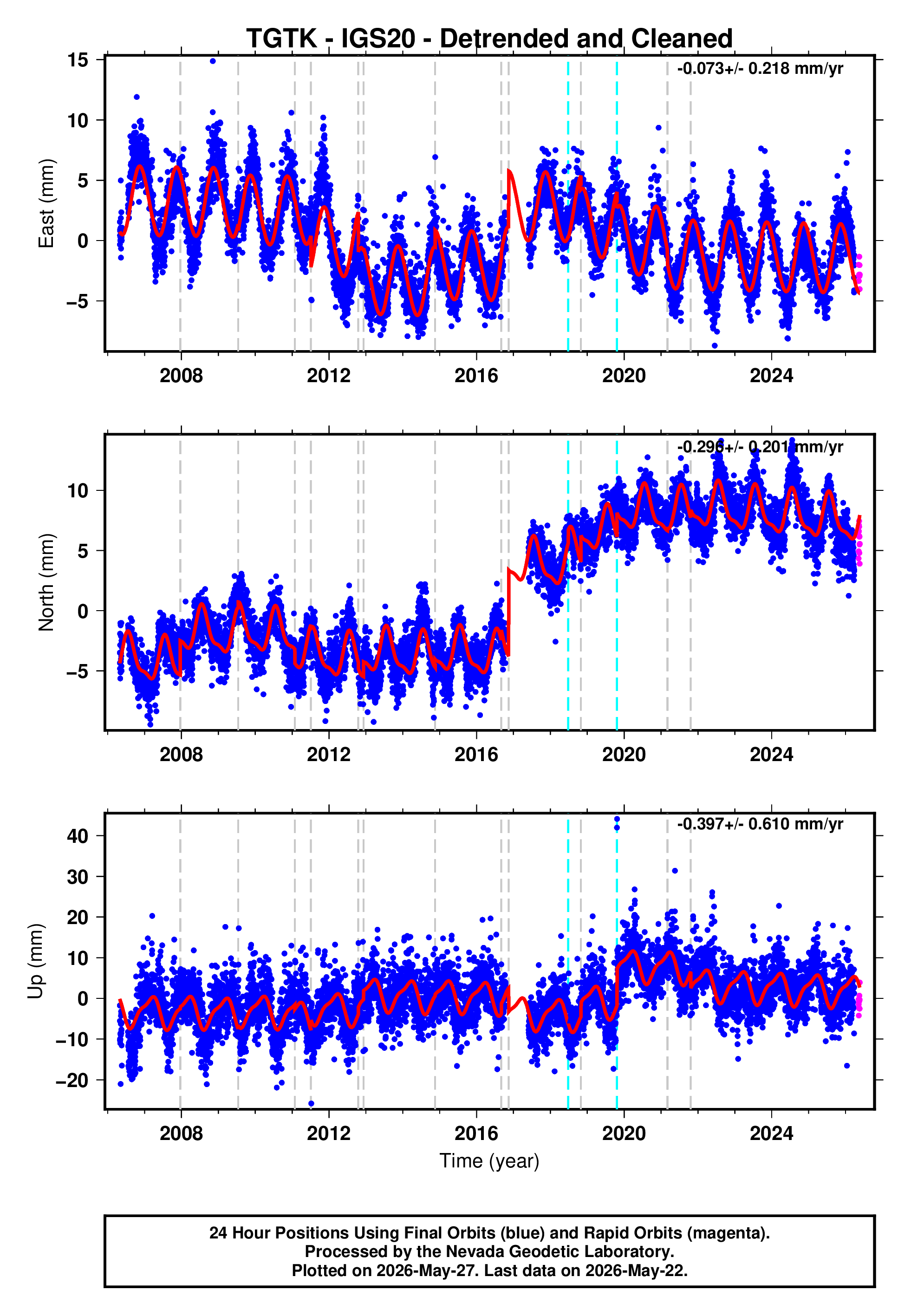

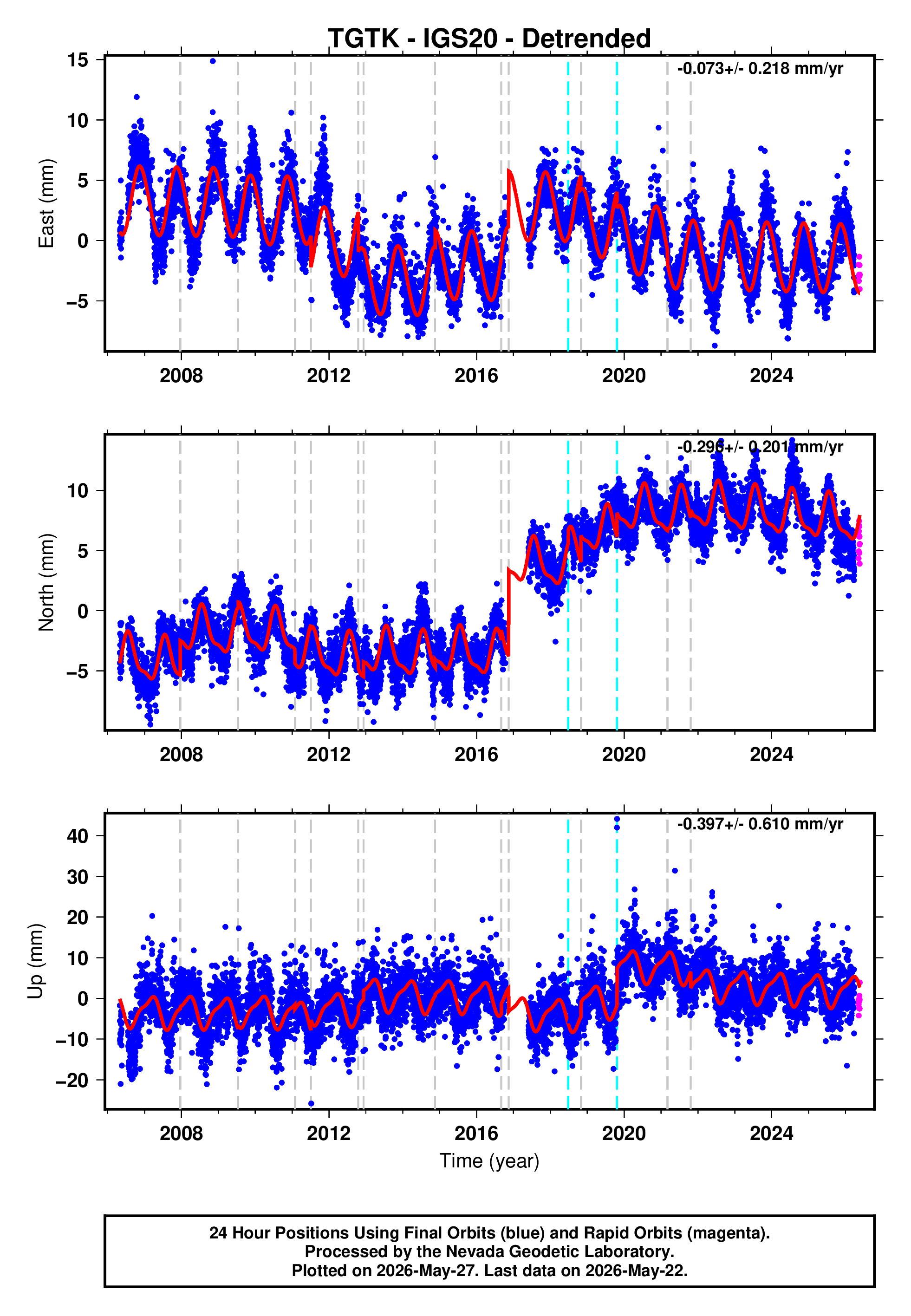

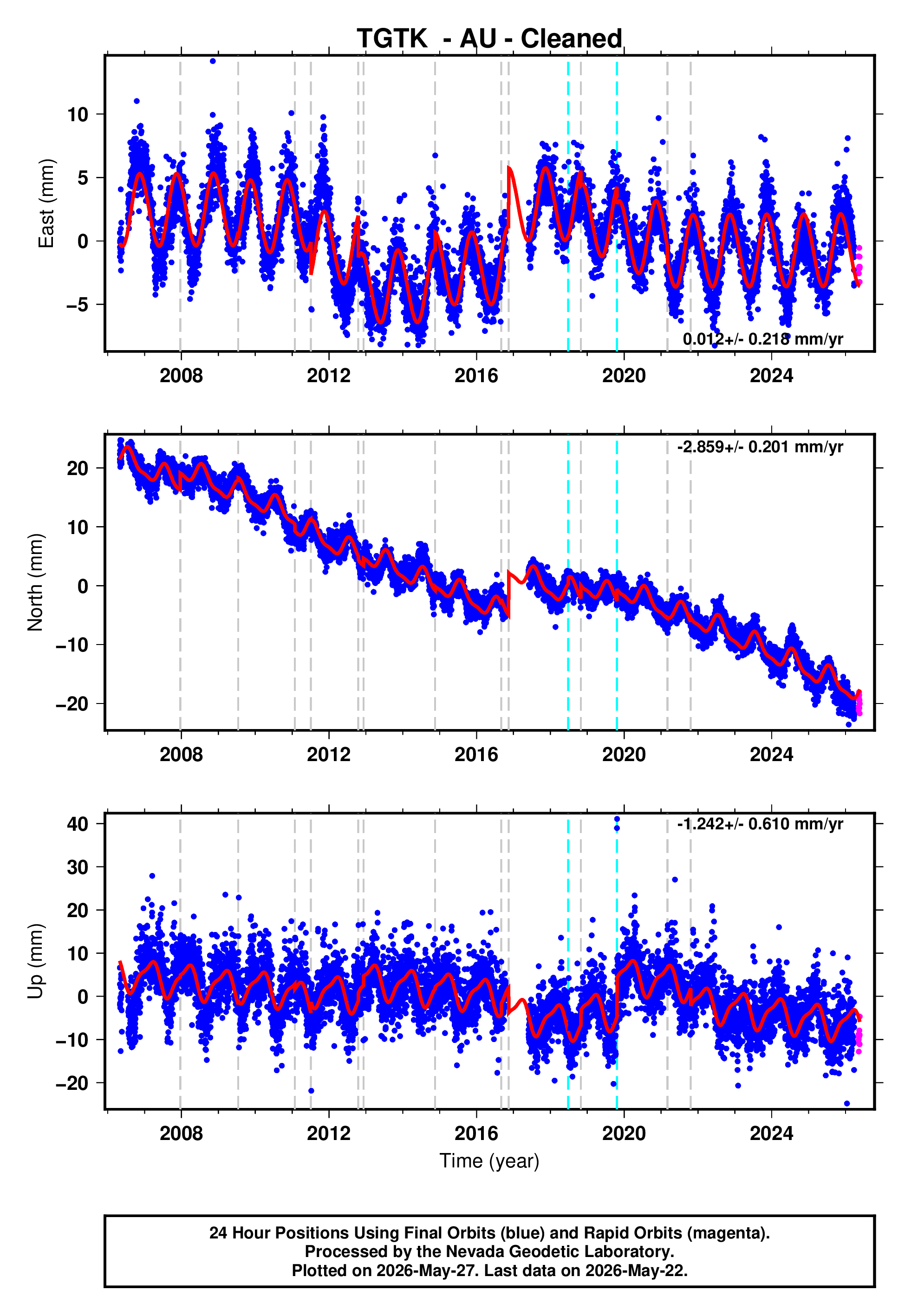

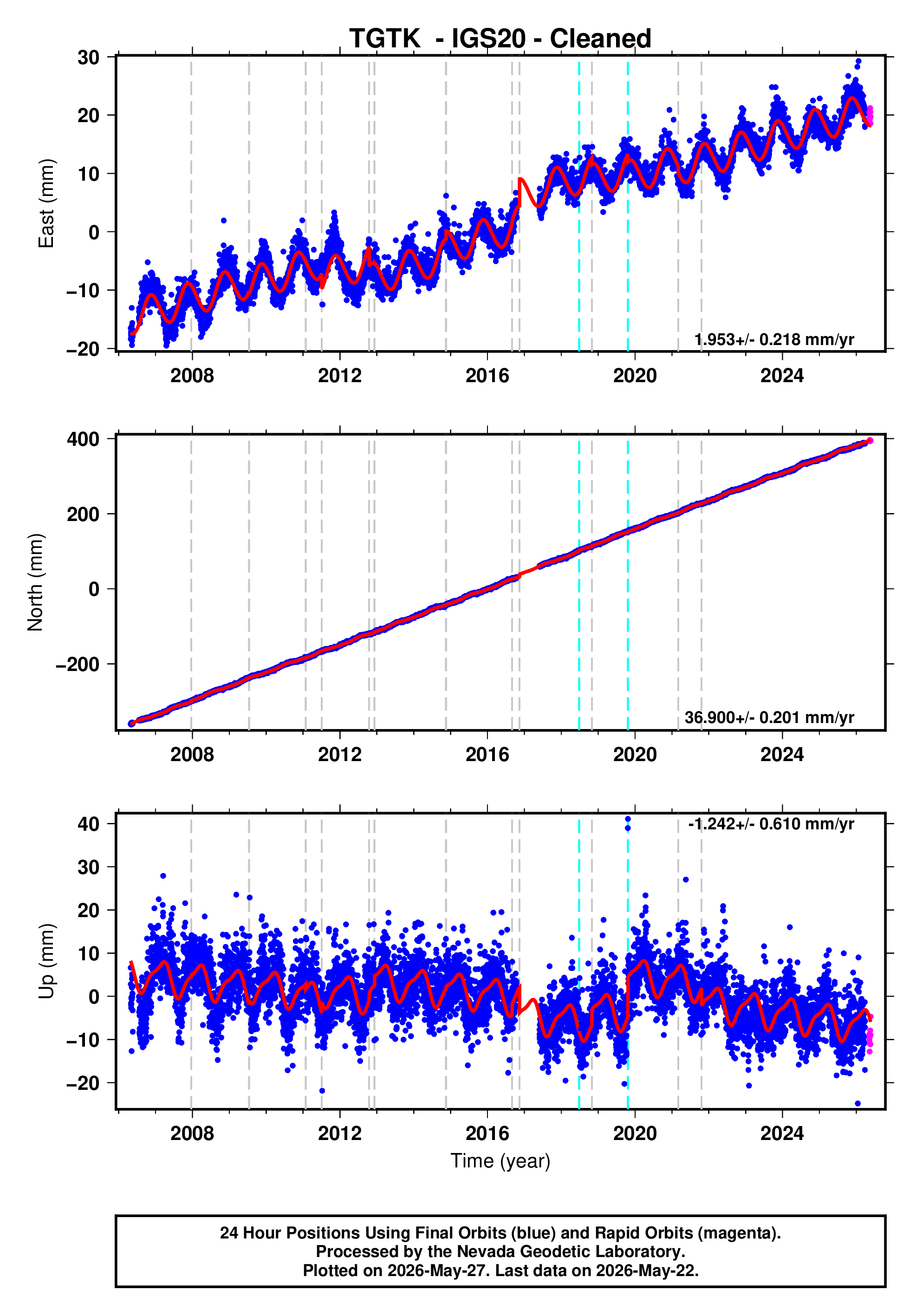

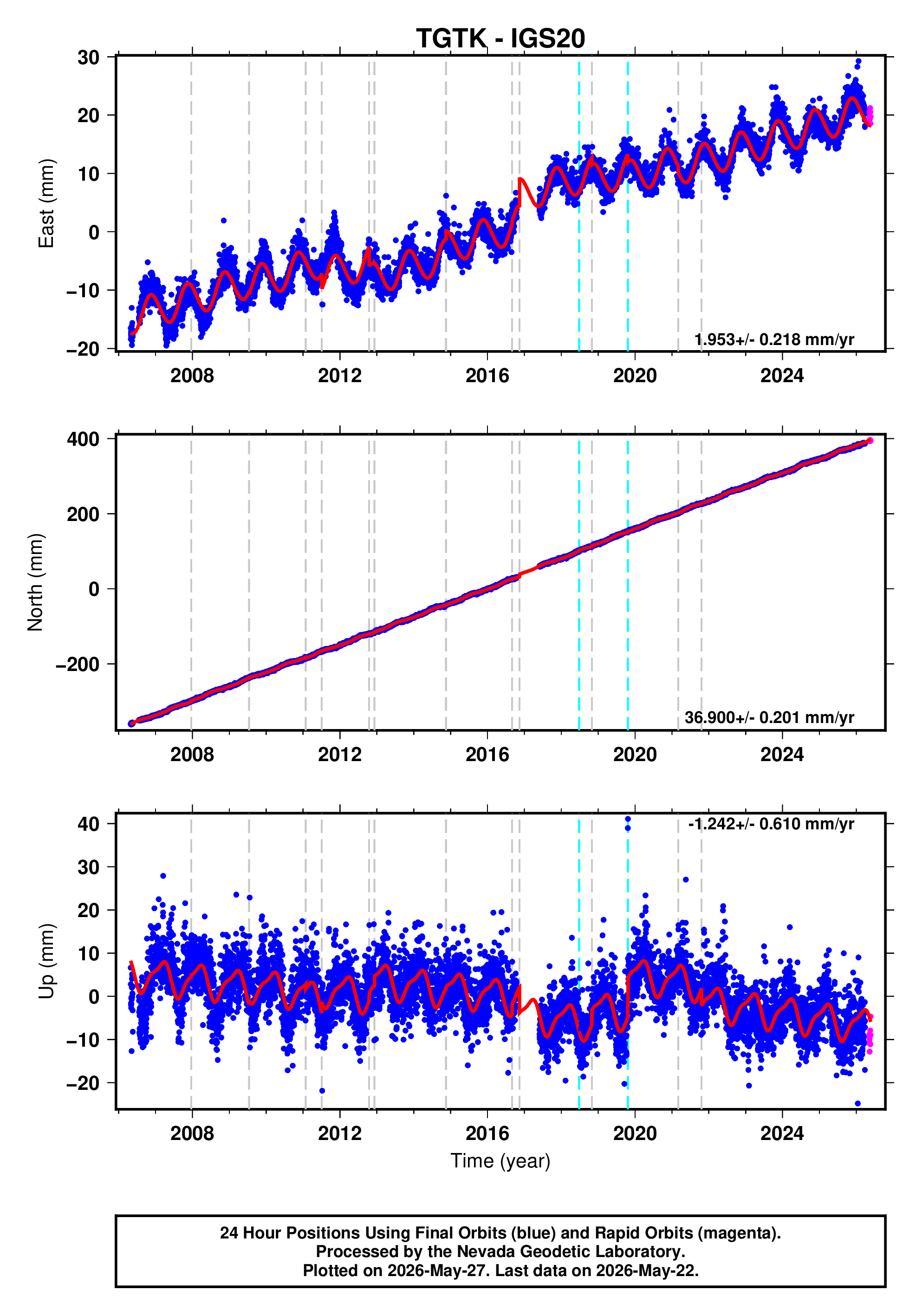

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot
Load prediction plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
TGTK18JUN26 Elevation_Cutoff_Changed - -
TGTK19OCT22 Antenna_Code_Changed - -
TGTK07DEC20 usp000fuvt 6.6 219.4
TGTK09JUL15 usp000gz8j 7.8 1099.9
TGTK12DEC07 usp000jwmk 6.3 30.2
TGTK14NOV16 usc000sxye 6.7 353.4
TGTK16SEP01 us10006jbi 7.0 323.8
TGTK16NOV13 us1000778i 7.8 514.3
TGTK21MAR04 us7000dffl 7.3 343.2
TGTK21MAR04 us7000dflf 8.1 1174.2
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
