MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : SRLP

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.

Latitude: -36.622

Longitude: -64.280

Height: 214.448 meters

Time Series Data

(ascii text)
24 Hour Final Solutions


env xyz
env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)


ftp link

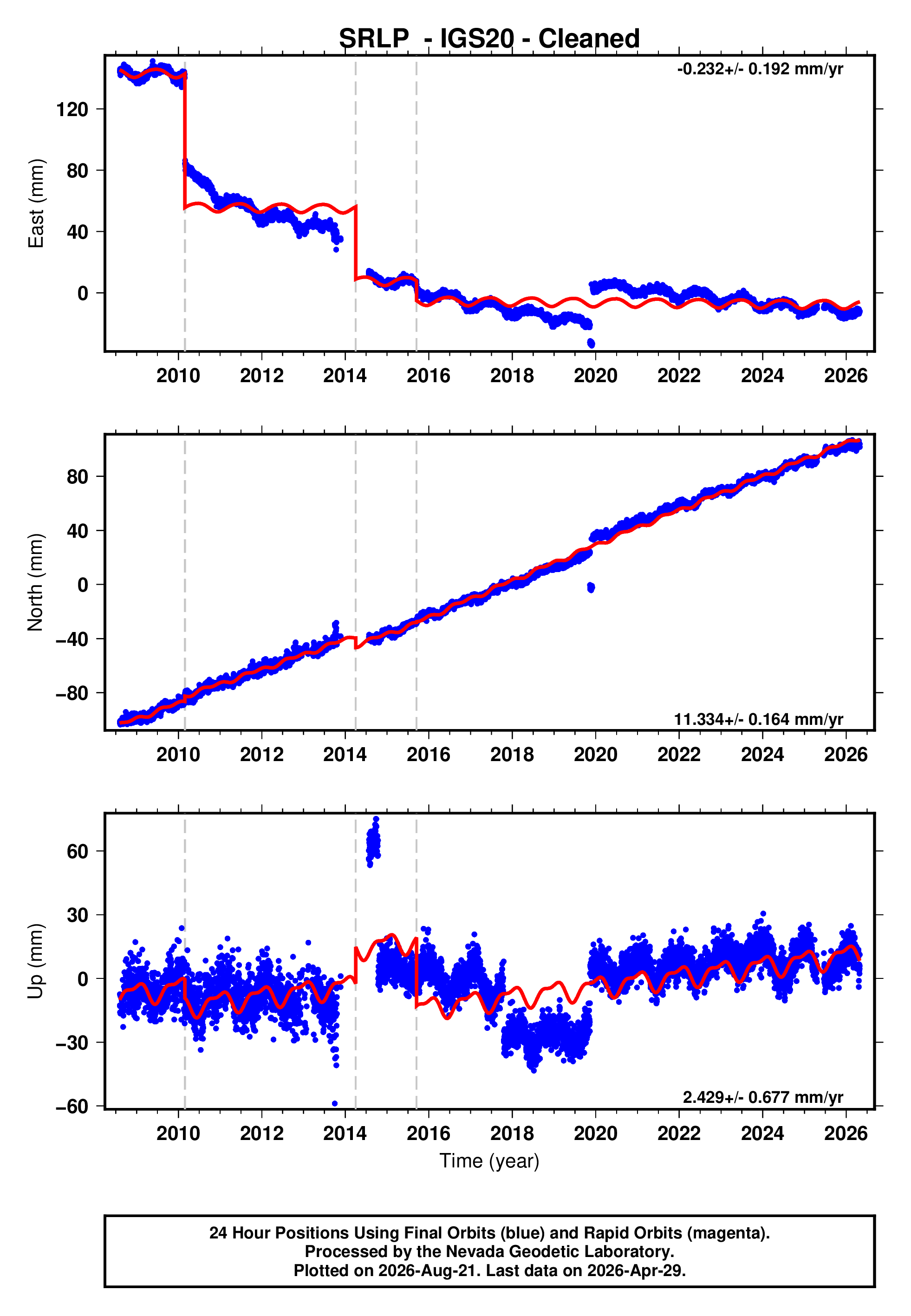

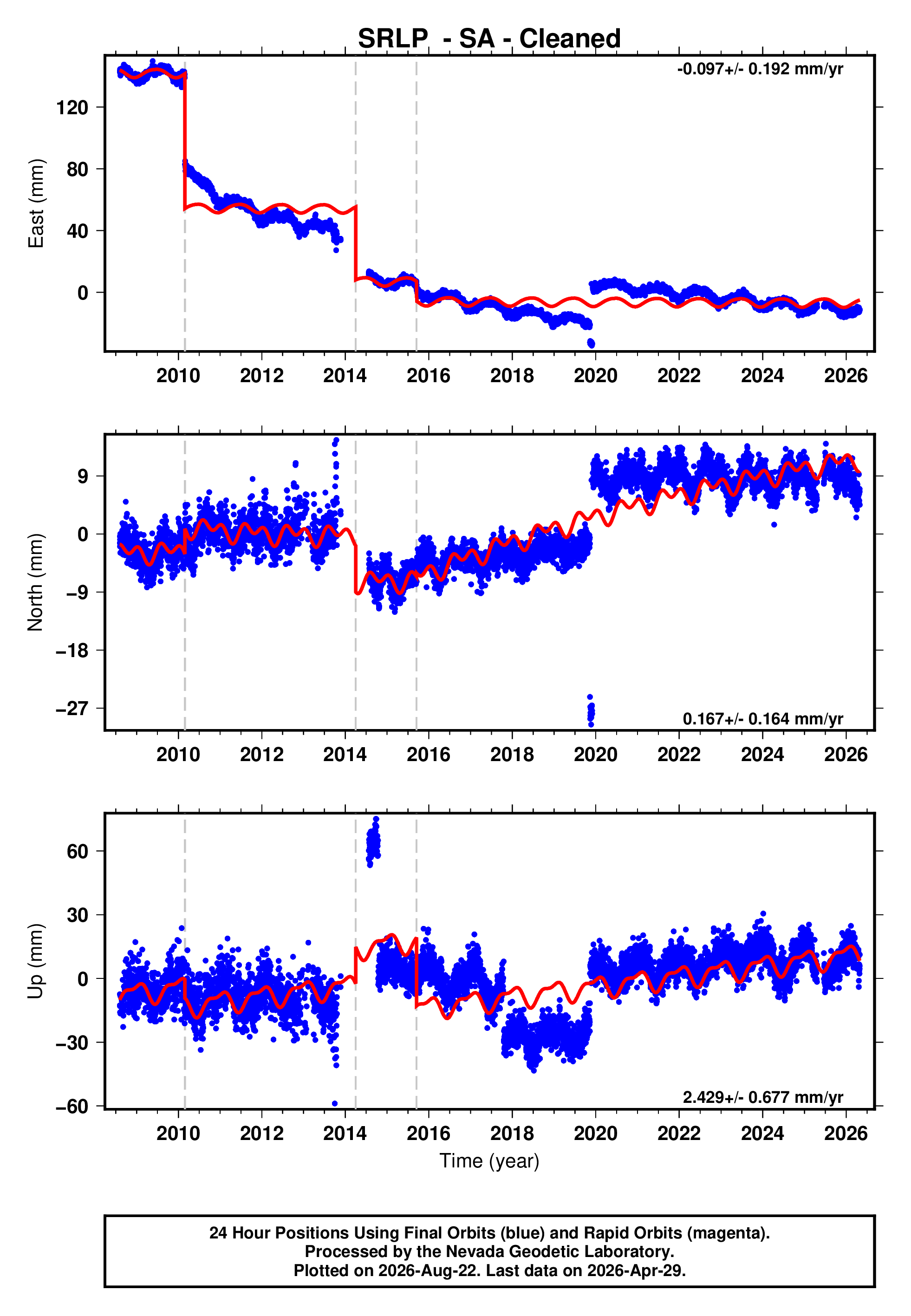

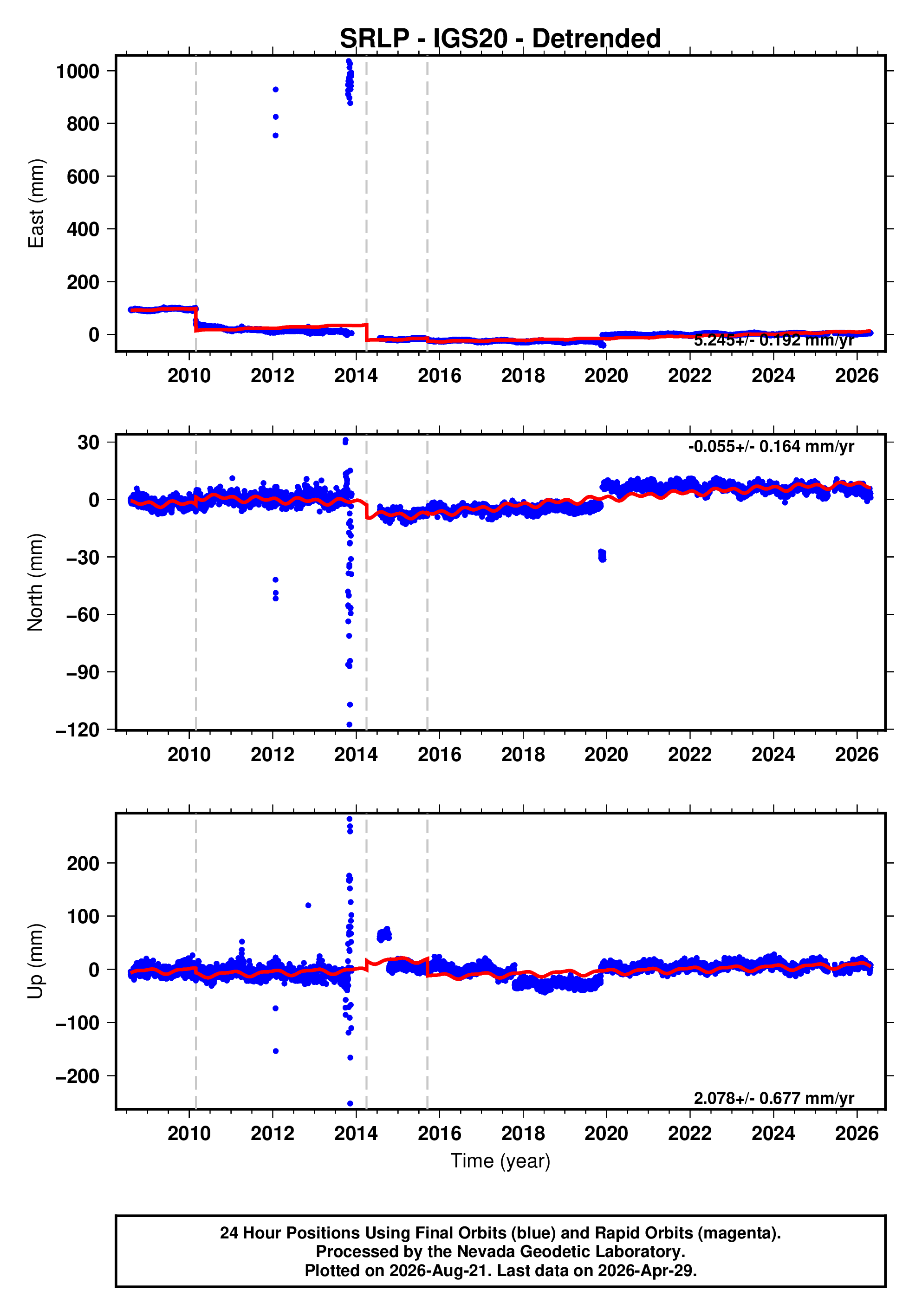

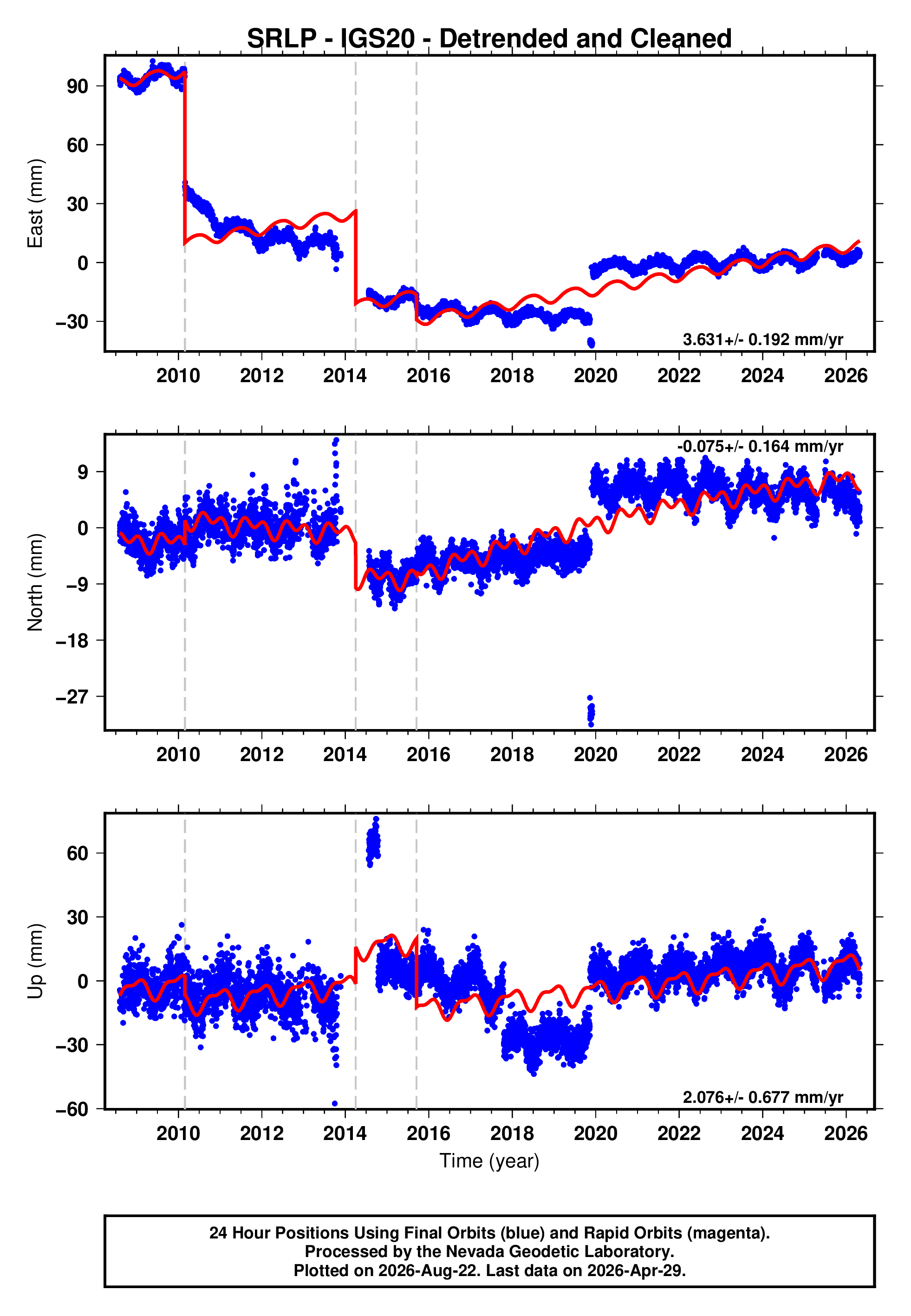

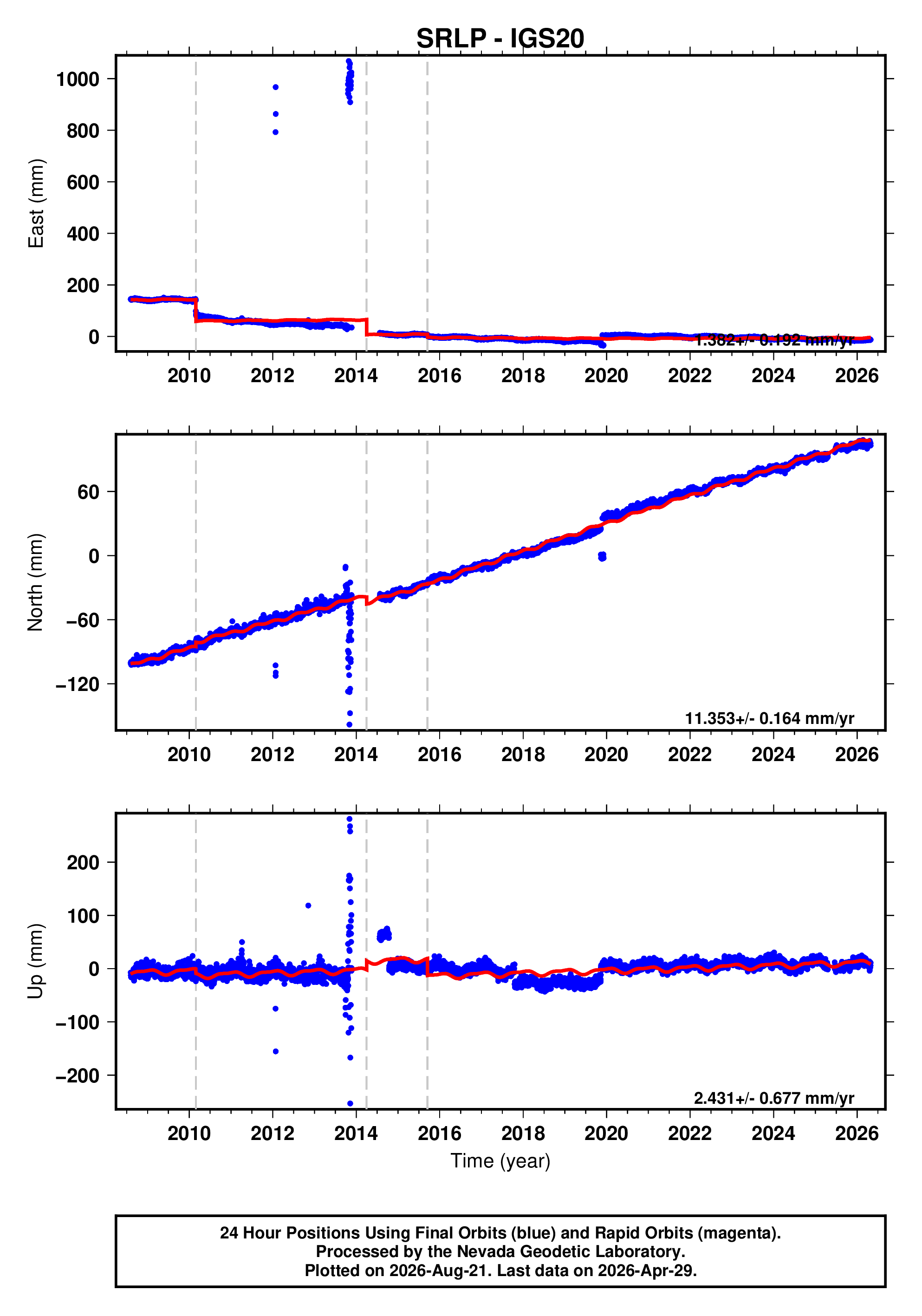

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned Rapid 5 min.
Not Available
Not Available
Not Available

Steps Information for this station

Station ID Date
Equipment Change Type/
or Event ID
SRLP10FEB27 official20100227063411530_30 8.8 773.3
SRLP14APR01 usc000nzvd 8.2 1994.4
SRLP15SEP16 us20003k7a 8.3 881.9
SRLP18MAY27 Reference_Frame_Change:_IGS08_to_IGS14 - -
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
