MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : SEKC

Station operator information:

from RINEX headers

RINEX data attribution information:

From UNAVCO DOI System

Latitude: 41.220

Longitude: 47.175

Height: 726.730 meters

Time Series Data

(ascii text)
24 Hour Final Solutions


env xyz
24 Hour Rapid Solutions

FID (~IGS08)

env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)


ftp link

Cite this product as: Blewitt et al.,(2018).

See this link for suggested full citation text.

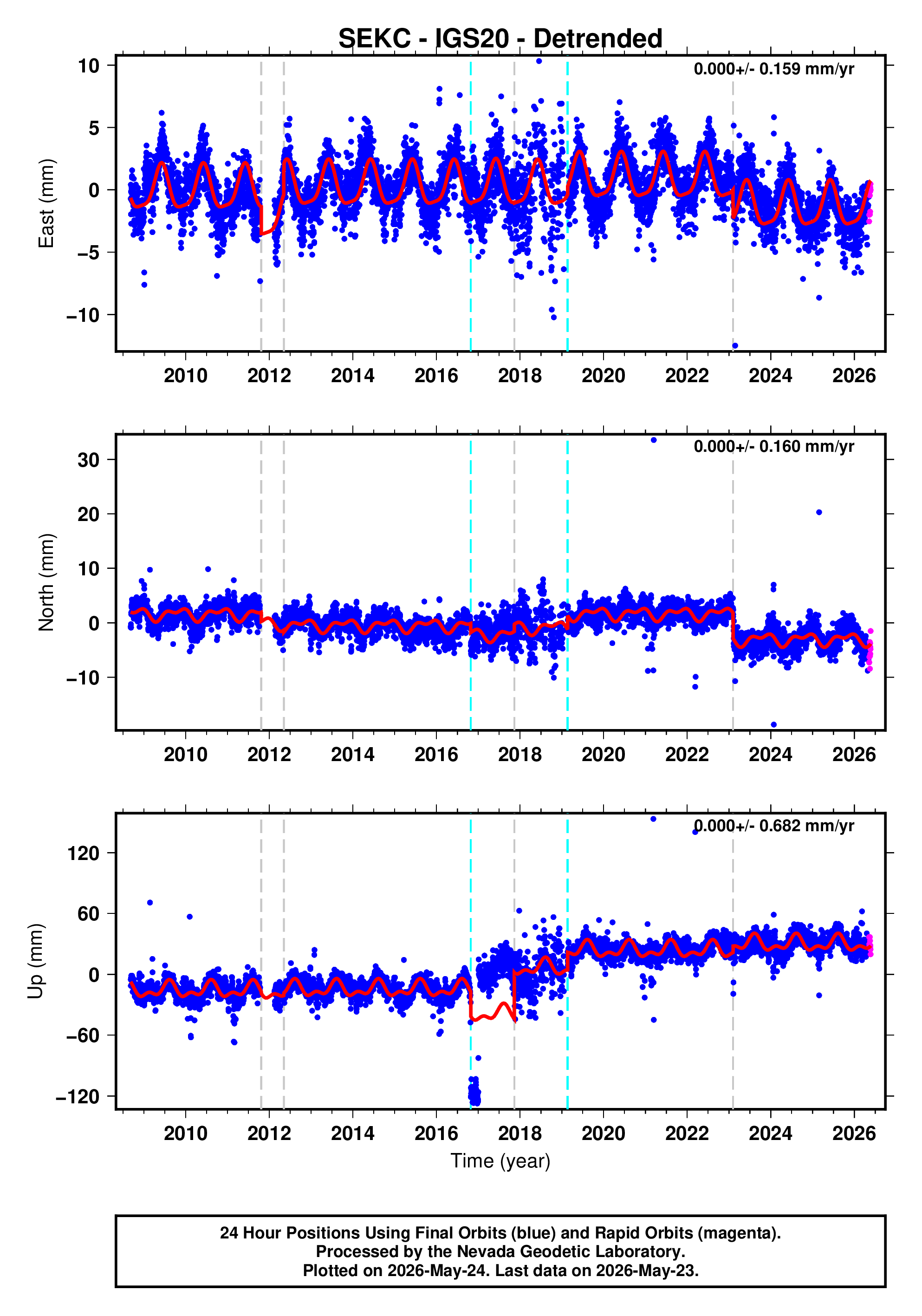

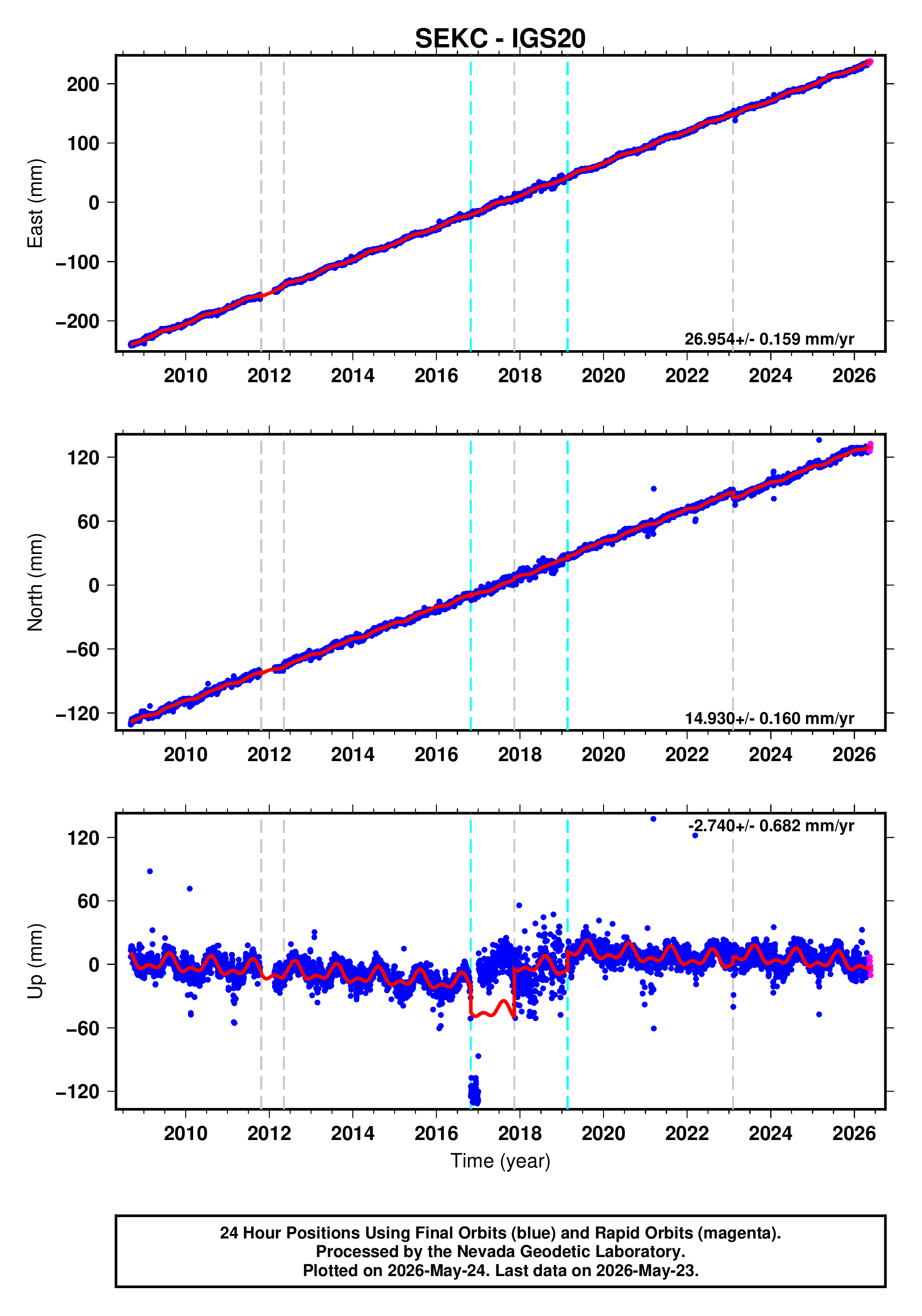

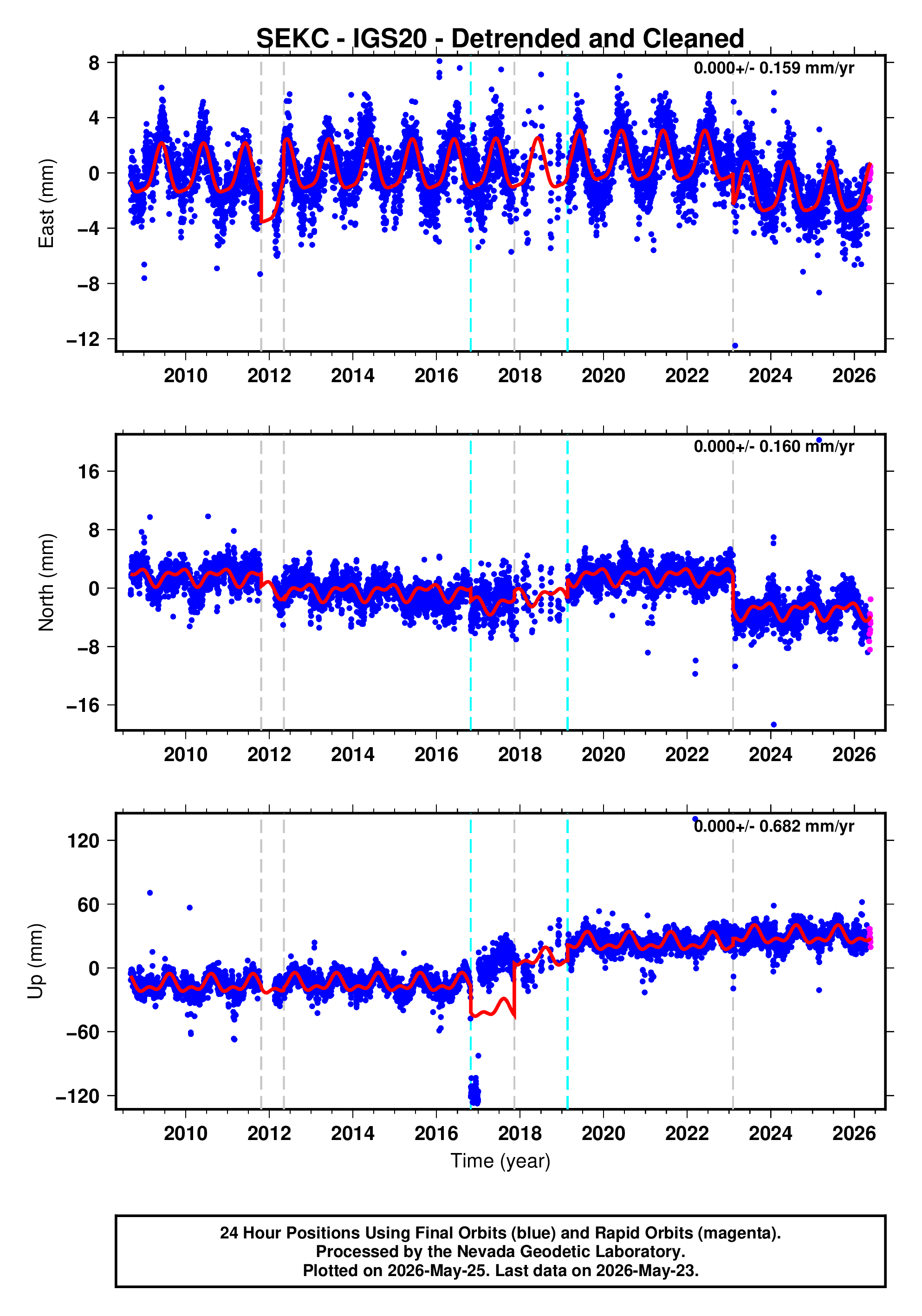

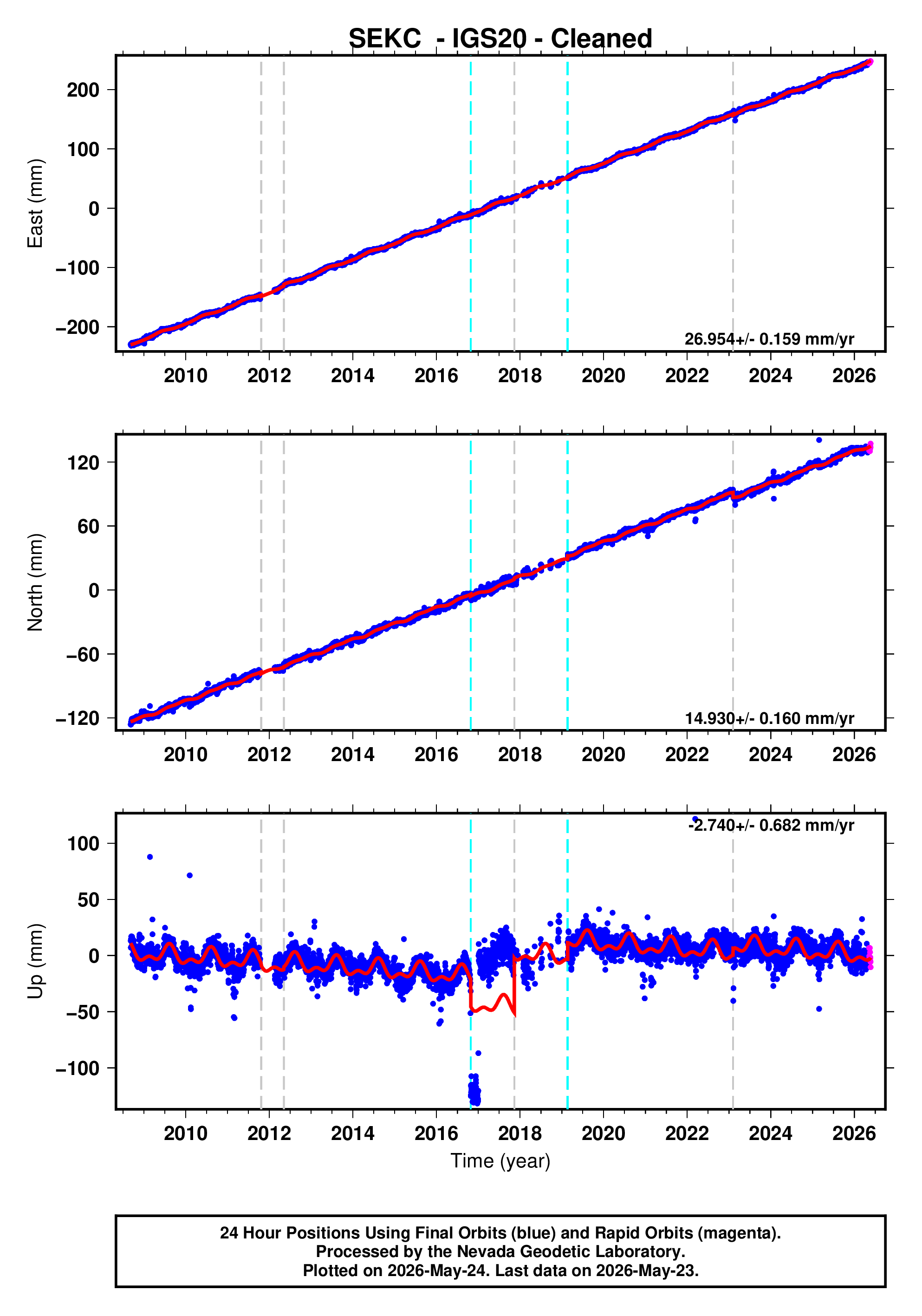

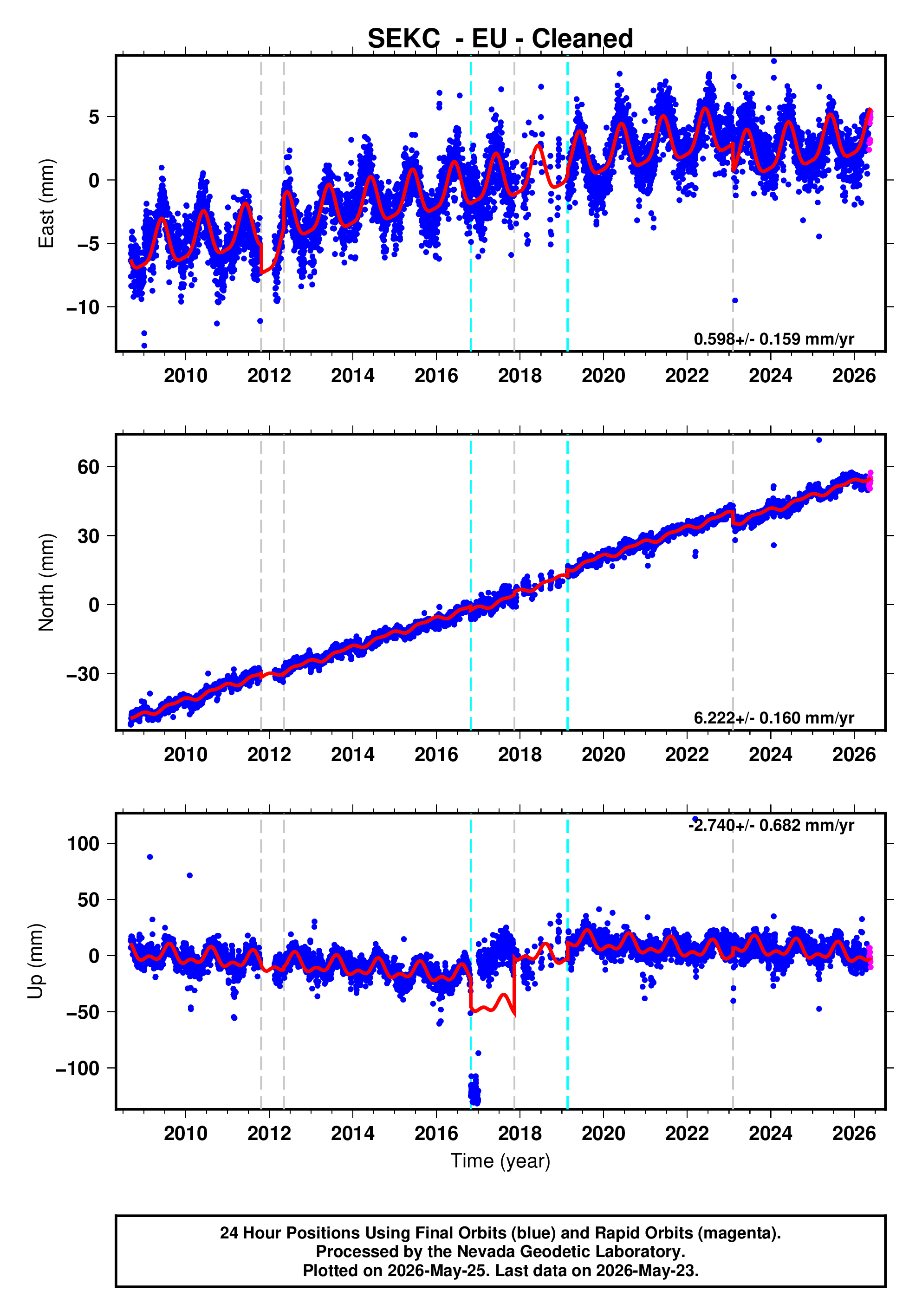

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned Rapid 5 min.
Not Available
Not Available
Not Available

Steps Information for this station

Station ID Date
Equipment Change Type/
or Event ID
SEKC16OCT27 Antenna_Code_Changed - -
SEKC16OCT27 Receiver_Make_and_Model_Changed - -
SEKC19FEB21 Antenna_Code_Changed - -
SEKC19FEB21 Receiver_Make_and_Model_Changed - -
SEKC11OCT23 usp000j9rr 7.1 418.1
SEKC12MAY07 usp000jk44 5.6 48.7
SEKC18MAY27 Reference_Frame_Change:_IGS08_to_IGS14 - -
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
