MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : S057

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.

Latitude: 38.495

Longitude: 141.531

Height: 92.567 meters

Time Series Data

(ascii text)
24 Hour Final Solutions


env xyz
24 Hour Rapid Solutions

FID (~IGS08)

env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)


ftp link

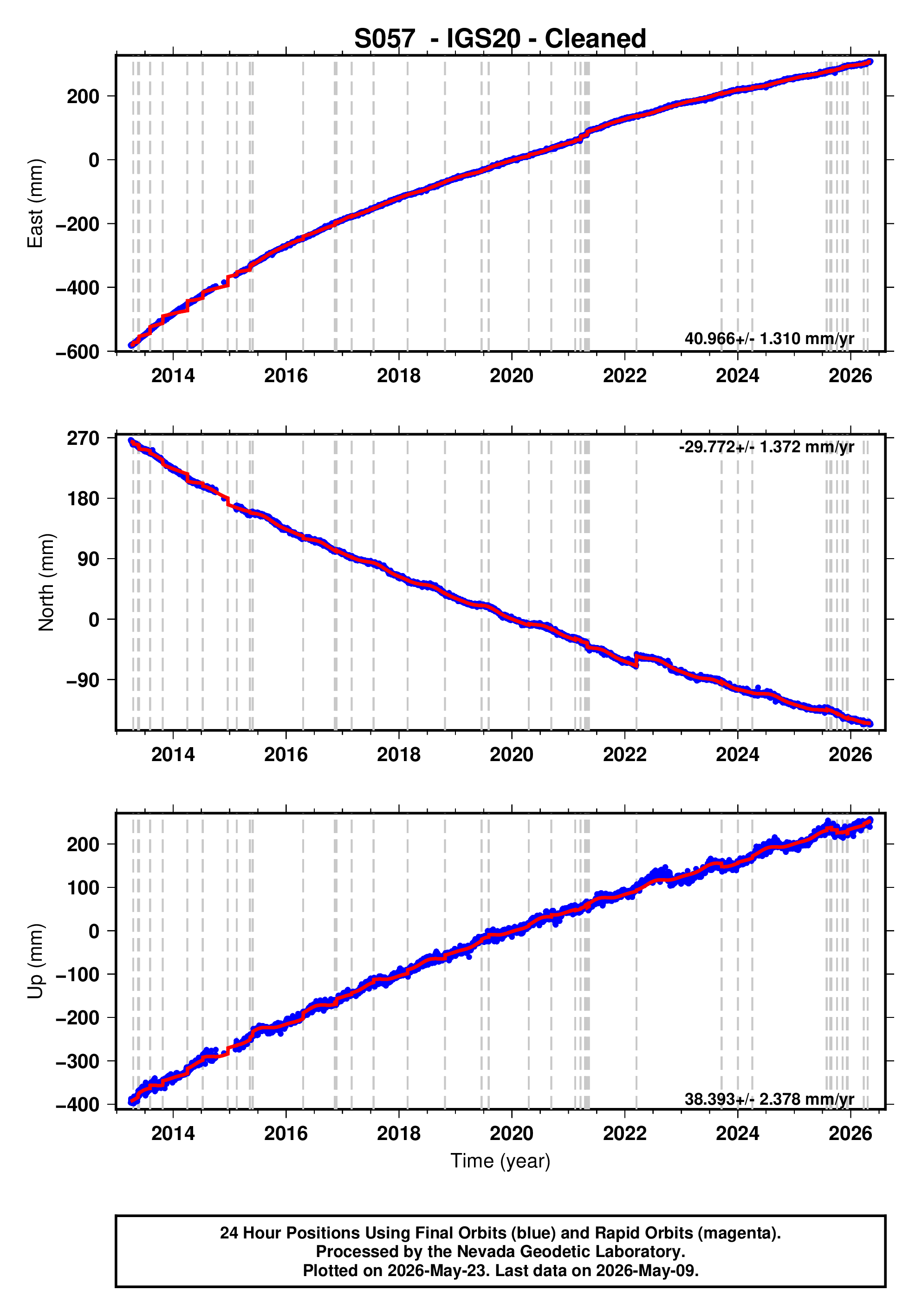

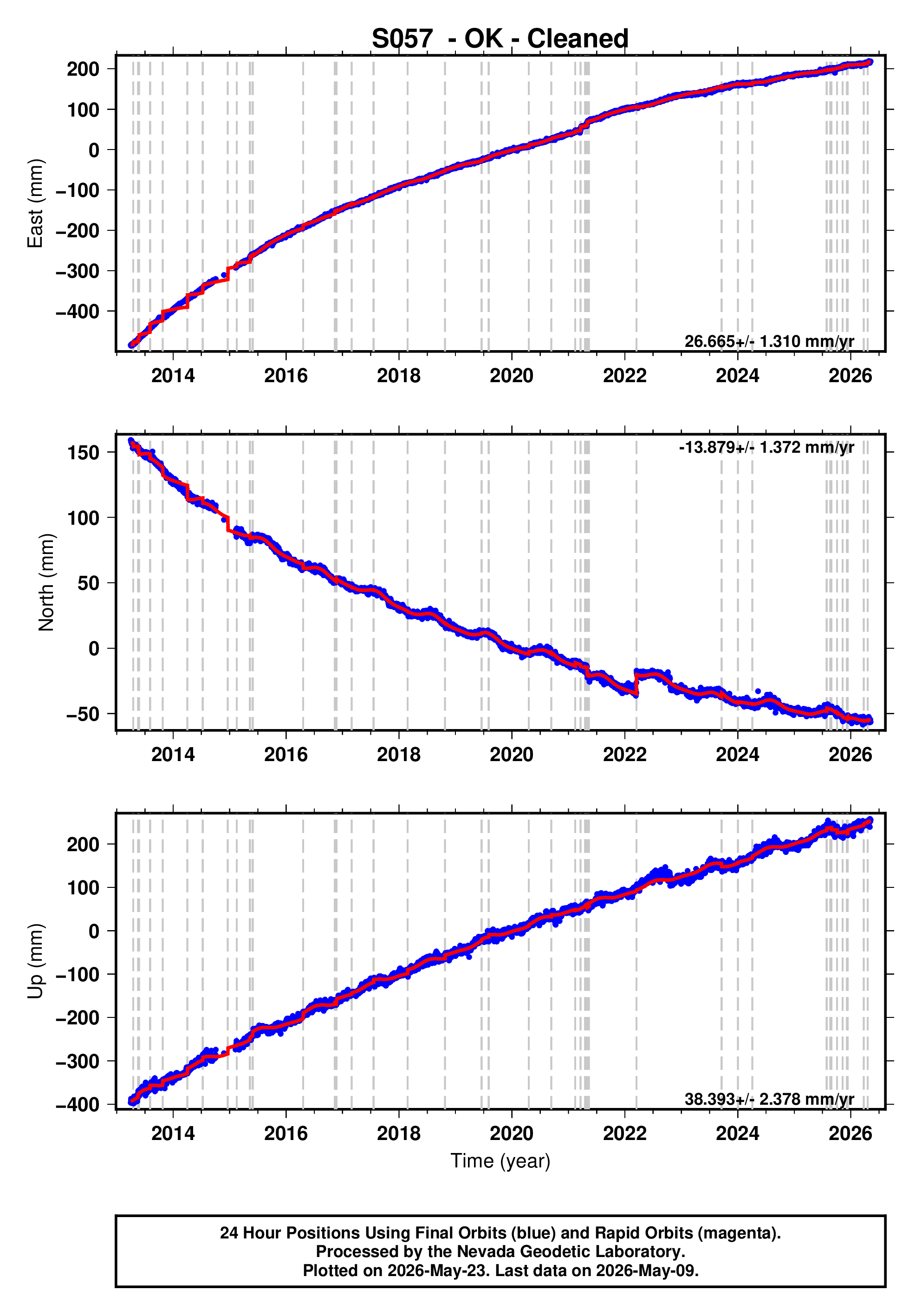

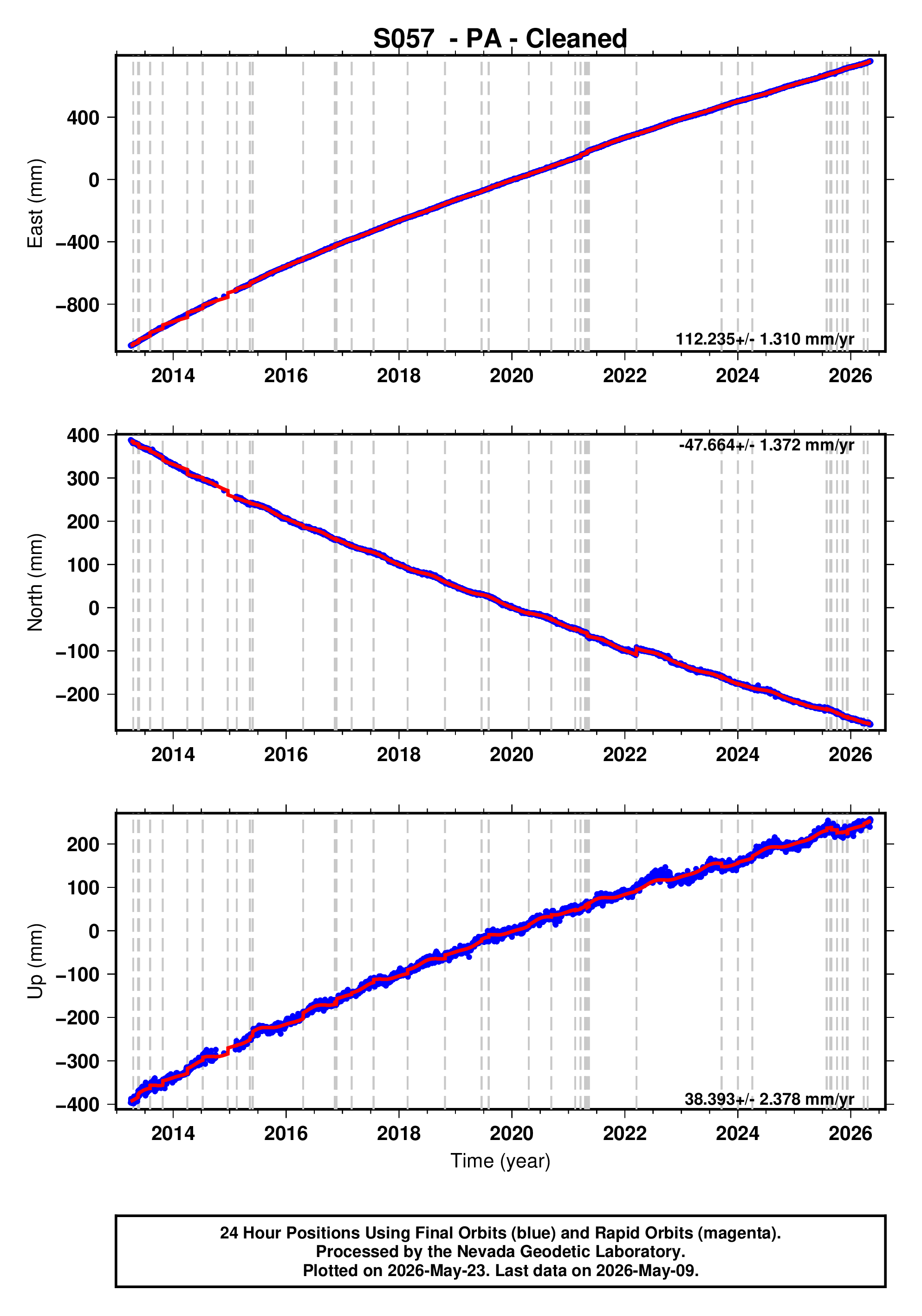

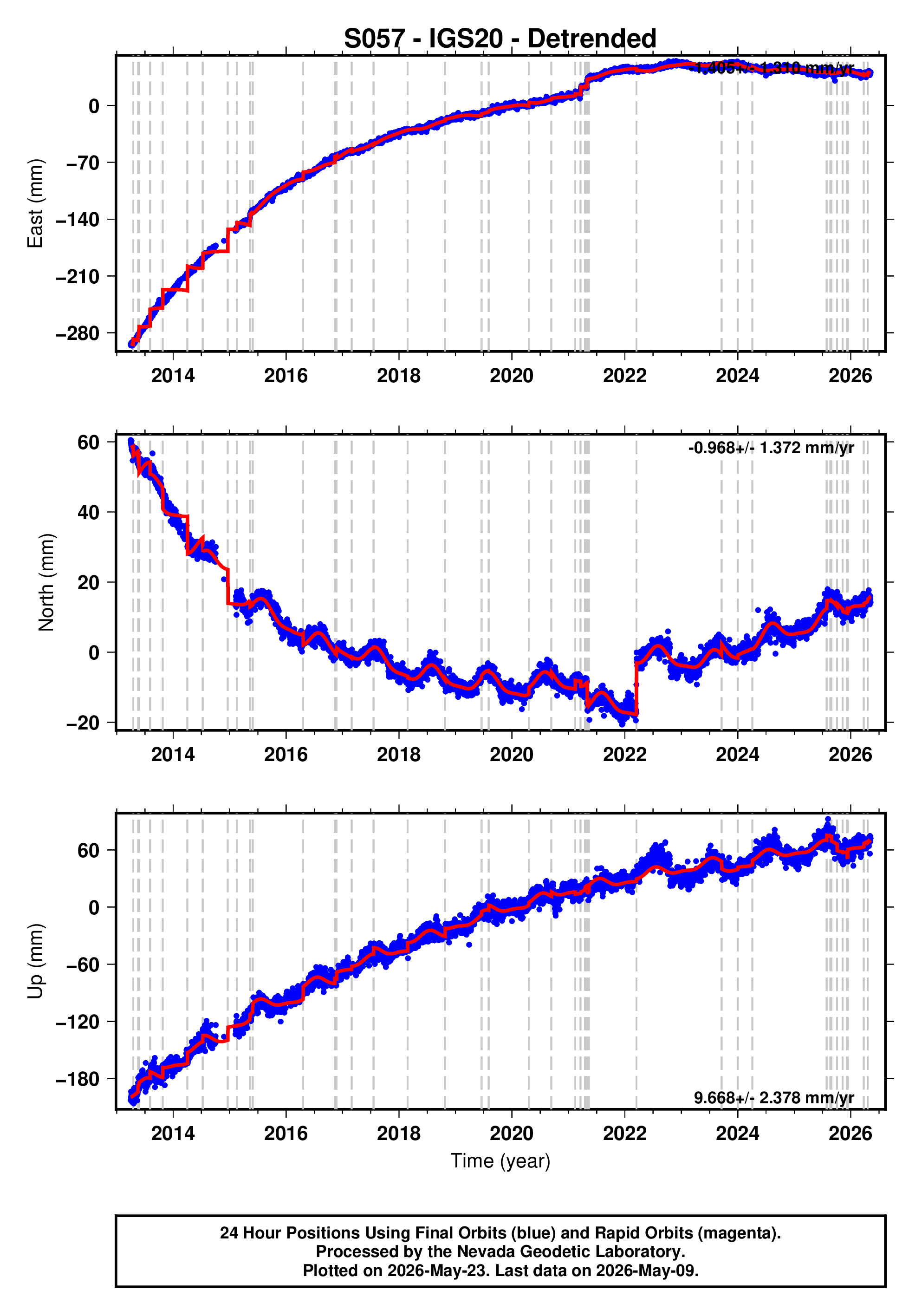

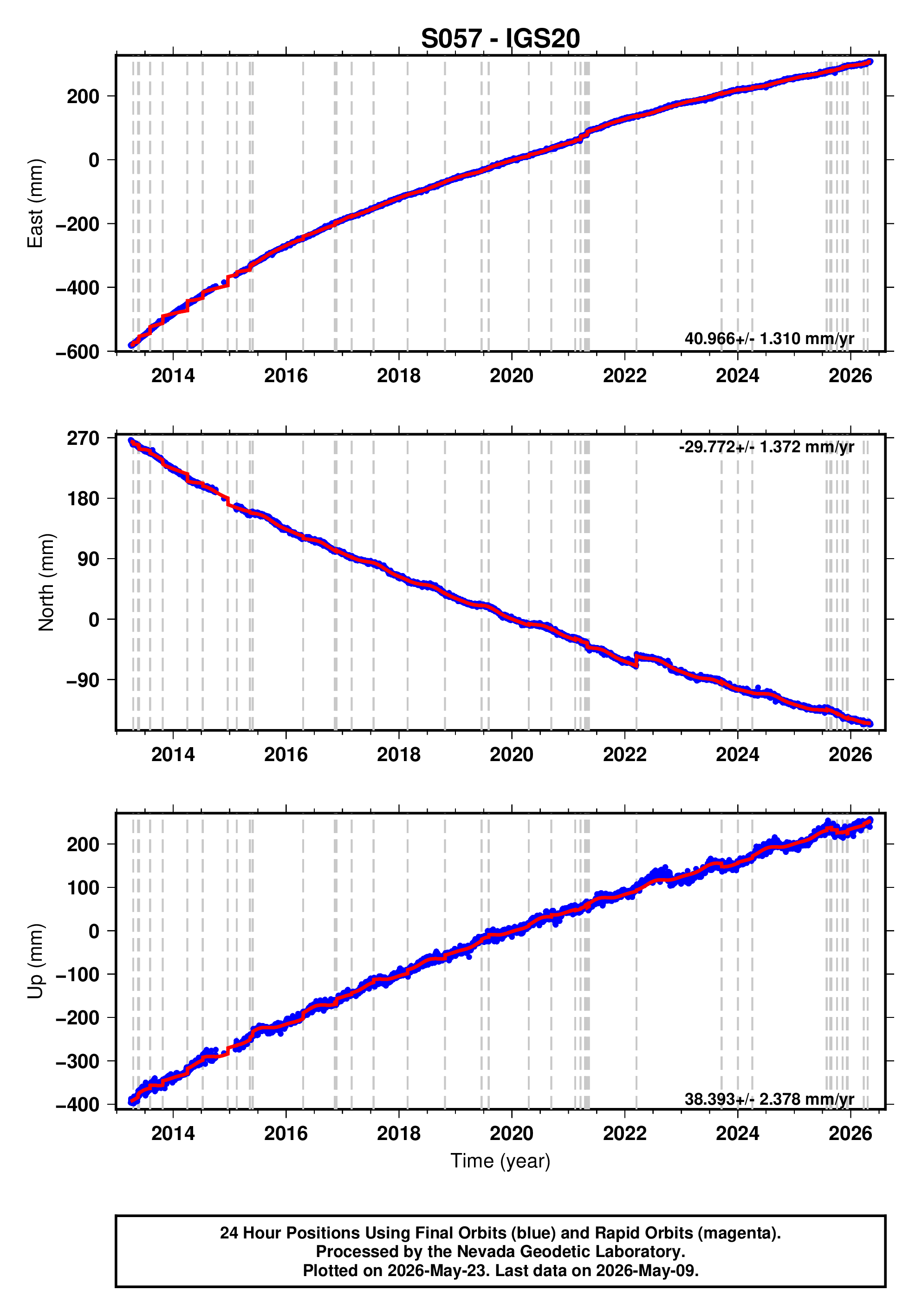

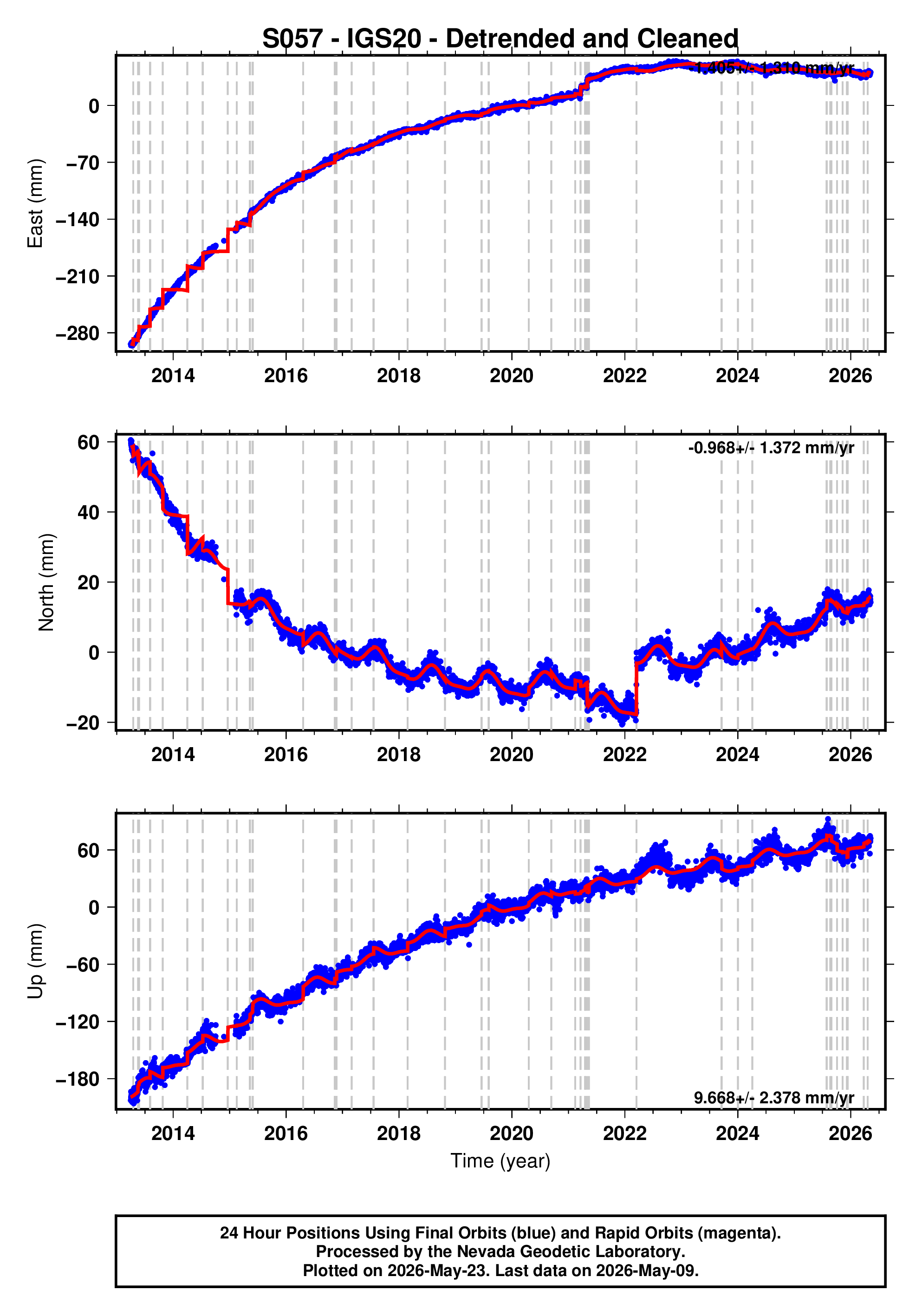

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned Rapid 5 min.
Not Available
Not Available
Not Available

Steps Information for this station

Station ID Date
Equipment Change Type/
or Event ID
S05713APR17 usb000g940 5.9 8.9
S05713MAY18 usb000gy67 6.0 84.3
S05713MAY24 usb000h4jh 8.3 2023.3
S05713AUG04 usb000iv4w 5.8 42.6
S05713OCT25 usc000kn4n 7.1 312.7
S05714JUL11 usb000rs50 6.5 184.4
S05714DEC20 usc000t8p4 5.9 121.6
S05715FEB16 usb000tpvj 6.7 190.8
S05715MAY12 us20002et4 6.8 63.0
S05716APR20 us20005k66 5.9 77.6
S05716NOV11 us1000770m 6.1 3.0
S05716NOV21 us10007b88 6.9 123.2
S05717FEB28 us20008mw4 5.7 105.2
S05717JUL20 us20009yb7 5.8 119.2
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
