MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : S050

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 43.328 degrees

Longitude: 145.681 degrees

Height: 55.519 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

OK

env

PA

env

24 Hour Rapid Solutions

IGS14

env

OK

env

PA

env

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

J119

10.61 km

J006

14.38 km

G182

14.40 km

J519

19.69 km


Time Series Plots

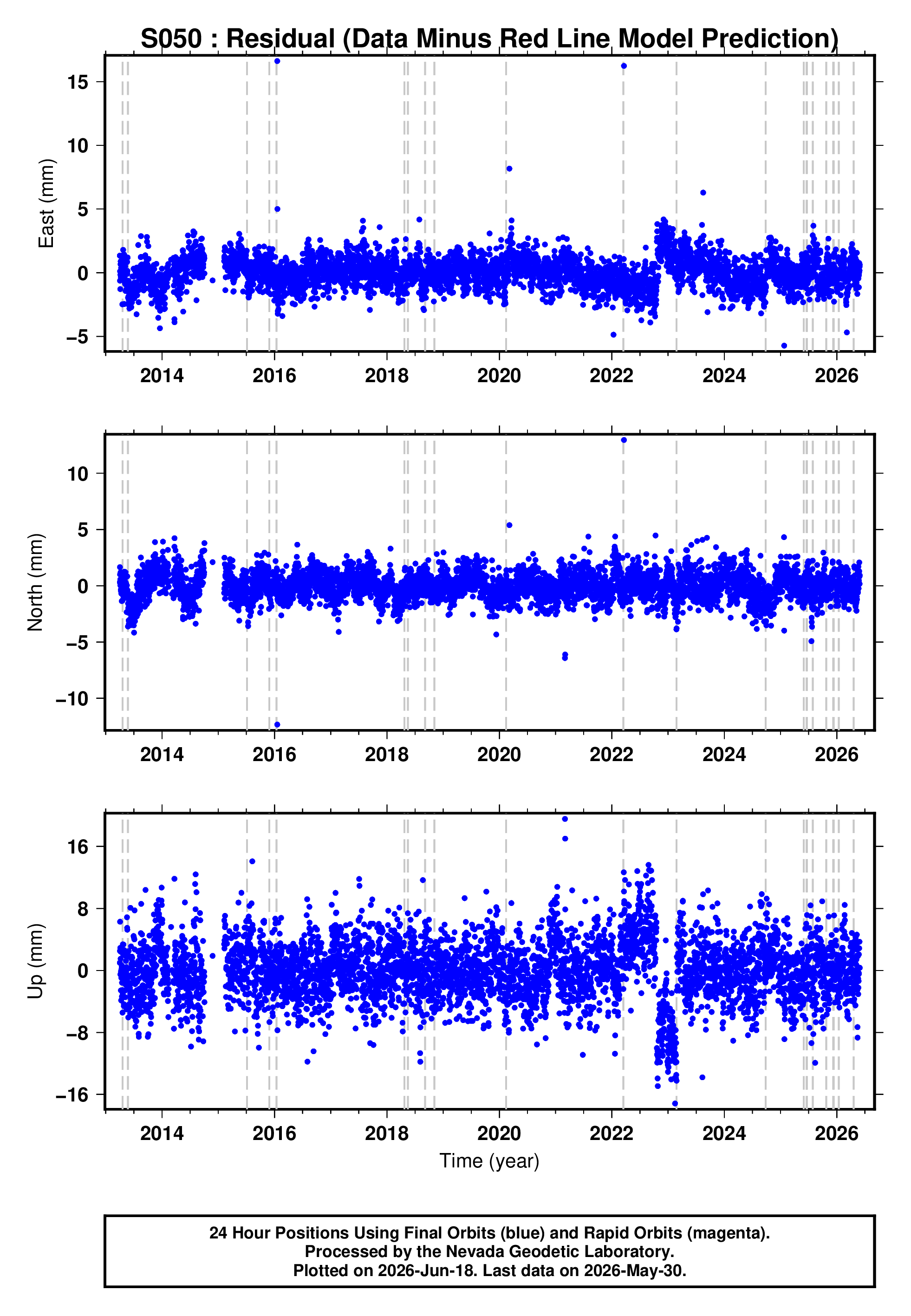

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

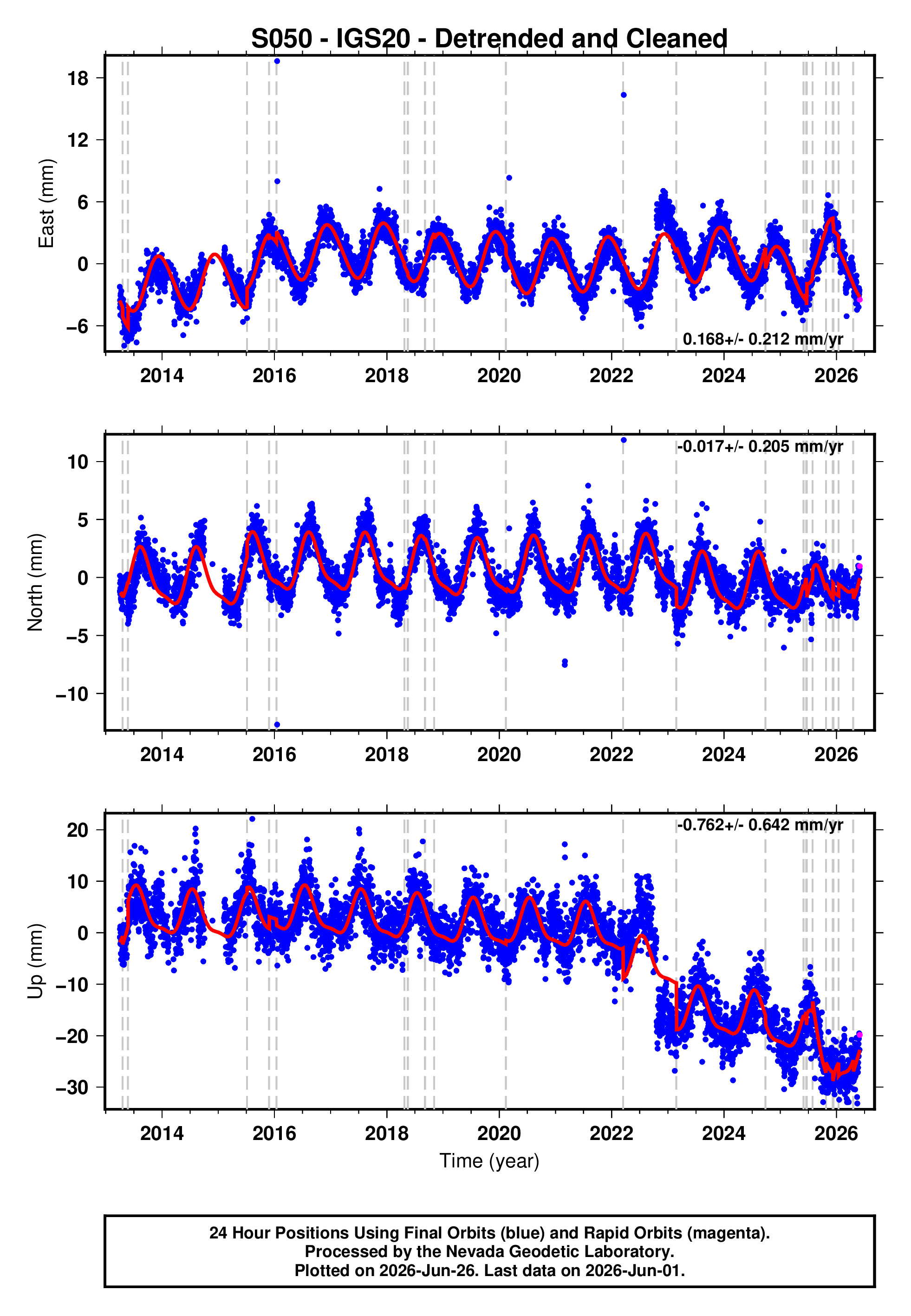

GPS time series plot

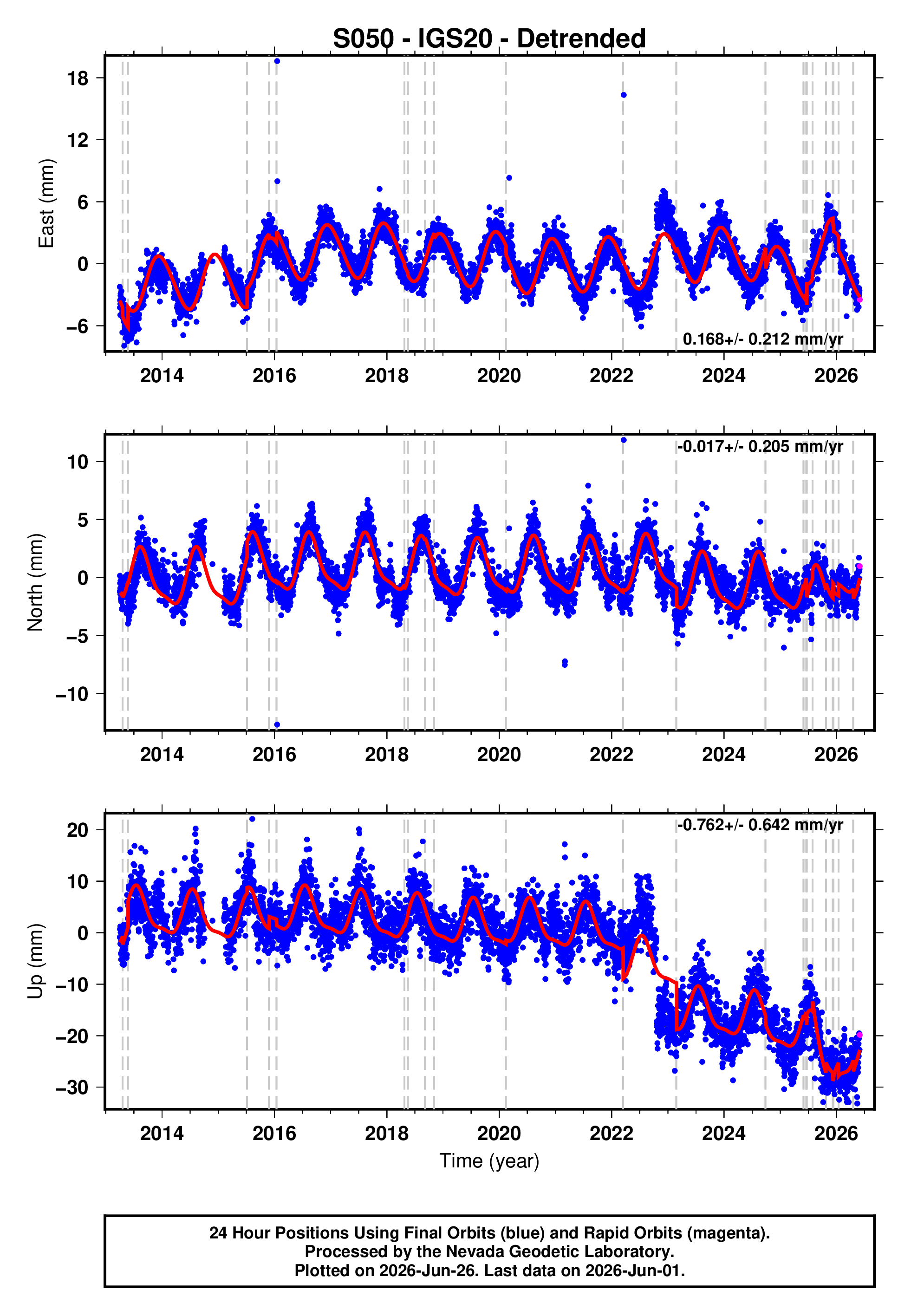

GPS time series plot

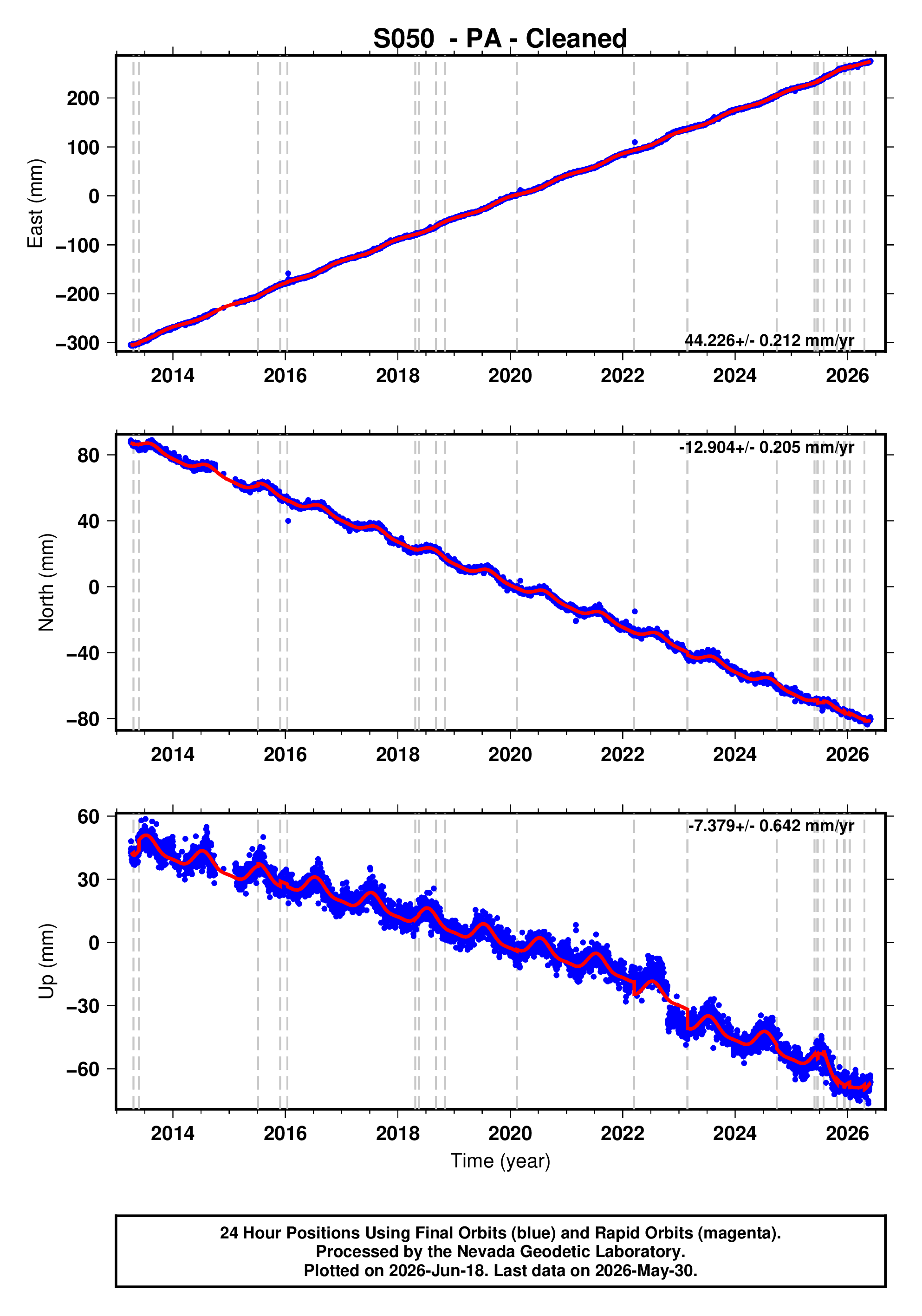

GPS time series plot

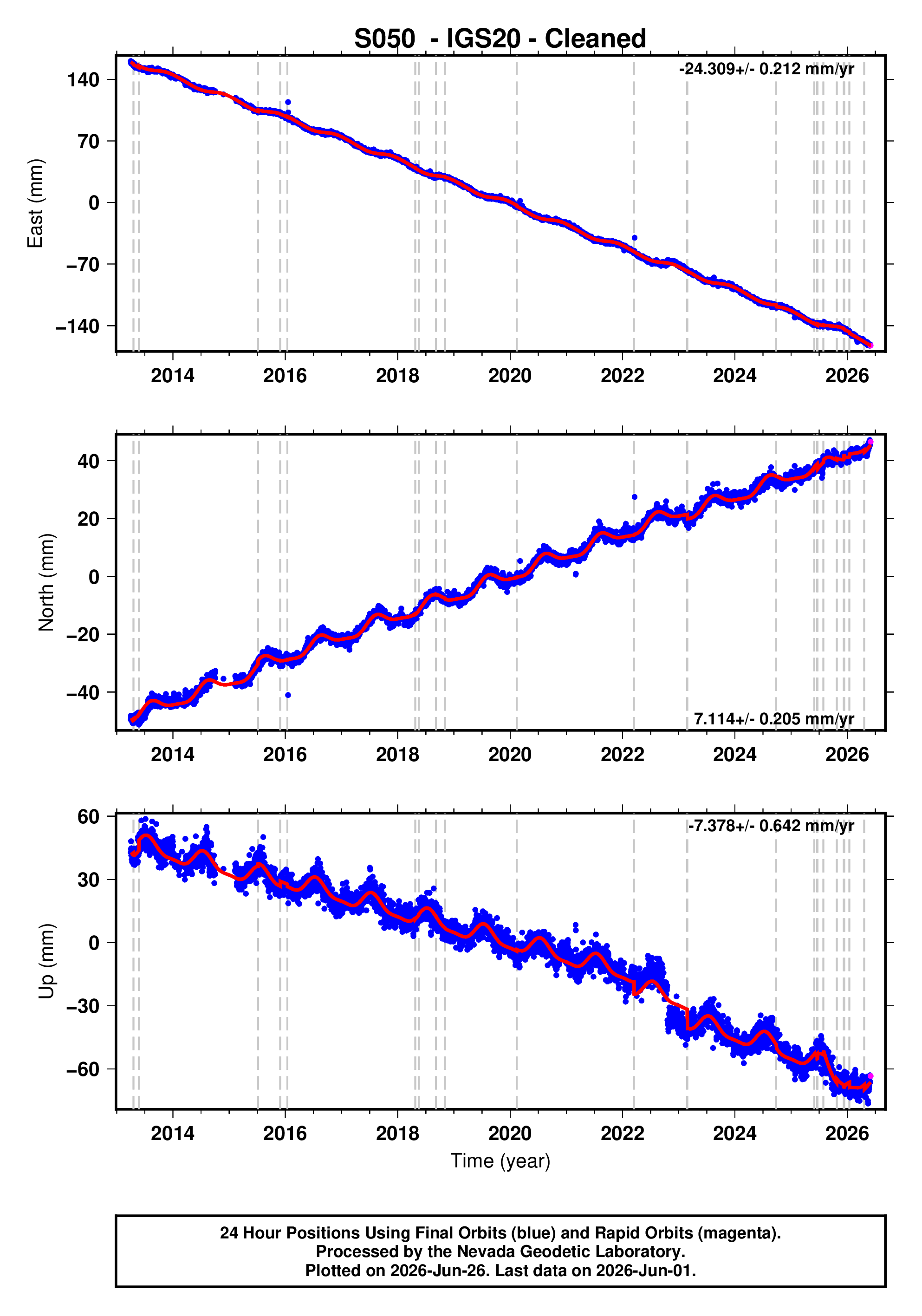

GPS time series plot

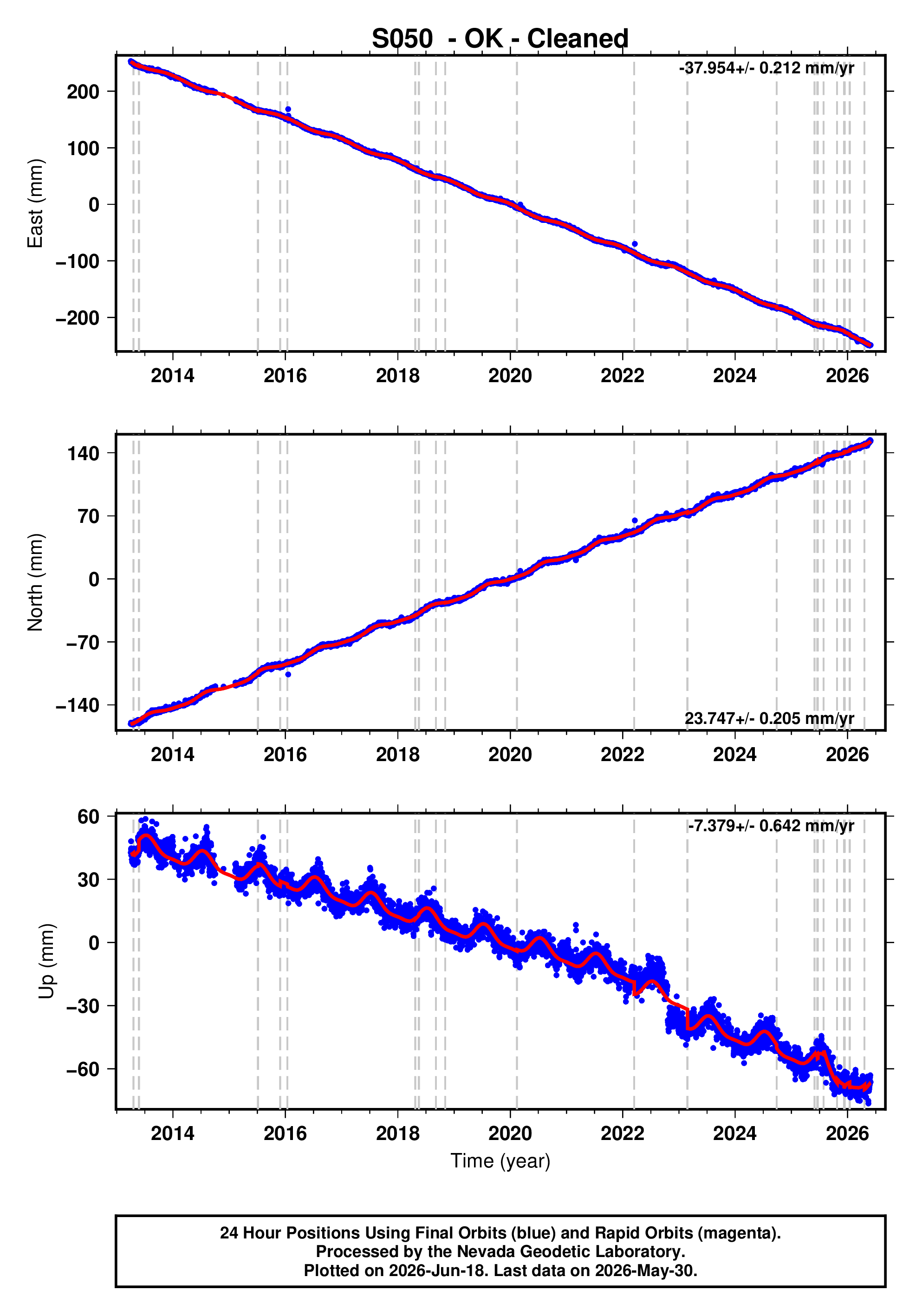

GPS time series plot

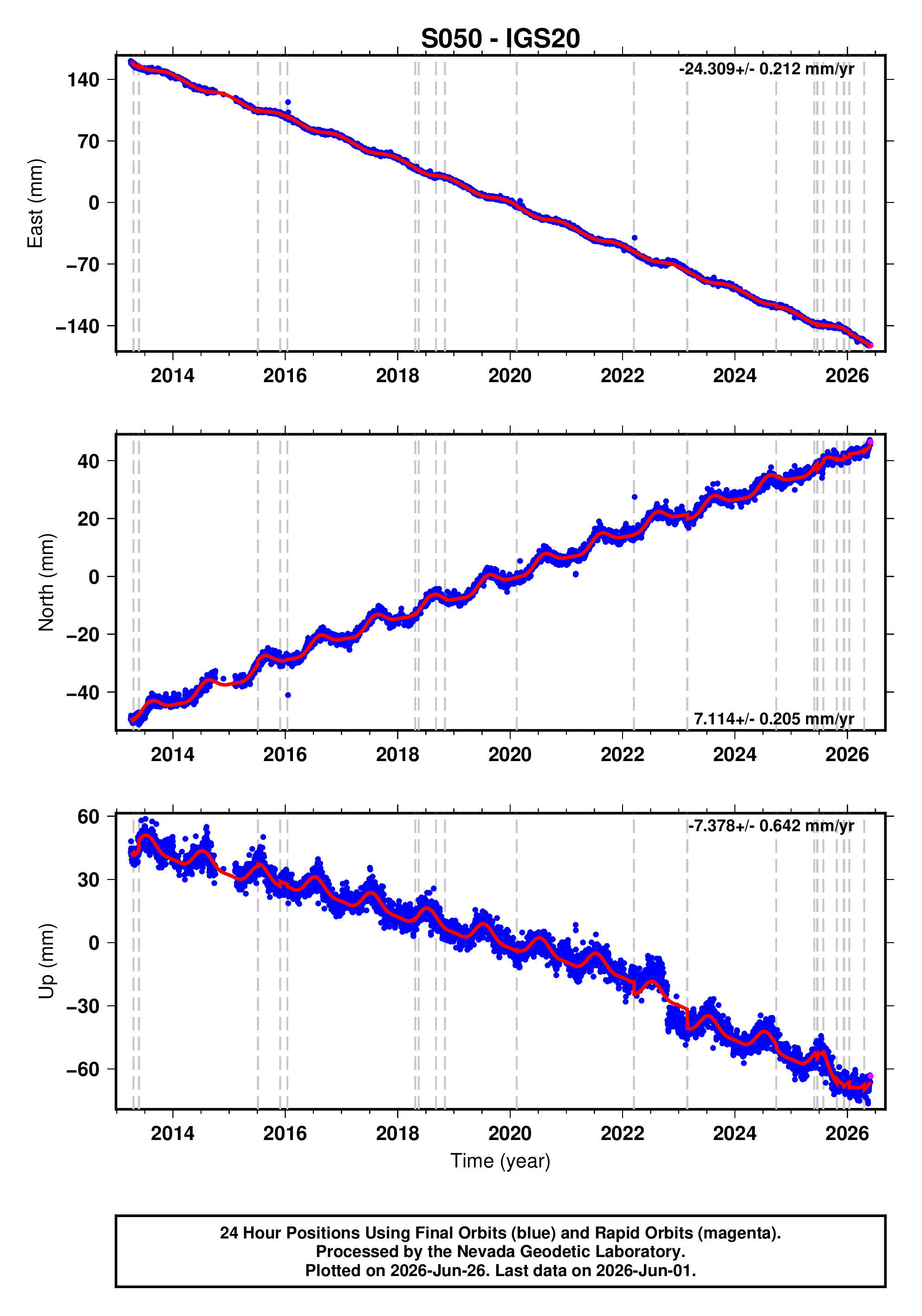

GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
S05013APR19 usb000gbf8 7.2 515.5
S05013MAY24 usb000h4jh 8.3 1396.1
S05015JUL07 us20002vm7 6.3 195.6
S05015NOV28 us100041u7 5.6 61.3
S05016JAN14 us10004ebx 6.7 281.0
S05018APR24 us1000dr71 5.5 4.2
S05018MAY17 us1000e7fh 5.7 72.0
S05018SEP05 us2000h8ty 6.6 313.3
S05018NOV04 us2000i6sc 5.9 135.6
S05020FEB13 us70007pa9 7.0 363.8
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
