MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : RDSD

Station operator information from: RINEX headers

Data attribution information from: UNAVCO DOI Database

from DOI link: https://doi.org/10.7283/T5CZ3594

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 18.461 degrees

Longitude: -69.911 degrees

Height: -9.205 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

CA

env

NA

env

24 Hour Rapid Solutions

IGS14

env

CA

env

NA

env

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

RDBA

48.56 km

SPED

63.89 km

RDBO

75.01 km

RDAZ

84.90 km

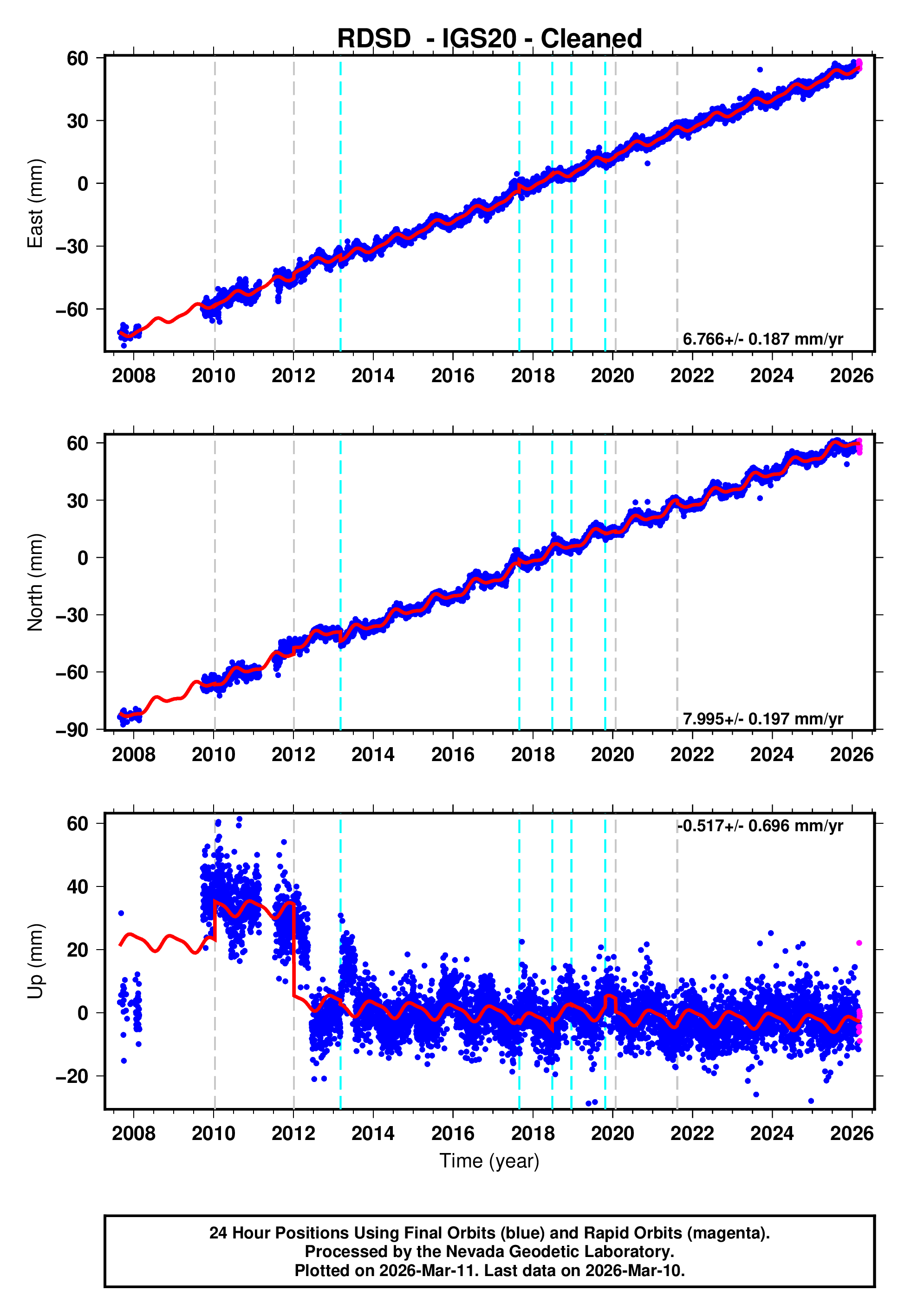

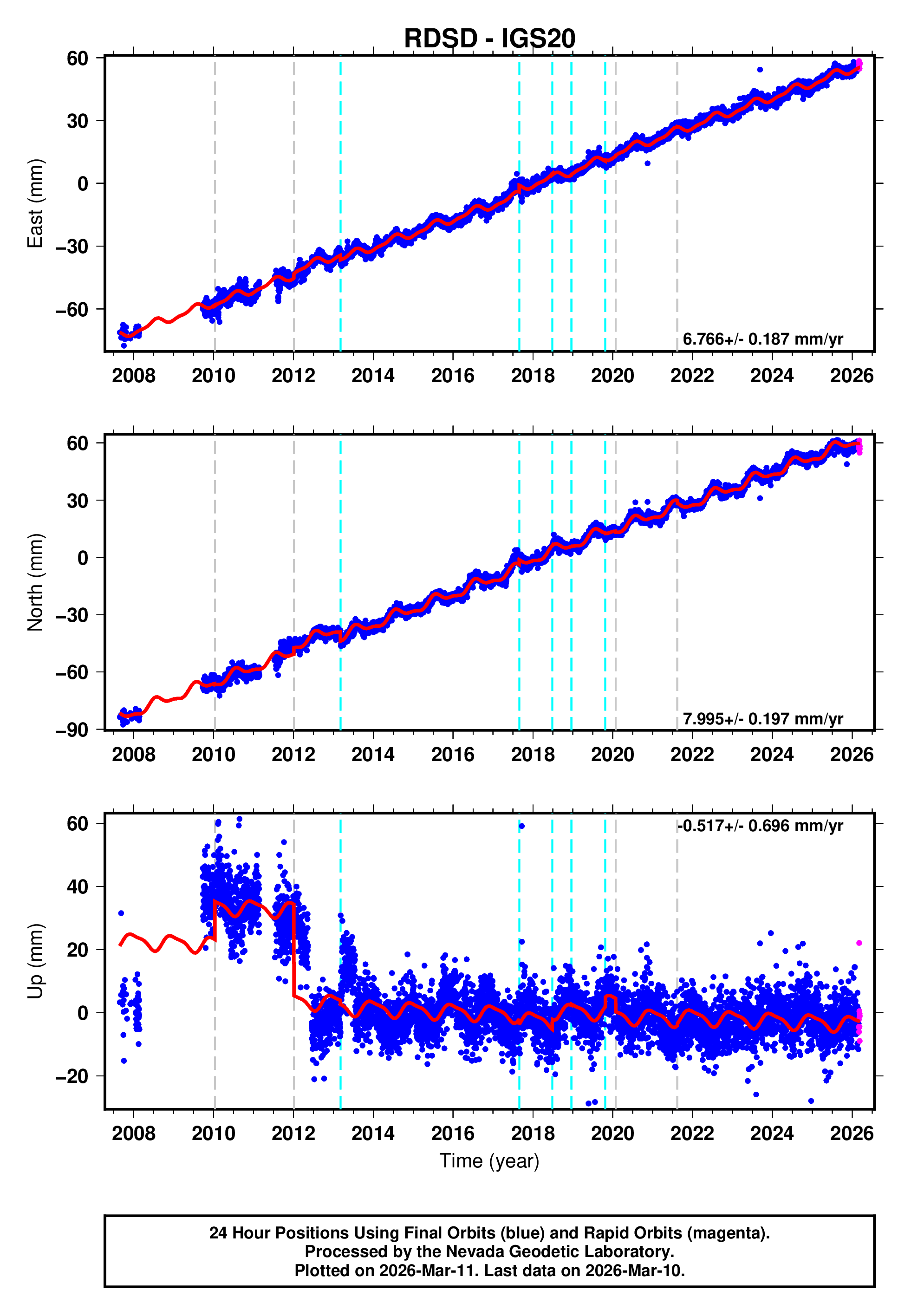

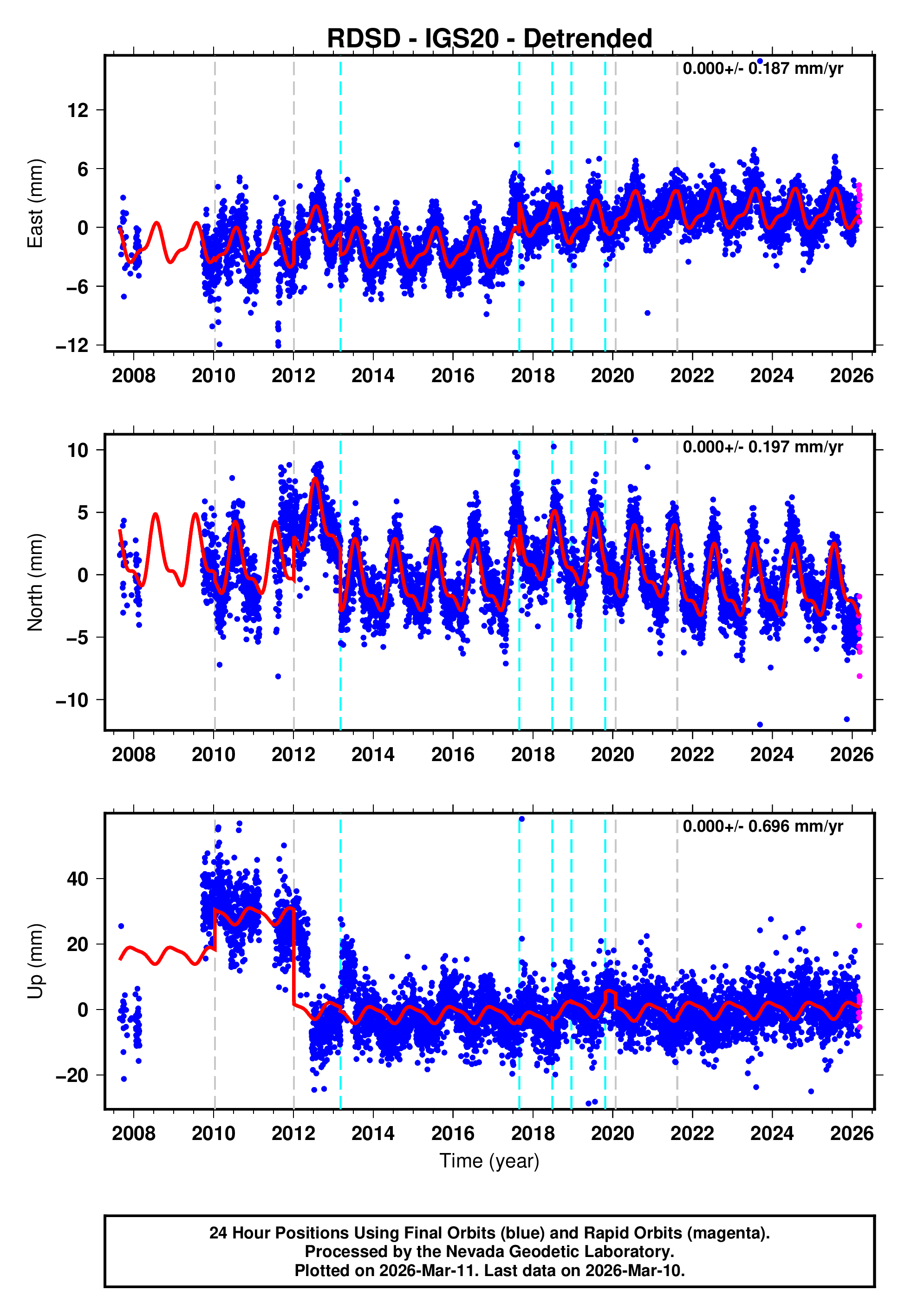

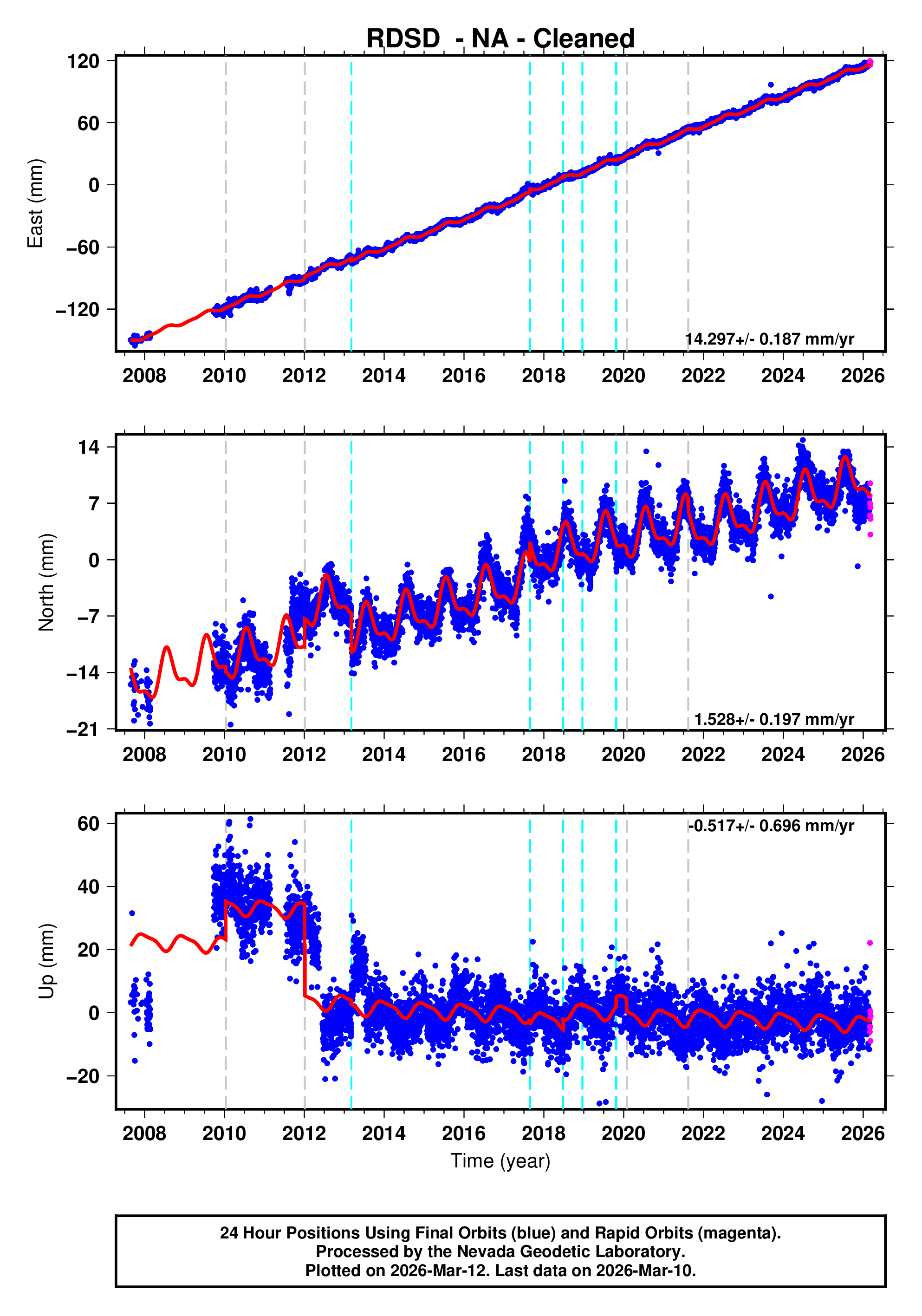

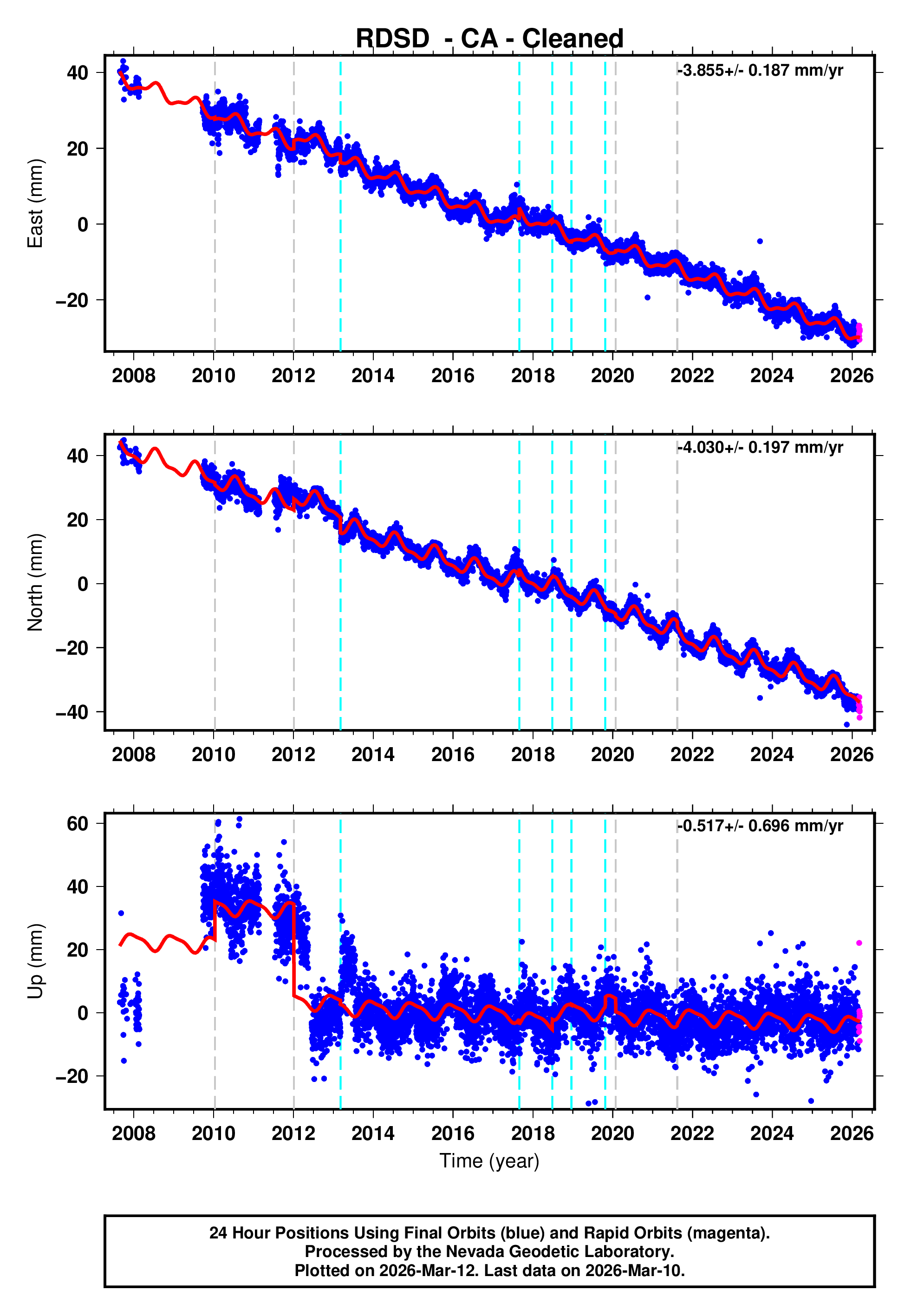

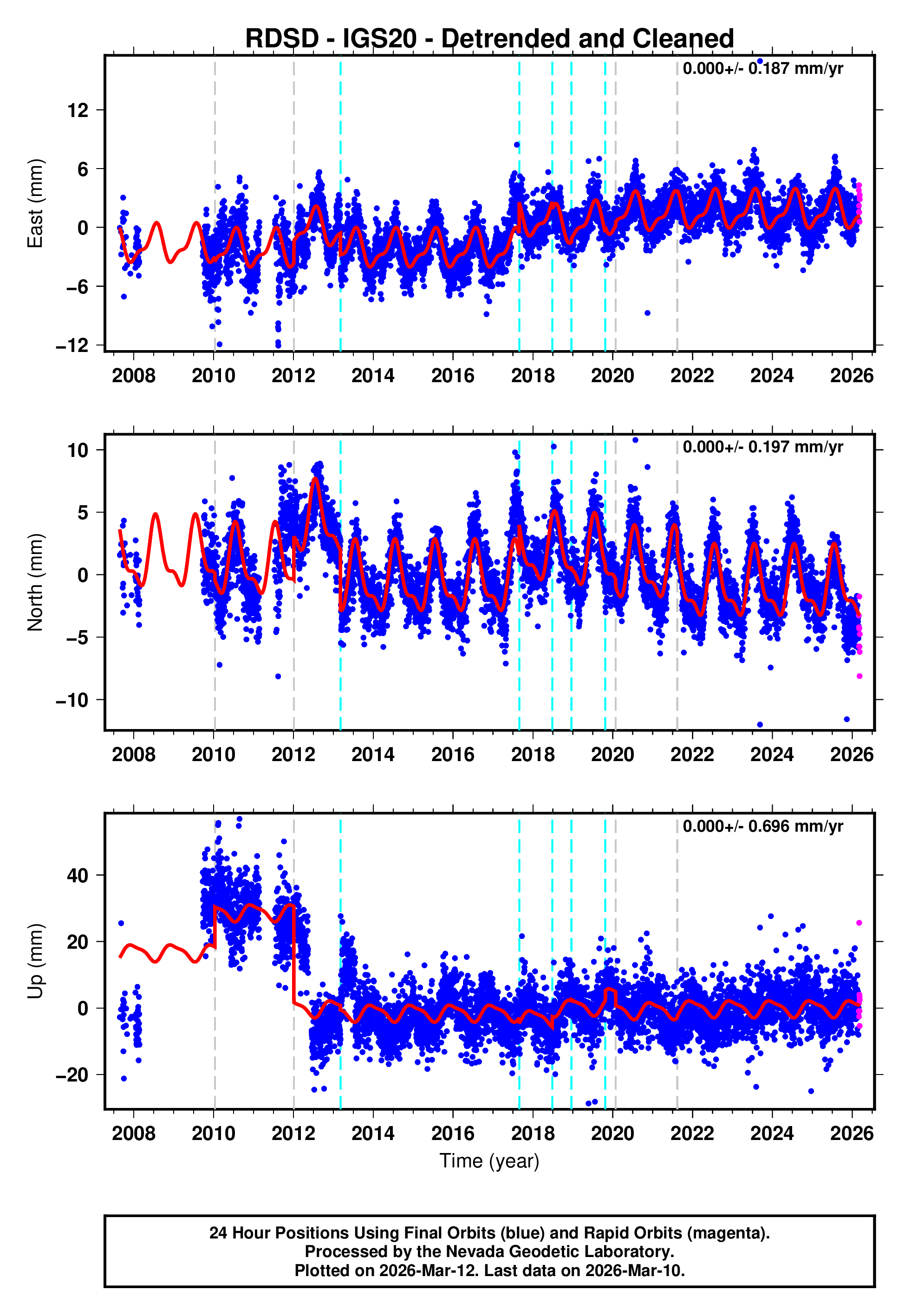

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
RDSD13MAR07 Antenna_and_Radome_Codes_Changed - -
RDSD17AUG28 Elevation_Cutoff_Changed - -
RDSD18JUN27 Elevation_Cutoff_Changed - -
RDSD18DEC19 Elevation_Cutoff_Changed - -
RDSD19OCT25 Elevation_Cutoff_Changed - -
RDSD10JAN12 usp000h60h 7.0 280.5
RDSD12JAN05 usp000jd2q 5.5 49.8
RDSD20JAN28 us60007idc 7.7 936.2
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
