MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : RDHI

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 18.598 degrees

Longitude: -68.718 degrees

Height: 61.153 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

CA

env

NA

env

5 Minute Final Solutions

IGS14

kenv tar files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

CRLR

26.66 km

CN05

38.02 km

CRSE

39.15 km

RDMS

54.34 km

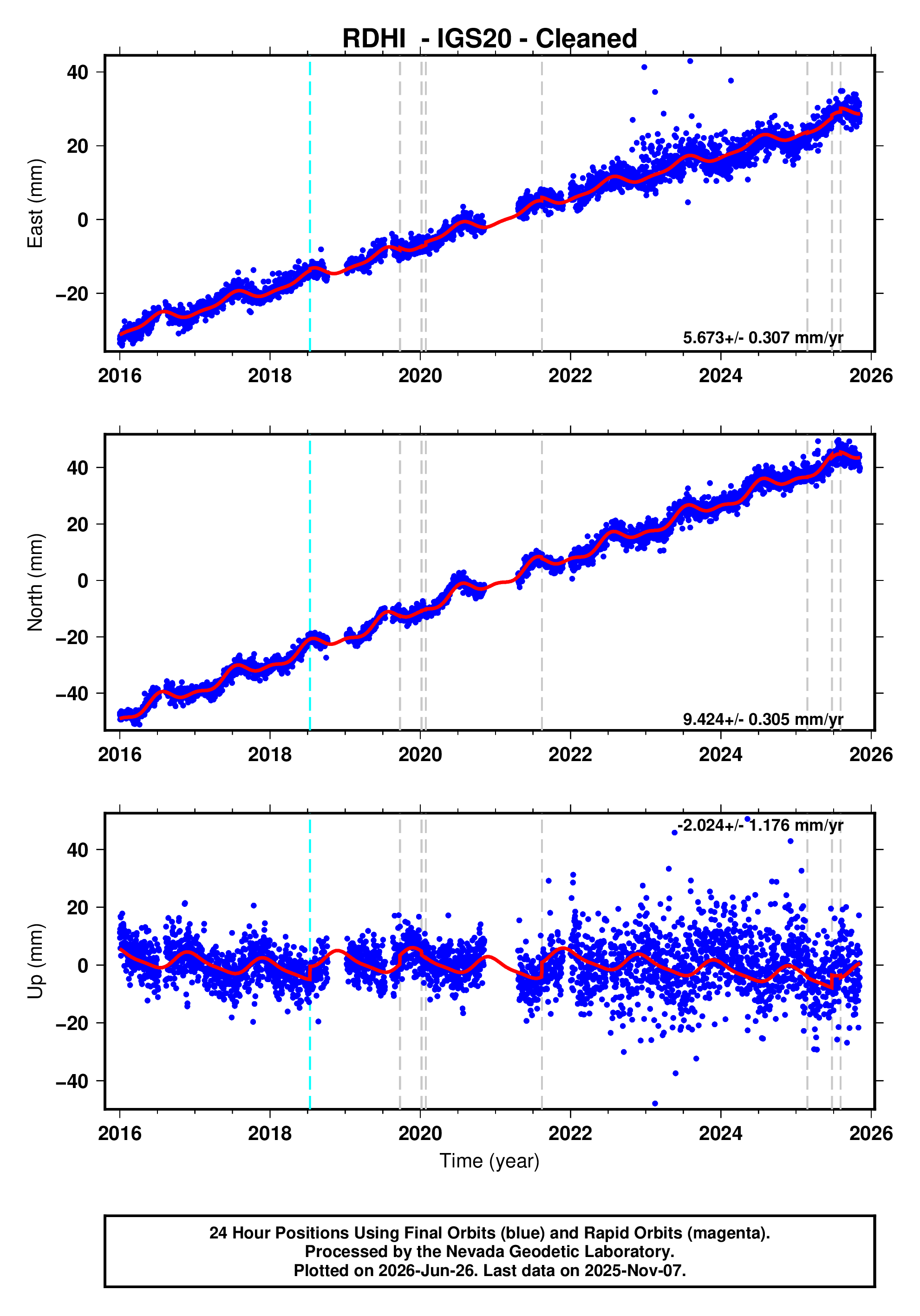

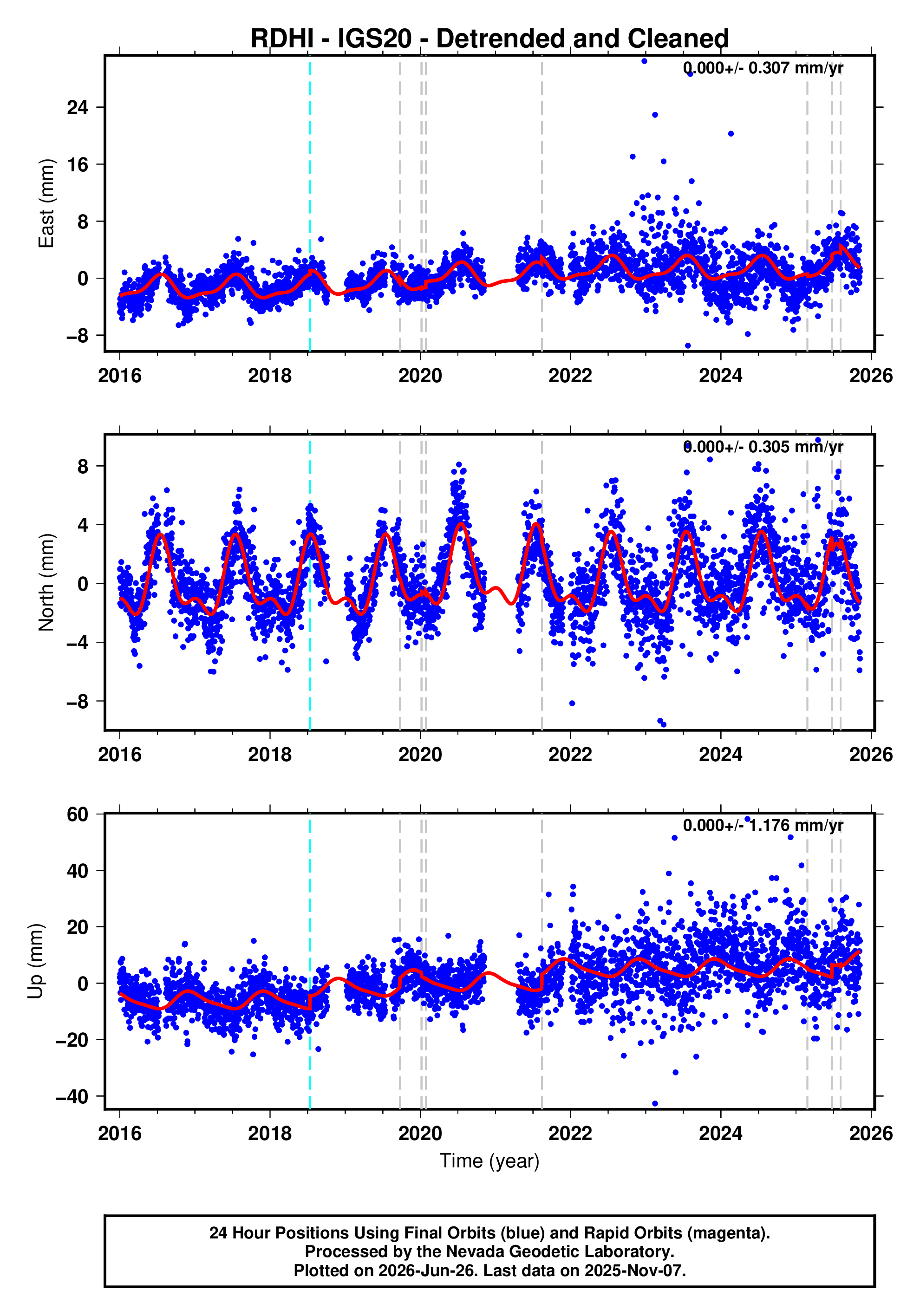

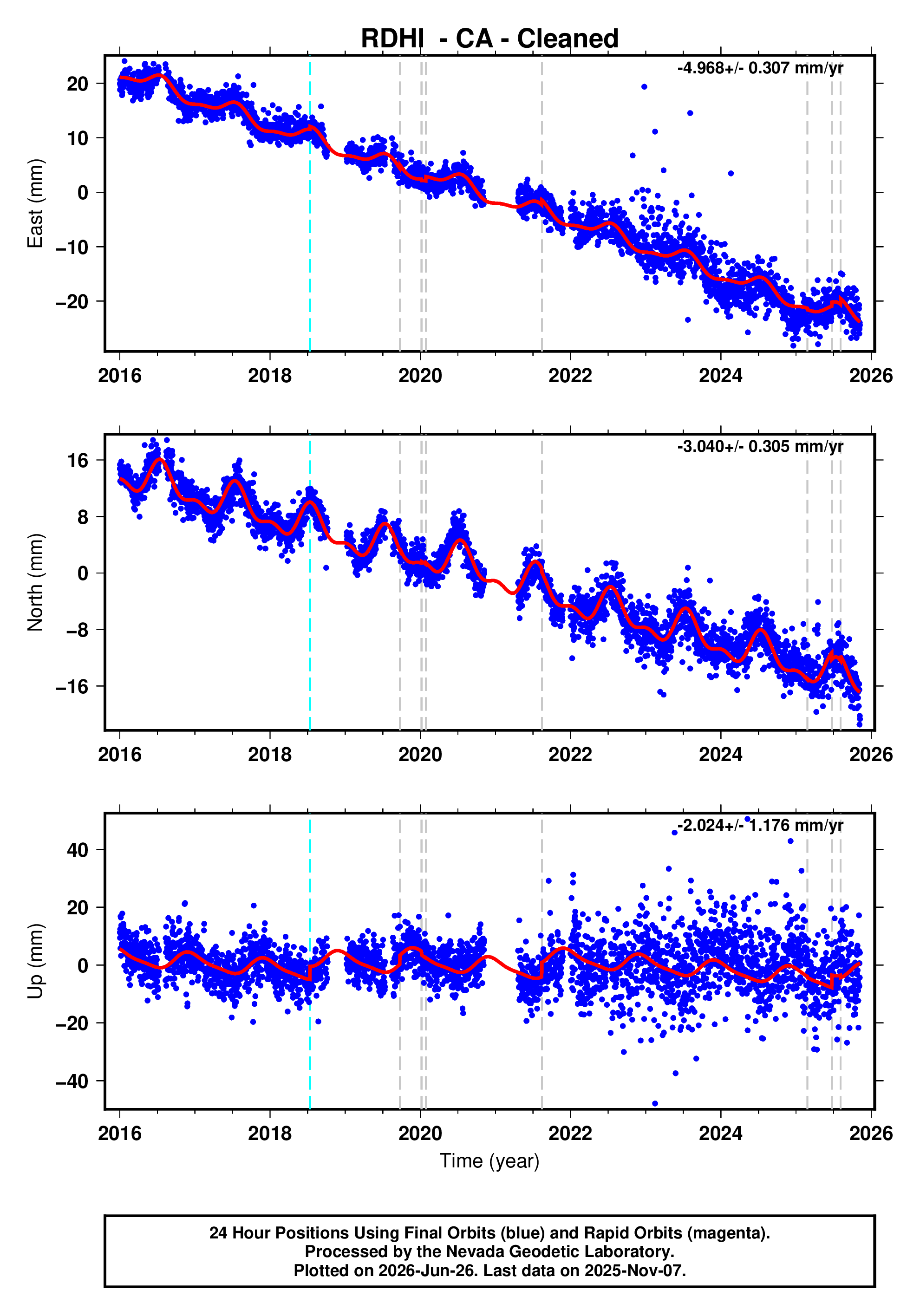

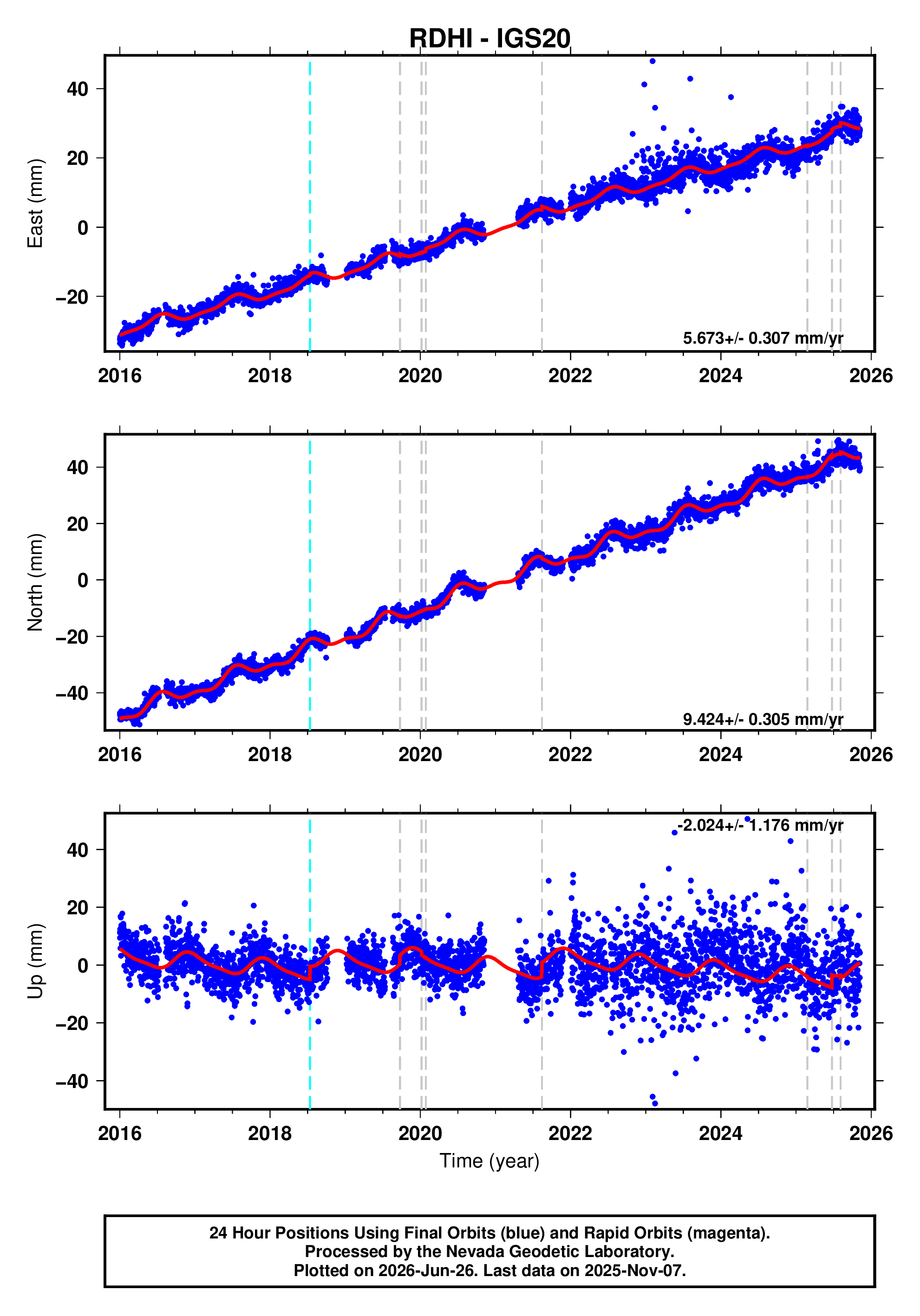

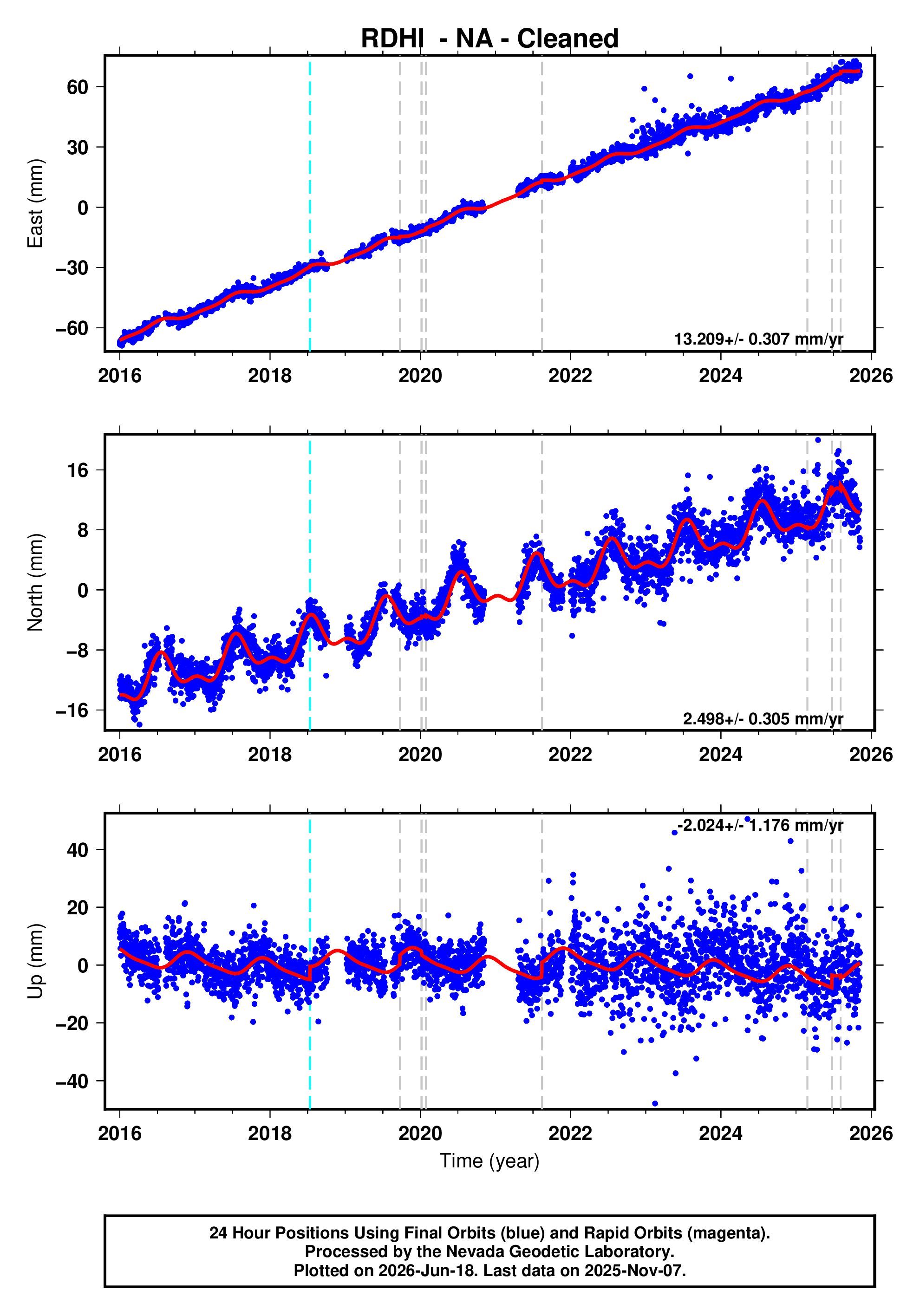

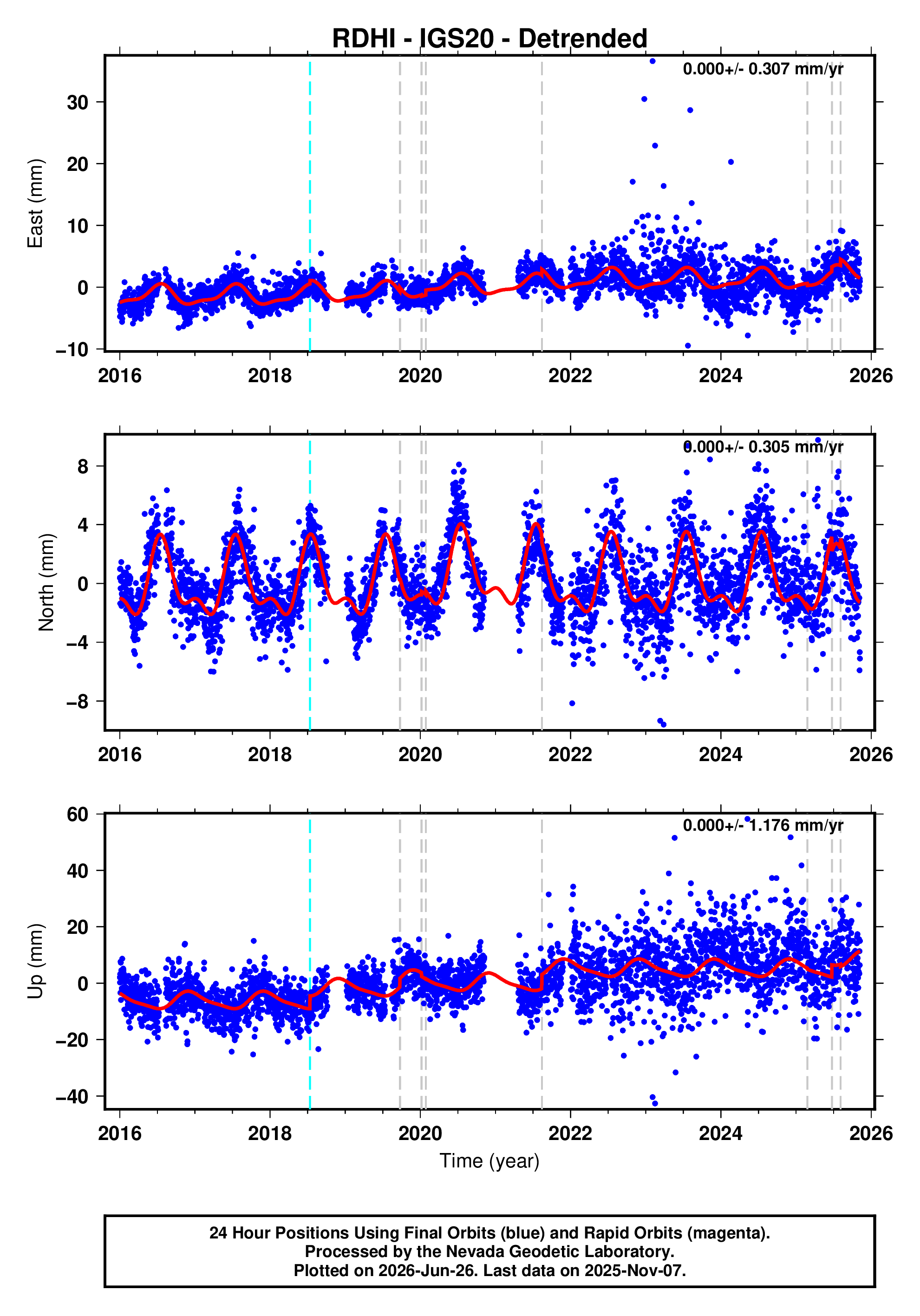

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
RDHI18JUL14 Elevation_Cutoff_Changed - -
RDHI19SEP24 pr2019267000 6.0 161.4
RDHI20JAN07 us70006vll 6.4 215.6
RDHI20JAN07 at00q3qa0q 6.6 216.9
RDHI20JAN28 us60007idc 7.7 1059.1
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
