MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : RDAZ

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 18.445 degrees

Longitude: -70.716 degrees

Height: 33.403 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

CA

env

NA

env

5 Minute Final Solutions

IGS14

kenv tar files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

CN06

38.81 km

RDBA

45.00 km

TGDR

47.66 km

BAR2

48.17 km


Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

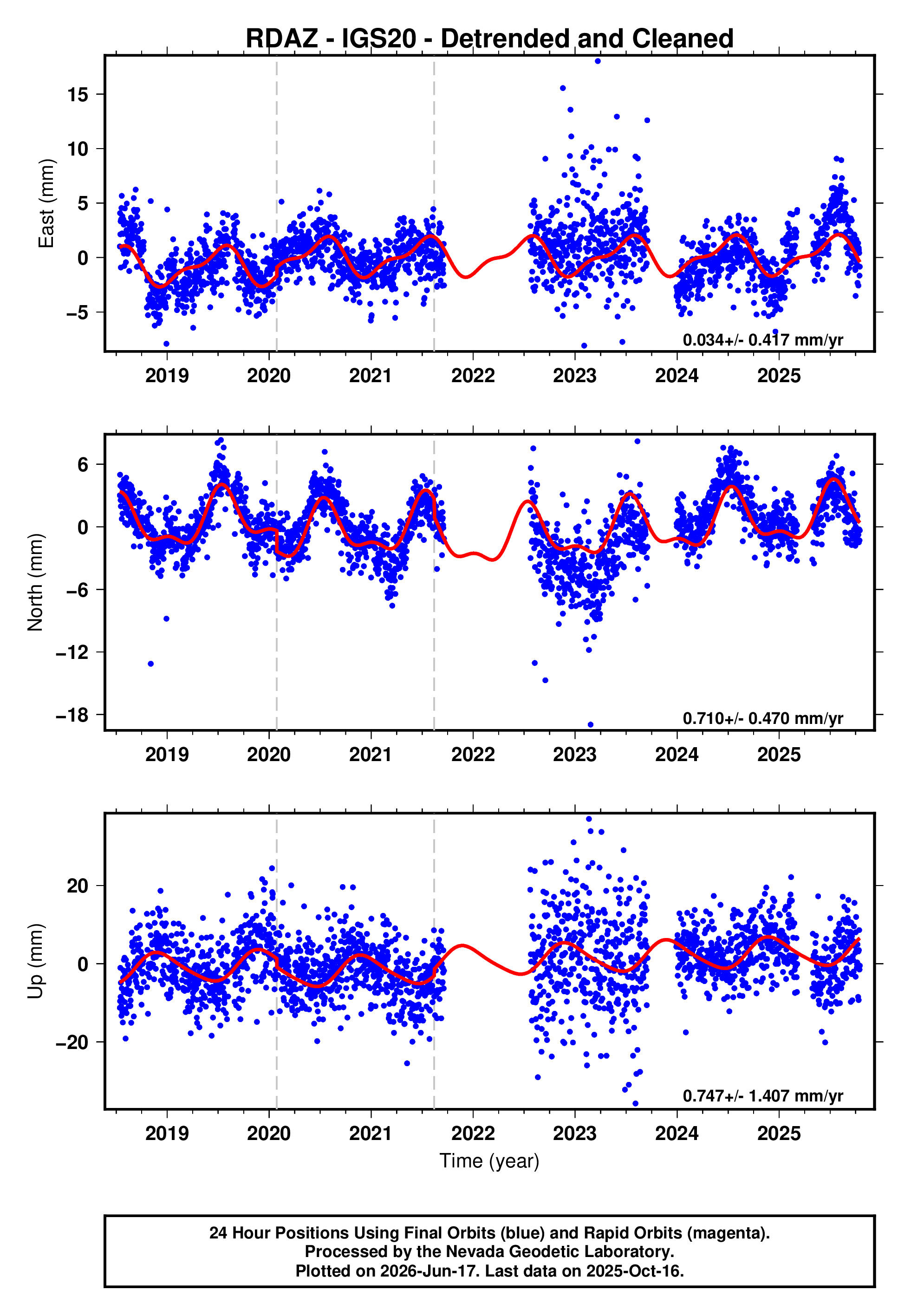

GPS time series plot

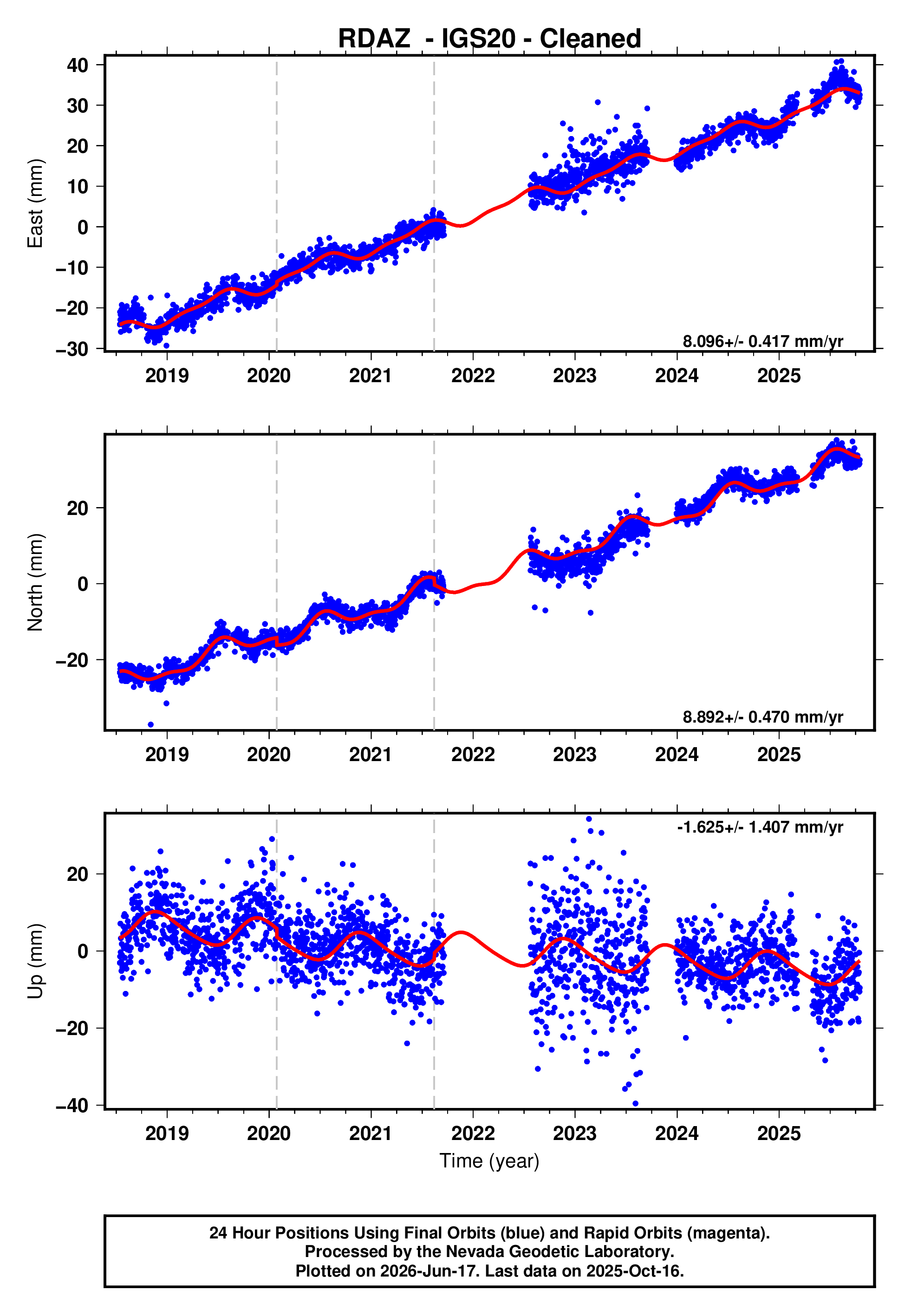

GPS time series plot

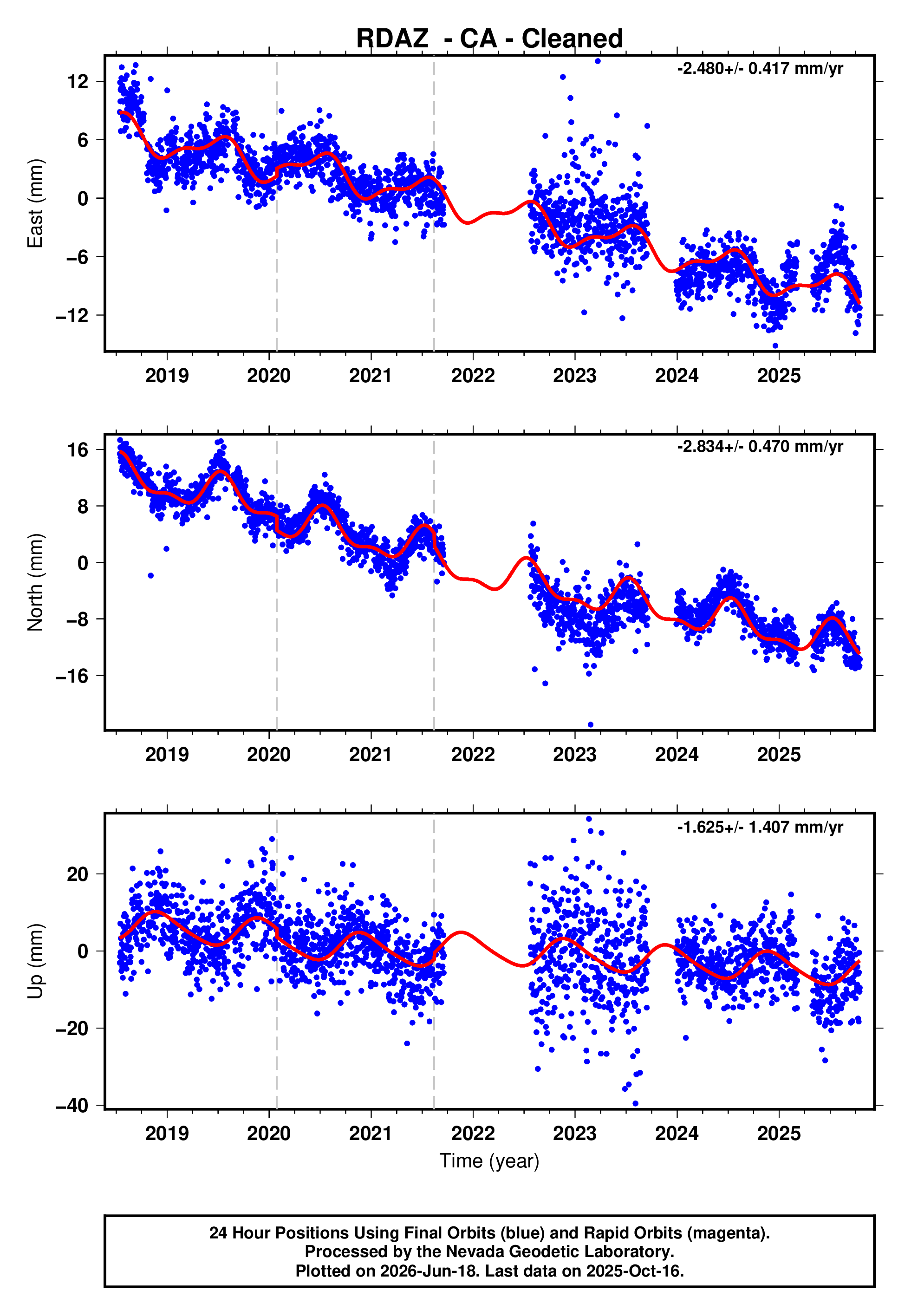

GPS time series plot

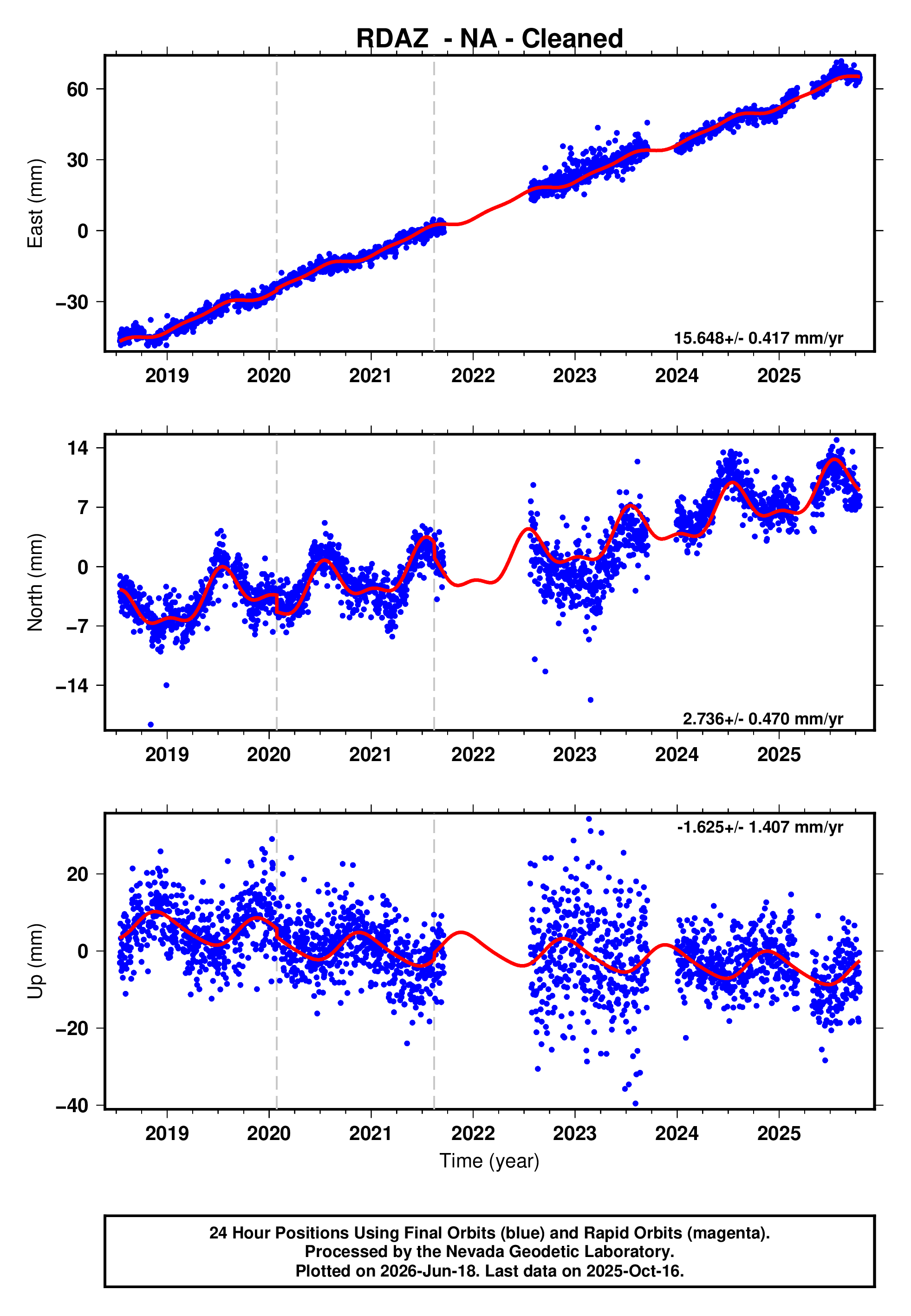

GPS time series plot

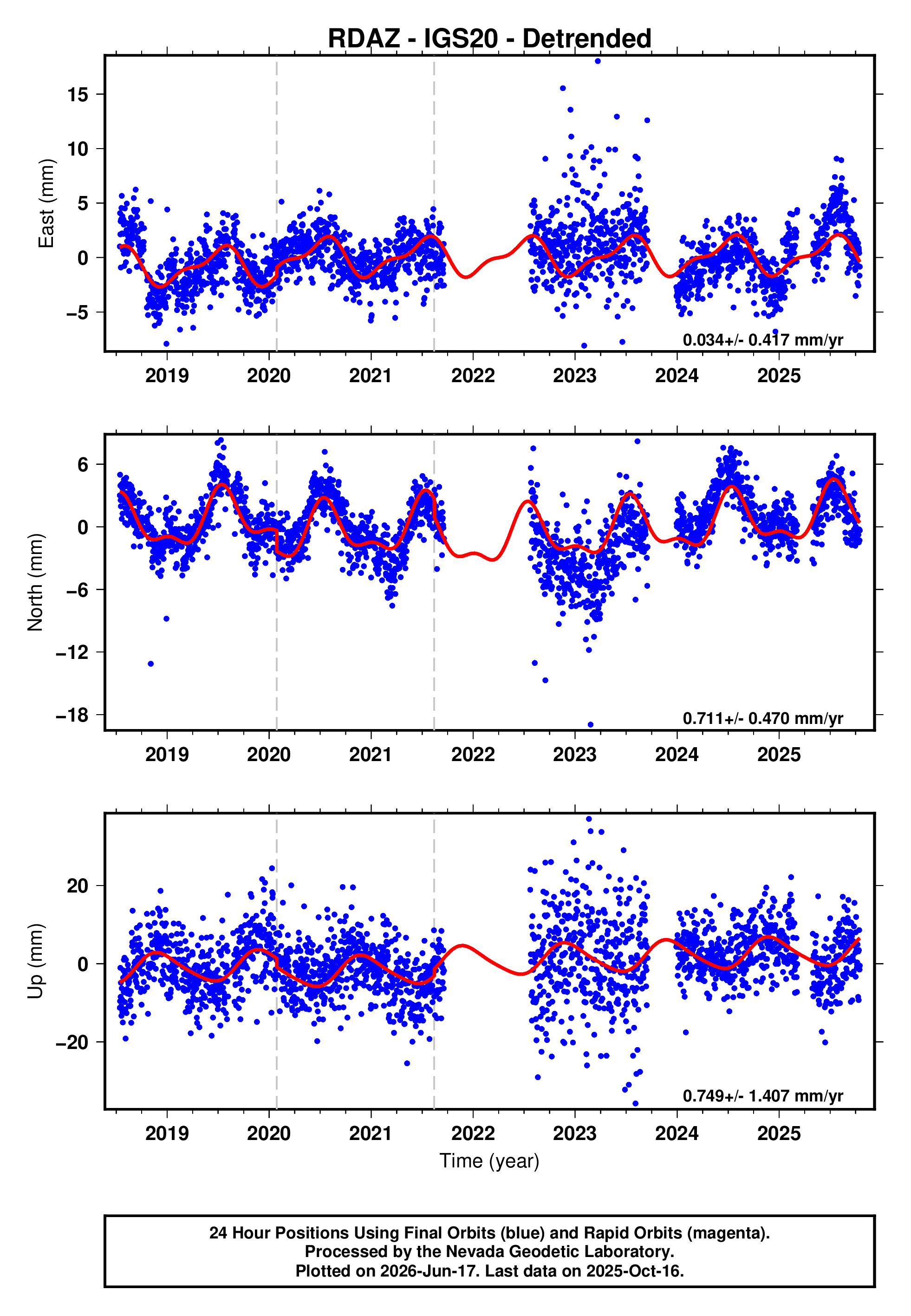

GPS time series plot

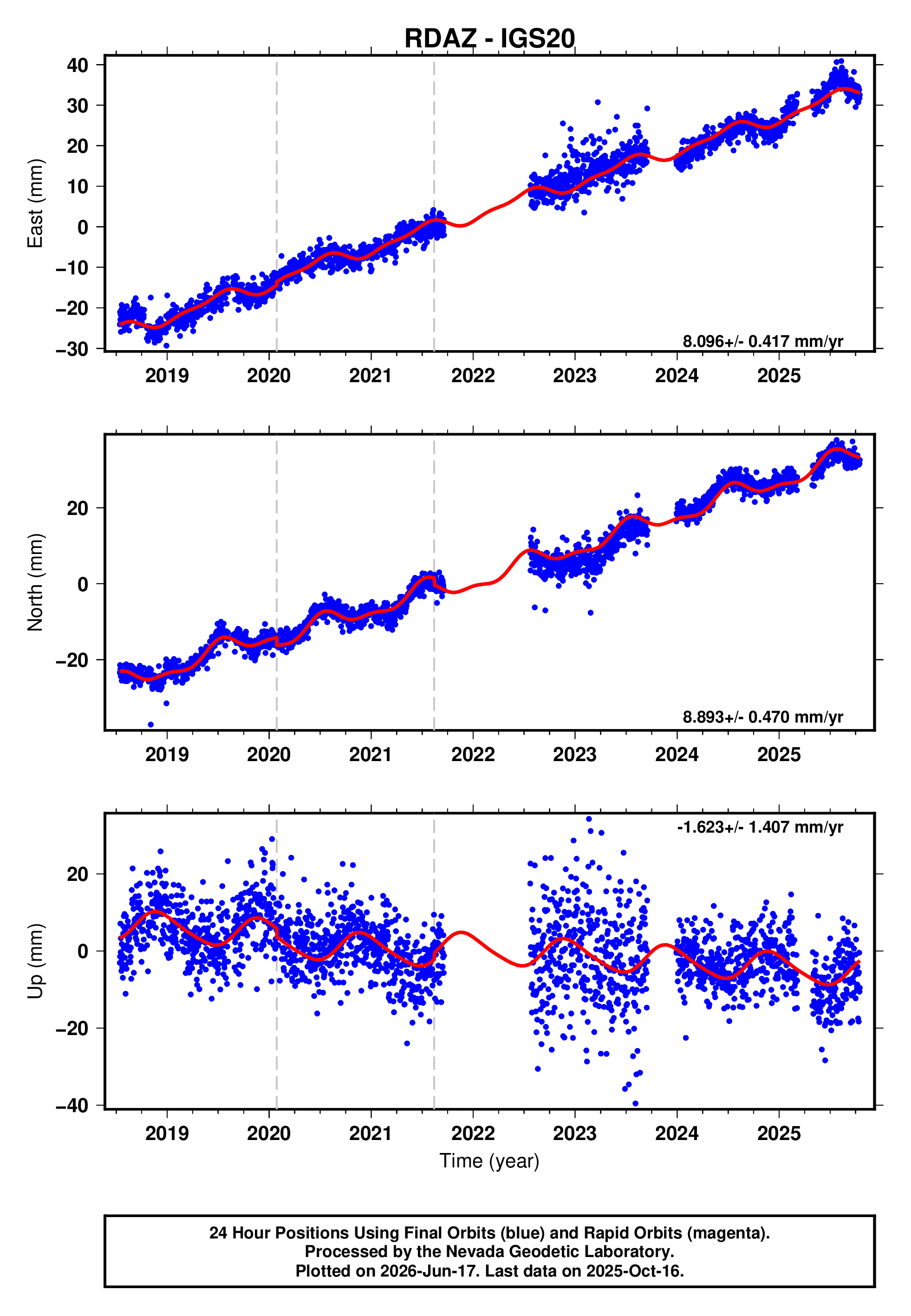

GPS time series plot

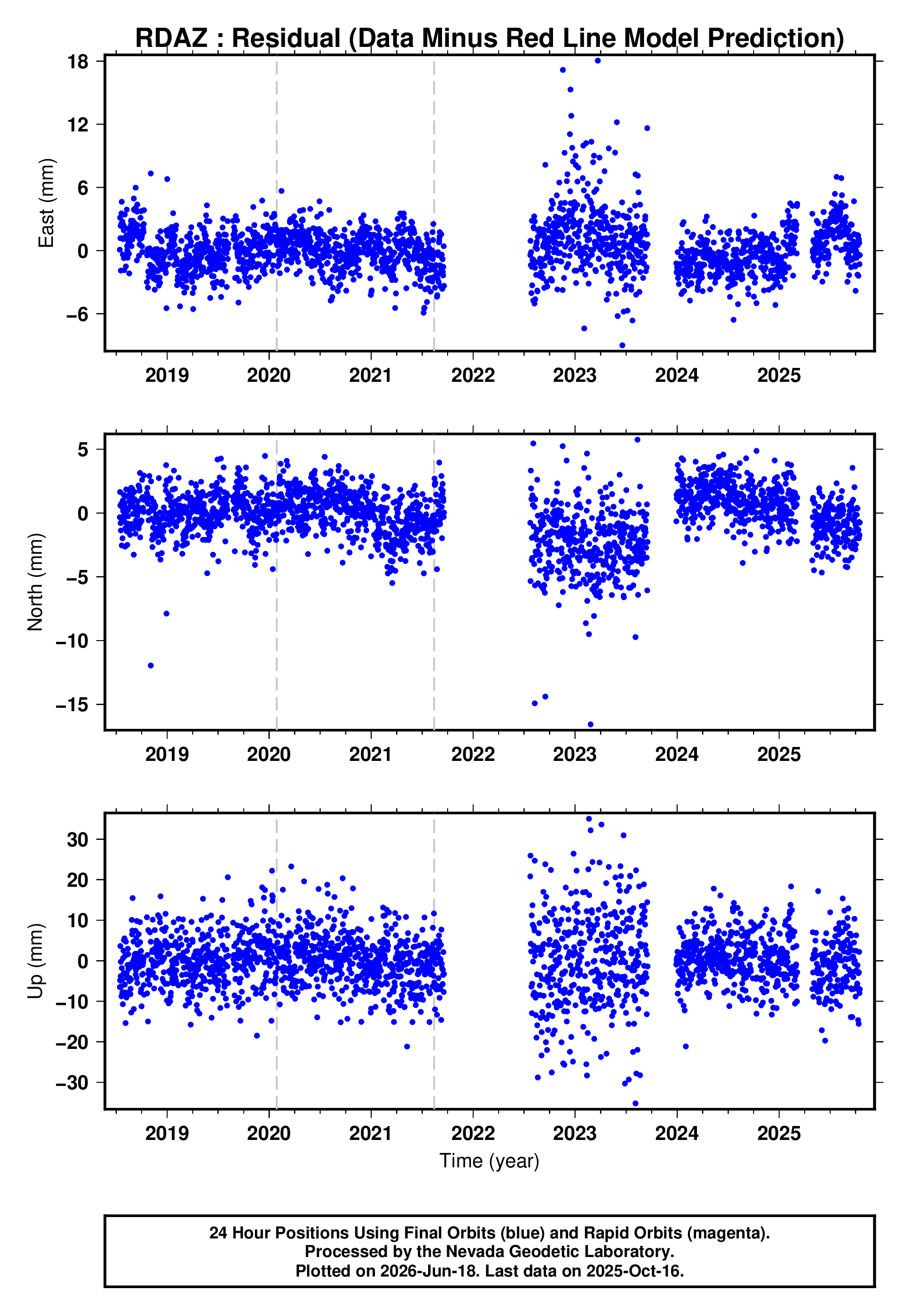

GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
RDAZ20JAN28 us60007idc 7.7 852.5
RDAZ21AUG14 pt21226002 7.0 298.8
RDAZ21AUG14 us6000f65h 7.2 291.1
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
