MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : PECL

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.


Latitude: -37.687

Longitude: -73.651

Height: 100.581 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS08

env xyz
24 Hour Rapid Solutions

FID (~IGS08)

env
env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)

env

ftp link

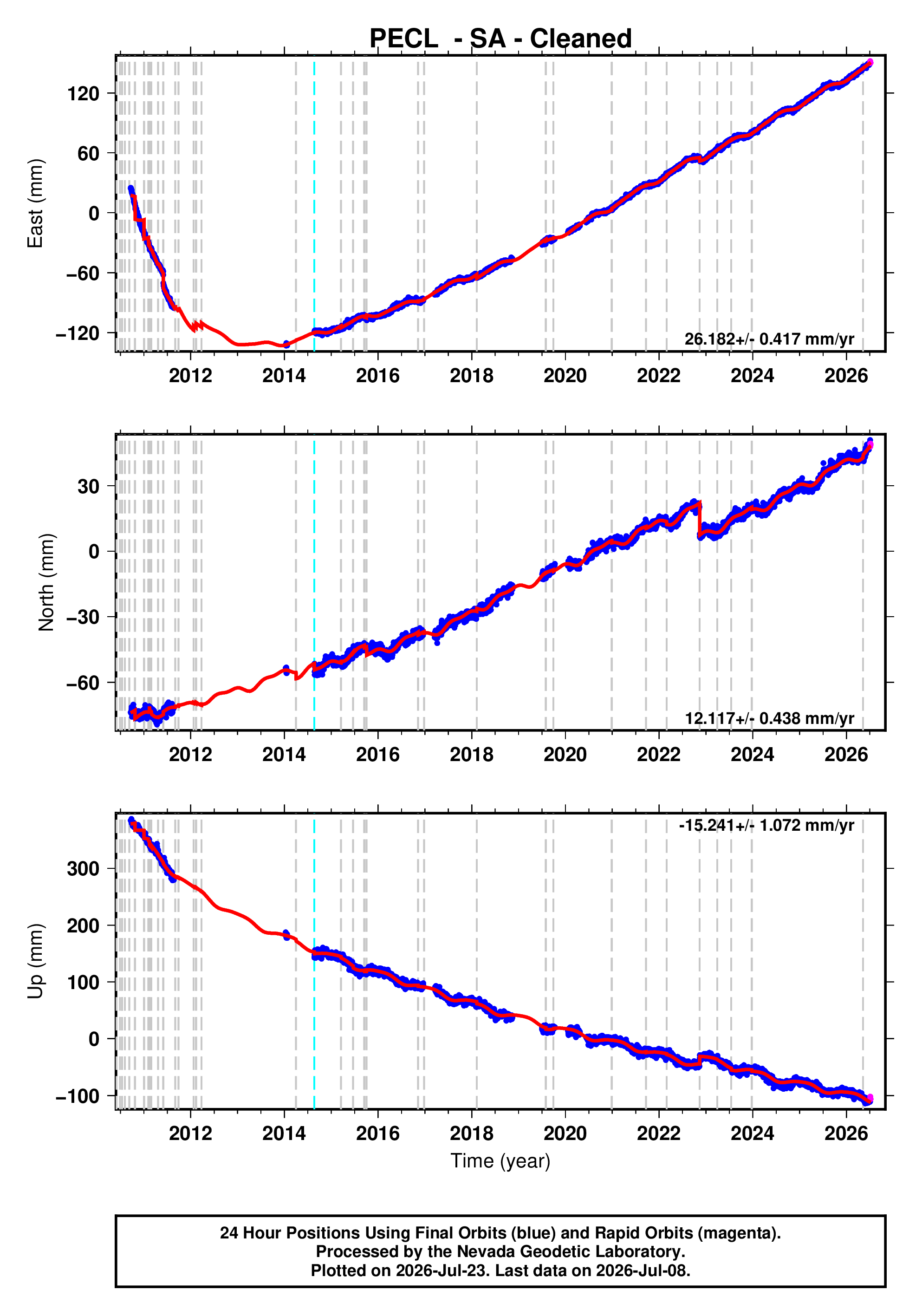

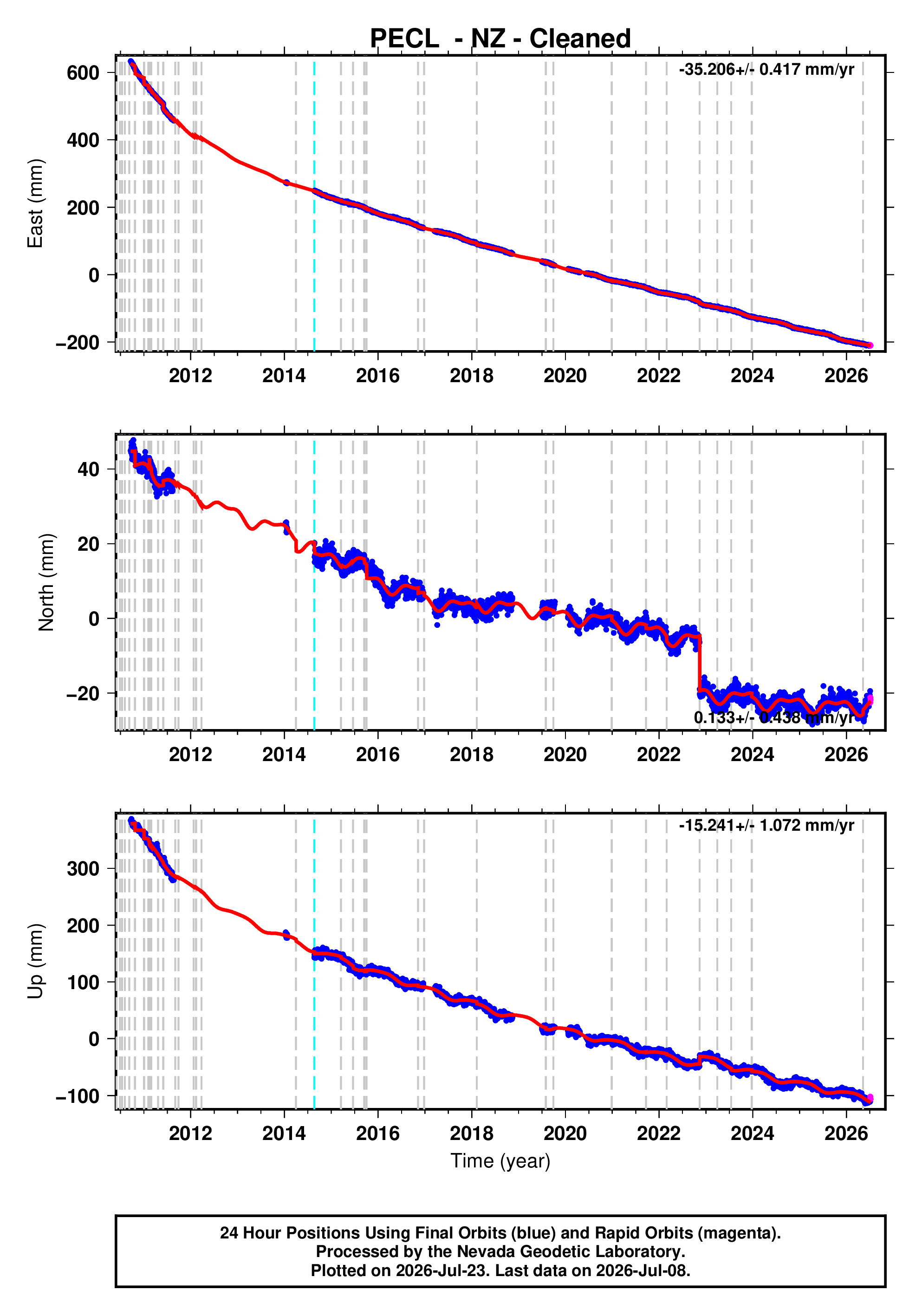

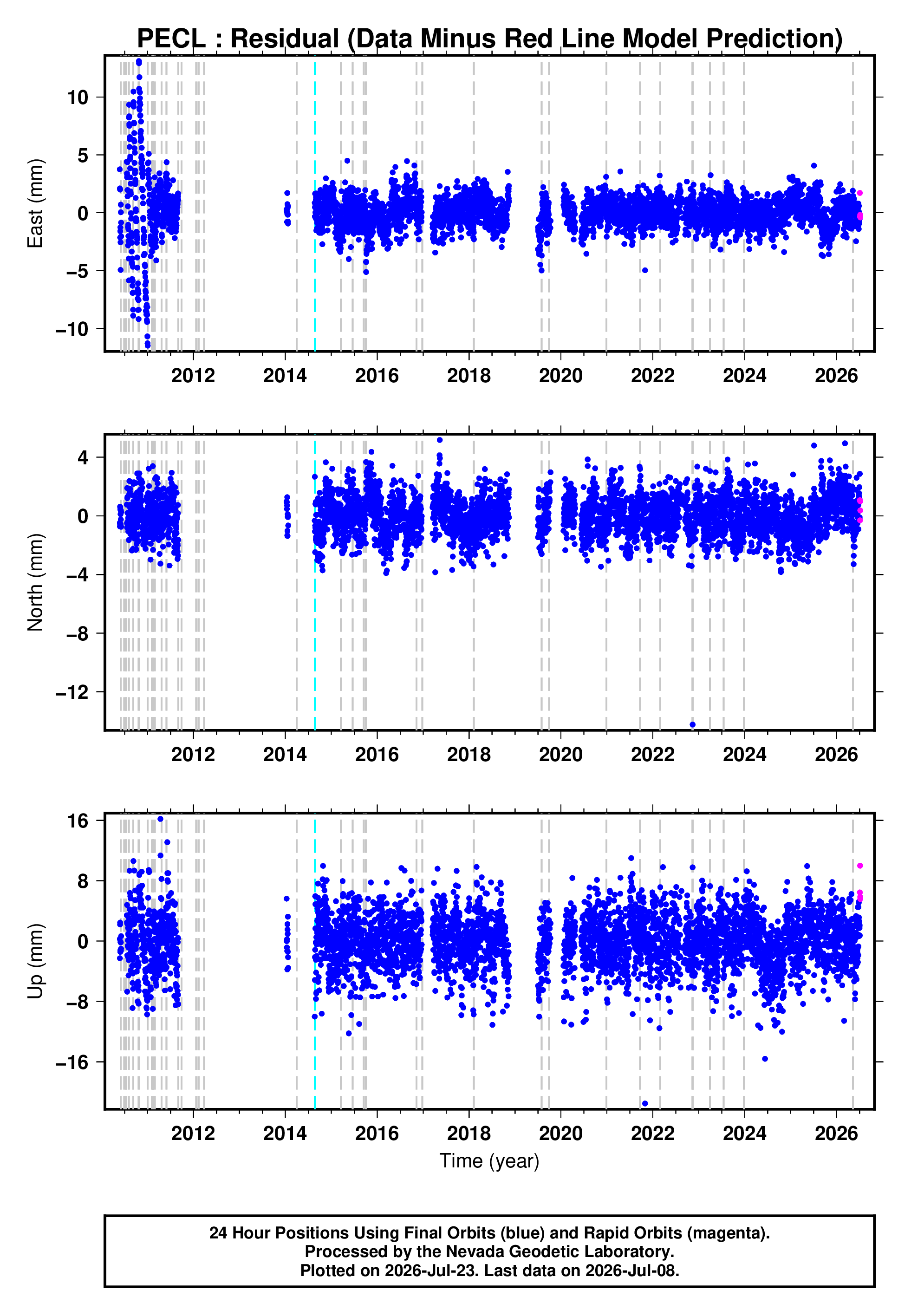

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned Rapid 5 min.
Not Available
Not Available
Not Available


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
PECL14JAN10 Antenna_SN_Changed - -
PECL14AUG22 Antenna_Type_Changed - -
PECL14AUG22 Receiver_Type_Changed - -
PECL10JUN01 usp000hdf9 5.6 97.4
PECL10JUN29 usp000hep7 5.5 36.7
PECL10JUL14 usp000hf8z 6.6 51.8
PECL10JUL14 usp000hf9k 5.8 70.2
PECL10AUG05 usp000hhjy 5.9 42.4
PECL10SEP09 usp000hkg9 6.2 75.6
PECL10OCT23 usp000hnek 5.5 26.1
PECL11JAN02 usp000hsfq 7.2 79.5
PECL11FEB05 usp000hu4k 5.8 19.3
PECL11FEB11 usp000huc2 6.9 153.4
PECL11FEB11 usp000hucn 5.9 67.7
PECL11FEB12 usp000hucz 6.1 95.8
PECL11FEB13 usp000huey 6.0 122.8
PECL11FEB14 usp000hugg 6.7 266.7
PECL11FEB28 usp000hv5c 5.8 36.6
PECL11APR22 usp000j0d8 5.6 32.9
PECL11JUN01 usp000j2hv 6.3 12.6
PECL11SEP28 usp000j8pz 5.6 34.4
PECL12JAN23 usp000jdvv 6.1 152.4
PECL12FEB11 usp000jetb 5.6 32.9
PECL12MAR25 usp000jgsw 7.1 304.8
PECL15MAR18 us10001nj1 6.2 175.0
PECL15JUN20 us10002ke8 6.4 148.2
PECL15SEP16 us20003k7a 8.3 703.4
PECL15OCT03 us10003jyn 5.8 25.8
PECL16NOV08 us10007681 6.0 123.6
PECL16DEC25 us10007mn3 7.6 636.4
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
