MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : PALA

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 7.328 degrees

Longitude: 134.450 degrees

Height: 74.409 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

PA

tenv3

PS

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

PALR

0.05 km

PAL1

3.12 km

PBIS

897.13 km

PDDN

955.81 km

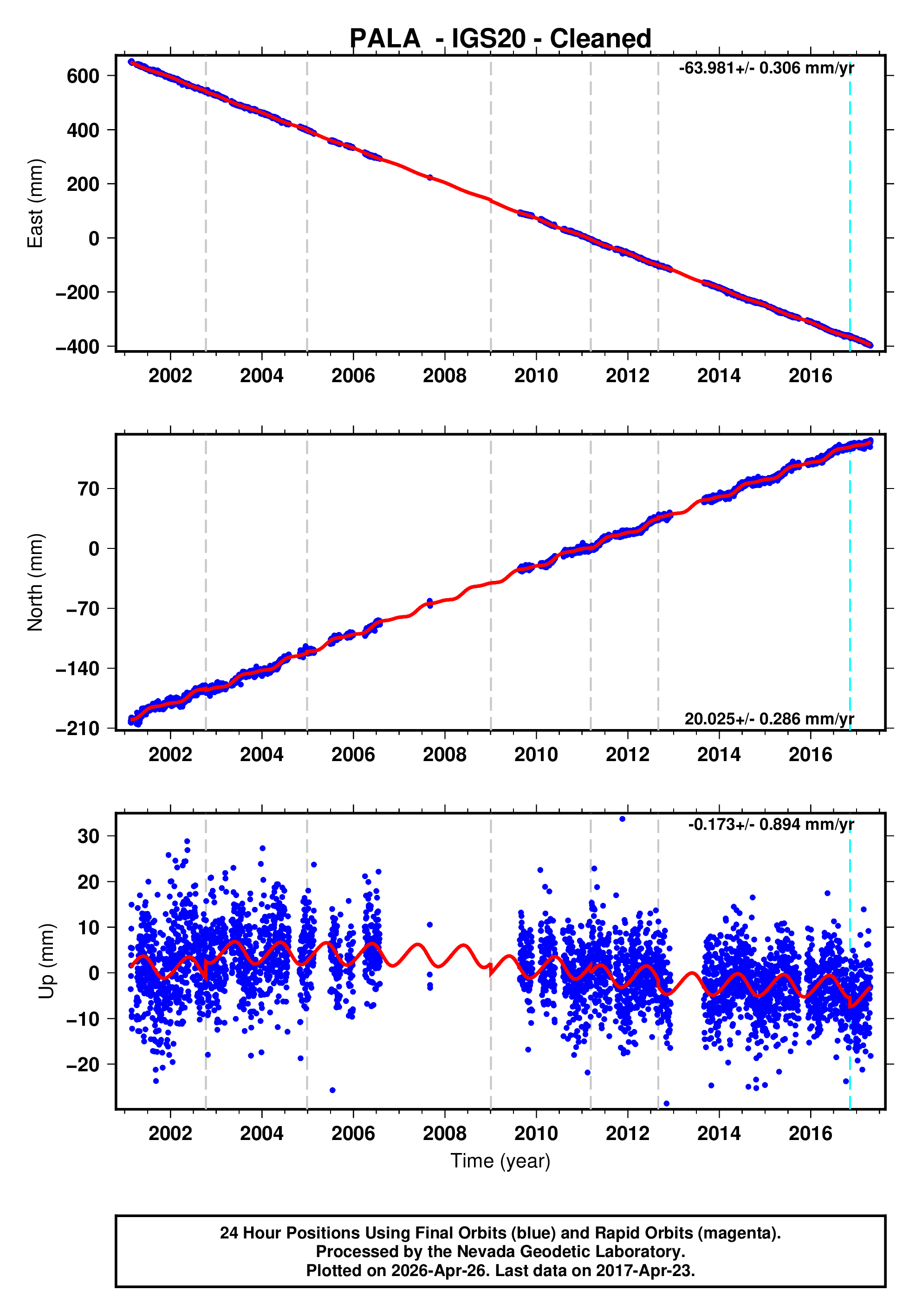

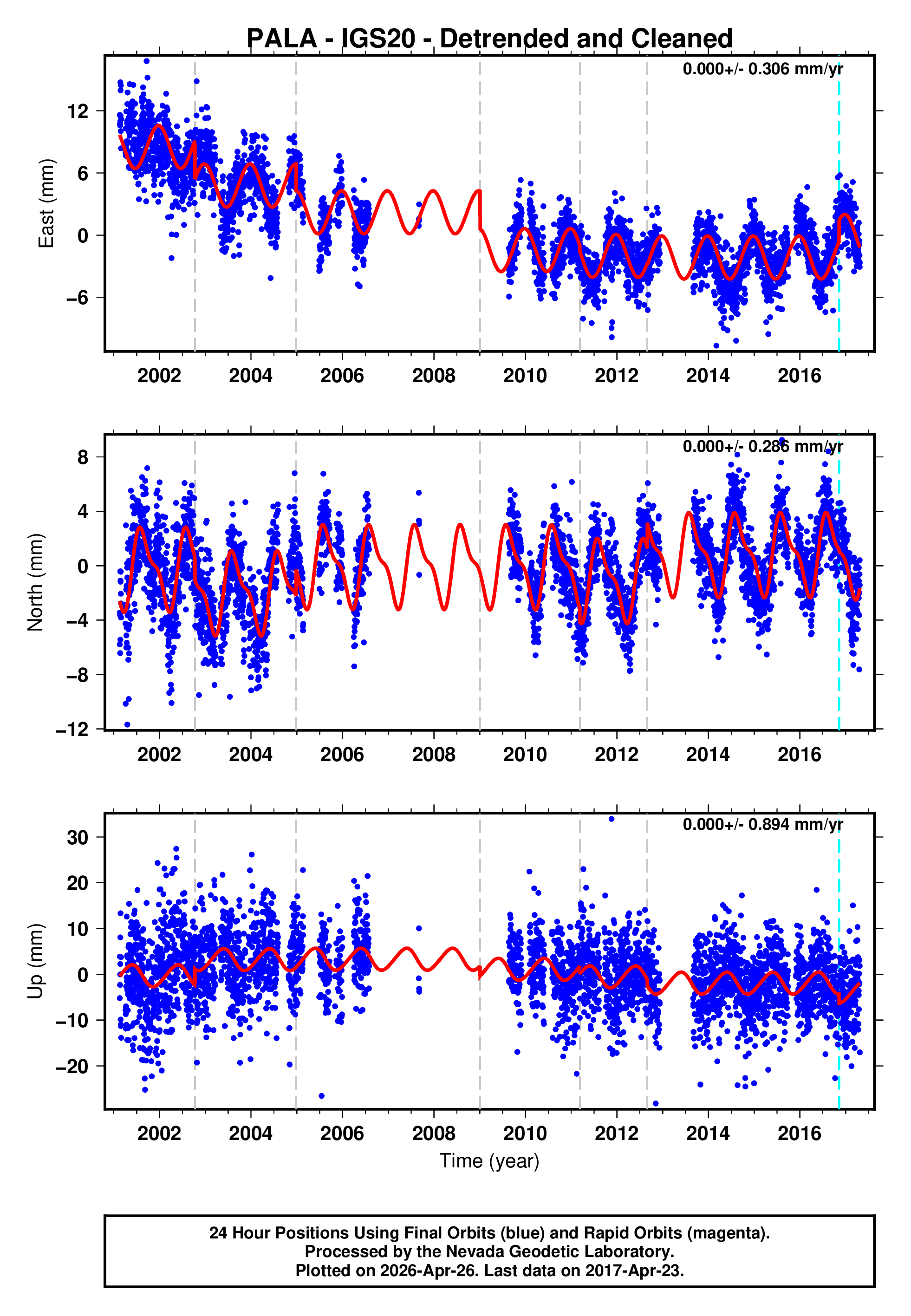

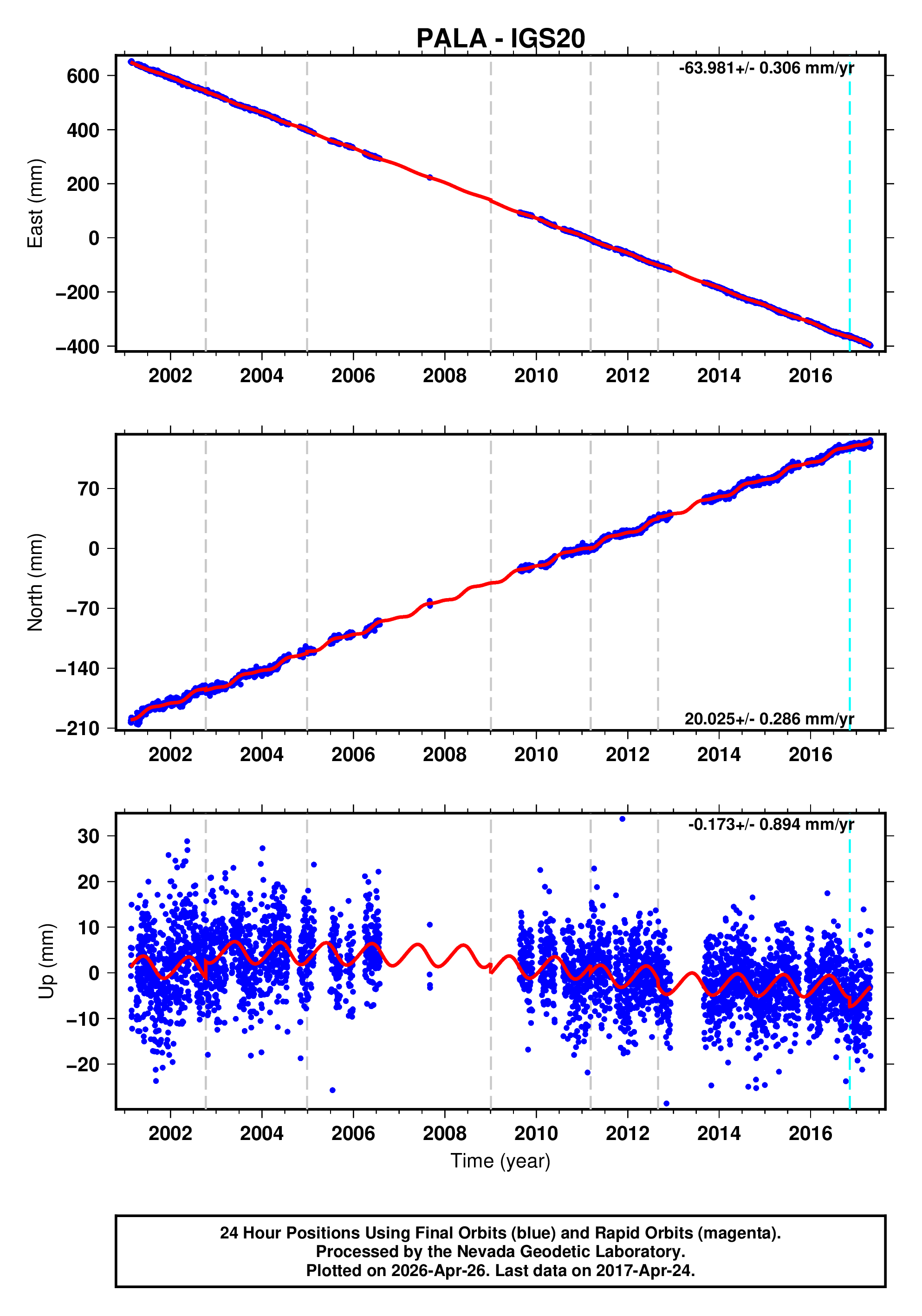

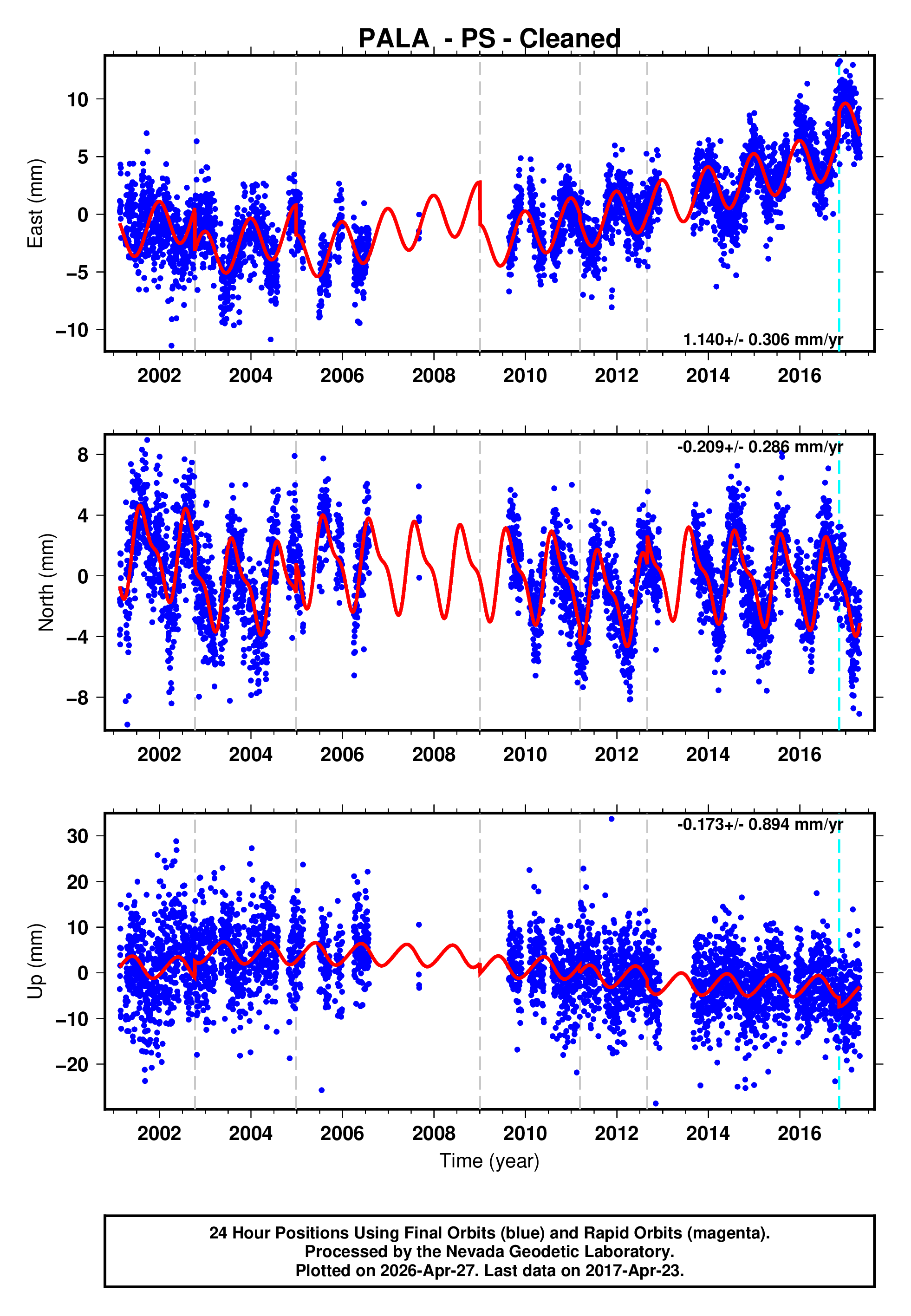

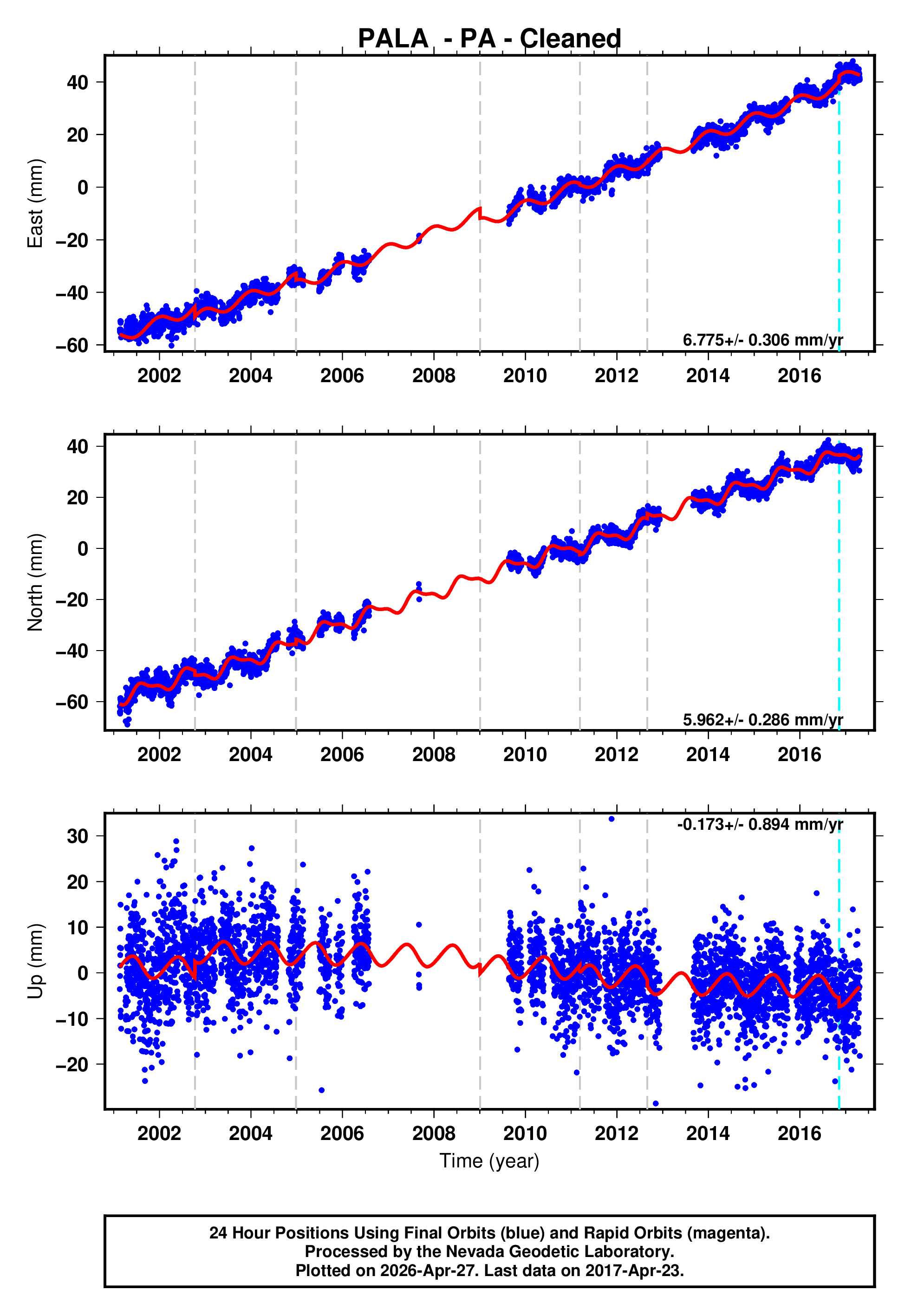

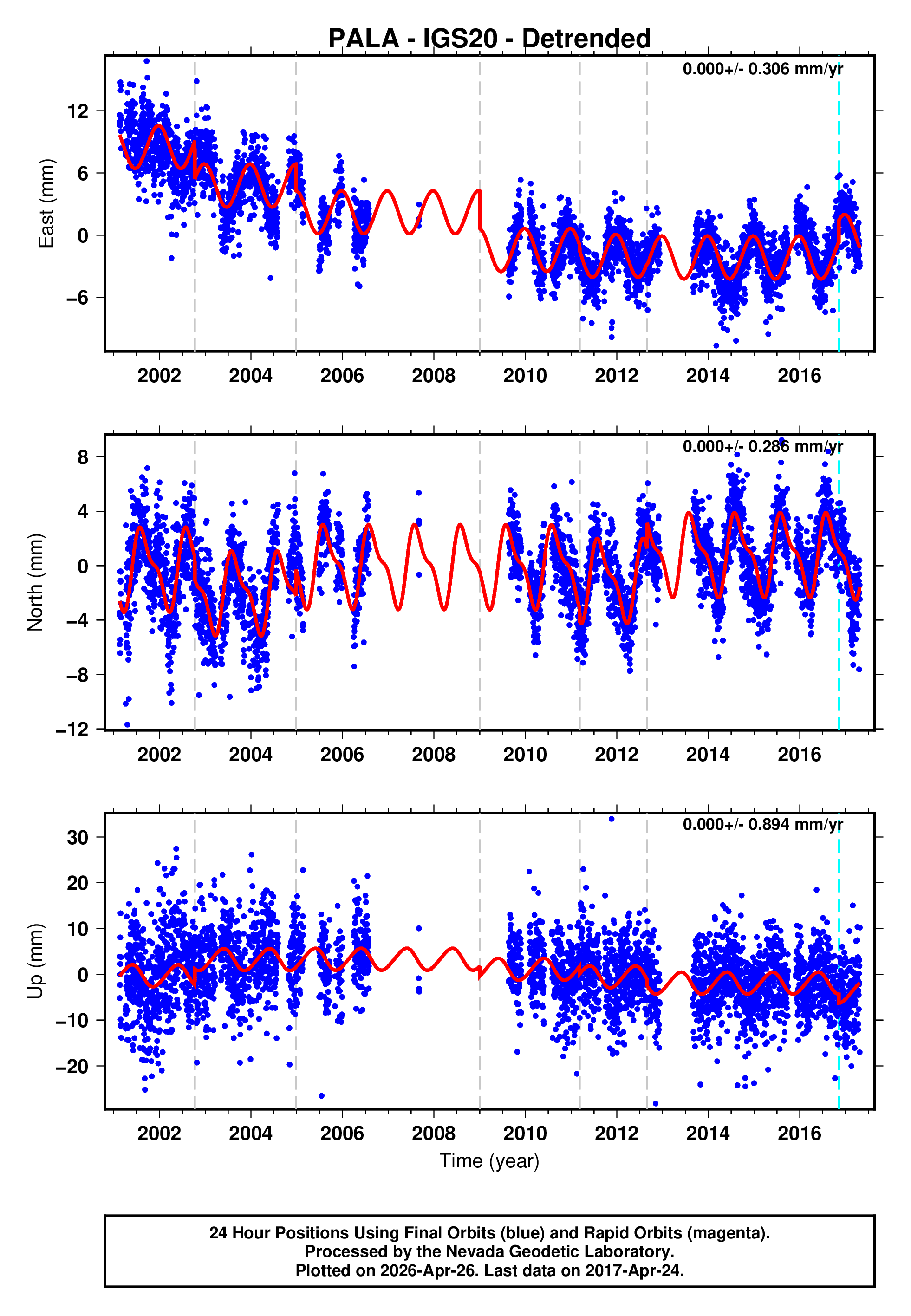

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
PALA01JAN01 usp000a70h 7.5 869.8
PALA02OCT10 usp000be54 7.6 1010.4
PALA04DEC26 official20041226005853450_30 9.1 4281.0
PALA09JAN03 usp000gs2d 7.7 878.2
PALA11MAR11 official20110311054624120_30 9.1 3534.5
PALA12AUG31 usp000jr83 7.6 941.0
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
