MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : P159

Data attribution information: DOI Database

DOI link for this station: https://doi.org/10.7283/T5M906M2

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 40.505 degrees

Longitude: -124.283 degrees

Height: 608.216 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

NA

tenv3

PA

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

NA

tenv3

PA

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

CME5

11.89 km

CME6

11.91 km

P160

13.65 km

P161

15.87 km

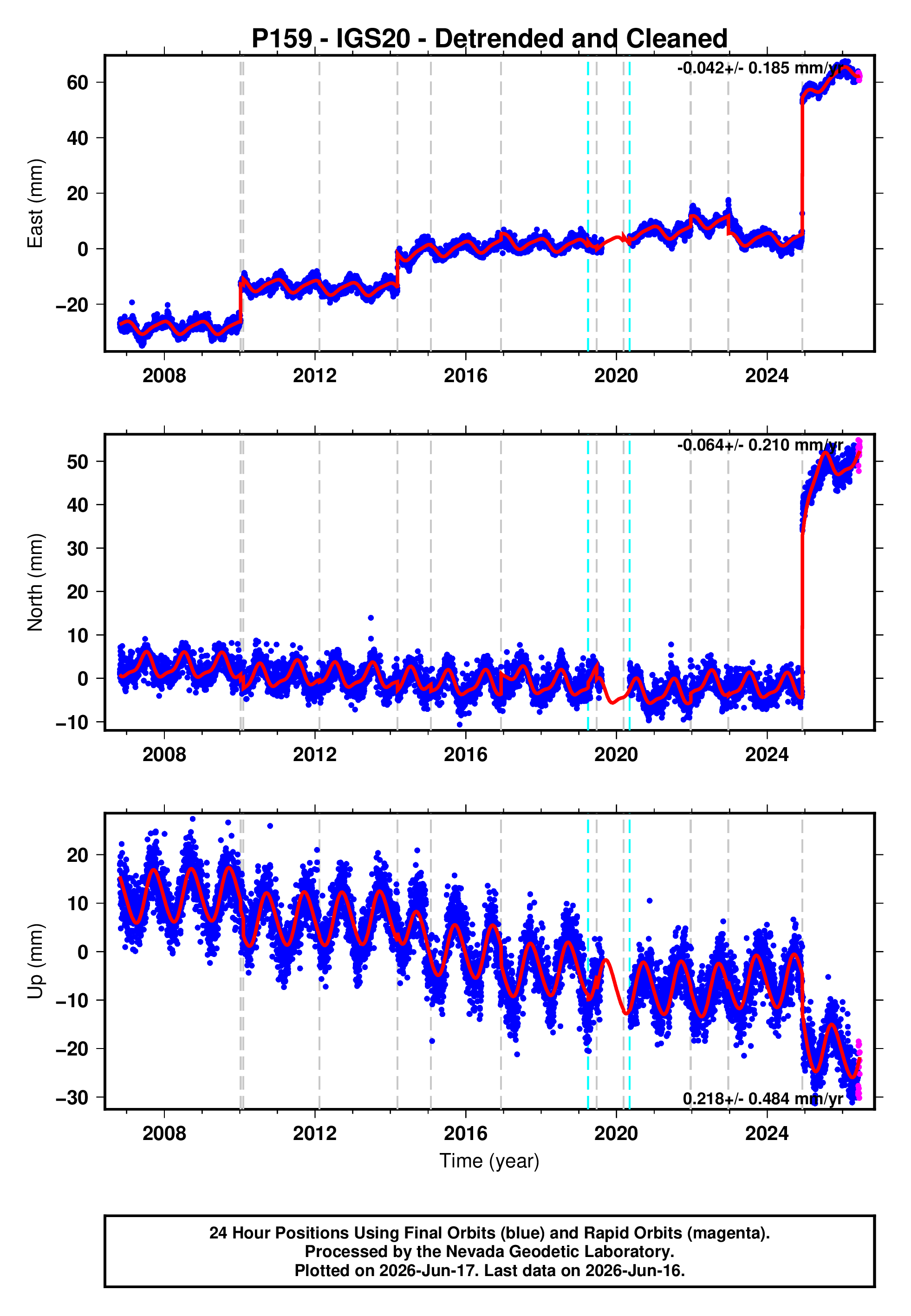

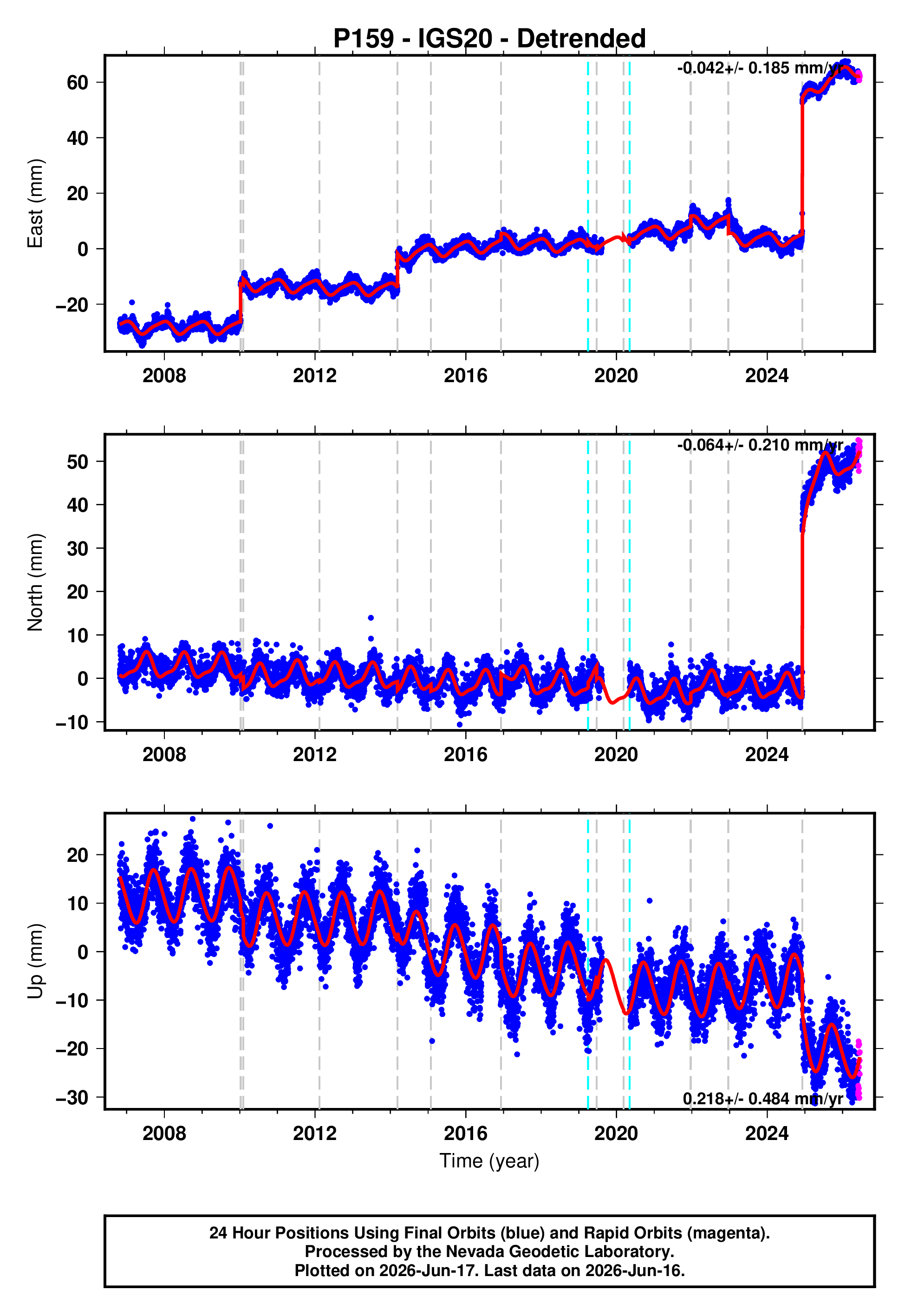

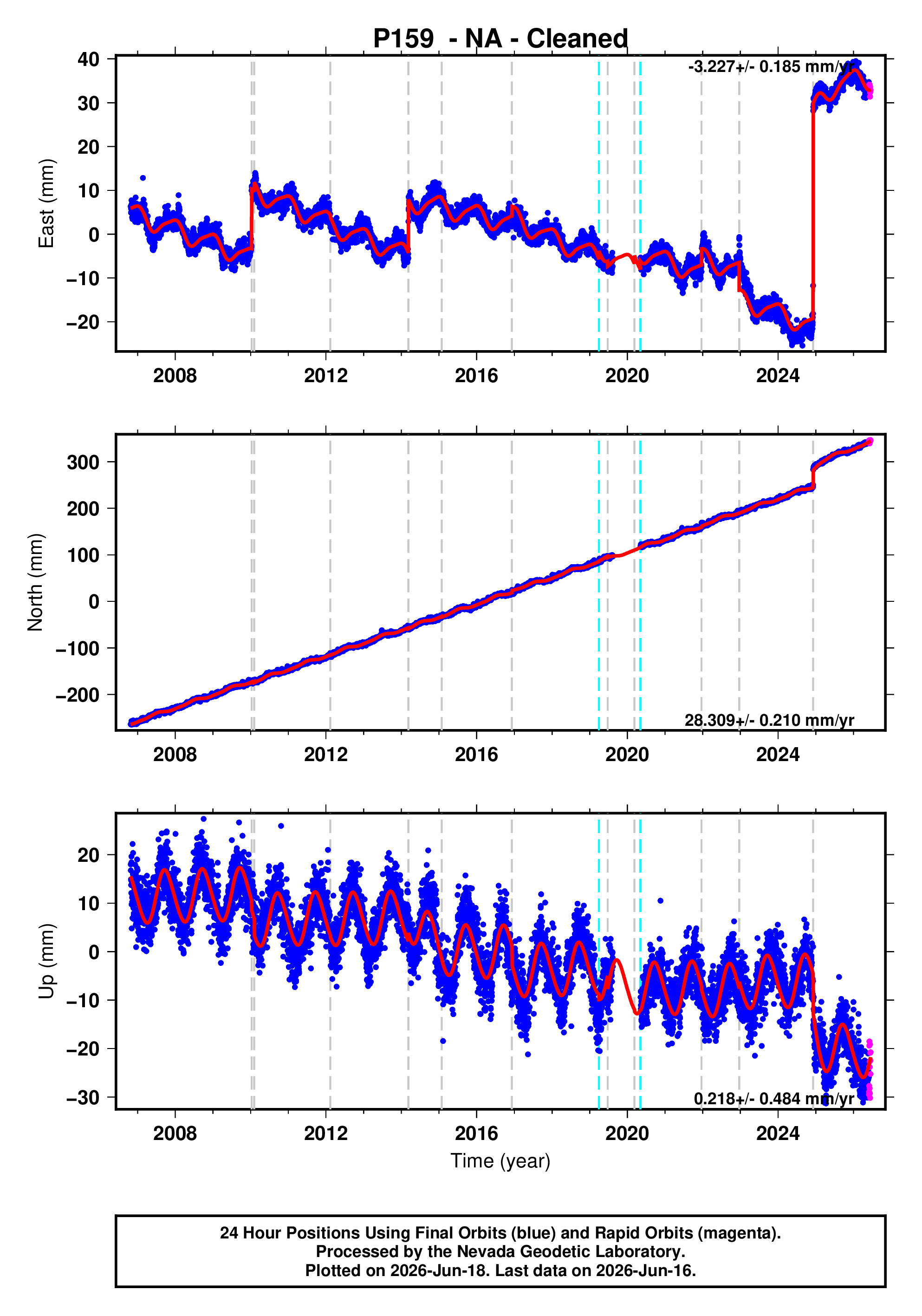

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
P15920MAY07 Antenna_Code_Changed - -
P15920MAY07 Receiver_Make_and_Model_Changed - -
P15910JAN10 nc71338066 6.5 38.3
P15910FEB04 nc71348851 5.9 58.3
P15912FEB13 nc71734741 5.6 82.2
P15914MAR10 nc72182046 6.8 80.3
P15915JAN28 nc72387946 5.7 34.4
P15916DEC08 us20007z6r 6.6 161.7
P15919JUN23 nc73201181 5.6 25.8
P15920MAR09 nc73351710 5.8 69.8
P15921DEC20 nc71127029 5.7 37.1
P15921DEC20 nc73666231 6.2 12.8
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
