MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : P157

Data attribution information: DOI Database

DOI link for this station: https://doi.org/10.7283/T53X84MT

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 40.248 degrees

Longitude: -124.308 degrees

Height: 695.814 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

NA

tenv3

PA

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

NA

tenv3

PA

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

New!: Loading Predictions.
See this README file for explanation.

IGS14

tenv3 file with extra columns

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format,
Loading triplet enhanced tenv3 files
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

P163

21.51 km

CME6

22.82 km

CME5

22.86 km

P158

25.85 km


Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

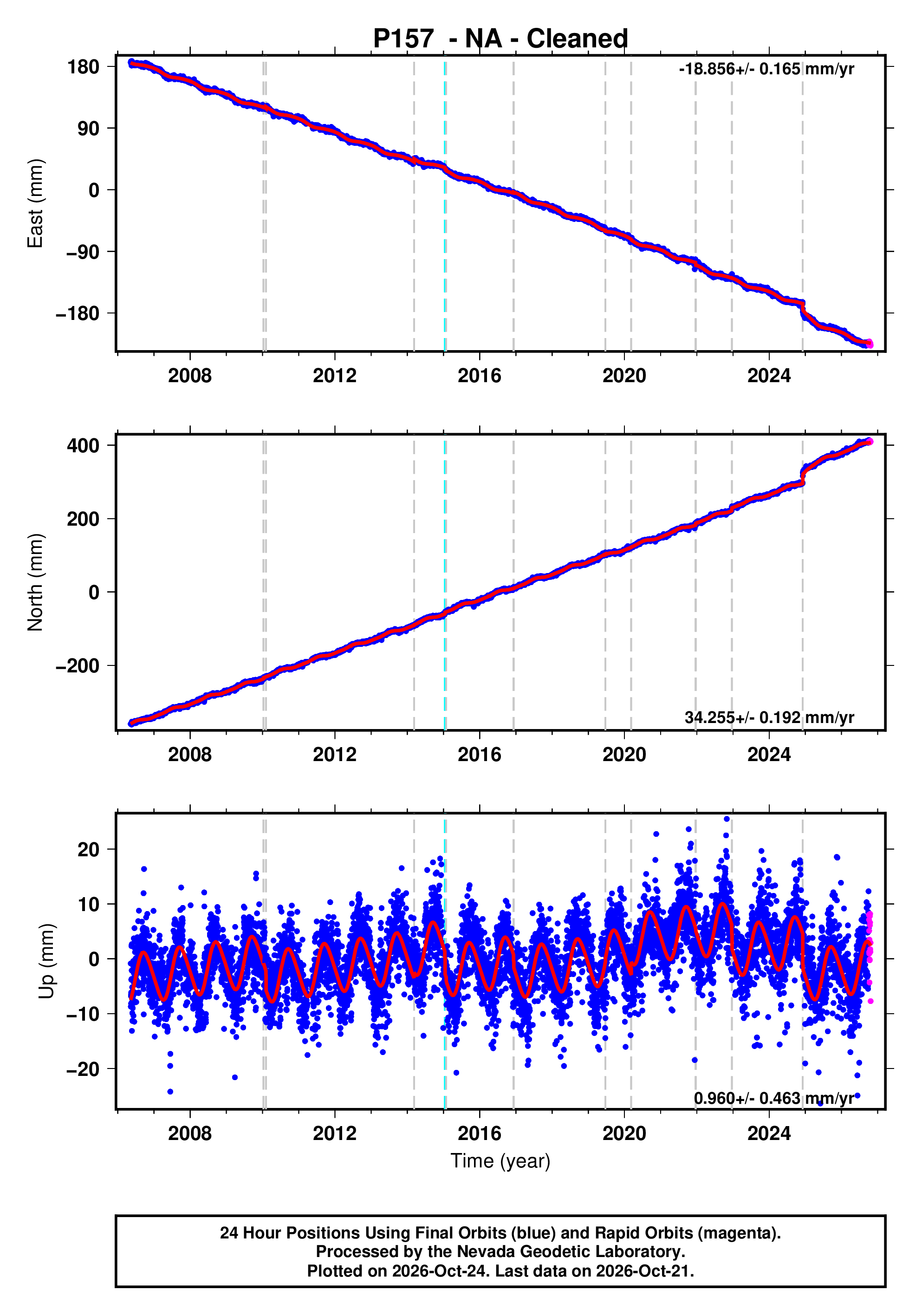

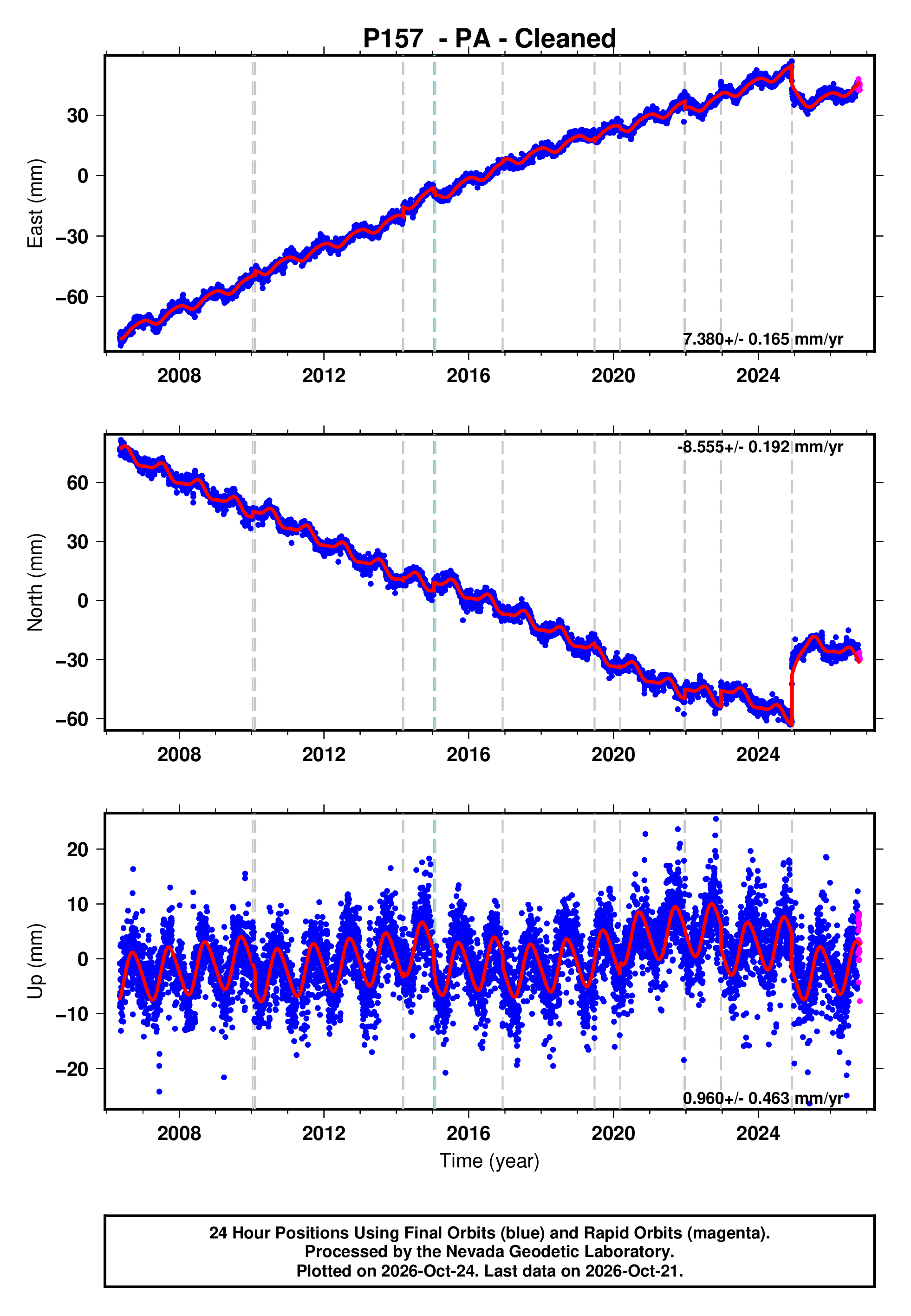

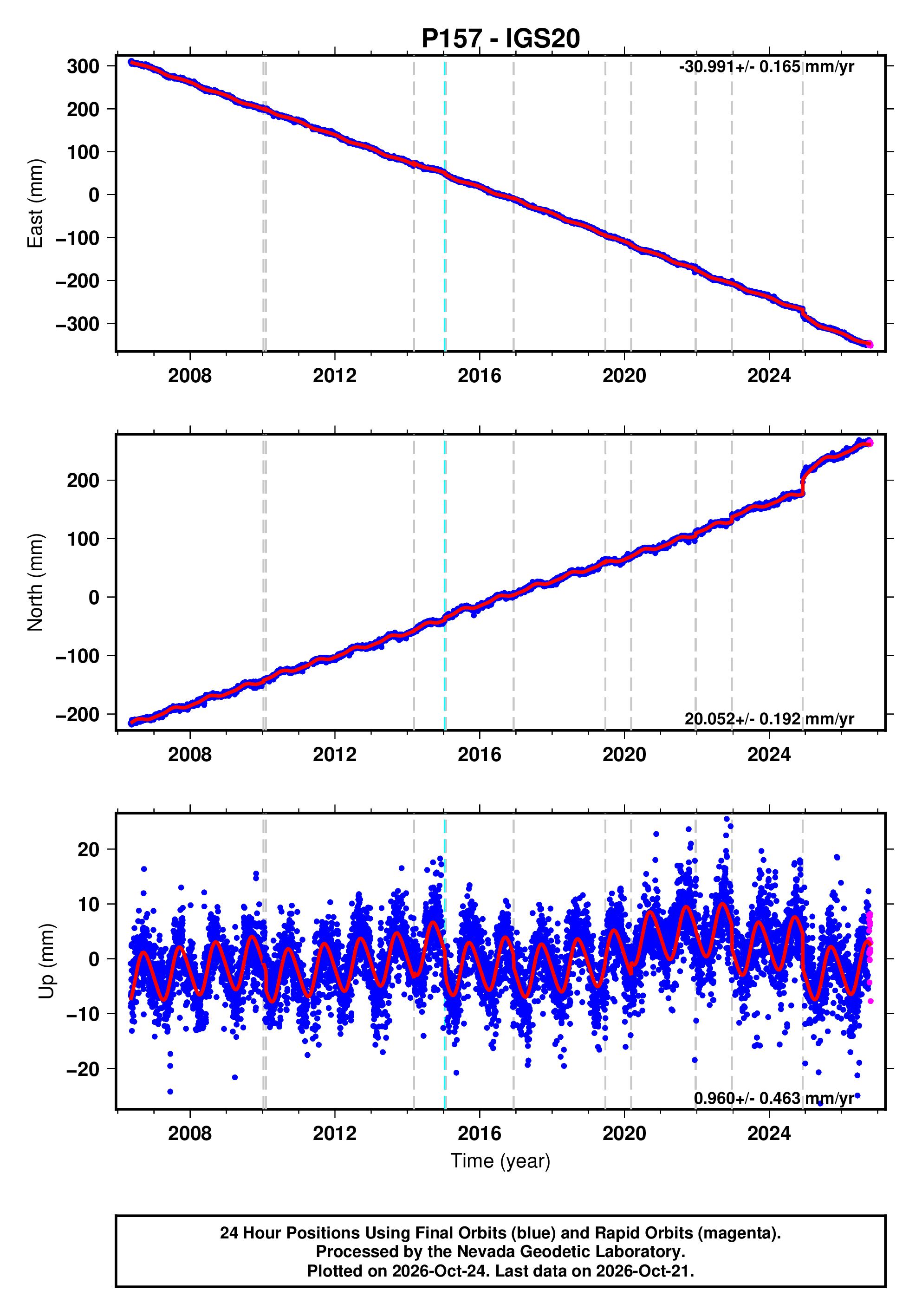

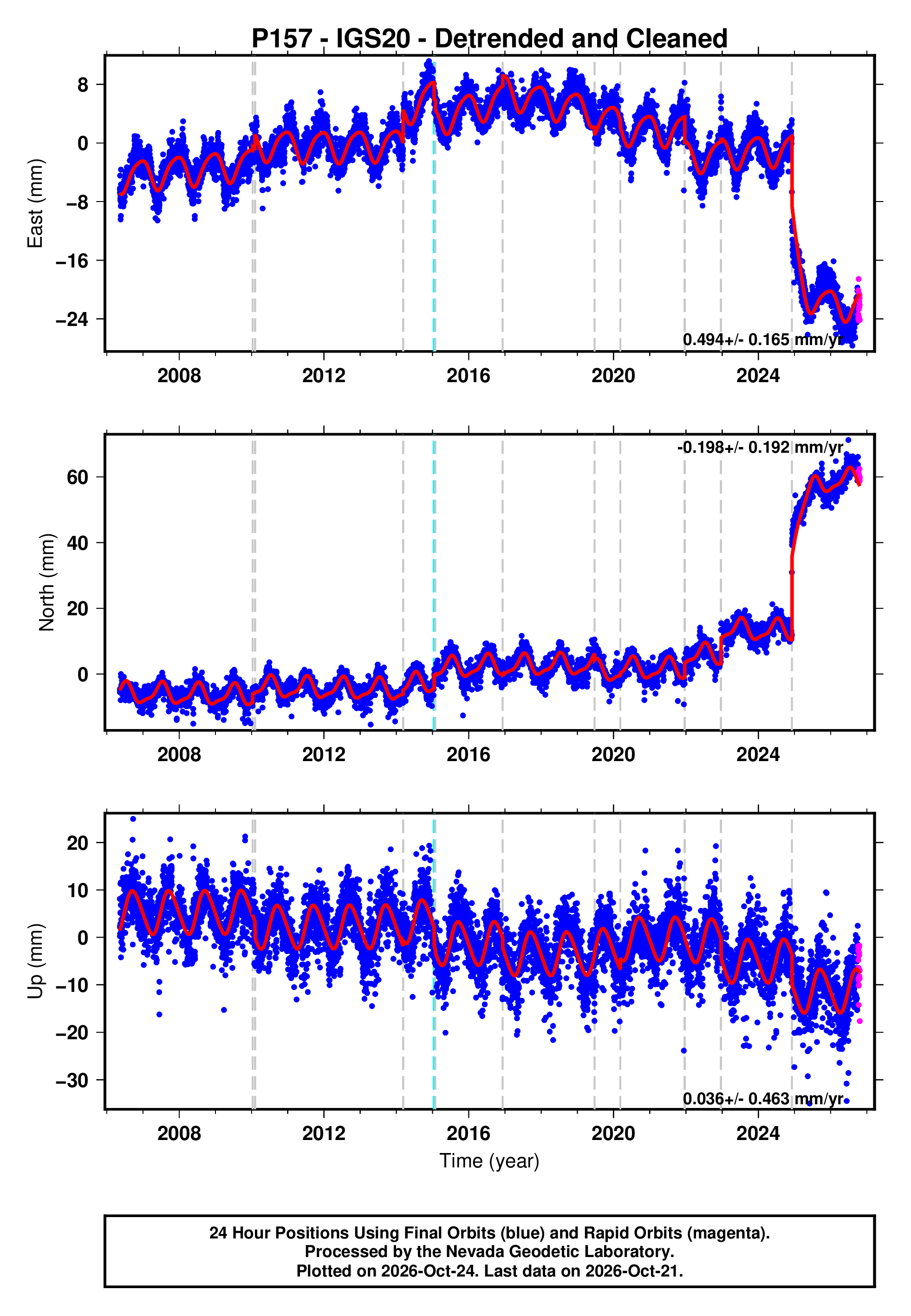

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot
Load prediction plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
P15715JAN15 Antenna_Code_Changed - -
P15710JAN10 nc71338066 6.5 55.5
P15710FEB04 nc71348851 5.9 58.3
P15714MAR10 nc72182046 6.8 95.1
P15715JAN28 nc72387946 5.7 26.5
P15716DEC08 us20007z6r 6.6 161.4
P15719JUN23 nc73201181 5.6 3.0
P15720MAR09 nc73351710 5.8 68.5
P15721DEC20 nc71127029 5.7 27.5
P15721DEC20 nc73666231 6.2 15.9
P15722DEC20 nc73821036 6.4 32.4
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
