MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : P066

Station operator information from: RINEX headers

Data attribution information from: UNAVCO DOI Database

from DOI link: https://doi.org/10.7283/T59021PR

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 32.617 degrees

Longitude: -116.170 degrees

Height: 822.890 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

NA

env

PA

env

24 Hour Rapid Solutions

IGS14

env

NA

env

PA

env

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

5 Minute Ultra Rapid Solutions
(files updated hourly)

FID

individual kenv files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

YUHG

23.44 km

PB2Y

26.24 km

P481

27.29 km

CACM

28.63 km

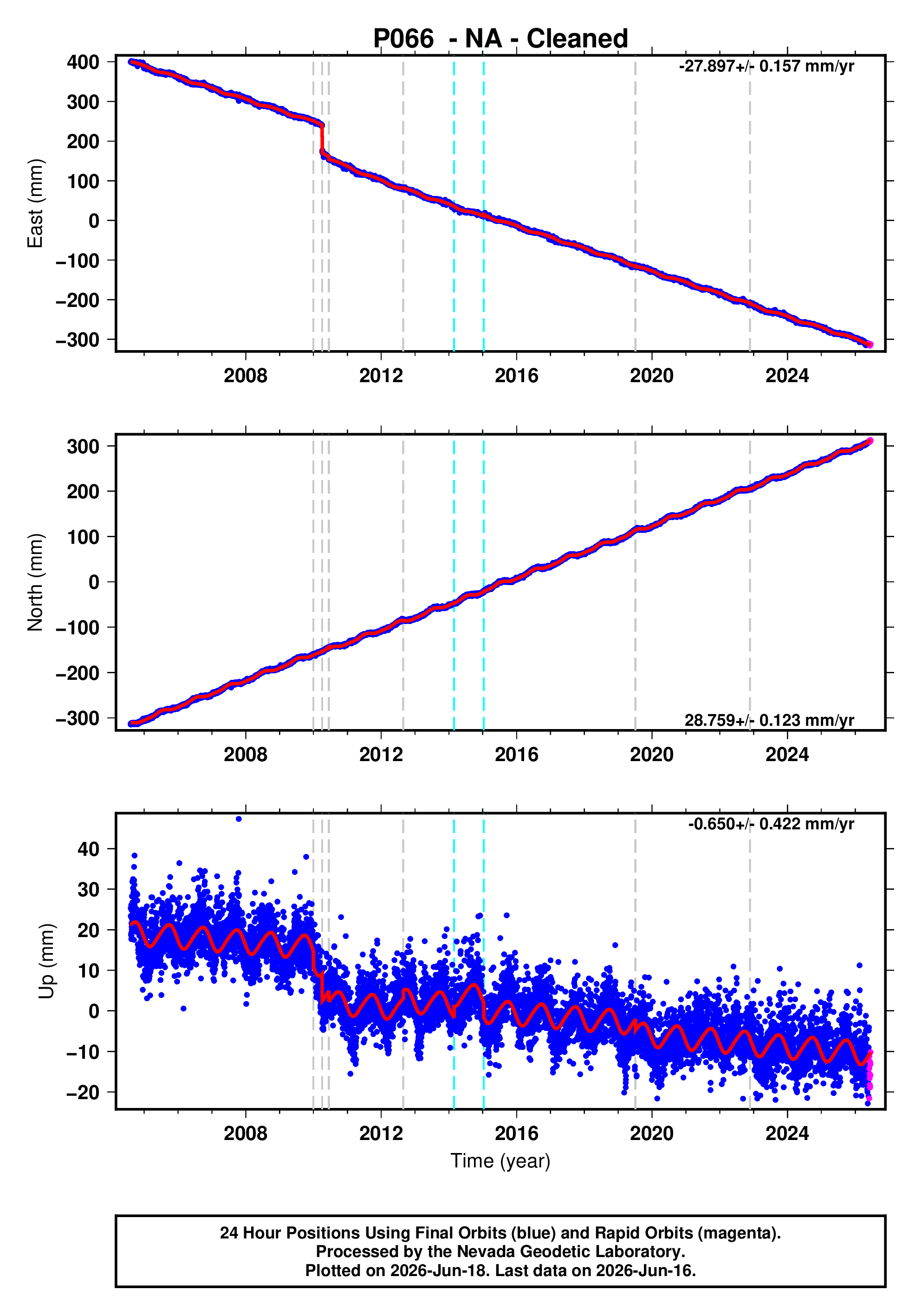

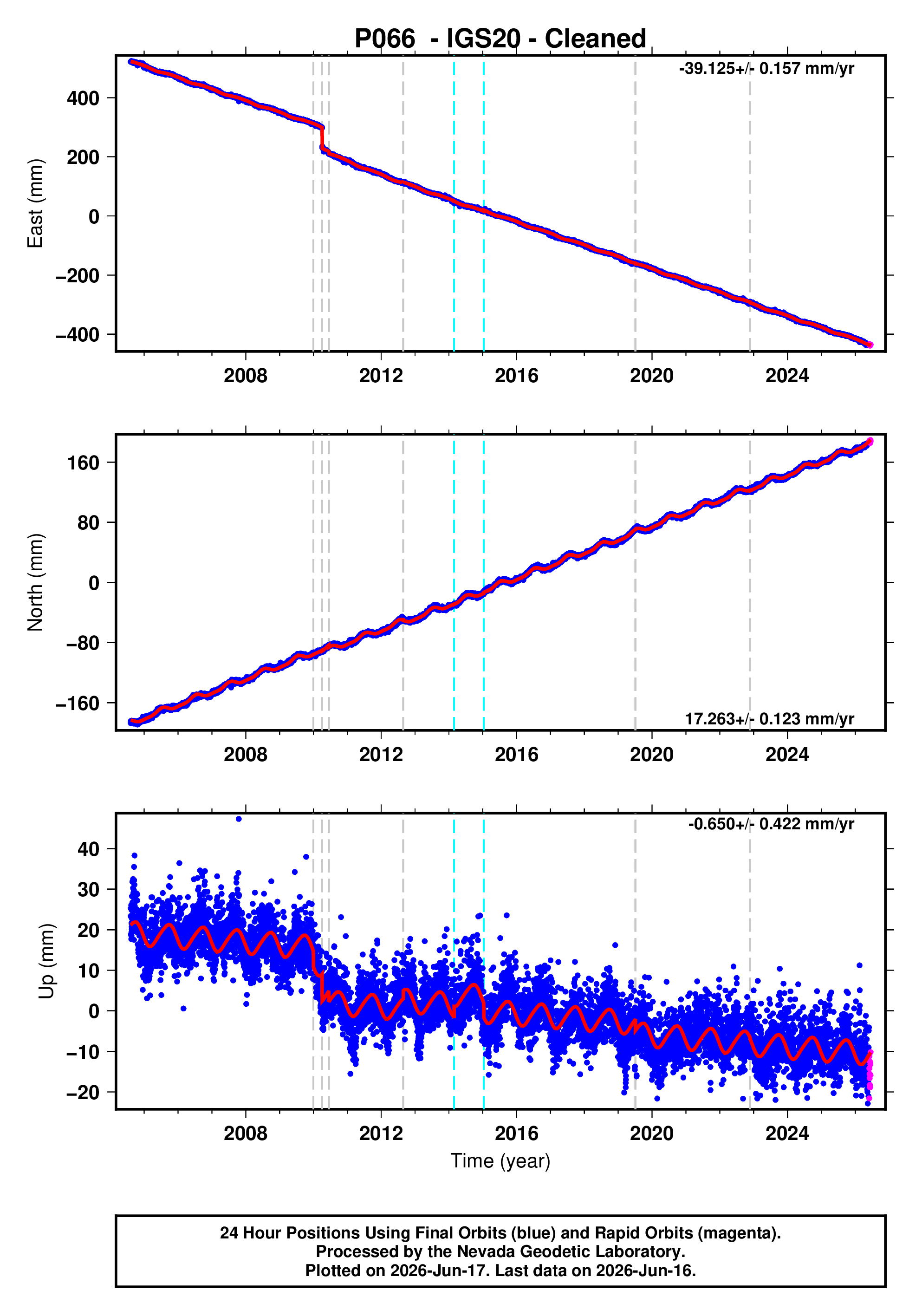

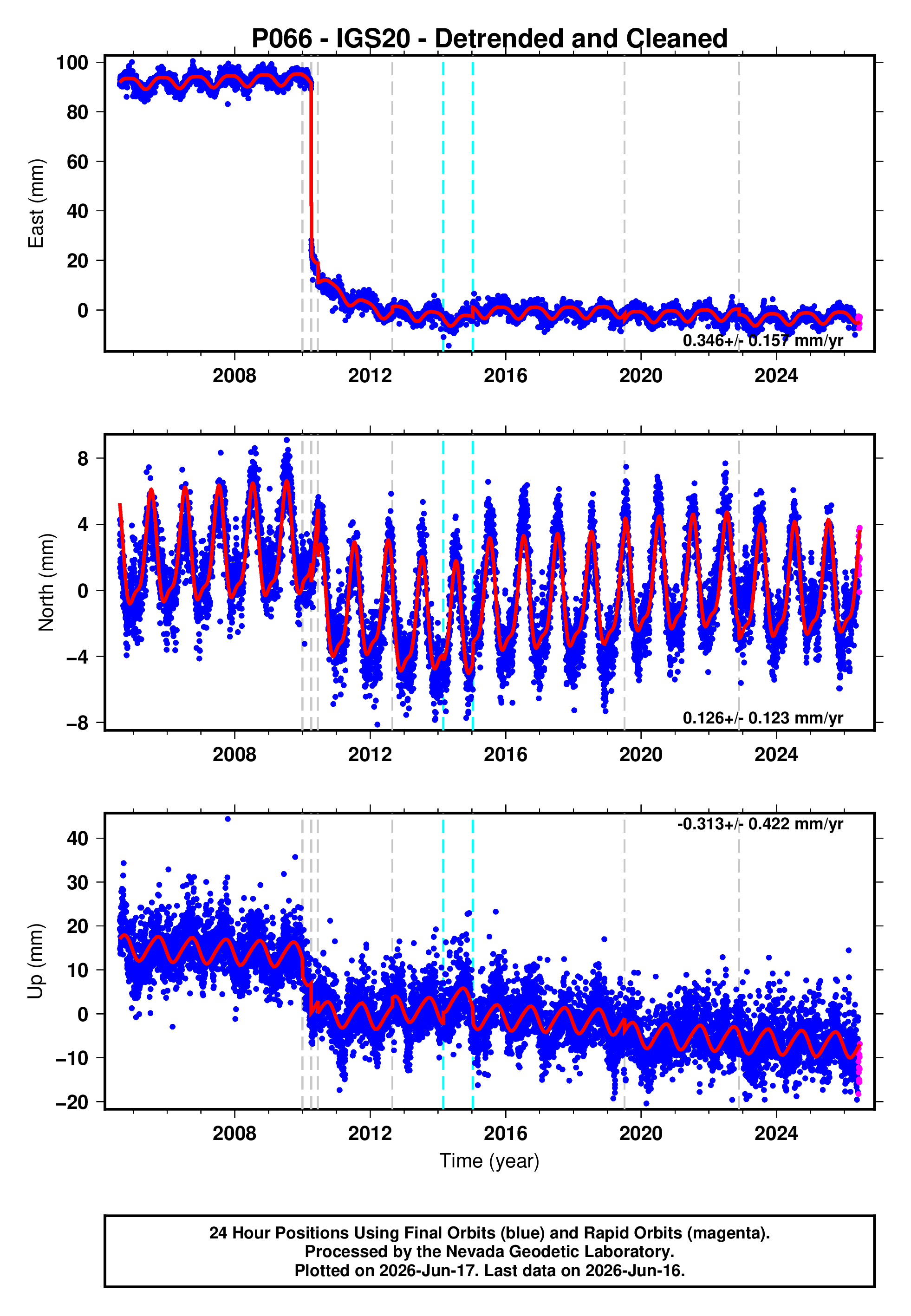

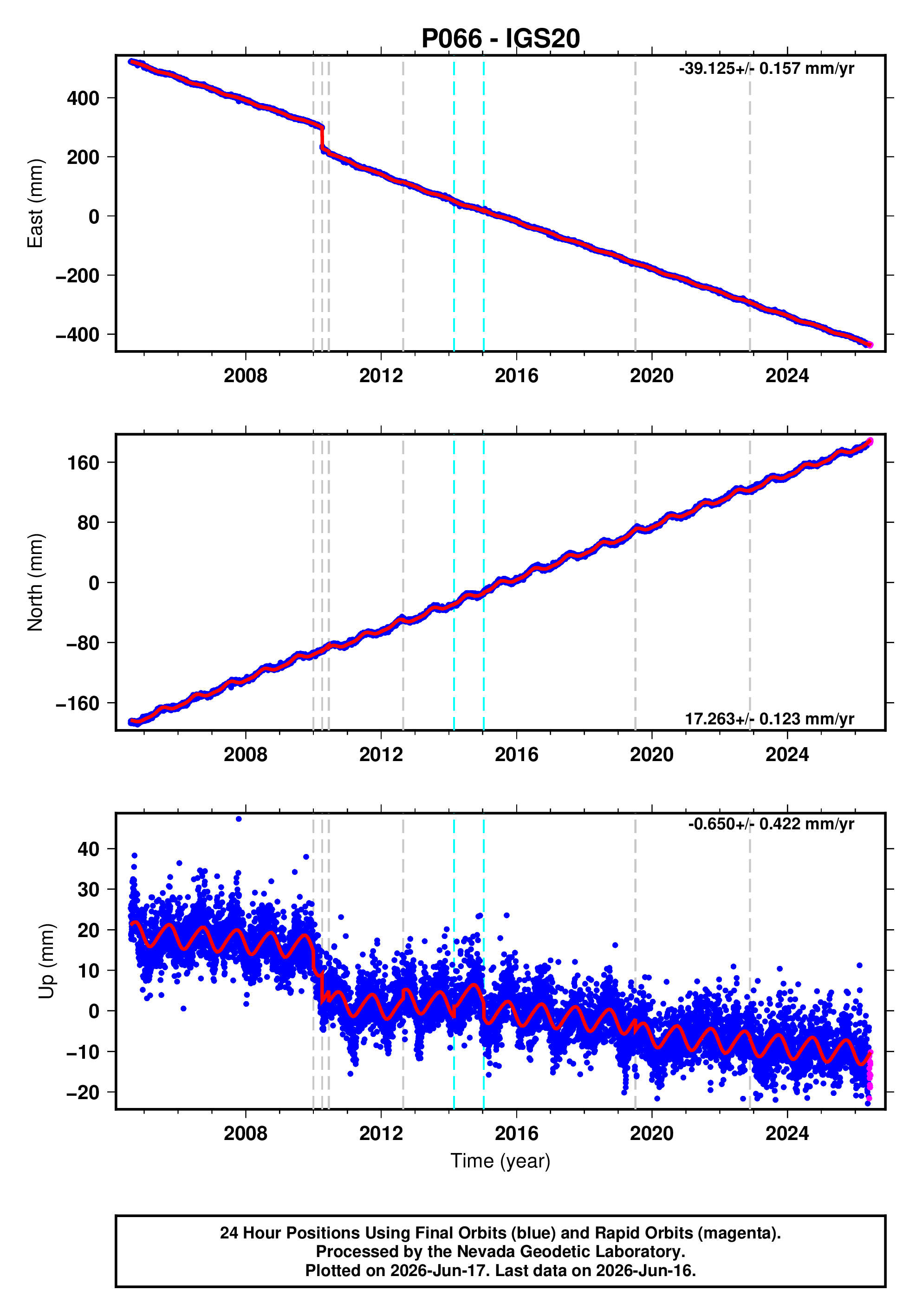

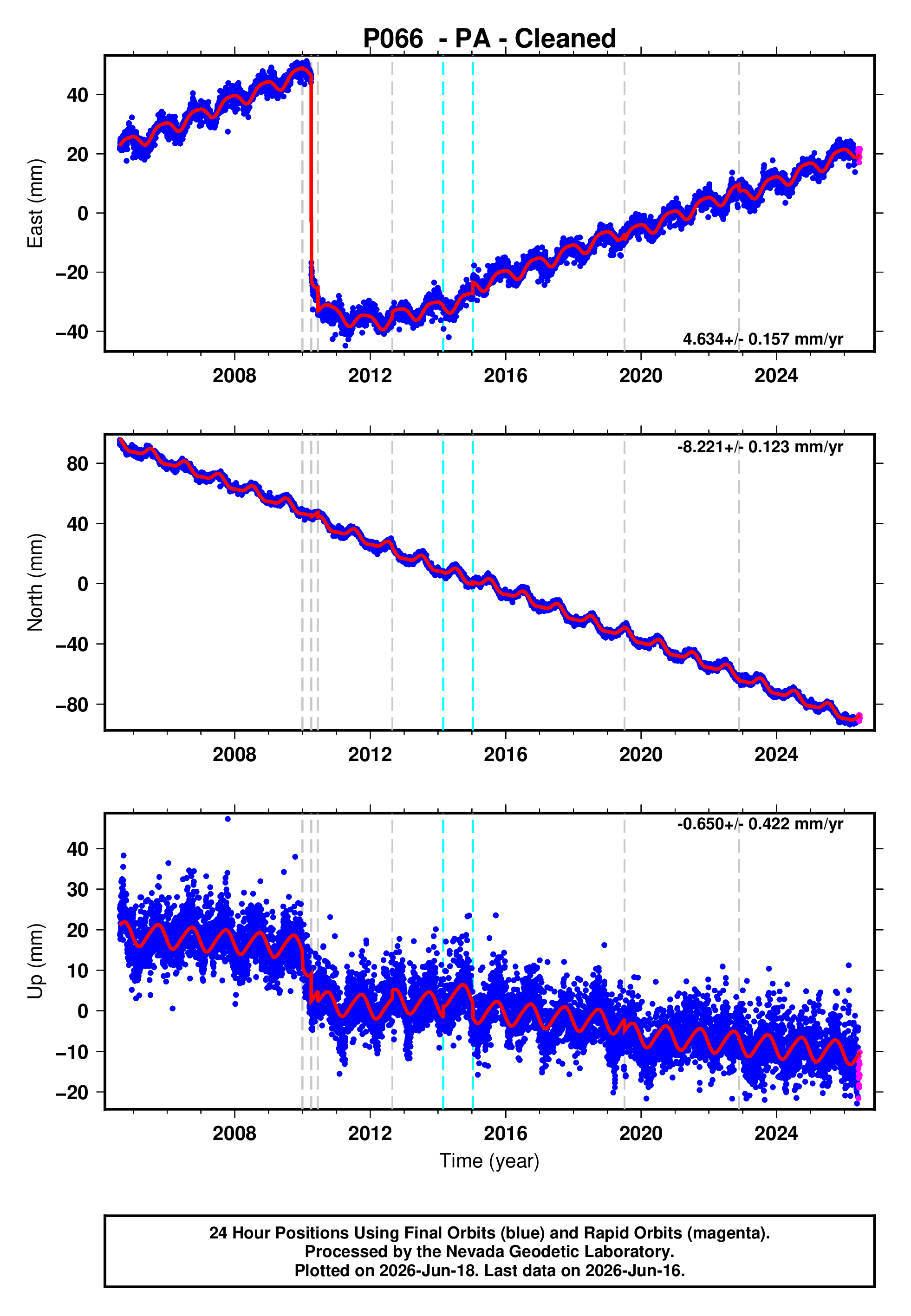

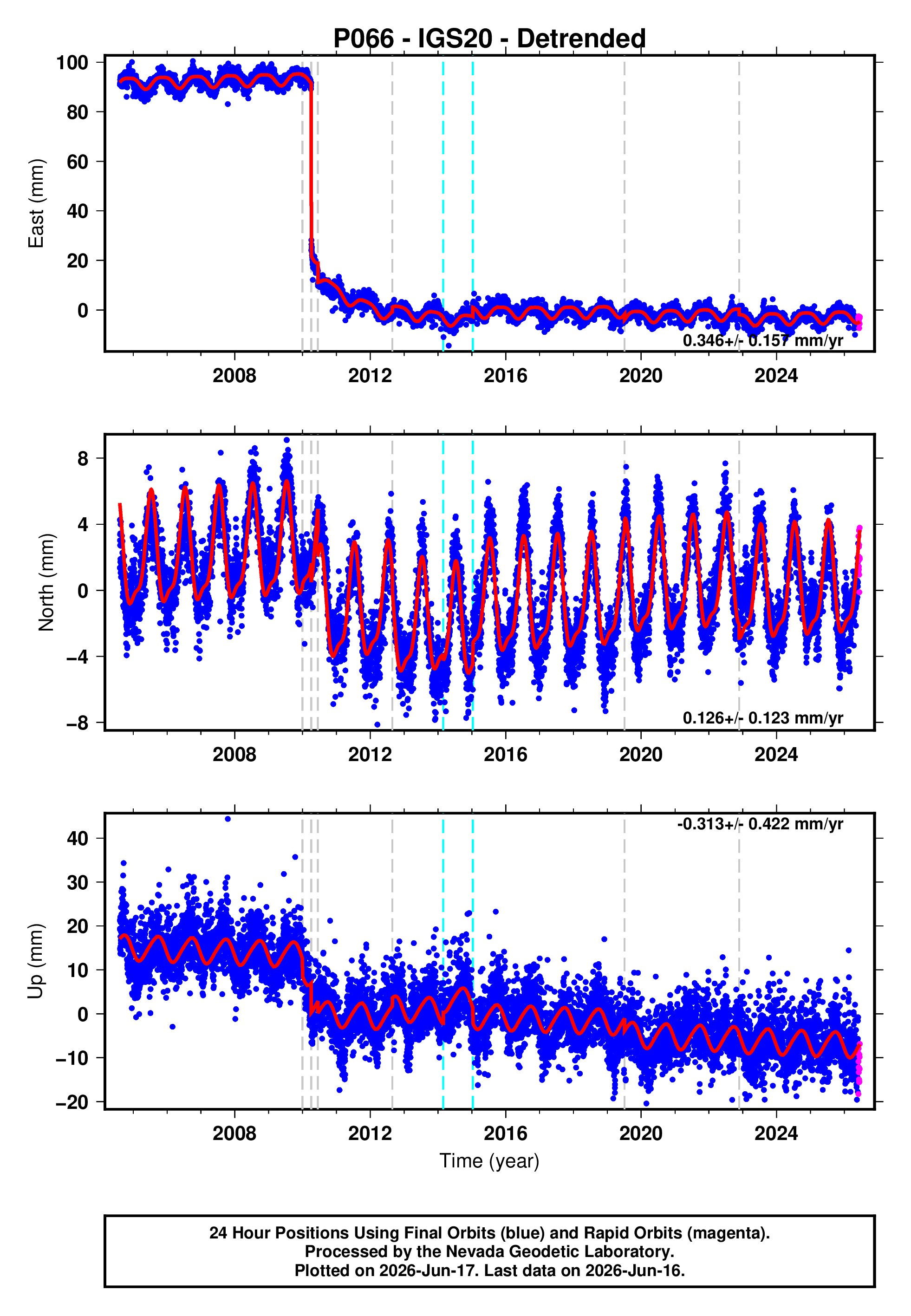

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
P06615JAN11 Antenna_Code_Changed - -
P06609DEC30 ci14565620 5.8 93.5
P06610APR04 ci14607652 7.2 89.9
P06610JUN15 ci14745580 5.7 26.1
P06612AUG26 ci15200401 5.4 73.9
P06619JUL06 ci38457511 7.1 374.4
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
