MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : OLVN

Station operator information from: RINEX headers

Data attribution information from: UNAVCO DOI Database

from DOI link: https://doi.org/10.7283/T5Q23XMD

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 16.750 degrees

Longitude: -62.228 degrees

Height: 40.835 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

CA

env

NA

env

24 Hour Rapid Solutions

IGS14

env

CA

env

NA

env

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

AIRS

1.82 km

MVO1

4.73 km

GERD

6.09 km

TRNT

7.03 km

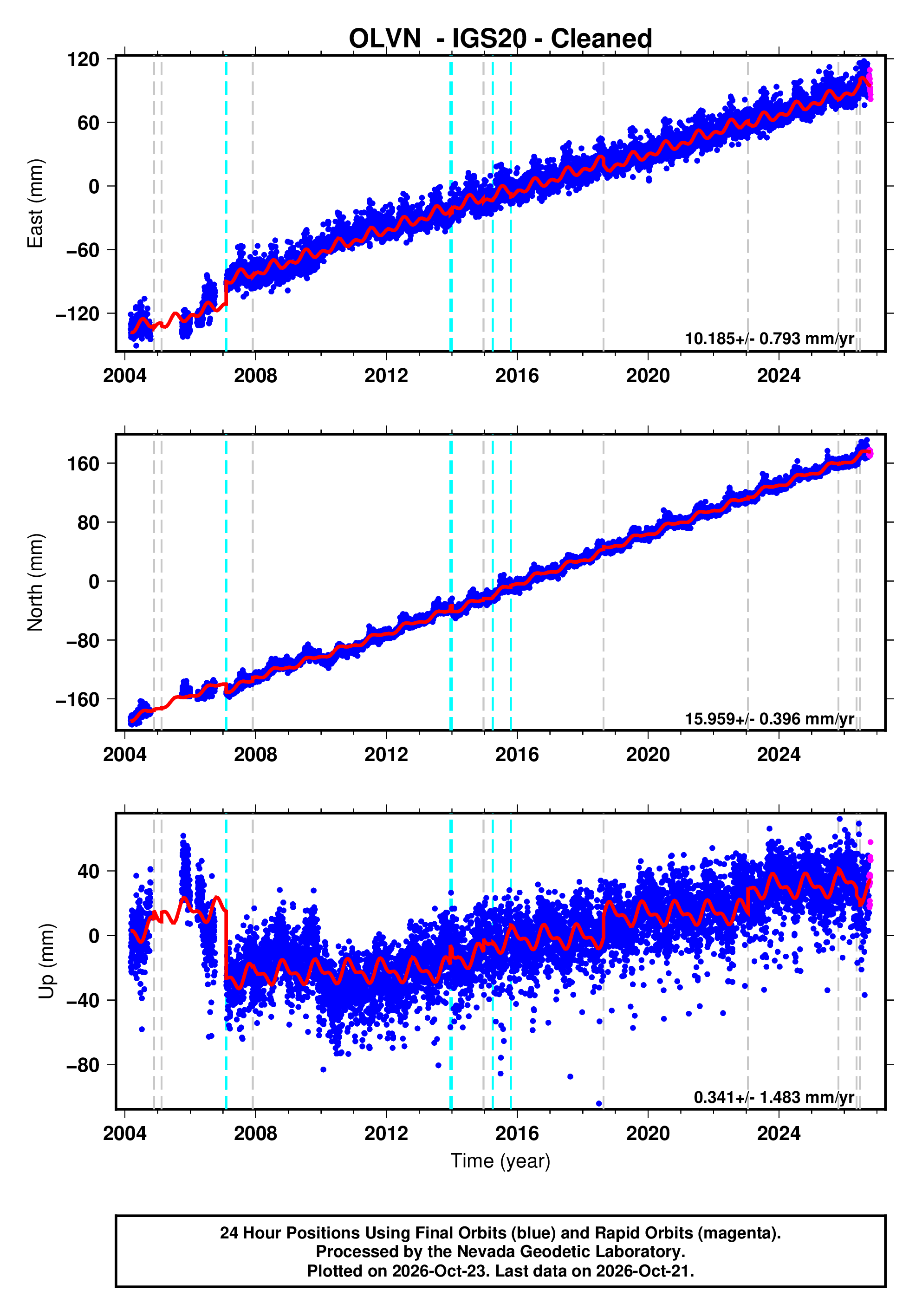

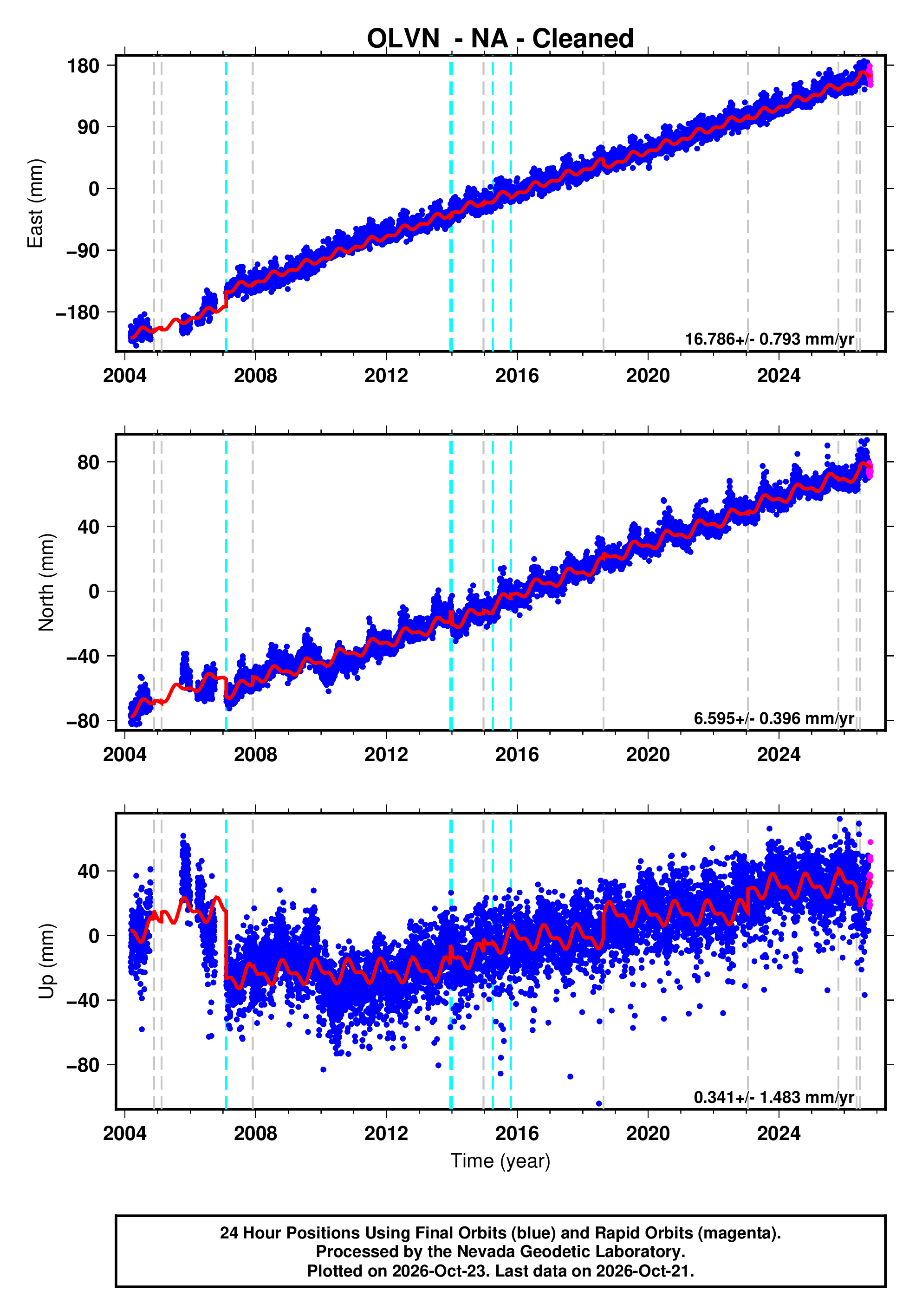

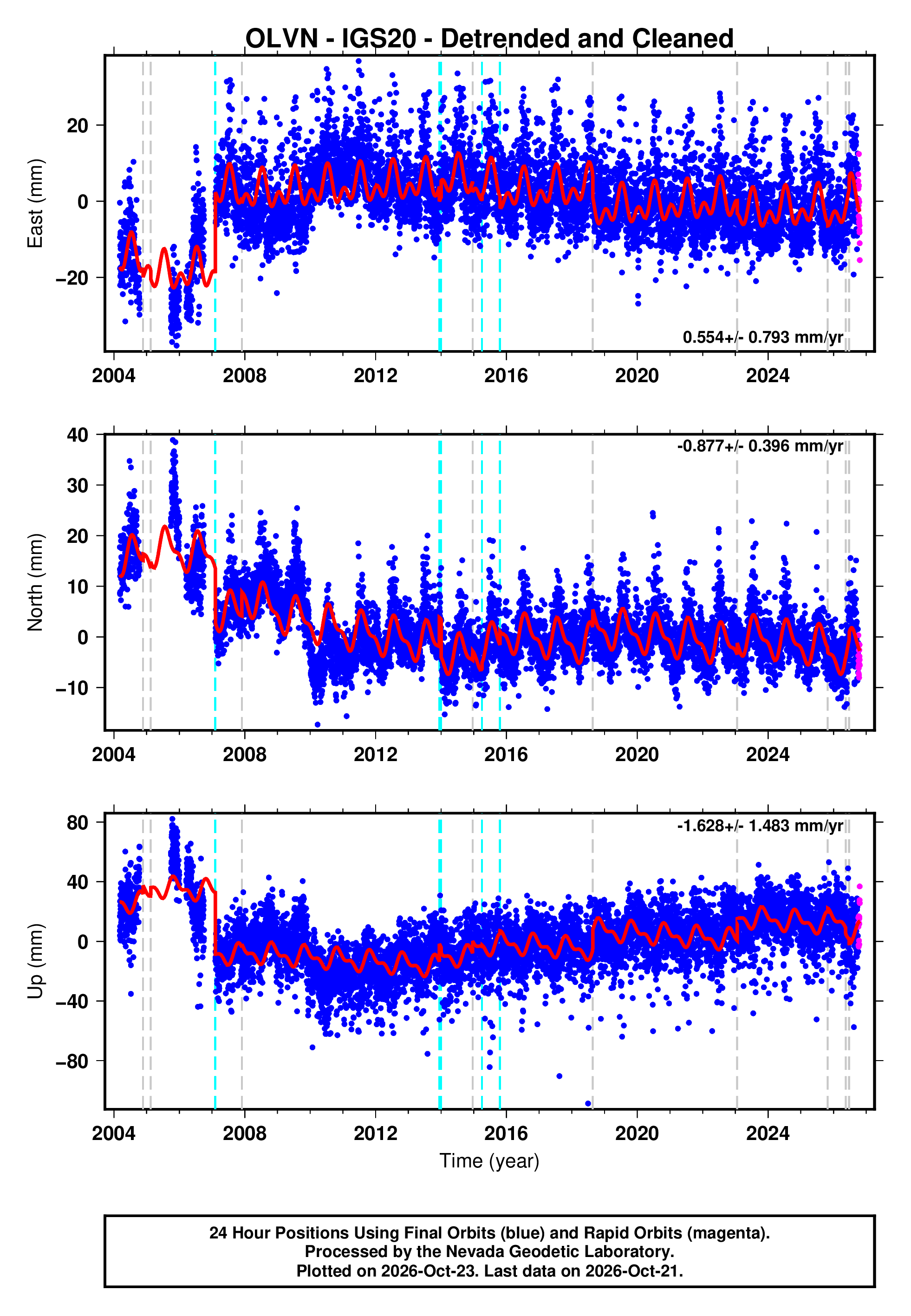

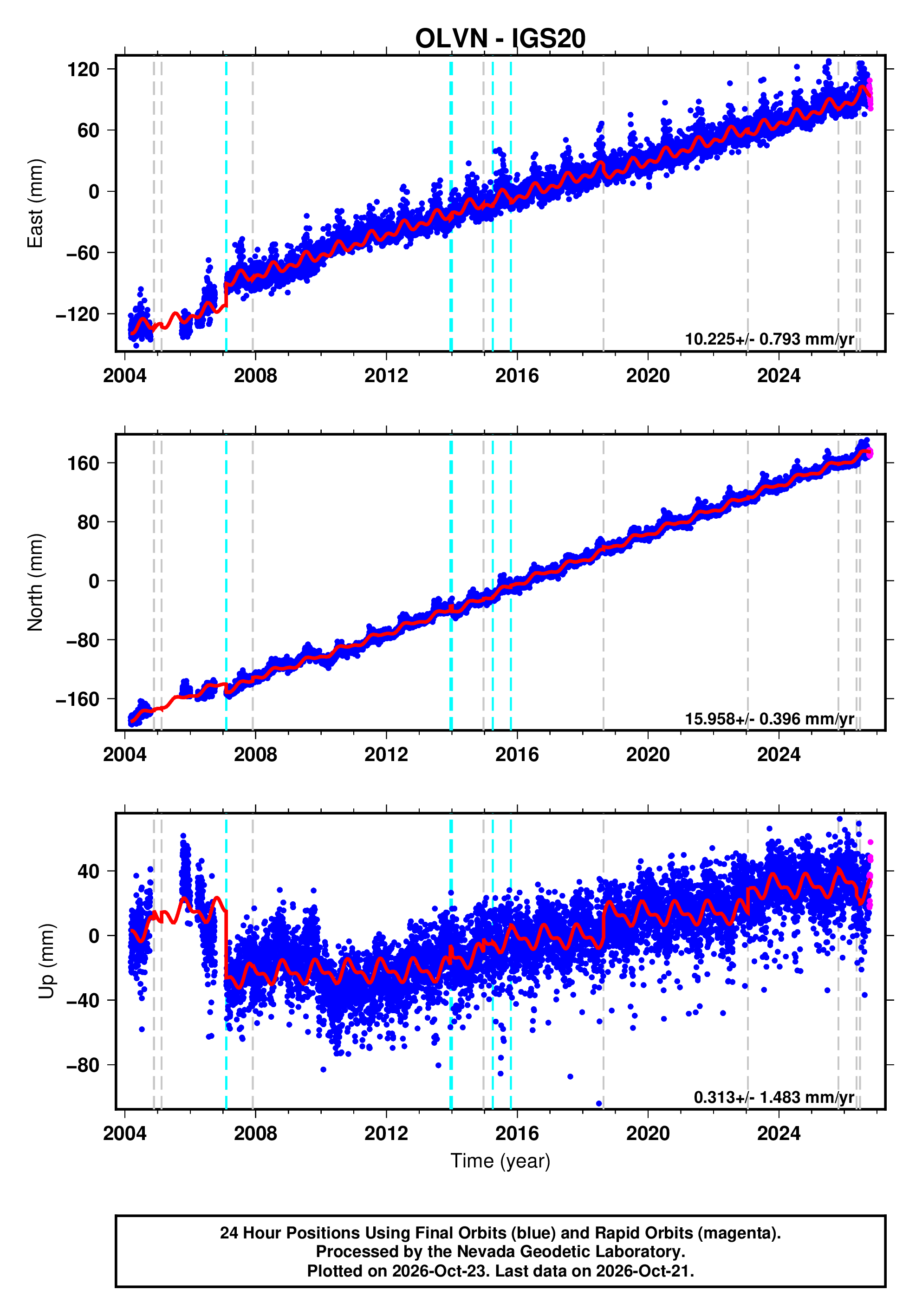

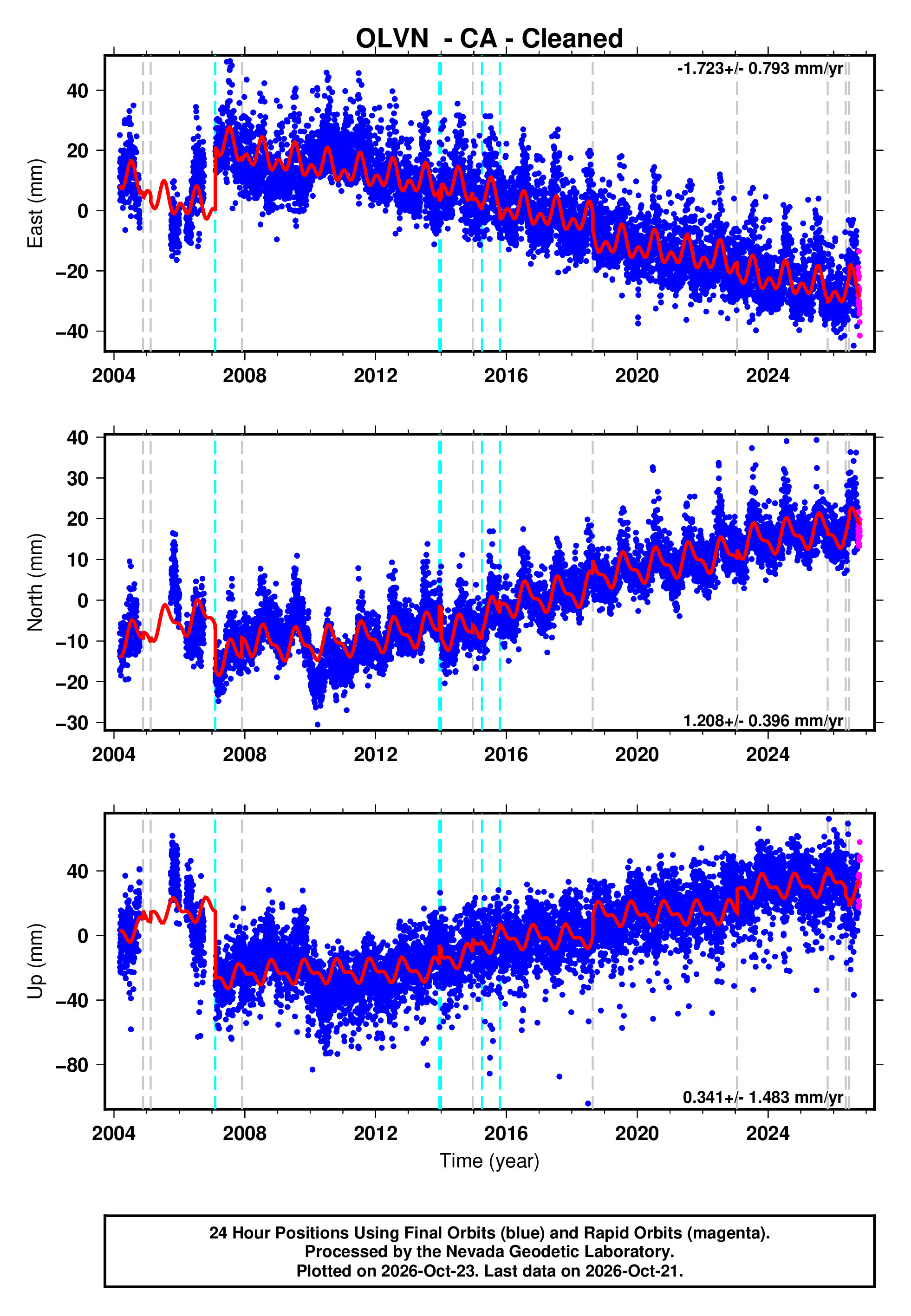

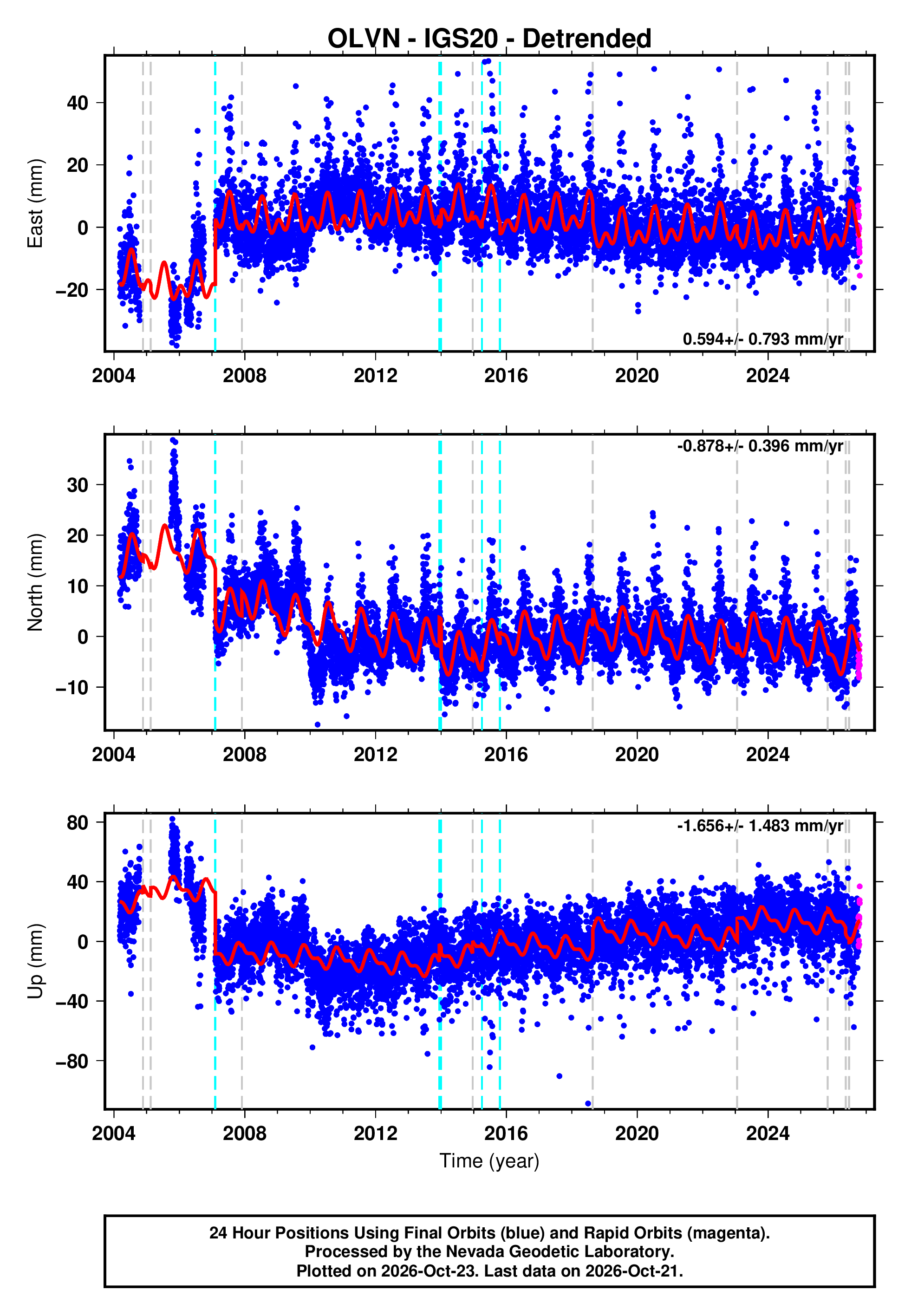

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
OLVN07FEB06 Elevation_Cutoff_Changed - -
OLVN07FEB06 Receiver_Make_and_Model_Changed - -
OLVN13DEC13 Elevation_Cutoff_Changed - -
OLVN14JAN02 Antenna_and_Radome_Codes_Changed - -
OLVN15APR03 Radome_Code_Changed - -
OLVN04NOV21 usp000d8w3 6.3 131.5
OLVN05FEB14 usp000dg4x 5.8 120.1
OLVN07NOV29 usp000ftj1 7.4 225.3
OLVN18AUG21 us1000gez7 7.3 668.6
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
