MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : NYAL

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 78.930 degrees

Longitude: 11.865 degrees

Height: 78.494 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

EU

tenv3

NA

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Ultra Rapid Solutions
(files updated hourly)

FID

individual kenv files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

NYA1

0.01 km

NYAC

0.01 km

NYA2

0.16 km

NABG

1.51 km

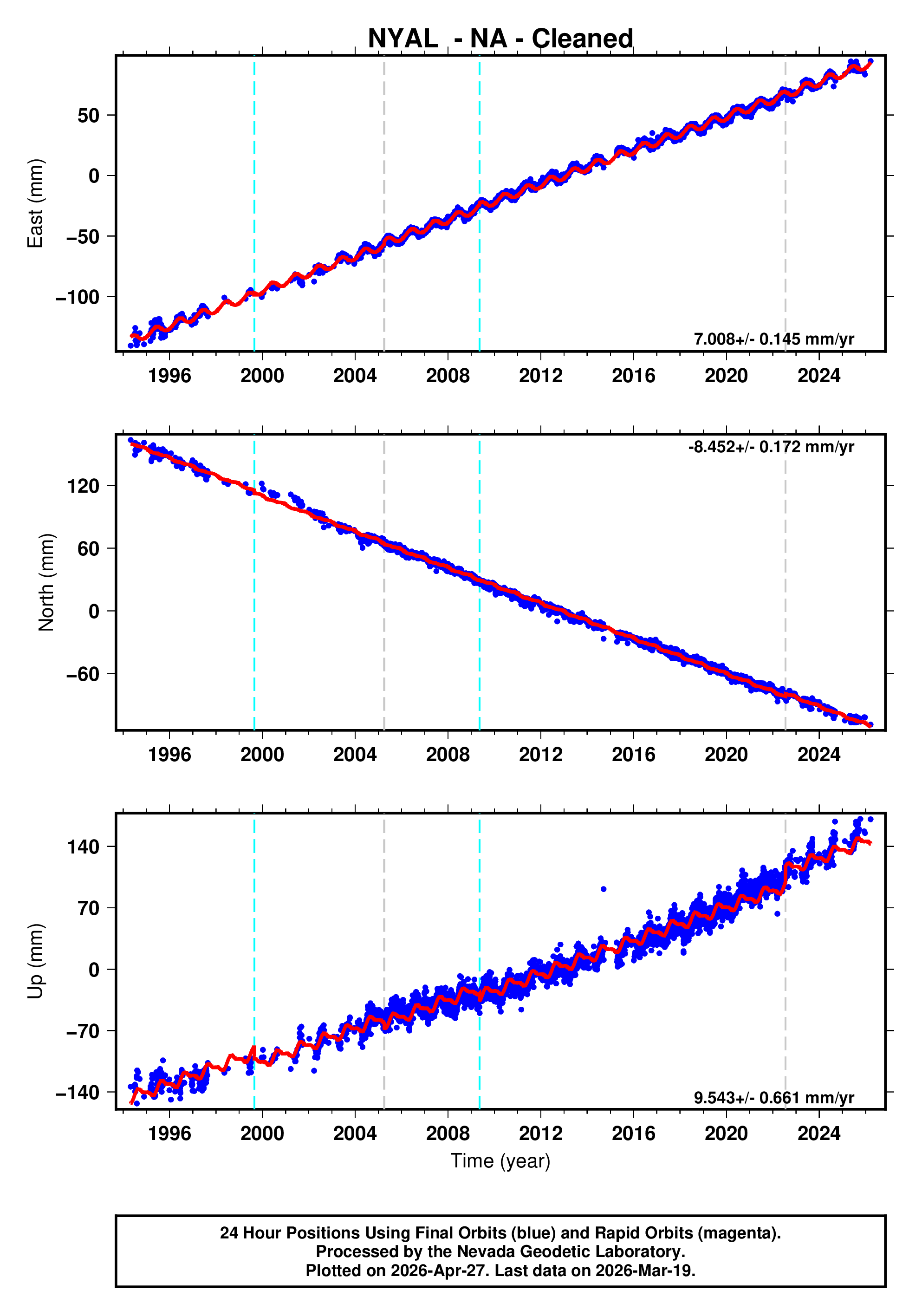

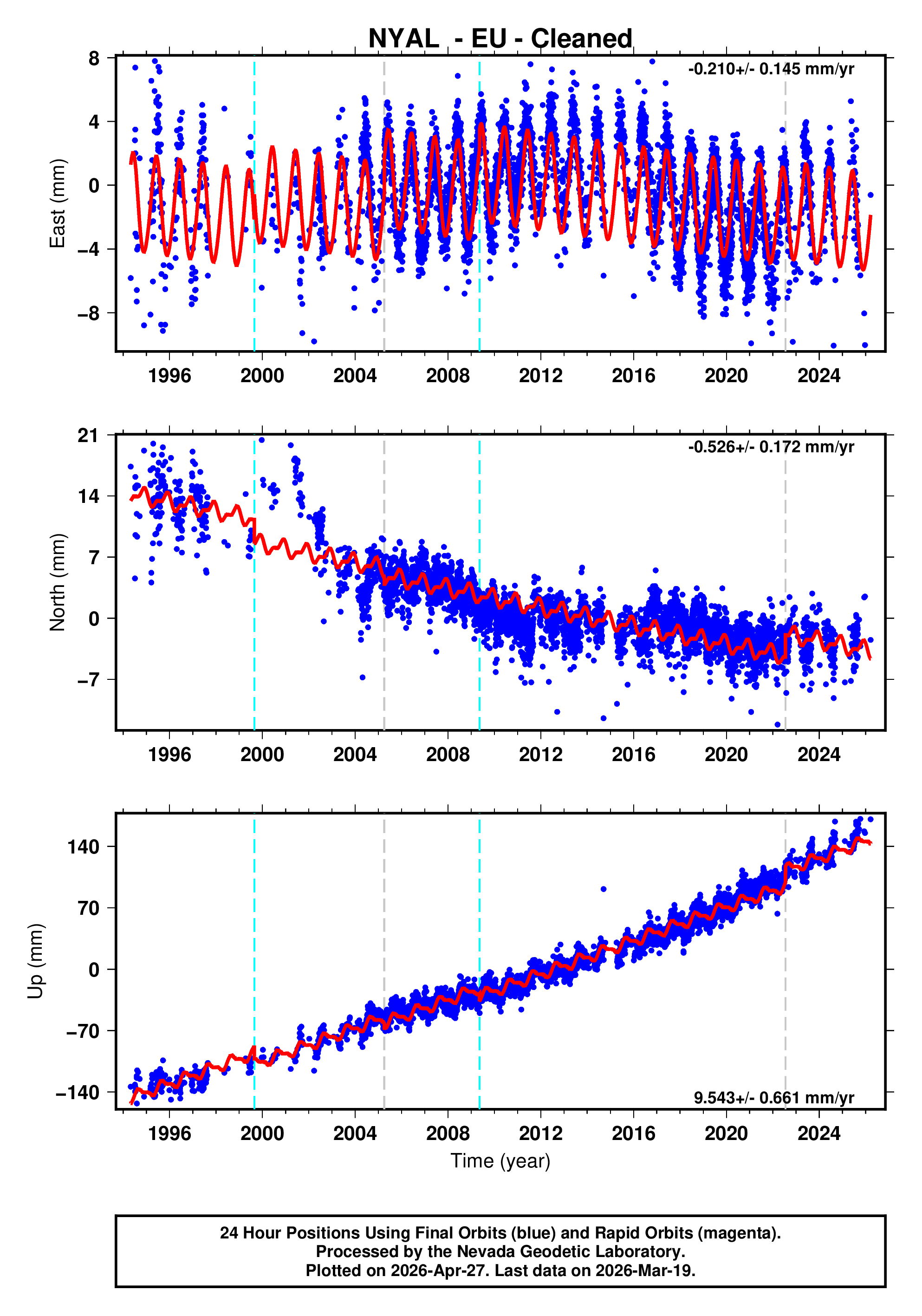

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

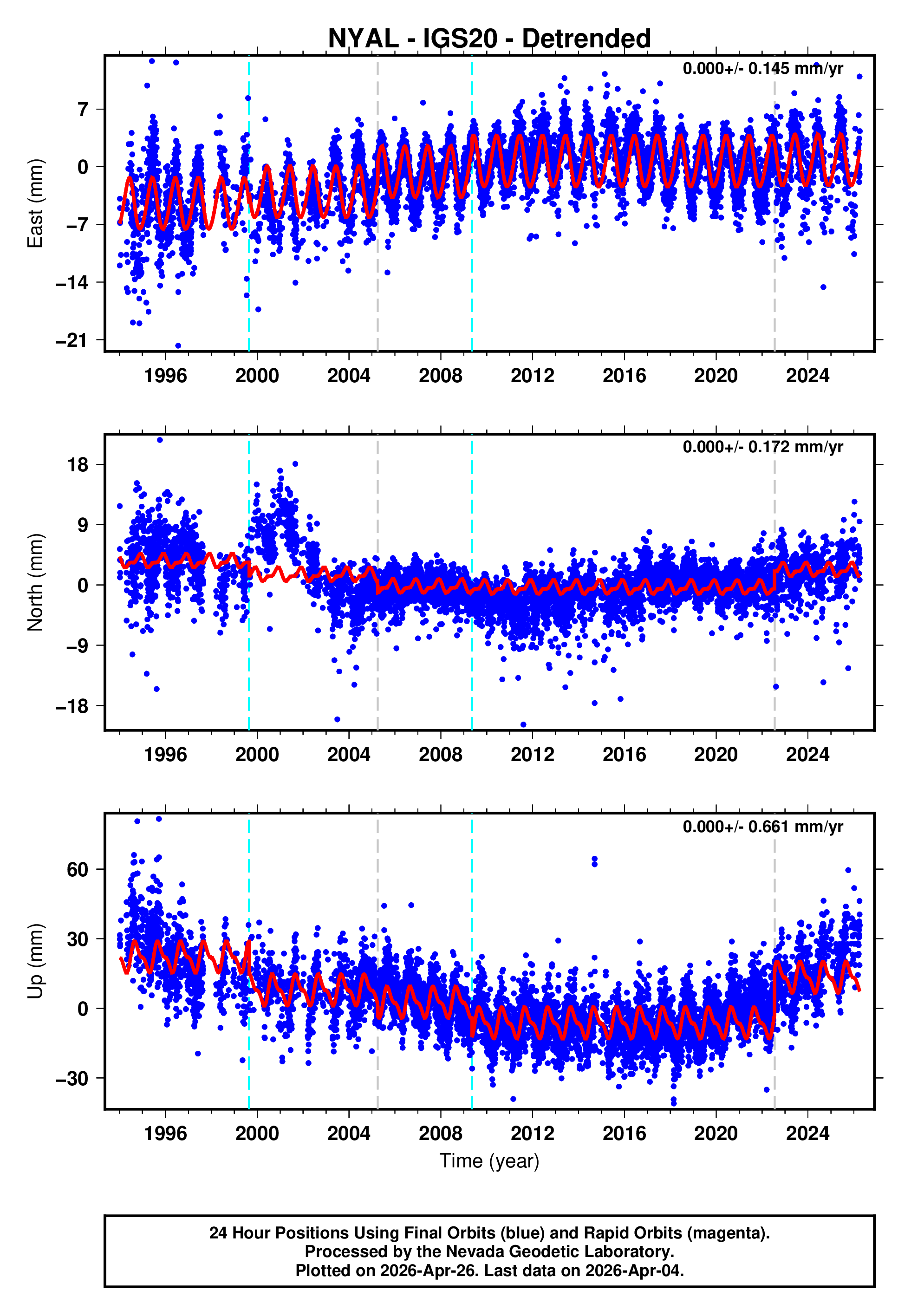

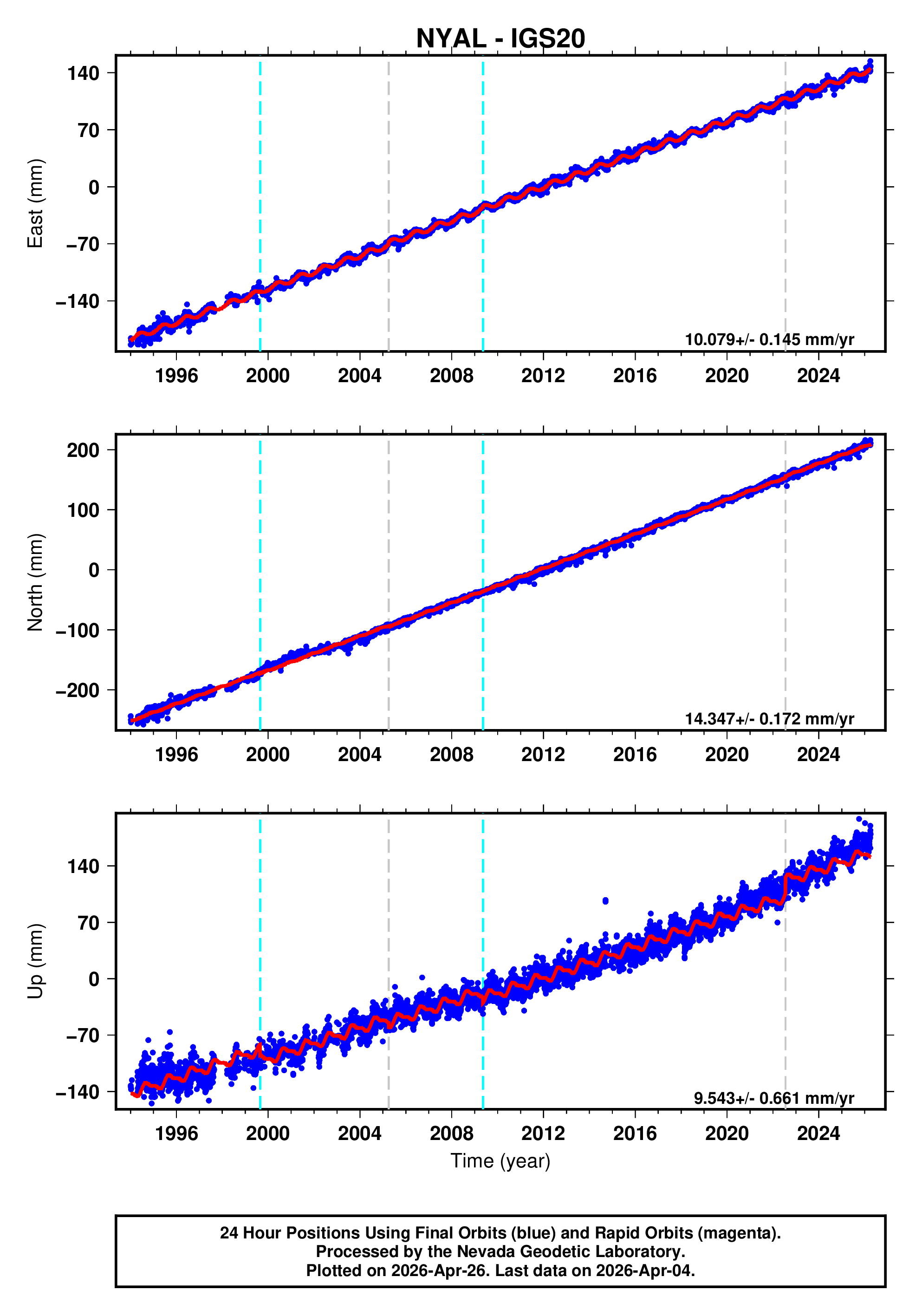

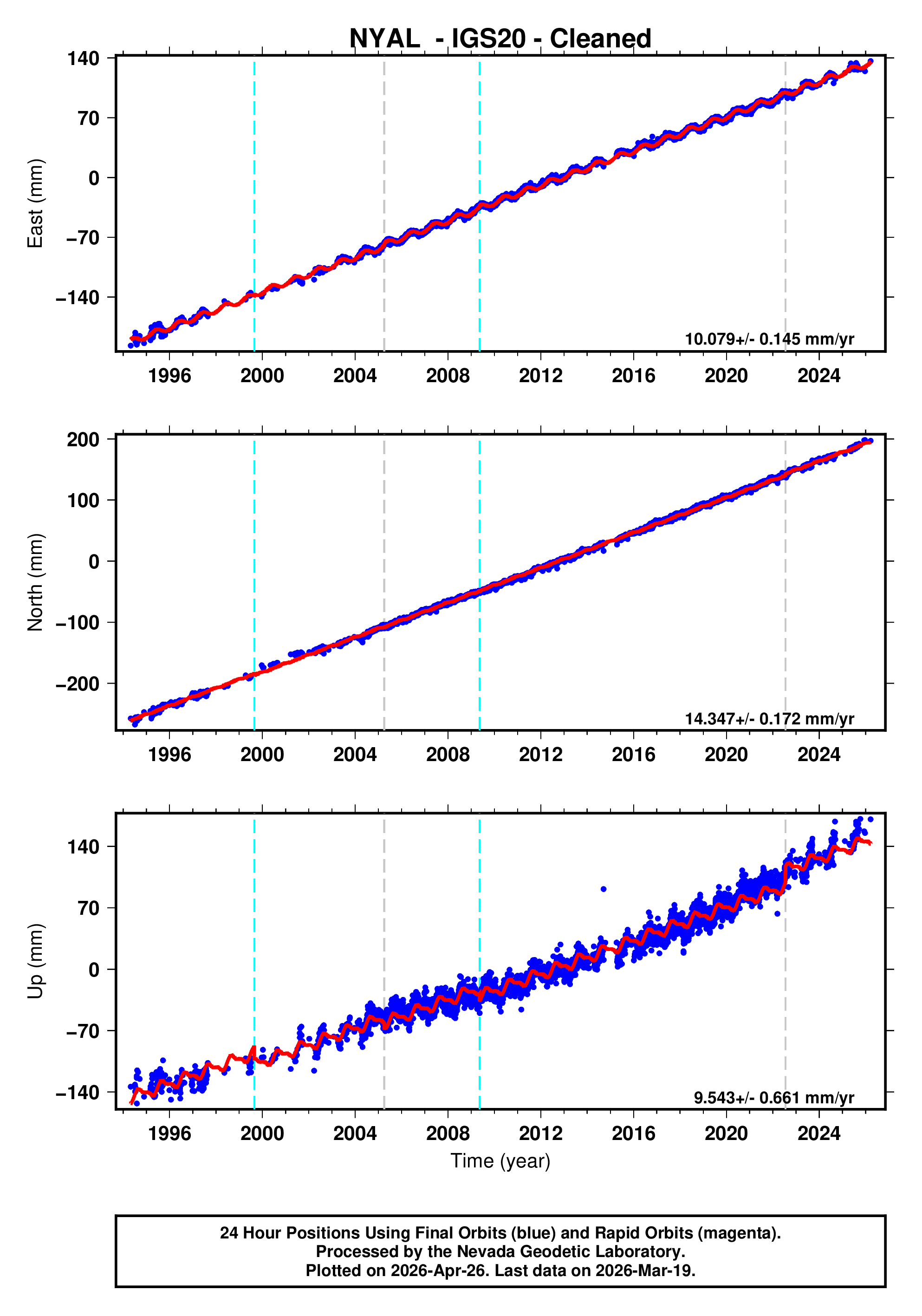

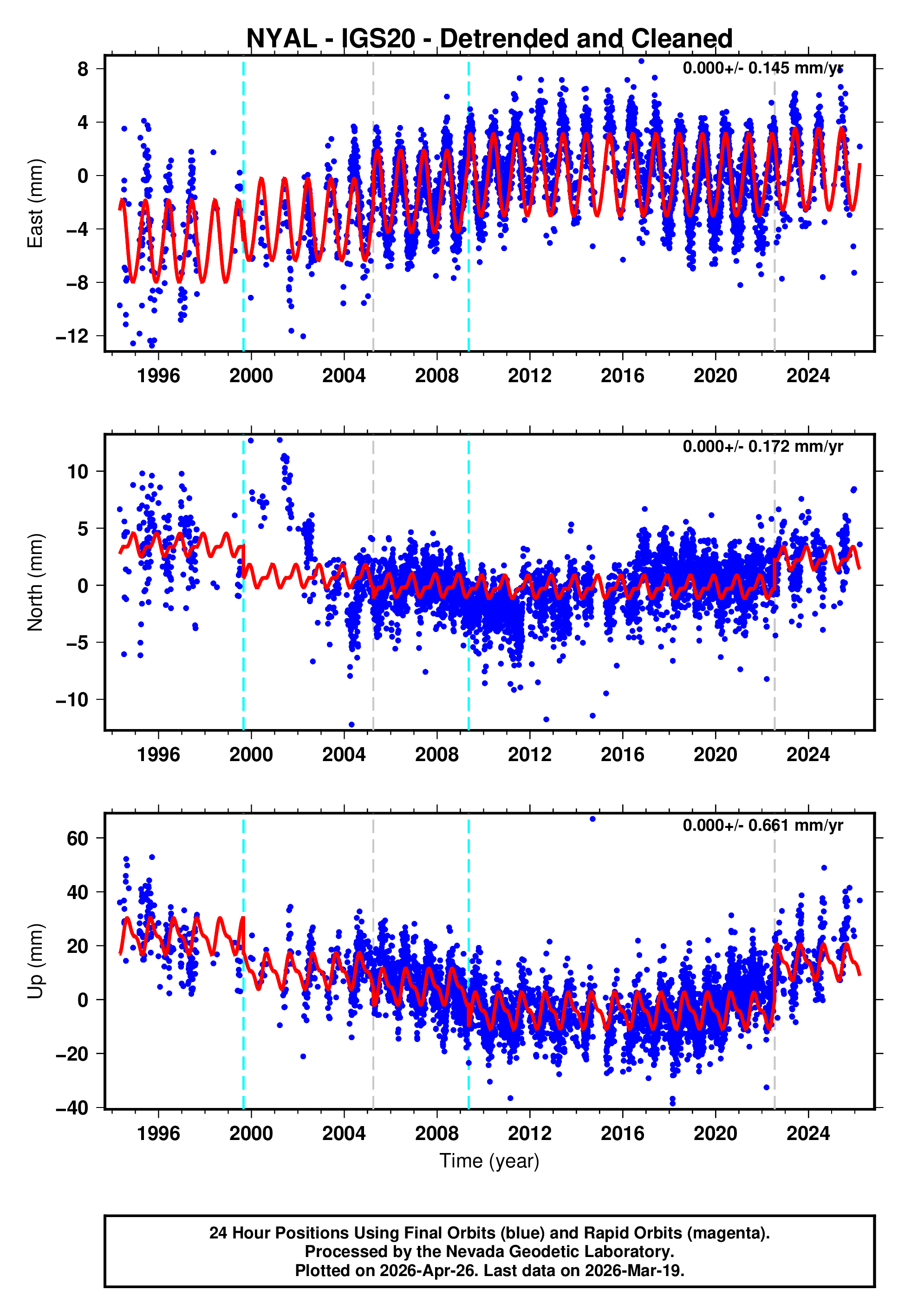

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
NYAL99AUG27 Elevation_Cutoff_Changed - -
NYAL99AUG27 Receiver_Make_and_Model_Changed - -
NYAL09MAY12 Elevation_Cutoff_Changed - -
NYAL09MAY12 Receiver_Make_and_Model_Changed - -
NYAL05APR02 usp000dm0e 6.1 129.9
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
