MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : NEA1

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.

Latitude: 35.261

Longitude: 25.610

Height: 318.128 meters

Time Series Data

(ascii text)
24 Hour Final Solutions


env xyz
env readme xyz readme

QA files

ftp link

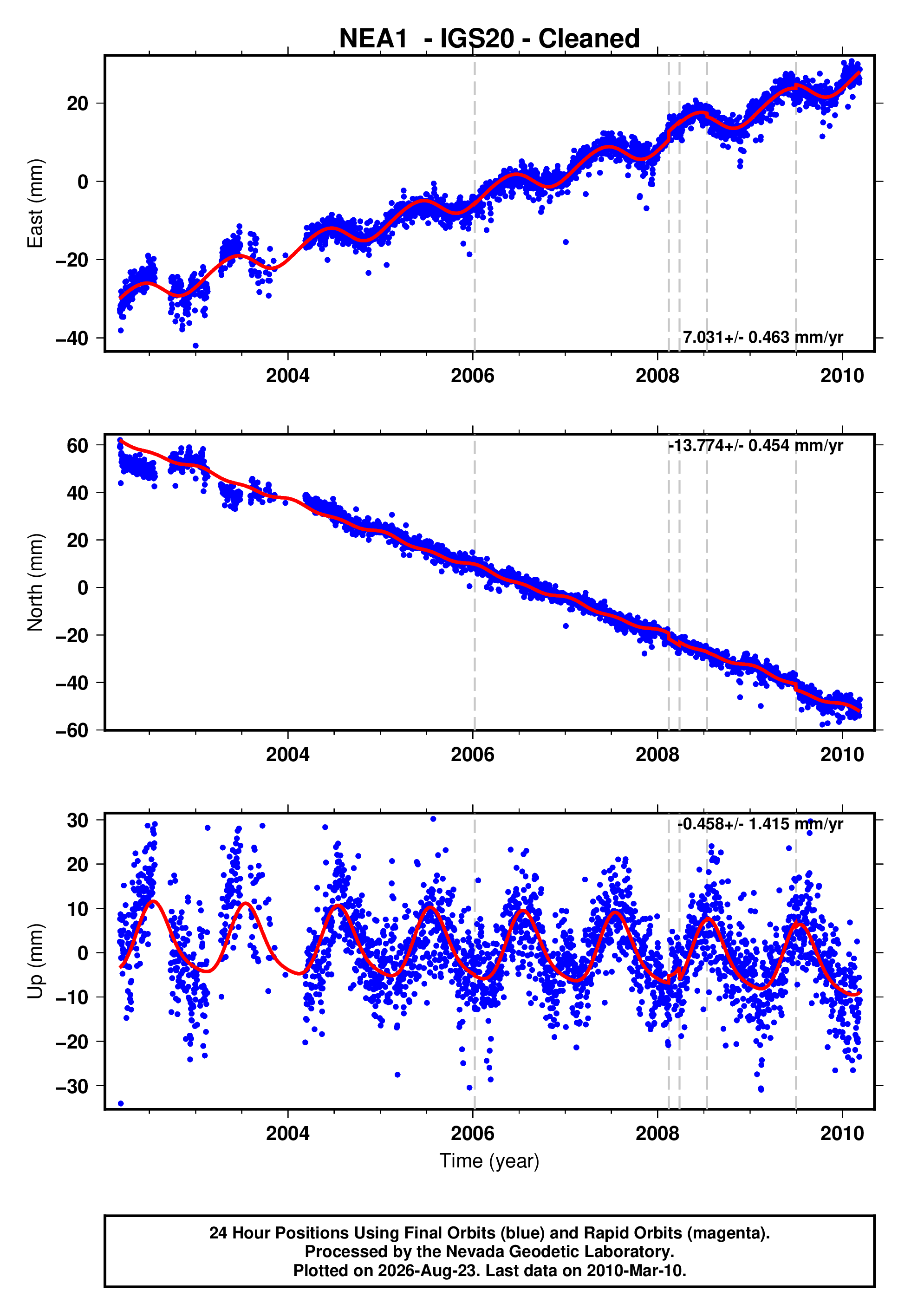

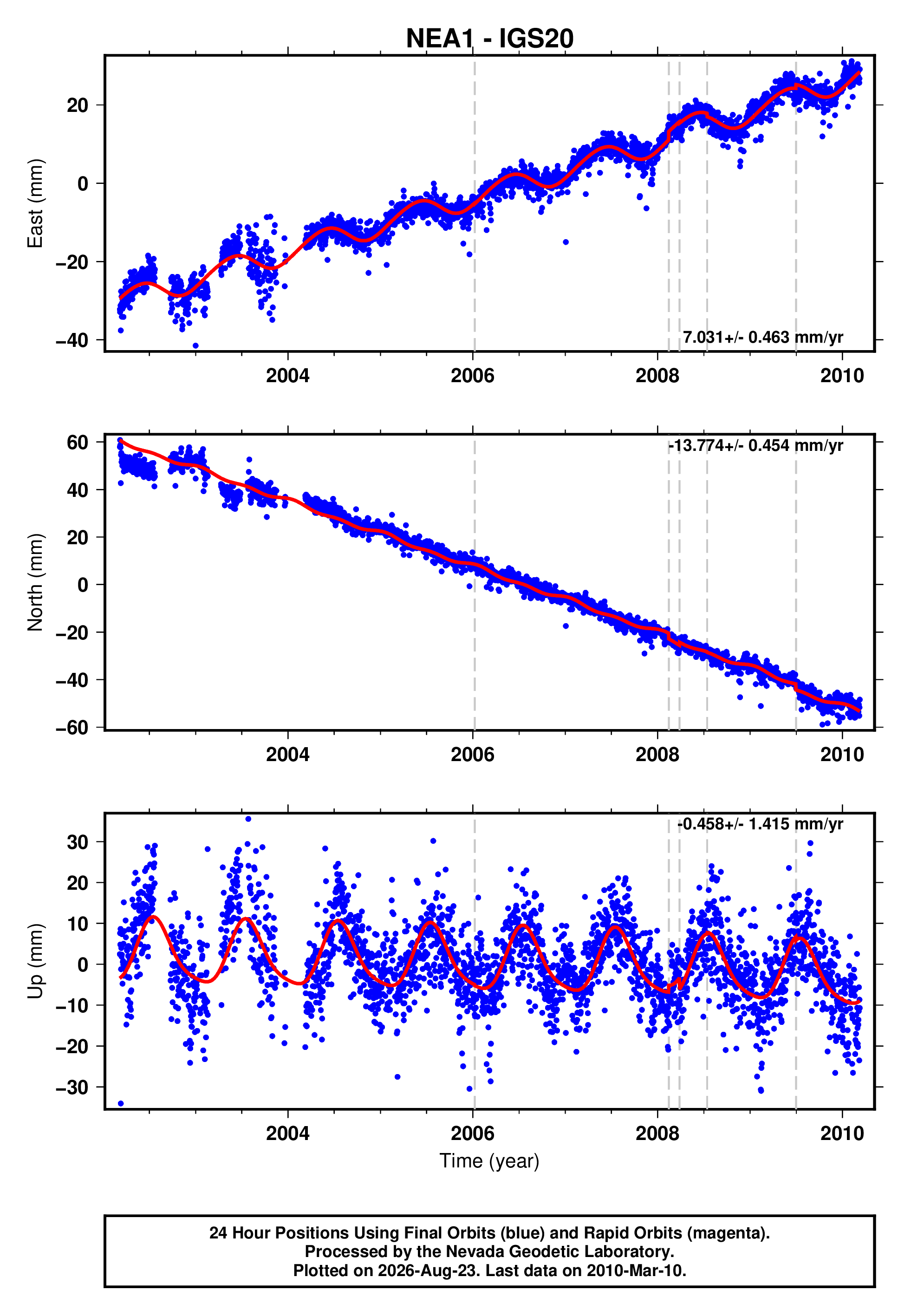

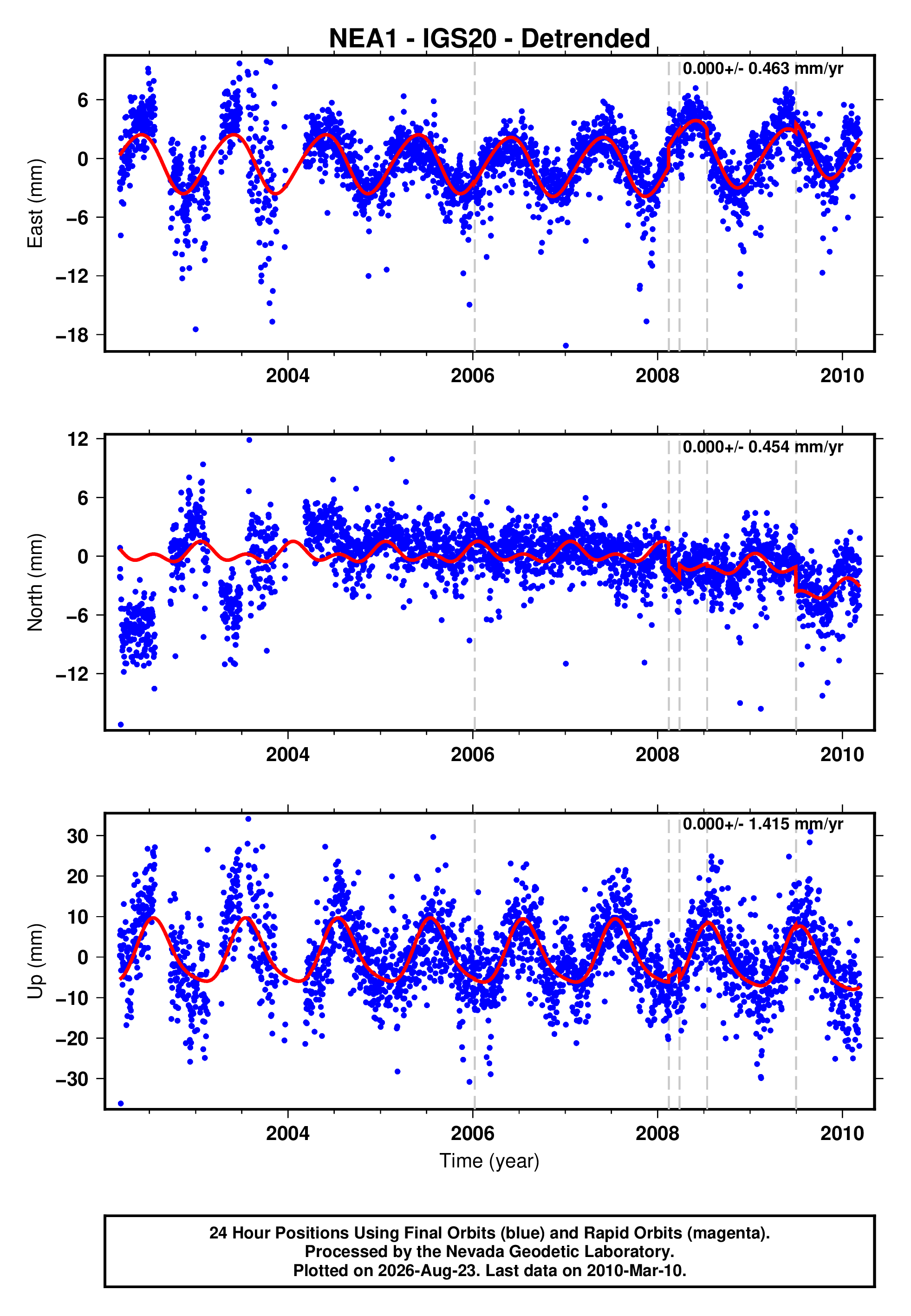

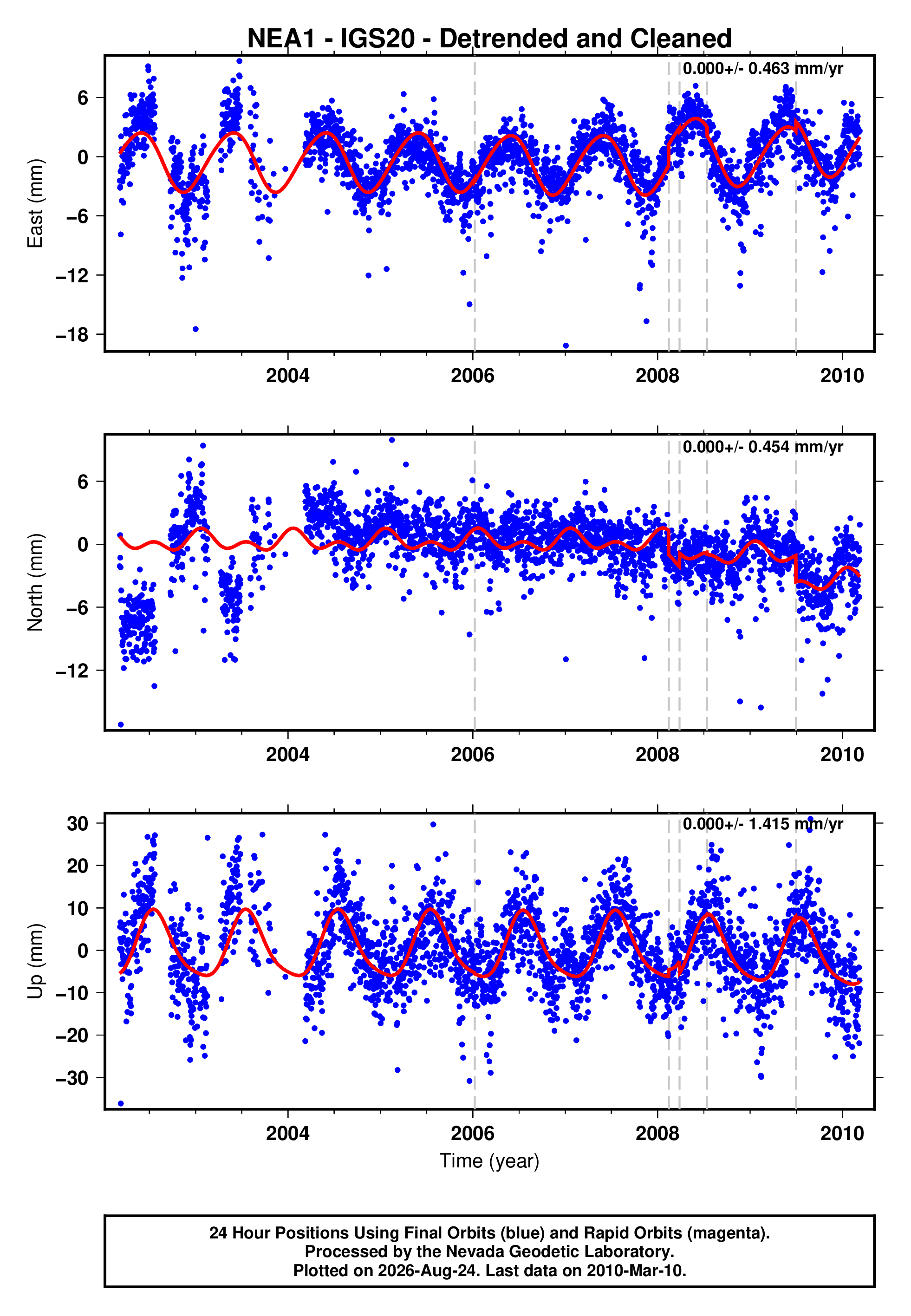

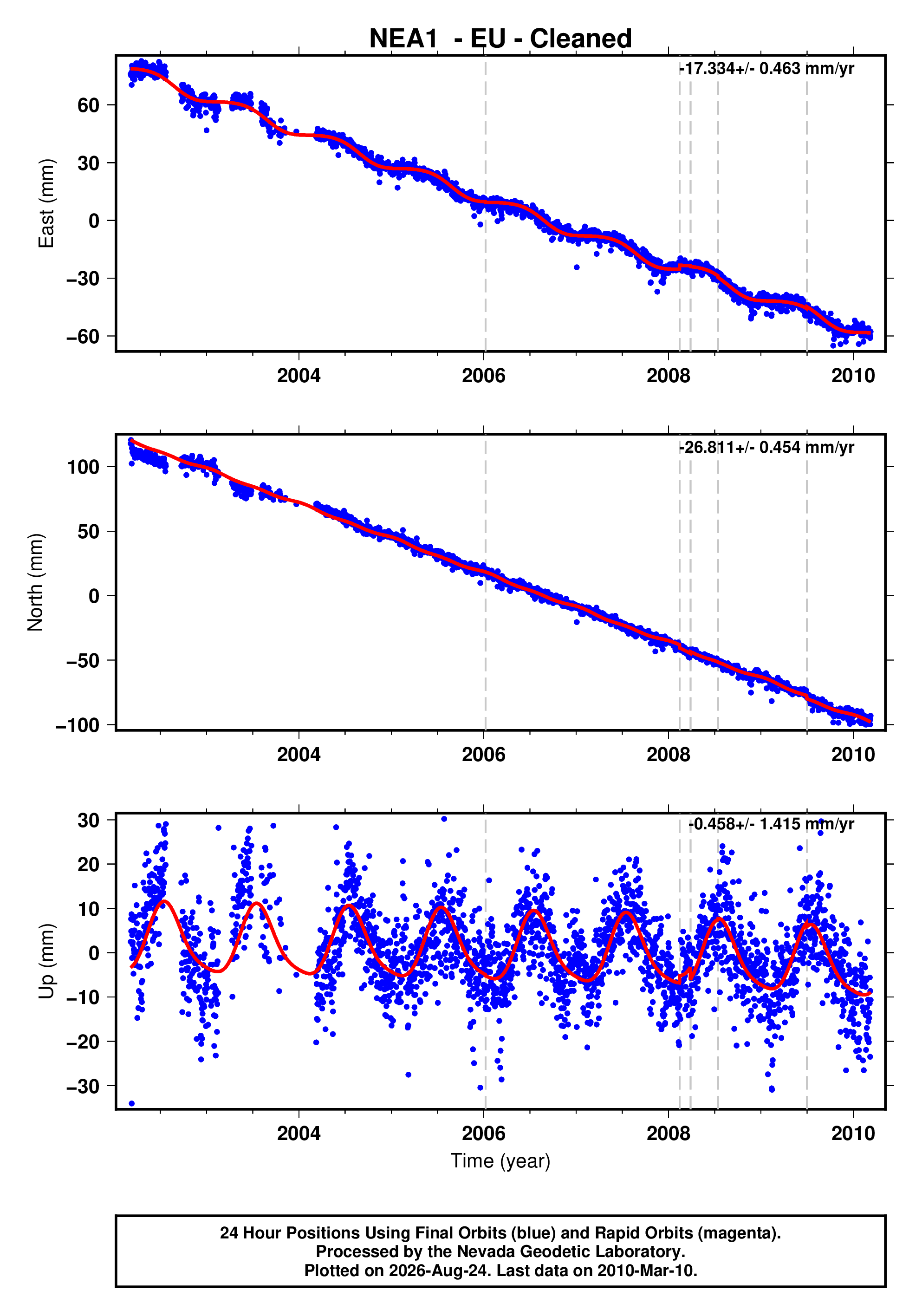

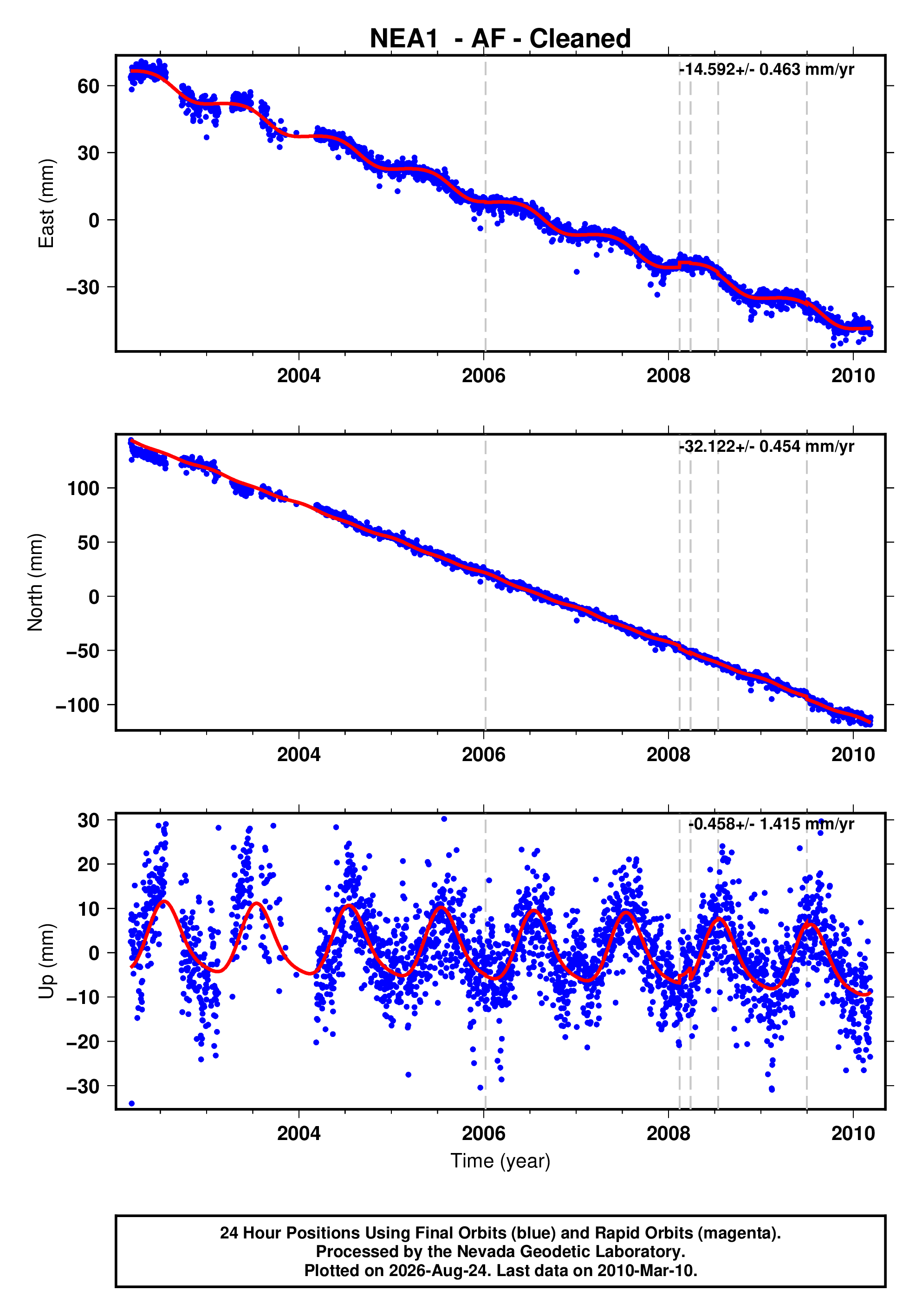

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned
Not Available
Not Available

Steps Information for this station

Station ID Date
Equipment Change Type/
or Event ID
NEA106JAN08 usp000e7u3 6.7 245.8
NEA108FEB14 usp000fyw4 6.9 380.8
NEA108MAR28 usp000g2h6 5.6 61.0
NEA108JUL15 usp000gc72 6.4 212.2
NEA109JUL01 usp000gytt 6.4 122.7
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
