MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : LMNL

Station operator information from: RINEX headers

Data attribution information from: UNAVCO DOI Database

from DOI link: https://doi.org/10.7283/T51V5C3J

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 10.268 degrees

Longitude: -85.053 degrees

Height: 103.004 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

NA

env

PM

env

24 Hour Rapid Solutions

IGS14

env

NA

env

PM

env

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

PUMO

24.48 km

PUJE

29.44 km

CABA

31.92 km

LEPA

35.90 km

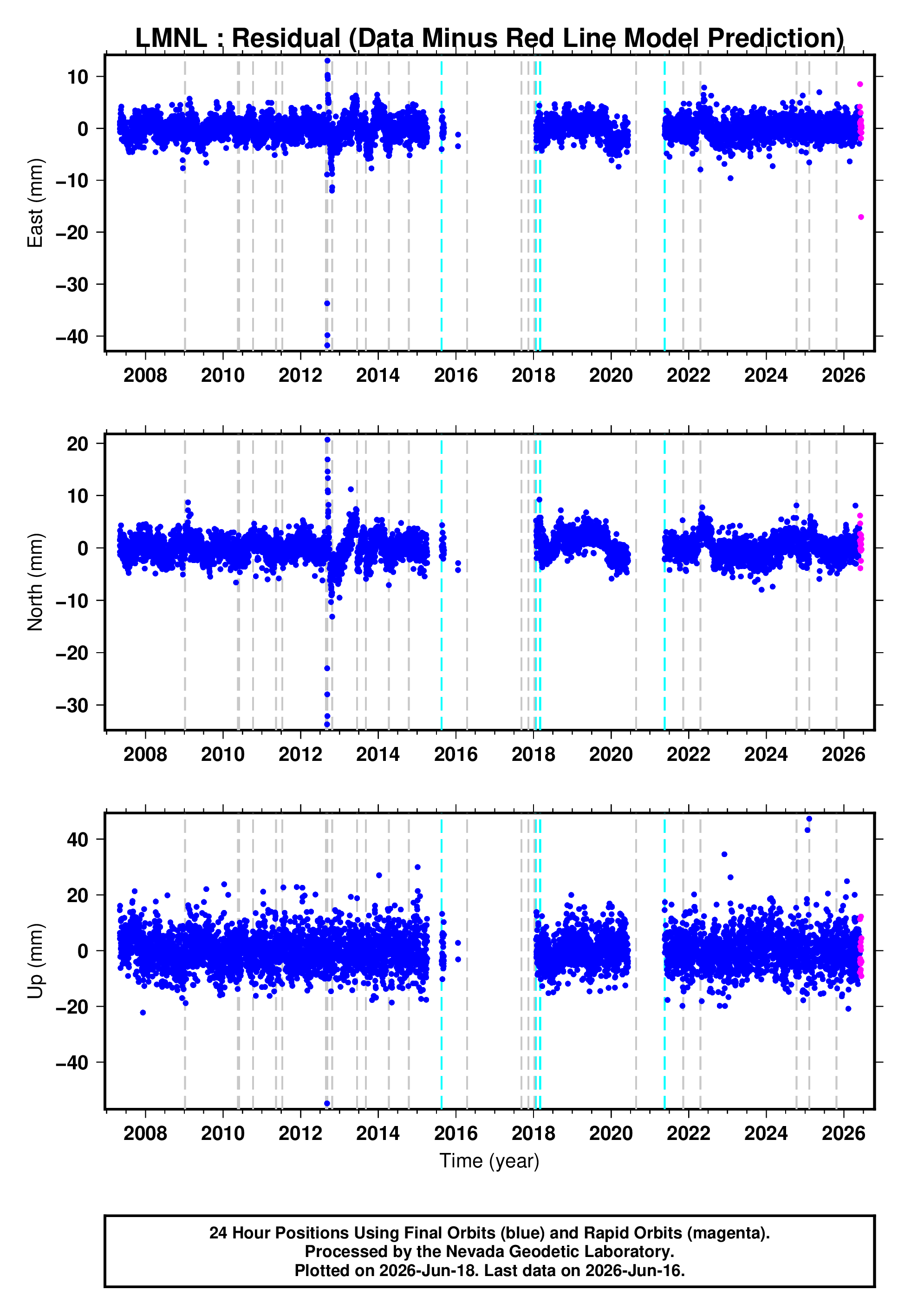

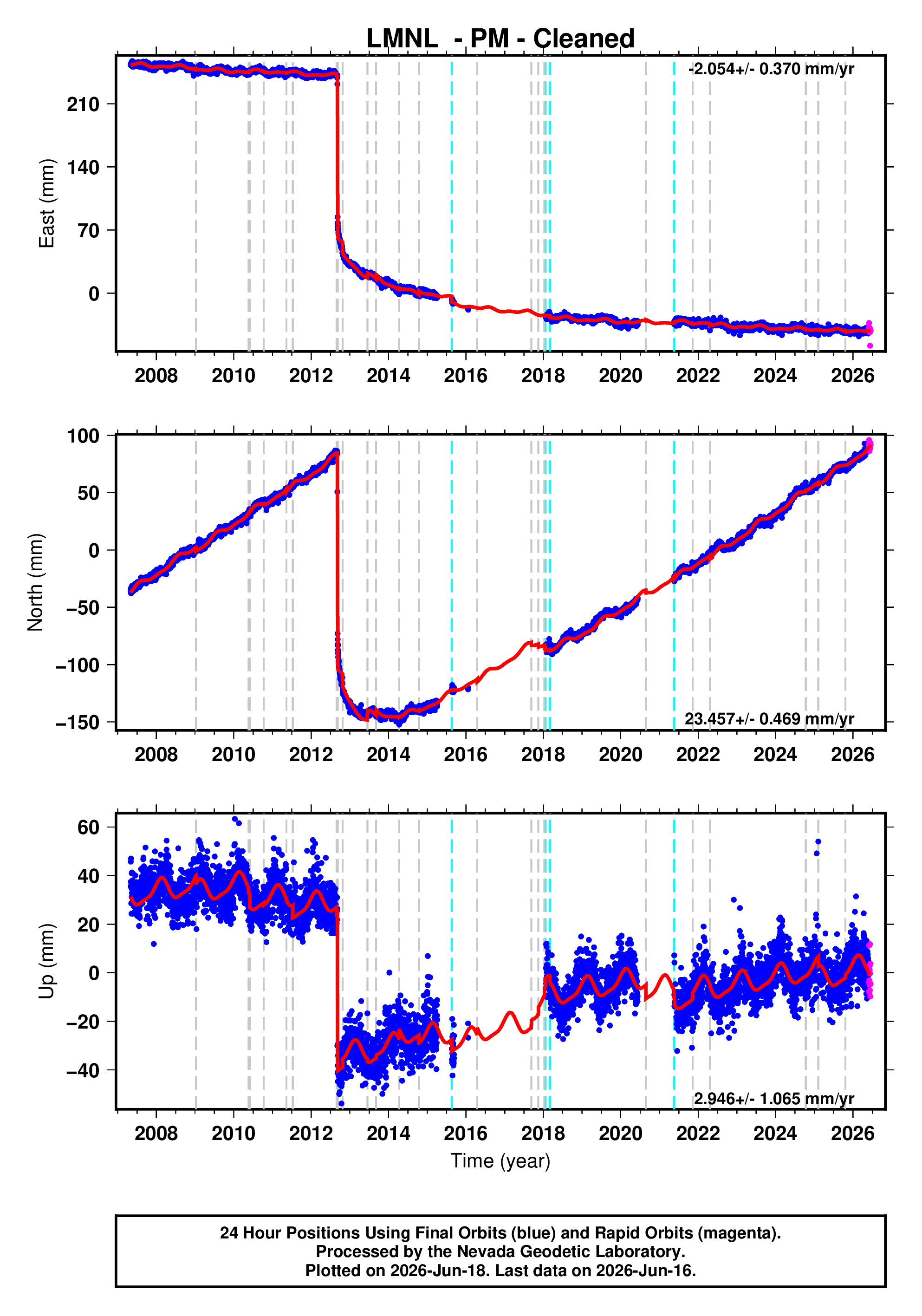

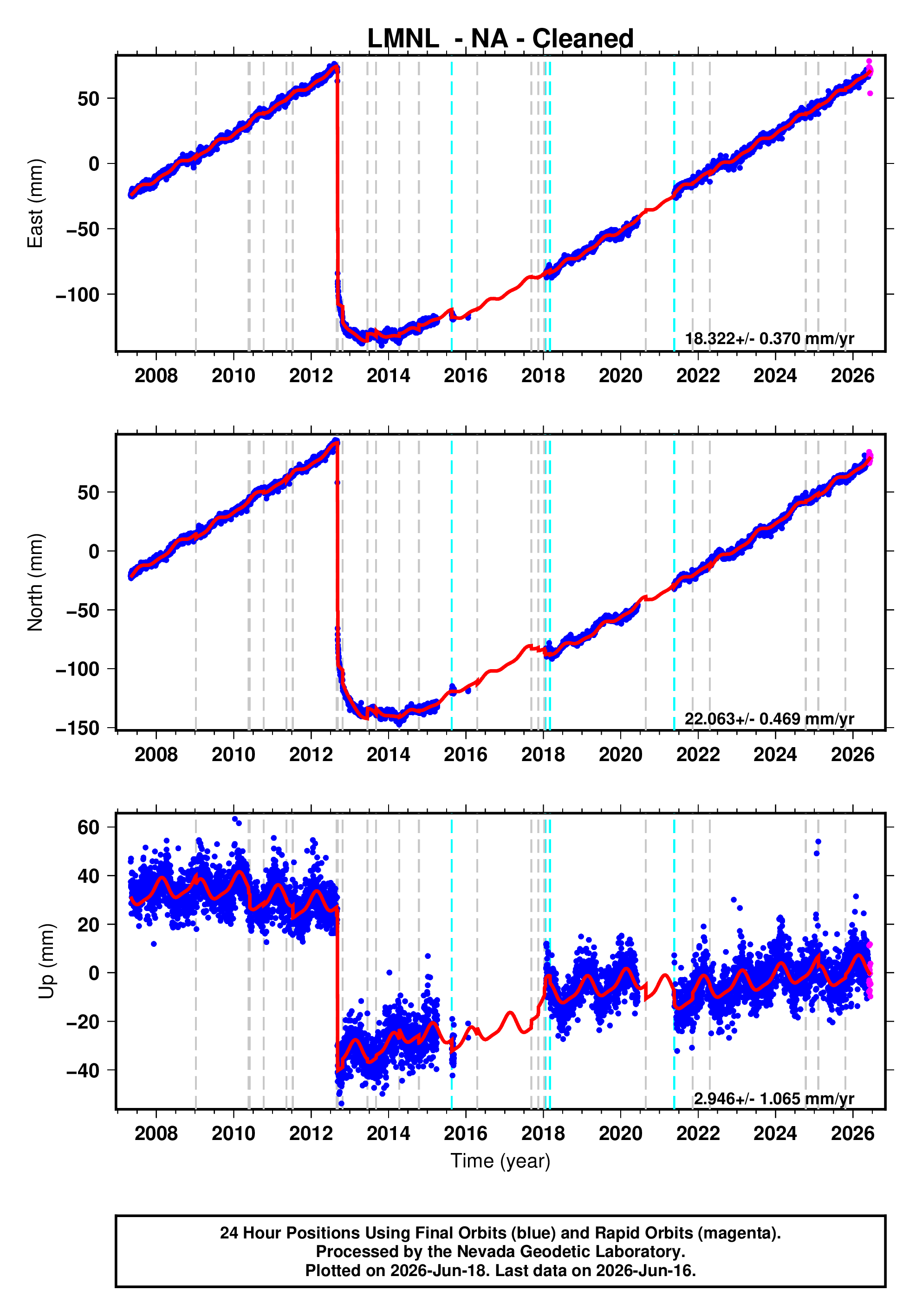

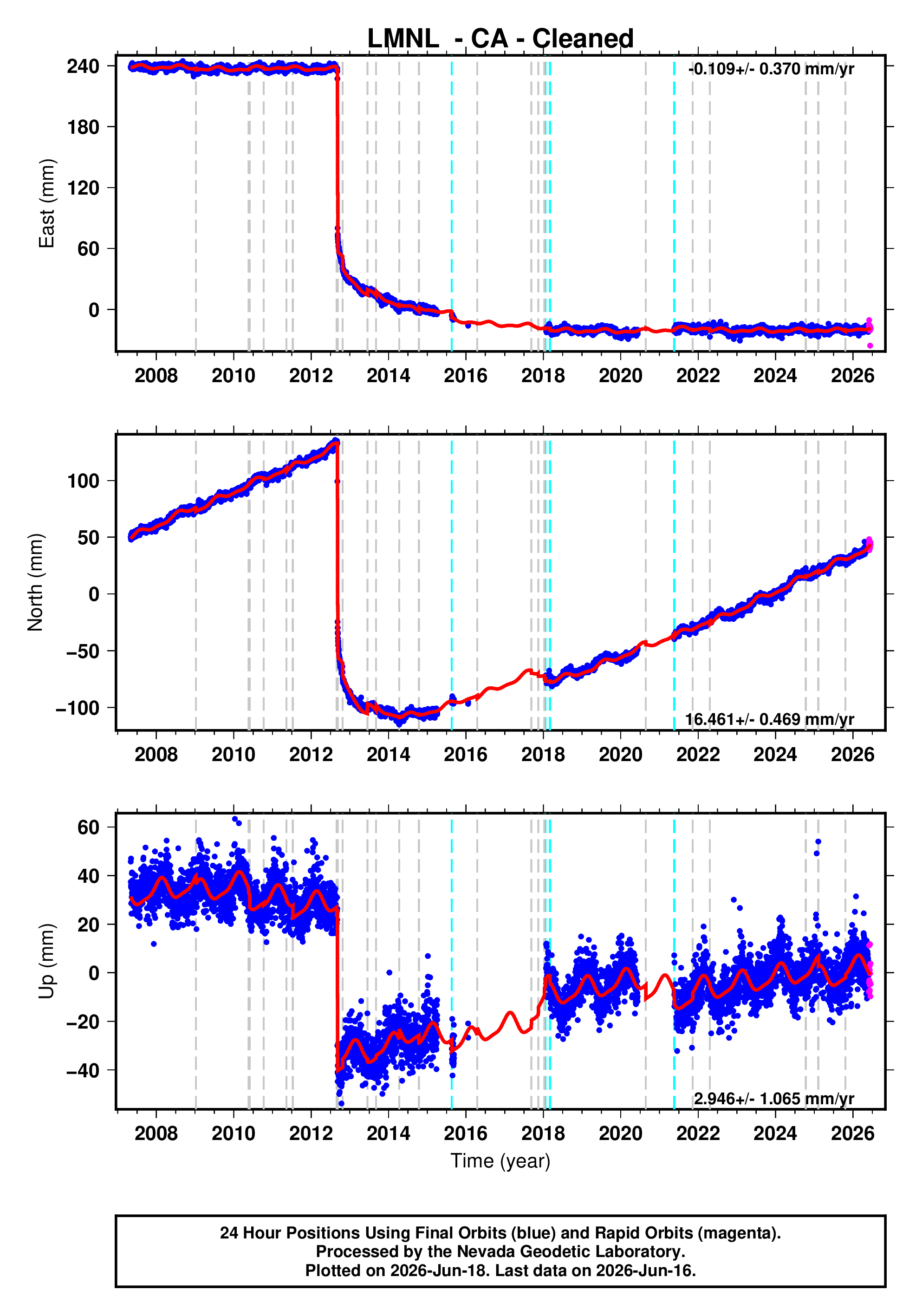

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

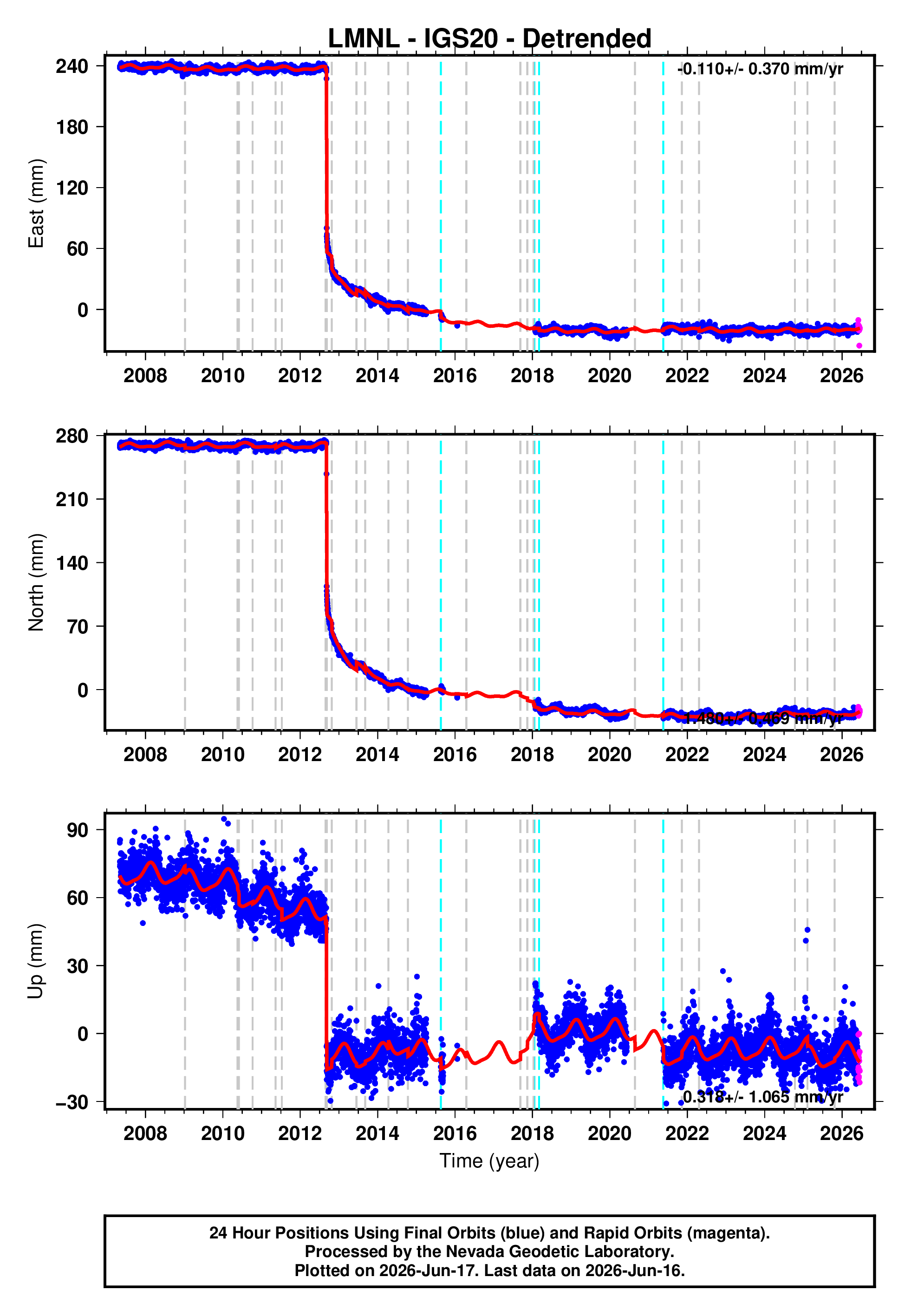

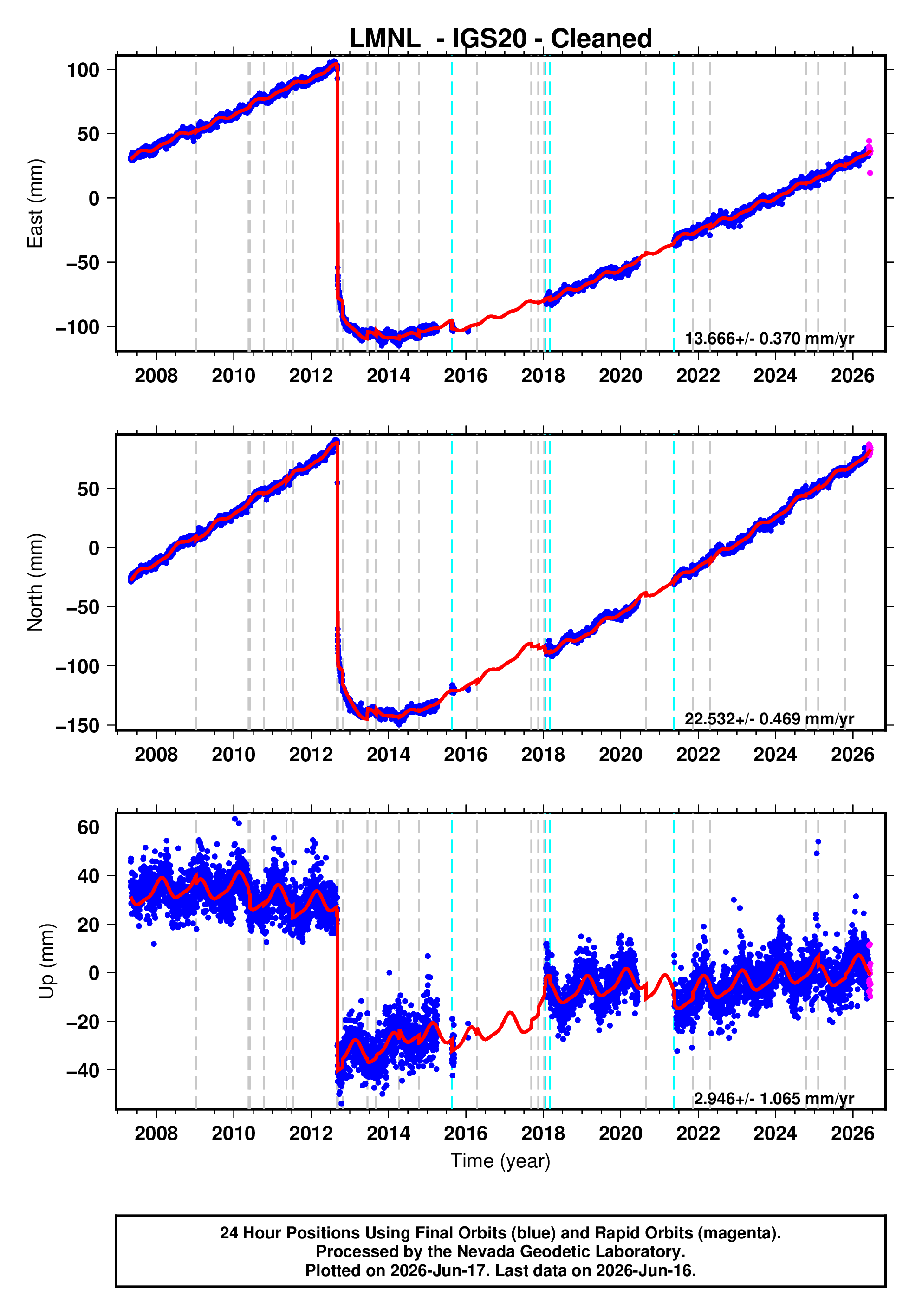

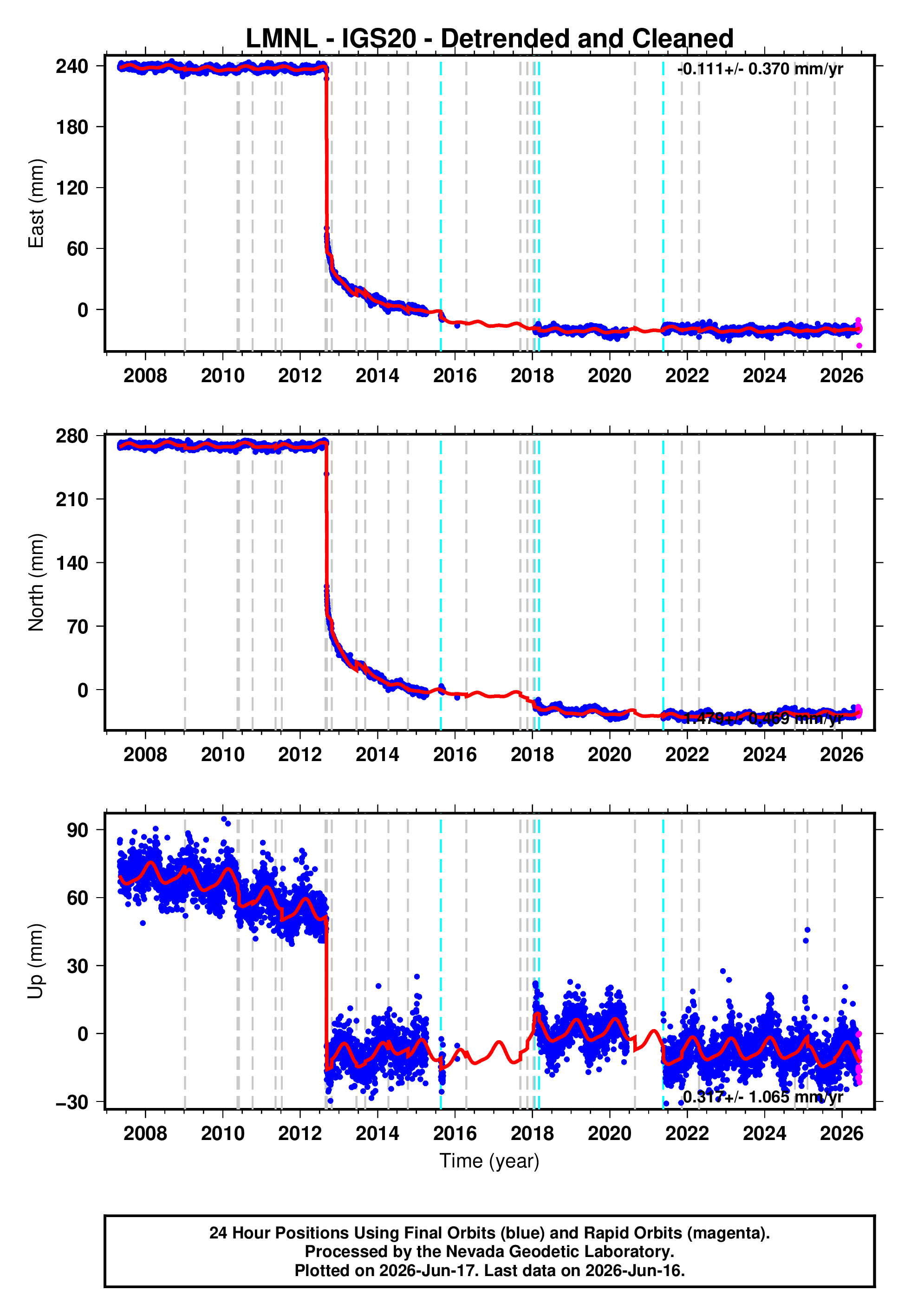

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
LMNL15AUG20 Antenna_Code_Changed - -
LMNL18JAN19 Receiver_Make_and_Model_Changed - -
LMNL18MAR04 Radome_Code_Changed - -
LMNL21MAY19 Radome_Code_Changed - -
LMNL09JAN08 usp000gscg 6.1 94.4
LMNL10MAY20 usp000hczt 5.9 140.2
LMNL10JUN01 usp000hdem 6.0 139.5
LMNL10OCT09 usp000hmvg 5.8 83.4
LMNL11MAY13 usp000j1jg 5.9 88.2
LMNL11JUL12 usp000j4s9 5.5 45.2
LMNL12AUG27 usp000jqvm 7.3 438.3
LMNL12SEP05 usp000jrsw 7.6 35.1
LMNL12SEP08 usp000js0m 5.7 36.0
LMNL12OCT24 usp000jucg 6.5 33.5
LMNL13JUN15 usc000hrnr 6.5 263.5
LMNL13SEP05 usb000jigi 5.9 120.2
LMNL14APR11 usc000pgsi 6.6 177.4
LMNL14OCT14 usb000slwn 7.3 418.3
LMNL16APR16 us20005j32 7.8 1237.0
LMNL17SEP08 us2000ahv0 8.2 1095.4
LMNL17NOV13 us2000bmhe 6.5 104.2
LMNL18JAN10 us1000c2zy 7.5 819.1
LMNL20AUG24 us7000bcbv 6.0 89.1
LMNL21NOV09 us7000fskw 6.2 192.6
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
