MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : LLFN

Data attribution information: DOI Database

DOI link for this station: https://doi.org/10.7283/T5FF3QDJ

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: -39.333 degrees

Longitude: -71.789 degrees

Height: 389.759 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

SA

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

New!: Loading Predictions.
See this README file for explanation.

IGS14

tenv3 file with extra columns

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format,
Loading triplet enhanced tenv3 files
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

CRRH

38.91 km

VLAN

46.09 km

PGLL

58.20 km

TMCO

95.21 km

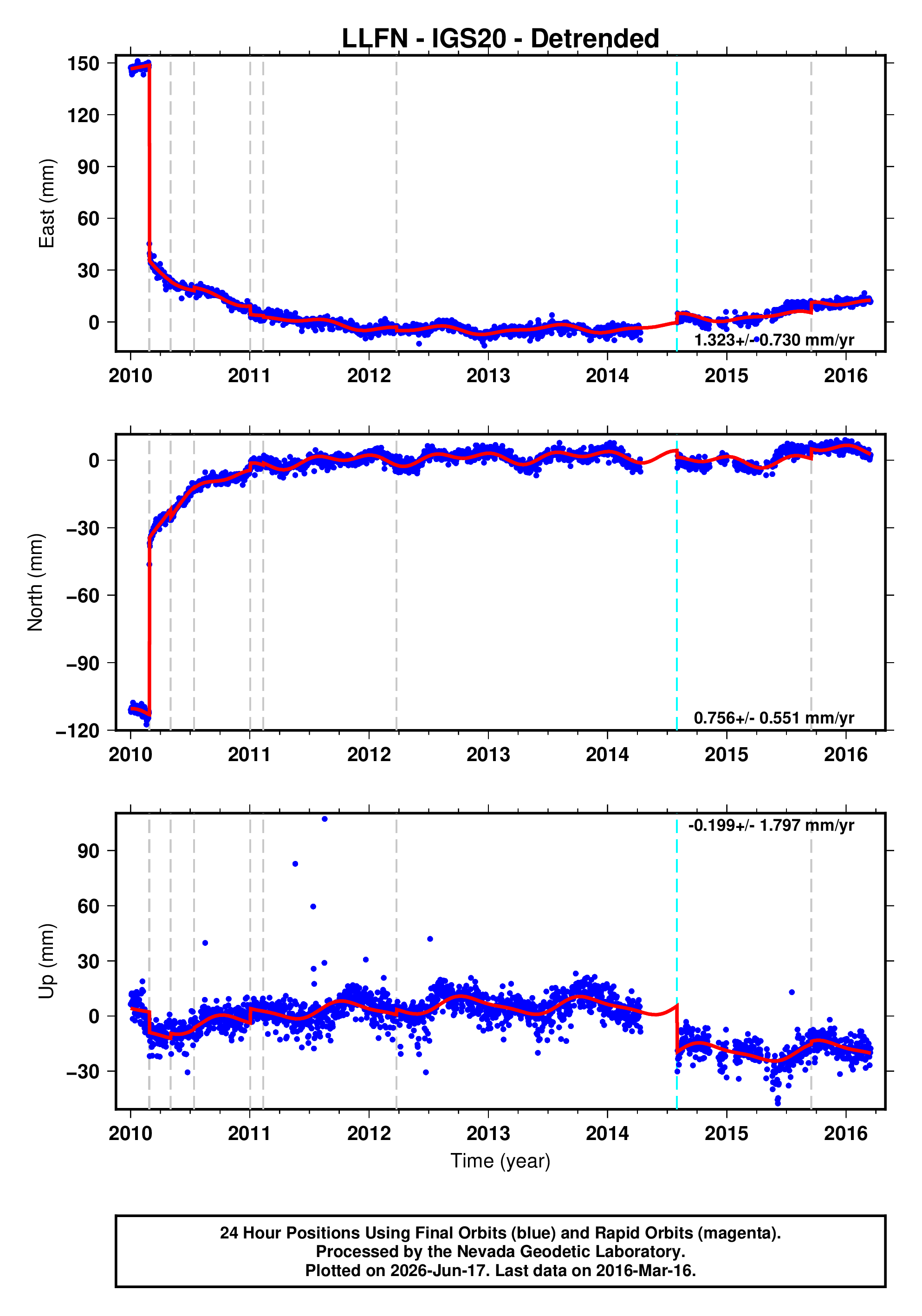

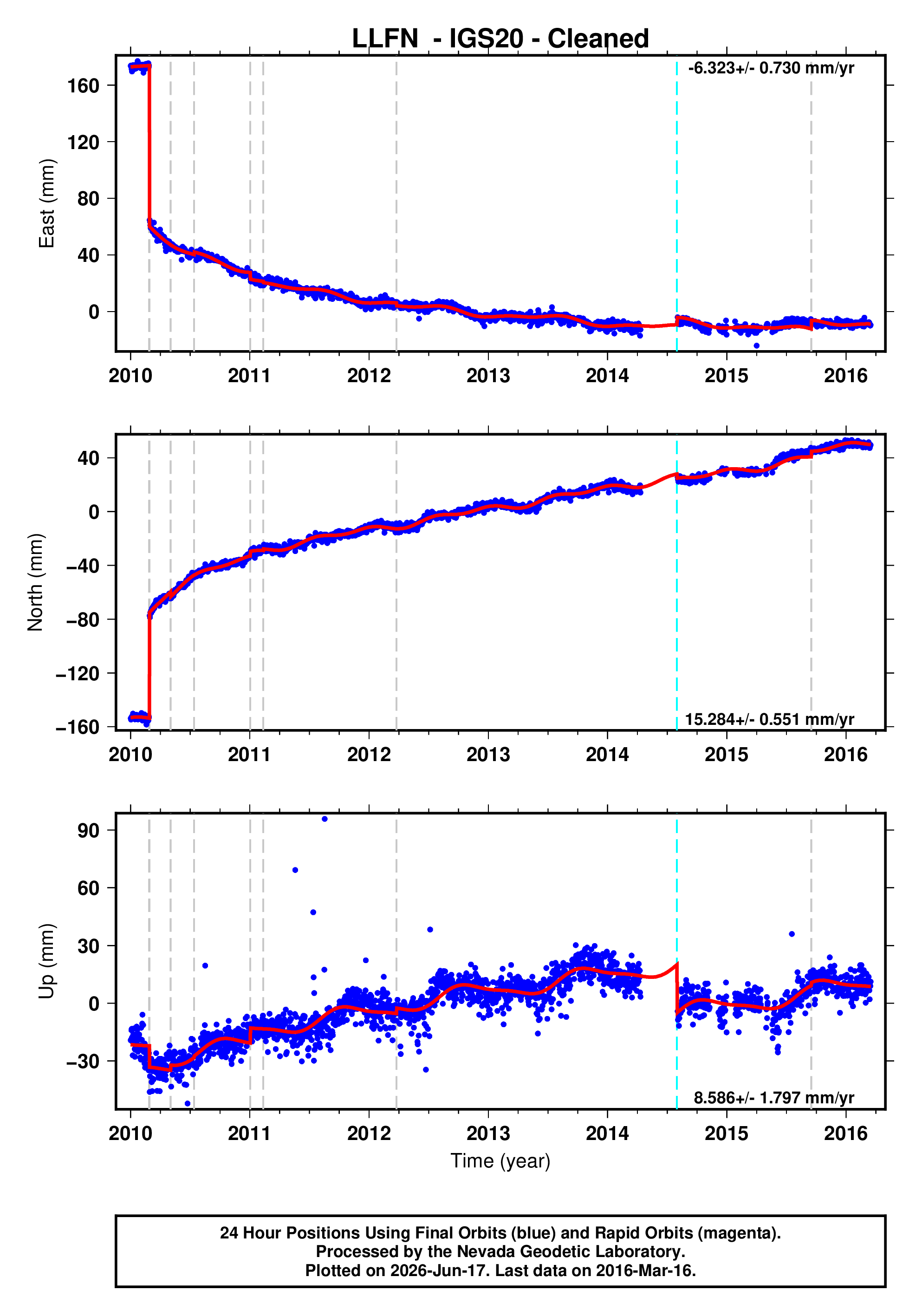

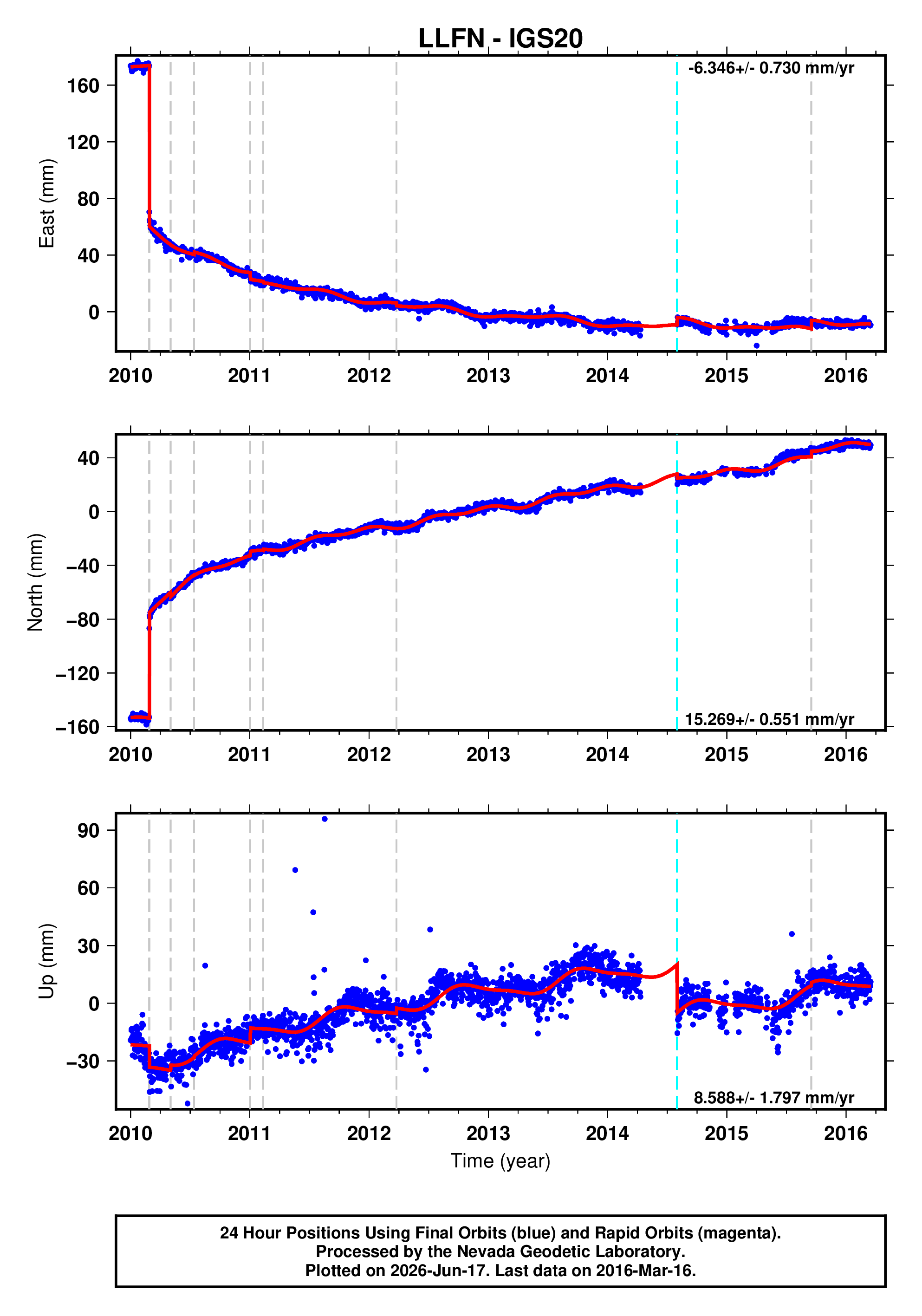

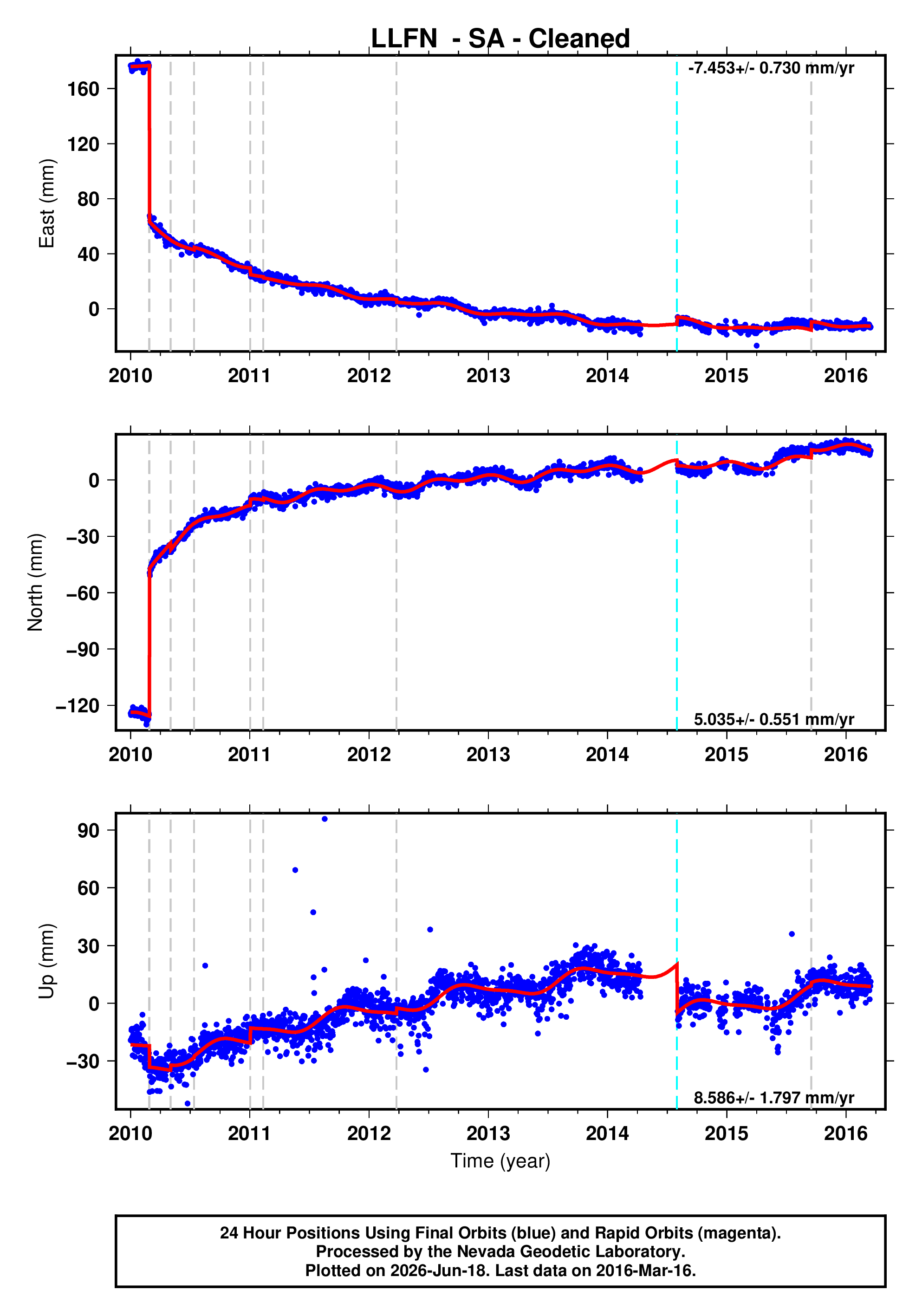

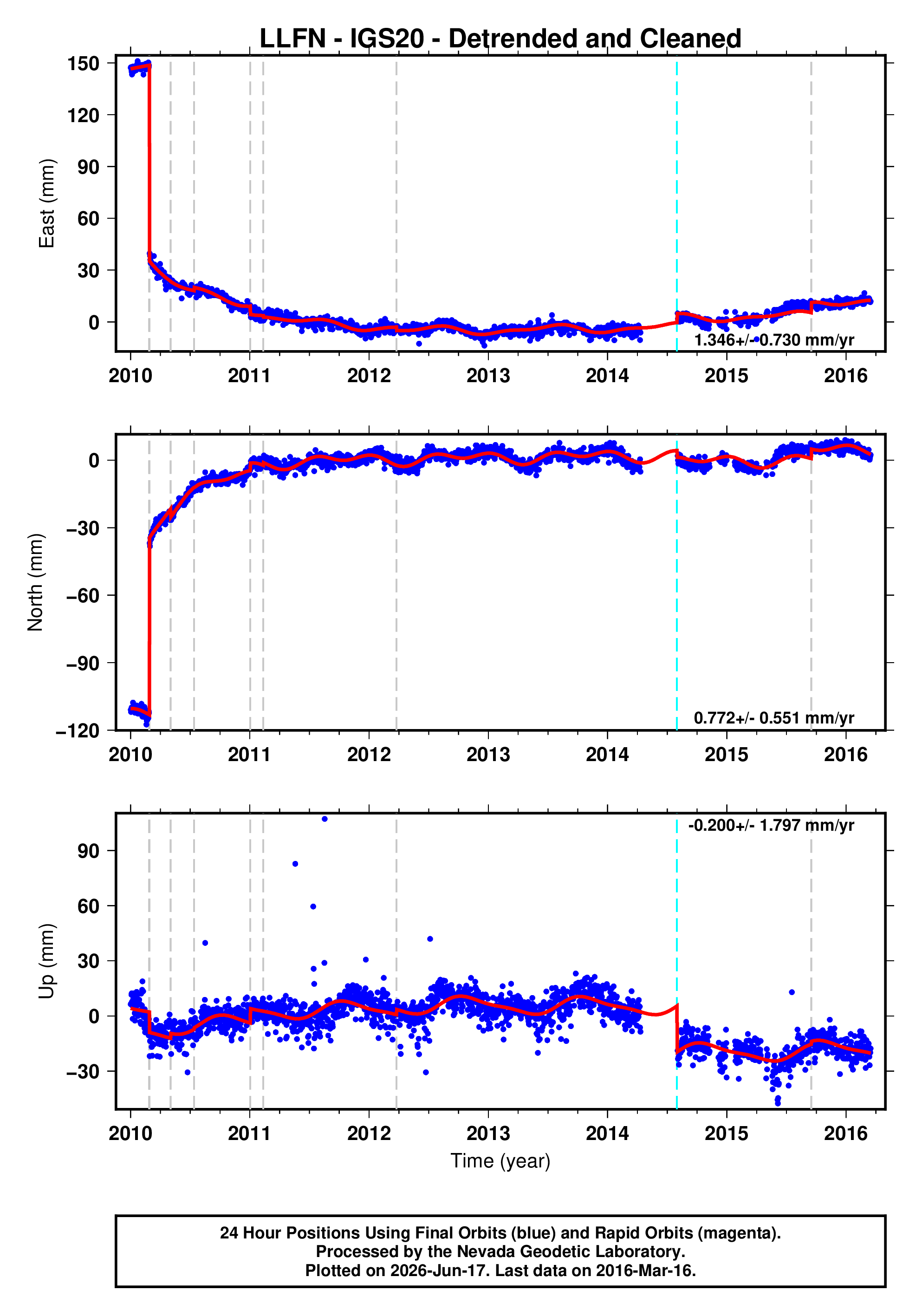

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot
Load prediction plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
LLFN14AUG01 Antenna_Code_Changed - -
LLFN10FEB27 official20100227063411530_30 8.8 370.1
LLFN10FEB27 usp000h7sq 7.4 332.2
LLFN10MAY03 usp000hc9m 6.3 201.3
LLFN10JUL14 usp000hf8z 6.6 193.0
LLFN11JAN02 usp000hsfq 7.2 171.9
LLFN11FEB11 usp000huc2 6.9 339.6
LLFN12MAR25 usp000jgsw 7.1 461.1
LLFN15SEP16 us20003k7a 8.3 863.0
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
