MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : LEVN

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.

Latitude: -40.589

Longitude: 175.241

Height: 96.218 meters

Time Series Data

(ascii text)
24 Hour Final Solutions


env xyz
24 Hour Rapid Solutions

FID (~IGS08)

env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)


ftp link

Ultra Rapid 5 Minute Solutions

Available Next Hour
(1-2 hr. latency)


ftp link

Cite this product as: Blewitt et al.,(2018).

See this link for suggested full citation text.

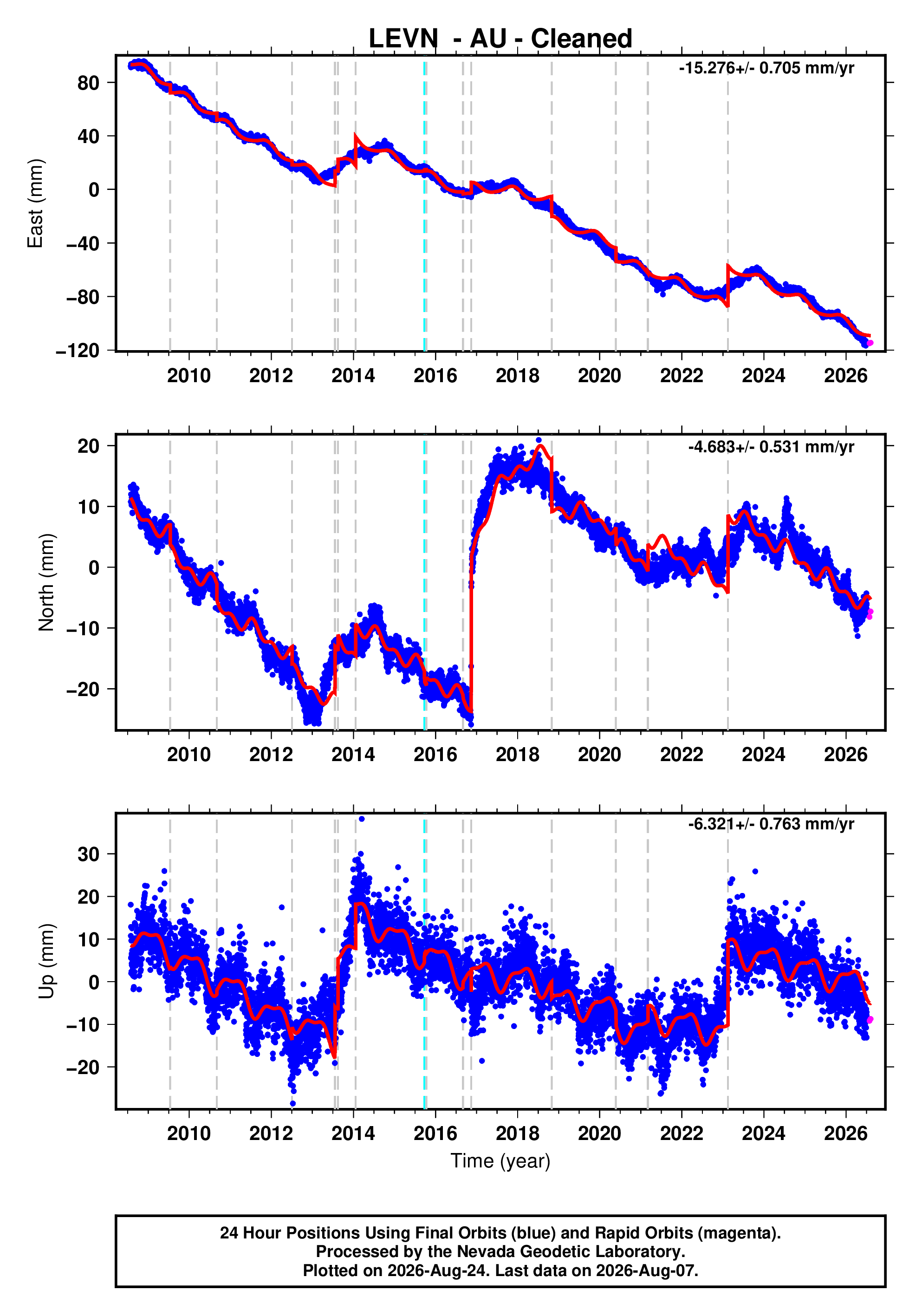

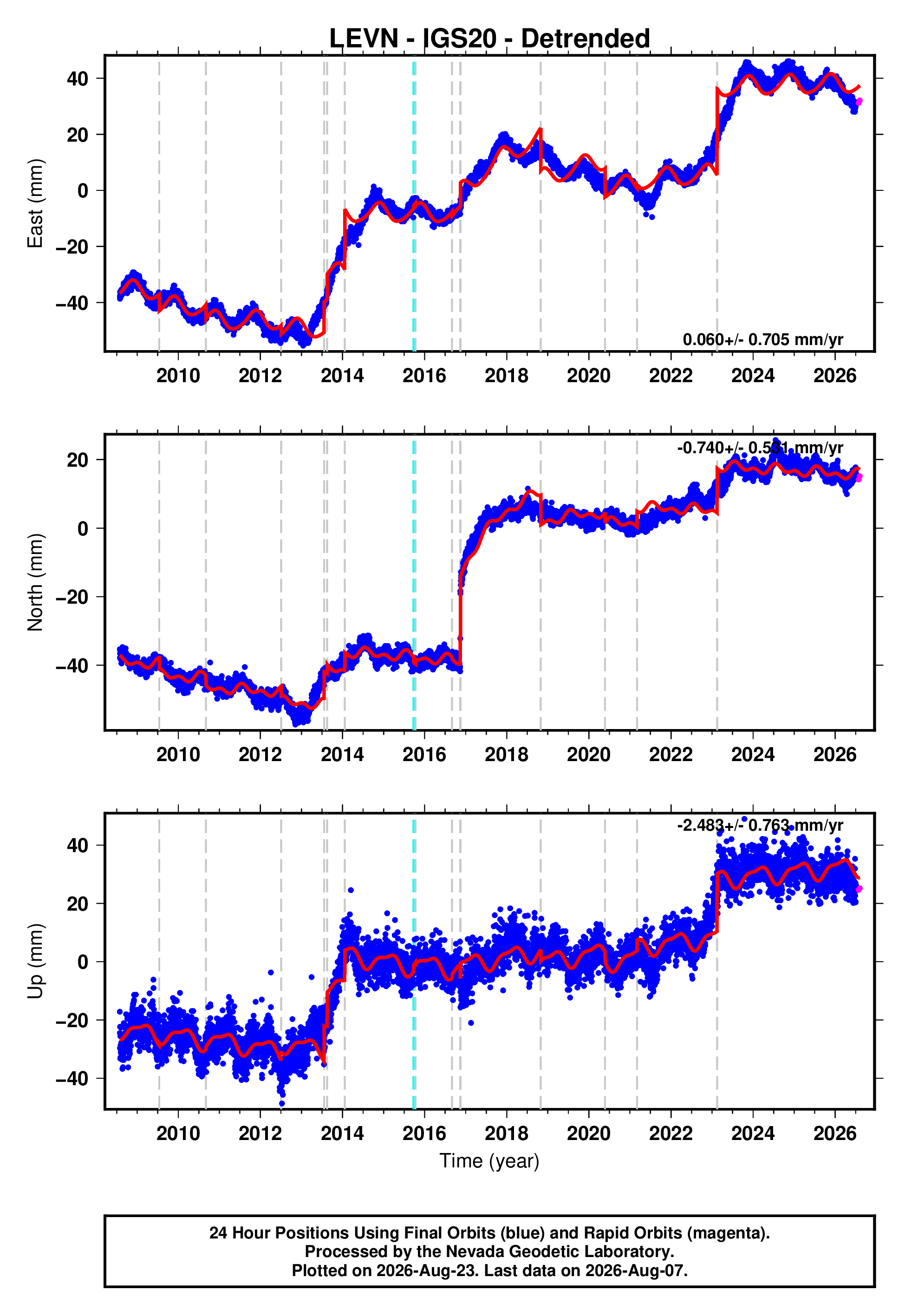

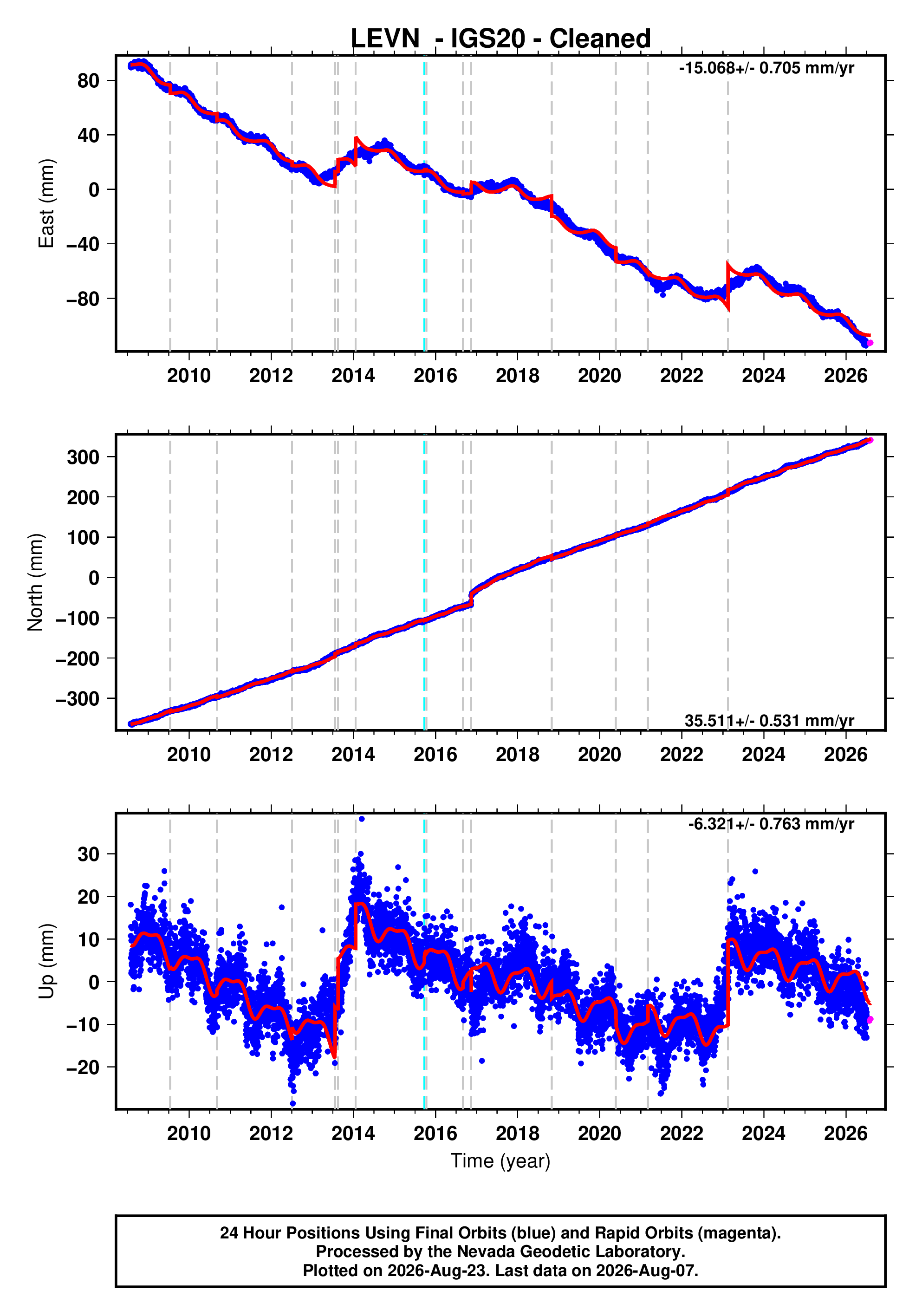

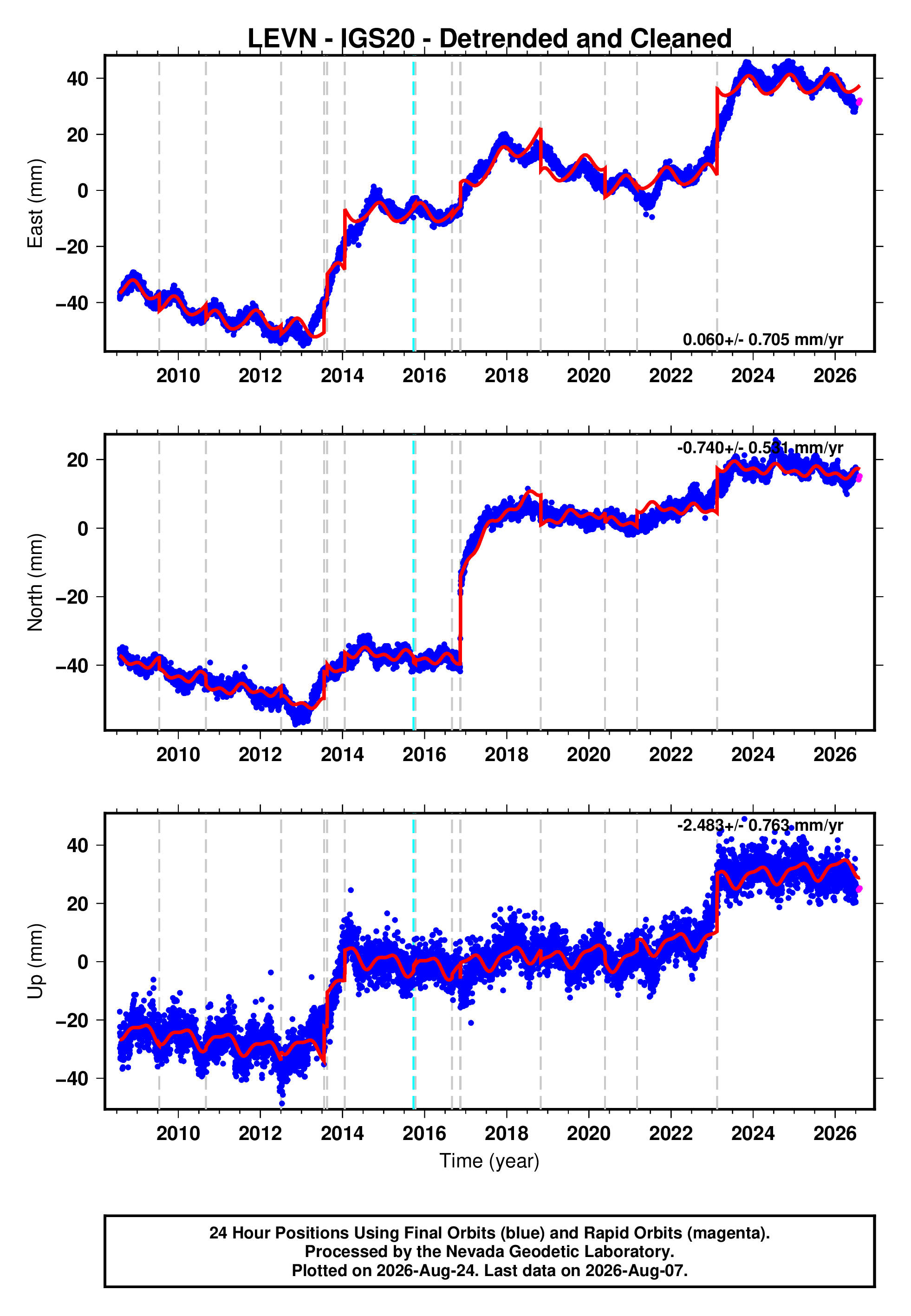

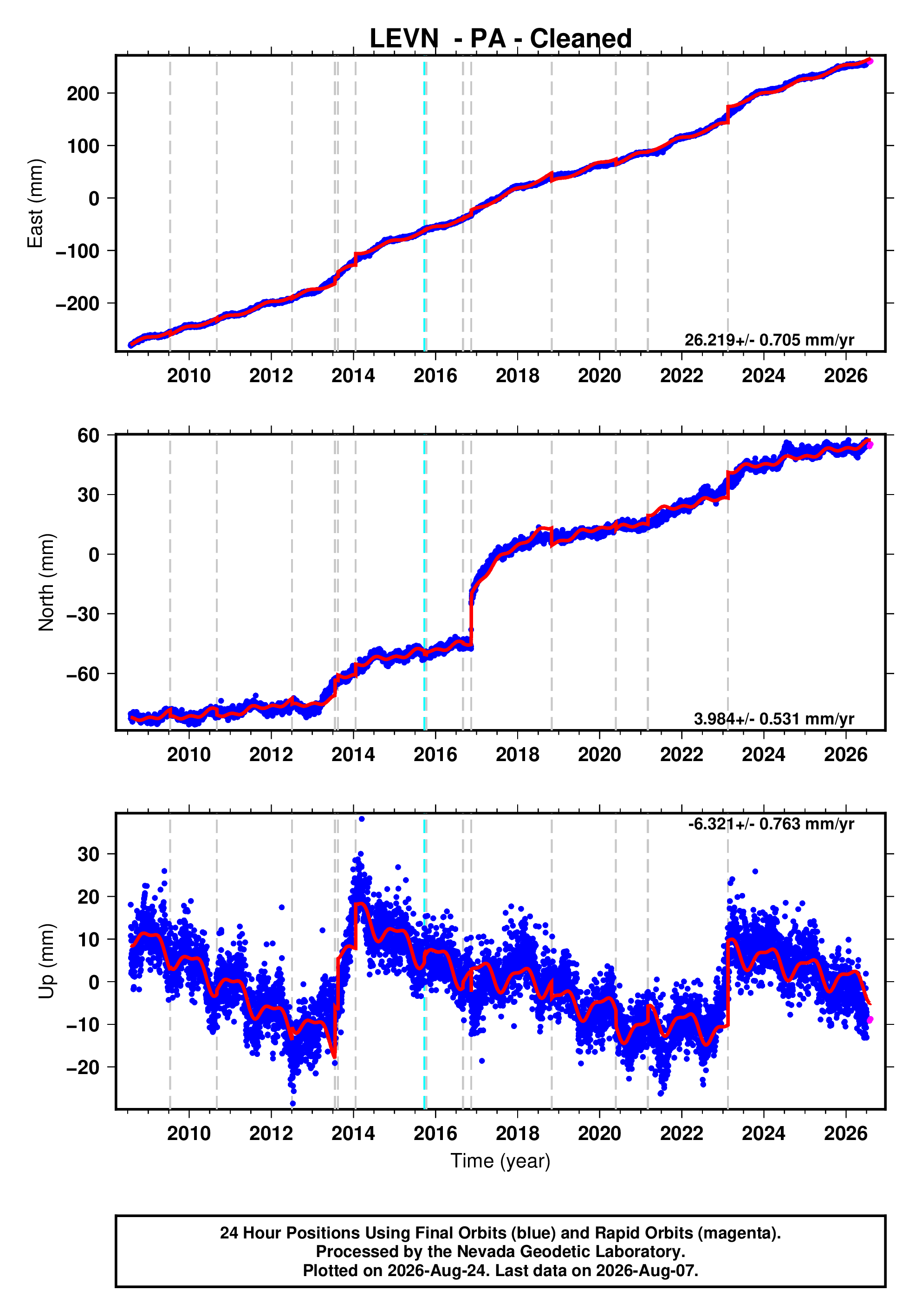

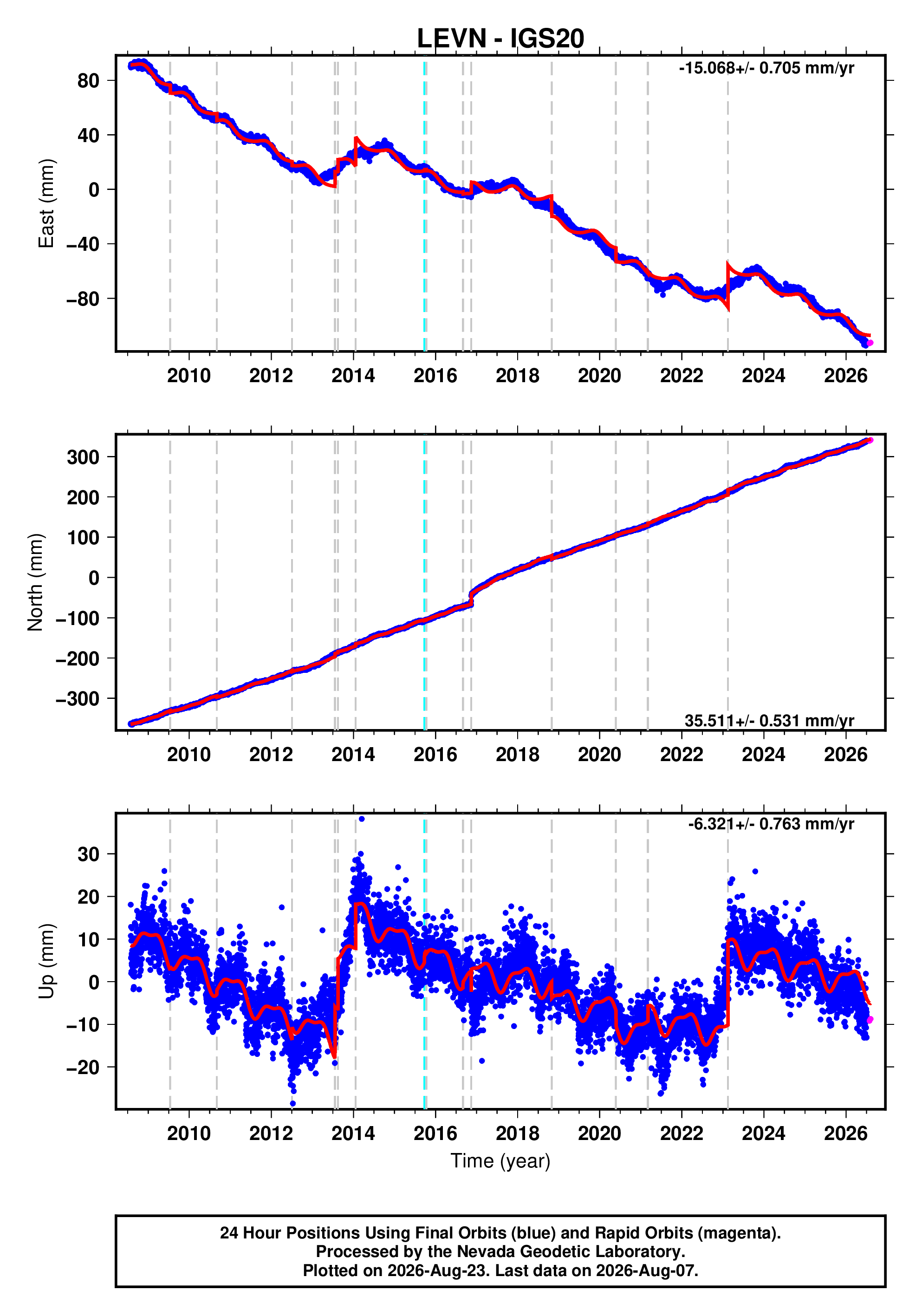

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned Rapid 5 min. Ultra Rapid 5 min.
Not Available
Not Available
Not Available
Not Available

Steps Information for this station

Station ID Date
Equipment Change Type/
or Event ID
LEVN15SEP24 Elevation_Cutoff_Changed - -
LEVN09JUL15 usp000gz8j 7.8 908.0
LEVN10SEP03 usp000hk46 7.0 430.8
LEVN13JUL20 usb000iim7 5.9 136.9
LEVN13JUL21 usb000iivv 6.5 145.3
LEVN13AUG16 usb000j4iz 6.5 156.6
LEVN14JAN20 usb000m4i4 6.1 49.1
LEVN15OCT12 us10003mxv 5.6 88.5
LEVN16SEP01 us10006jbi 7.0 492.8
LEVN16NOV13 us1000778i 7.8 300.1
LEVN16NOV13 us10007795 6.5 232.9
LEVN16NOV14 us100077hw 6.5 278.5
LEVN18MAY27 Reference_Frame_Change:_IGS08_to_IGS14 - -
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
