MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : LEV6

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 56.466 degrees

Longitude: -133.092 degrees

Height: 25.422 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

NA

tenv3

PA

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

LEV5

0.02 km

AB53

19.13 km

AB51

38.50 km

AB49

98.48 km

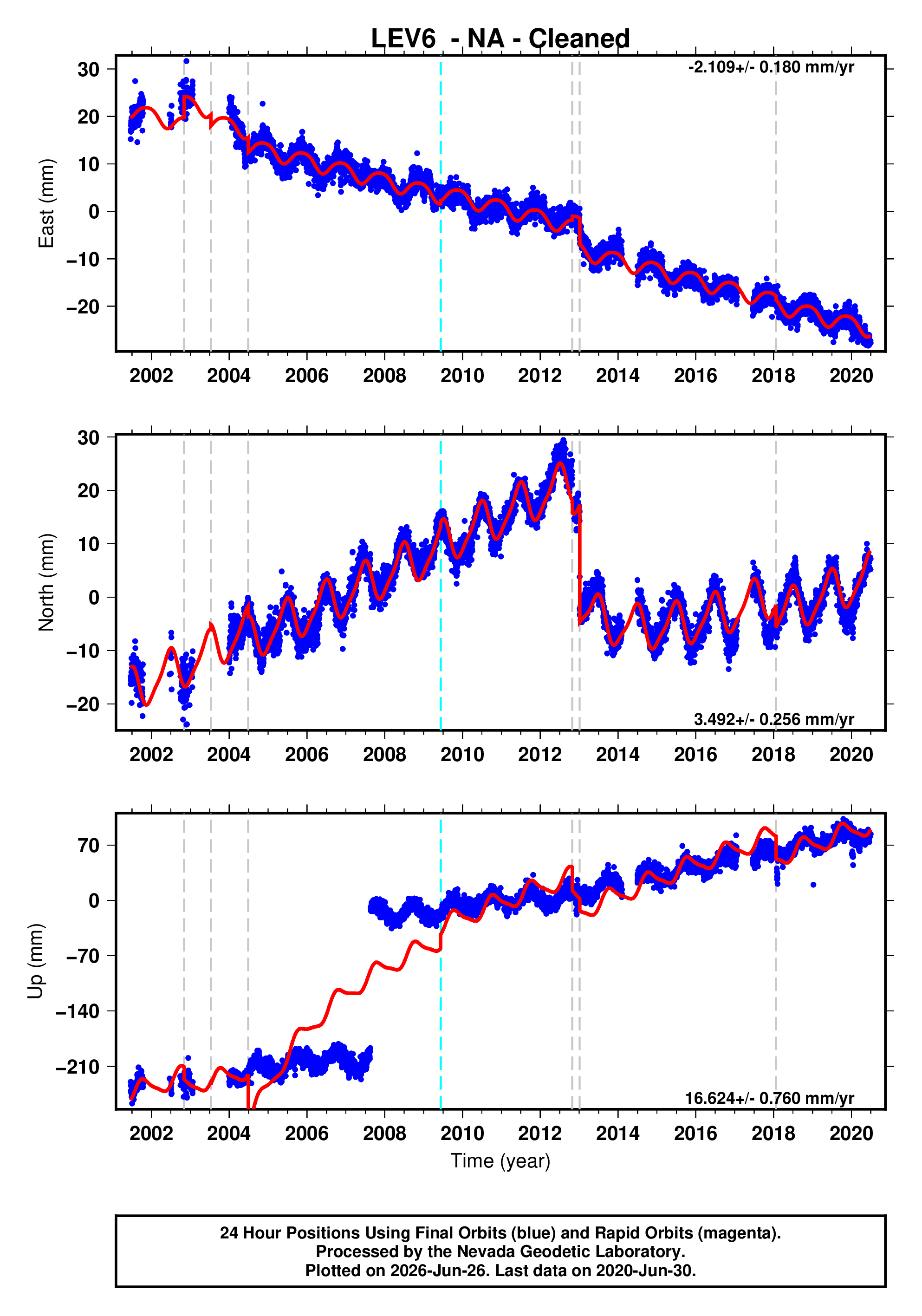

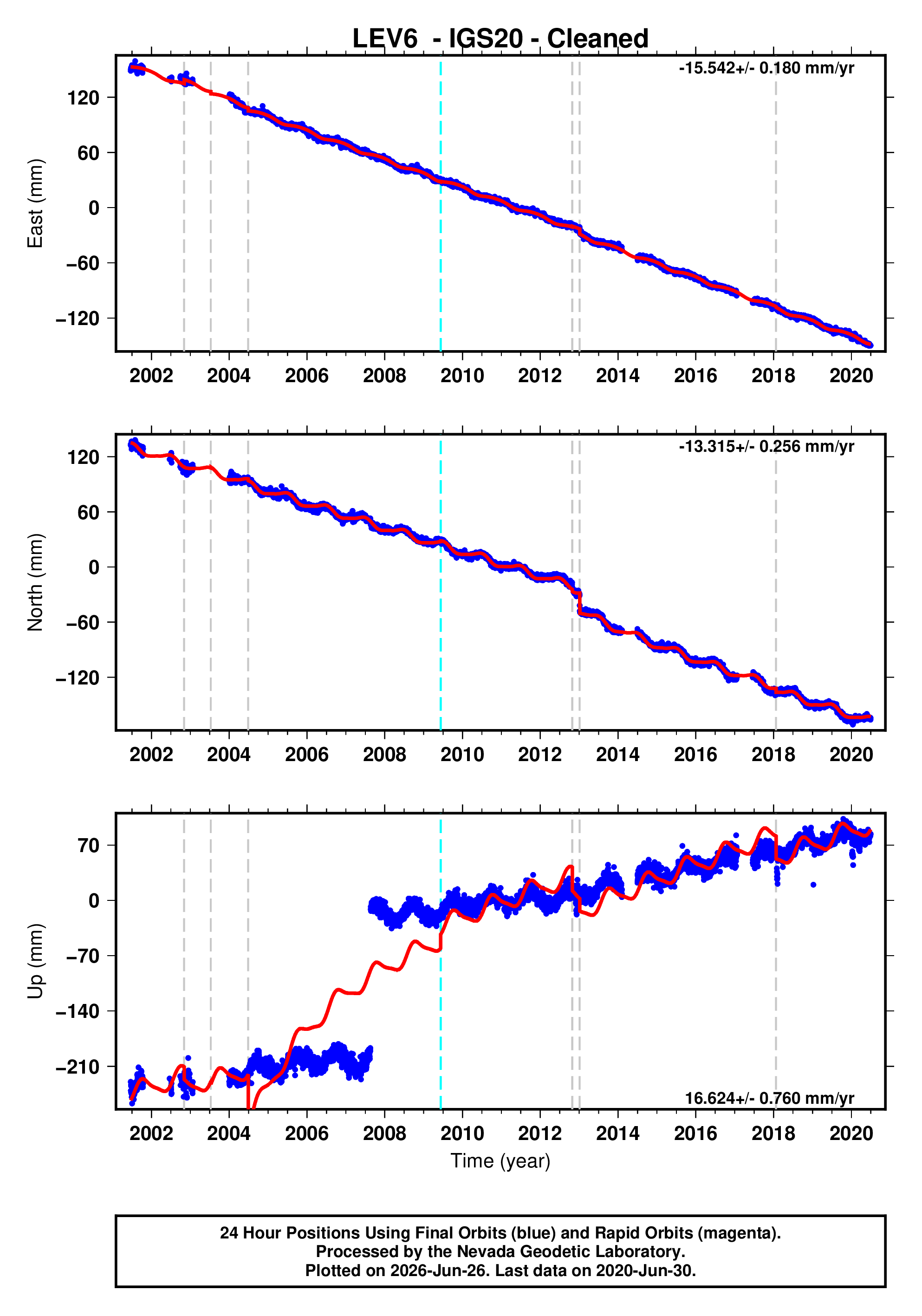

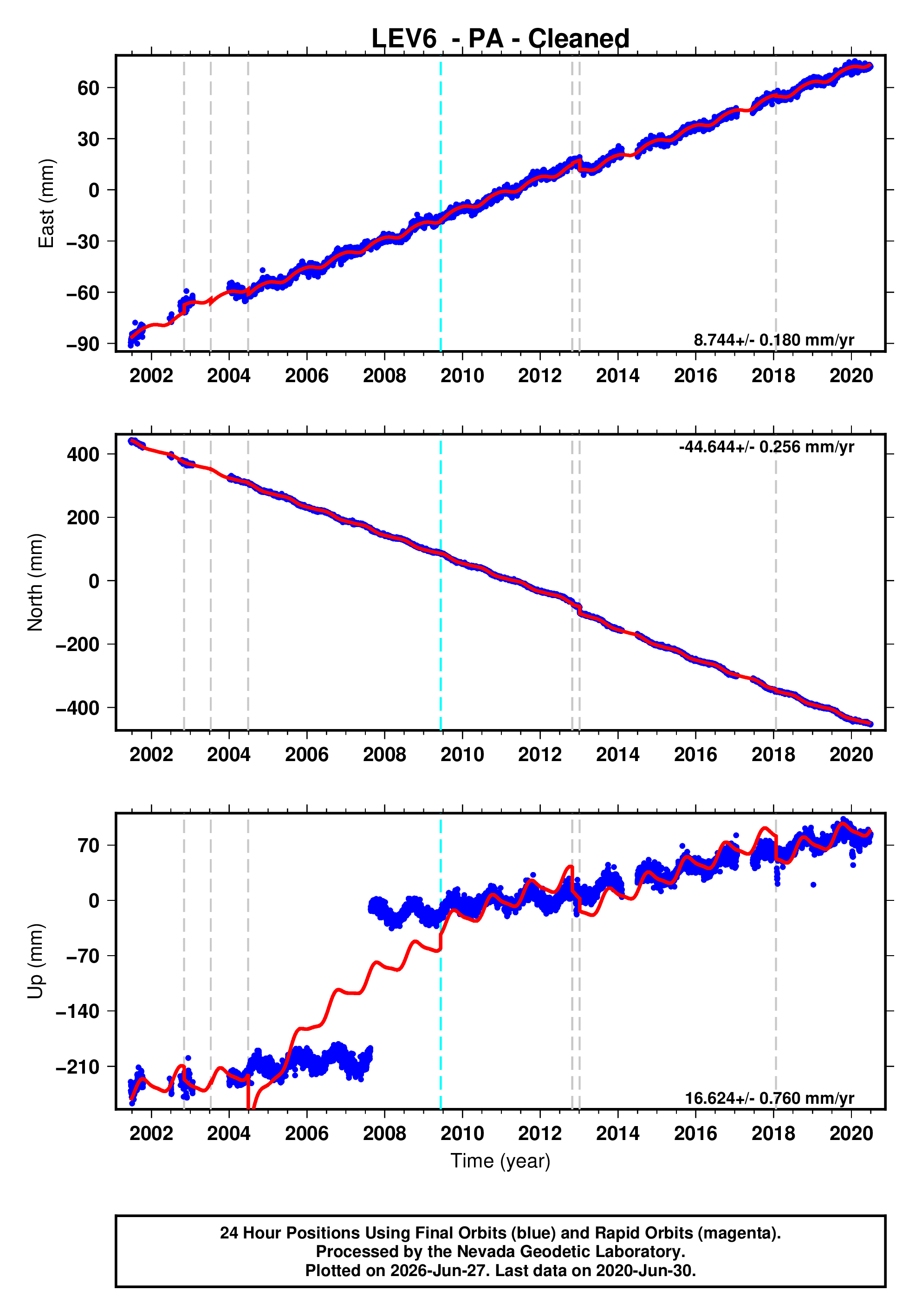

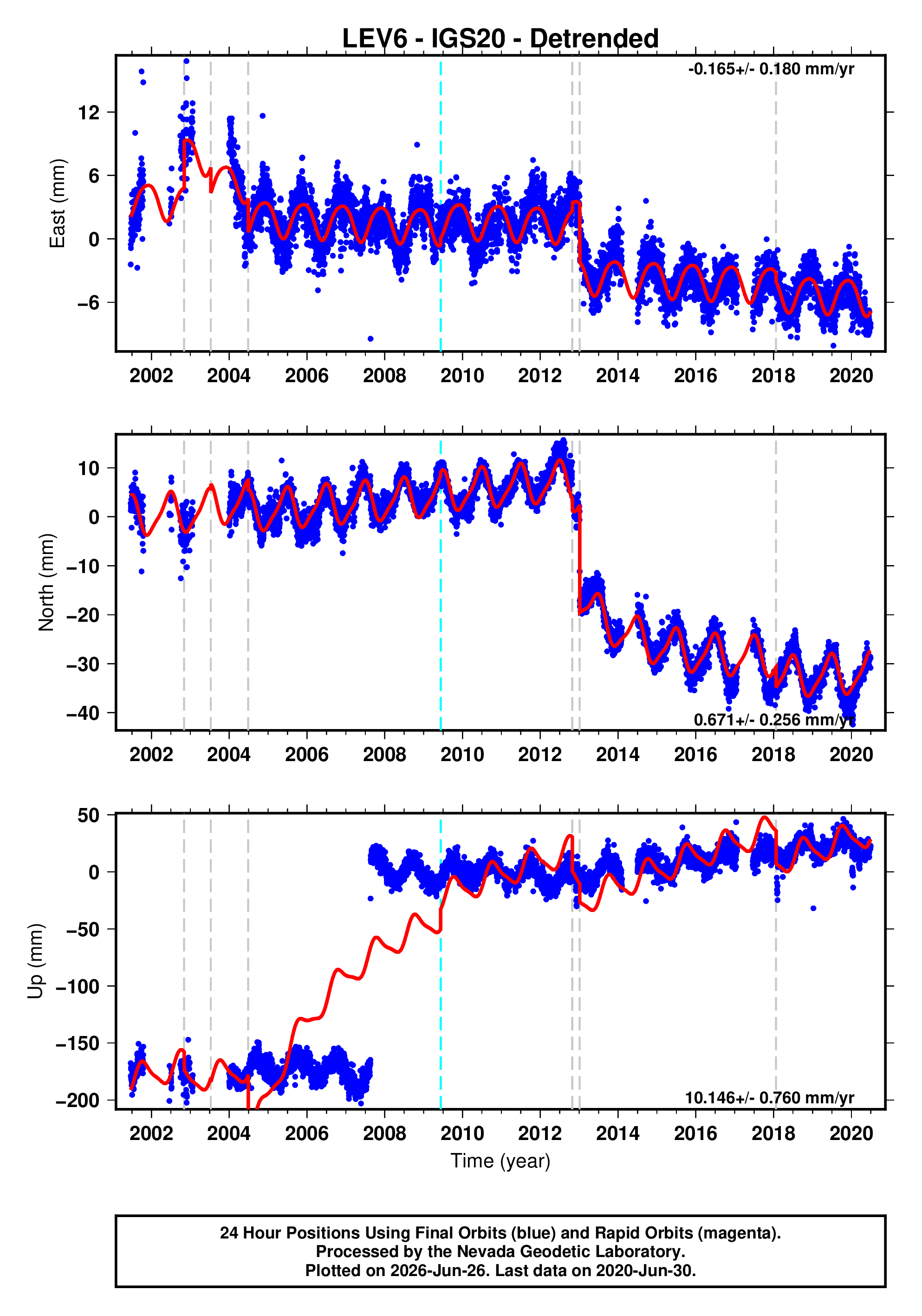

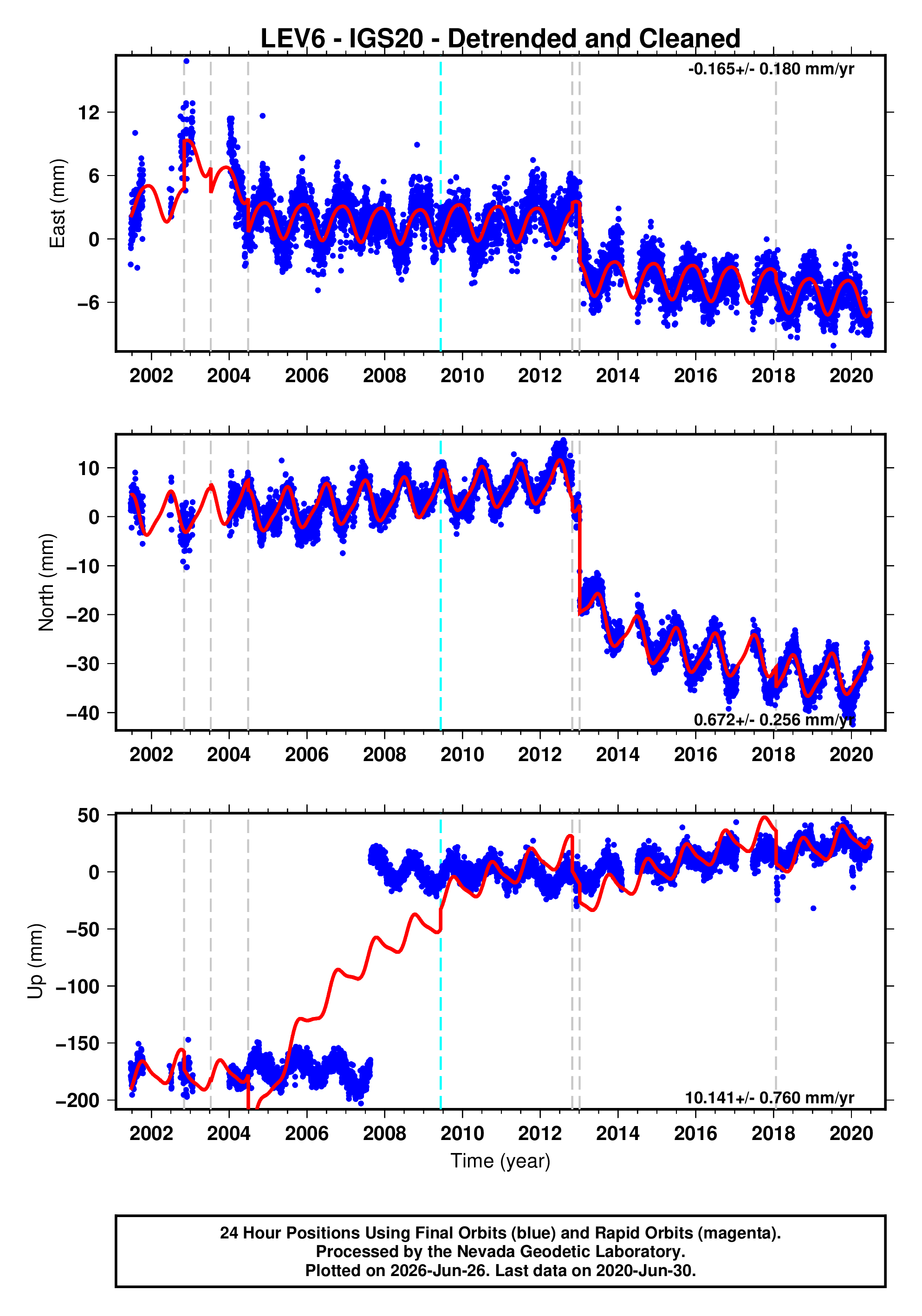

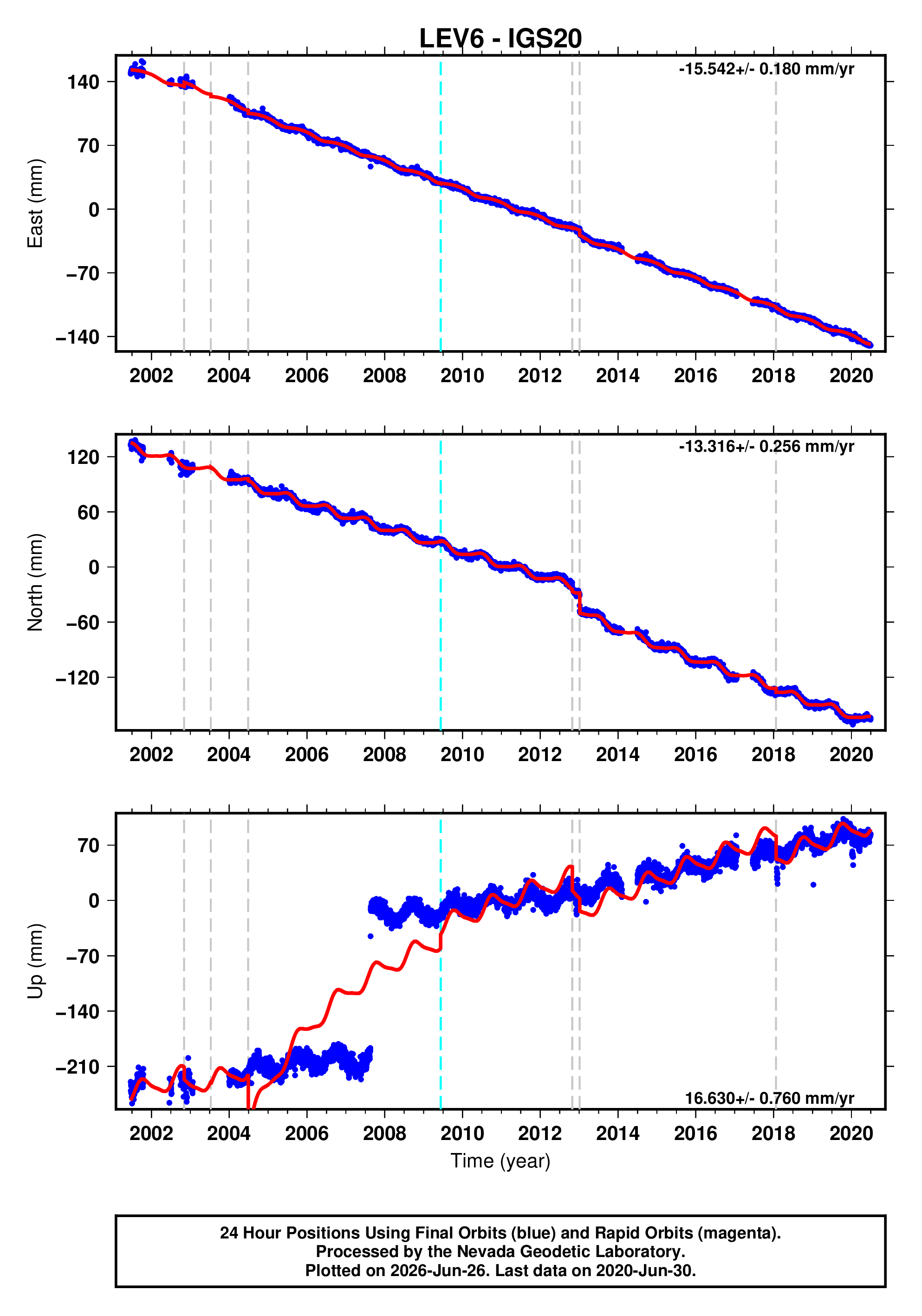

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
LEV609JUN10 Receiver_Make_and_Model_Changed - -
LEV602NOV03 ak002e435qpj 7.9 1114.3
LEV603JUL12 ak0038vkfa42 5.9 130.9
LEV604JUN28 ak00489udzds 6.8 179.2
LEV612OCT28 usp000juhz 7.8 413.9
LEV613JAN05 ak0138esnzr 7.5 176.3
LEV618JAN23 us2000cmy3 7.9 992.4
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
