Station ID : KTBW

Station operator information from: RINEX headers

Data attribution information from: UNAVCO DOI Database

from DOI link: https://doi.org/10.7283/T5XW4GW4

from DOI link: https://doi.org/10.7283/T52N50BC

from DOI link: https://doi.org/10.7283/T5T43R54

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 47.547 degrees

Longitude: -122.795 degrees

Height: 491.561 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

NA

env

24 Hour Rapid Solutions

IGS14

env

NA

env

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

ELSR

6.12 km

PRDY

22.27 km

POUL

24.98 km

UFDA

25.01 km

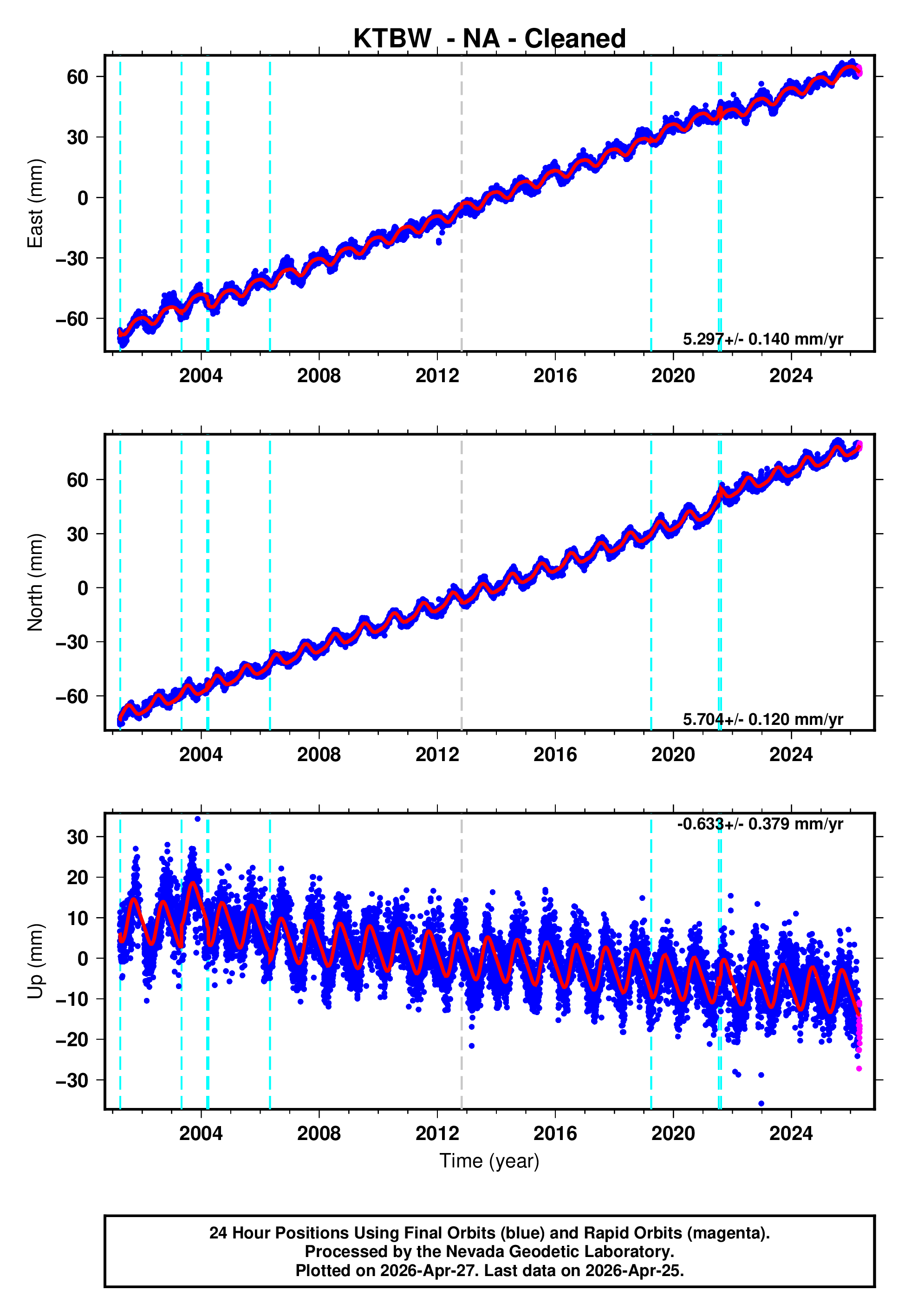

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

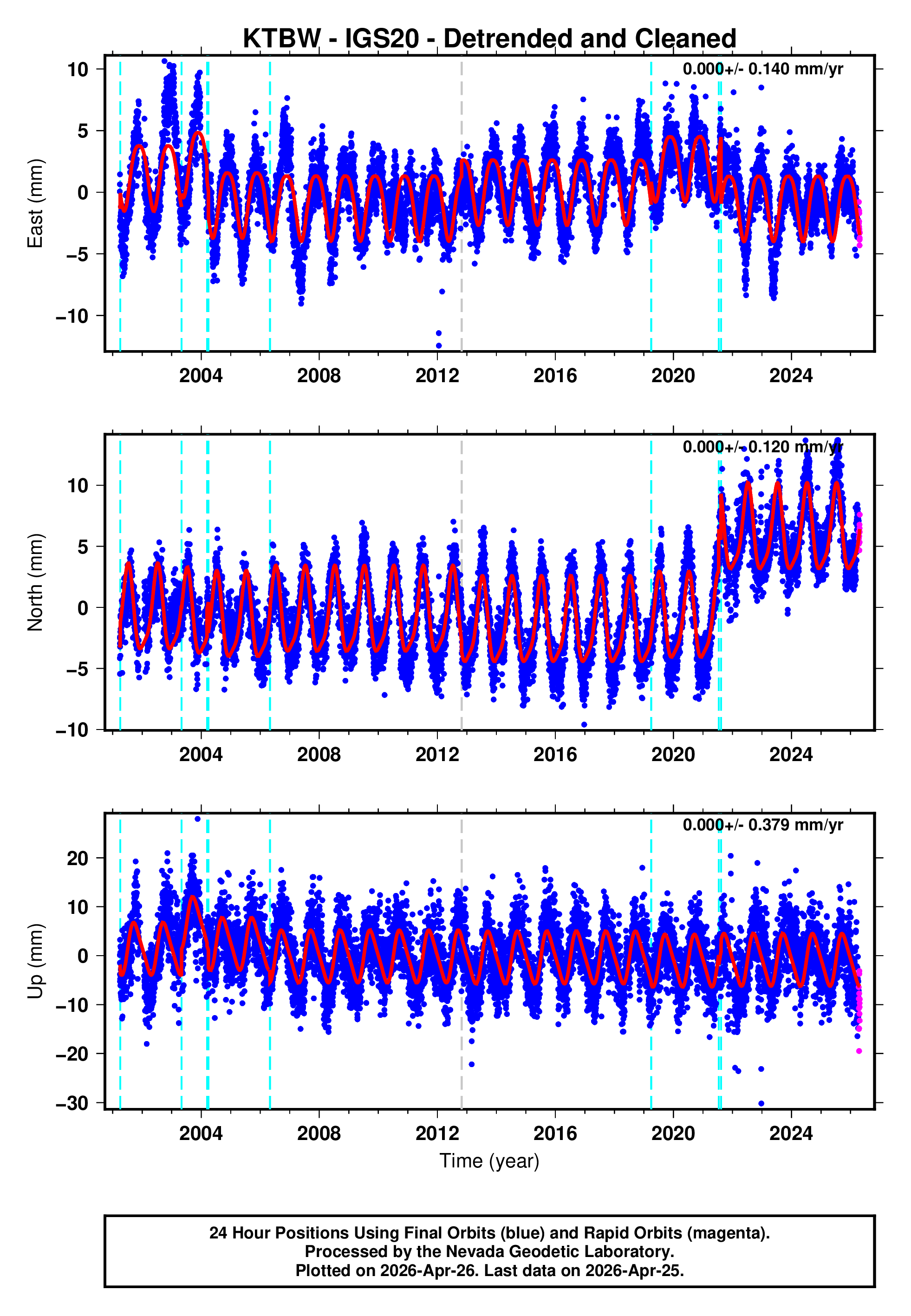

GPS time series plot

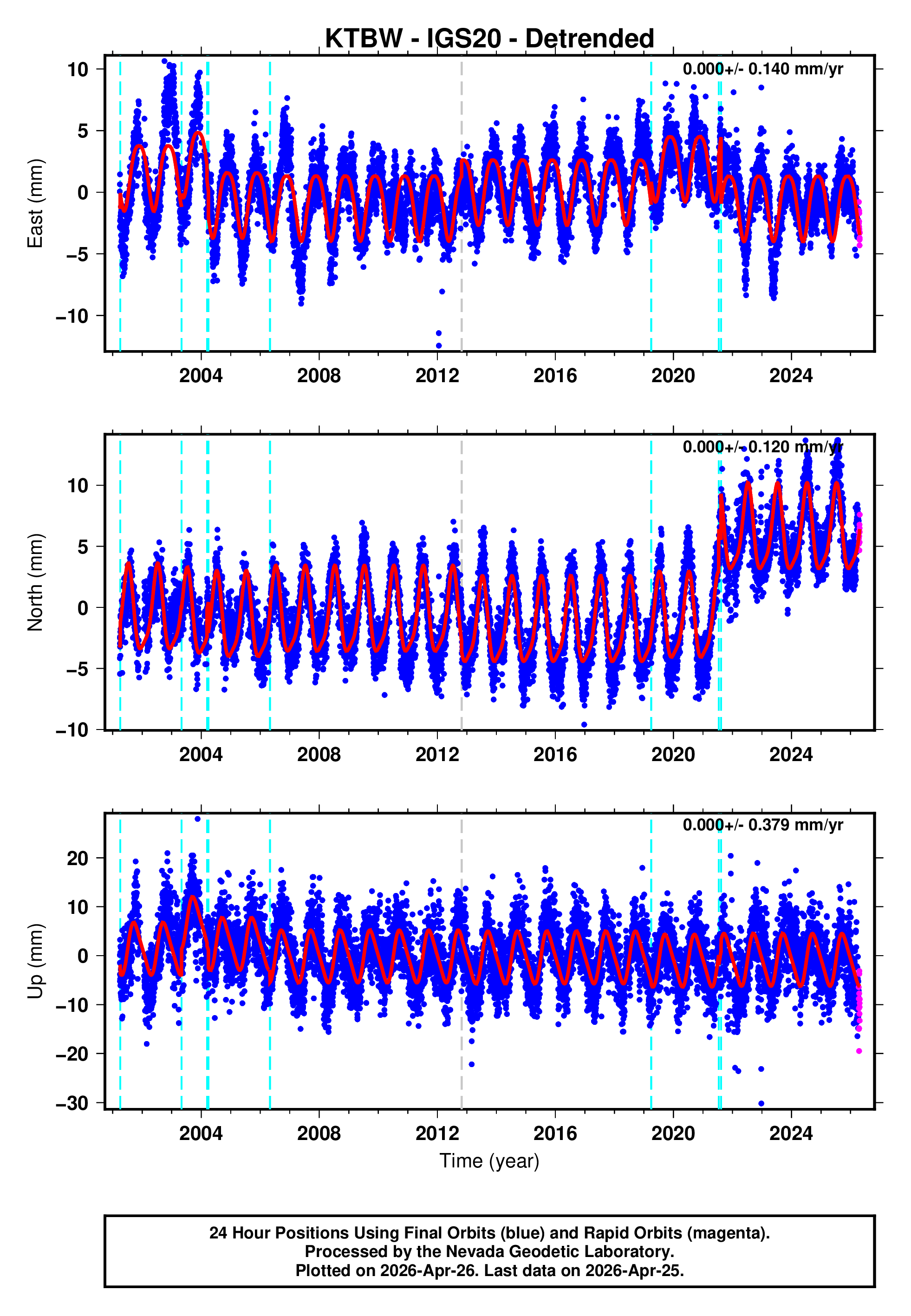

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
KTBW01APR04 Elevation_Cutoff_Changed - -
KTBW03MAY02 Elevation_Cutoff_Changed - -
KTBW04MAR12 Elevation_Cutoff_Changed - -
KTBW04MAR30 Receiver_Make_and_Model_Changed - -
KTBW06MAY02 Elevation_Cutoff_Changed - -
KTBW21AUG12 Antenna_Code_Changed - -
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
