Station ID : KIEL

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 54.355 degrees

Longitude: 10.132 degrees

Height: 114.463 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

EU

env

5 Minute Final Solutions

IGS14

kenv tar files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

HOL2

2.51 km

HOL1

2.57 km

D723

27.10 km

BUNG

41.06 km


Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

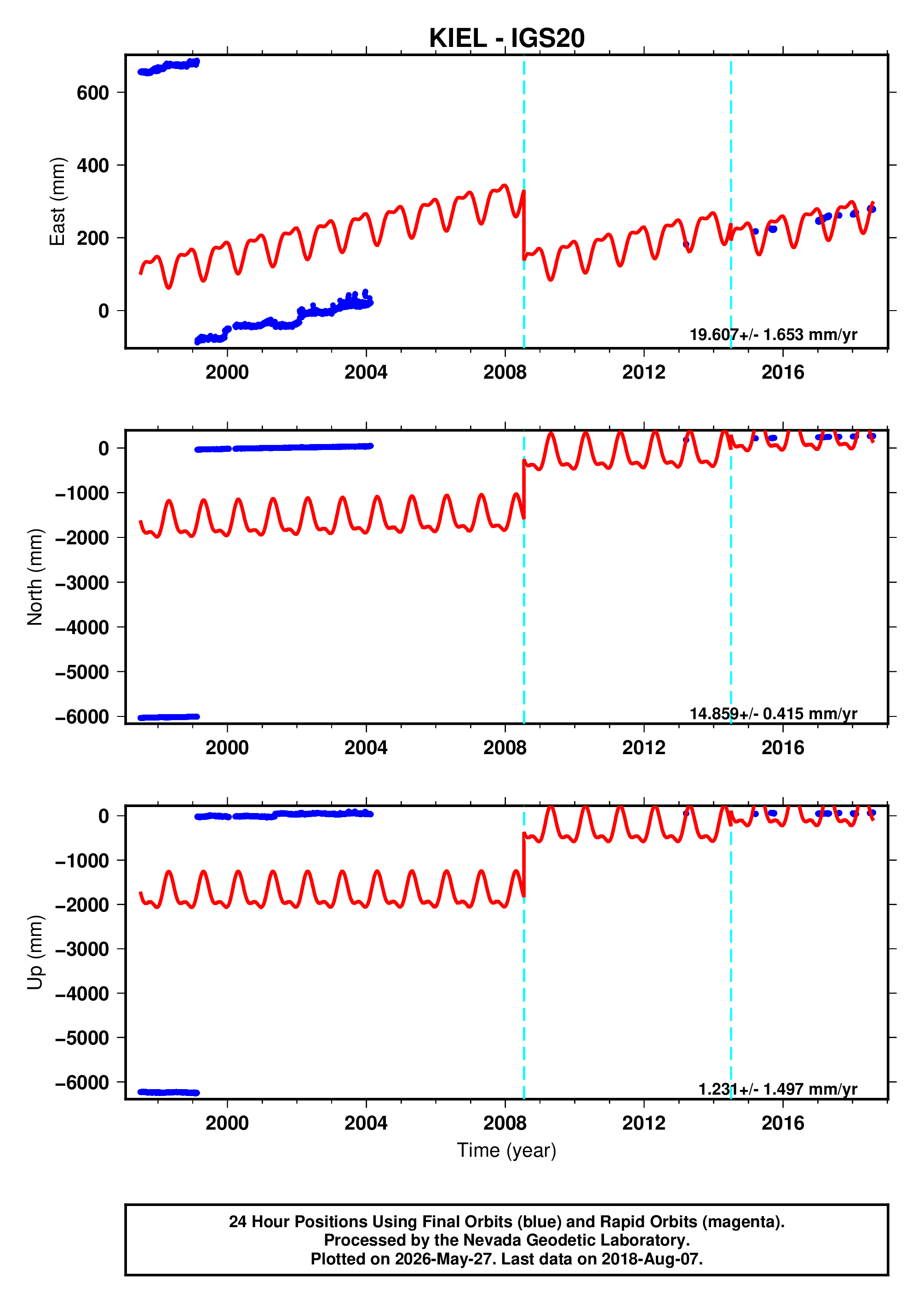

GPS time series plot

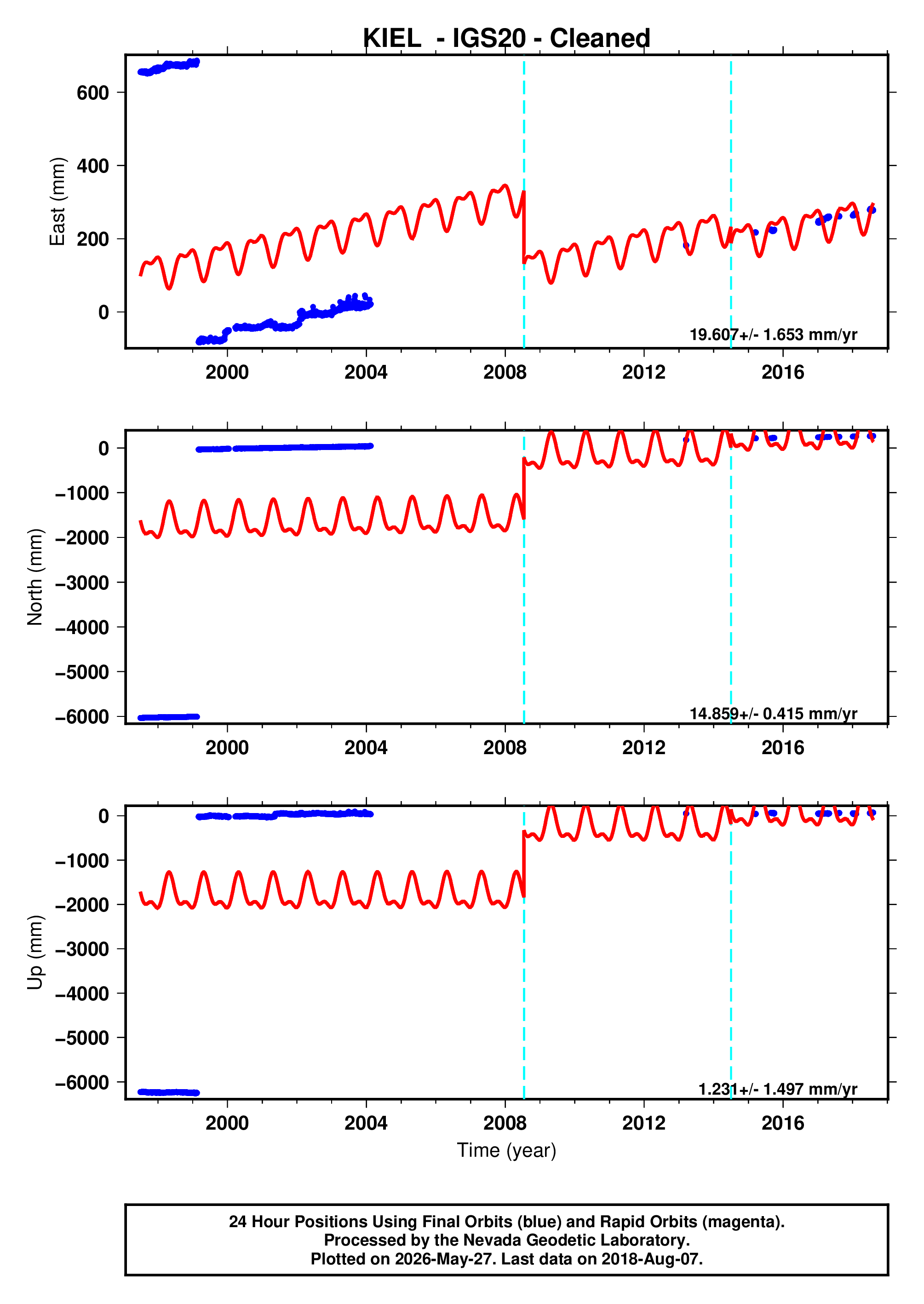

GPS time series plot

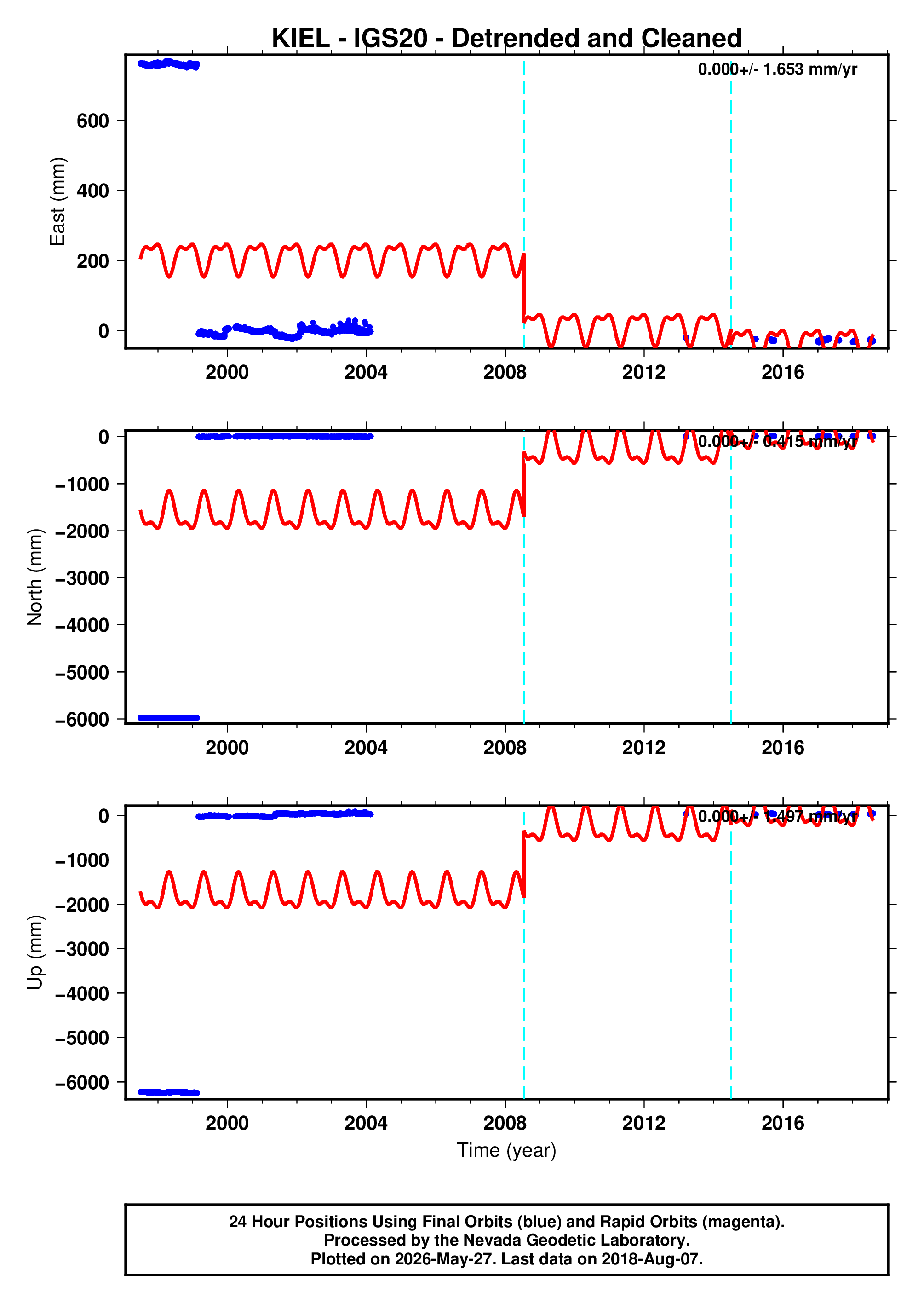

GPS time series plot

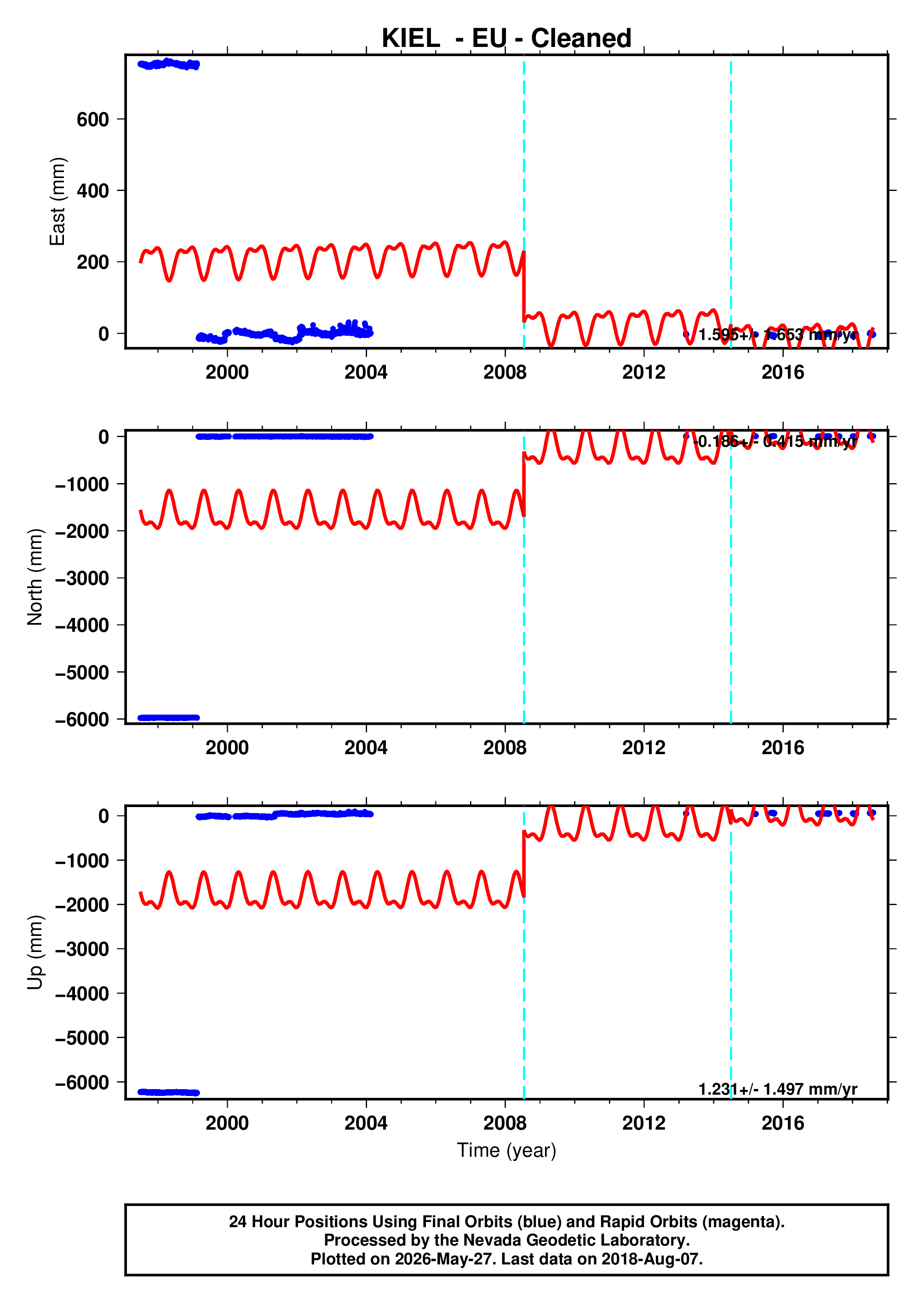

GPS time series plot

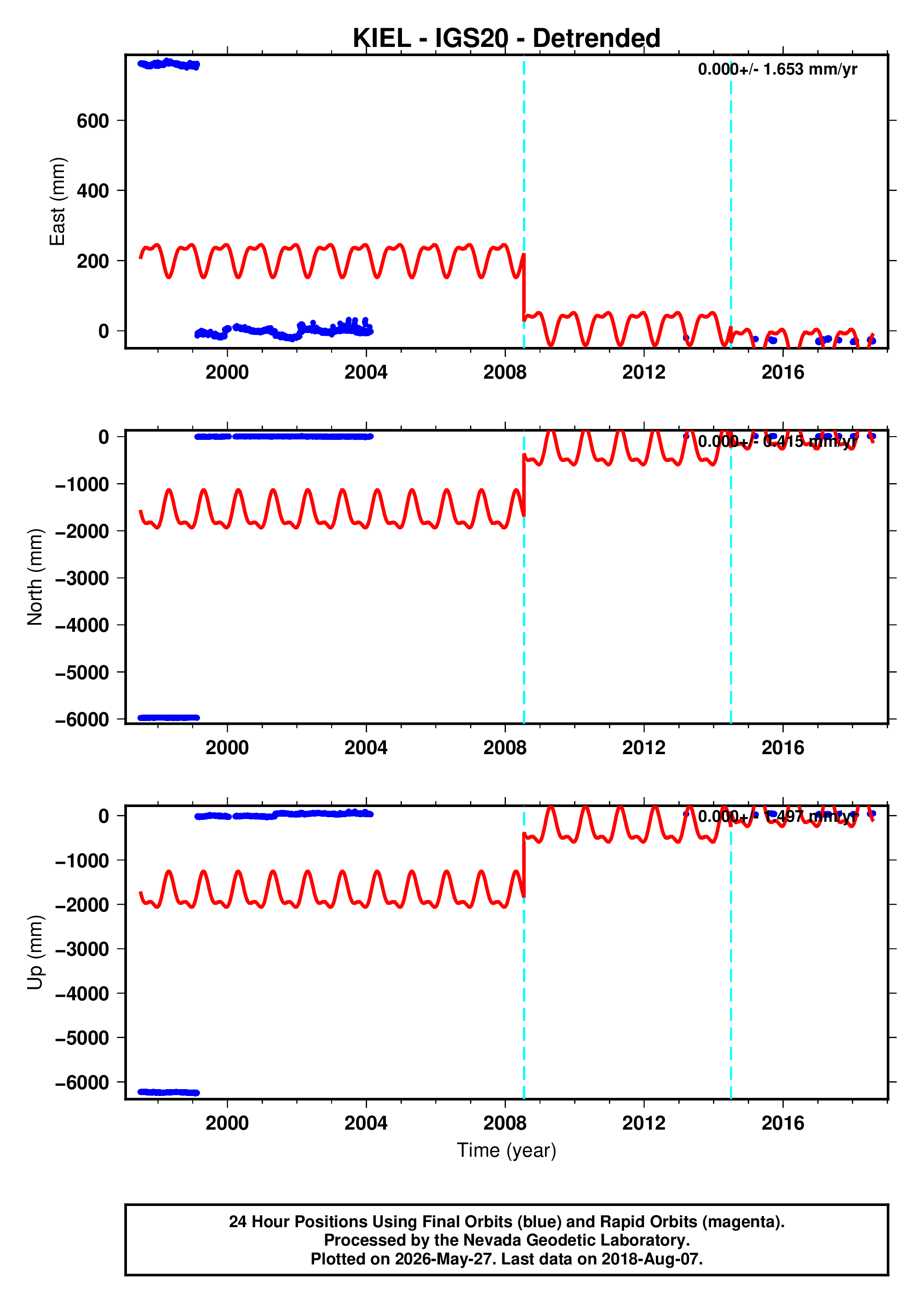

GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
KIEL08JUL16 Antenna_and_Radome_Codes_Changed - -
KIEL08JUL16 Receiver_Make_and_Model_Changed - -
KIEL14JUL01 Antenna_and_Radome_Codes_Changed - -
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
