MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : KEN5

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.


Latitude: 60.675

Longitude: -151.350

Height: 56.356 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS08

env xyz

NA12

env xyz
24 Hour Rapid Solutions

FID (~IGS08)

env

NA12

env
env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)

env

ftp link

Ultra Rapid 5 Minute Solutions

Available Next Hour
(1-2 hr. latency)

env

ftp link


Cite this product as: Blewitt et al.,(2018).

See this link for suggested full citation text.

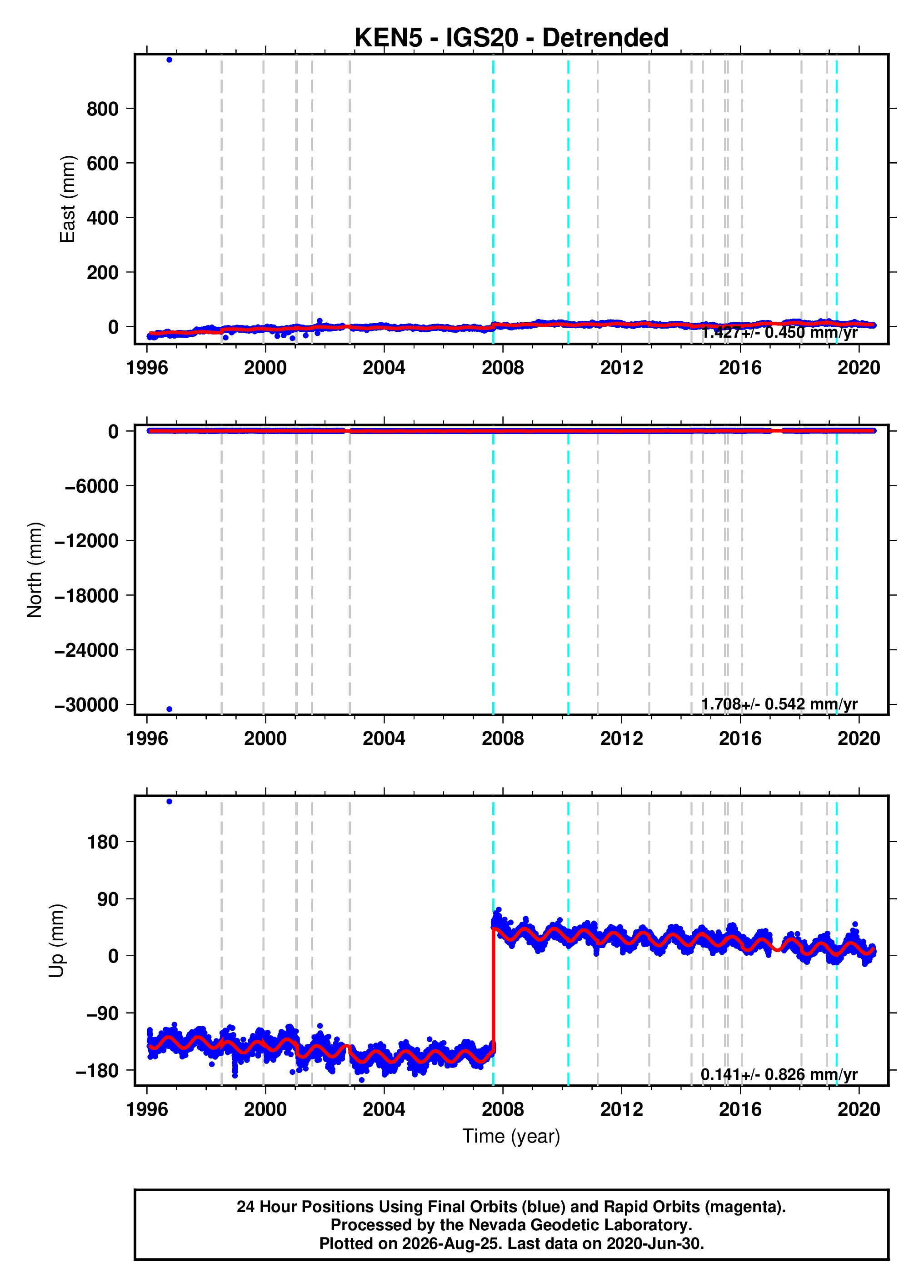

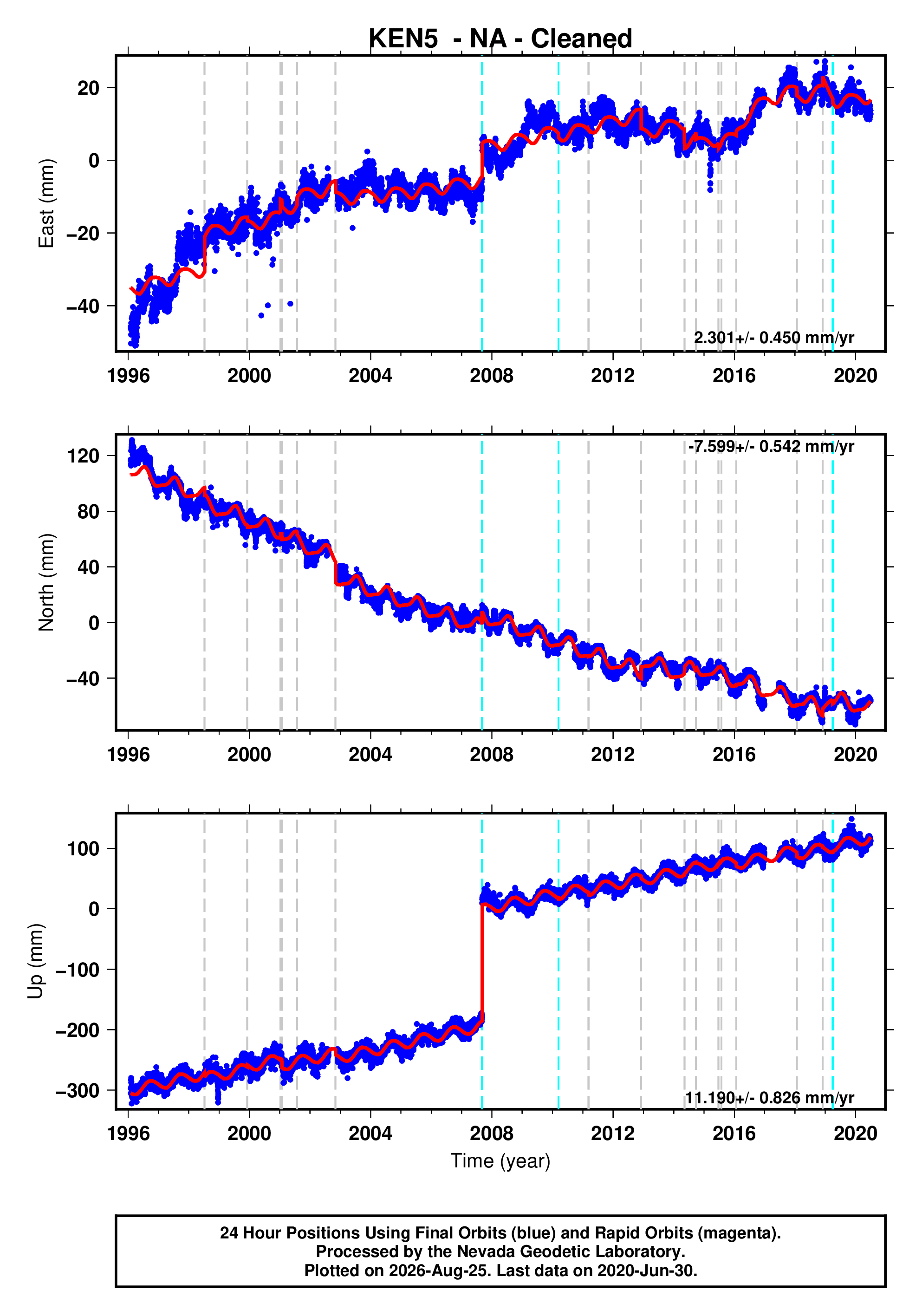

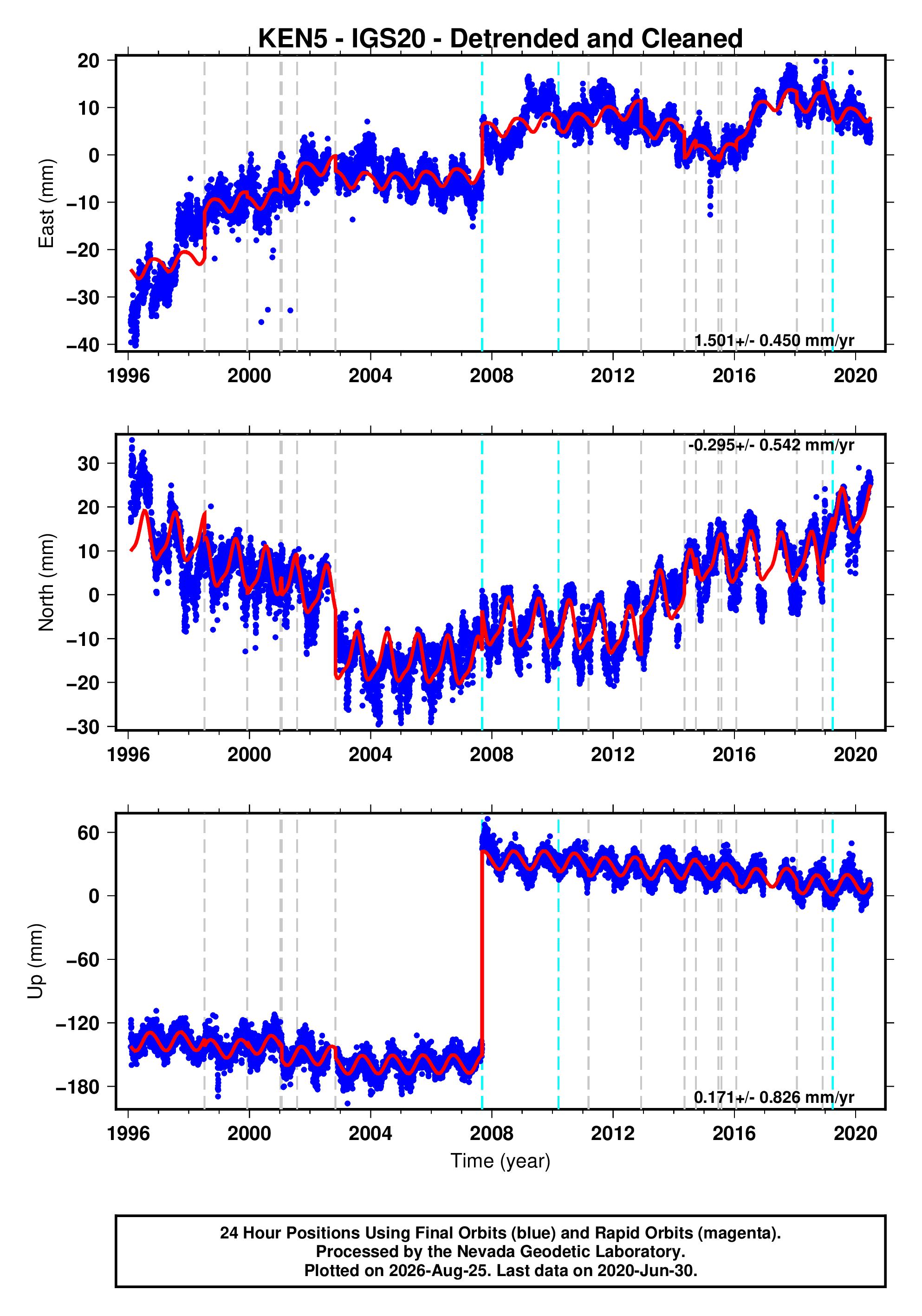

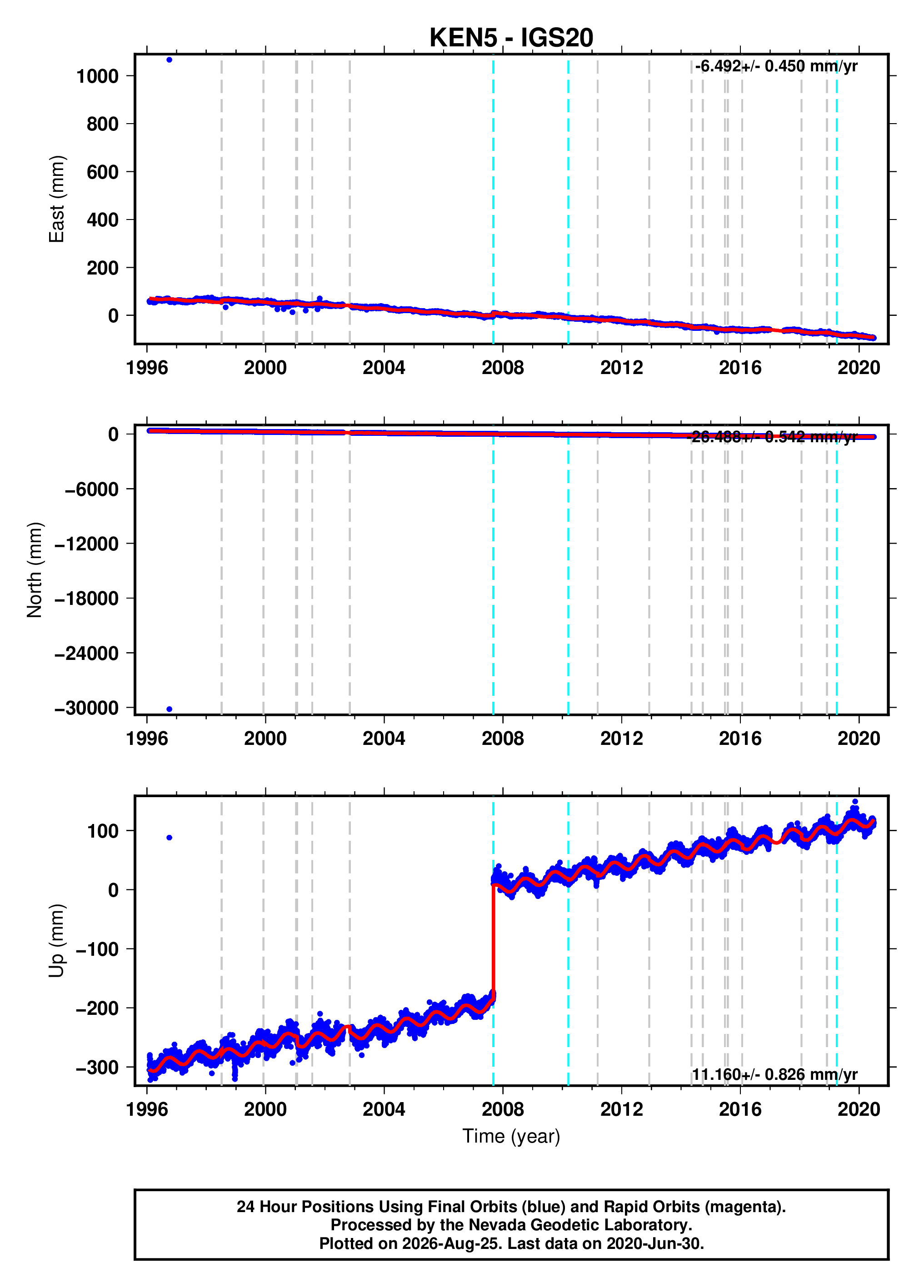

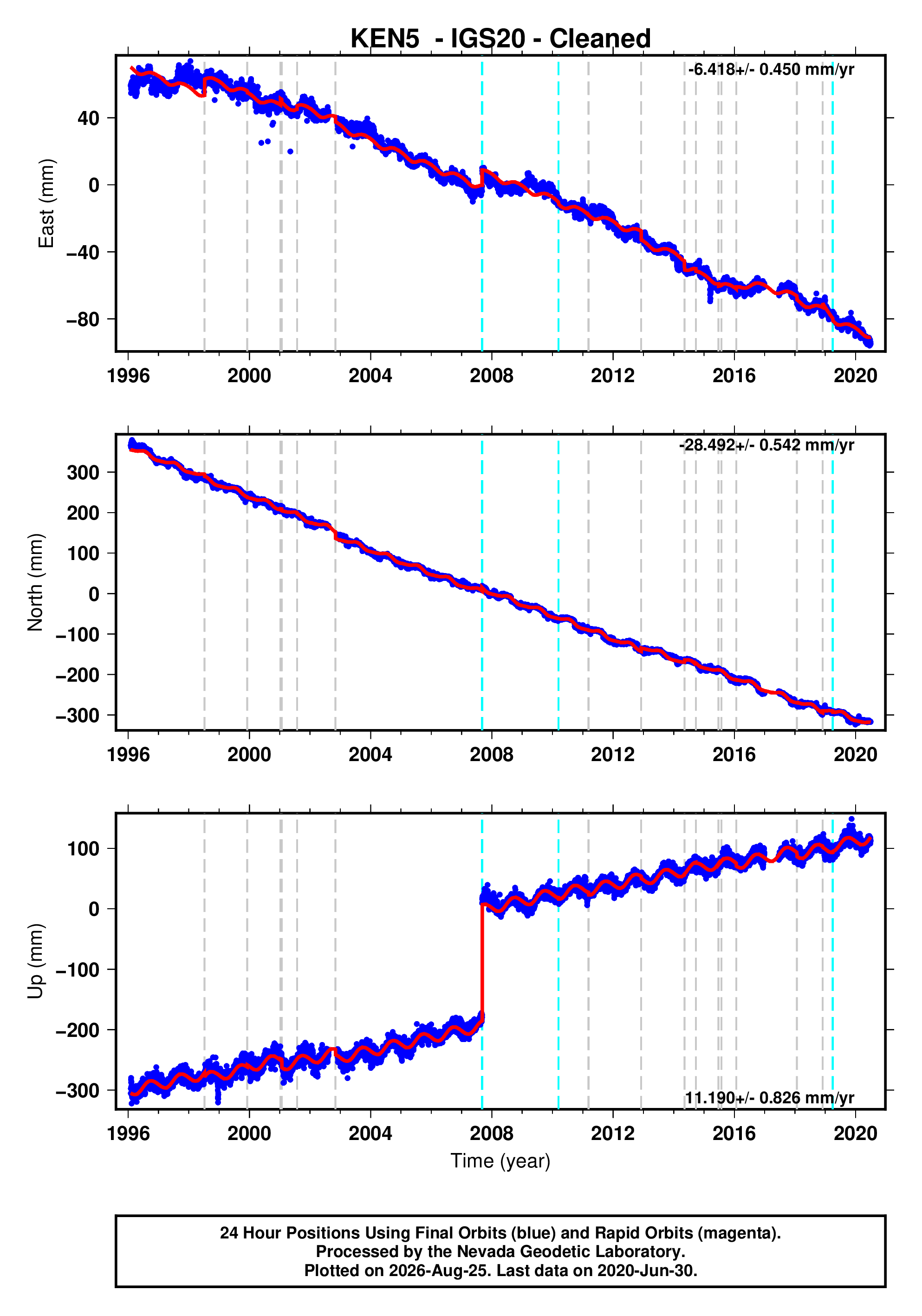

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned NA12 NA12 Cleaned Rapid 5 min. Ultra Rapid 5 min.
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
KEN507SEP05 Logfile_Changed - -
KEN510MAR15 Receiver_Make_and_Model_Changed - -
KEN598JUL09 usp0008r8g 6.2 103.3
KEN599DEC06 usp0009jj1 7.0 404.6
KEN501JAN10 usp000a7f2 7.0 414.0
KEN501JUL28 usp000akb7 6.8 279.0
KEN502NOV03 usp000bg0m 7.9 375.6
KEN511MAR11 official20110311054624120_30 9.1 5112.3
KEN512DEC04 usp000jwdw 5.8 70.1
KEN514SEP25 ak11401855 6.2 143.4
KEN515JUL29 ak11661615 6.3 133.8
KEN516JAN24 us10004gqp 7.1 162.1
KEN518JAN23 us2000cmy3 7.9 534.8
KEN518NOV30 us1000hyfh 7.0 106.2
KEN518NOV30 ak20419010 7.0 105.9
KEN518NOV30 ak20419042 5.7 101.0
KEN518MAY27 Reference_Frame_Change:_IGS08_to_IGS14 - -
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
