MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : KAYT

Station operator information from: RINEX headers

Data attribution information from: UNAVCO DOI Database

from DOI link: https://doi.org/10.7283/T5XW4H0W

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 13.987 degrees

Longitude: 120.978 degrees

Height: 61.148 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

EU

env

SU

env

5 Minute Final Solutions

IGS14

kenv tar files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

TVST

5.85 km

PTGY

13.31 km

TGYT

13.35 km

PCAN

45.62 km

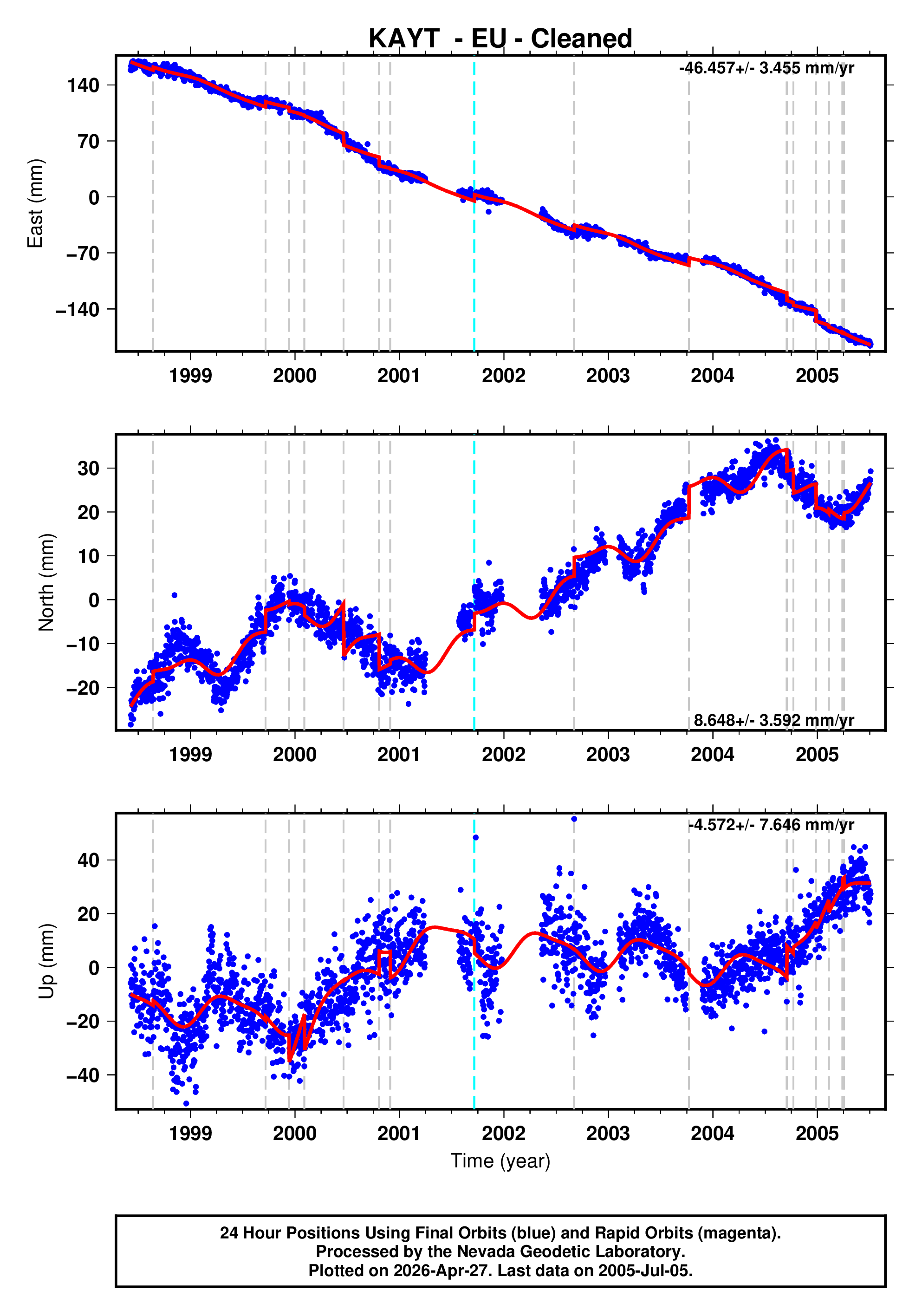

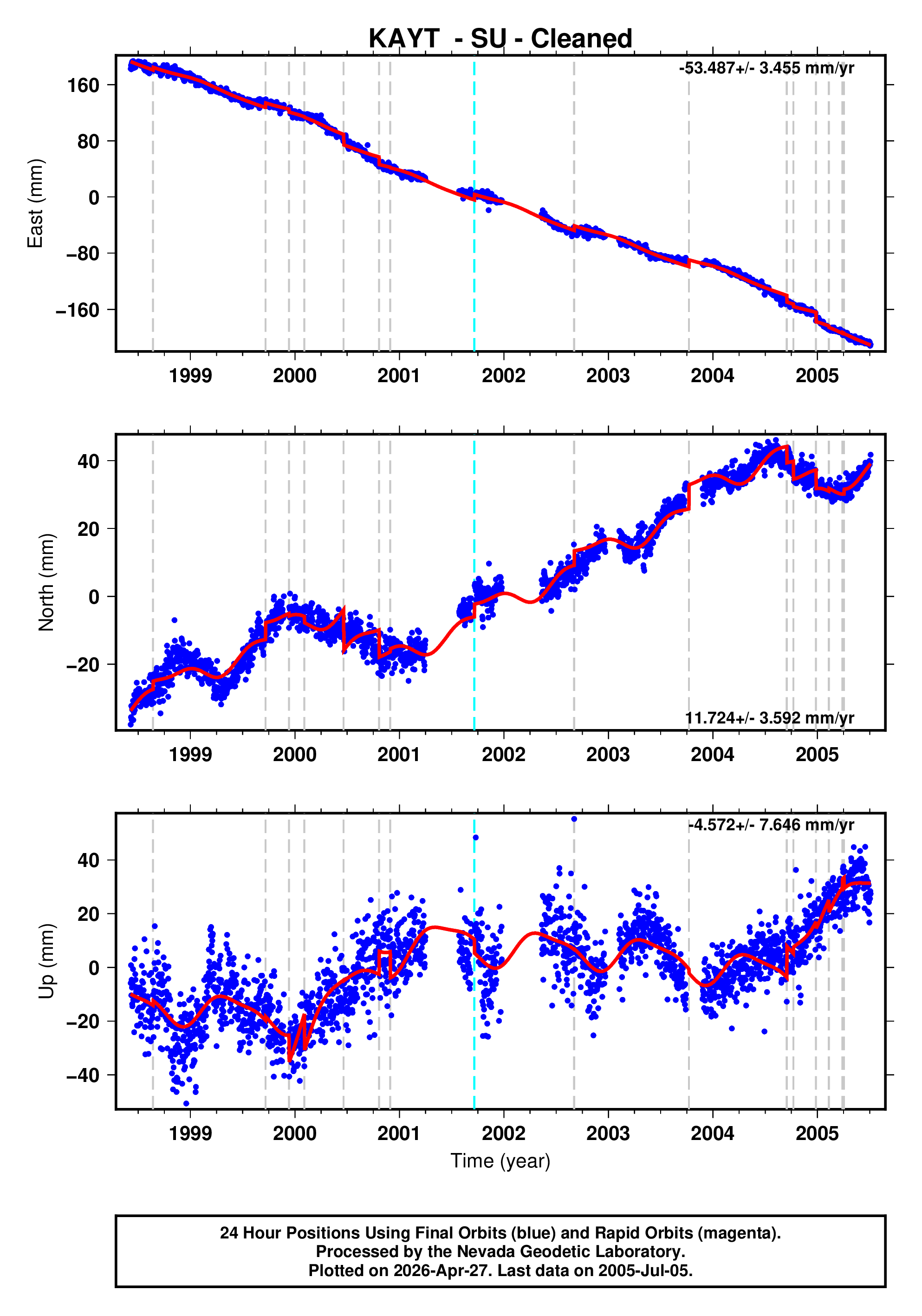

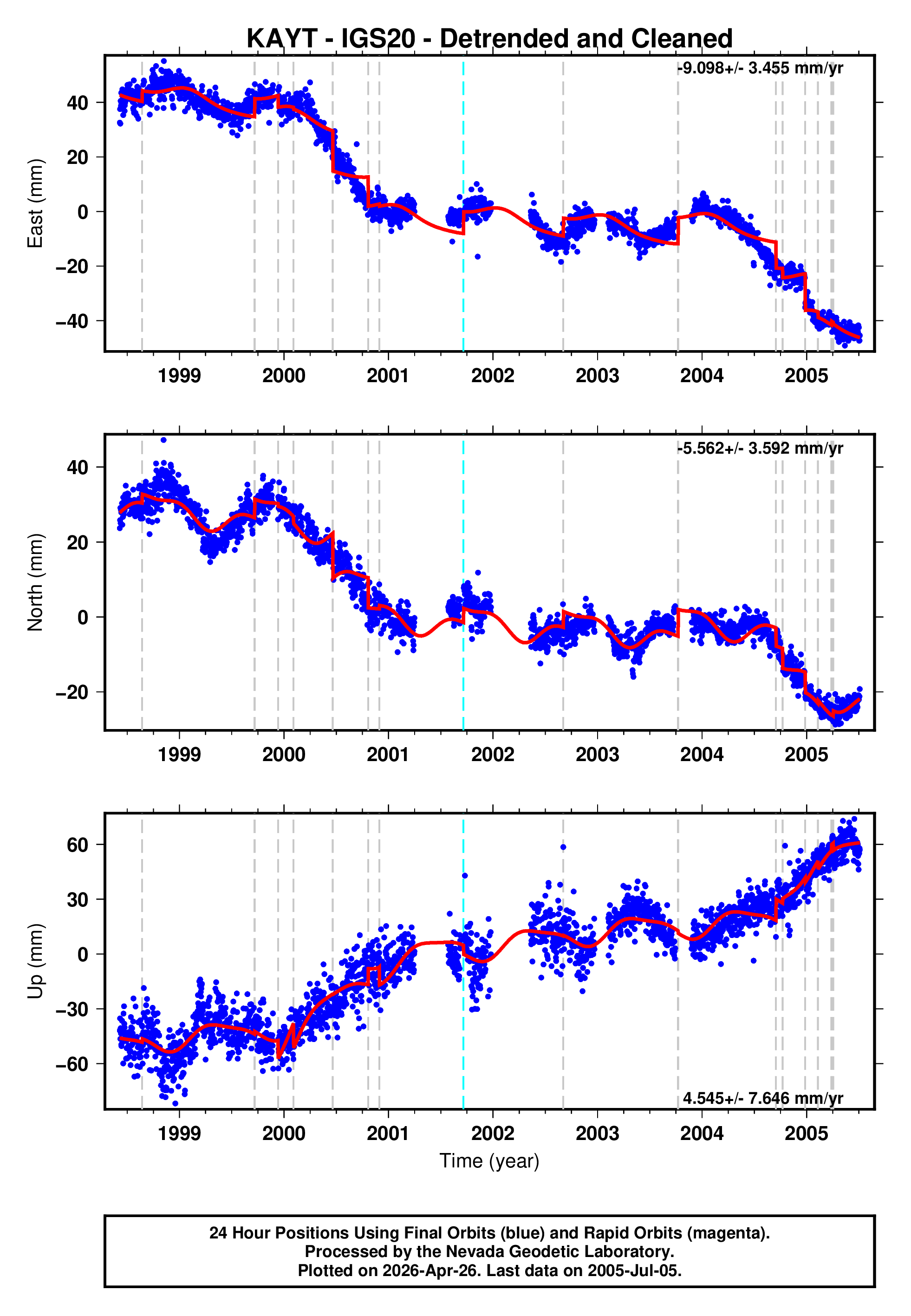

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

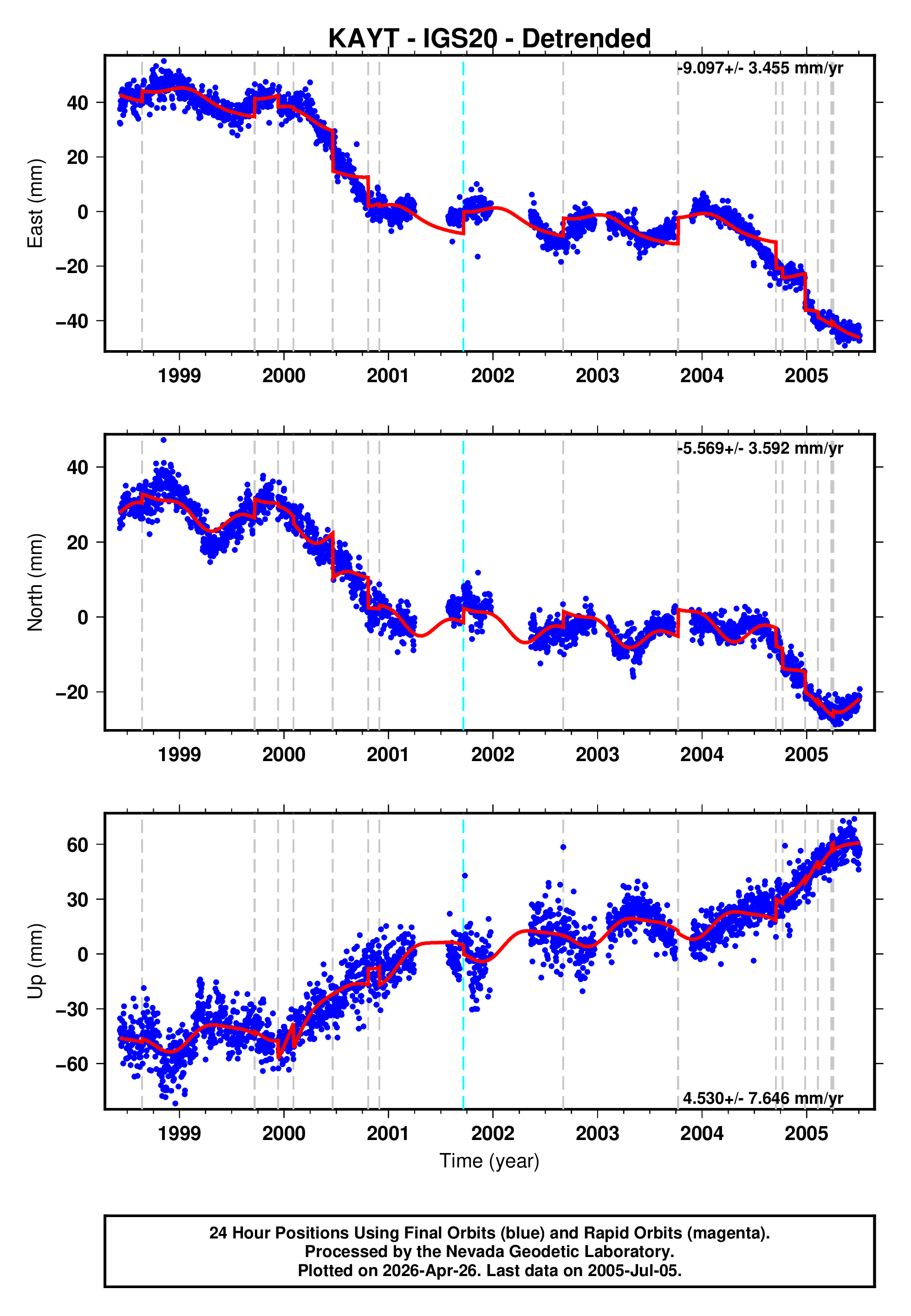

GPS time series plot

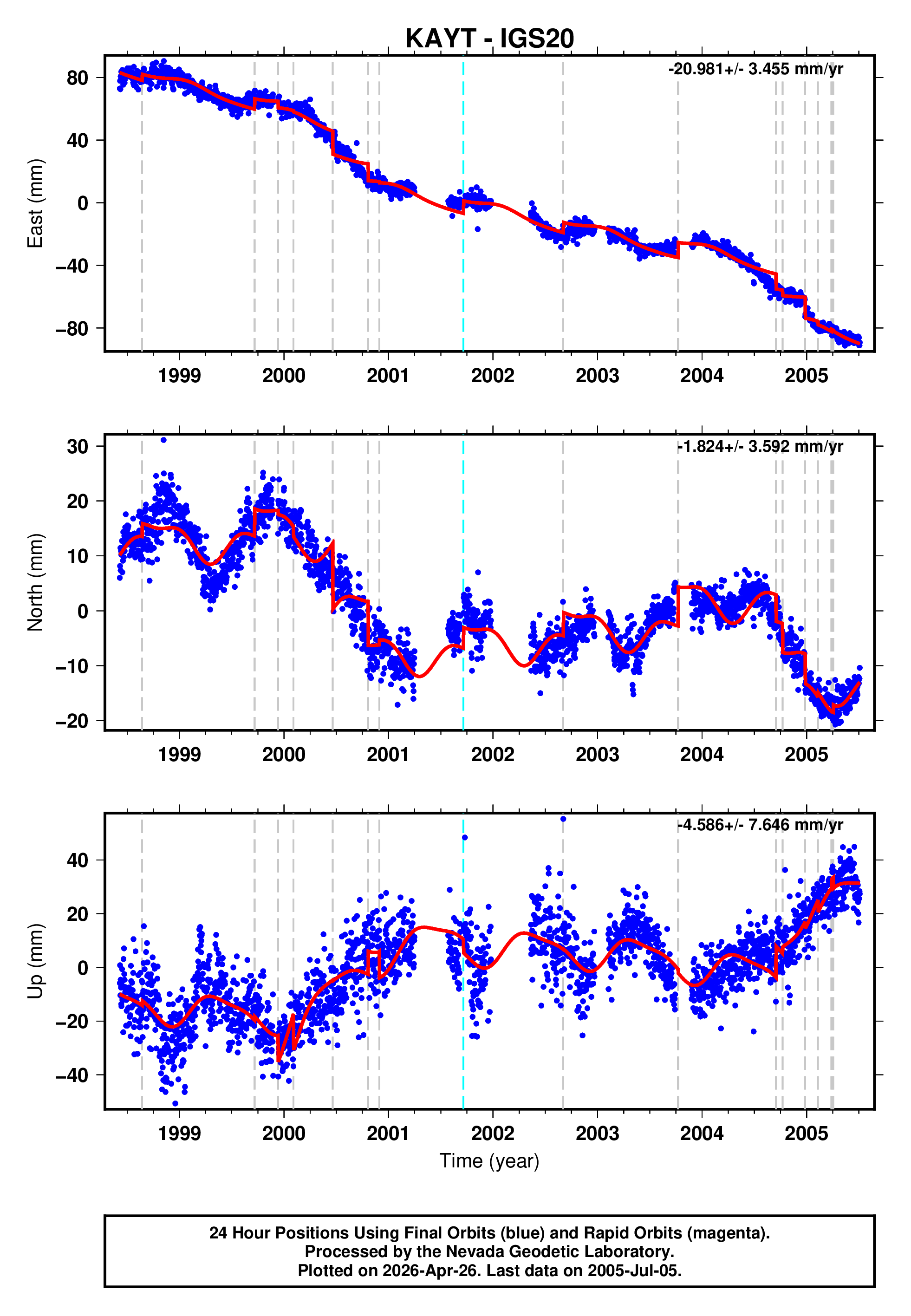

GPS time series plot

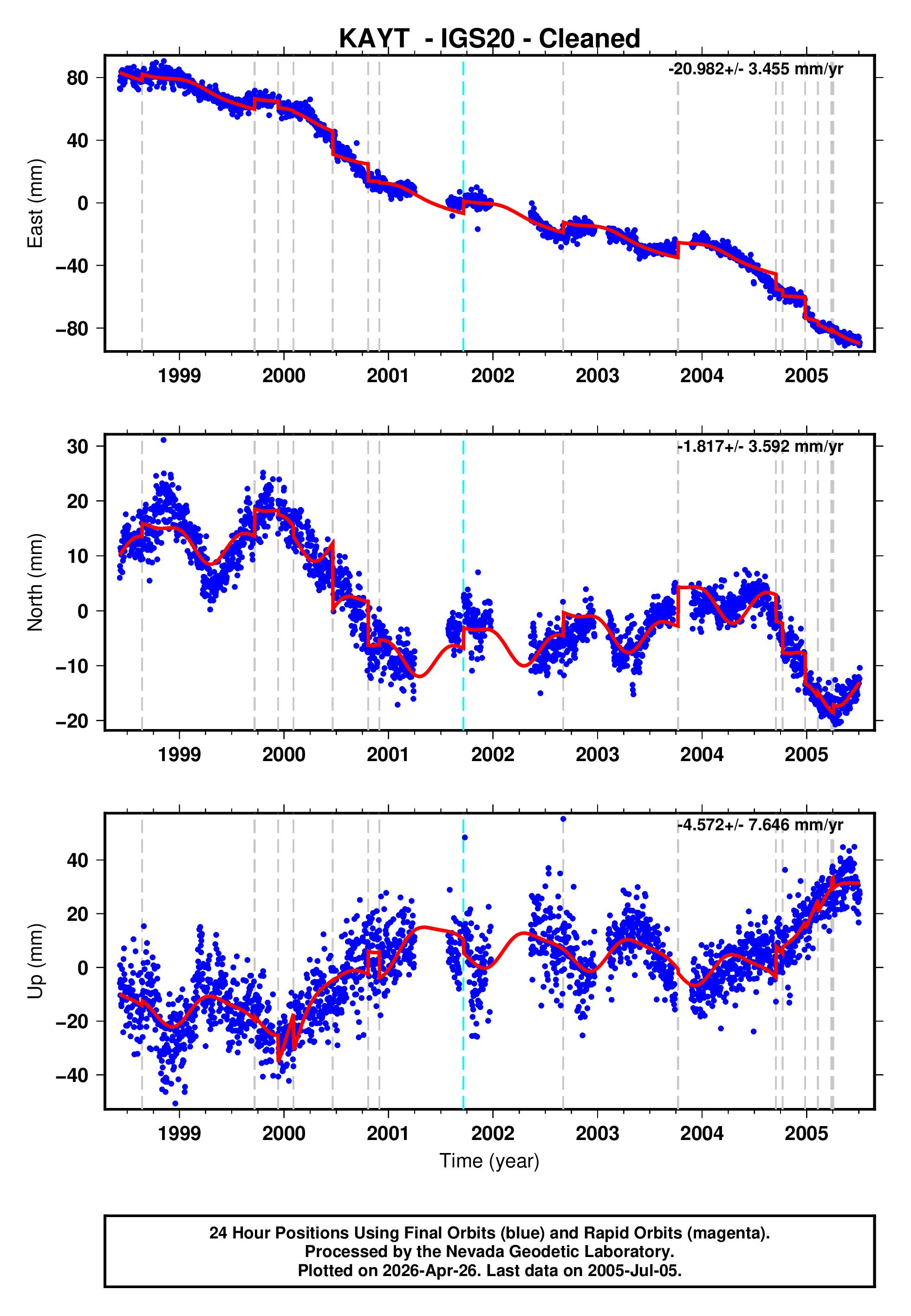

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
KAYT01SEP19 Antenna_Code_Changed - -
KAYT98AUG23 usp0008tqv 6.1 127.7
KAYT99SEP20 usp0009eq0 7.7 1088.1
KAYT99DEC11 usp0009jr8 7.3 238.4
KAYT00FEB03 usp0009n0b 5.5 76.8
KAYT02SEP03 usp000bb6f 5.8 55.7
KAYT03OCT09 usp000ca12 6.2 115.1
KAYT04SEP15 usp000d4bh 6.0 66.4
KAYT04OCT08 usp000d60h 6.5 48.4
KAYT04DEC26 official20041226005853450_30 9.1 2989.6
KAYT05MAR28 official20050328160936530_30 8.6 2937.7
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
