MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : J492

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.

Latitude: 30.531

Longitude: 130.964

Height: 129.606 meters

Time Series Data

(ascii text)
24 Hour Final Solutions


env xyz
24 Hour Rapid Solutions

FID (~IGS08)

env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)


ftp link

Cite this product as: Blewitt et al.,(2018).

See this link for suggested full citation text.

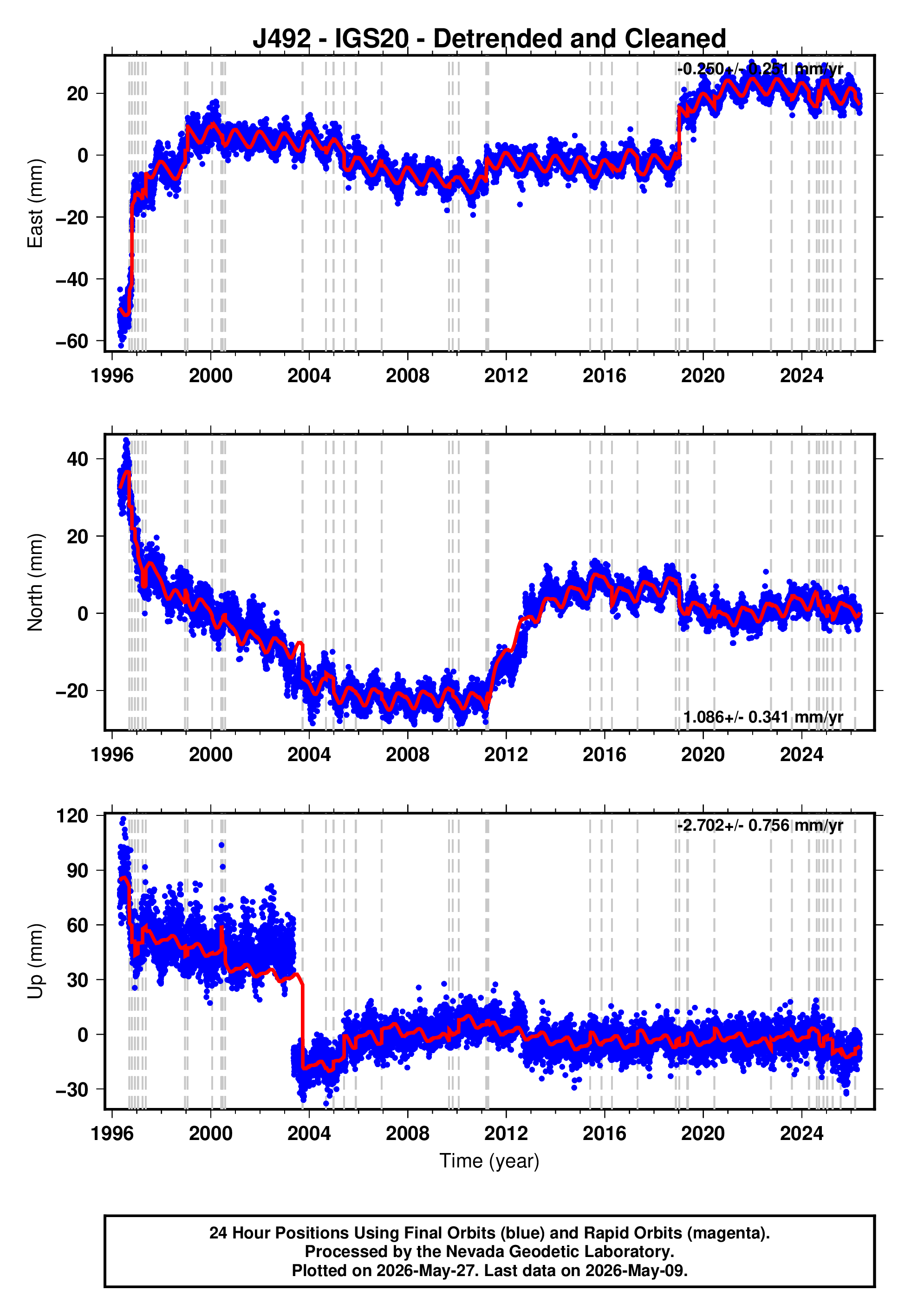

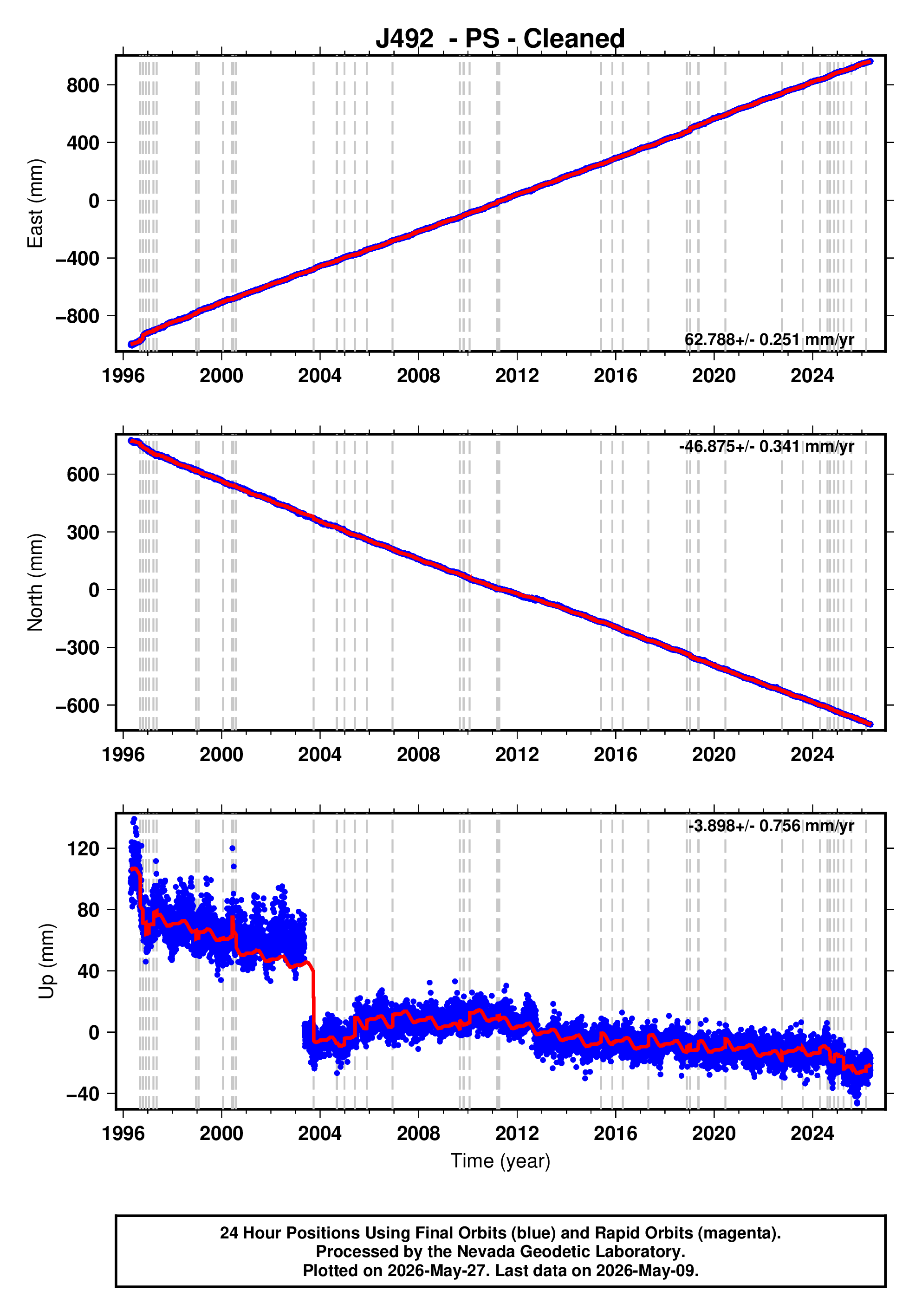

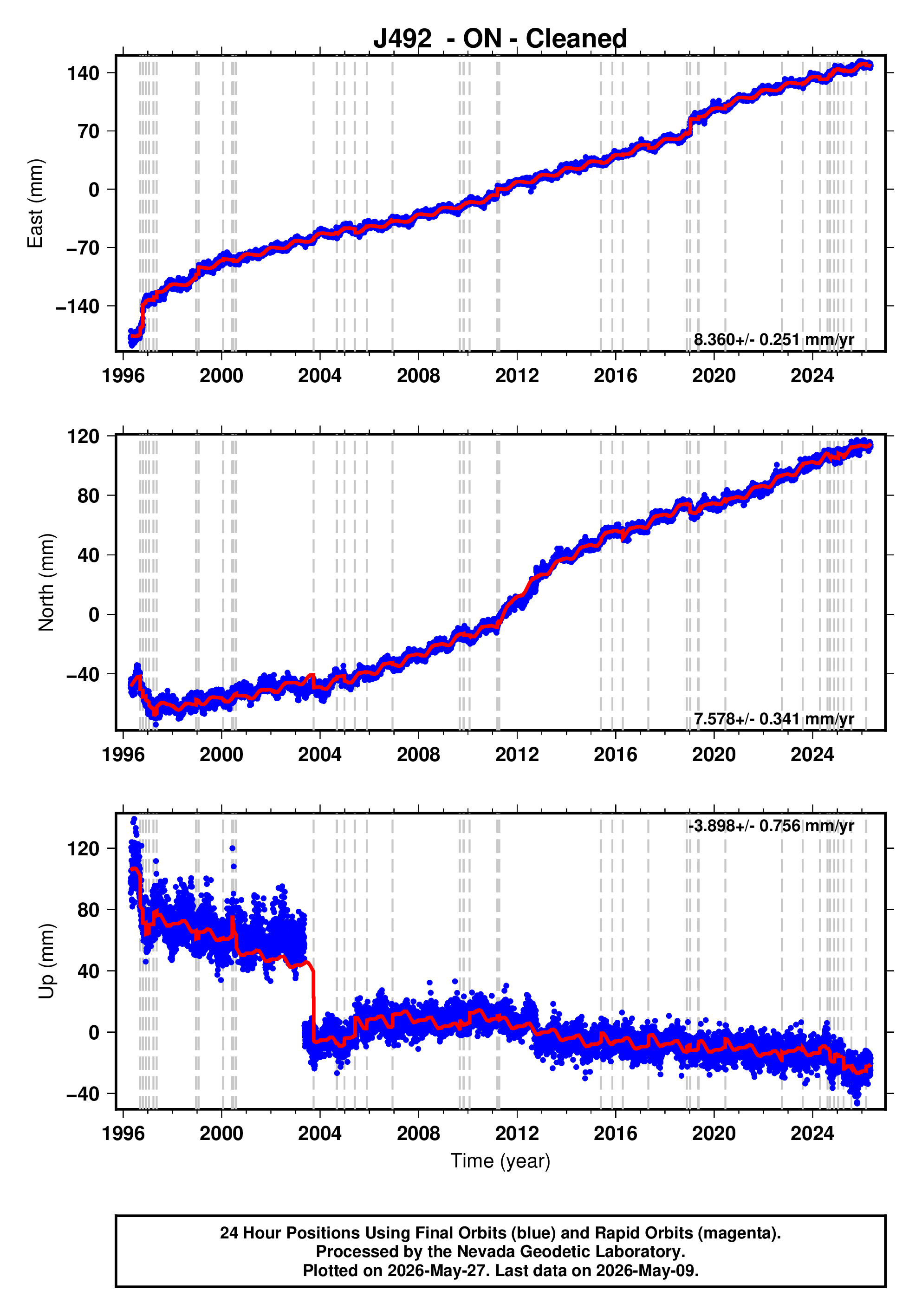

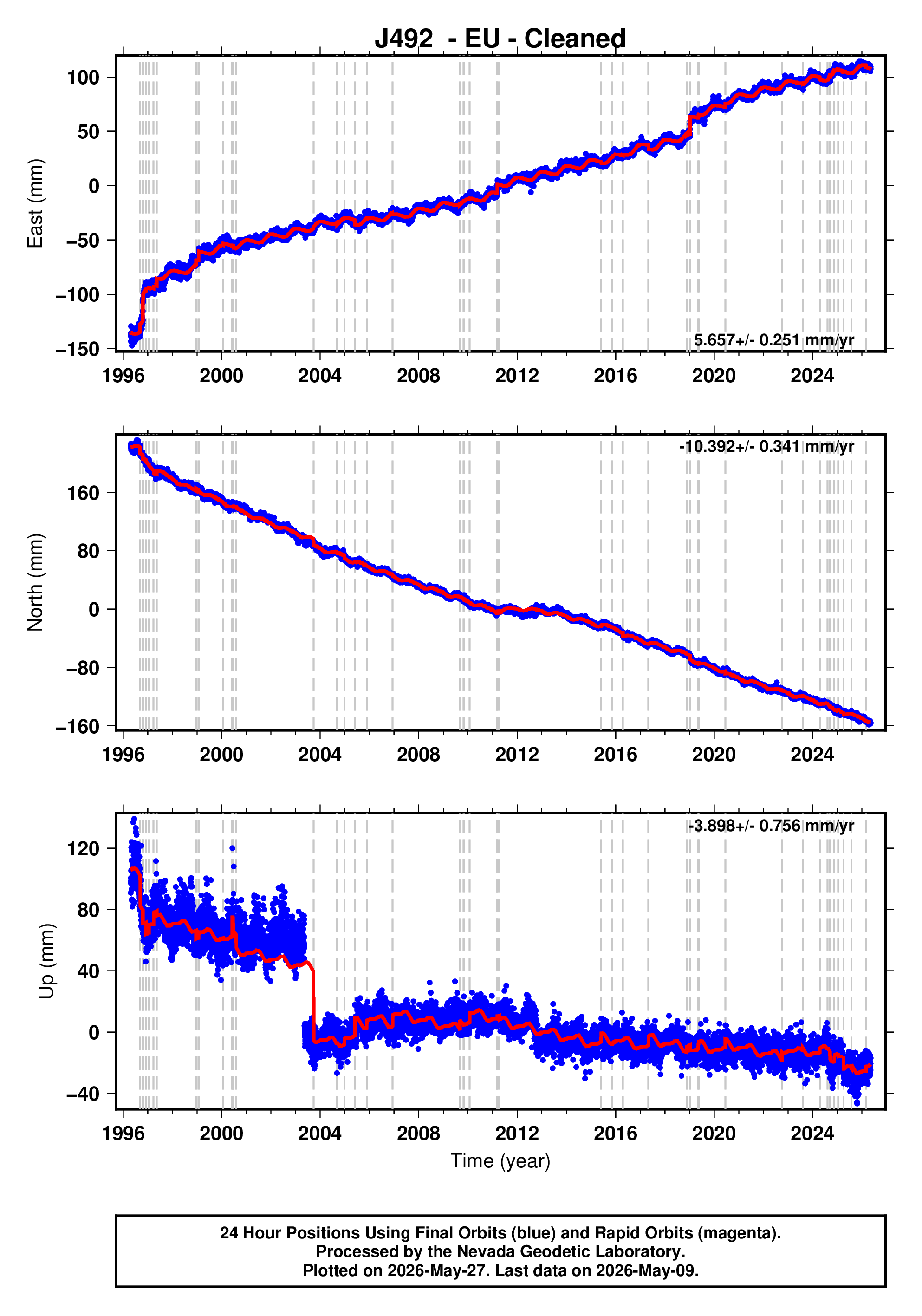

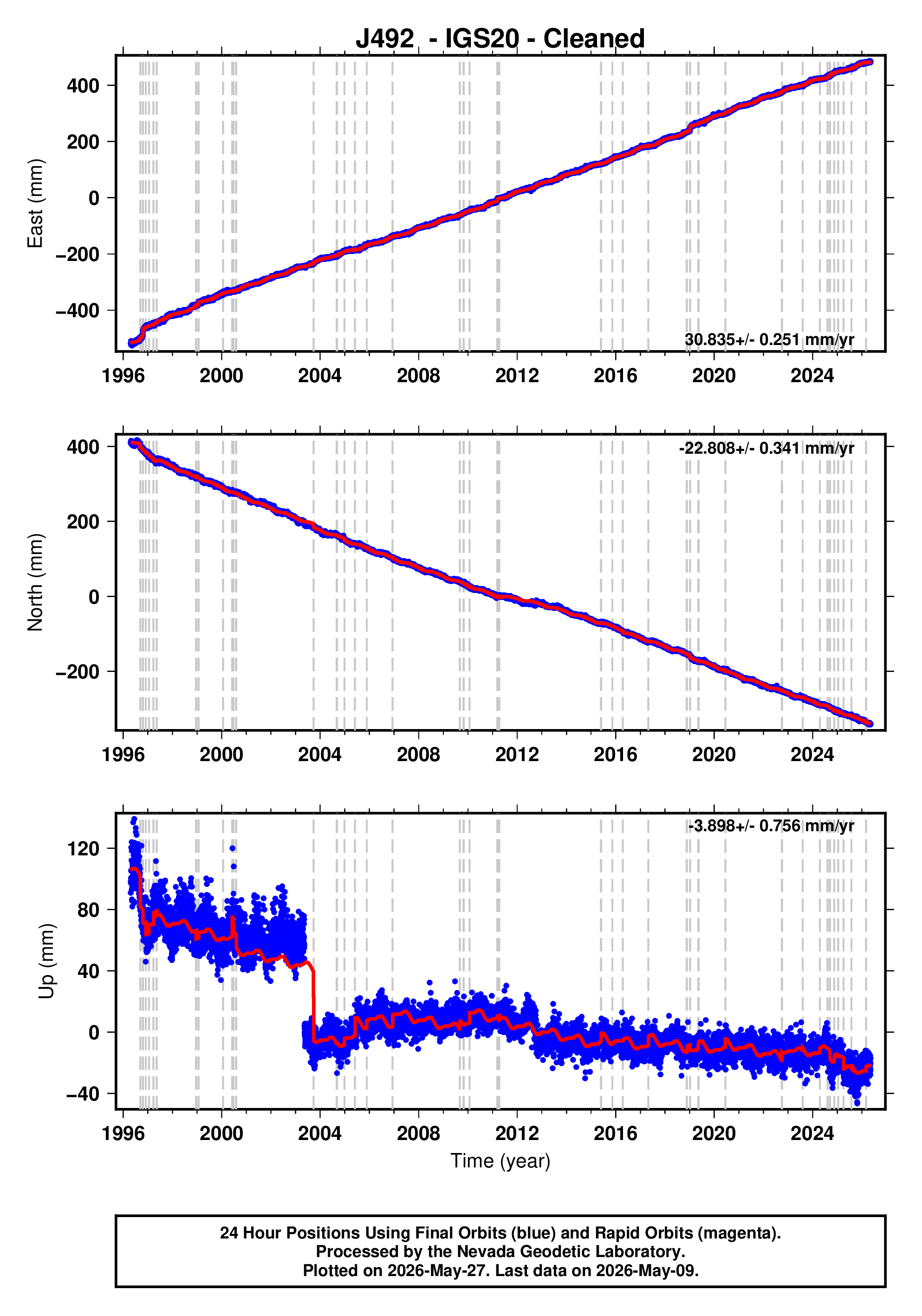

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned Rapid 5 min.
Not Available
Not Available
Not Available

Steps Information for this station

Station ID Date
Equipment Change Type/
or Event ID
J49209SEP03 usp000h16f 6.2 113.2
J49209OCT30 usp000h3jp 6.8 185.2
J49210JAN25 usp000h6kk 5.5 48.7
J49211MAR11 official20110311054624120_30 9.1 1354.9
J49211MAR11 usp000hvpa 7.9 1137.3
J49211APR09 usp000hzky 5.9 98.2
J49215MAY30 us20002ki3 7.8 971.9
J49215NOV13 us10003y71 6.7 206.5
J49216APR15 us20005iis 7.0 252.1
J49217APR29 us10008m0g 5.7 53.4
J49218MAY27 Reference_Frame_Change:_IGS08_to_IGS14 - -
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
