MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : J449

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.

Latitude: 32.841

Longitude: 132.704

Height: 116.780 meters

Time Series Data

(ascii text)
24 Hour Final Solutions


env xyz
24 Hour Rapid Solutions

FID (~IGS08)

env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)


ftp link

Cite this product as: Blewitt et al.,(2018).

See this link for suggested full citation text.

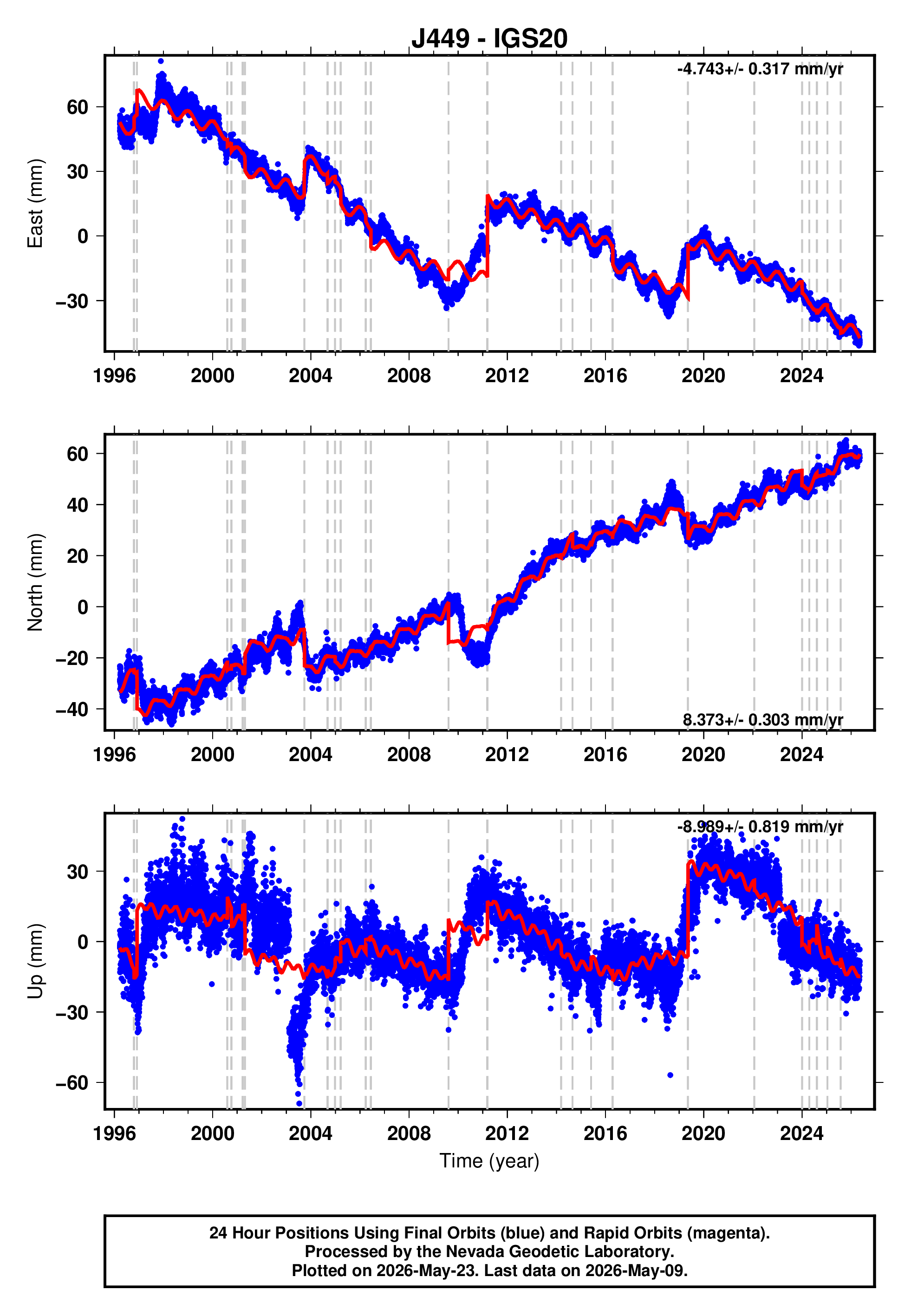

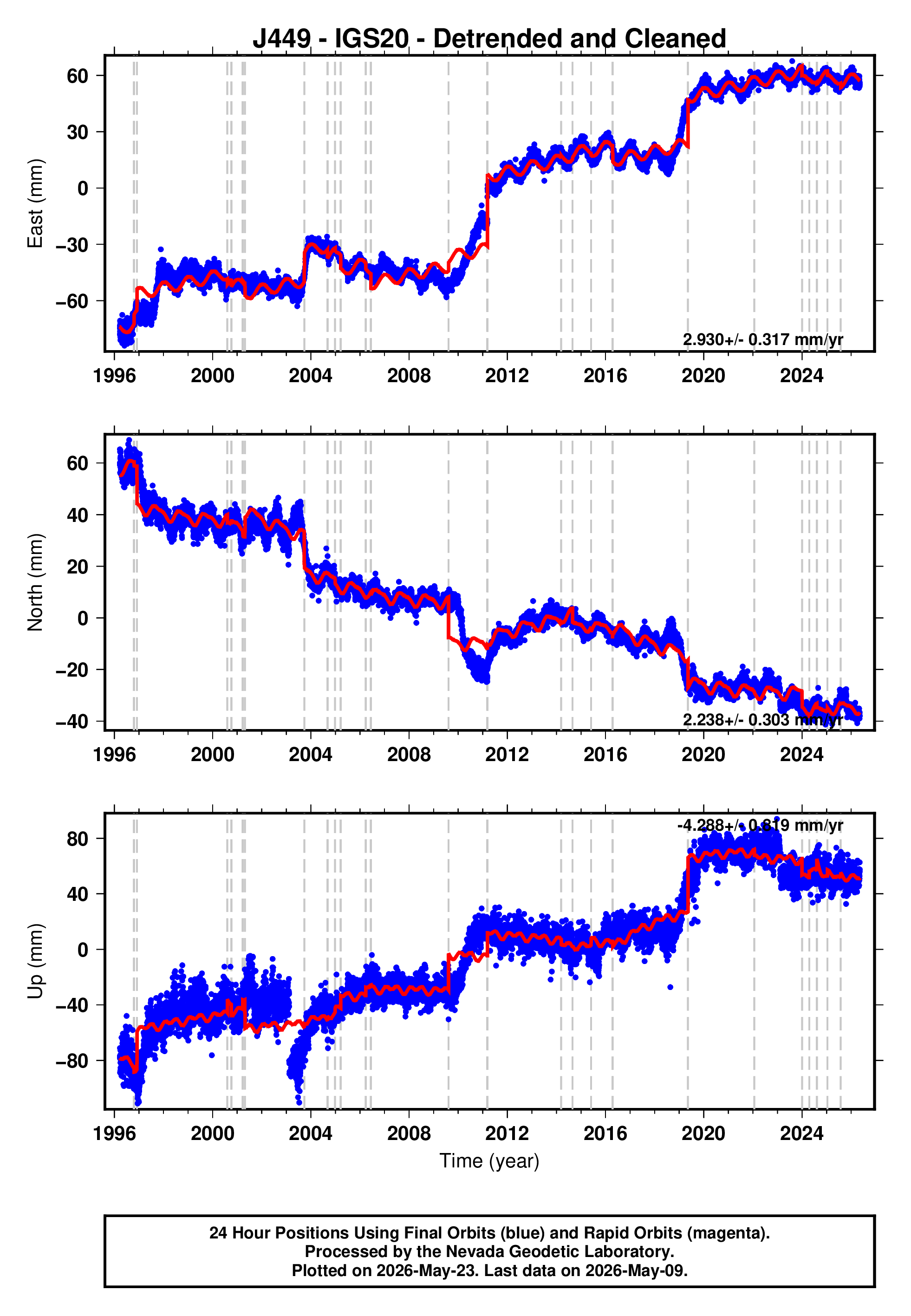

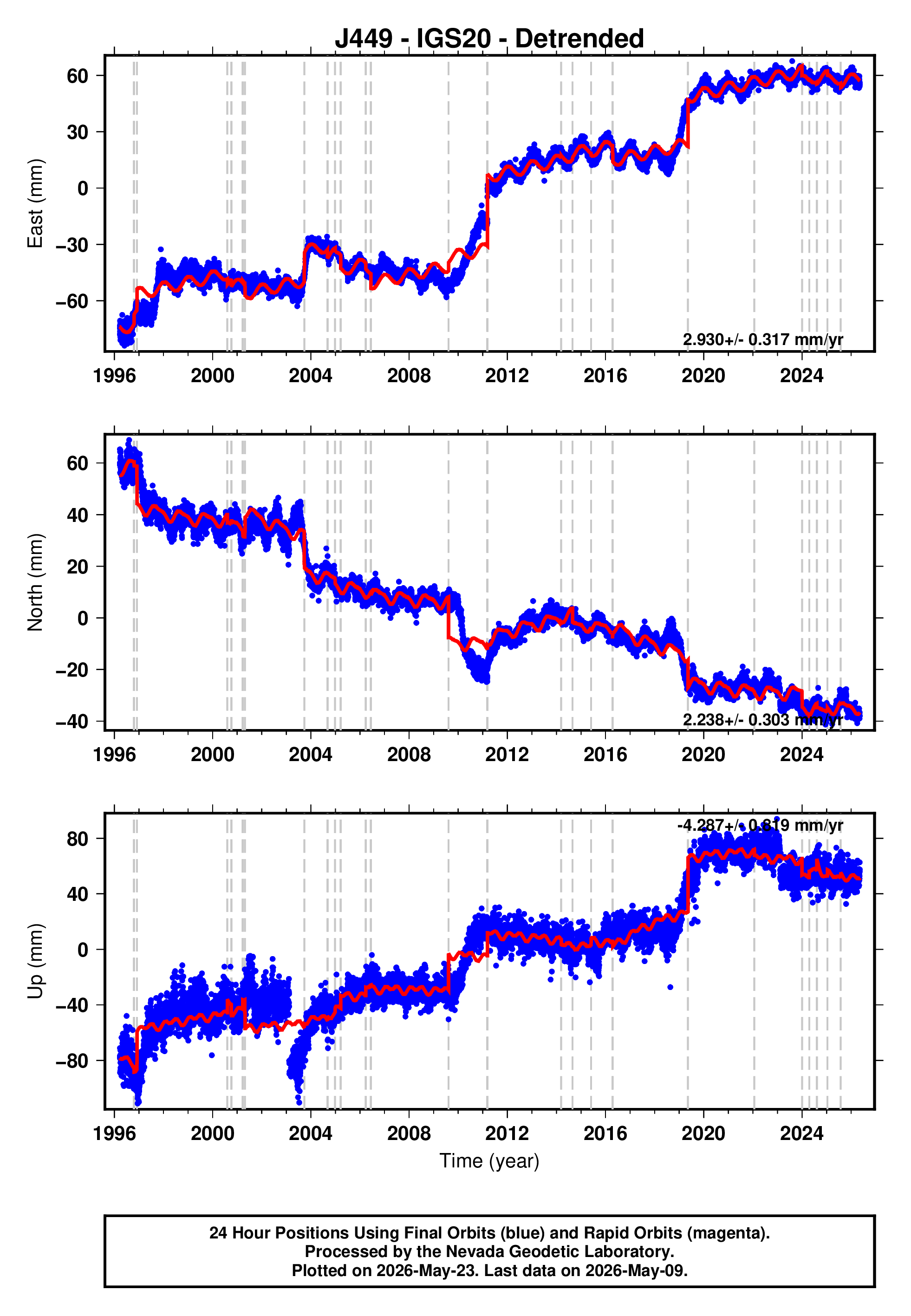

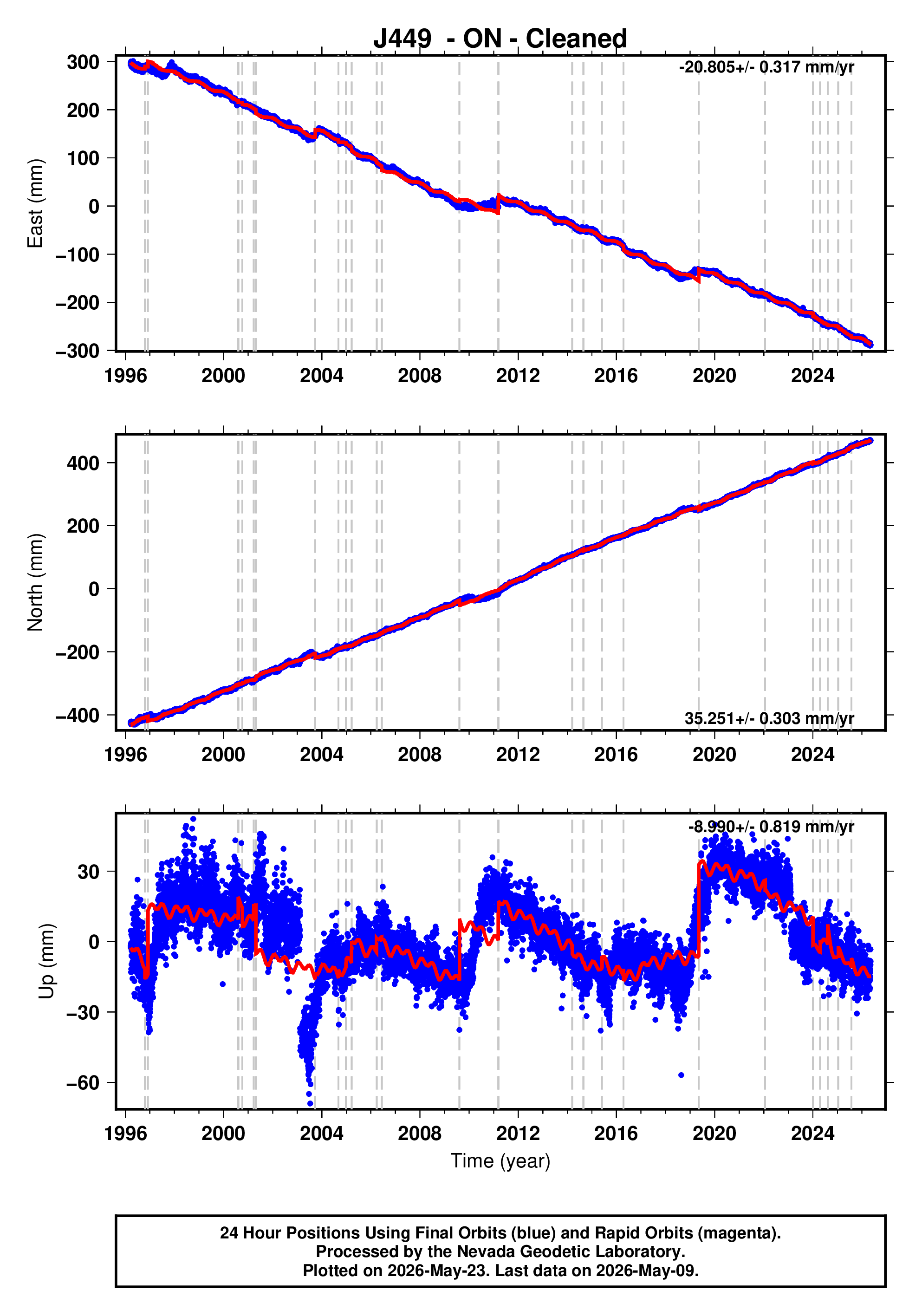

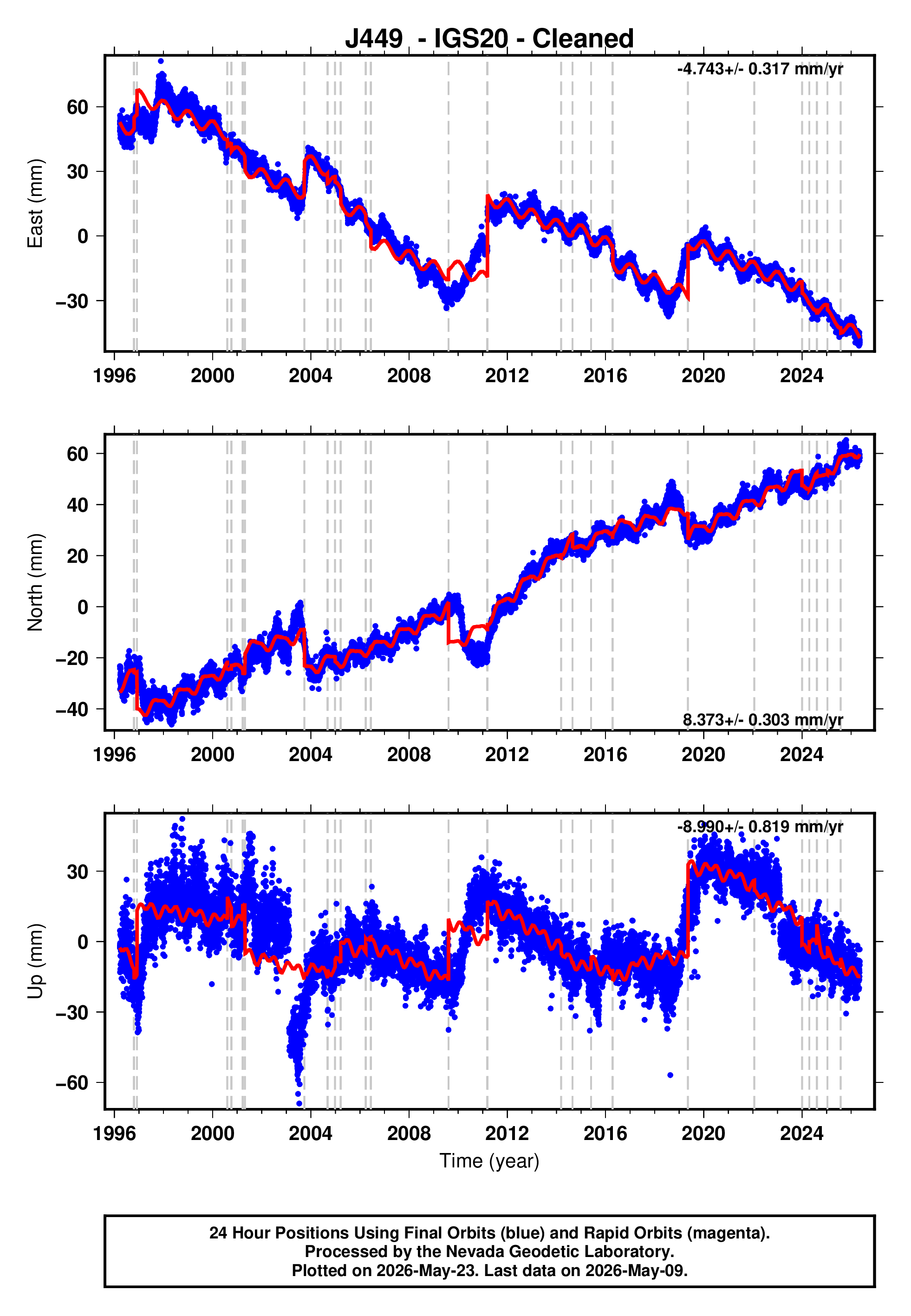

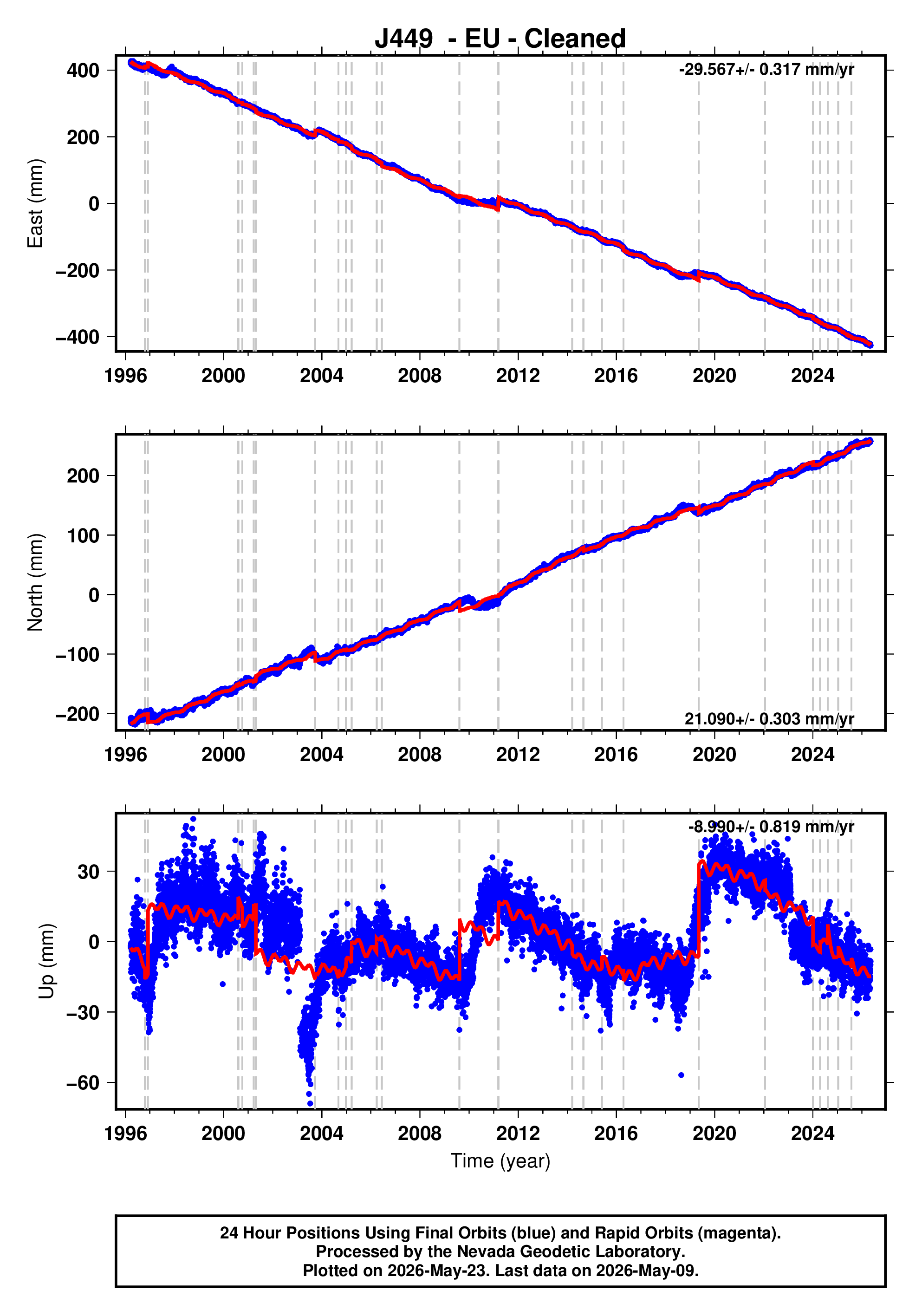

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned Rapid 5 min.
Not Available
Not Available
Not Available

Steps Information for this station

Station ID Date
Equipment Change Type/
or Event ID
J44911MAR11 official20110311054624120_30 9.1 1063.4
J44911MAR11 usp000hvpa 7.9 859.2
J44914MAR13 usc000nabv 6.3 124.4
J44914AUG28 usc000s7q8 5.8 102.9
J44915MAY30 us20002ki3 7.8 931.2
J44916APR14 us20005hzn 6.2 186.9
J44916APR15 us20005iis 7.0 182.3
J44918MAY27 Reference_Frame_Change:_IGS08_to_IGS14 - -
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
