MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : J255

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.


Latitude: 36.394

Longitude: 136.389

Height: 47.564 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS08

env xyz
24 Hour Rapid Solutions

FID (~IGS08)

env
env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)

env

ftp link

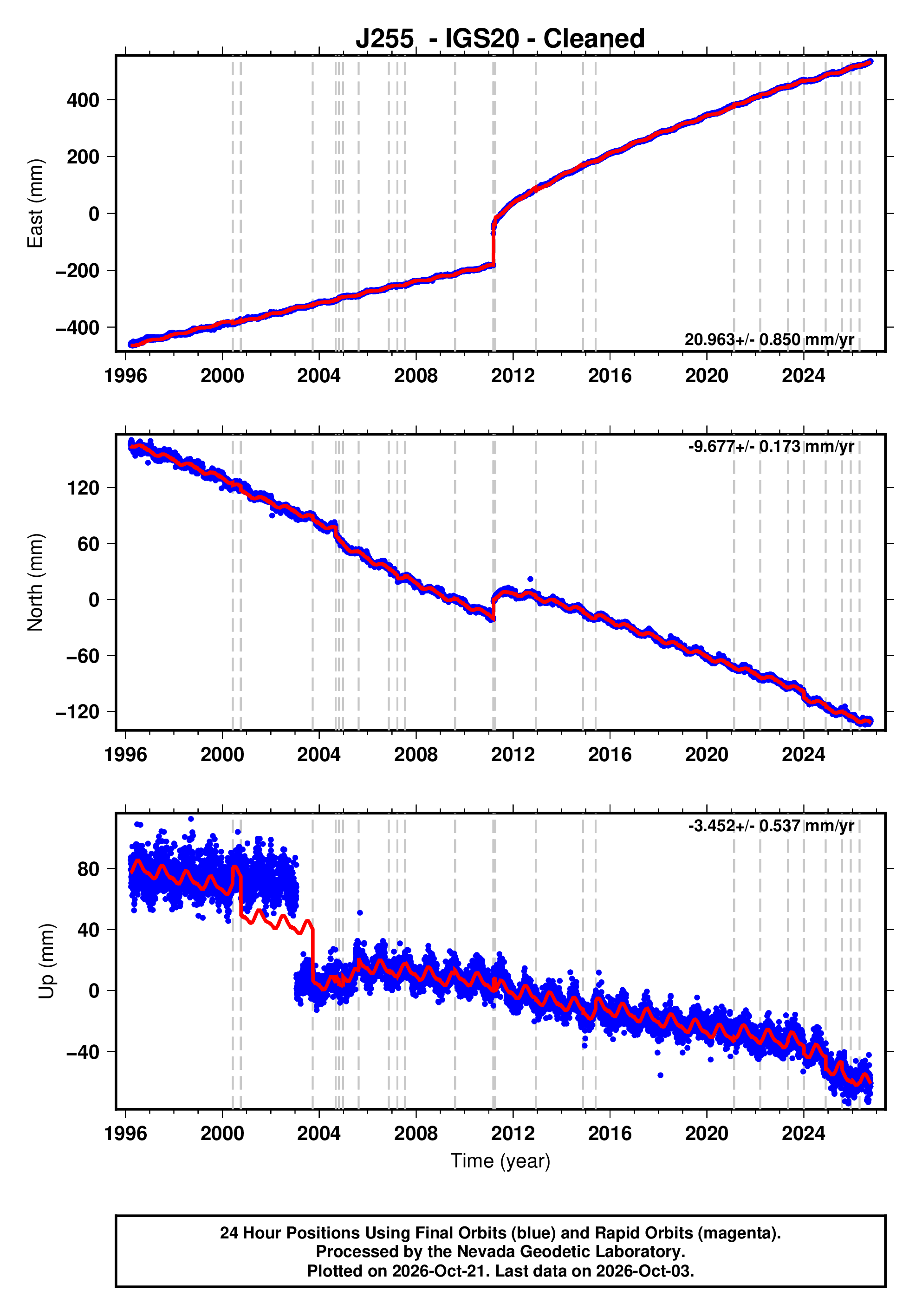

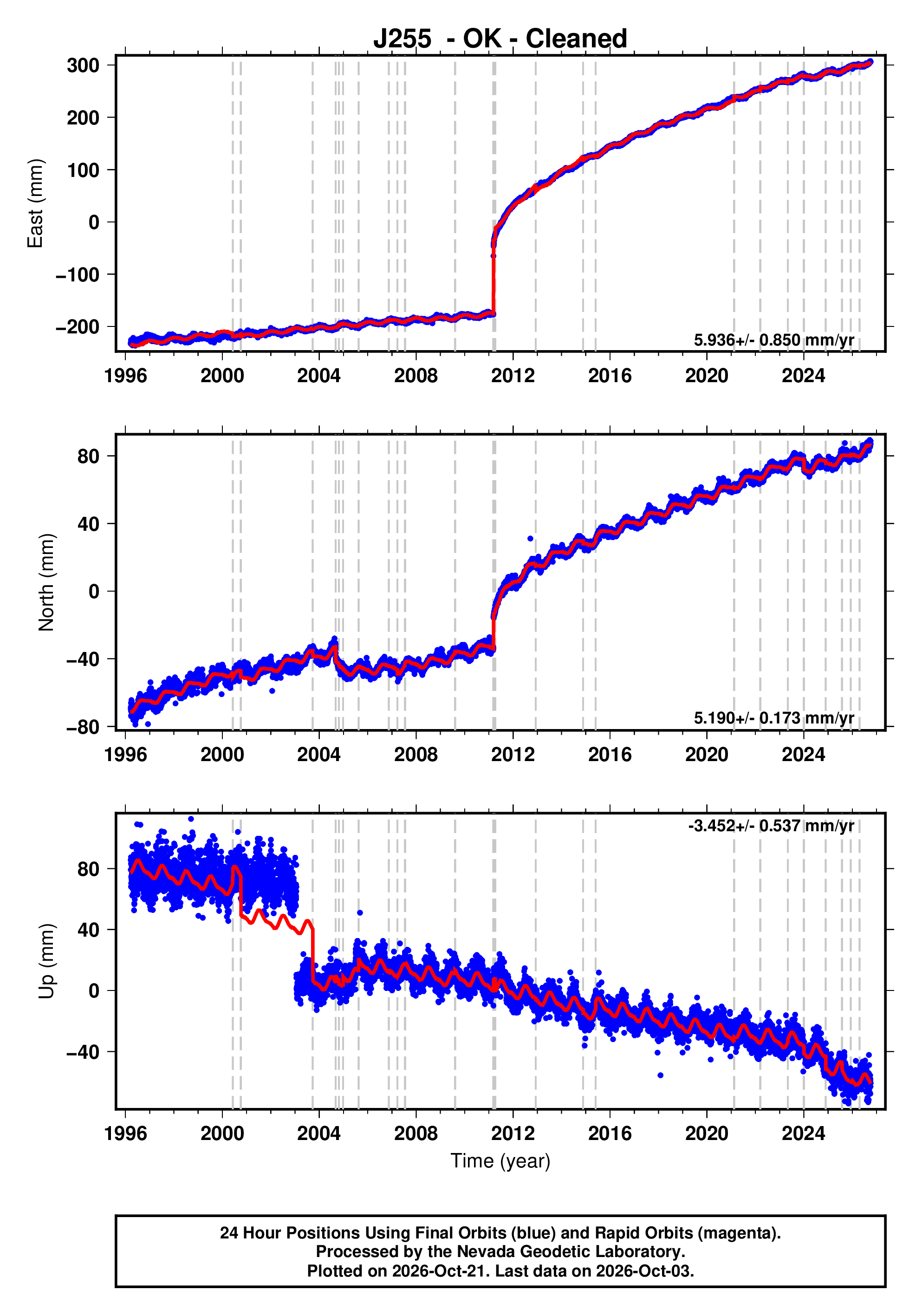

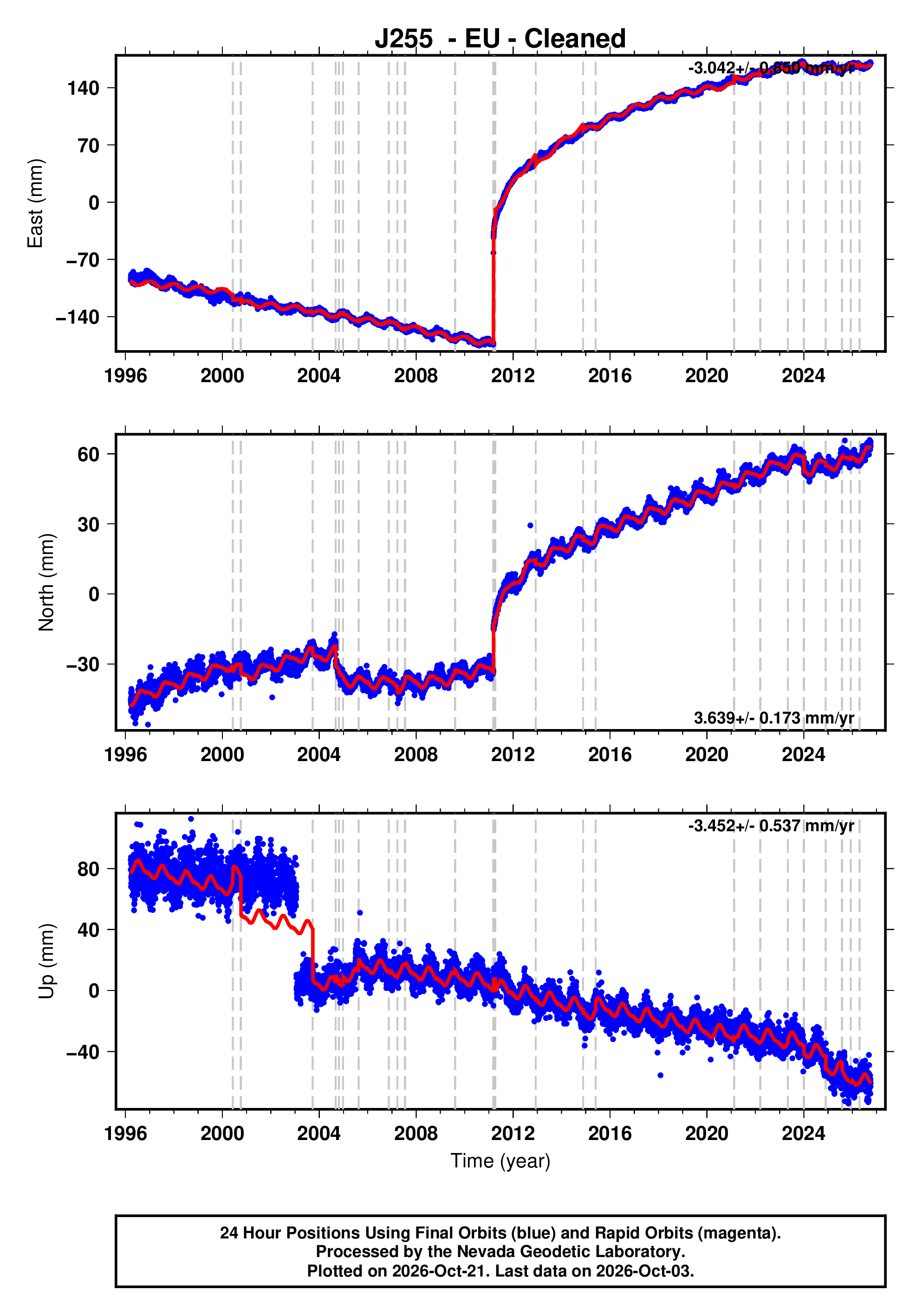

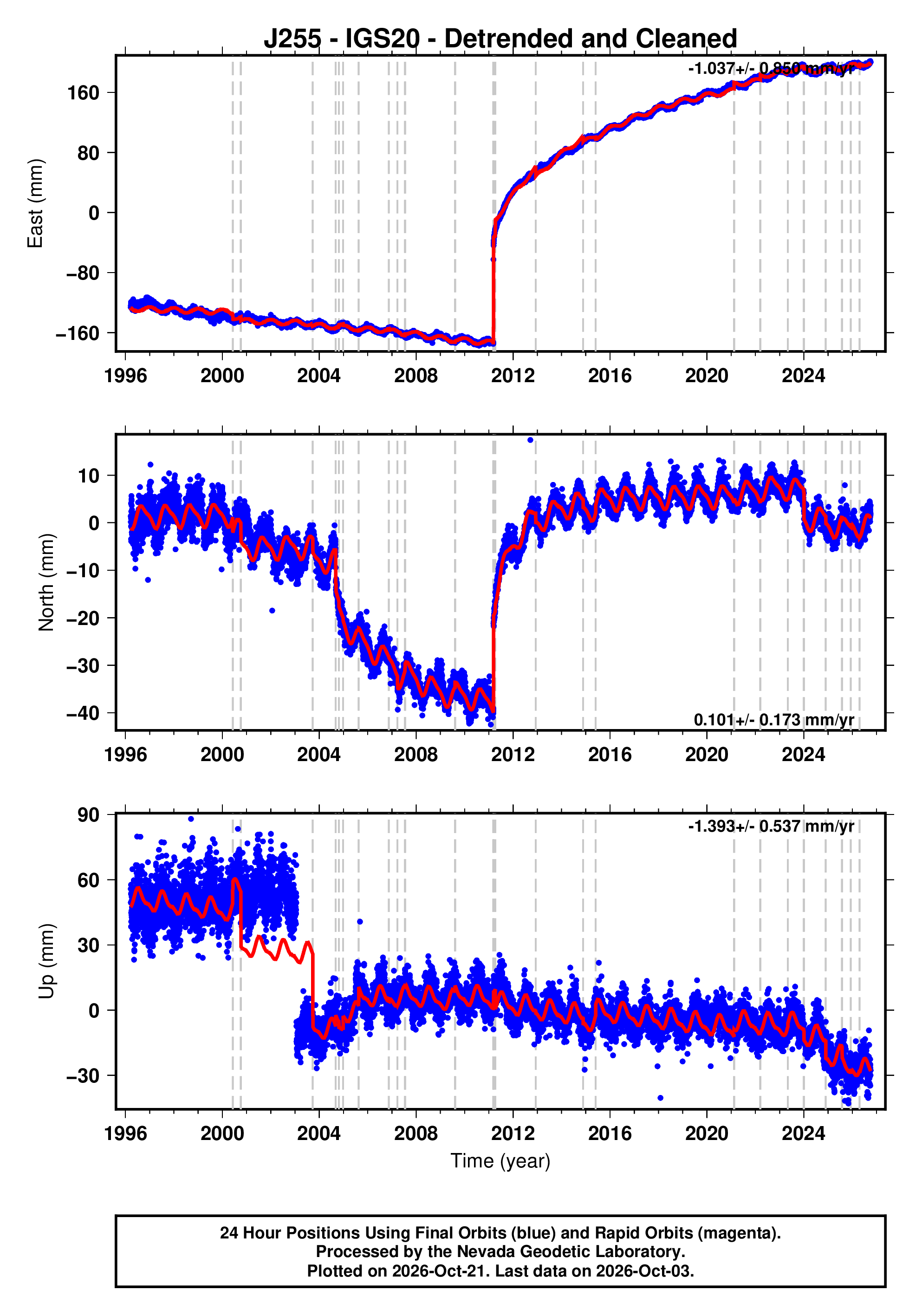

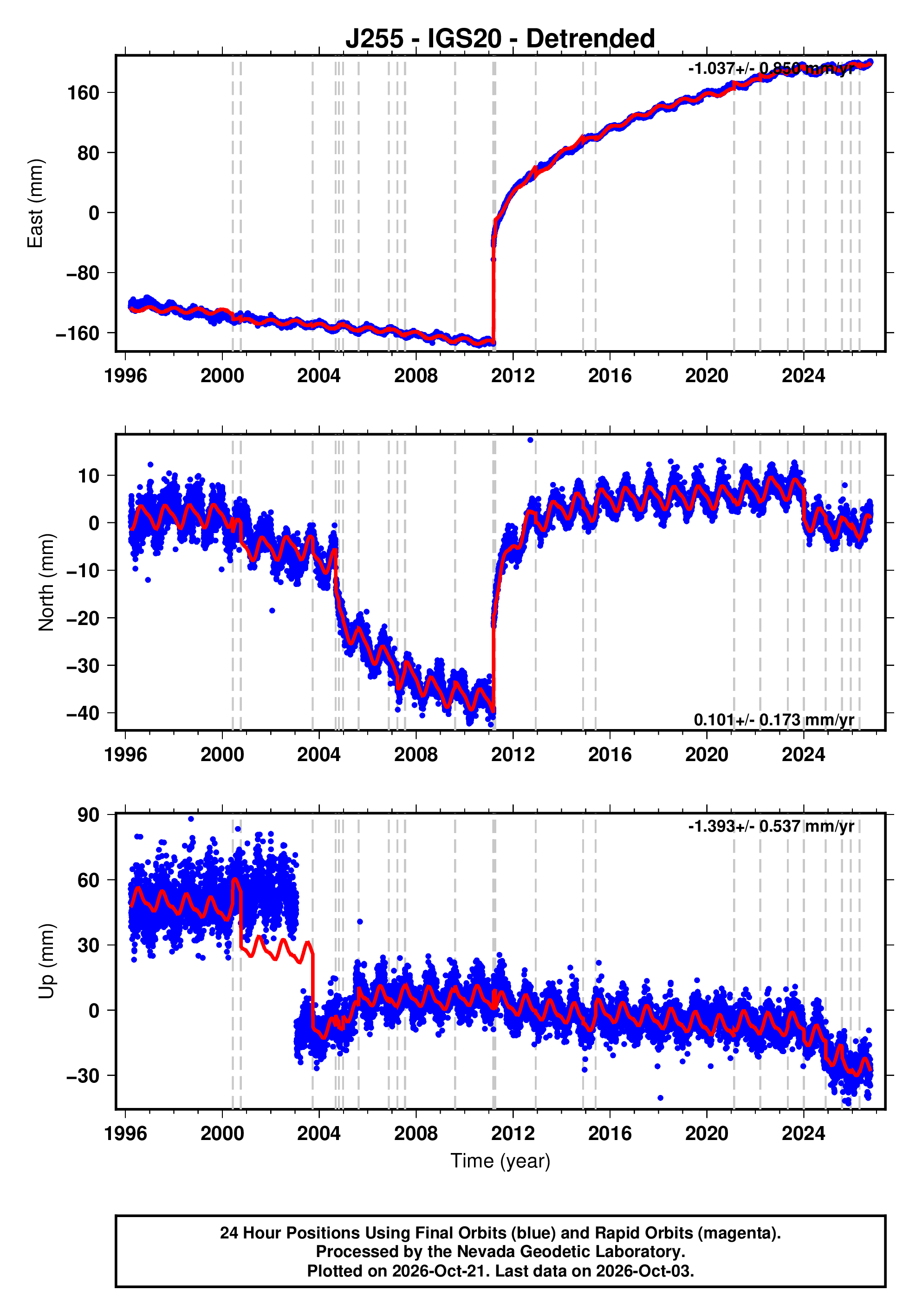

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned Rapid 5 min.
Not Available
Not Available
Not Available


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
J25509AUG09 usp000h04j 7.1 385.9
J25511MAR09 usp000hvhj 7.3 613.2
J25511MAR11 official20110311054624120_30 9.1 569.6
J25511MAR11 usp000hvpa 7.9 423.1
J25511MAR11 usp000hvpg 7.7 749.0
J25511MAR11 usp000hw18 6.2 190.1
J25511APR07 usp000hzf6 7.1 504.9
J25512DEC07 usp000jwjn 7.3 690.2
J25514NOV22 usb000syza 6.2 136.7
J25515MAY30 us20002ki3 7.8 1026.6
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
