MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : J030

Network Operator's Station ID : 0030

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 39.968 degrees

Longitude: 139.776 degrees

Height: 69.455 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

OK

tenv3

PA

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

OK

tenv3

PA

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

G104

6.83 km

J551

10.55 km

J923

24.41 km

J552

27.83 km

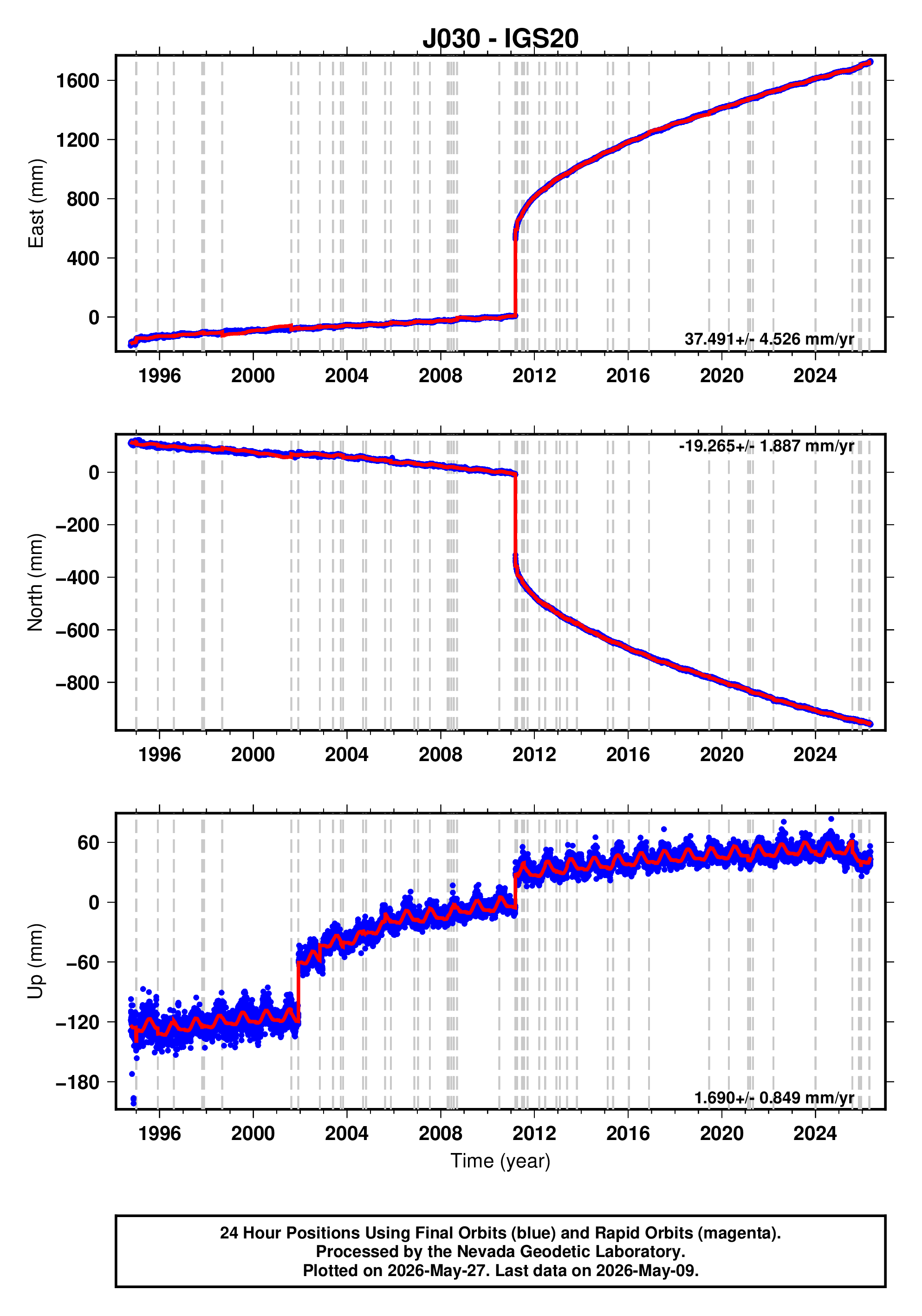

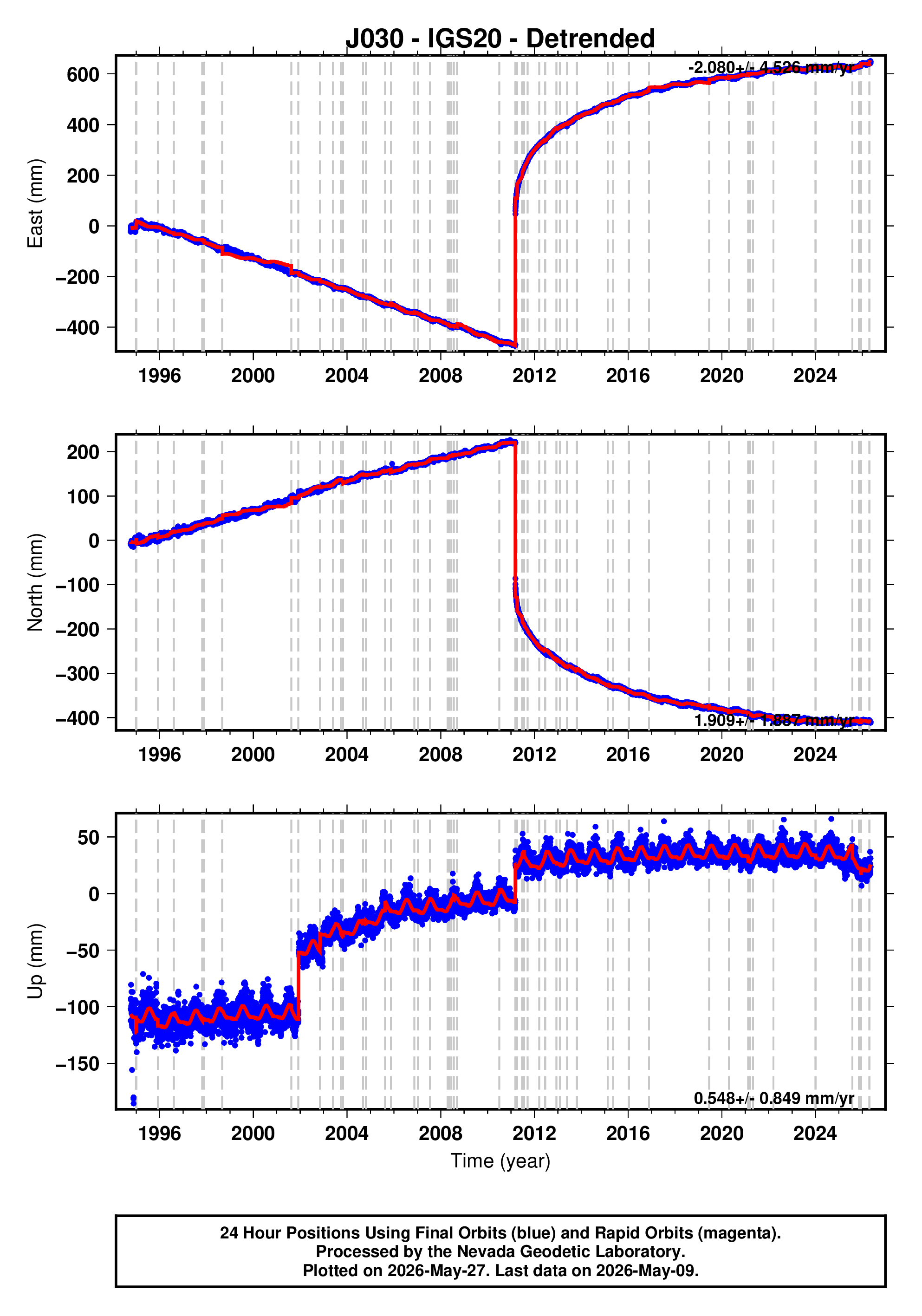

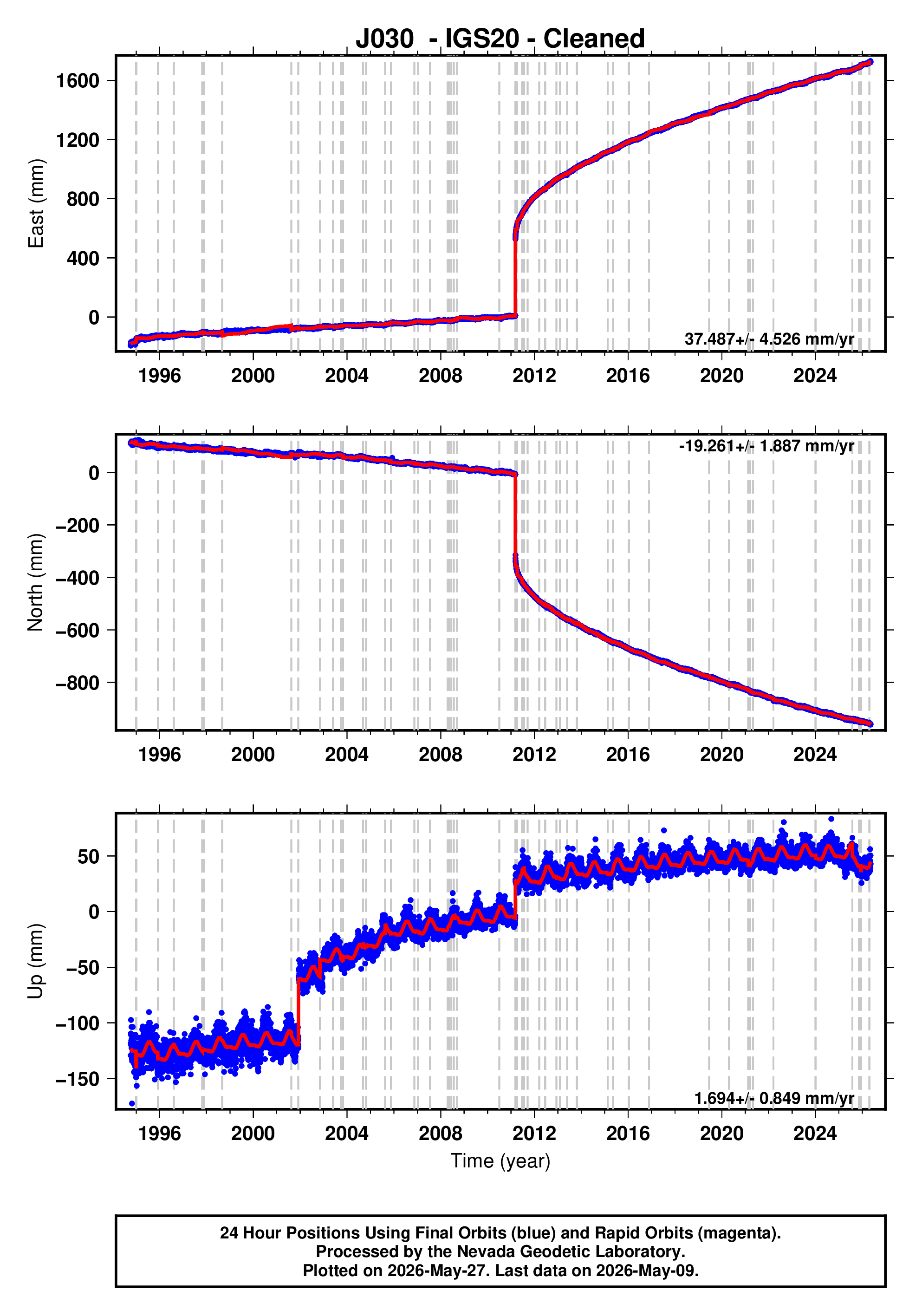

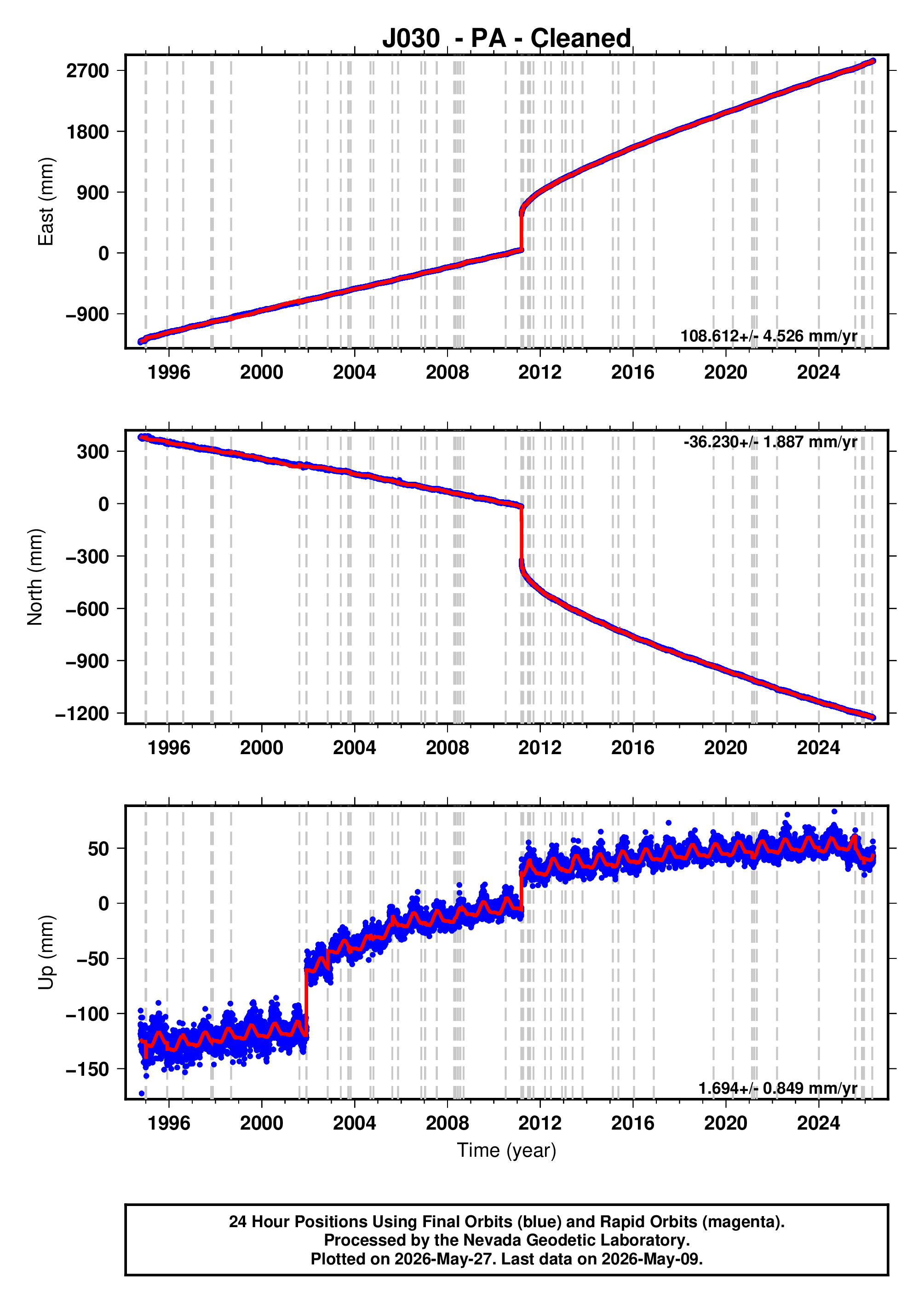

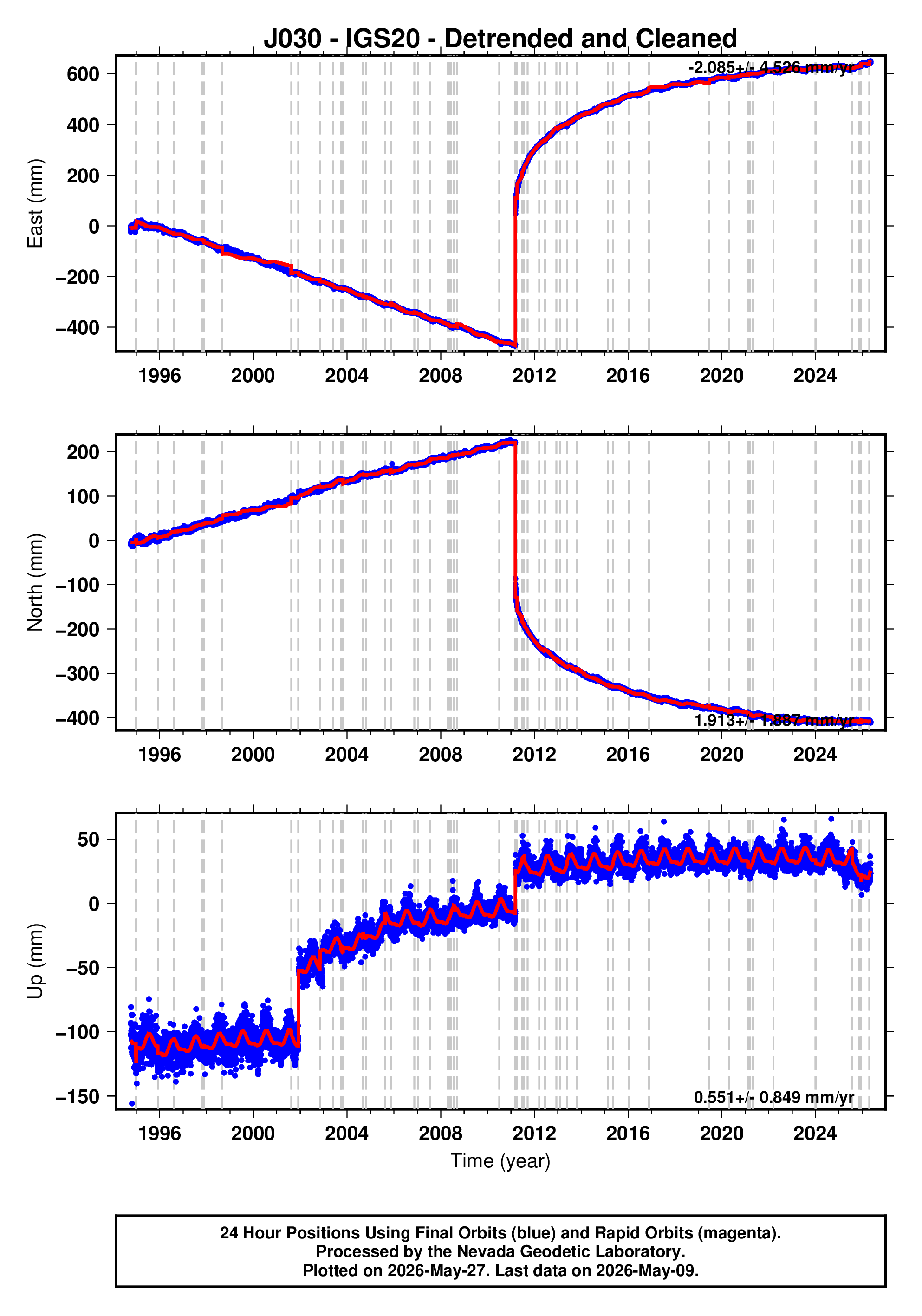

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
J03010JUL04 usp000heww 6.3 223.4
J03011MAR09 usp000hvhj 7.3 314.4
J03011MAR11 official20110311054624120_30 9.1 291.0
J03011MAR11 usp000hvp5 6.7 327.9
J03011MAR11 usp000hvpa 7.9 426.3
J03011MAR11 usp000hvpg 7.7 466.9
J03011MAR11 usp000hvuu 6.6 244.0
J03011MAR11 usp000hw1y 6.2 83.8
J03011APR07 usp000hzf6 7.1 244.6
J03011JUN22 usp000j3k6 6.7 207.0
J03011JUL10 usp000j4gp 7.0 370.2
J03011JUL23 usp000j5by 6.3 211.7
J03011SEP16 usp000j84y 6.7 257.6
J03012MAR14 usp000jg7e 6.9 449.1
J03012JUN17 usp000jmwc 6.3 211.5
J03012DEC07 usp000jwjn 7.3 428.5
J03013FEB02 usc000f03a 6.9 416.6
J03013MAY24 usb000h4jh 8.3 1935.9
J03013OCT25 usc000kn4n 7.1 527.3
J03015FEB16 usb000tpvj 6.7 265.1
J03015MAY12 us20002et4 6.8 226.9
J03016JAN14 us10004ebx 6.7 336.6
J03016NOV21 us10007b88 6.9 318.6
J03019JUN18 us600042fx 6.4 150.0
J03020APR19 us7000903m 6.3 225.5
J03021FEB13 us6000dher 7.1 303.4
J03021MAR20 us7000dl6y 7.0 233.3
J03021MAY01 us7000dz5t 6.9 251.7
J03022MAR16 us6000h519 7.3 295.4
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
