MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : J020

Network Operator's Station ID : 0020

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 42.154 degrees

Longitude: 139.520 degrees

Height: 68.521 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

OK

env

PA

env

24 Hour Rapid Solutions

IGS14

env

OK

env

PA

env

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format


Nearest 4 Other Stations Distance

G102

8.68 km

J527

11.99 km

J145

40.01 km

J017

43.19 km


Time Series Plots

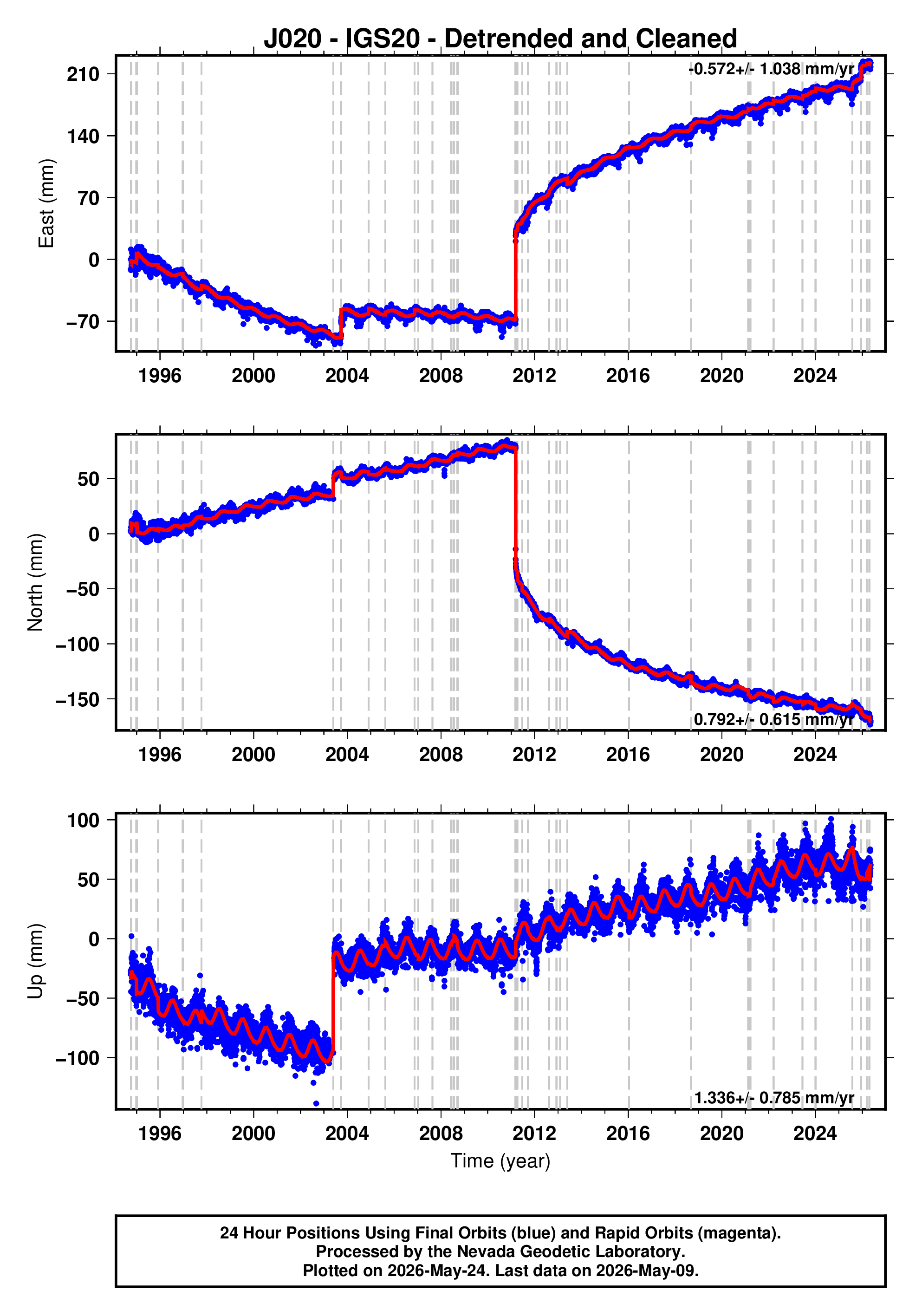

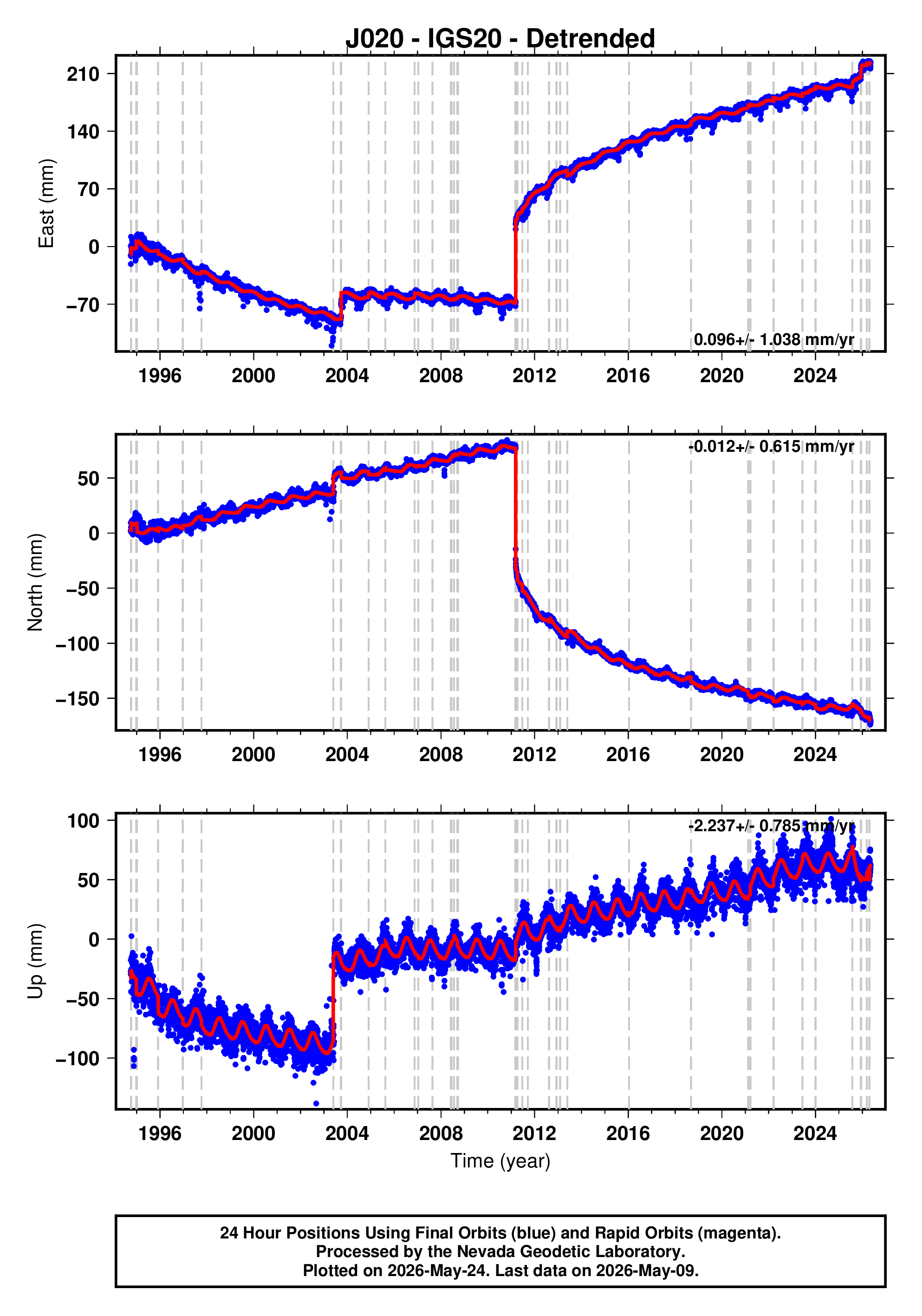

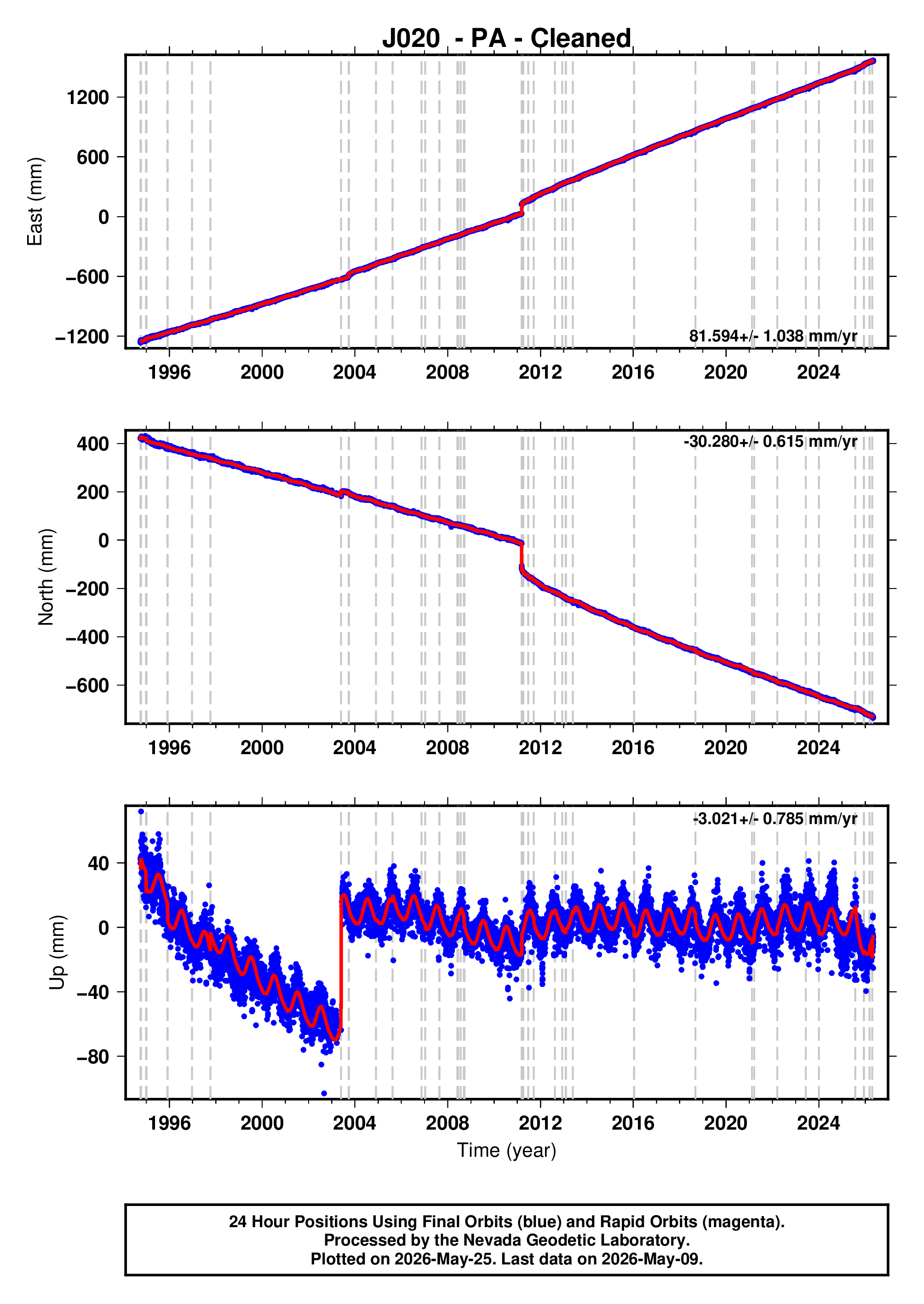

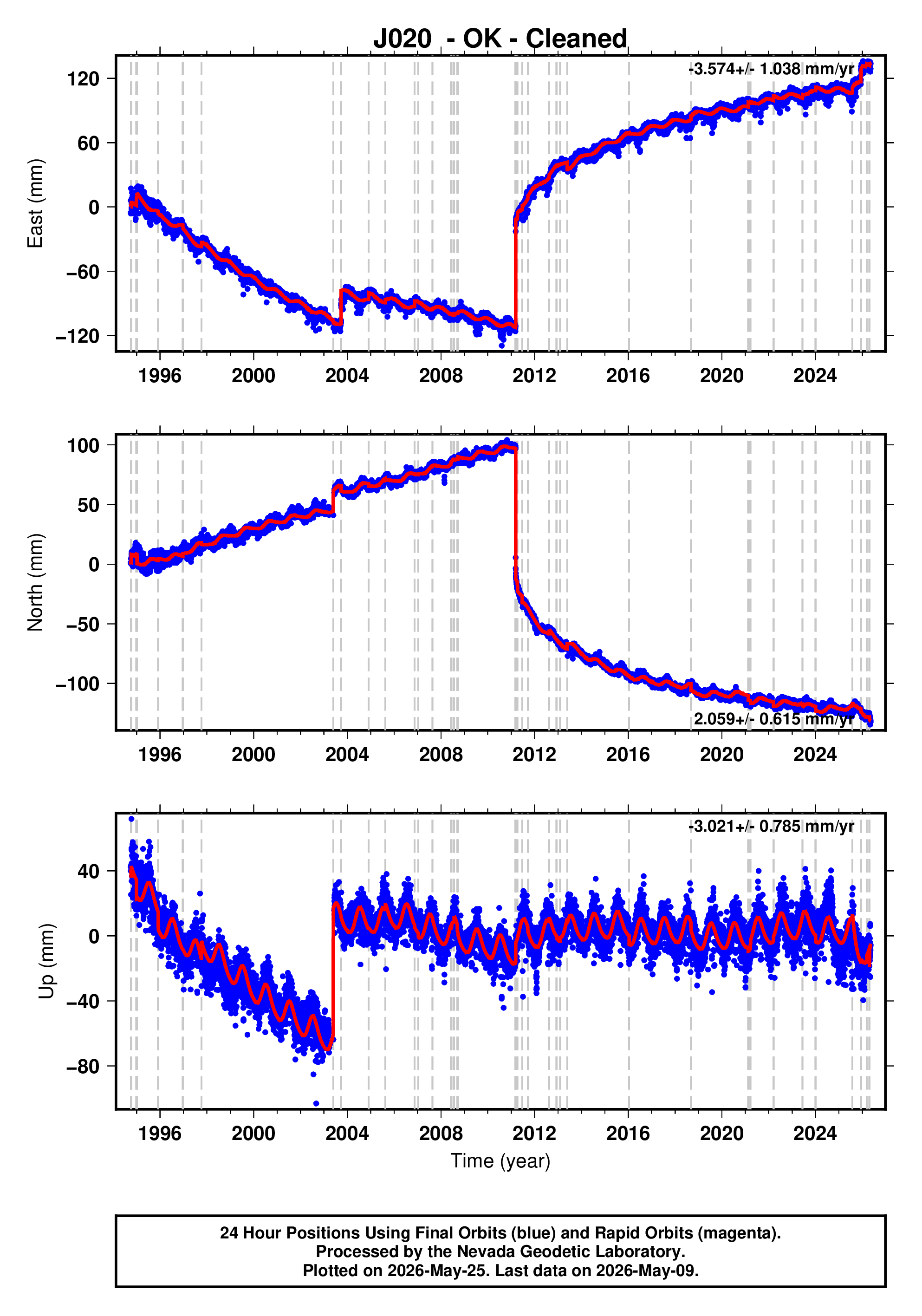

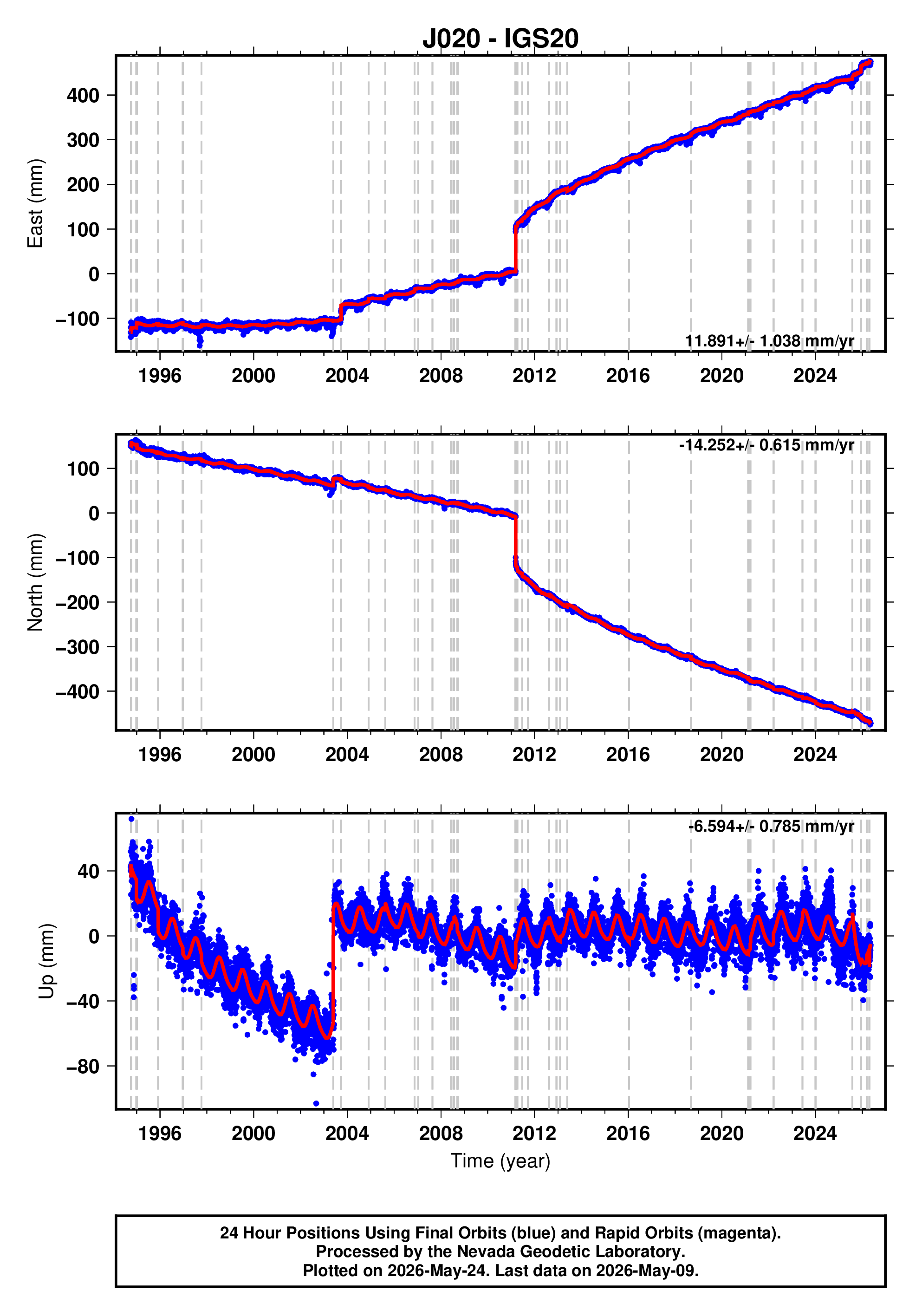

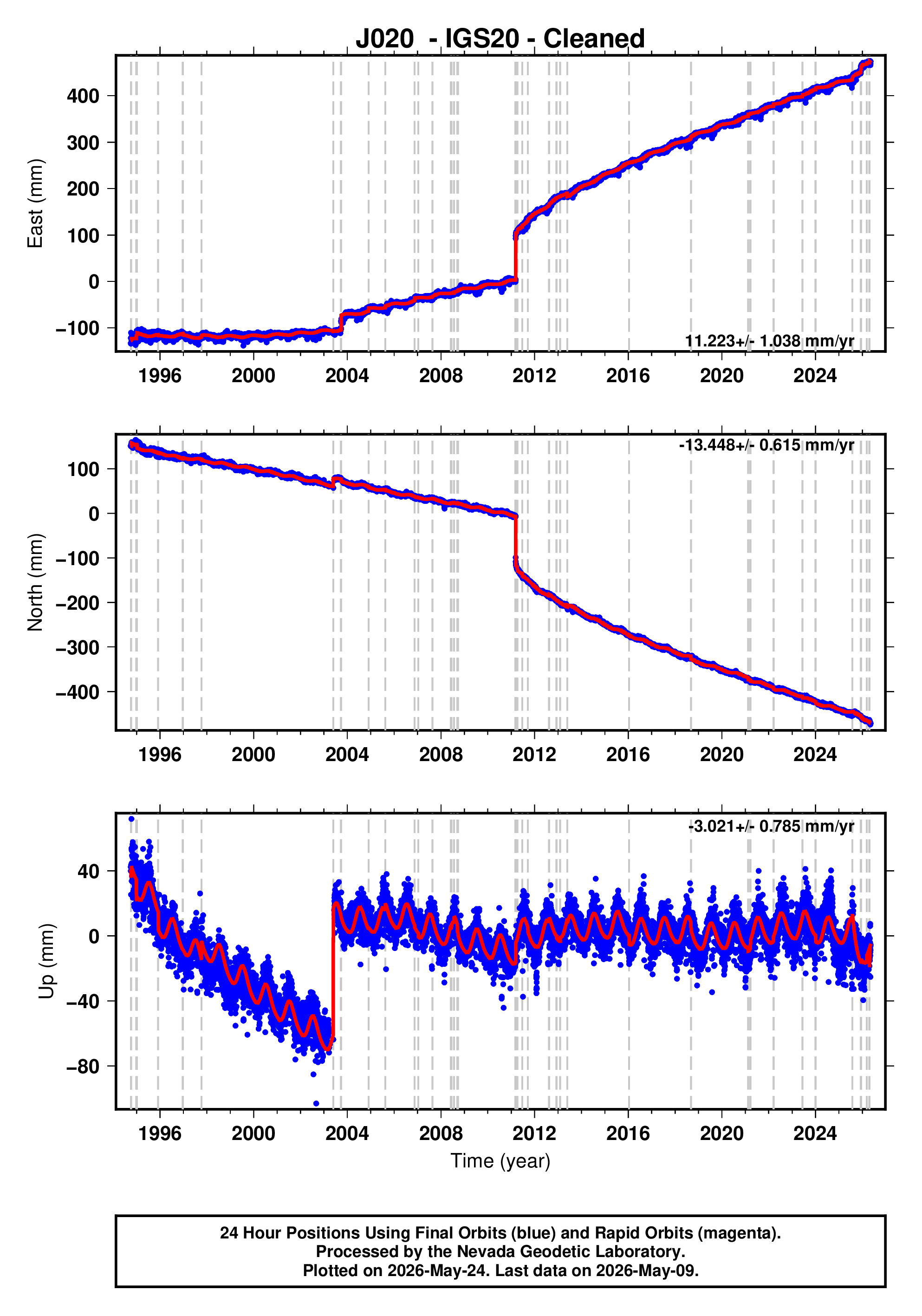

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
J02006NOV15 usp000exfn 8.3 1196.8
J02007JAN13 usp000f2ab 8.1 1277.2
J02008JUN13 usp000g9h6 6.9 365.8
J02008JUL23 usp000gczp 6.8 308.2
J02008SEP11 usp000ggu8 6.8 350.9
J02011MAR09 usp000hvhj 7.3 500.3
J02011MAR11 official20110311054624120_30 9.1 492.4
J02011MAR11 usp000hvpa 7.9 667.2
J02011MAR11 usp000hvpg 7.7 626.9
J02011MAR11 usp000hw1y 6.2 189.8
J02011APR07 usp000hzf6 7.1 465.5
J02011JUN22 usp000j3k6 6.7 332.3
J02011SEP16 usp000j84y 6.7 343.6
J02012AUG14 usp000jq9h 7.7 951.5
J02012DEC07 usp000jwjn 7.3 605.6
J02013FEB02 usc000f03a 6.9 300.9
J02013MAY24 usb000h4jh 8.3 1732.5
J02016JAN14 us10004ebx 6.7 270.0
J02018SEP05 us2000h8ty 6.6 206.5
J02021FEB13 us6000dher 7.1 528.4
J02021MAR20 us7000dl6y 7.0 449.4
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
