MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : IBEC

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.

Latitude: 0.350

Longitude: -78.116

Height: 2246.215 meters

Time Series Data

(ascii text)
24 Hour Final Solutions


env xyz
24 Hour Rapid Solutions

FID (~IGS08)

env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)


ftp link

Cite this product as: Blewitt et al.,(2018).

See this link for suggested full citation text.

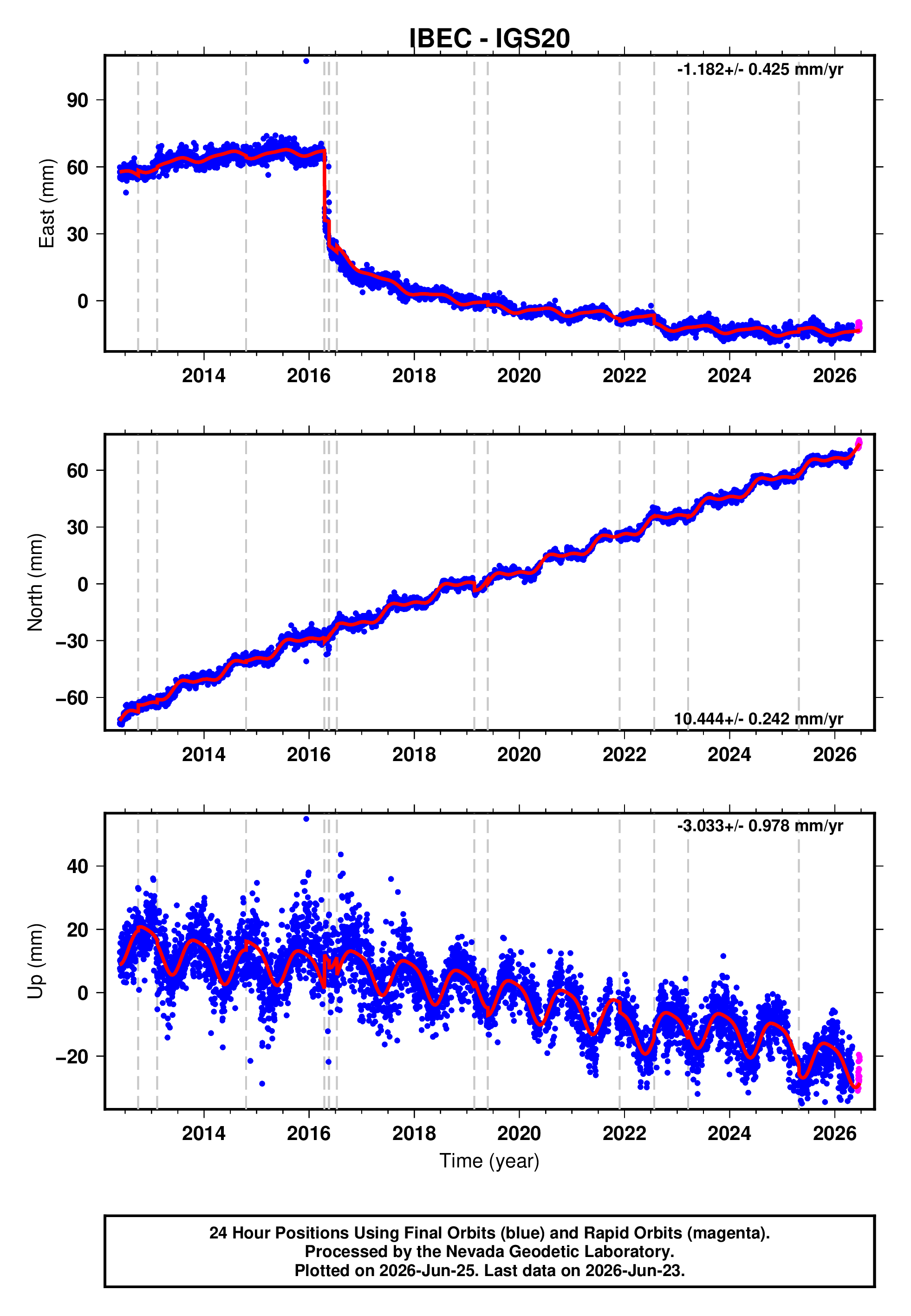

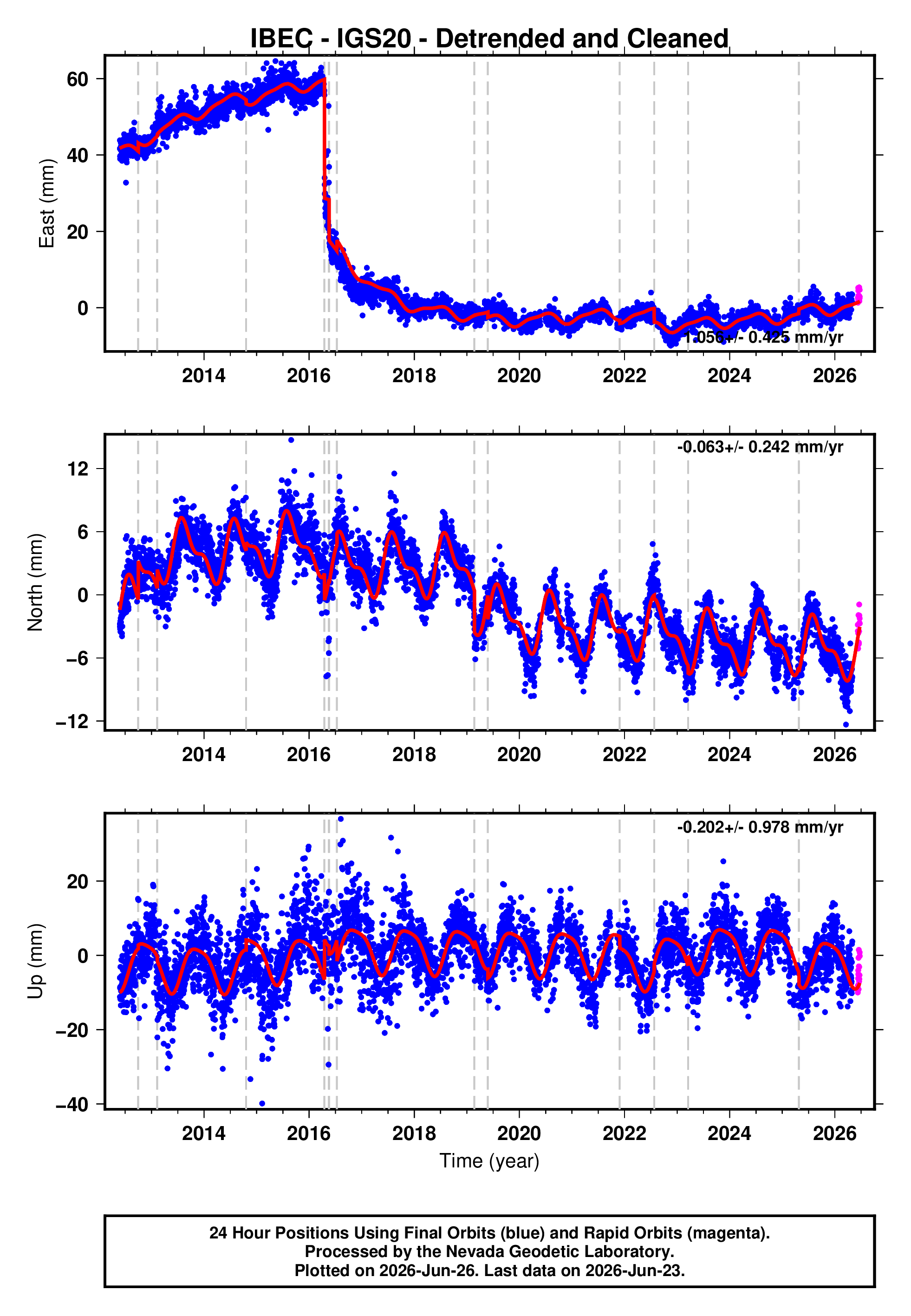

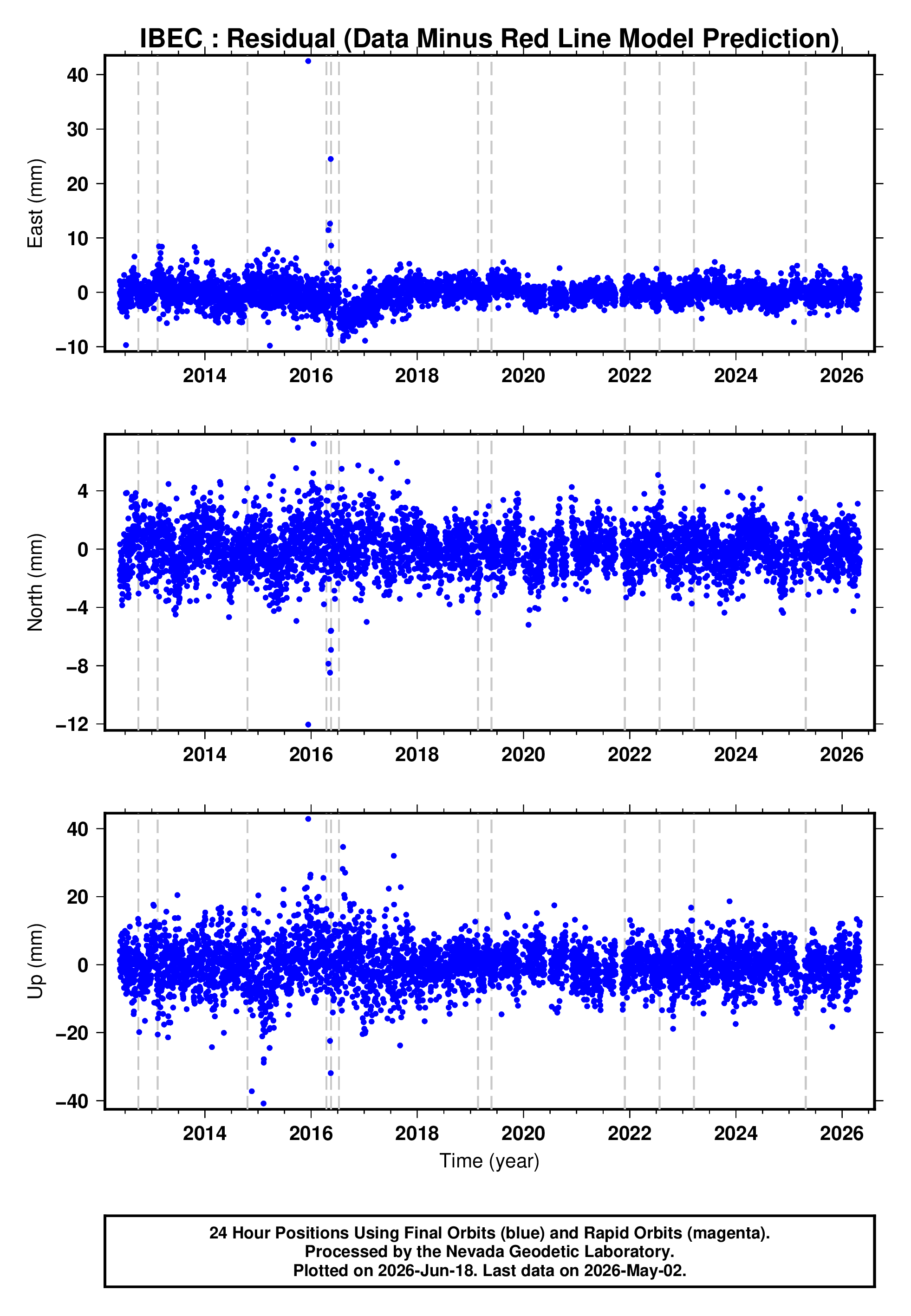

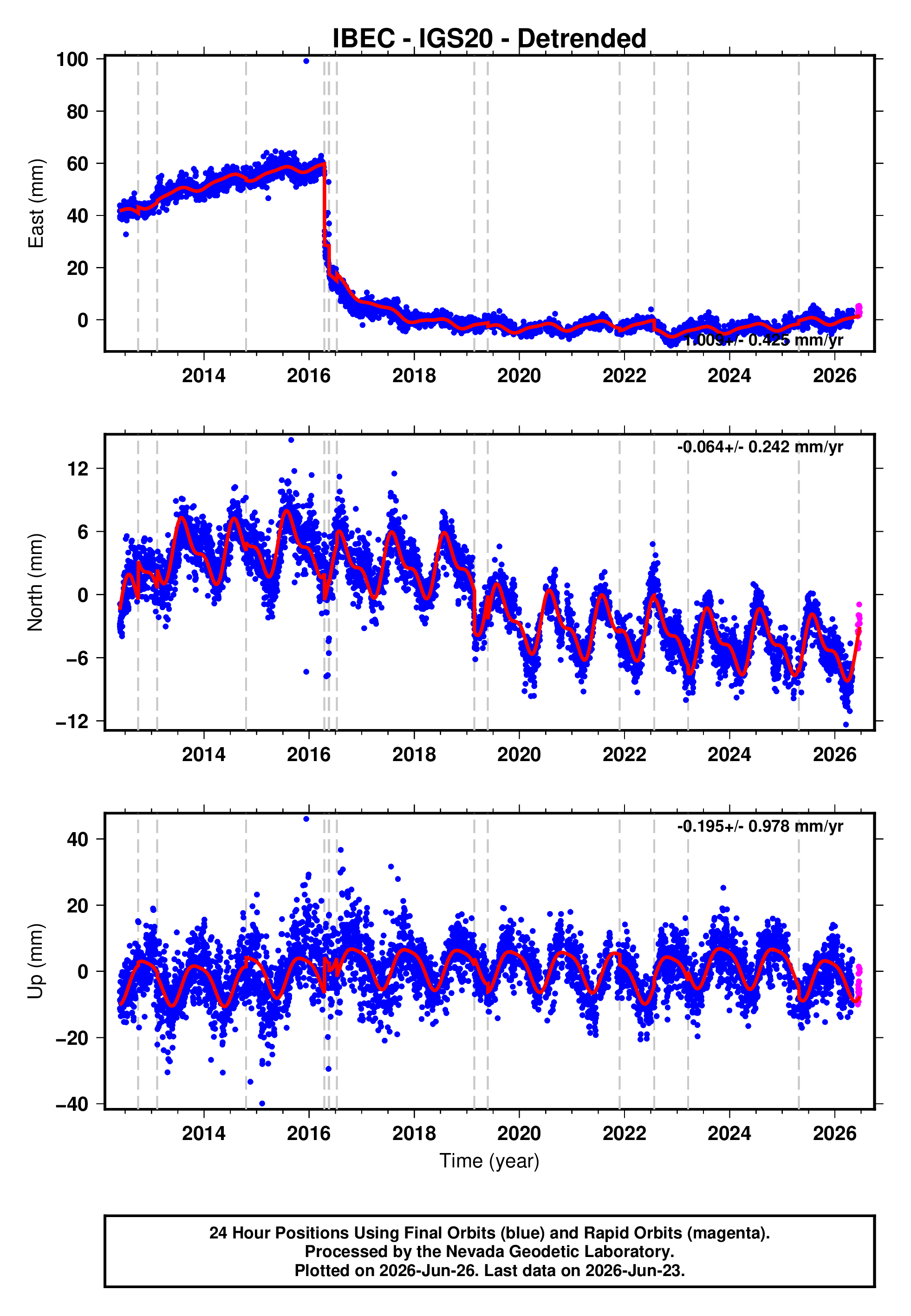

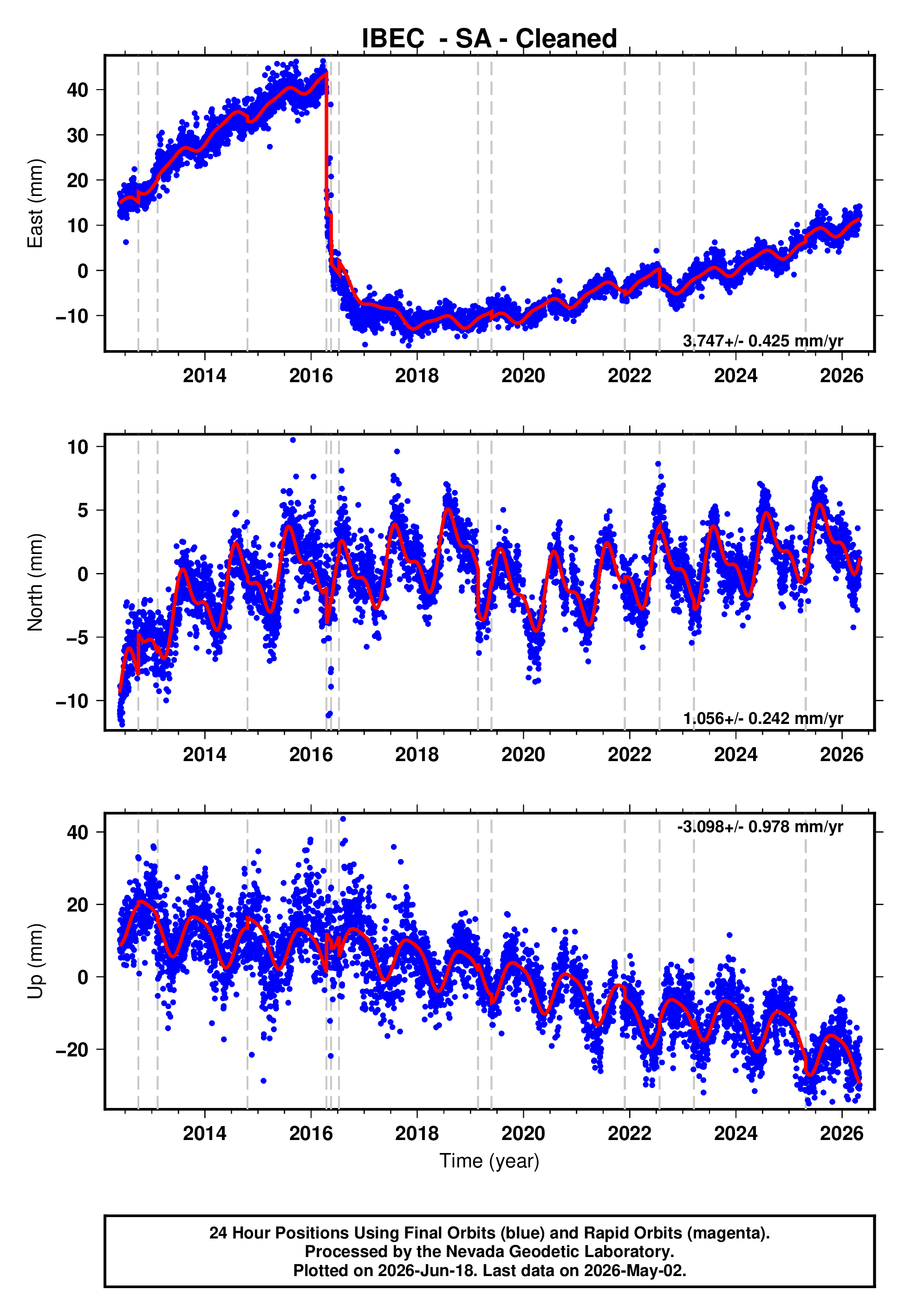

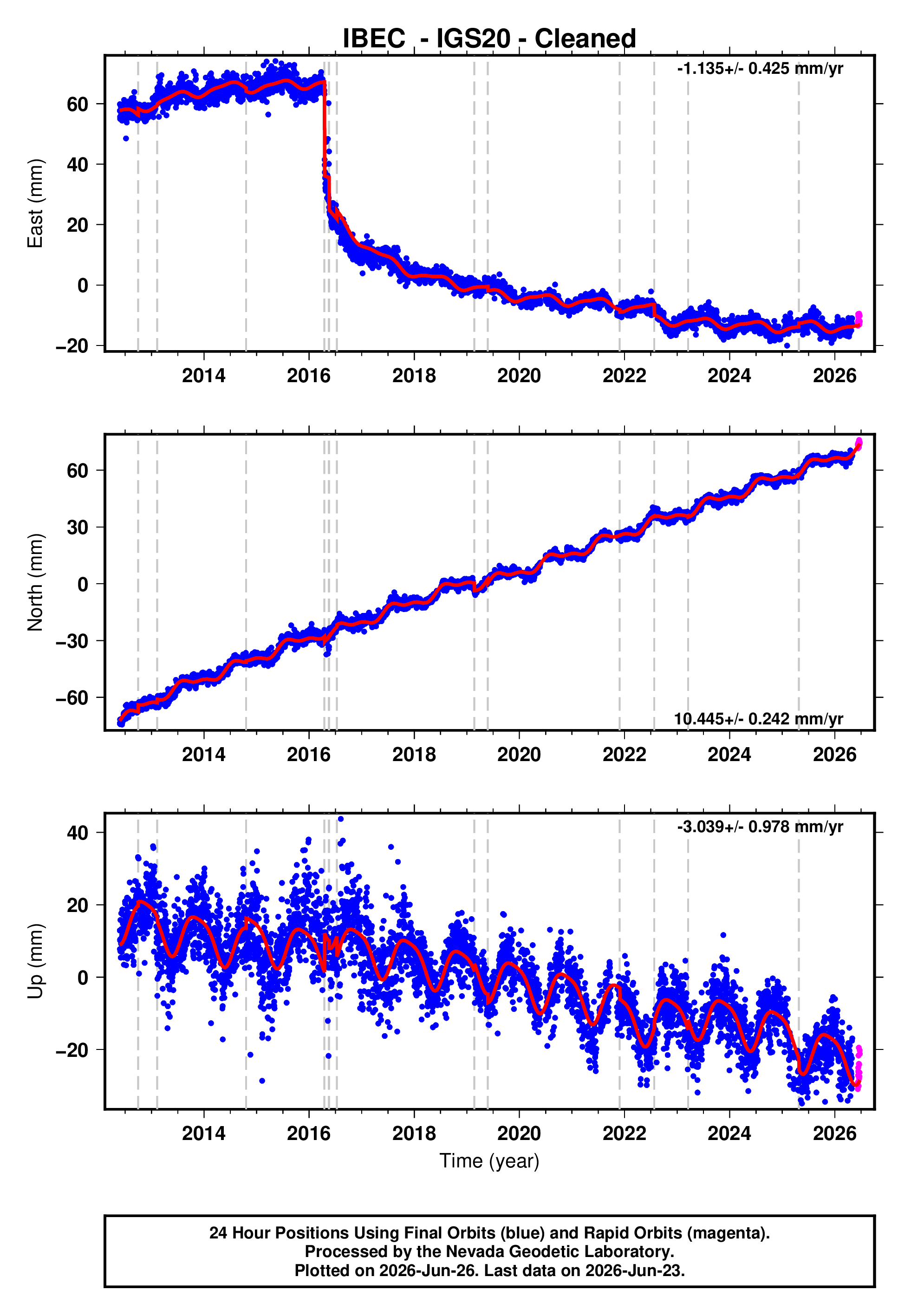

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned Rapid 5 min.
Not Available
Not Available
Not Available

Steps Information for this station

Station ID Date
Equipment Change Type/
or Event ID
IBEC12SEP30 usp000jta1 7.3 262.4
IBEC13FEB09 usc000f4ij 6.9 118.6
IBEC14OCT20 usb000sp80 5.6 42.9
IBEC16APR16 us20005j32 7.8 200.9
IBEC16MAY18 us10005i5t 6.7 186.4
IBEC16MAY18 us10005i9n 6.9 167.6
IBEC16JUL11 us100062hg 6.3 171.2
IBEC18MAY27 Reference_Frame_Change:_IGS08_to_IGS14 - -
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
