MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : I113

Network Operator's Station ID : 5113

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 33.120 degrees

Longitude: 139.797 degrees

Height: 112.204 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

PA

tenv3

PS

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

PA

tenv3

PS

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

J602

73.06 km

J601

86.68 km

I060

106.97 km

J600

110.30 km

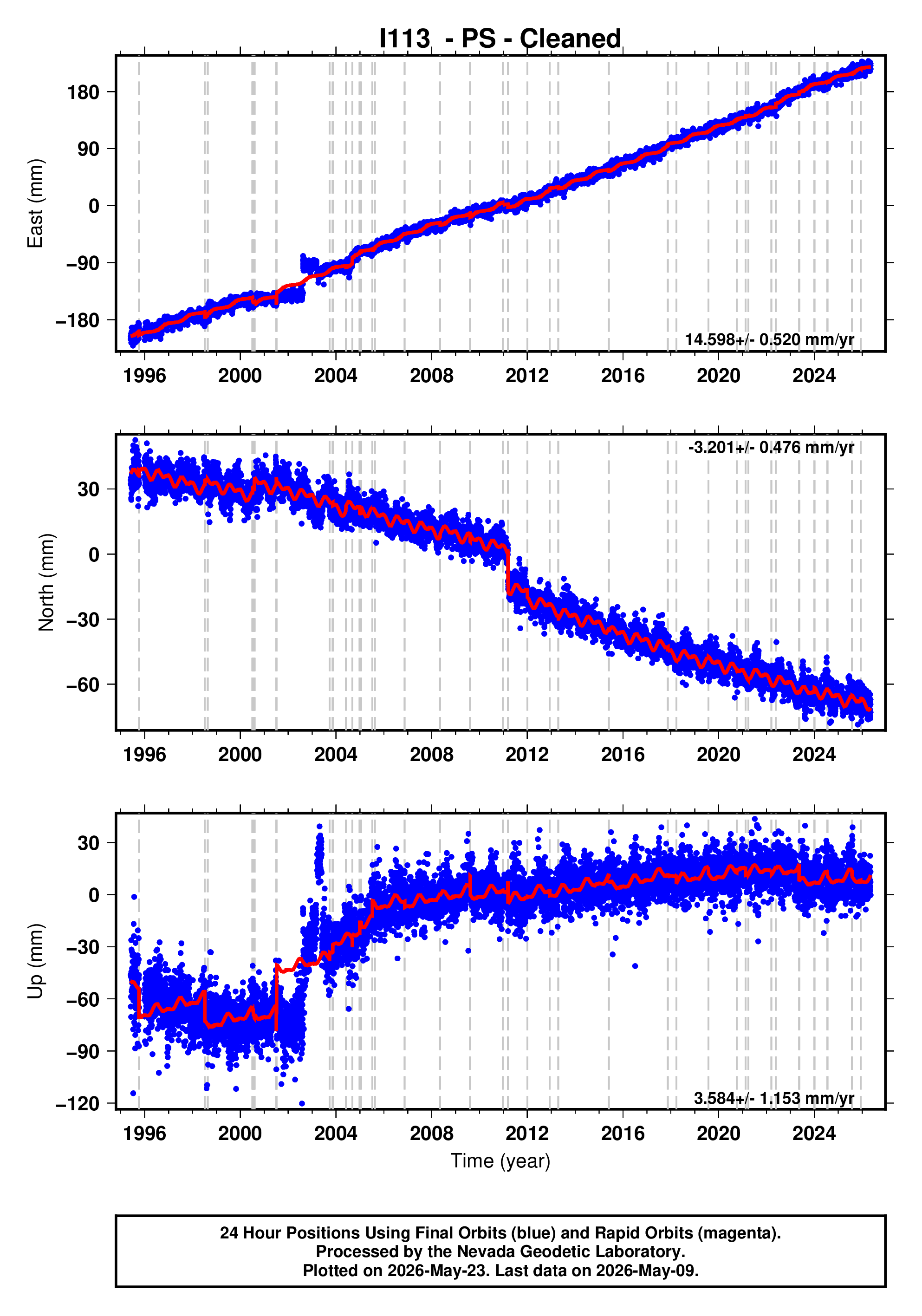

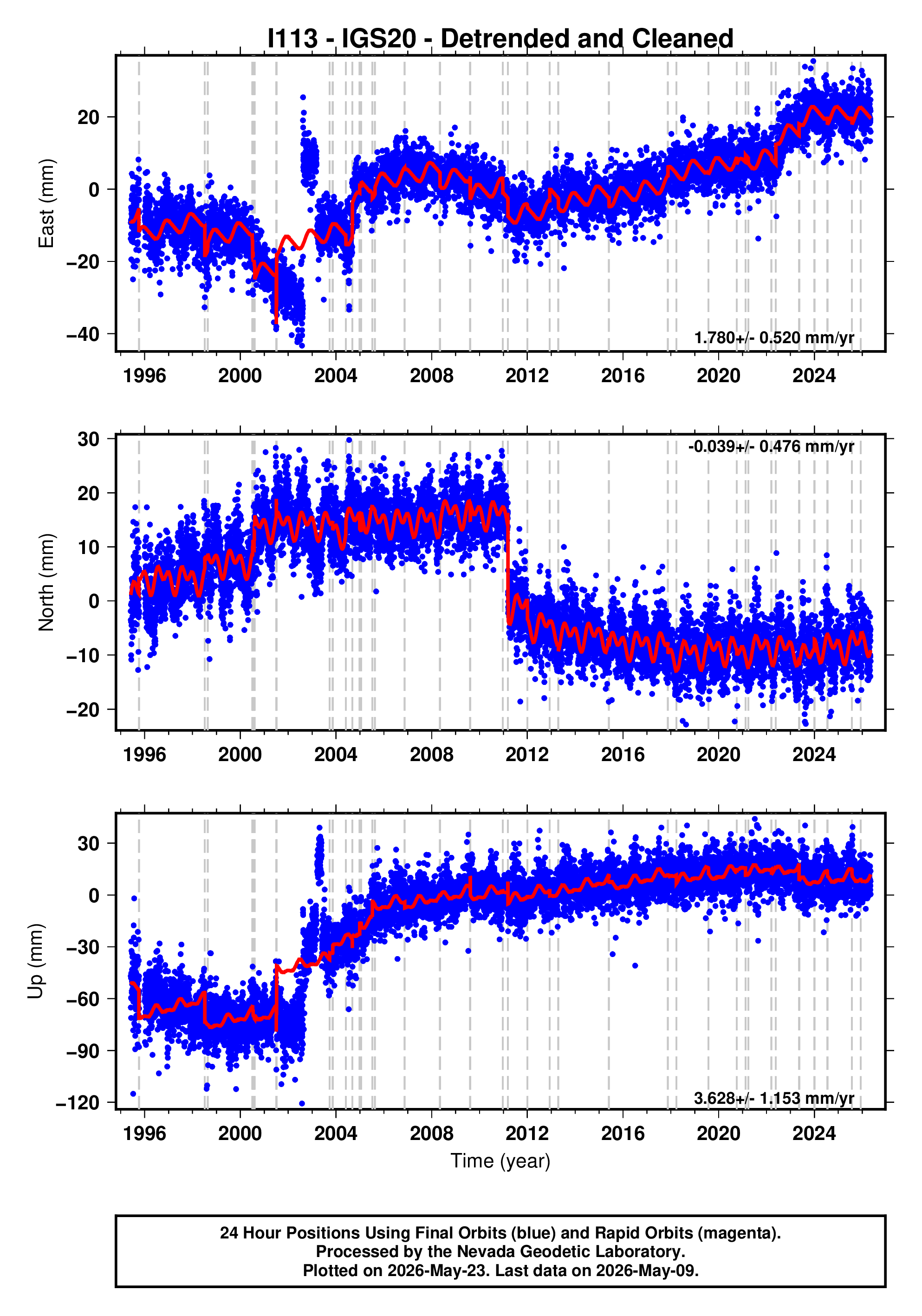

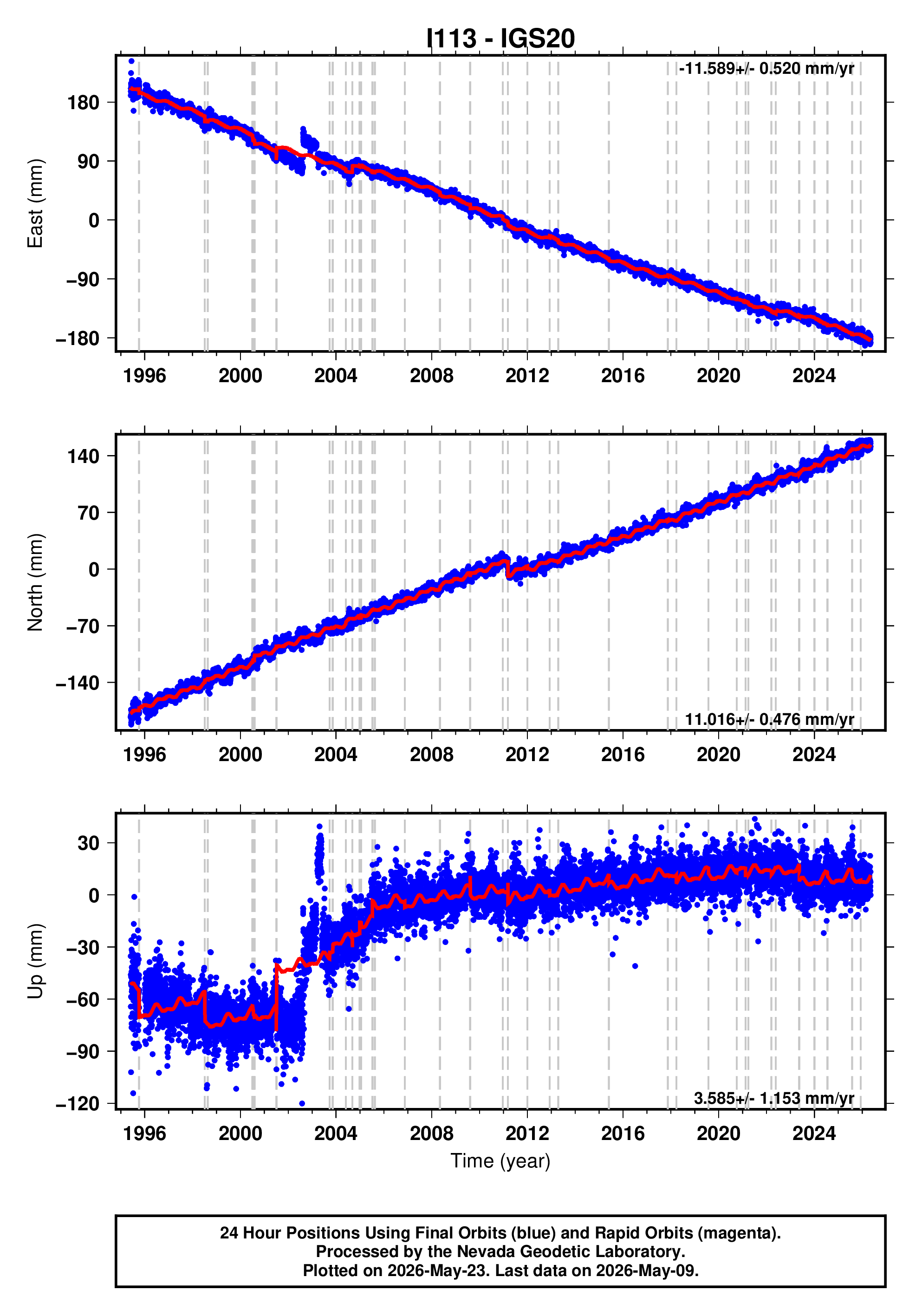

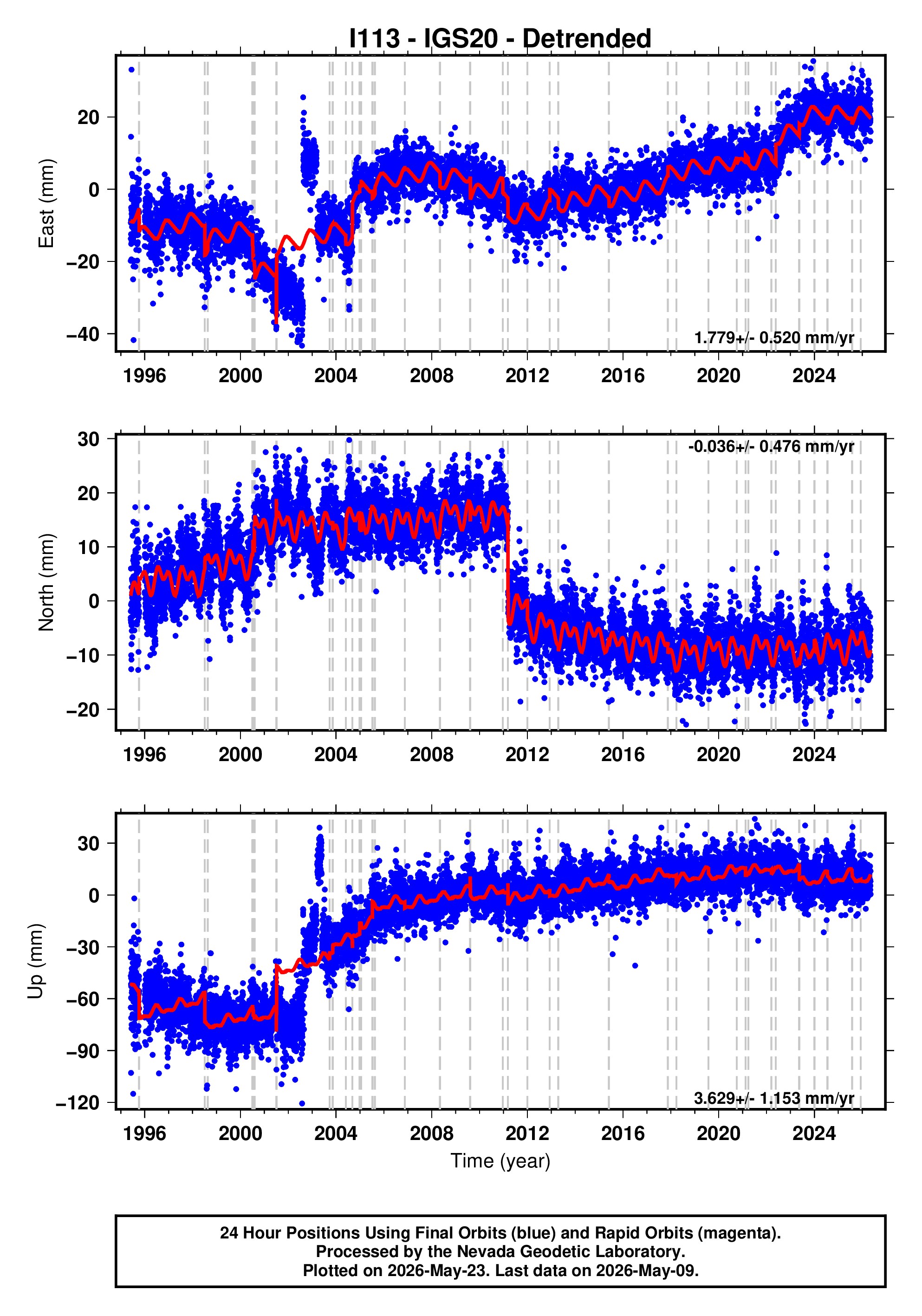

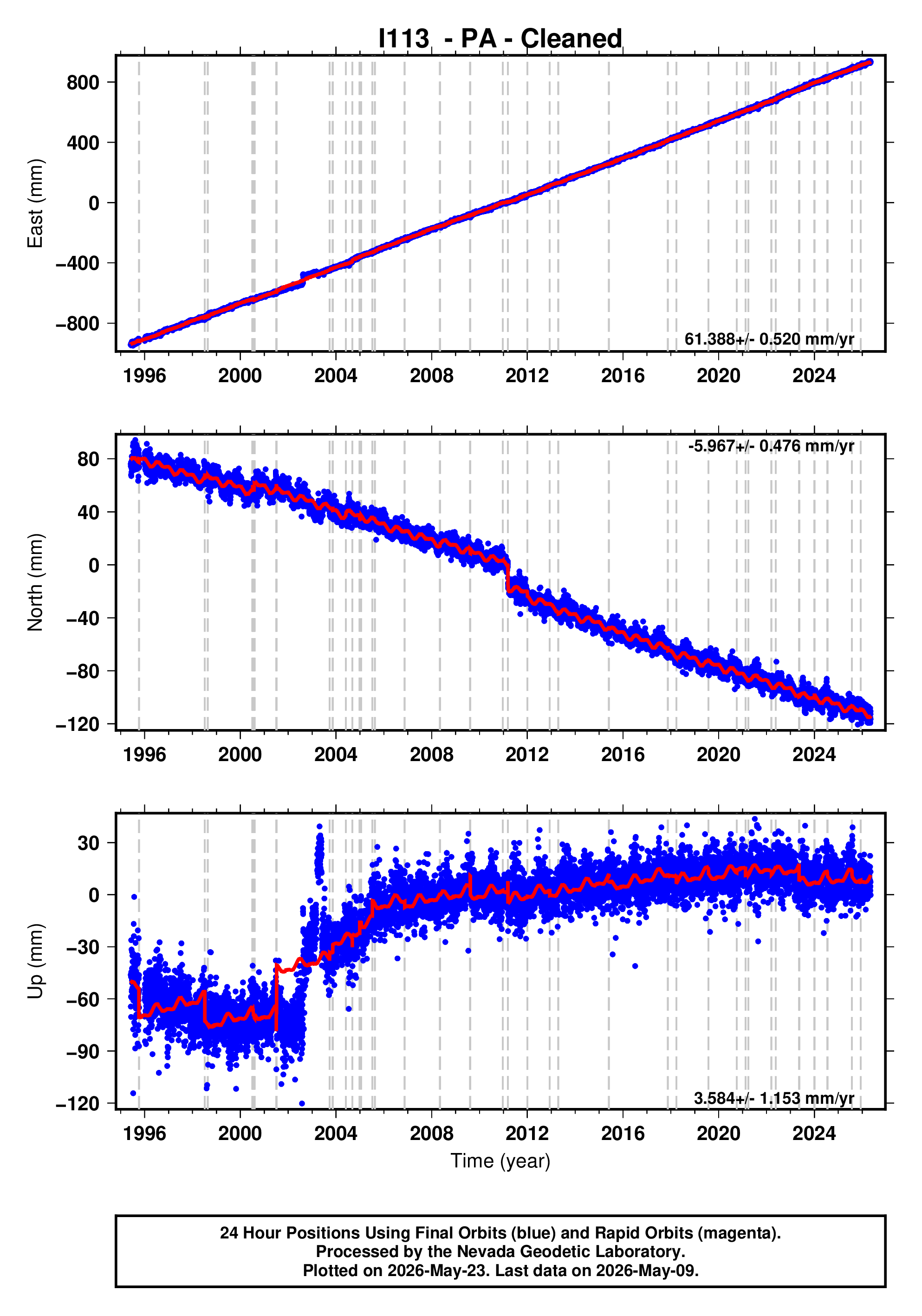

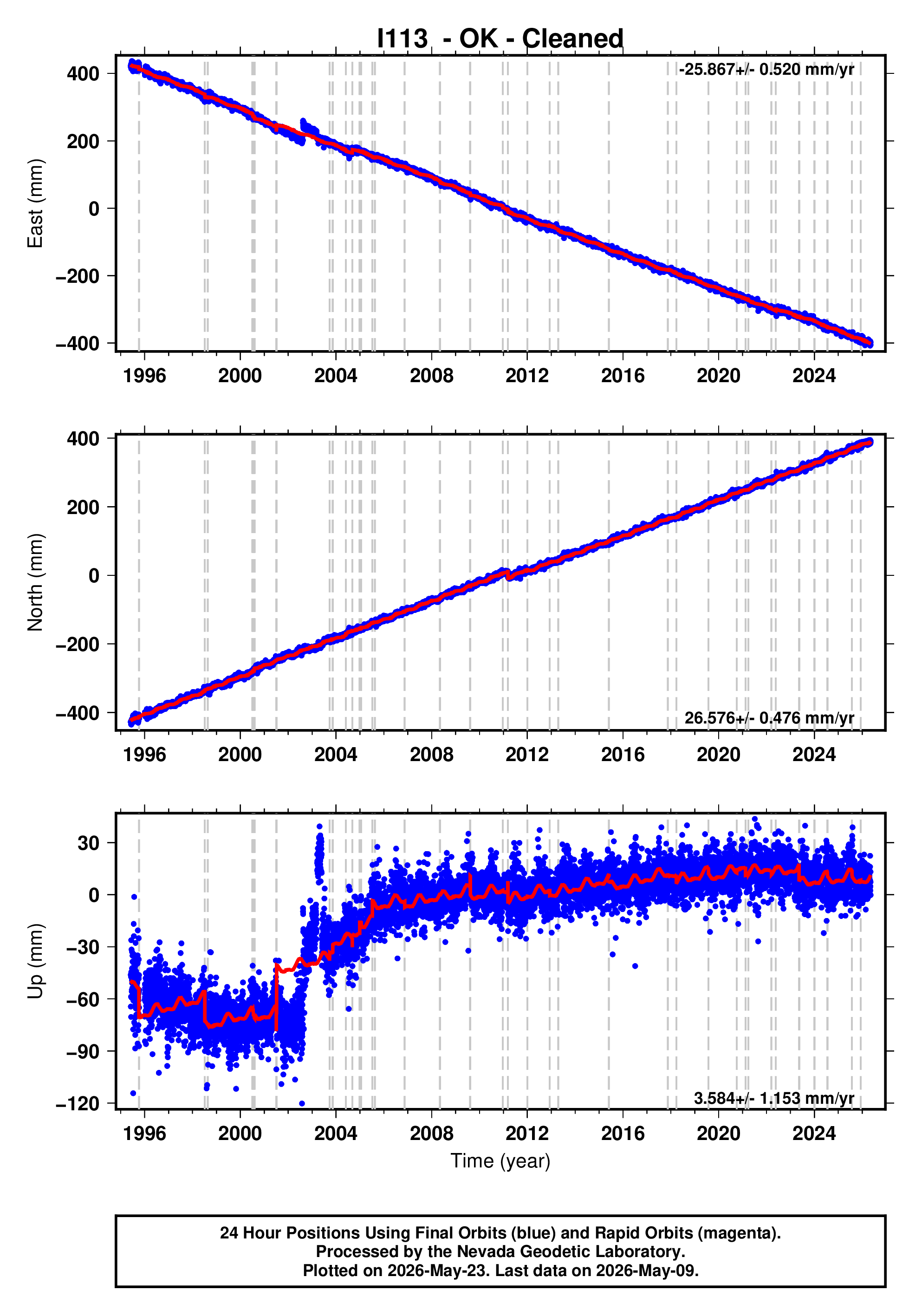

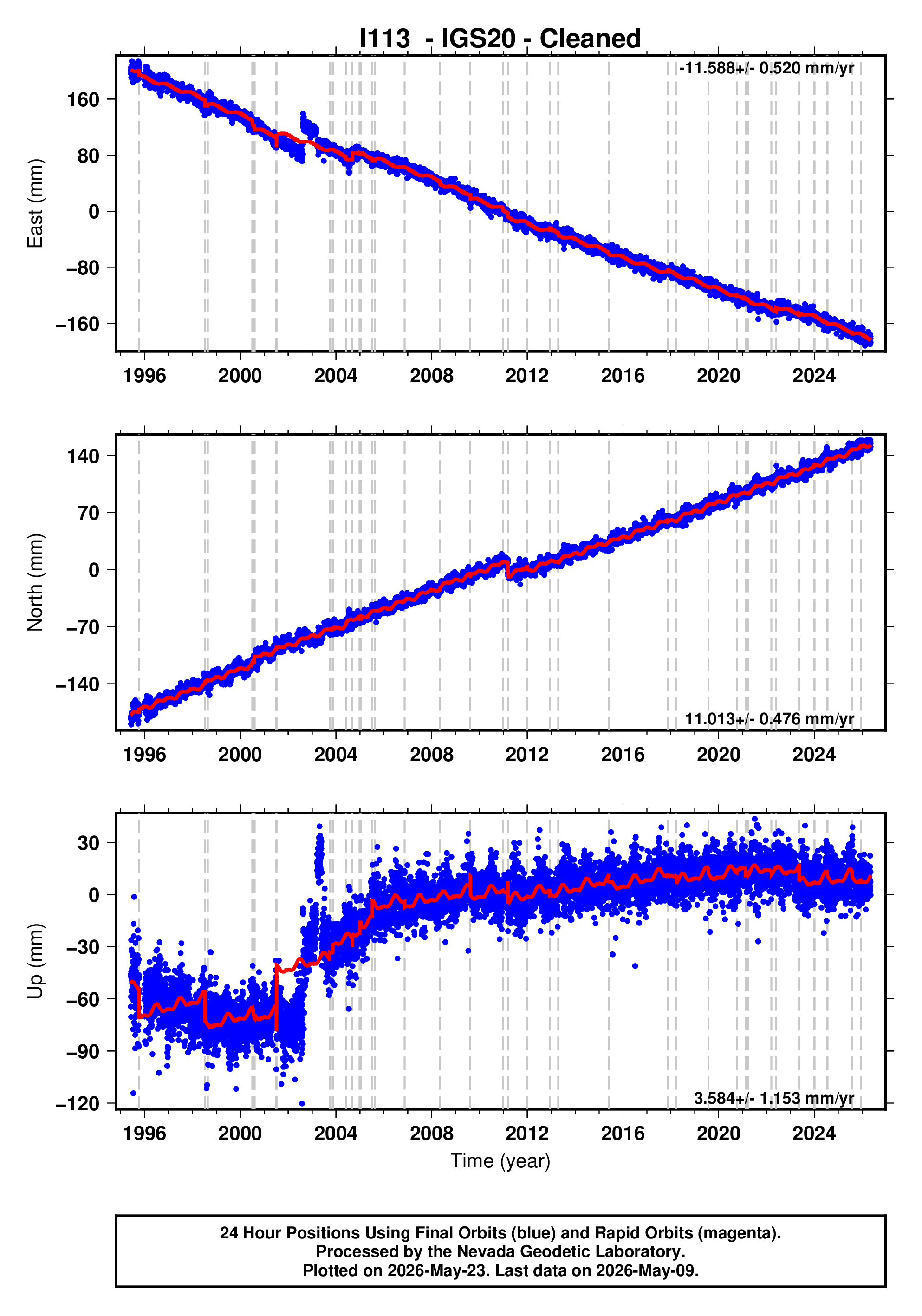

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
I11306NOV15 usp000exfn 8.3 1882.7
I11308MAY07 usp000g5rx 6.9 373.6
I11309AUG09 usp000h04j 7.1 172.6
I11309AUG12 usp000h093 6.6 64.9
I11310DEC21 usp000hr97 7.4 786.7
I11311MAR09 usp000hvhj 7.3 651.6
I11311MAR11 official20110311054624120_30 9.1 620.8
I11311MAR11 usp000hvpa 7.9 371.4
I11311MAR11 usp000hvpg 7.7 699.3
I11312DEC07 usp000jwjn 7.3 649.9
I11313APR17 usb000g9yi 5.6 101.9
I11315MAY30 us20002ki3 7.8 591.0
I11318MAR25 us1000d8vk 5.7 102.0
I11319JUL29 us60004x4m 5.8 78.5
I11320OCT03 us6000c54x 5.8 113.5
I11321FEB13 us6000dher 7.1 542.6
I11321MAR28 us6000dx32 5.7 72.3
I11322MAR16 us6000h519 7.3 534.6
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
