MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : HUA3

Station operator information from: RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 23.975 degrees

Longitude: 121.614 degrees

Height: 46.400 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

tenv3 or tenv

xyz

EU

tenv3

PS

tenv3

24 Hour Rapid Solutions

IGS14

tenv3

EU

tenv3

PS

tenv3

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Rapid Solutions
(last 60 days max)

IGS14

kenv tar file download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

New!: Loading Predictions.
See this README file for explanation.

IGS14

tenv3 file with extra columns

Readme Files:

tenv3 format, tenv format, xyz format,
kenv format, trop format, QA file format,
Loading triplet enhanced tenv3 files
(Note: When using the MIDAS software
use the .tenv files linked above)


Nearest 4 Other Stations Distance

NDH1

2.33 km

PEPU

4.74 km

NDH3

5.39 km

NDH2

7.37 km

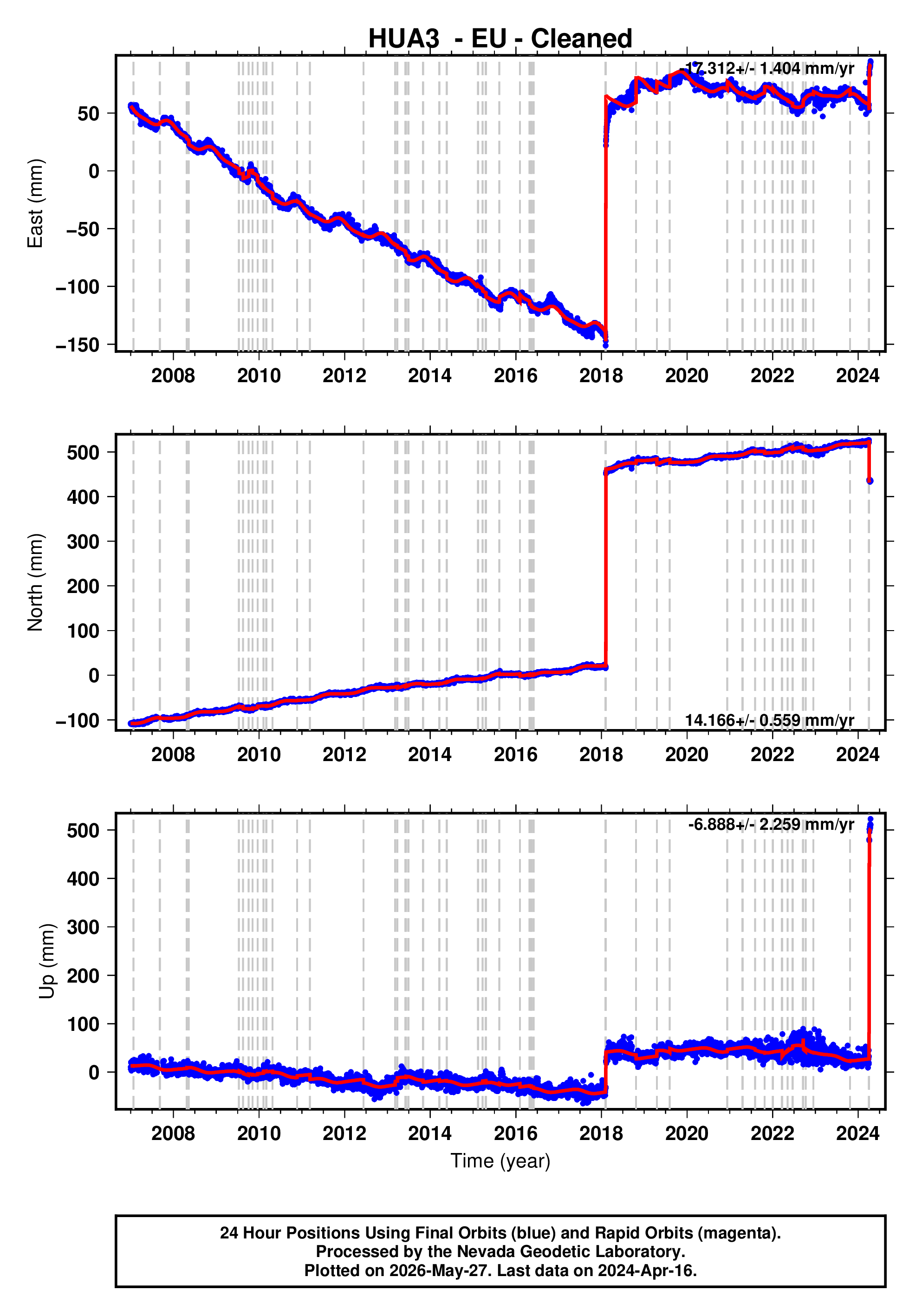

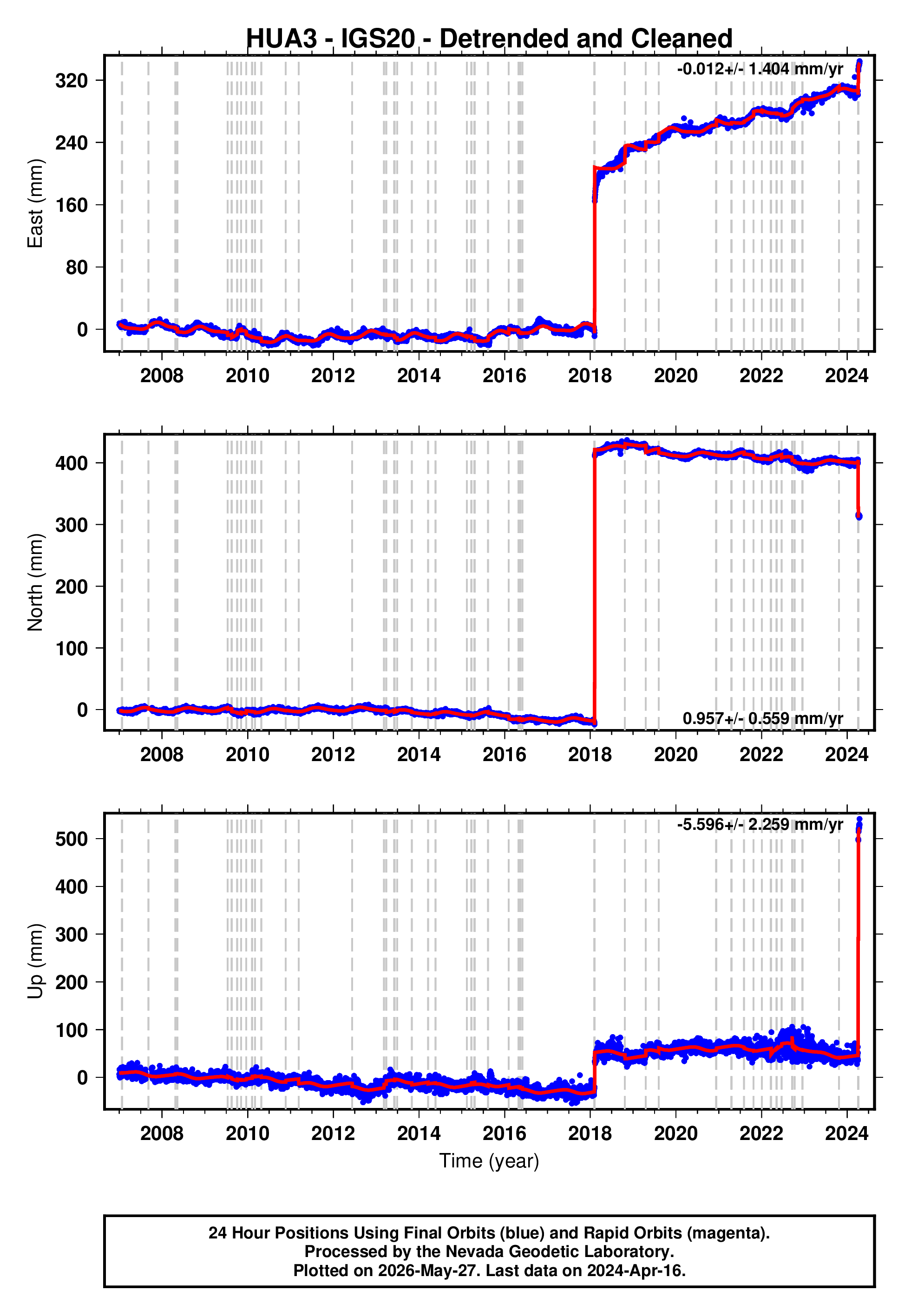

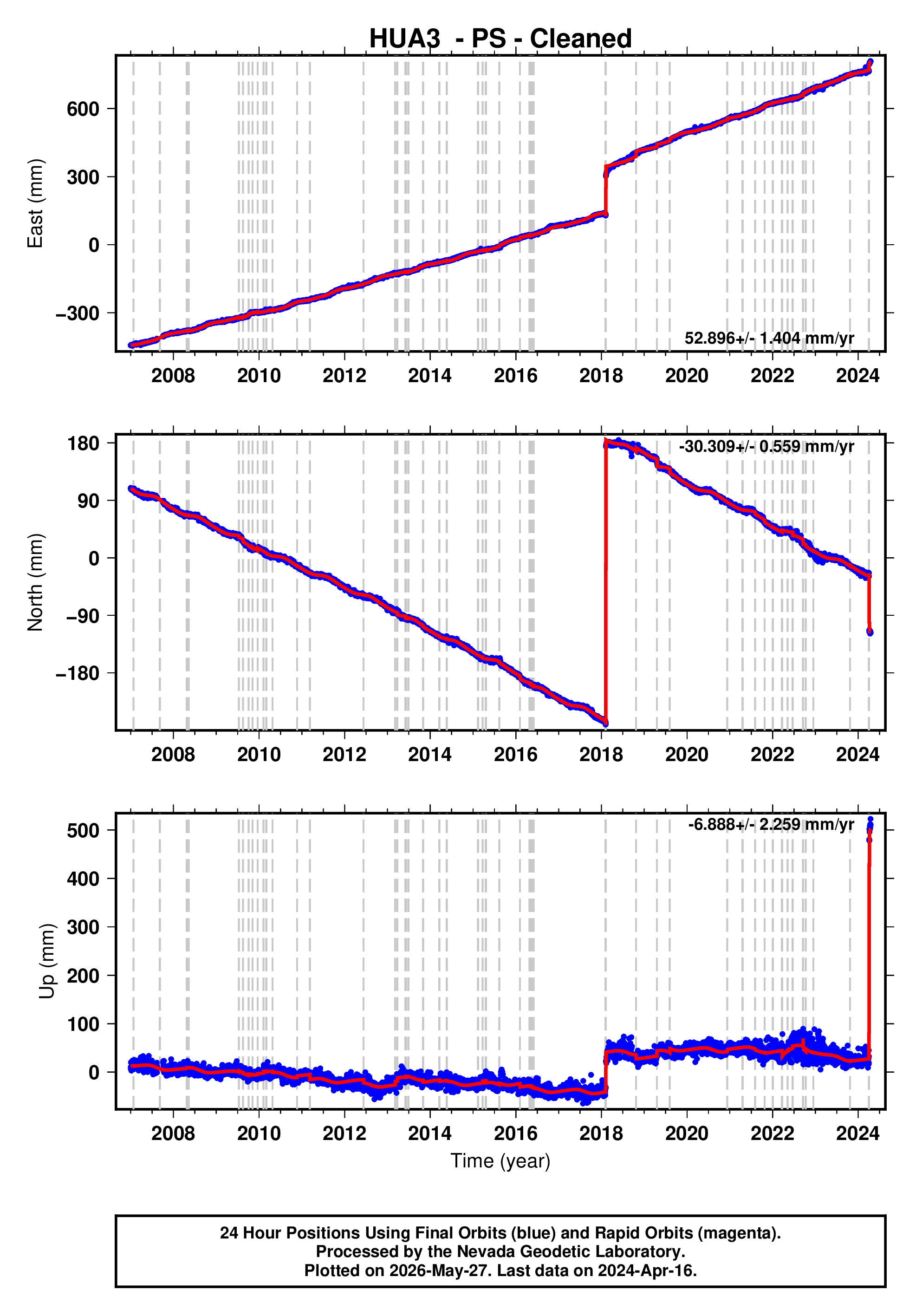

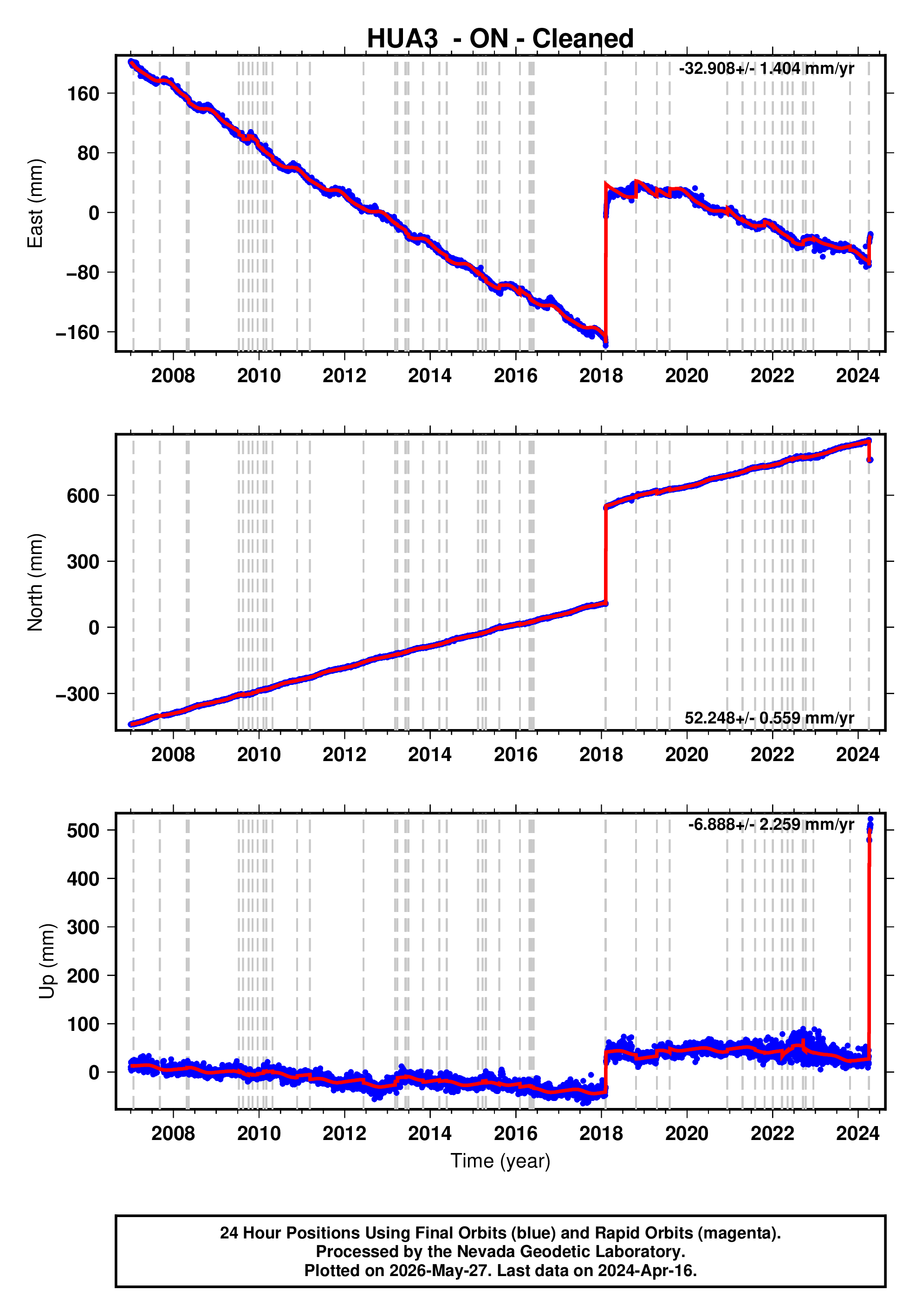

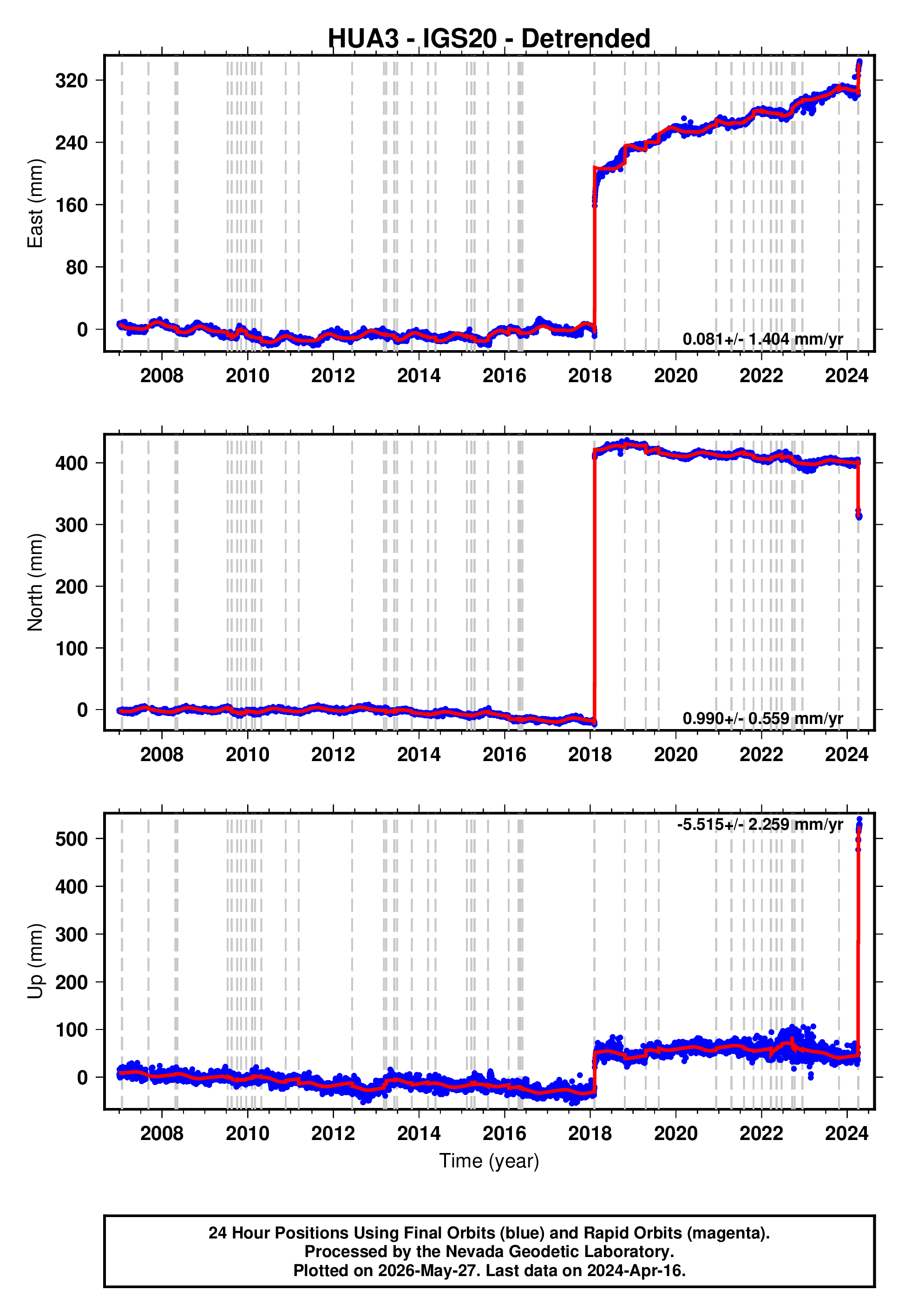

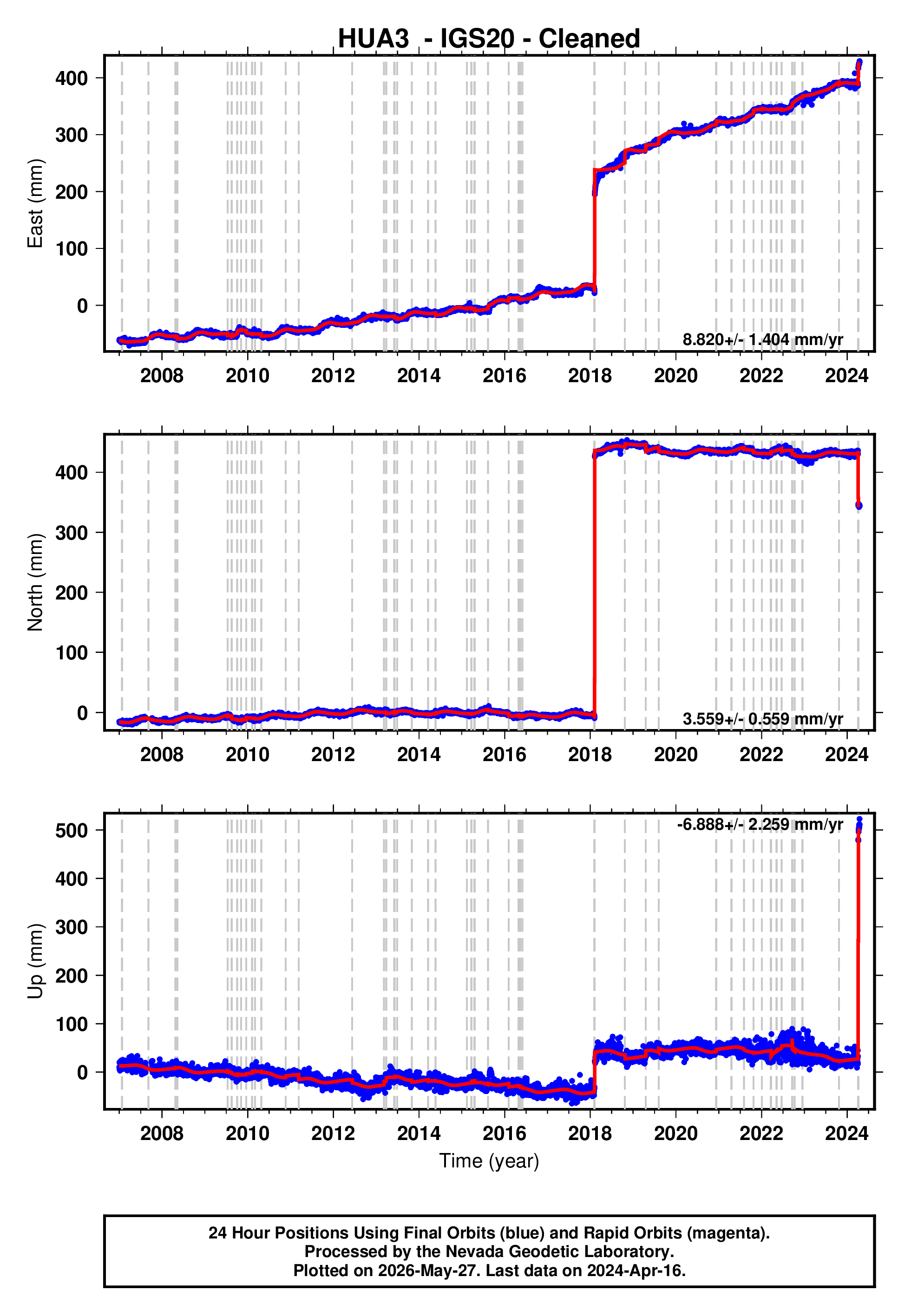

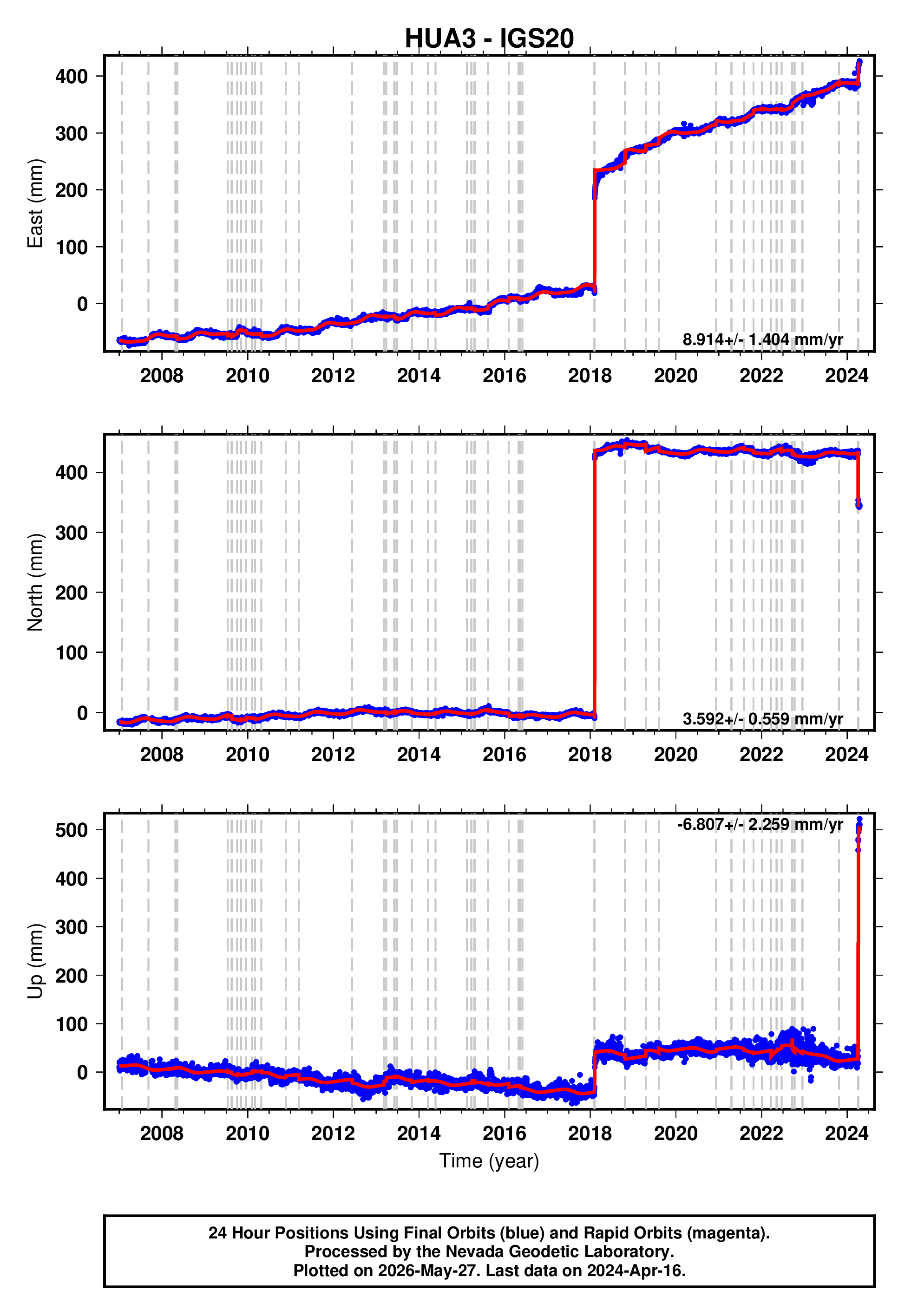

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. See plot explanation page for further explanations on plot contents.

GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
GPS time series plot
QA plot


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
HUA307SEP06 usp000fmjx 6.2 73.6
HUA308APR23 usp000g4nm 6.0 121.7
HUA308MAY10 usp000g619 5.6 98.0
HUA309JUL13 usp000gz7c 6.3 60.3
HUA309AUG17 usp000h0gm 6.7 199.0
HUA309OCT03 usp000h2b0 6.1 41.8
HUA309NOV05 usp000h3s7 5.6 92.5
HUA309DEC19 usp000h56g 6.4 20.0
HUA310FEB07 usp000h71c 6.3 210.8
HUA310MAR04 usp000h8nd 6.3 144.2
HUA310APR26 usp000hbws 6.5 286.5
HUA310NOV21 usp000hpxr 5.6 17.1
HUA311MAR11 official20110311054624120_30 9.1 2527.0
HUA312JUN09 usp000jmjm 5.9 92.4
HUA313MAR07 usb000fgws 5.5 39.3
HUA313MAR27 usb000ftgc 5.9 43.7
HUA313JUN02 usb000hbrt 6.2 52.3
HUA313JUN07 usc000hib7 5.8 108.3
HUA313JUN28 usb000i34l 5.7 64.1
HUA313OCT31 usc000ksdy 6.3 46.4
HUA314MAR19 usc000ngte 5.8 67.4
HUA314MAY21 usb000qxnd 5.6 27.0
HUA315FEB13 usb000tp6y 6.2 150.0
HUA315MAR23 us10001ps8 5.5 31.3
HUA315APR20 us200027ps 6.4 75.6
HUA315APR20 us200027rt 6.0 86.1
HUA315APR20 us200027ru 6.1 85.7
HUA315AUG13 us100031xw 5.6 89.0
HUA316FEB05 us20004y6h 6.4 154.8
HUA316APR27 us10005bxy 5.5 34.2
HUA316MAY12 us10005gpt 5.8 88.4
HUA316MAY12 us10005gq4 5.7 90.4
HUA318FEB04 us1000cfn6 6.1 22.4
HUA318FEB04 us1000cfnf 5.5 22.6
HUA318FEB06 us1000chhc 6.4 18.2
HUA318FEB07 us1000ci9y 5.7 16.8
HUA318OCT23 us1000hfxx 5.8 101.6
HUA318OCT23 us1000hg5i 5.7 108.3
HUA319APR18 us700038c1 6.1 7.8
HUA319AUG07 us6000522g 5.8 64.5
HUA320DEC10 us7000cpqz 6.1 98.9
HUA321APR18 us6000e2mt 5.5 21.3
HUA321APR18 us6000e2mv 5.8 15.9
HUA321AUG04 us6000f29v 5.8 114.2
HUA321OCT24 us6000fx56 6.2 63.5
HUA322JAN03 us7000g8n3 6.2 65.7
HUA322MAR22 us6000h6nr 6.7 65.8
HUA322MAR22 us6000h6rn 5.9 63.0
HUA322MAR22 us6000h6s3 5.5 52.8
HUA322MAR22 us6000h6sl 5.8 63.9
HUA322MAY09 us7000h82f 6.2 89.2
HUA322JUN20 us7000him8 5.9 38.5
HUA322SEP17 us7000i8ui 6.5 97.4
HUA322SEP18 us7000i90q 6.9 97.1
HUA322SEP18 us7000i928 5.9 90.4
HUA322SEP19 us7000i96l 5.5 69.2
HUA322OCT10 us6000isjn 5.5 68.6
HUA322DEC15 us6000j9by 5.9 30.5
HUA323OCT23 us7000l5vd 5.9 104.4
HUA324APR02 us7000m9g4 7.4 18.2
HUA324APR03 us7000m9gc 6.4 11.5
HUA324APR03 us7000m9gh 5.7 22.8
HUA324APR03 us7000m9gm 5.5 2.5
HUA324APR03 us7000m9gp 5.7 23.1
HUA324APR03 us7000m9h9 5.6 25.0
HUA324APR03 us7000m9hp 5.7 41.6
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
Steps for all stations are given in the master step file database.
