MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : HNLC

Station operator information: from RINEX headers

When using products from this system please cite Blewitt et al., (2018) for the processing plus also the citation for the original data.

Coordinates:

Latitude: 21.303 degrees

Longitude: -157.865 degrees

Height: 21.948 meters


Time Series Data

(ascii text)
24 Hour Final Solutions

IGS14

env

xyz

PA

env

5 Minute Final Solutions

IGS14

kenv tar files for download

5 Minute Ultra Rapid Solutions
(files updated hourly)

FID

individual kenv files for download

Quality Assurance (QA) Files

IGS14

.qa.gz file download

5 Minute Troposphere Solutions

Tot./Wet Zenith Delay, etc.

tar file download

Readme Files:

env format, xyz format,
kenv format, QA file format


Nearest 4 Other Stations Distance

POST

5.03 km

ZHN1

5.93 km

HIWA

19.42 km

LHUE

170.20 km

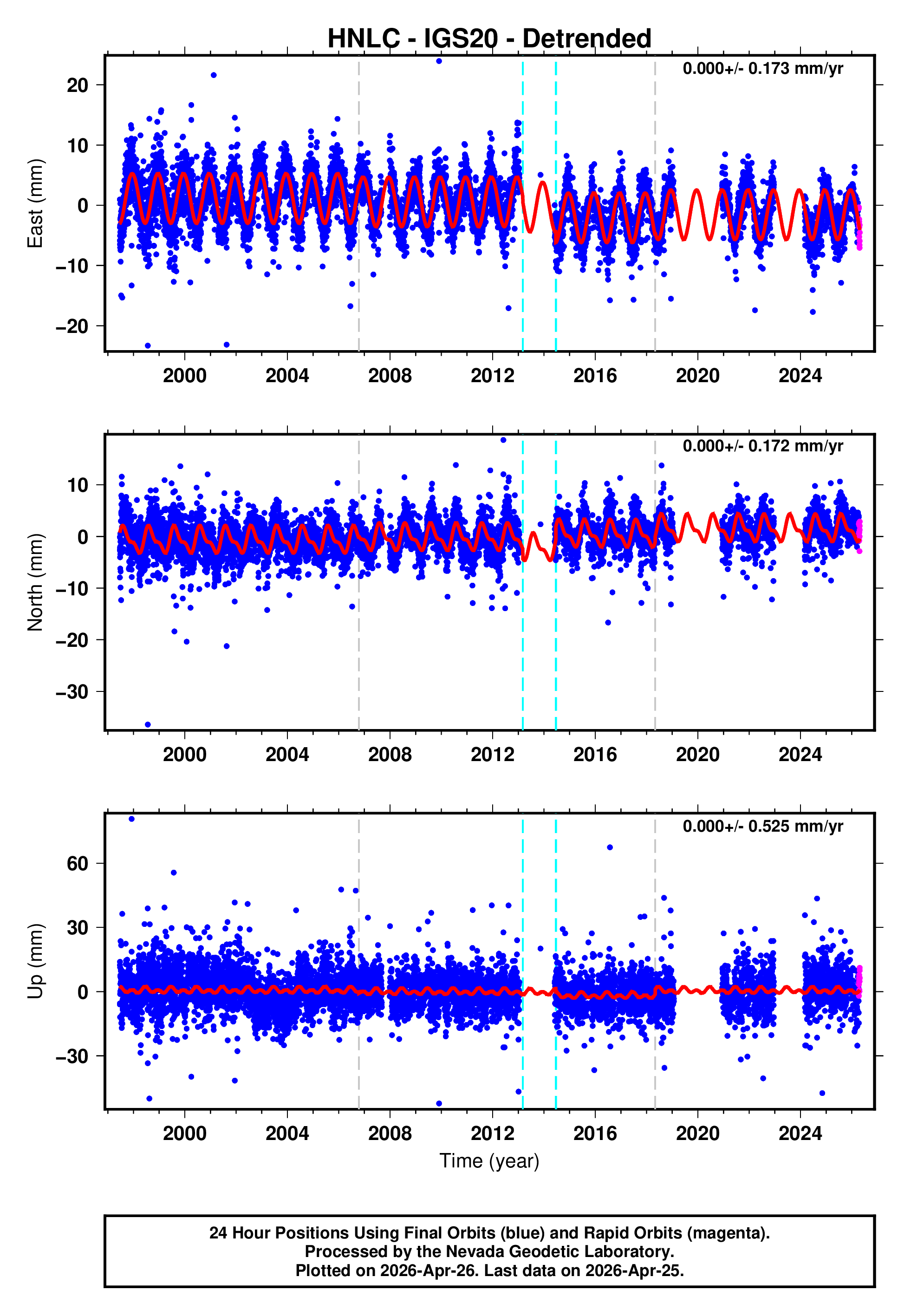

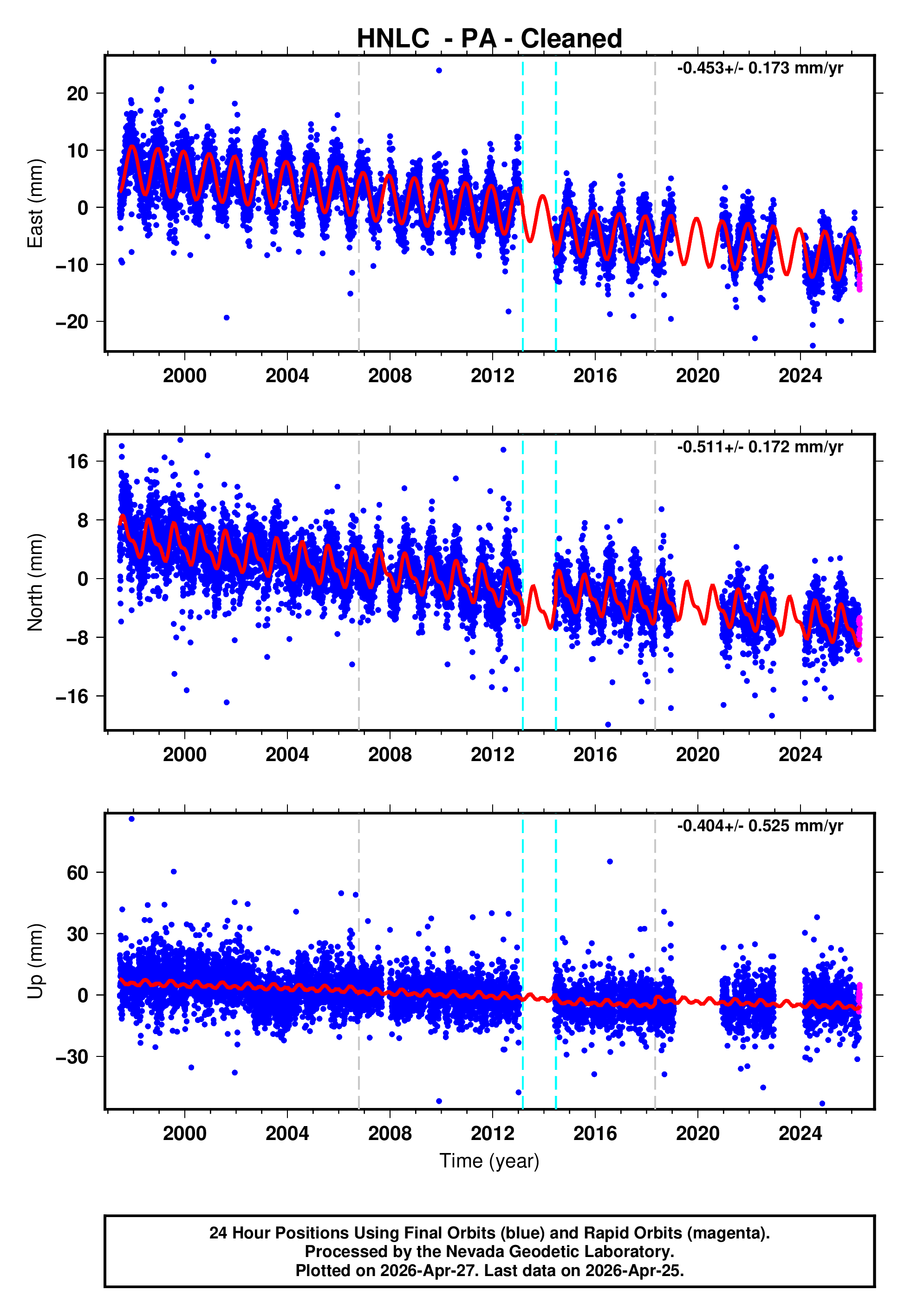

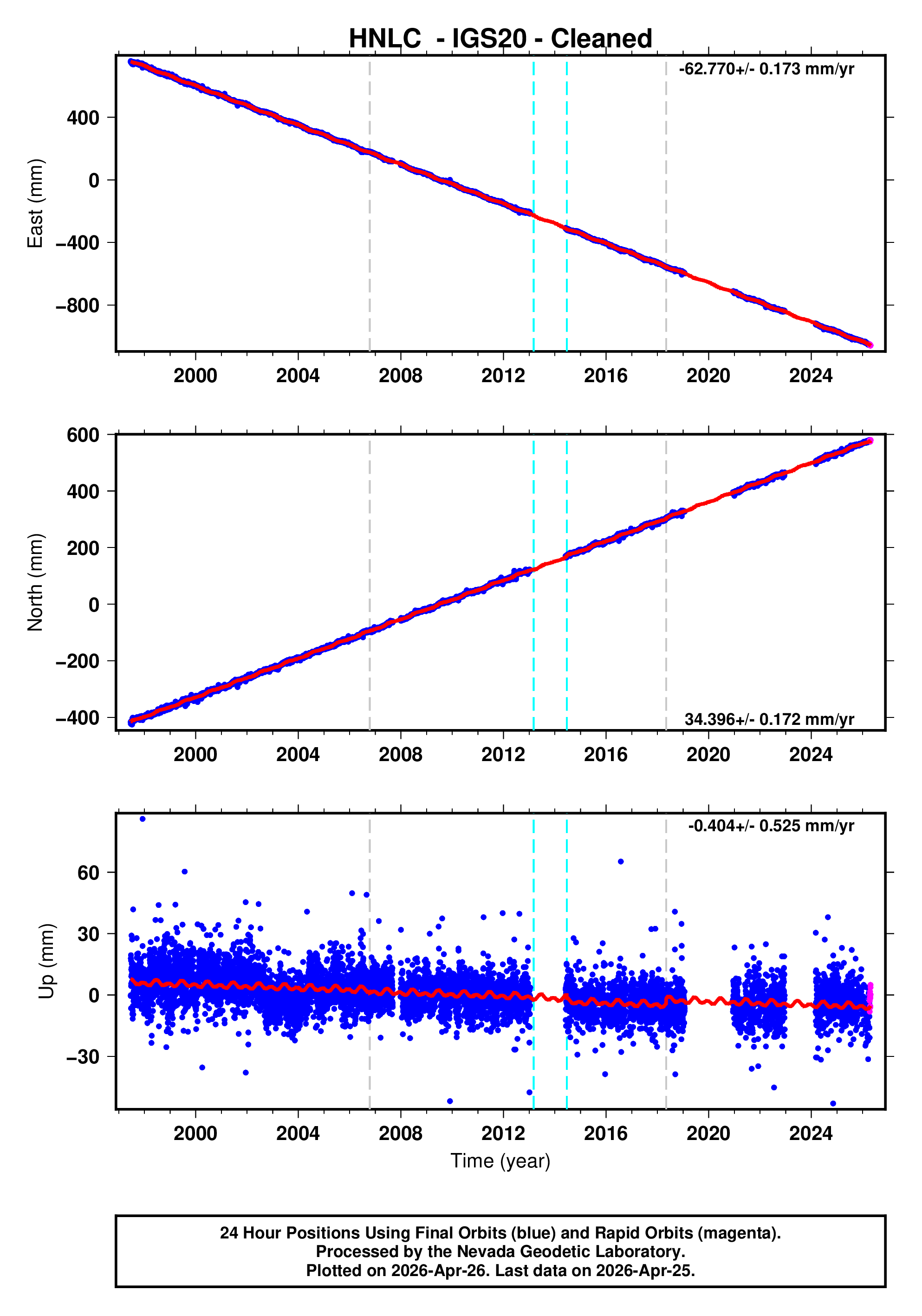

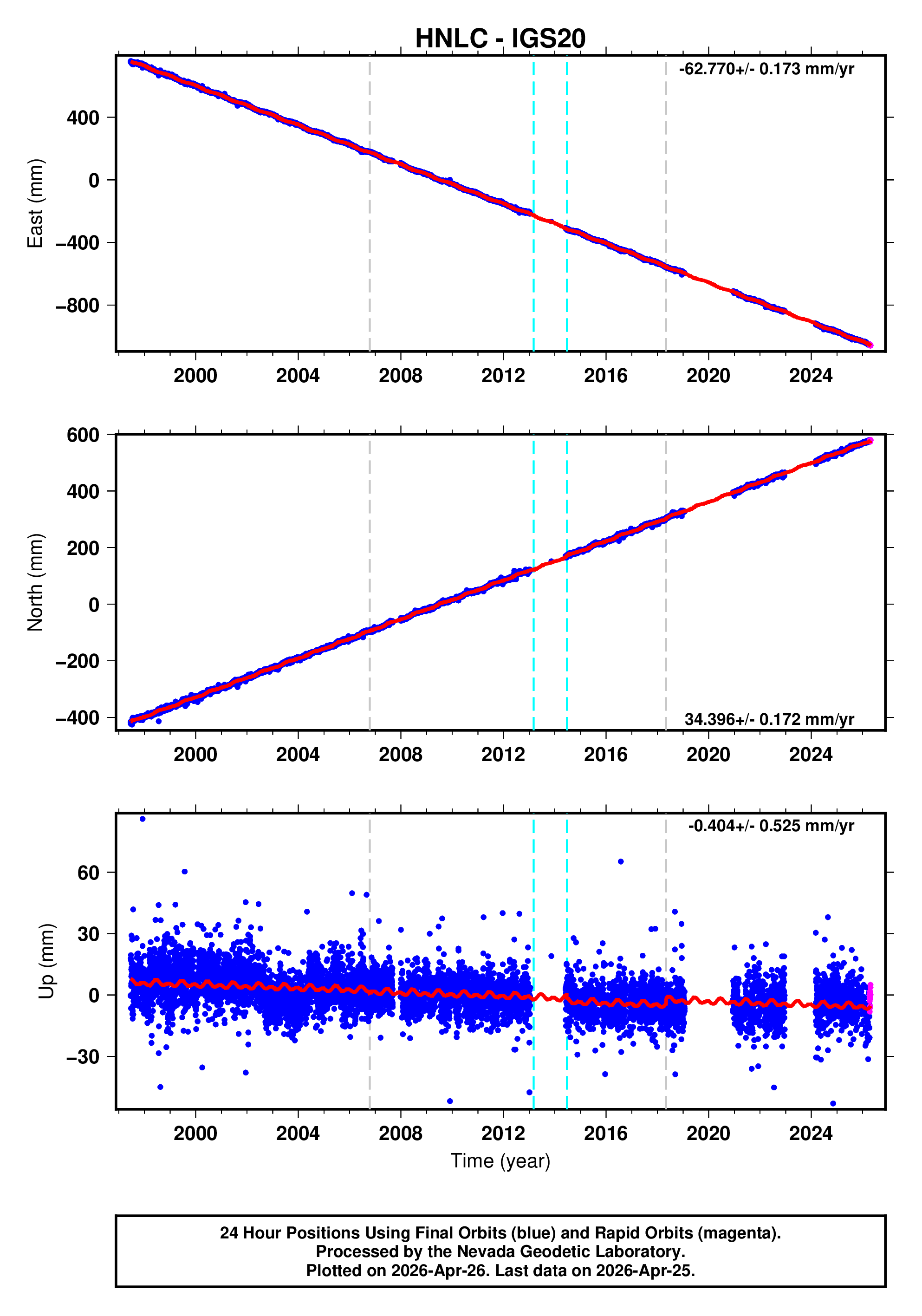

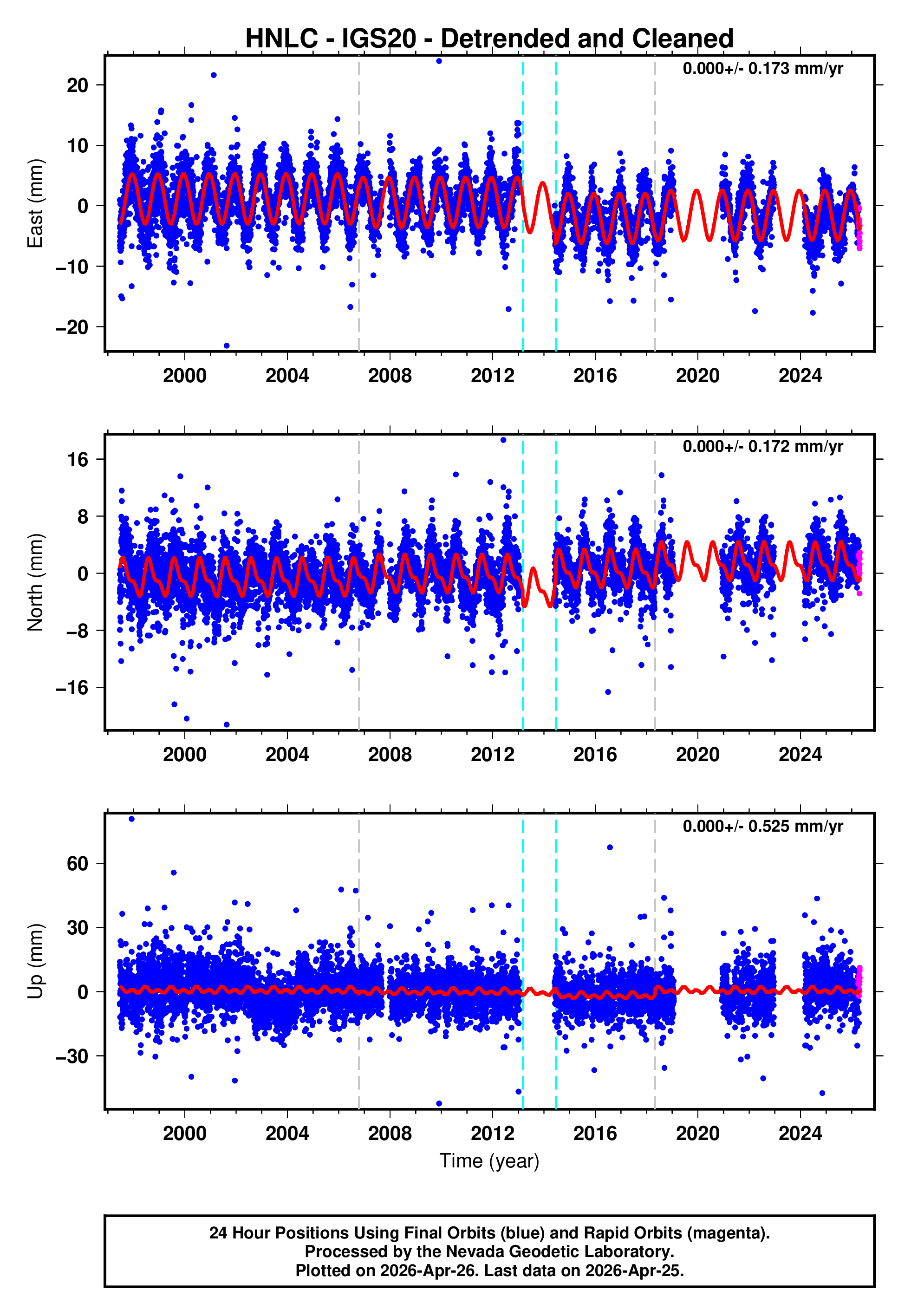

Time Series Plots

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available. Further explanations on plot contents can be found here.


Steps Information for this station

Station ID Date
(YYMMMDD)
Equipment Change Type/
or Event ID
Earthquake
Magnitude
Distance
(km)
HNLC13MAR06 Receiver_Make_and_Model_Changed - -
HNLC14JUN20 Elevation_Cutoff_Changed - -
HNLC06OCT15 usp000ev94 6.7 255.8
HNLC18MAY04 us1000dyad 6.9 372.0
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link).
