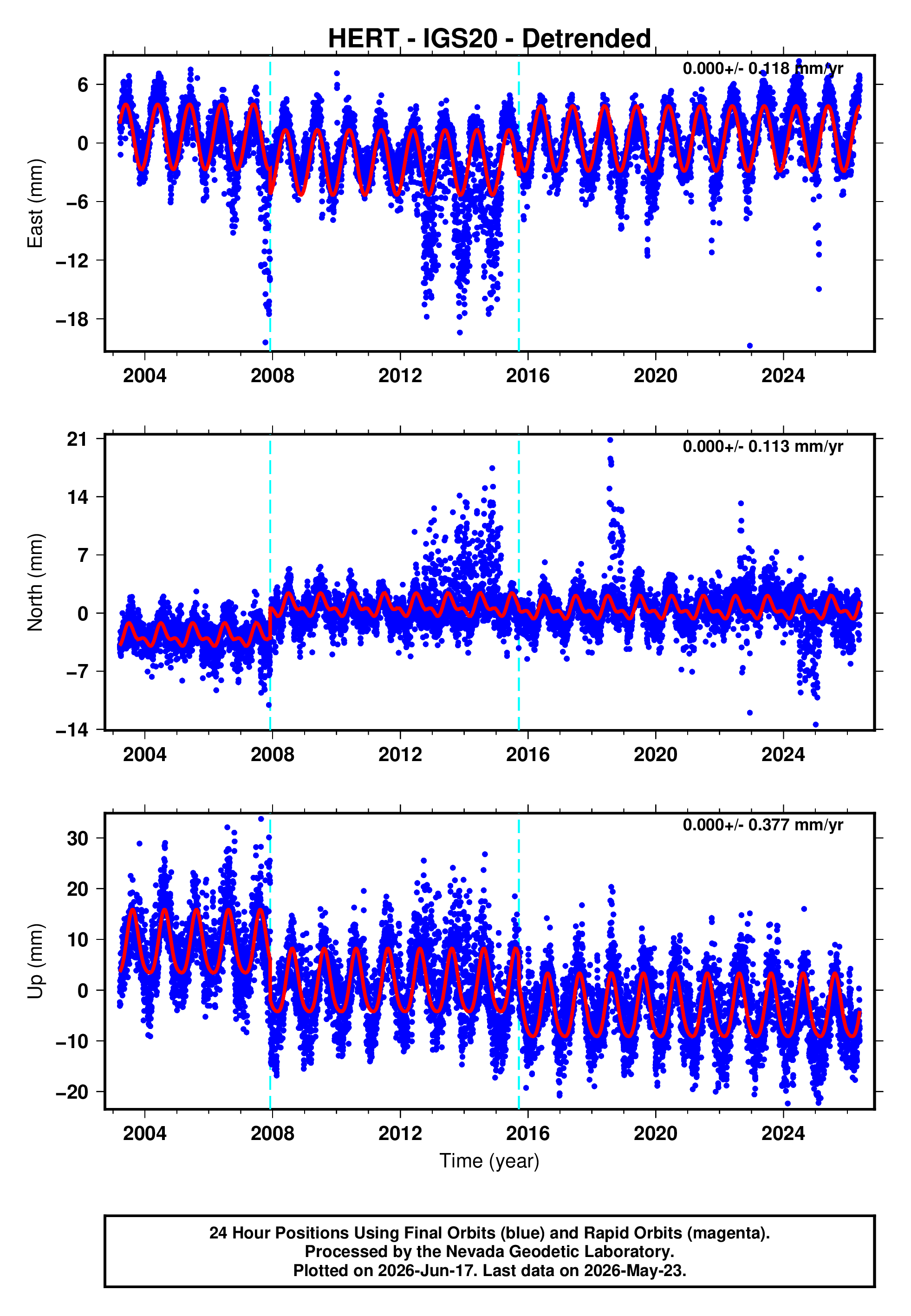

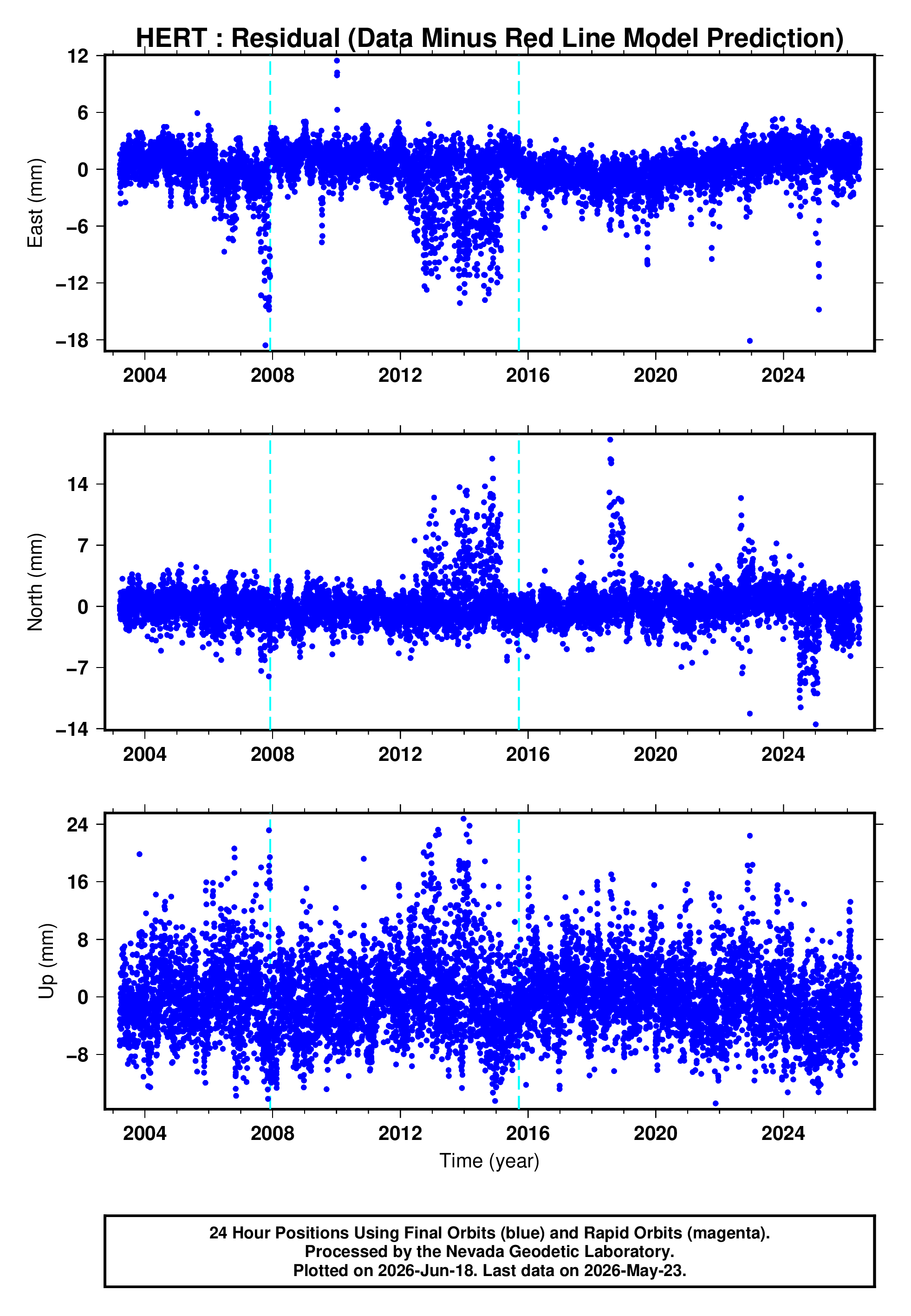

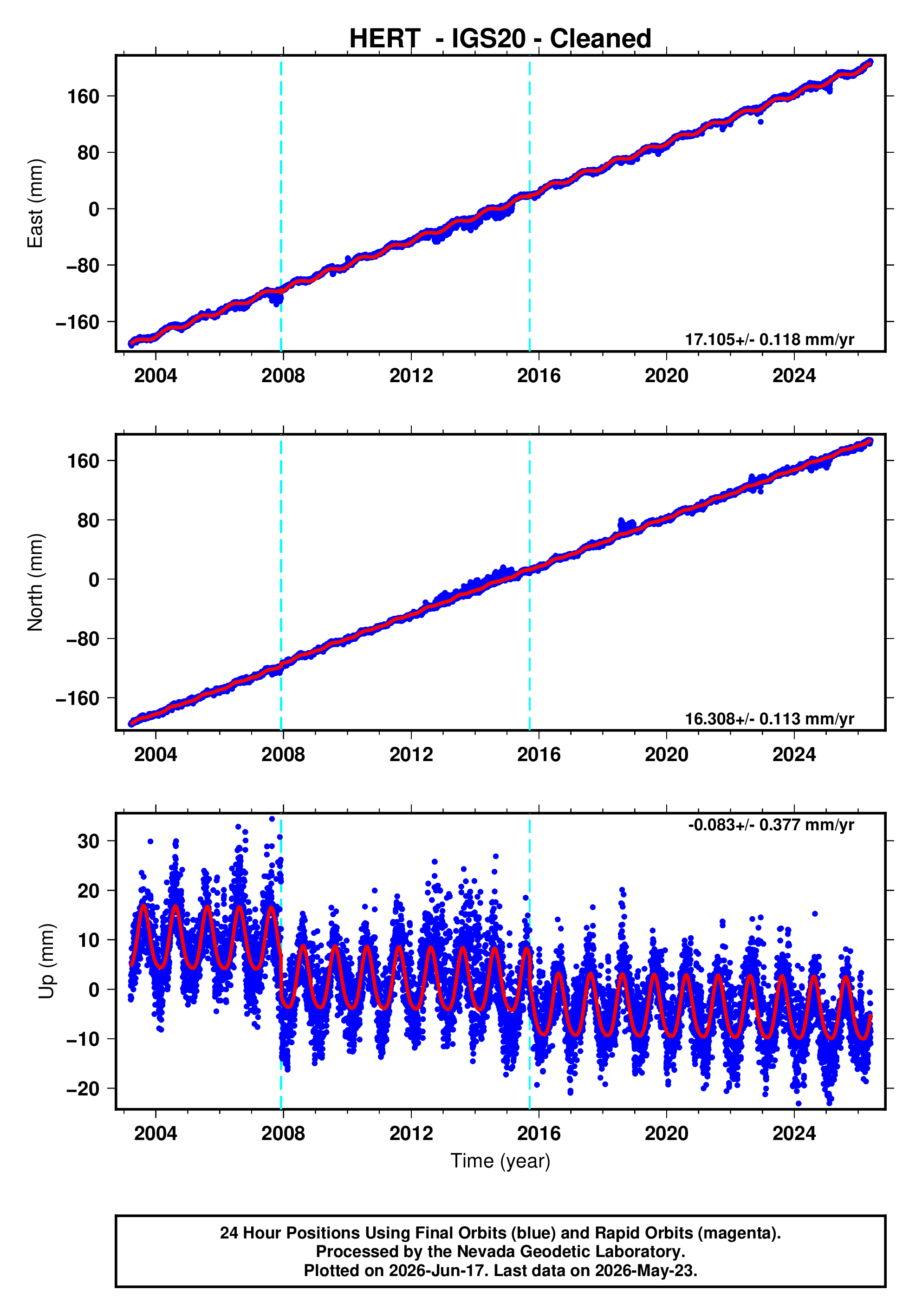

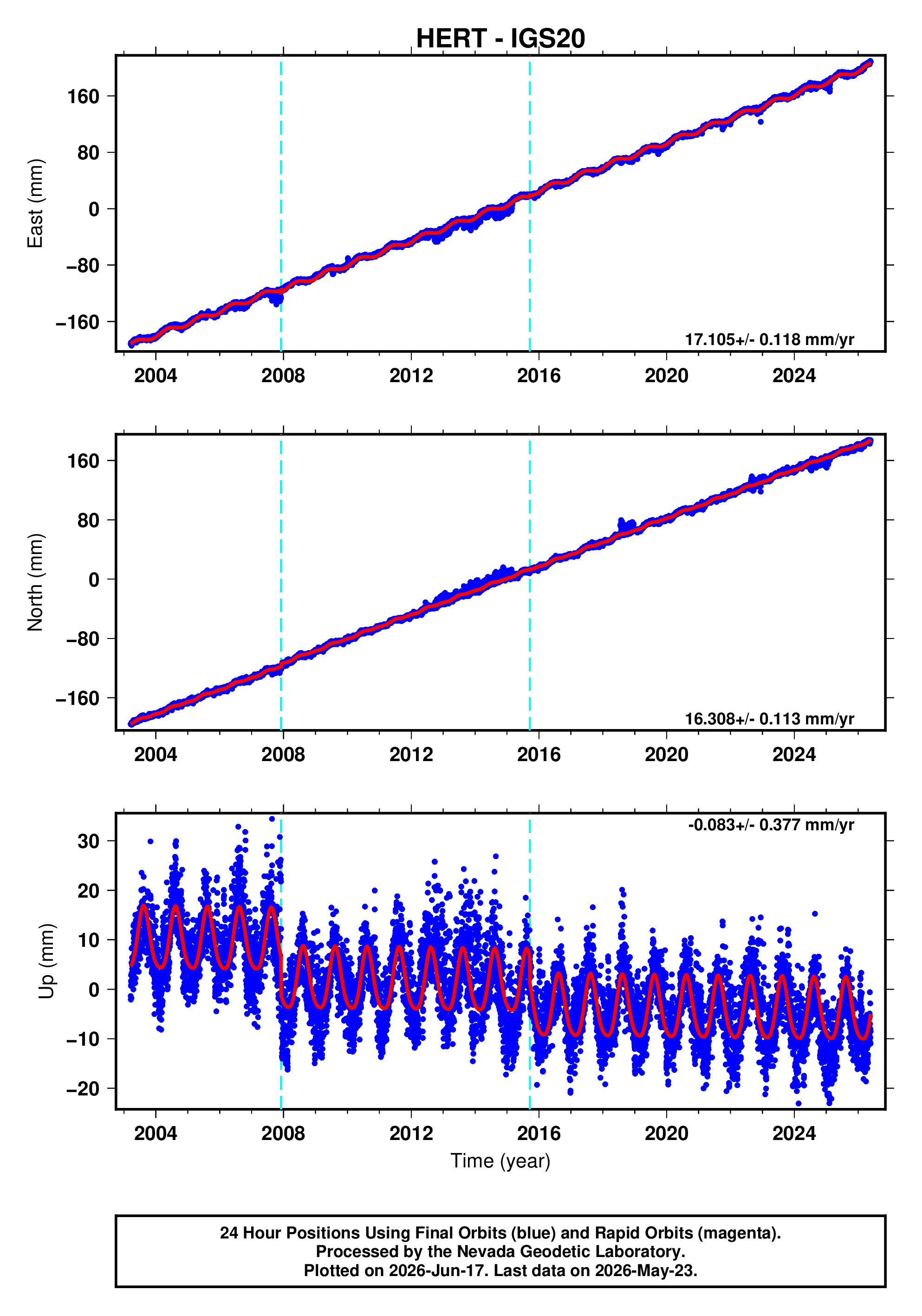

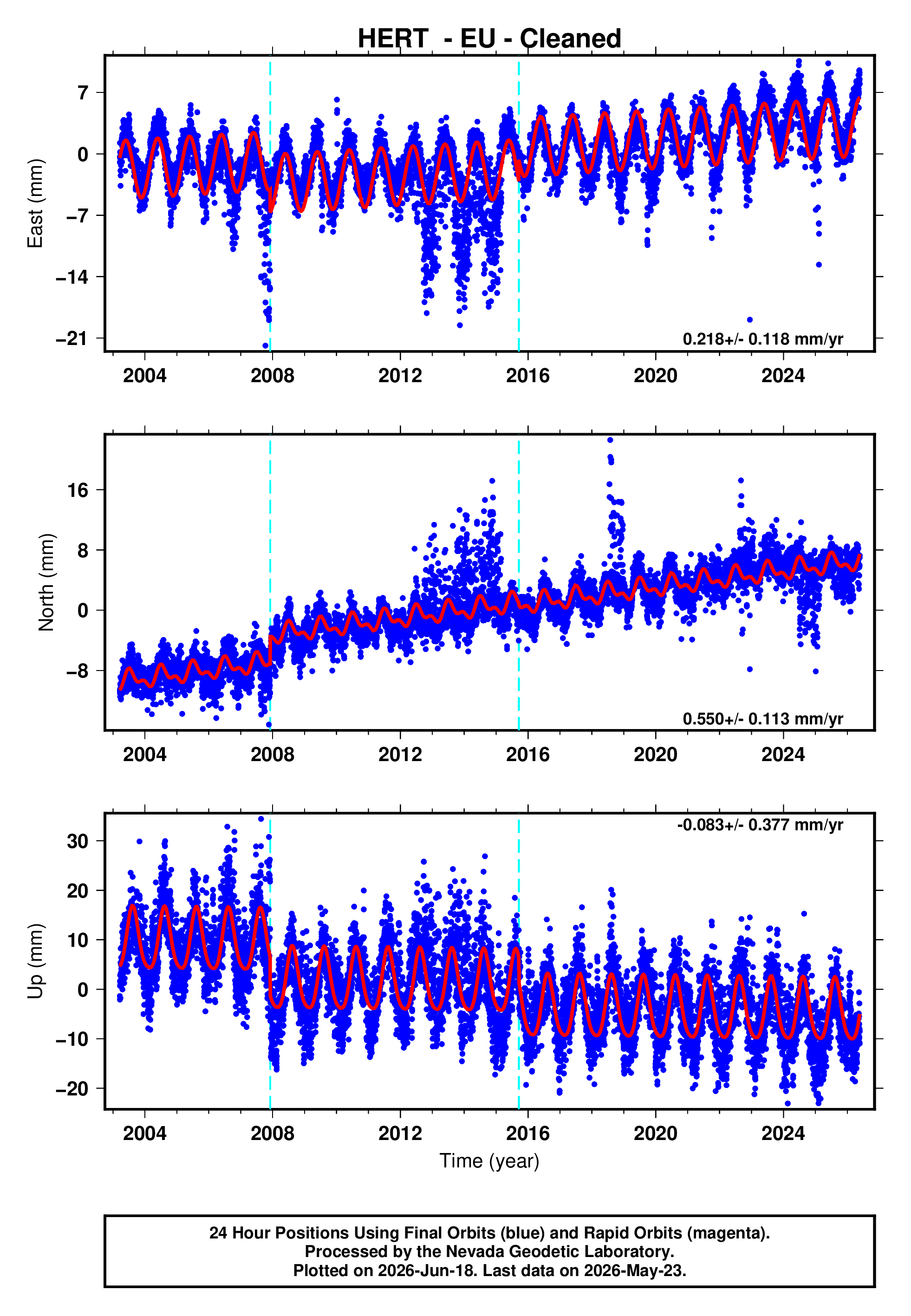

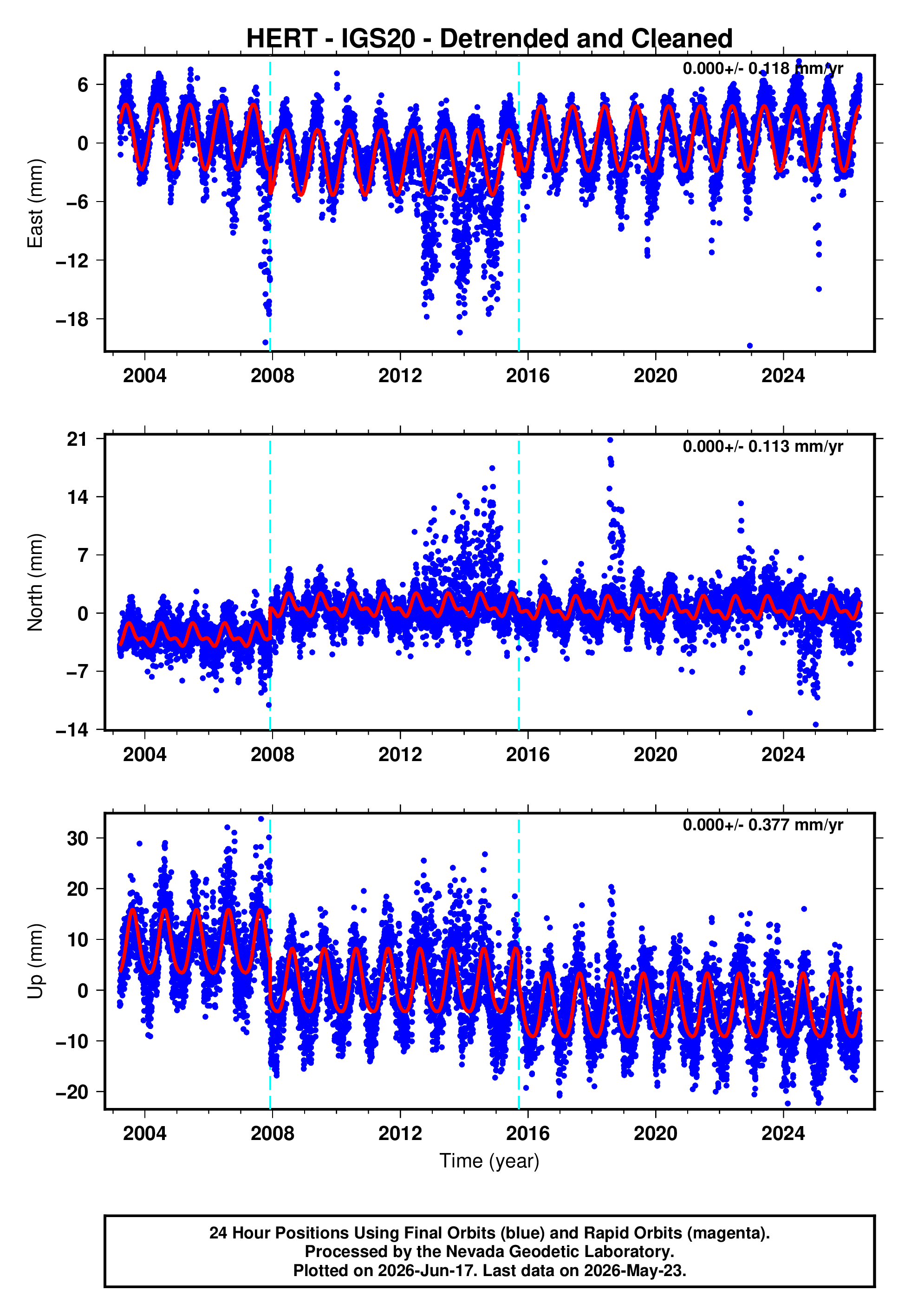

Click on the buttons on the left below to choose from available reference frames, latencies, and sample rates. Original, Cleaned (outlier removed) and detrended (using MIDAS rate) plots are available.
See plot explanation page for further explanations on plot contents.
Steps Information for this station
Station ID
Date (YYMMMDD)
Equipment Change Type/ or Event ID
Earthquake Magnitude
Distance (km)
HERT
07DEC04
Antenna_Code_Changed
-
-
HERT
07DEC04
Elevation_Cutoff_Changed
-
-
HERT
07DEC04
Receiver_Make_and_Model_Changed
-
-
HERT
15SEP18
Elevation_Cutoff_Changed
-
-
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.79) where M is earthquake magnitude.
