MAGNET GPS Station - Photo by Geoff Blewitt

Station ID : GUS5

Station operator information:

from RINEX headers

Data processed by:

Geoffrey Blewitt, Nevada Geodetic Lab.

Latitude: 58.417

Longitude: -135.697

Height: 20.013 meters

Time Series Data

(ascii text)
24 Hour Final Solutions


env xyz


env xyz
24 Hour Rapid Solutions

FID (~IGS08)



env readme xyz readme

QA files

ftp link

Rapid 5 Minute Solutions

Available Next Day
(8-32 hr. latency)


ftp link

Ultra Rapid 5 Minute Solutions

Available Next Hour
(1-2 hr. latency)


ftp link

Cite this product as: Blewitt et al.,(2018).

See this link for suggested full citation text.

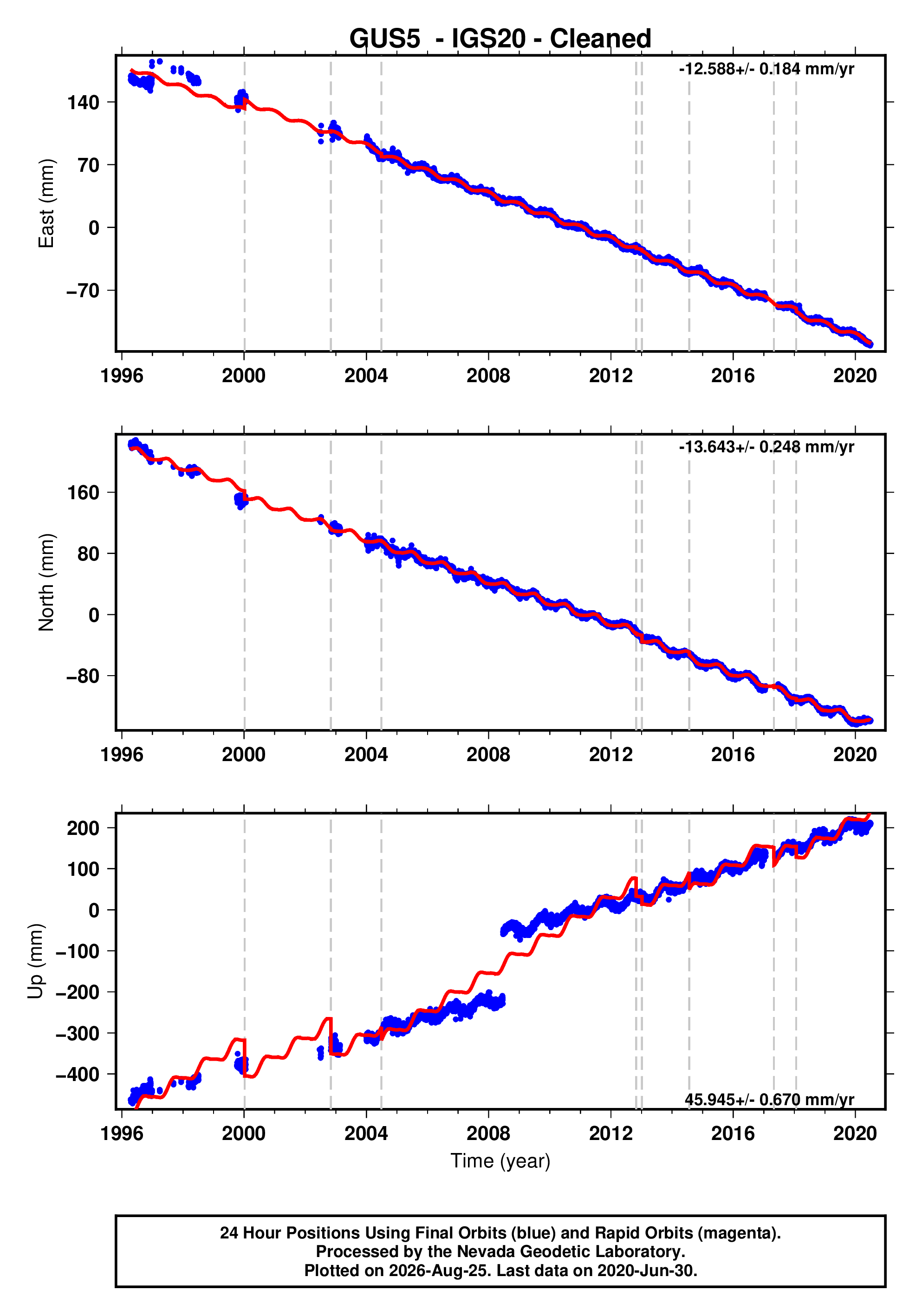

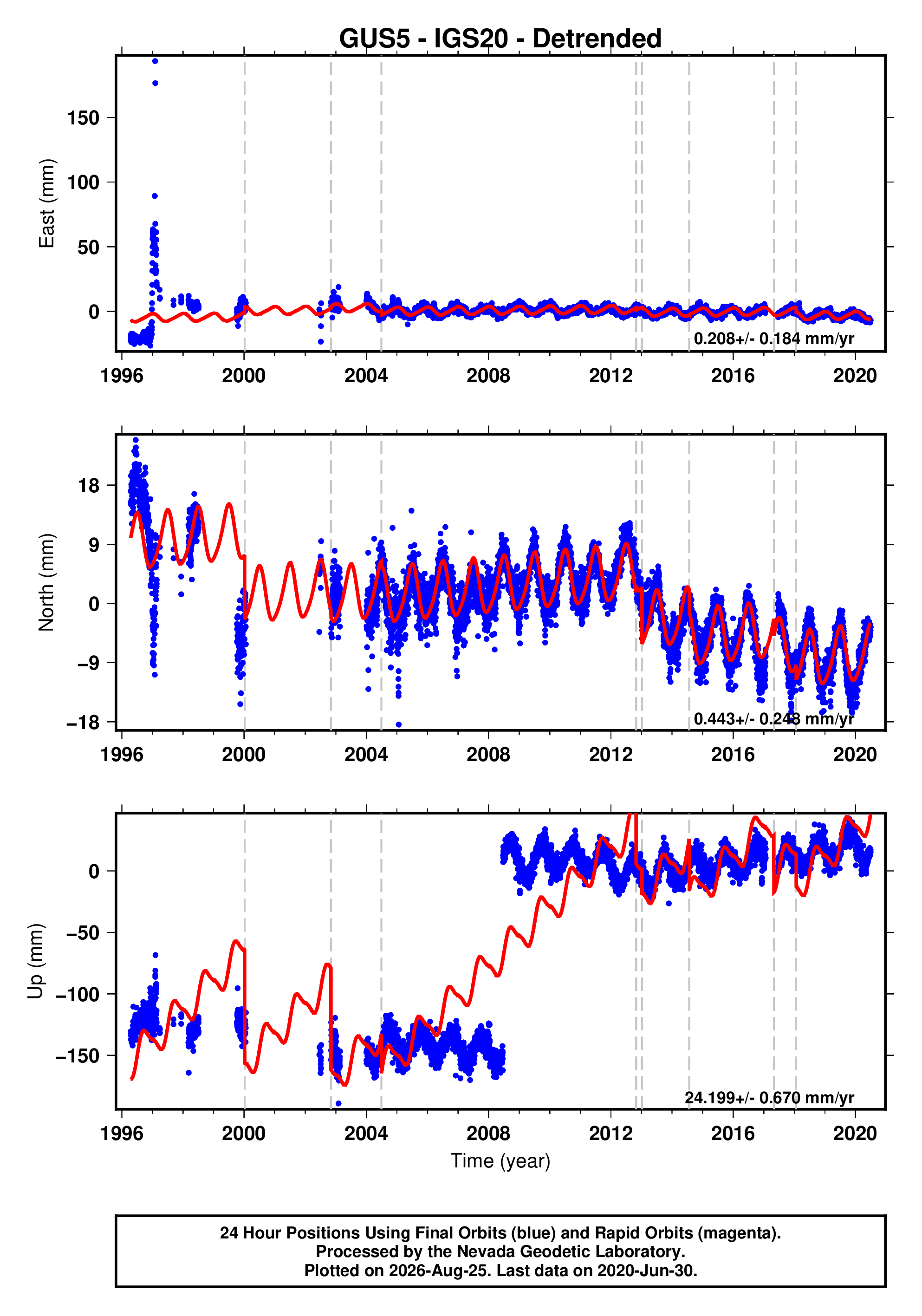

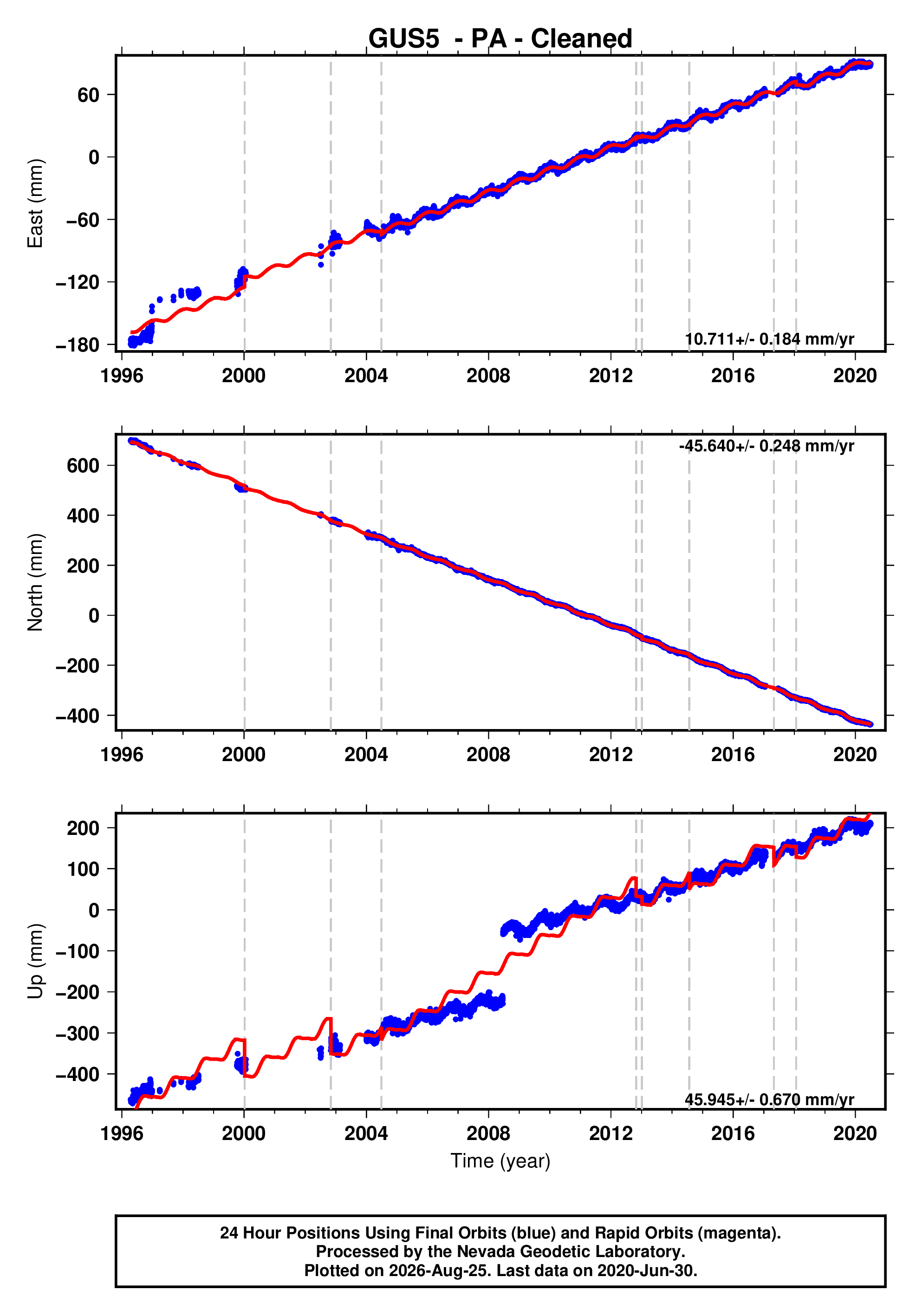

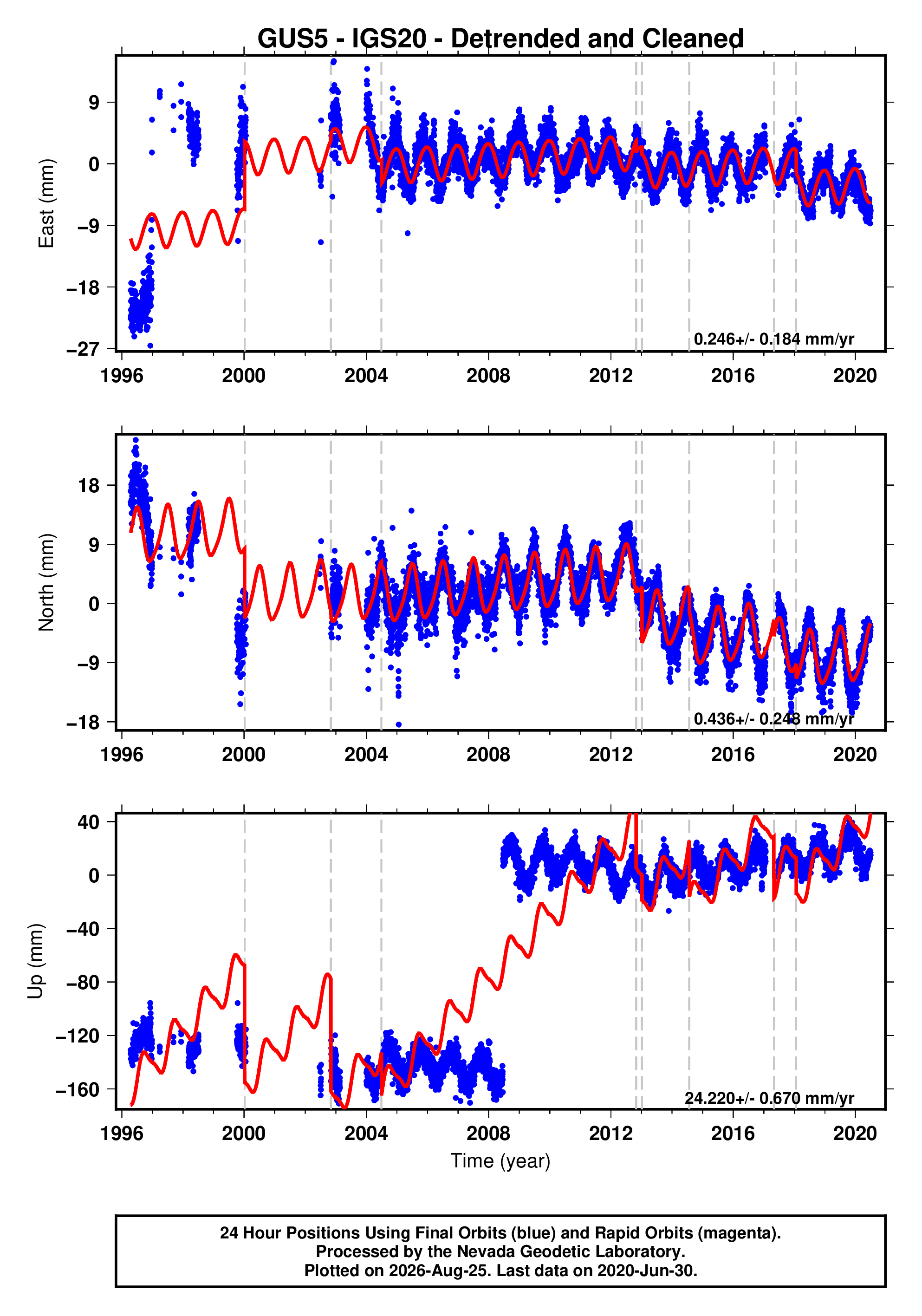

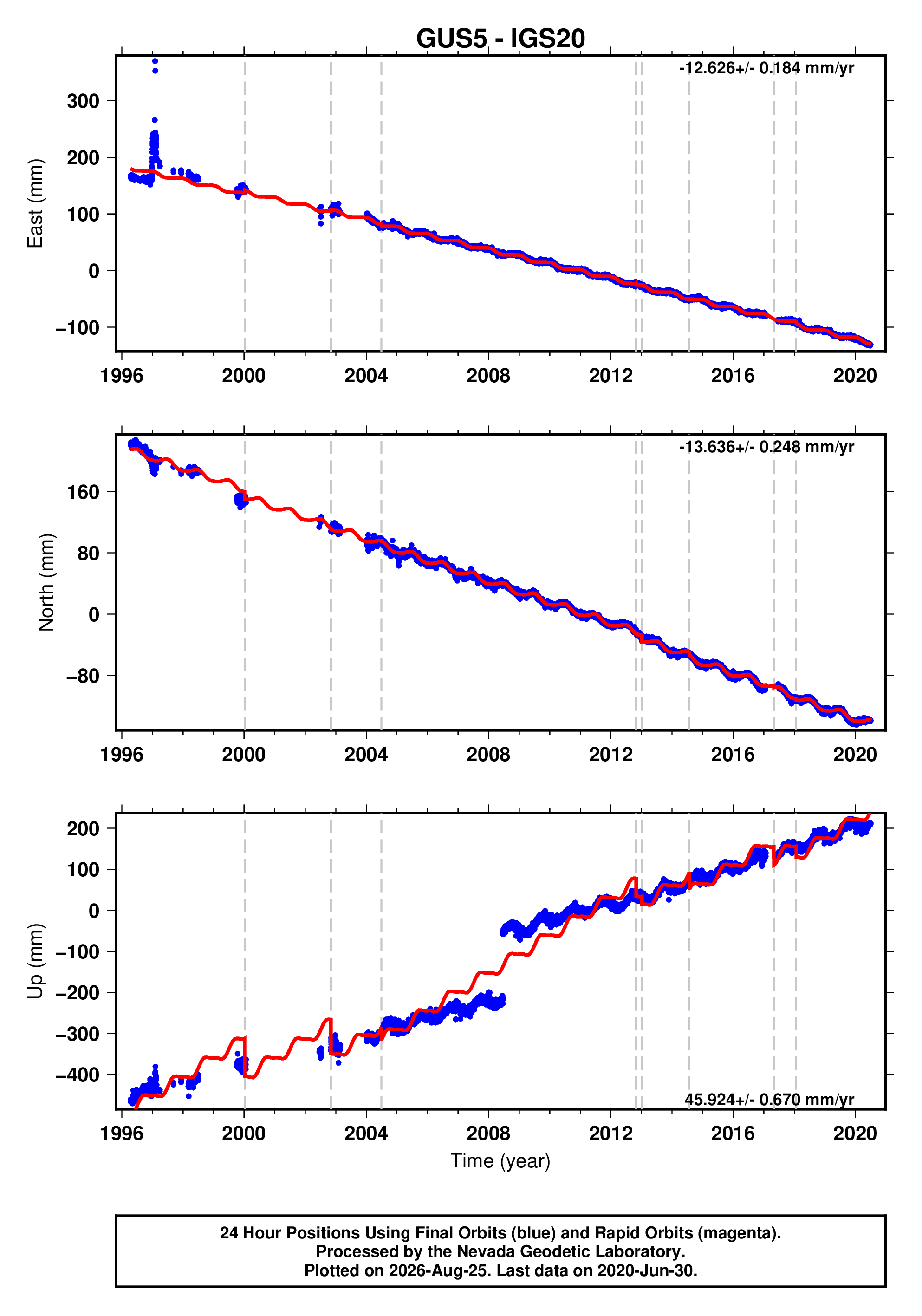

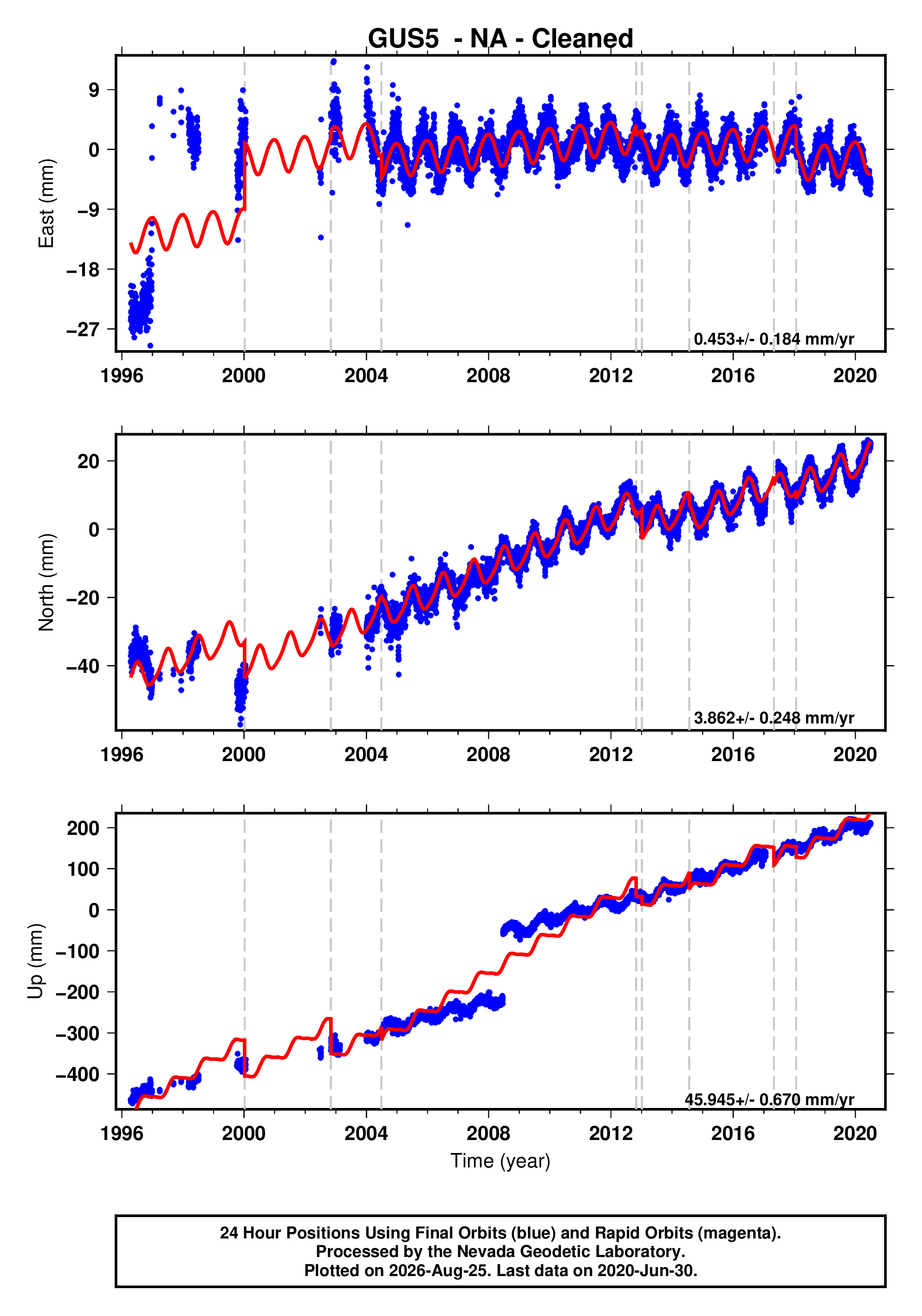

Station Plots

Explanation of Plots

IGS08 IGS08 Cleaned NA12 NA12 Cleaned Rapid 5 min. Ultra Rapid 5 min.
Not Available
Not Available
Not Available
Not Available
Not Available
Not Available

Steps Information for this station

Station ID Date
Equipment Change Type/
or Event ID
GUS599MAY27 usp00098us 5.6 90.1
GUS500JAN06 usp0009ktq 6.1 80.5
GUS502NOV03 usp000bg0m 7.9 848.2
GUS512OCT28 usp000juhz 7.8 665.3
GUS513JAN05 usp000jxum 7.5 342.2
GUS514JUN04 usc000rauc 5.7 90.9
GUS514JUL25 usb000rx5i 6.1 74.7
GUS517MAY01 us10008mel 6.2 166.4
GUS517MAY01 us10008mgu 6.3 167.2
GUS518JAN23 us2000cmy3 7.9 852.6
GUS518MAY27 Reference_Frame_Change:_IGS08_to_IGS14 - -
Distance is from this station to earthquake epicenter in km. A potential step record appears when this distance is less than 10^(M/2 - 0.8) where M is earthquake magnitude.
Steps for all stations are given in the master step file database (link)
